FRENCH FITNESS T600 User manual

ASSEMBLY MANUAL
FRENCH FITNESS T600 TREADMILL
W/7" BLUE LCD SCREEN
FF-T600

WARRANTY
•Padded Handrails
•Steel Tube Thickness: 3mm
•Motor Power: Rated power 3CHP, Peak 7HP
•Rated Voltage: 110V
•Speed: 1-20 MPH in 0.1 MPH Increments
•Incline Levels: 20
•7" Blue LCD Screen
•Number of Preset Programs: 12
•CE, EMC, SGS, EN957
•California Residents see Prop 65 WARNINGS
FEATURES
TECH SPECS
10 Years Parts, 1 Year Labor (Commercial)
•Running area: 62.9" x 21.6" (1600mm x 550mm)
•Max User Weight: 396.8lbs (180kg)
•Weight: 449.7lbs (204kg)
•Shipping Weight: 493.8lbs (224kg)
•Dimensions: 89.7"L x 37.4"W x 66.9"H (L:2280mm, W:950mm, H:1700mm)
•Shipping Dimensions: 90.5"L x 39.3"W x 25.9"H (L:2300mm, W:1000mm,
H:660mm)

1. Please read this manual carefully before assembly and using. In
his manual, you can know how to assemble and use this treadmill
correctly. When you use this treadmill, we think you already read this
manual.
2. The user manual should be kept properly for easy viewing.

DIAGRAM ...............................................................................................................5
PACKING LIST .......................................................................................................6
TECHNICAL SPECIFICATION ...............................................................................8
ASSEMBLY INSTRUCTION AND PROCEDURE ...................................................9
OPERATING INSTRUCTION(LED) ......................................................................11
OPERATING INSTRUCTION (TOUCH SCREEN)................................................16
ERROR DISPLAY AND HANDING METHOD (LED) ............................................21
DEBUG .................................................................................................................23
MAINTAINANCE ...................................................................................................24
SAFETY PRECAUTIONS .....................................................................................26
TABLE OF CONTENTS

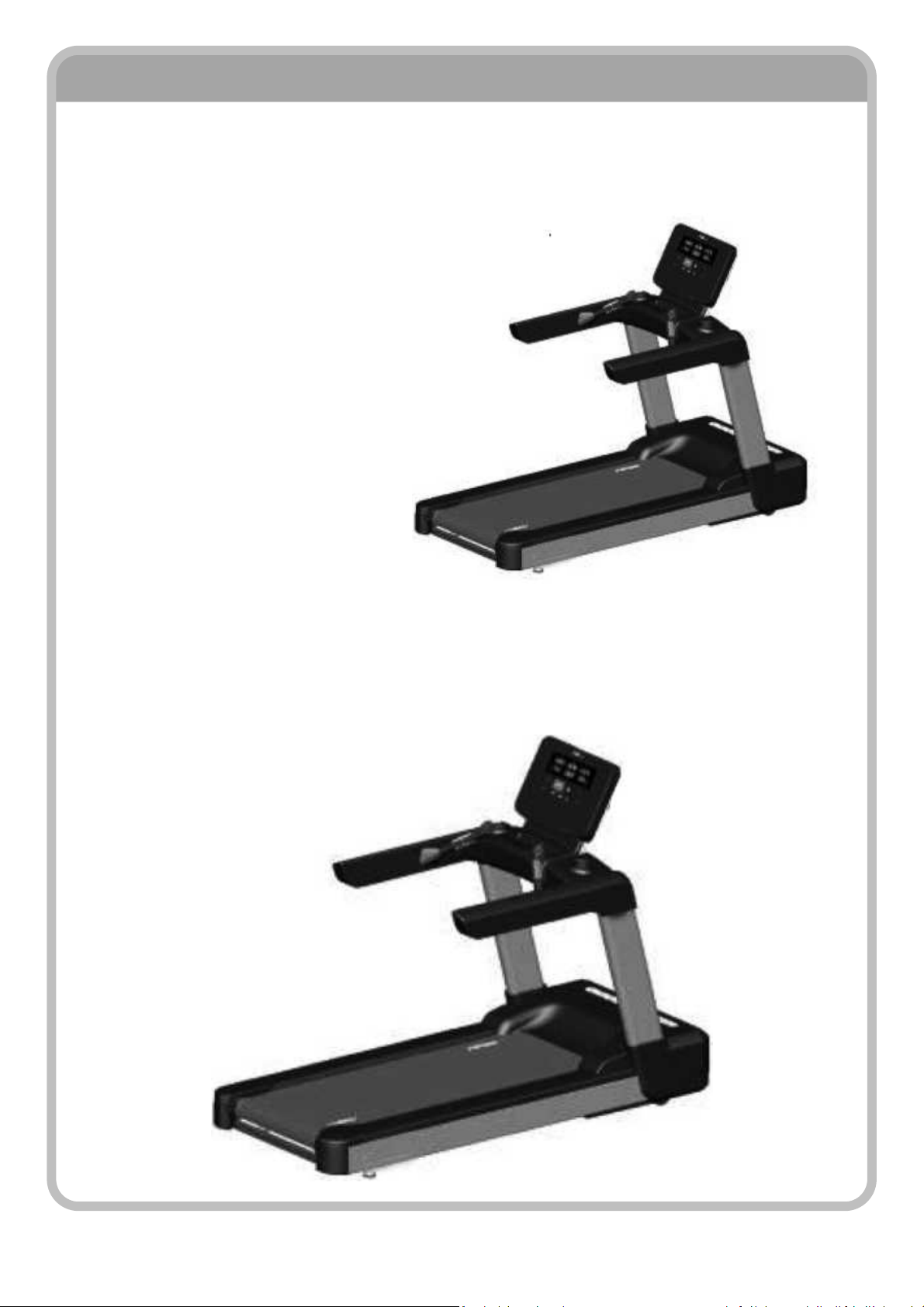

DIAGRAM

NO. Name Quantity Remark
1
Platform
1
2
the stand columns on the
right and the left
2
3 Electronic watch rack
1
4 Tool kit
1
PACKING LIST

NO.
Name
Quantity
Remark
1
power line
1
2
silicone oil
1
3
cross screwdriver
1
4
alien wrench
M6
1
5alien wrench M8 1
6
Manual
1

6
Input power voltage: AC 220V+ 10% (50Hz / 60Hz) Motor
rated power: 3.0HP (2.2Kw)
Electric machine max power: 7HP Work environment
temperature: 0—40°C Speed range: 1.0-22.0(km/h)
Time range: 0:00 — 99:59 (min: sec)
Distance range: 0.00 —99.9(km)
Heat range: 0 —999(Kcal)
Heart rate range: 50 — 256 Incline degree: (0—20) %
Overload protector specification: 13A Power cord
specification: 16A AC 250V Size :
2100mm(L)*930mm(W)*1550mm(H)
Net weight: 171kg
TECHNICAL SPECIFICATION

7
1. Open the package and put the platform in a proper place.
2. Depart the upper motor cover and side stand column covers with cross screwdriver.
3. Depart the screws on the right stand column and get communication lines through the holes. Fix
the right stand column with the departed screws by Allen wrench(8mm).
ASSEMBLY INSTRUCTION

8
4. Depart the screws in the holes of the
left stand columns, and install the left
column. Fix it with the screws by Allen
wrench(8mm).
5. Take out of the electrical meter.
Depart the screws which connect he
columns fix the electrical to the left and
right stand columns, then connect the
communication line of the right stand
column. Fix the electrical meter to the
right and left columns with Allen
wrench(8mm).
6. Fix tightly the upper and lower screws
of the stand columns.
7. Install the departed upper motor cover and side stand column covers with cross screwdriver.
8. Assembly completion.

9
Operation instructions

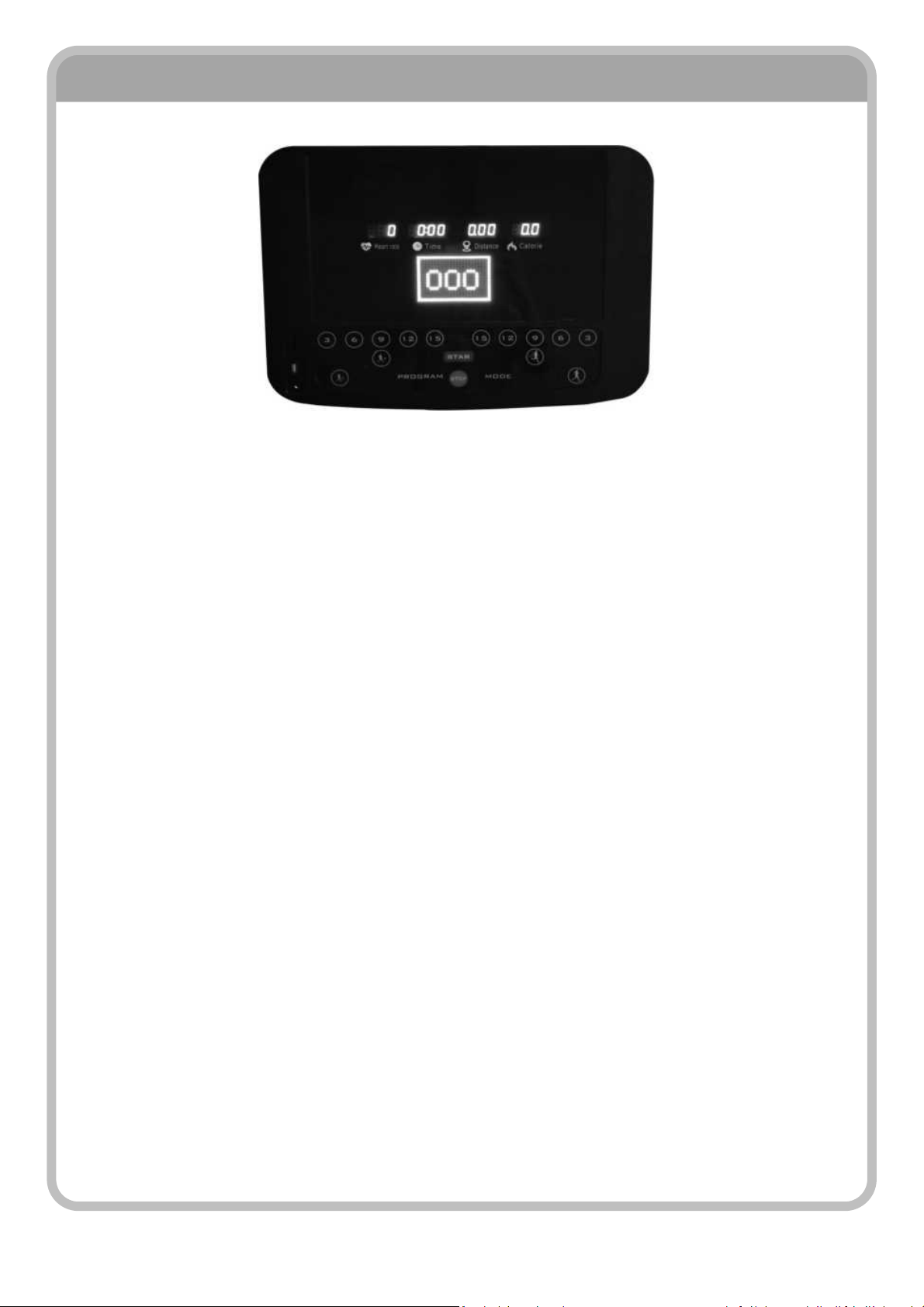

LED window displays the followings:
A. Speed window: displaying the speed. Range: 1.0-22.0KM/H
B. Incline window: displaying the incline. Range:0-20 segments
C. Time window: displaying the time. Range: 0:00-
99:59(min:sec)
D. Window: displaying distance. Range: 0.00-99.9KM.
E. Calorie/heart rate window: displaying calorie/heart rate. Calorie Range: 10.0-
999Kilocalorie. heart rate range: 50-200, for reference only. It is prior to display the
heart rate when sensing the heartbeat, while default displaying calorie in standby status.
F. Dot matrix window: In the standby mode, the dynamic running is displayed. In the
common mode, the 400-meter running circle is displayed. In program mode, the dot
matrix displays the program speed and the incline chart.
2.Function buttons: start, stop, program, mode, speed+/-,
incline+/- 3.Instructions of the function buttons:
A. Program: In the stop condition, press this key and select" pOl P02 P03 P04
P05 P06 " ......
B. Mode: In the stop condition, pressing the”mode” can make a cyclic selection of the
programs: manual program—time countdown—distance countdown—calorie
countdown
C. Start: the motor is started from the stop mode
D. Stop: it can stop the motor in operation
E. Speed+/-: In certain mode, pressing them will add or reduce the speed when the
motor is in operation.
F. Incline+/- In certain mode, pressing them will add or reduce the incline when the
motor is in operation.
OPERATING INSTRUCTIONS(LED)

10
1 .Program instruction:
A. A manual mode includes: the common mode, time countdown, calorie countdown,
distance countdown.
B. 12 fixed programs: P1,P2 ...... PI2.
2.Start instruction:
A. Stick the safety sticker in the place of the safety lock.
B. Press the “Start”, the dot matrix will display: 3-2-1, and the buzzer is sounded with
every minus, then the motor is started.
The manual mode:
1 .How to enter the manual mode:
A. Tum on the power and enter the common mode
B. In the stop status, pressing the “Mode” can enter the common mode
2.Three setting functions in the manual mode: time setting, distance setting and calorie
setting
A. When entering the manual mode, the window displays the time: 0:00
B. In the manual mode, pressing the”mode” to enter into the time countdown. The tome
window displays time and flickers. The initial time is 15:00. The time countdown can be set
by pressing “Speed+/-“ or “Inclline+/-“. The range of time setting is 5:00-99:00.
C. In the time countdown mode, pressing the “mode” can enter the mode of calorie
countdown. It displays 50.0Kc at the initial. Pressing the “Speed+/-“ or “Incline=/-“can set the
range from 10.0 to 999kc. It adds or reduces lkc with every pressing.
D. In the calorie countdown mode, pressing the “mode” can enter the mode of distance
countdown. It displays 1.00km at the initial and the distance can be set by pressing
“speed+/- “ or “Incline+/-“. The setting range is 0.5-99.9km, with 0.1km change each
pressing.

11
A. Pressing “Start”, the motor start within 3 seconds and the initial speed is 1 .OKM/H
B. Press ““Speed+/-” can change the speed of running
C. Press ““Incline+/-”can change the incline of treadmill
D. The middle button can instantly set the speed
E. The middle button can instantly set the incline
F. Press “Stop”can make the treadmill slow down to stop
G. When the setting time/ calorie/distance is reduced to 0, the buzzer is sounded like “Bi Bi Bi”,
and the dot matrix displays “End”. After5 second, the machine returns to “stop”, and the buzzer
is sounded like “Bi Bi“ Fixed program mode
l.The initial time setting is lOminutes and only time can be set. The range is 5:00—99:00. The
setting number can be adjusted by pressing the “Speed+/-“ or “lncline+/-”
Pressing “Start”, the motor starts and the speed gradually adds to the first segment which the
automatic program marks (more details in the program table).

12
.
....... .. Time
Formula
Setting time/10=operation time per period
1
2
3
4
5
6
7
8
9
10
PI
Sneed
2
4
3
4
3
5
4
2
5
3
Incline
1
2
3
3
1
2
2
3
2
2
P3
Sneed
2
5
4
5
4
5
4
2
3
2
Incline
1
2
2
3
1
2
2
2
2
1
P4
Sneed
3
6
7
5
8
5
9
6
4
3
Incline
2
2
3
3
2
2
4
6
2
2
P5
Sneed
3
6
7
5
8
6
7
6
4
3
Incline
1
2
4
3
2
2
4
5
2
1
P6
Sneed
2
8
6
4
5
9
7
5
4
3
Incline
2
2
6
2
3
4
2
2
2
1
P7
Sneed
2
6
7
4
4
7
4
2
4
2
Incline
4
5
6
6
9
9
10
12
6
3
P8
Sneed
2
4
6
8
7
8
6
2
3
2
Incline
3
5
4
4
3
4
4
3
3
2
P9
Sneed
2
4
5
5
6
5
6
3
3
2
Incline
3
5
3
4
2
3
4
2
3
2
P10
Sneed
2
3
5
3
3
5
3
6
3
3
Incline
4
4
3
6
7
8
8
6
3
3
Pll
Sneed
2
6
7
4
4
7
4
2
4
2
Incline
4
5
6
6
9
9
10
12
6
3
P12
Sneed
2
5
5
4
4
6
4
2
3
4
Incline
3
5
6
7
12
9
11
11
6
3

13
Initial setting the initial data setting range display
range Time(min:sec)
Speed (KM/H)
Incline(segments)
Distance (KM)
Calorie (Kilocalorie)
The function of the safety lock“
In any mode, pull the safety lock and the LED window displays “SAFE”. The buzzer is sound as “Bi Bi
Bi ”.If the motor is in operation , it will stop immediately. The pressing does not work one the safety
lock falls down.
The power saving mode
The system is power-saving. With lOminutes in the “waiting status”, the system will enter into the
power saving mode if there is no direction inserted. The display is automatically turned down and
the system can be awakened again by pressing any button.
Turning off Precautions:
2.1 Check whether the power is loaded before exercise; Check if the security lock is valid.
2.2 If there is any abnormal situation during the exercise, the safety lock can be pulled
off, and the running will slow down until total stop quickly; Then put in the safety lock,
reset the device and wait for input instructions.
2.3 If there is any problem with the machine, please contact the dealer. Non-professional
personnel, please do not try to dismantle or repair the machine to avoid damage.
3. Calorie calculation method:
70.3 * t V (Km/h) (h) x (1 +? %)
At zero ascension, 70.3 calories are burned per kilometer running

14
1. brief introduction:
This treadmill apply the Android 4 core system with same operates method as
traditional treadmill. But in terms of entertainment, the Android system is fully
embodied, and more playable, making your exercise not boring!
2. Interface Introduction:
This kind treadmill mainly consists of 9 operating interfaces: 1. The main
interface. (2) model (distance, time, calories) 3. The language interface 4. Quick
start interface 5. Software application interface 6. Reporting interface 7. 8. Imaging
simulation interface program interface 9. Set the interface 1. The main interface

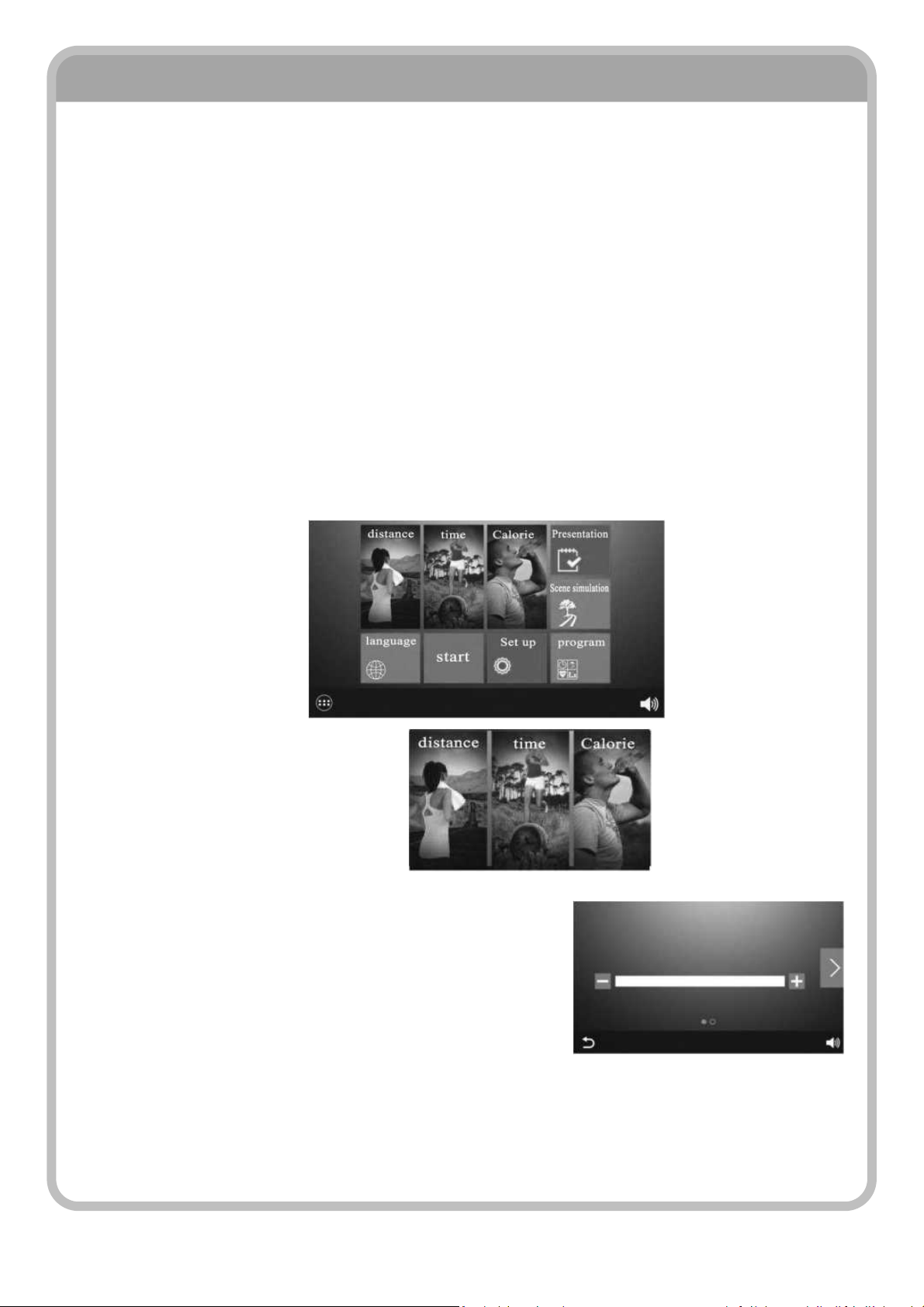

When the treadmill is switched on and starts completely, it will enter the main
interface. As shown below
All treadmill operations can be
performed under the main interface
model (distance, time, calories)
When the user presses one of the three modes of the
treadmill under the main interface, it will enter one of
the three modes of the treadmill. As shown in the
figure below:
OPERATING INSTRUCTIONS (TOUCH SCREEN)

15
It indicates return.
It indicates the volume adjustment.

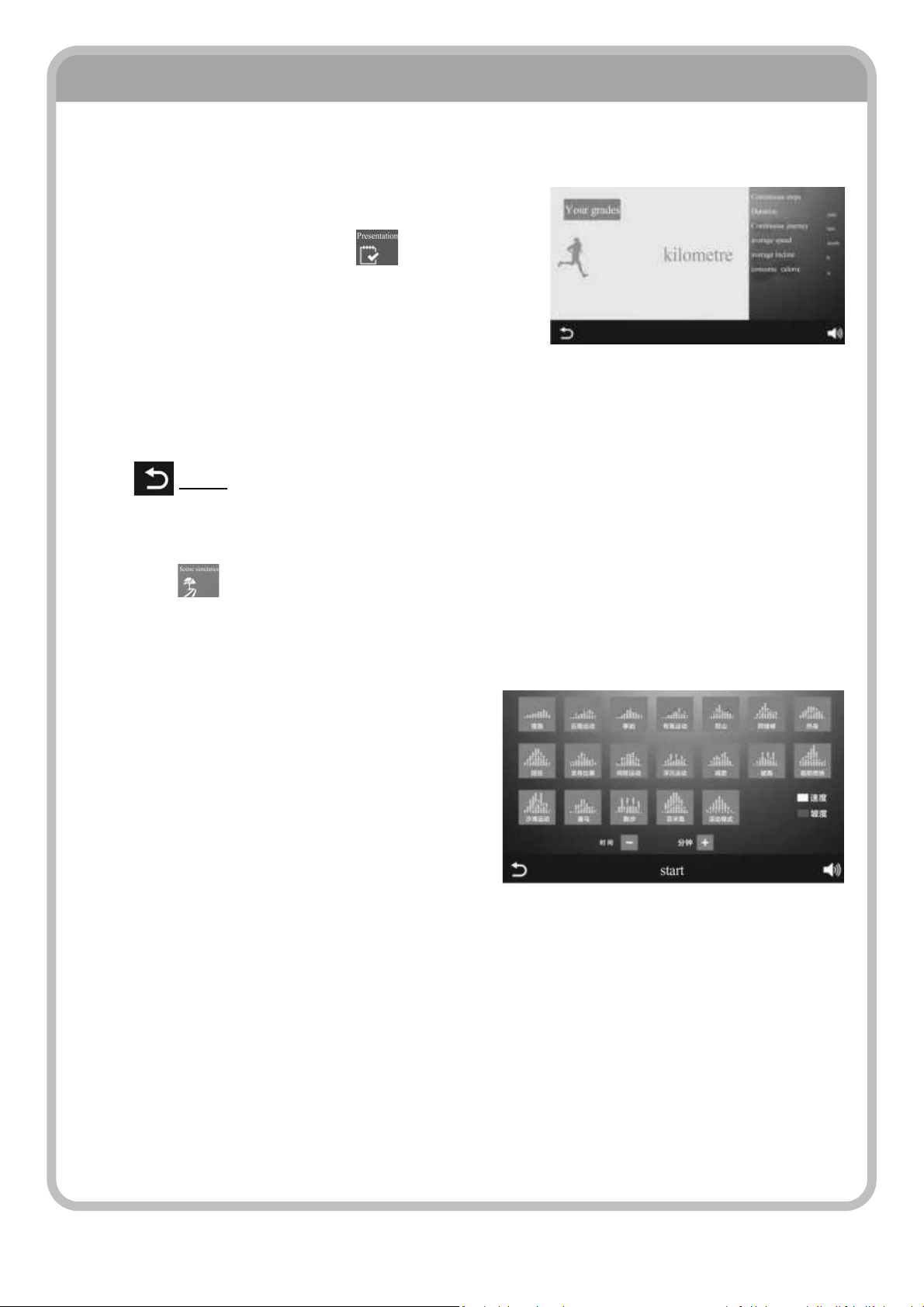

3.Click the
button on the main interface
and
start.
After the set-up, click
to return to the main interface and according to the
Distance: It indicates the distance model of the traditional treadmills.
The system default distance is 01 km and the maximum limits is 99 km.
The users can choose the suitable movement distance according to
their needs by adjusting
the
Time: It indicates the time model of the traditional treadmills. The
system default time is 30 minutes and the maximum limits is 99
minutes. The users can choose the suitable movement time according
to their needs by adjusting the
Calorie: It indicates the calorie model of the traditional treadmills. The
system default calorie is 50 kilocalorie and the maximum limits is 999
kilocalorie. The users can choose the suitable expenditure of energy
according to their needs by adjusting the
When the users adjust the
parameters according to their own
situation, press on the right side of
the screen. As shown below:
The first item is based on the users to set the
parameters which can not re-enter the input. The following age, weight, height system
has the default parameters, and the users can also re-enter. When the set-up
has no problems, click the to
then you can see the language set-up
interface.AS shown below:
The default of the system is: Simplified Chinese, English two kinds of operation on
the interface. If you need multiple languages, you need to communicate with the
manufacturer. User set the language to operate system display.

16
Click the
Main
Interface.
click the
4.Quick Start Interface;
button on the main
interface and you
can see the quick start interface. As shown
below:
Note: the distance mode, time mode,
calorie mode and the quick start interface use the same interface. In the process of
starting, it is useless to click You must click the pause button and then you
can return.
The function of the two buttons is the same as the function on the
In the process of running the user is
too boring, and the function of the two
button is to increase the sport of
entertainment. The introduction of the two
is bellowed:
When the users complete this cycle
movement,
button and then there
will be an interface of statistics. As shown
below:
The system here willcount thesports time, distance, average speed, average slope
and the calorie you consume. Click the button and return to the main interface
5.Utility software interface.
On the main interface, click the button and you’ll see the utility software
interface. There is APK software which can watch movies and listen to music online.
About the software, some come with the system and the users’ own downloaded
software will be also saved here. There is no need to return to the main interface
when you start the treadmill. As shown below:

17
When you scan the software, you can start or
stop the treadmill directly. And you also can adjust
the treadmill lifting and speed.
On the main interface click the button and
6. Report interface.
you' II see the report interface. As shown below:
Note: The data under the report interface is all the movement data of the last
movement cycle recorded in this treadmill without power failure. There is no data
Click when the treadmill powers off or to start a not worked treadmill, and return
to the main interface
7. Real scene simulation interface
this button at the main interface to enter the live simulation interface
The main function is to increase the user's sense of entertainment while running
8.When you press this button on the
main screen, enter the program
interface.
As shown in the following figure:
The treadmill system has a total of 19
fixed procedures, the system default
movement time is 30 minutes, through
the adjustment to The maximum limit is
99 minutes

18
The user selects the program of good movement according to his own condition and
sets the movement time, then starts the "fast start" interface and starts the
treadmill.Press back to main interface 9.System settings
interface and enter the system setup interface of thetreadmill. But in order to ensure
the stability of the system, we added the secret in
here, so that neither the manager or owner of this
machine cannot access the settings interface, as
shown in the following figure:
Note: password 006688, six digit password. After
the nput is correct, click "confirm" to enter the
system settings interface. As shown in the
following figure:
System settings: common settings for Android systems.Such as WIFI switches,
brightness, sound, etc.
Self-test function: not open to ordinary users,please do not try
Manual upgrade: not open to ordinary users, please do not try
Application installation: click here
when a user installs software with an
external storage device
File management: ordinary users do
not try, this file contains the system files
Parameter settings: factory
parameters have been adjusted to the
best state, ordinary users do not tamper
with Factory settings: not open to
ordinary users, please do not try
