Installation and Operation Manual
Thru-the-Wall Conditioners
Air Conditioners and Heat Pumps
WallMaster®WCT08, WCT10, WCT12
WCT10, WCT12, WCT16, WET10, WET12,
WET16, WHT12
115-Volt:
230-Volt:
93001017_00

2 3
Register your air conditioner

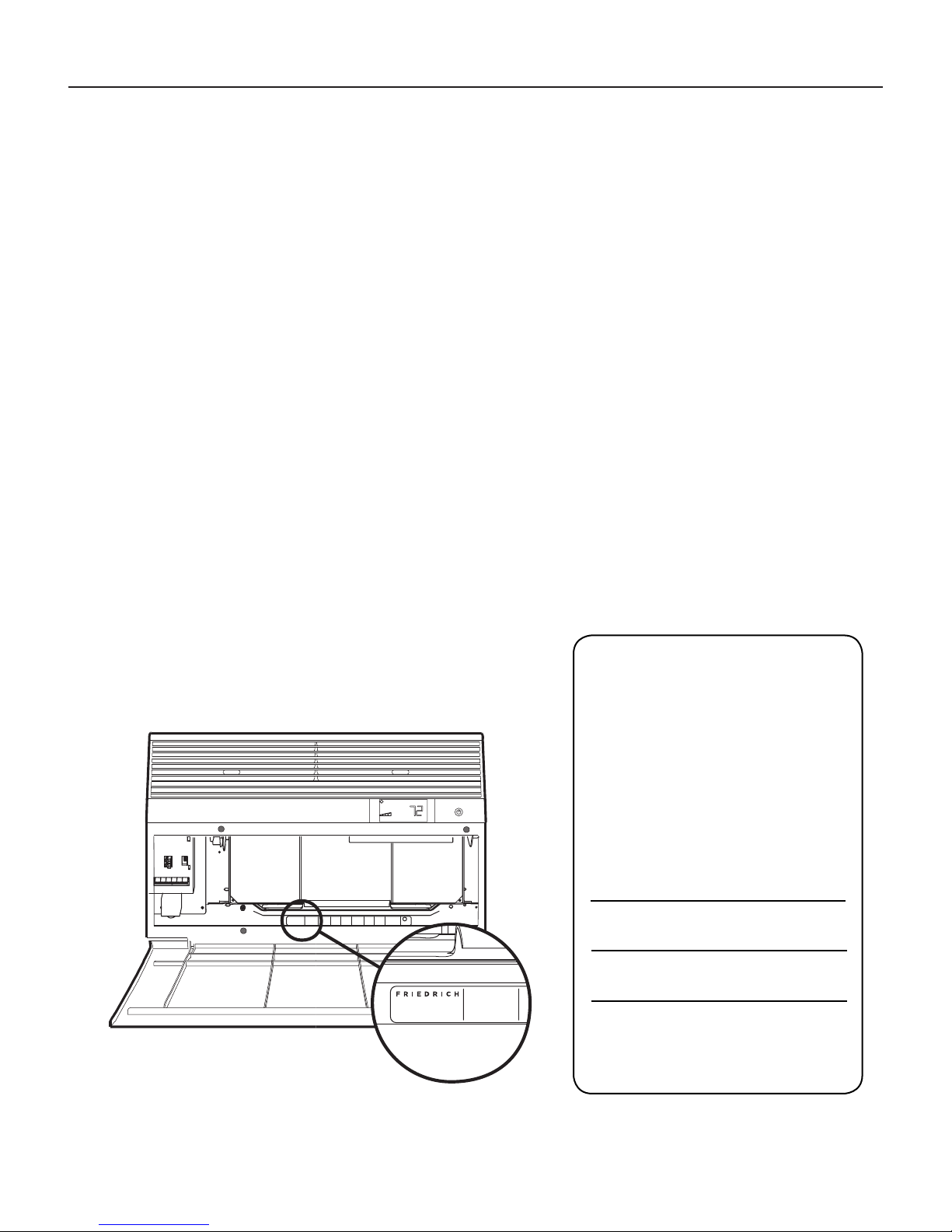

Model information can be found on the name plate
behind the front cover.
Please complete and mail the owner registration
card furnished with this product, or register online
at www.friedrich.com.
For your future convenience, record the model
information here.
MODEL NUMBER
SERIAL NUMBER
PURCHASE DATE
MODEL NUMBER
YS10M10A
SERIALNUMBER
LICY00008
VOLTS 115
60 HZ / 1 PH
VOLTS MIN 108
COOLING
BTH/HR 6500
EER 12.0
AMPS 8.0
HEATING
BTH/HR 6500
EER 10.4
AMPS 7.0
REFRIGERANT
30.1 OZ R410A
XXXXXXXXX
600 PSIG HS
300 PSIG LS
XXXXXXXXXX
XXXXXXXXX
XXXXXXXXXX
XXXXXXXXXX
FUSE PROTECTED
CIRCUITS USE 15A
TIME DELAYFUSE
X XX
XXXXX
XXXXXXXXXX
UL
AIR CONDITIONING CO.
SANANTONIO, TEXAS
ASSEMBLED IN MEXICO
MODEL NUMBER
YS10M10A
SERIAL NUMBER
LICY00008
AIR CONDITIONING CO.
SAN ANTONIO, TEXAS
ASSEMBLED IN MEXICO
Thank you for your decision to purchase the Friedrich High Efciency Air Conditioner. Your new Friedrich has been carefully engineered and manufactured to
give you many years of dependable, efcient operation, maintaining a comfortable temperature and humidity level. Many extra features have been built into
your unit to assure quiet operation, the greatest circulation of cool, dry air, and the most economic operation.
THANK YOU, on behalf of our entire company,
for making such a wise purchase.

2 3
Table of Contents
Safety Precautions ...................................................................................... 4
WARNING: Before Operating Your Unit ..................................................................... 5
Standard Filter Cleaning / Installation Instructions ........................................................... 6
Control Panel Operation .................................................................................. 7
New WallMaster Control Options .......................................................................... 20
Wi-Fi Set-Up Instructions ................................................................................ 21
Control Panel Operation Instructions ....................................................................... 22
Remote Control Operation ................................................................................ 23
Remote Effectiveness .................................................................................... 23
Airow Selection and Adjustment .......................................................................... 23
Installation Instructions .................................................................................. 24
Installation Instructions for WSE Sleeve .................................................................... 25
WallMaster Chassis Installation Instructions ................................................................ 27
Troubleshooting Tips .................................................................................... 29
Warranty .............................................................................................. 31

4 5
Safety Precautions
Your safety and the safety of others is very
important.
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is a safety Alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol with the word “WARNING”
or “CAUTION”. These words mean:
Indicates a hazard which, if not avoided, can result in severe personal injury or
death and damage to product or other property.
Indicates a hazard which, if not avoided, can result in personal injury and damage to
product or other property.
All safety messages will tell you what the potential hazard is, tell you how to
reduce the chance of injury, and tell you what will happen if the instructions are
not followed.
Indicates property damage can occur if instructions are not followed.
WARNING
Refrigeration system
under high pressure
Do not puncture, heat, expose to ame or incinerate.
Only certied refrigeration technicians should service
this equipment.
R410A systems operate at higher pressures than R22
equipment. Appropriate safe service and handling
practices must be used.
Only use gauge sets designed for use with R410A.
Do not use standard R22 gauge sets.
NOTICE
CAUTION
WARNING
SAFETY
FIRST
WARNING AVERTISSEMENT ADVERTENCIA
Do not remove, disable or
bypass this unit’s safety
devices. Doing so may cause
re, Doing so may cause re,
injuries, or death.
Ne pas supprime, désactiver ou
contourner cette l´unité des
dispositifs de sécurité, faire vous
risqueriez de provoquer le feu, les
blessures ou la mort.
No eliminar, desactivar o pasar
por alto los dispositivos de
seguridad de la unidad. Si lo hace
podría producirse fuego, lesiones
o muerte.
THINK

4 5
WARNING
Electrical Shock Hazard
Make sure your electrical receptacle has the
same conguration as your air conditioner’s
plug. If different, consult a Licensed Electrician.
Do not use plug adapters.
Do not use an extension cord.
Do not remove ground prong.
Always plug into a grounded 3 prong outlet.
Failure to follow these instructions can result
in death, re, or electrical shock.
Make sure the wiring is adequate for your unit.
If you have fuses, they should be of the time delay type. Before you install
or relocate this unit, be sure that the amperage rating of the circuit breaker
or time delay fuse does not exceed the amp rating listed in Table 1.
DO NOT use an extension cord.
The cord provided will carry the proper amount of electrical power to the
unit; an extension cord may not.
Make sure that the receptacle is compatible with the air
conditioner cord plug provided.
Proper grounding must be maintained at all times. Two prong receptacles
must be replaced with a grounded receptacle by a certied electrician.
The grounded receptacle should meet all national and local codes and
ordinances. You must use the three prong plug furnished with the air
conditioner. Under no circumstances should you remove the ground
prong from the plug.
Test the power cord.
All Friedrich room air conditioners are shipped from the factory with a
Leakage Current Detection Interrupter (LCDI) equipped power cord. The
LCDI device on the end of the cord meets the UL and NEC requirements
for cord connected air conditioners.
To test your power supply cord:
1. Plug power supply cord into a grounded 3 prong outlet.
2. Press RESET (see Figure 1).
3. Press TEST, listen for click; the RESET button trips and pops out.
4. Press and release RESET (Listen for click; RESET button latches and
remains in). The power cord is ready for use.
WARNING: Before Operating Your Unit
Figure 1
FRR072
WARNING:
TEST BEFORE EACH USE!
1. PRESS REST BUTTON.
2. PLUG LCDI INTO POWER
RECEPTACLE.
3. PRESS TEST BUTTON,
RESET BUTTON SHOULD
POP UP.
4. PRESS RESET BUTTON
FOR USE.
DO NOT USE IF ABOVE
TEST FAILS.
WHEN GREEN LIGHT
IS ON, IT IS WORKING
PROPERLY!
TEST
RESET
Once plugged in, the unit will operate normally without the need to reset
the LCDI device. If the LCDI device fails to trip when tested or if the
power supply cord is damaged, it must be replaced with a new power
supply cord from the manufacturer. Contact our Technical Assistance
Line at [phone]. To expedite service, please have your model
number available.
NOTICE
Do not use the LCDI device as an ON/OFF switch.
Failure to adhere to this precaution may cause
premature equipment malfunction.
Table 1
MODEL
CIRCUIT RATING
OR TIME DELAY
FUSE
REQUIRED
WALL
RECEPTACLE
AMP VOLT NEMA
NO.
WCT08, WCT10,
WCT12 15 125 5-15P
WCT10, WCT12,
WCT16 15 250 6-15P
WET10, WET12,
WET16, WHT12 20 250 6-20P

6 7
Standard Filter Cleaning / Installation Instructions
Figure 2
FRR071
HOW TO CLEAN YOUR AIR FILTER
Your Friedrich room air conditioner is equipped with a permanent/ washable mesh air lter. The lter serves to remove dust, pollen, and other impurities
from the air.
CHECK FILTER LIGHT
Your Friedrich room air conditioner is equipped with a check lter light that will illuminate after *45 – 60 days of fan operation.
To reset the CHECK FILTER reminder press the CHECK FILTER button. (While the reminder is set for 45 – 60 days of operation, we recommend checking
the lter every 30 days for optimal performance.)
*Actual timer is set for 1000 hours of fan cycle operation.
FILTER ACCESS
Remove the FRONT PANEL. Using the handles, pull panel out until it is released from the two retaining snaps. Place the cover aside carefully. Remove the
lter by pulling it from the handles releasing it from the slots on the frame. Wash the lter with water to remove all dust and then rinse, remove water excess
and let it dry – do not twist – then replace the lter by inserting each tab in their respective slot.
Replace the FRONT PANEL by positioning one of the sides in the snaps of the handle rst and then the other side, make sure that both snaps are correctly
aligned and the logo is in the right position.

6 7

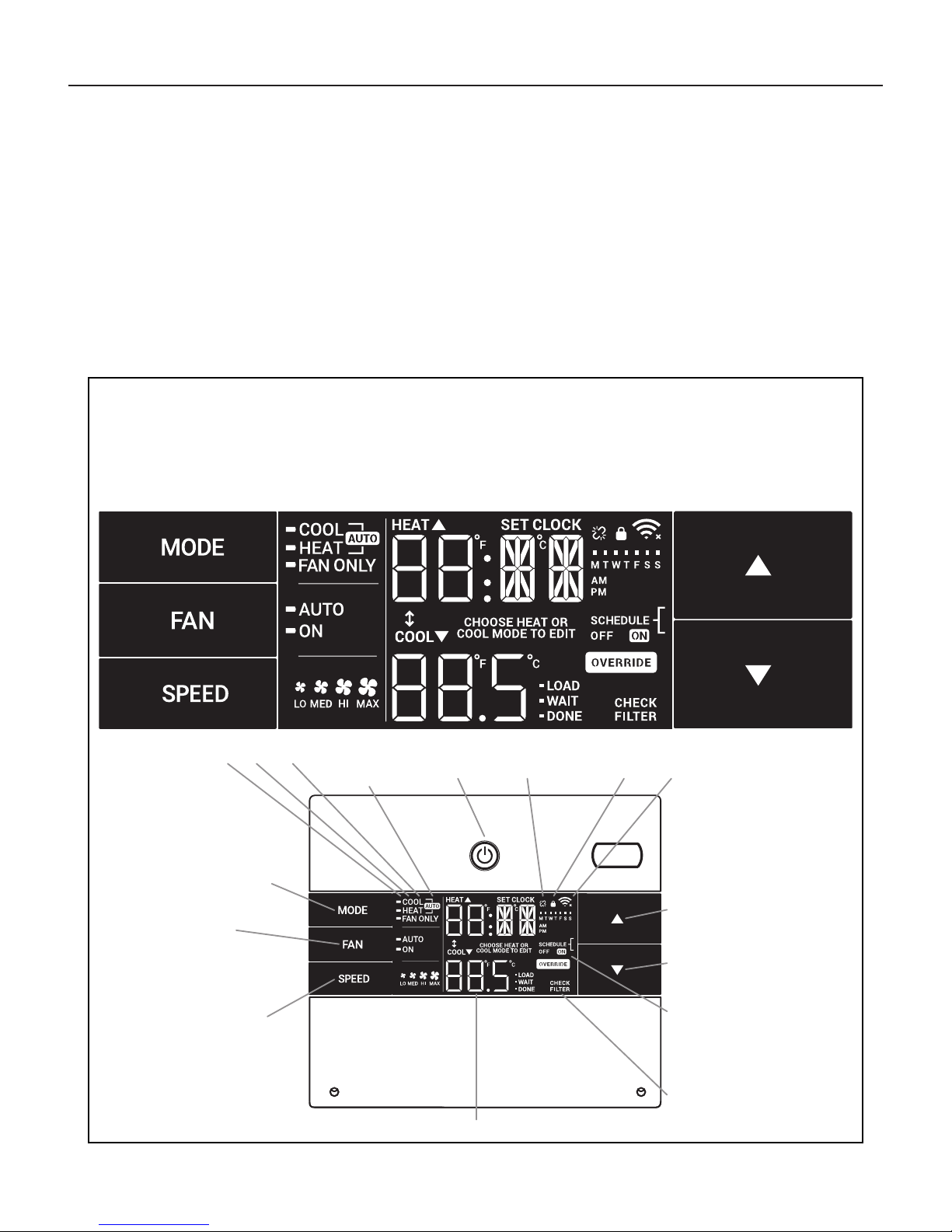

Control Panel Operation
Figure 3
SYSTEM
Cycles between
AUTO, HEAT,
COOL, or FAN
ONLY
(if equipped)
FAN MODE
Sets fan to either:
- Cycle automatically
- Run continuously
FAN SPEED
Sets fan speed:
LOW, MED,
HIGH or AUTO
(if equipped)
TEMPERATURE
Increment UP
TEMPERATURE
Increment DOWN
TIMER
Turns ON or OFF
IR WINDOW
Do not block
ON / OFF
Turns unit on/off
MODE
Cycles between
COOL, HEAT, FAN
ONLY or -AUTO-
(if equipped)
ON / OFF
Turns unit on/off
-AUTO-
Automatically switches
between cool & heat
CONTROL
LOCKED
2 DIGIT DISPLAY
Shows Setting for:
- Set Point (Temperature)
- Clock (AM/PM)
WI-FI OPERATING
STATE
TEMPERATURE
UP
TEMPERATURE
DOWN
TIMER
shows on or off
FILTER
Check / clean
FAN SPEED
Sets fan speed:
LOW, MED, HIGH,
OR MAX
(Actual settings are
model dependant)
FAN
Sets fan to either:
- Automatically cycle
- Continuously run
COOL HEAT FAN ONLY DISCONNECTED
FROM POWER BOARD
All of the control panel function buttons and mode icons can be viewed in Figure 3.
Power On – Press the button to turn on the air conditioner. The power button illuminates to indicate that the power is on. The backlight on the power switch
will automatically turn off after 20 seconds of inactivity. The remote control can also be used to turn power ON / OFF (See Remote Control).
Display – The display is a high efciency LCD with a built-in backlight. After 20 seconds of inactivity, the display switches off. Touching any button
automatically changes the display to full brightness.
There are three control push buttons on each side of the display.
Figure 4

8 9
Control Panel Operation
Accessing Sub-Menus
The leftmost MENU button accesses the sub-menu. See Figure 5.
Figure 5
The arrow buttons navigate the 6 menu options (See Figure 6):
– LIM – LOCK
– TM – CnCT
– F-C – diAG
The rightmost button exits the menu. See Figure 7.
MENU
Figure 6
MENU
Figure 7
MENU

8 9
Control Panel Operation
Navigating Inside the Sub-Menus
The leftmost MENU button moves you forward through the sub-menu.
See Figure 8.
The rightmost button moves you backward once inside the LIM and TM
menus. See Figure 9.
Figure 8
MENU
Figure 9
MENU

10 11
MENU
MENU
Control Panel Operation

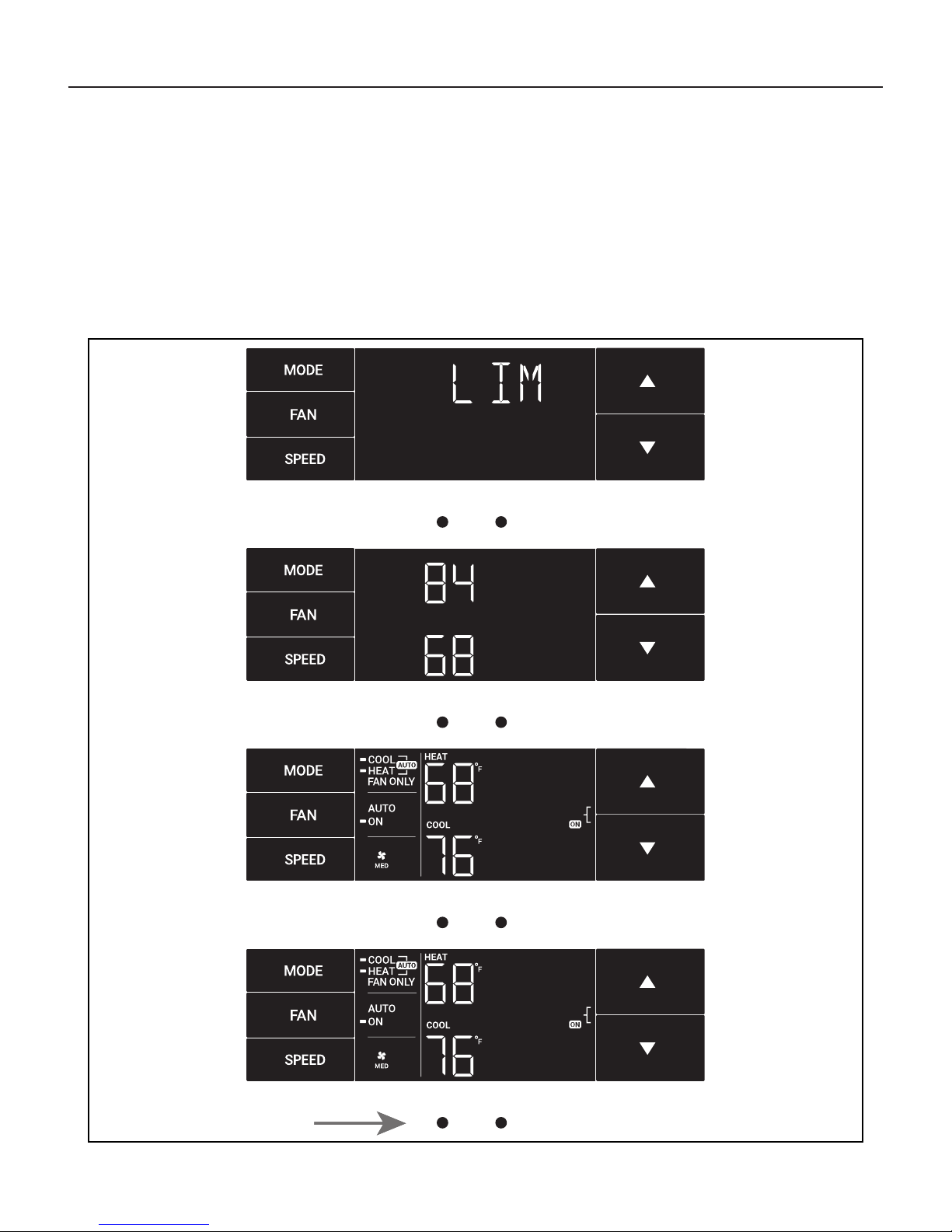

The LIM Menu
This is the limit menu. See Figure 10.
Upon entering the menu, the rst option will be to set the lower setpoint
limit using the arrow buttons. See Figure 11.
Figure 10
MENU
Figure 11
MENU
Figure 12
Figure 13
Then you can set the higher setpoint limit using the arrow buttons.
See Figure 12.
Pressing the leftmost button completes the limit setting. See Figure 13.

10 11
MENU
MENU
Control Panel Operation
The TM Menu
This is the TM menu used to set a timer. See Figure 14.
In the menu, you set the current time using the arrow buttons. See Figure
15. (Note: These two “set clock” steps will be skipped if the unit is already
connected to Wi-Fi.)
First, set the hour.
Figure 14
MENU
Figure 15
MENU
Figure 16
Figure 17
Using the leftmost button, you switch to the minutes and complete setting
the time. See Figure 16.
You select your mode. Either cool, heat, or auto. Toggle these using the
arrow buttons. See Figure 17. (Note: cooling-only models skip this step.)
The process is the same for all three modes. Auto mode will be shown as
the example.

12 13
MENU
MENU
Control Panel Operation
The TM Menu continued
Auto mode selected. See Figure 18.
Set the cool setpoint for your rst timer period using the arrow buttons.
The cooling mode timer only sets the cool setpoint. See Figure 19.
Next, set the heat setpoint for your rst timer period. The heating mode
timer only sets the heat setpoint. See Figure 20.
Figure 18
MENU
Figure 19
MENU
Figure 20
Figure 21
Note: The auto mode timer sets both the cool and heat setpoint.
Set the time to start the rst timer period. See Figure 21.

12 13
MENU
Control Panel Operation
The TM Menu continued
Set the cool setpoint for the second scheduled timer. See Figure 22.
Set the heat setpoint for the second timer.
Set the time to start the second timer period. See Figure 23.
Press the leftmost button to complete the time timer setup.
See Figure 24.
Figure 22
MENU
Figure 23
Figure 24
MENU

14 15
MENU
Control Panel Operation
The F-C Menu
This menu is used to toggle between Fahrenheit and Celsius.
This is the Fahrenheit/Celsius Menu. See Figure 25.
Using the arrow buttons on the right side switches it from Fahrenheit to
Celsius. See Figures 26 and 27.
Figure 25
MENU
Figure 26
MENU
Figure 27

14 15
Control Panel Operation

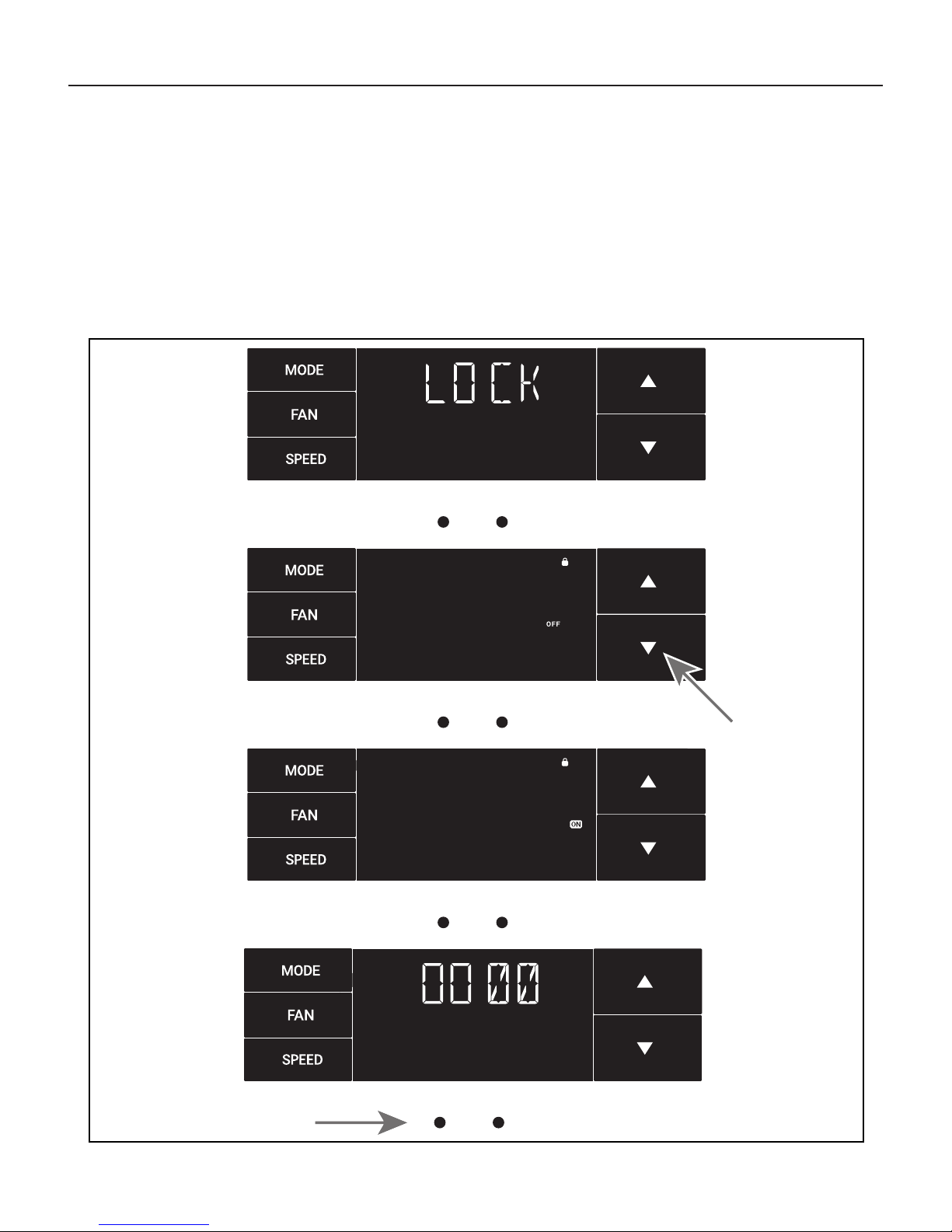

The Lock Menu
This menu is used to lock the changing setting with a password.
This is the Lock Menu. See Figure 28.
The default is the off setting. Use the arrows to toggle between off and
on. See Figure 29.
Figure 28
MENU
Figure 29
MENU
Figure 30
MENU
Figure 31
MENU
This is LOCK on. See Figure 30.
Set the rst digit of the password using the arrow buttons. Use the left-
most button to proceed to the next digit. See Figure 31.

16 17
MENU

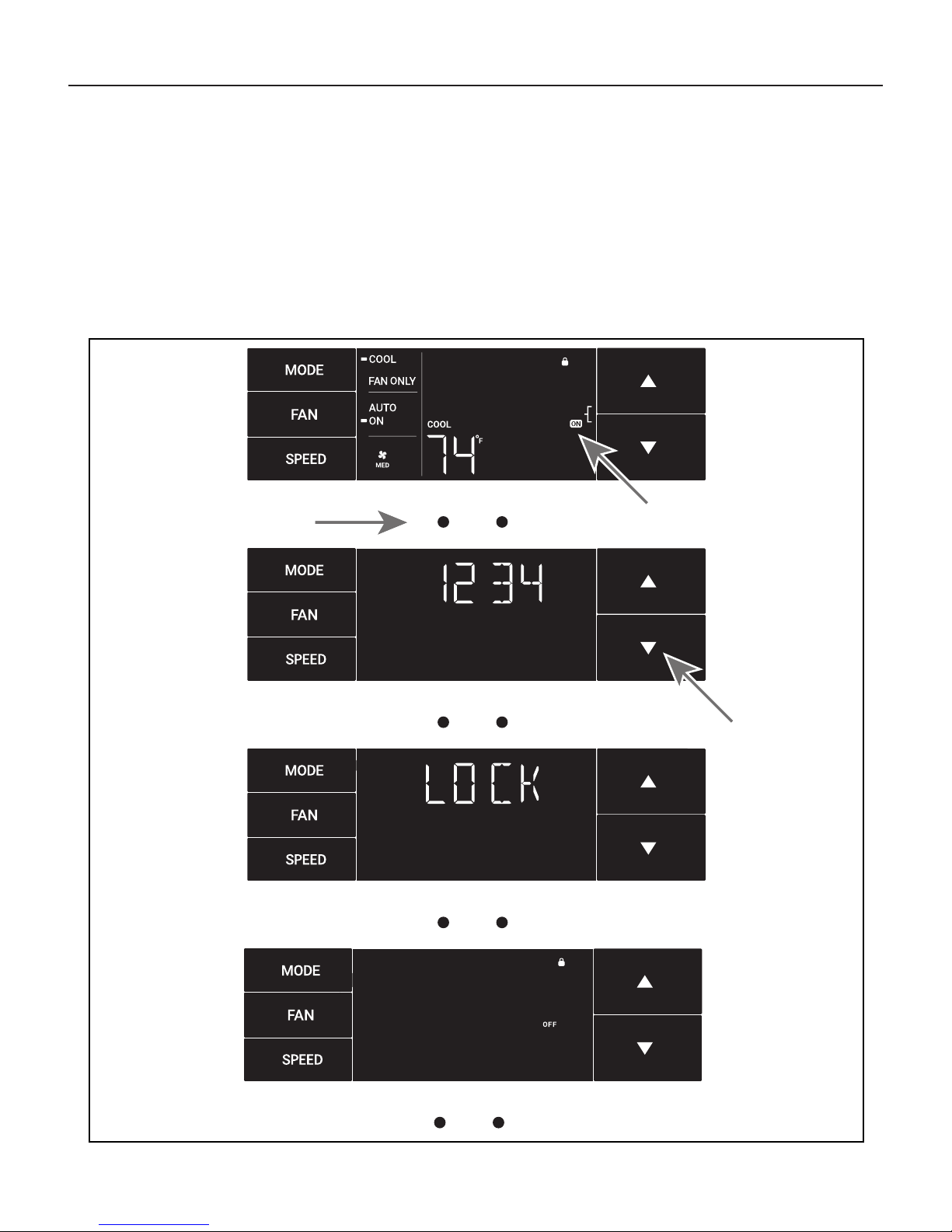

Control Panel Operation
The Lock Menu continued
Set the second digit of the password using the same method.
See Figure 32.
Set the third digit of the password using the same method.
See Figure 33.
Figure 32
MENU
Figure 33
MENU
Figure 34
MENU
Figure 35
Set the fourth digit of the password using the same method.
See Figures 34.
Press the leftmost button to complete the password process.
See Figure 35.

16 17
Control Panel Operation
The Lock Menu continued
The ON on the right side of the display shows the lock function is
active. To go back into the menu, select the leftmost button again.
See Figure 36.
Enter the password in the same manner it was created. See Figure 37.
Figure 36
MENU
Figure 37
MENU
Figure 38
MENU
Figure 39
MENU
Entering the correct password will give the user access to all of the sub-
menus. See Figure 38.
Accessing the lock menu will allow you to toggle lock OFF if needed.
See Figure 39.

18 19
Control Panel Operation
The CnCT Menu
This menu is used to turn on Wi-Fi connection.
This is the CnCT menu. Pressing the leftmost button will activate Wi-Fi.
See Figure 40.
The Wi-Fi symbol in the top right corner of the display shows Wi-Fi
connection is on. See Figure 41.
Figure 40
MENU
Figure 41
MENU

18 19
MENU
Control Panel Operation
The diAG Menu
This menu is used to access the diagnostic codes. See Figure 42.
Selecting this sub-menu shows the E that represents “Error.”
See Figure 43.
Toggle through the error codes using the arrow keys. See Figure 44.
Figure 42
MENU
Figure 43
MENU
Figure 44

20 21
New WallMaster®Control Options
The new WallMaster gives you a variety of options for control, programming,
and scheduling including wireless capabilities.
Wireless Programming and Control:
Friedrich Connect allows you to conveniently control, program, and monitor
your air conditioning unit remotely from a smartphone or computer.
Pre-Programmed Scheduling Options:
Your unit’s digital control comes equipped with a 24-hour timer.
24-Hour Timer
The 24-hour timer allows you to set 2 temperature changes at pre-set times
or a unit control panel.
Customizable Programming Options:
Customizable timers, with up to four temperature adjustments per day, can
be set using Friedrich Connect for one or multiple units.
See www.friedrich.com for complete details on Friedrich Connect.
