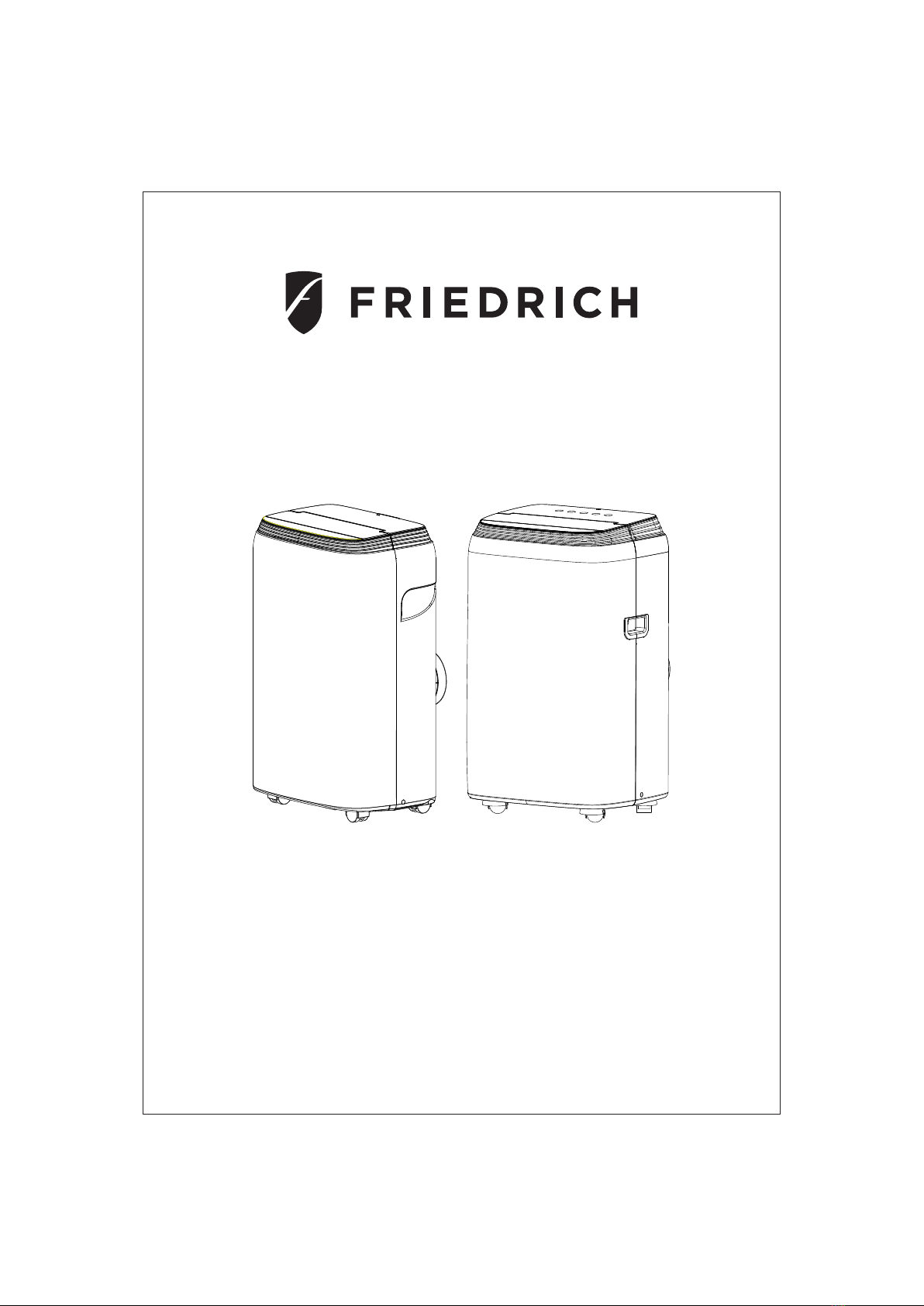

Friedrich ZCP08SA User manual

Portable Air Conditioner
User Manual
Thank you for selecting our quality appliance. Please be sure to read this user manual
carefully before using. Any question, please contact the professional service for help.
MODEL: ZCP08SA
ZCP10SA
ZCP12SA

CONTENTS
IMPORTANT SAFEGUARDS
IMPORTANT - GROUNDING METHOD
ELECTRICAL CONNECTIONS
DESCRIPTION
INSTALLATION INSTRUCTIONS
DESCRIPTION OF THE DISPLAY SCREEN
MANUAL OF REMOTE CONTROL
WATER DRAINAGE METHOD
CLEANING
01
06
06
07
08
12
17
24
26
START-END OF SEASON OPERATIONS
TROUBLESHOOTING
27
28

IMPORTANT SAFEGUARDS
1
● Disconnect the appliance from its power source during service and when
replacing parts and cleaning.
● The appliance shall not be installed in the laundry.
● Please note: Check the nameplate for the type of refrigerant gas used in your
appliance.
● Specific information regarding appliances with refrigerant gas.
The appliance is recommended not to pierce the cooling circuit of the machine.
At the end of its useful life, deliver the appliance to a special waste collection
center for disposal.
GWP (Global Warming Potential): R410A: 2088, R134a: 1430, R290: 3, R32: 675.
● This hermetically sealed system contains fluoridated greenhouse gases.
● ENVIRONMENTAL INFORMATION: This unit contains fluoridated greenhouse
gases covered by the Kyoto Protocol.
● Do not use this unit for functions other than those described in this instruction
manual.
● Make sure the plug is plugged firmly and completely into the outlet. Failure to do
so can result in the risk of electric shock or fire.
● Do not plug other appliances into the same outlet, it can result in the risk of
electric shock.
● Do not disassemble or modify the appliance or the power cord. Failure to do so
can result in the risk of electric shock or fire. All other services should be referred
to a qualified technician.
● Do not place the power cord or appliance near a heater, radiator, or other heat
source as this can result in the risk of electric shock or fire.
● This unit is equipped with a cord that has an earthed wire connected to an
earthed pin or grounding tab. The plug must be plugged into a socket that is
properly installed and earthed. Do not under any circumstances cut or remove the
earthed pin or grounding tab from this plug.
● The unit should be used or store in such a way that it is protected from moisture
e.g. condensation, splashed water, etc. Unplug the unit immediately if this occurs.
● Always transport your appliance in a vertical position and place on a stable,
level surface during use. If the unit is transported laying on its side, it should be
stood up and left unplugged for 6 hours.
● Always use the switch on the control panel or remote control to turn the unit off,
and do not start or stop operation by plugging in or unplugging the power cord.
This can result in the risk of electric shock.
● Do not touch the buttons on the control panel with your wet and damp fingers.
● Do not use hazardous chemicals to clean or allow to come into contact with the
unit. To prevent damage to the surface finish, use only a soft cloth to clean the
appliance. Do not use wax, thinner, or a strong detergent. Do not use the unit in

IMPORTANT SAFEGUARDS
2
the presence of inflammable substance or vapor such as alcohol, insecticides,
gasoline, etc.
● If the appliance is making unusual sounds or is emitting smoke or an unusual
odor, unplug it immediately.
● Do not clean the unit with water. Water can enter the unit and damage the
insulation, creating a shock hazard. If water enters the unit, unplug it immediately
and contact Customer Service.
● Utilize two or more people to lift and install the unit.
● Always grasp the plug when plugging in or unplugging the appliance. Never
unplug by pulling on the cord. It can result in the risk of electrical shock and
damage.
● Install the appliance on a sturdy, level floor capable of supporting up to 110lbs
(50kg). Installation on a weak or unlevel floor can result in the risk of property
damage and personal injury.
● If the appliance has the Wi-Fi function, the transmission power is less than 20
dBm, and the radio frequency range is 2412 MHz-2472 MHz.
● The appliance is compliant with the RE Directive (2014/53/EU).
● This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
● Minimum Installation Clearance: 45 cm around the unit and 45 cm above the unit.
● Children should be supervised to ensure that they do not play with the appliance.
● If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
● The appliance shall be installed in accordance with national wiring regulations.
For appliances employing flammable refrigerants, the following information is
provided in the Installation and/or Operating Manuals. For models to be sold in
Canada, the marking shall be in both English and French.
WARNING
● Do not attempt to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
● The appliance shall be stored in a room without continuously operating ignition
sources (for example: open flames, an operating gas appliance or an operating
electric heater.
● Do not pierce or burn.
● Be aware that refrigerants may not contain an odor.

IMPORTANT SAFEGUARDS
3

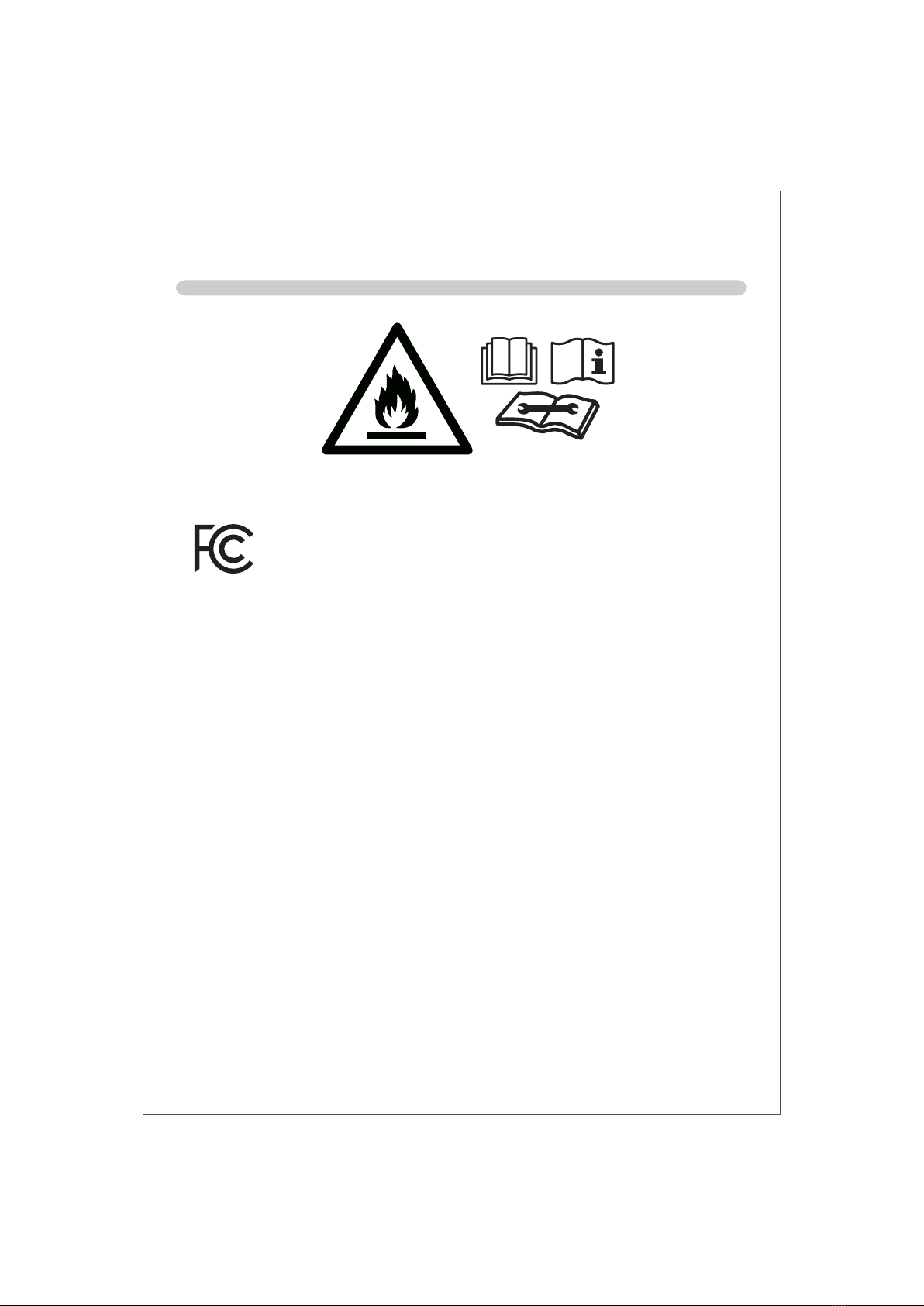

● The above 4 statements is also accompanied by the risk of fire symbol. This
symbol shows a flame in a triangle (warning symbol W021 of ISO 7010).
See the following for the French version:
AVERTISSEMENT
● Ne pas utiliser de produits permettant d'accélérer le dégel ou de produits de
nettoyage autres que ceux recommandés par le fabricant.
● L'appareil doit être entreposé dans un endroit sans source d'allumage
fonctionnant en continu (par exemple : flamme nue, appareil au gaz en marche
ou radiateur électrique en marche).
● Ne pas percer ni brûler.
● Attention : les frigorigènes peuvent être inodores.
The following information is also specified for units with flammable refrigerant
(R32).
[x] the maximum refrigerant charge amount (Refer to nameplate marking
refrigerant amount);
[x] information for handling, installation, cleaning, servicing and disposal of
refrigerant;
[x] a warning to keep any required ventilation openings clear of obstruction;
[x] a notice that servicing shall be performed only as recommended by the
manufacturer.
[x] a warning that the appliance shall be stored in a well-ventilated area where the
room size corresponds to the room area as specified for operation;
[x] a warning that the appliance shall be stored in a room without continuously
operating open flames (for example an operating gas appliance) and ignition
sources (for example an operating electric heater).
[x] instructions as to how the appliance is to be stored so as to prevent mechanical
damage from occurring.
[x] specific information about the required qualification of the working personnel
for maintenance, service and repair operations.

IMPORTANT SAFEGUARDS
4
According the US and CANDA ruler:
caution, risk of fire
CAN ICES-3 (B)/NMB-3(B)
Contains FCC ID:2ANDL-TYWE1S
Contains IC ID: 23243-TYWE1S
FCC Caution
● This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
● Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

IMPORTANT SAFEGUARDS
5
-Consult the dealer or an experienced radio/TV technician for help.
The distance between user and device should be no less than 20cm.
IC Warning
This device complies with Industry Canada’s license-exempt RSS’s. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may
cause undesired operation of the device.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada .
Son fonctionnement est soumis aux deux conditions suivantes :
( 1 ) Ce dispositif ne peut causer d'interférences ; et
( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui
peuvent causer un mauvais fonctionnement de l'appareil.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC
établies pour un environnement non contrôlé. Cet équipement doit être installé et
utilisé avec un minimum de 20 cm de distance entre la source de rayon.

IMPORTANT - GROUNDING METHOD
6
ELECTRICAL CONNECTIONS
Before plugging the appliance into the mains socket, check that:
● The mains power supply corresponds to the value indicated on the rating
plate on the back of the appliance.
● The power socket and electrical circuit are adequate for the appliance.
● The mains socket matches the plug. If this is not the case, have the plug
replaced.
● The mains socket is adequately earthed. Failure to follow these important
safety instructions absolves the manufacturer of all liability.
This product is factory equipped with a power supply cord that has a three-
pronged grounded plug. It must be plugged into a mating grounding type
receptacle in accordance with the National Electrical Code and applicable local
codes and ordinances. If the circuit does not have a grounding type receptacle, it
is the responsibility and obligation of the customer to exchange the existing
receptacle in accordance with the National Electrical Code and applicable local
codes and ordinances. The third ground prong should not, under any
circumstances, be cut or removed. Never use the cord, the plug or the appliance
when they show any sign of damage. Do not use your appliance with an extension
cord unless it has been checked and tested by a qualified electrical supplier.
Improper connection of the grounding plug can result in risk of fire, electric shock
and/or injury to persons associated with the appliance. Check with a qualified
service representative if in doubt that the appliance is properly grounded.

DESCRIPTION
Note: All the illustrations in this manual are for explanatory purposes only.
Your appliance may be slightly different.
Be sure all accessories are removed from the packing before use.

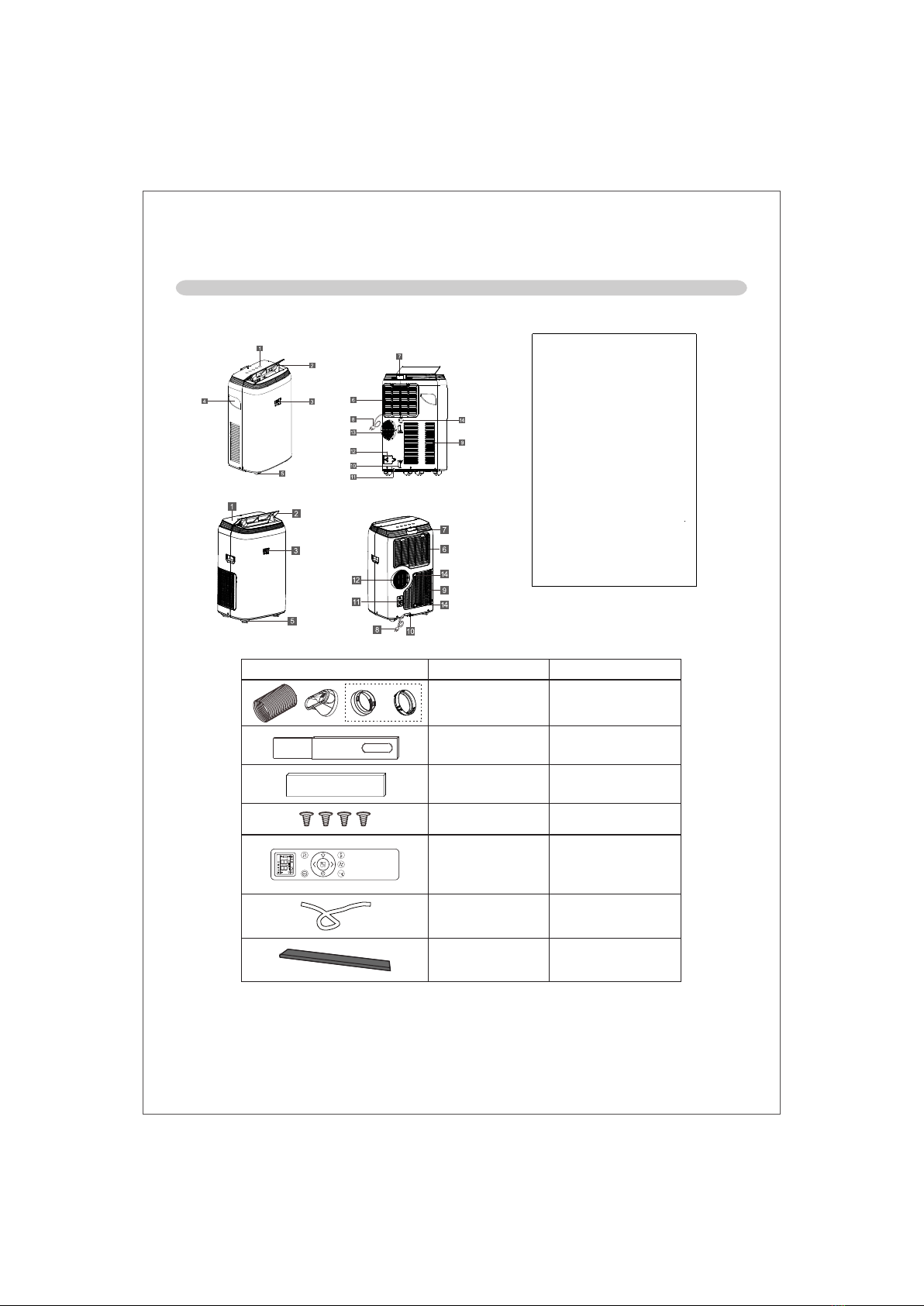

ACCESSORIES
1.Control panel
2.Deflector
3.Display screen
4. Handle (both sides)
5. Castors
6. Intake grille
7. Remote controller holder
8. Power cable
9. Intake grille
10. Hooks
11. Condenser drain
12. Plug fixer
13. Air outlet grille
14. Middle drainage
ZCP12SA:
ZCP08SA\ZCP10SA:
Exhaust hose
Hose outlet
Hose inlet
Window slider kit
Window slider
without hole
Screw
1 set
1 set
1 set
1 set
PARTS PARTS NAME QUANTITY
or
1 set
Remote Control
Batteries
(Two AAA 1.5V)
Drain Hose 1 pc
Window Sealing
Sponge Assembly 1 set
7

INSTALLATION INSTRUCTIONS
Extend the hose
In the Cool Mode the appliance must be placed close
to a window or opening so that the warm exhaust
air can be ducted outside.
First position unit on a flat floor and make sure there's
a minimum of 18” (45cm) clearance around the unit,
and is within the vicinity of a single circuit outlet
power source.
1. Extend either side of the hose (Fig.1) and screw the
hose inlet (Fig.2).
2. Extend the other side of the hose and screw it to the
hose outlet (Fig.3).
3. Install the hose inlet into the unit (Fig.4).
4. Affix the hose outlet into the window slider kit
5.and seal. (Fig.5 &6).
The window slider kit has been designed to fit most standard vertical and horizontal
window applications; however, it may be necessary for you to modify some aspects of
the installation procedures for certain types of windows. The window slider kit can be
fastened with screws.
NOTE: If the window opening is less than the minimum length of the window slider kit,
cut the end without the hold in it short enough to fit in the window opening. Never cut
out the hole in window slider kit.
Fig.4 (A) Fig.4 (B)
A
or
B
8

INSTALLATION INSTRUCTIONS
WINDOW SLIDER KIT INSTALLATION
1:Parts:
A) Panel
B) Panel with one hole
C) Panel without hole (maybe not supplied)
D) Screw to lock window kit in place
2: Assembly:
Slide Panel B and C into Panel A and size
to widow width. Windows sizes vary. When
sizing the window width, be sure that the
window kit assembly is free from gaps from
gaps and/or air pockets when taking
measurements.
3.Lock the screw into the holes that
correspond
With the width that your window requires to
ensure that there are no gaps or air pockets
in the window kit assembly after installation.
9

INSTALLATION INSTRUCTIONS

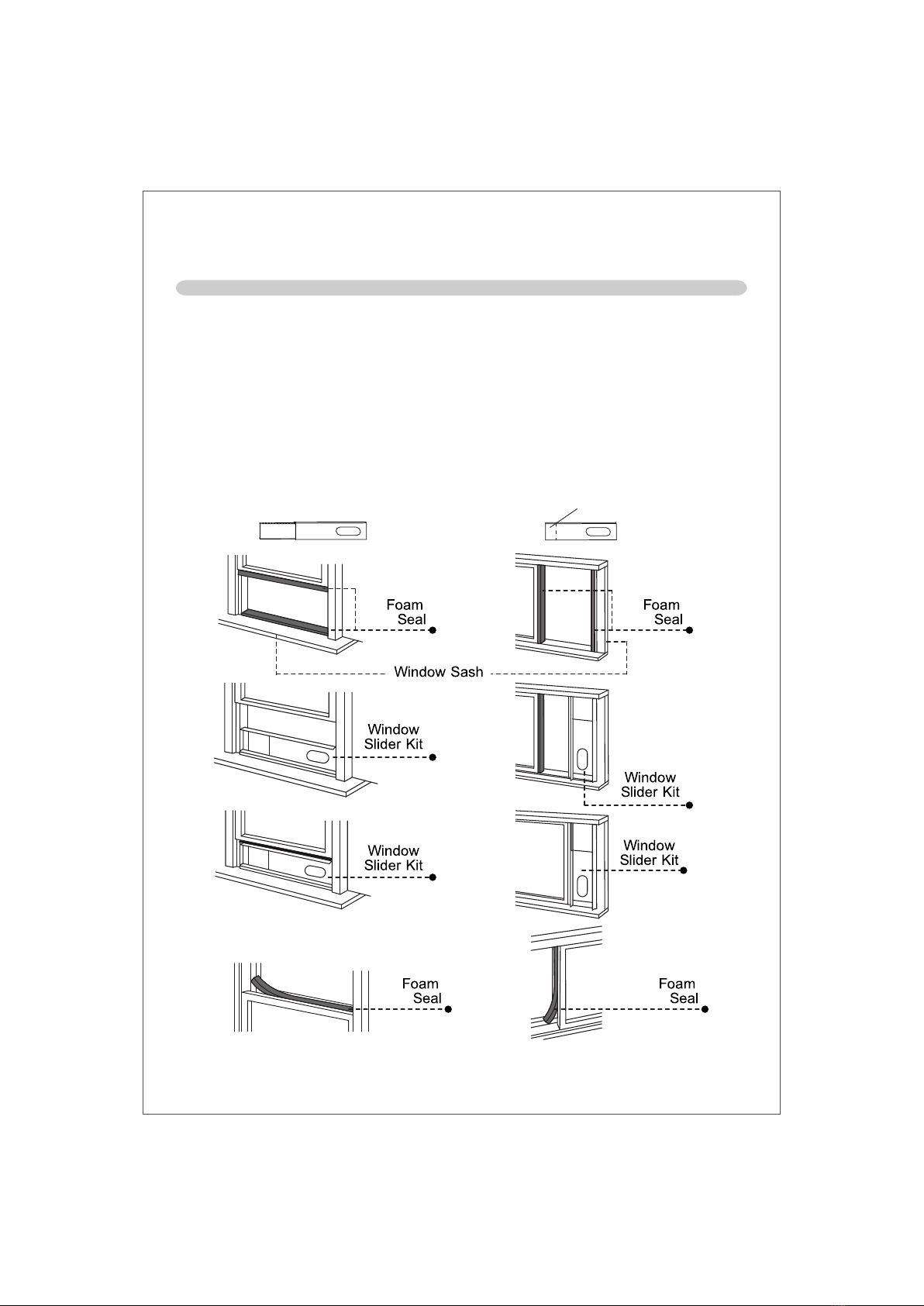

1. Cut the foam seal(adhesive type) to the proper length and attach it to the window
sash.
2. Attach the window slider kit to the window sash. Adjust the length of the window
slider kit according to the width of window. If necessary, mark the kit and cut one end
down to properly fit the window.
3. Cut the foam seal(adhesive type) to the proper length and attach it on the top of the
window.
4. Close the window securely against the window slider kit.
5. Secure the window slider kit to the window sash.
6. Cut the foam seal to an appropriate length and seal the open gap between the top
window frame and outer window frame.
Cut on opposite
side of hole.
Window slider kit
10

INSTALLATION INSTRUCTIONS
LOCATION
● The unit should be placed on a firm foundation to
minimize noise and vibration. For safe and secure
positioning. place the unit on a smooth, level floor
strong enough to support the unit.
● The unit has casters to aid placement, but it should
only be rolled on smooth, flat surfaces. Use caution
when rolling on carpeted surfaces. Use caution and
Protect floors when rolling over wood floors. Do not
attempt to roll the unit over objects.
● The unit must be placed within reach of a properly
rated grounded socket.
● Never place any obstacles around the air inlet or
outlet of the unit.
● Allow at least 18” (45cm) of space away from the
wall for efficient air conditioning.
● The hose can be extended, but it is the best to keep
the length to minimum required. Also make sure that the
hose does not have any sharp bends or sags.
11

DESCRIPTION OF THE DISPLAY SCREEN
OPERATING FROM THE CONTROL PANEL
The control panel on the top of the appliance, allows you to manage part functions
without a remote control.
NOTE:
* only heat pump models have this function.
** only WIFI model have this function.
NOTE:
When the unit is connected with phone, the
WIFI symbol will illuminate. Please refer to
Wi-Fi manual for connection instructions.
1.COOL symbol
2.HEAT symbol *
3.Fan Speed Indicator
4.TIMER symbol 5.Temperature symbol
6.Temperature indicator
7.WIFI symbol **
OPERATING FROM THE CONTROL PANEL
The control panel on the top of the appliance, allows you to manage part functions
without a remote control.
12

DESCRIPTION OF THE DISPLAY SCREEN
Power ON
√ Plug into the mains socket. Once plugged in, the appliance will be in standby mode.
Press the button to make the appliance turn on. The unit will power on to the last
function actively in use when powered off.
√ Never turn the air conditioner off by unplugging from the main socket. Always press
the Power button , then wait for a few minutes before unplugging. This allows the
appliance to perform a cycle of checks to verify operation.
13
COOL mode
Ideal for hot muggy weather when you need to cool and dehumidify the room.
To set this mode correctly:
● Press the button until the symbol appears.
● Select the target temperature between 64℉-90℉ (18℃-32℃)
by pressing the or button until the corresponding value
is displayed.
● Select the required fan speed by pressing the button.
● Fan speed can be selected: High, Med, Low, Auto
High speed: for maximum fan power
Med speed: reduces noise levels but still
maintains a good level of comfort
Low speed: for silent operation
Auto speed: the appliance automatically
selects the most suitable fan speed in
relation to the temperature set.
The most suitable temperature for the room during the summer varies from 75℉ to
81℉ (24℃ to 27℃). We recommend the temperature setting be not too far below the
outdoor temperature. The fan speed difference is more noticeable when the appliance
is under FAN mode but may not be noticeable under COOL mode.

DESCRIPTION OF THE DISPLAY SCREEN

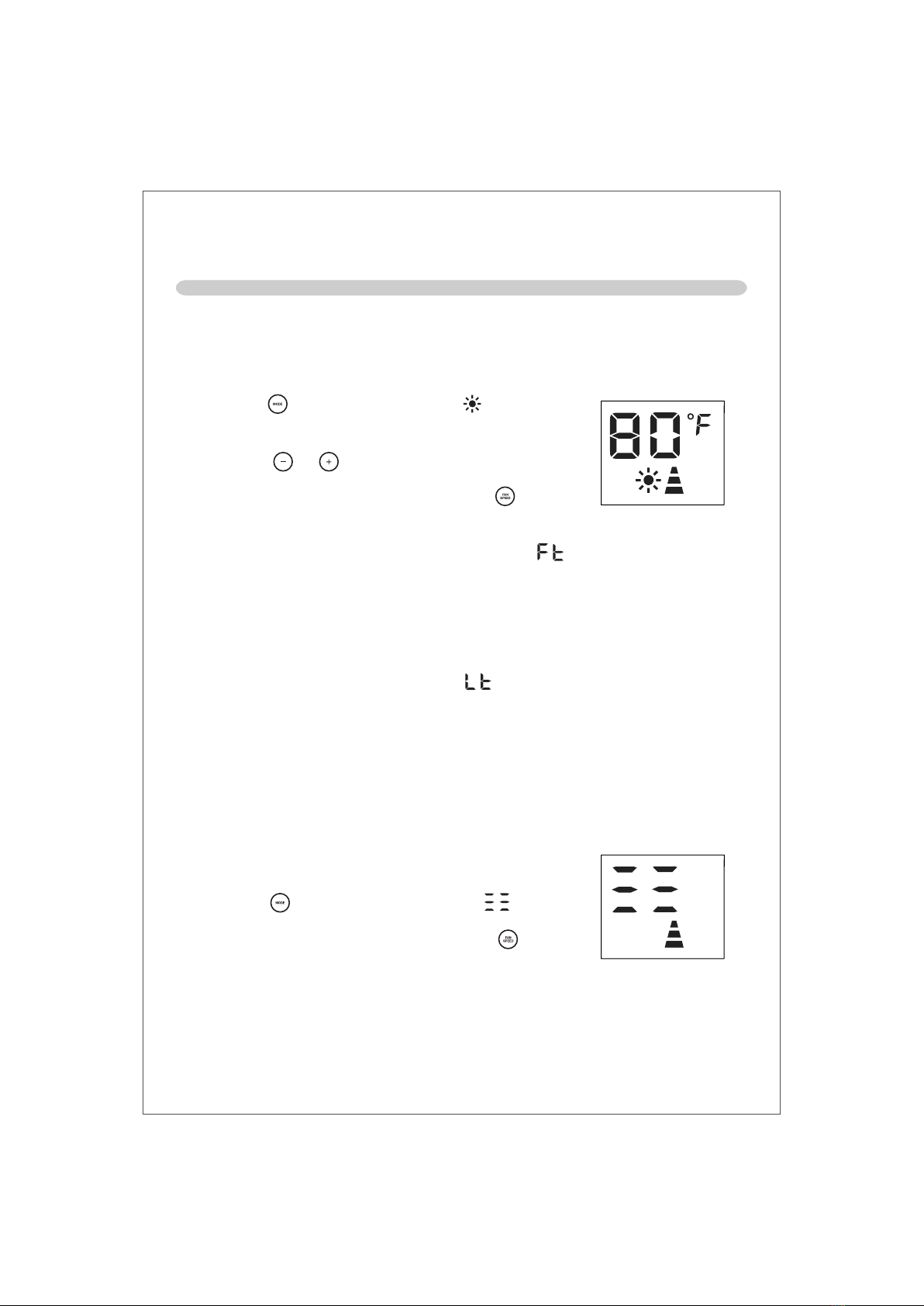

HEAT mode *
* only the heat pump model will have this function.
To set this mode correctly:
● Press the button repeatedly until the symbol
appears.
● Select the target temperature 55℉-81℉ (13℃-27℃) by
pressing the or button until the corresponding
value is displayed.
● Select the required fan speed by pressing the button.
● Fan speed can be selected: High, Med, Low, Auto.
● Water is removed from the air and collected in the tank.
● When the tank is full, the appliance shuts down and “ ” (full tank) appears on the
display. The tank cap must be extracted and emptied. Run off all water left into a basin.
When all the water has been drained, put the cap back in place.
● When the tank has been emptied, the appliance starts up again.
NOTE:
- When operating in very cold rooms, the appliance will defreeze automatically,
momentarily interrupting normal operation. will appear on the display. During this
operation, it is normal for the noise made by the appliance to change.
- In this mode, you may have to wait for a few minutes before the appliance starts
providing hot air.
- In this mode, the fan may operate for short periods, even though the set temperature
has already been reached.
FAN mode
When using the appliance in this mode, the air hose does not
need to be attached.
● Press the button continuously until the
Symbol appears.
● Select the required fan speed by pressing the button.
● Fan speed can be selected: High, Med, Low.
14

DESCRIPTION OF THE DISPLAY SCREEN
DRY mode
Ideal to reduce room humidity (spring and autumn, damp
rooms rainy periods, etc).
In dry mode, the appliance should be prepared in the same
way as for cool mode, with the air exhaust hose attached to
enable the moisture to be discharged outside.
To set this mode correctly:
● Press the button continuously until the symbol appears.
● In this mode, fan speed is selected automatically by the appliance and cannot be
set manually.

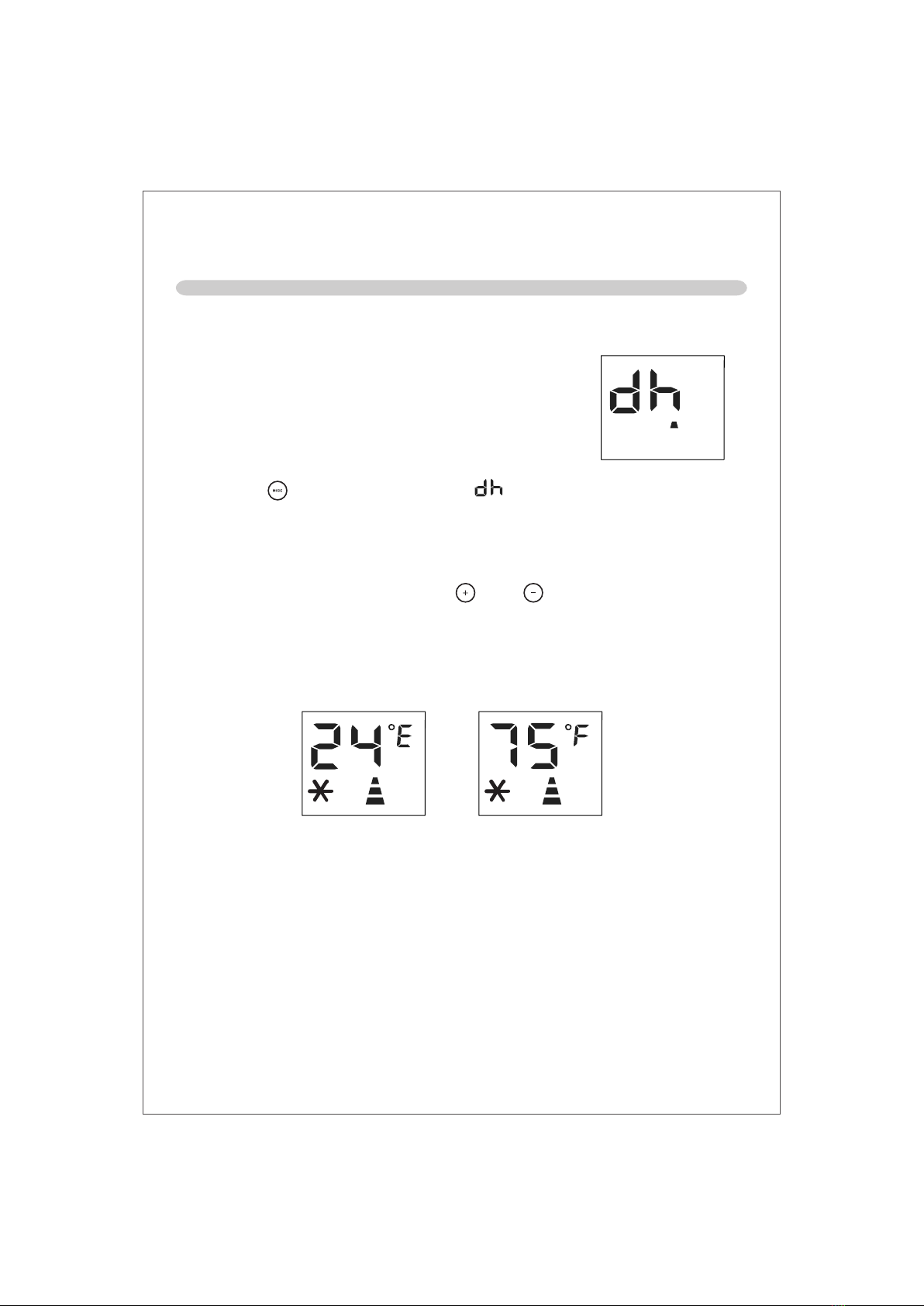

Switch the unit of temperature
When the appliance is running, hold the “ ” and “ ” button together for 3
seconds at the same time, then you can change the unit of temperature.
For example:
Before the change, in cool mode, the screen display will default to Celsius like fig1.
After change, in cool mode, the screen display shows Fahrenheit like fig 2.
Fig 1 Fig 2
15

DESCRIPTION OF THE DISPLAY SCREEN

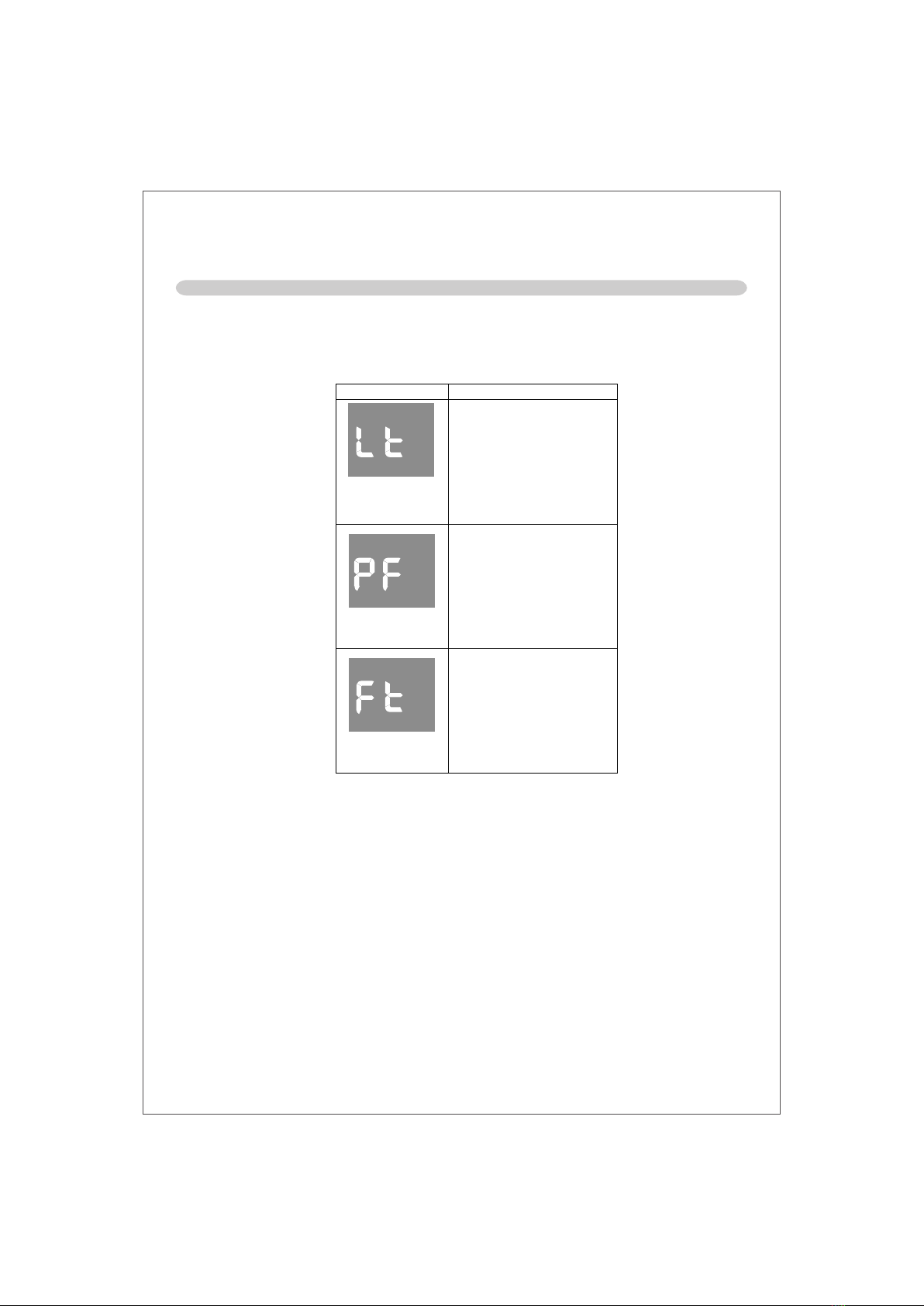

SELF-DIAGNOSIS
The appliance has a self diagnosis system to identify a number of malfunctions.
Error messages are displayed on the appliance display.
IF DISPLAYED WHAT SHOULD I DO?
LOW
TEMPERATURE
(frost prevention)
PROBE FAILURE
(sensor damaged)
FULL TANK
(safety tank full)
The appliance is fitted with a frost
protection device to avoid
excessive formation of ice.
The appliance starts up again
automatically when the
defrosting process is
completed.
If this is displayed, contact your
local authorized service centre.
Empty the internal safety tank,
following the instructions in the
"End of season operations"
paragraph.
16

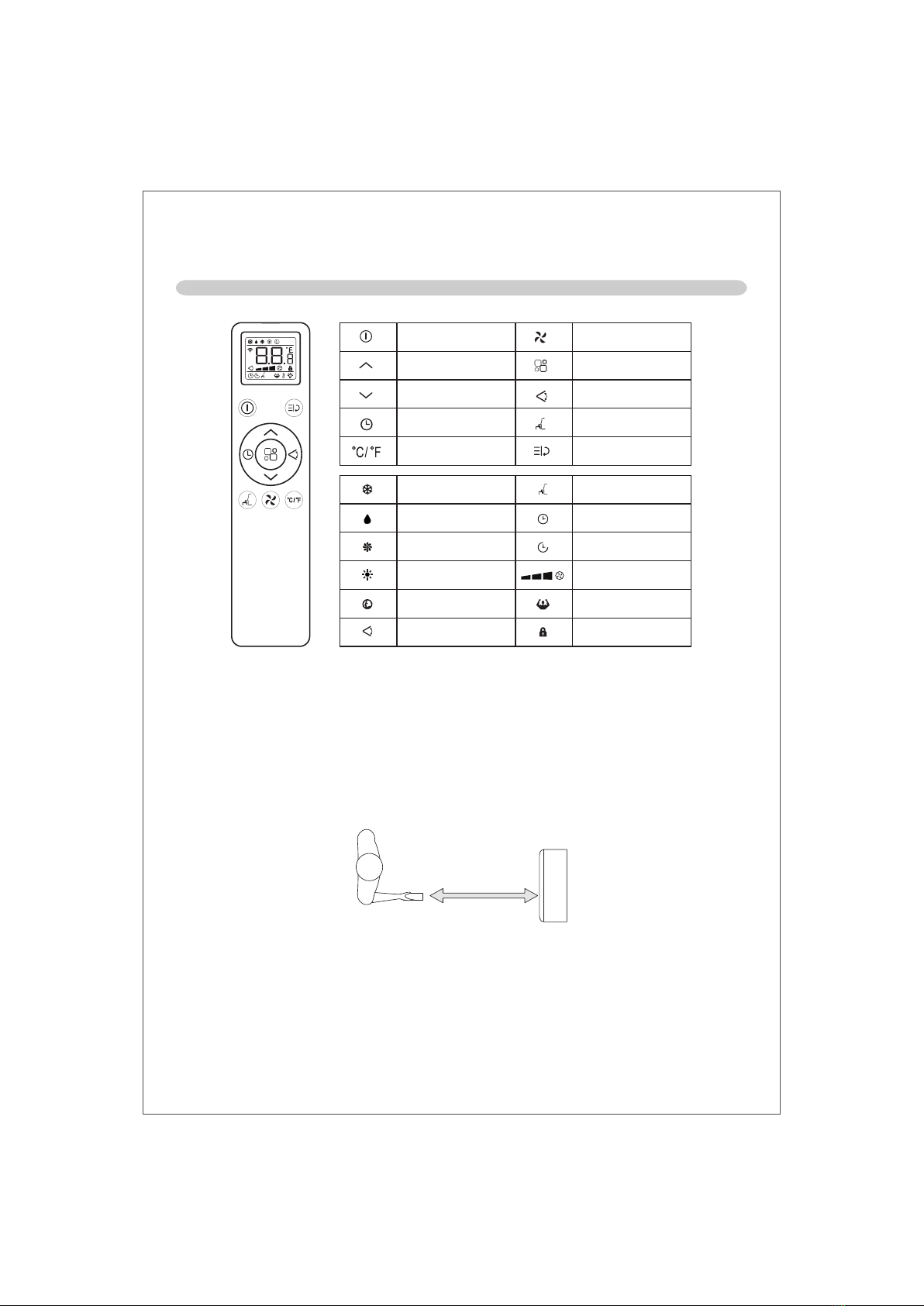

MANUAL OF REMOTE CONTROL
√ Point the remote control at the receiver on the appliance.
√ The remote control must be no more than 7 yards away from the appliance (without
obstacles between the remote control and the receiver).
√ The remote control must be handled with extreme care. Do not drop it or expose it to
direct sunlight or sources of heat. If the remote control does not work, please replace
the batteries.
On/Off button
Increase button
Decrease button
Timer button
Unit Switch button
COOL symbol
DRY symbol
FAN symbol
HEAT symbol
SMART symbol
Swing symbol
SLEEP symbol
Timer ON symbol
Timer OFF symbol
Fan speed symbol
Fan speed button
Mode button
Swing button
Sleep button
Turbo*
Turbo symbol
Child lock symbol
MAX 23'(7 meters)
17
