Friedrich ZoneAir P012A User manual

Service Manual
Portable Air Conditioner
PORT-ServMan (04-09)
Model:
P09A
P09B
P012A
P012B

FRIEDRICH AIR CONDITIONING CO.
Post Ofce Box 1540 · San Antonio, Texas 78295-1540
4200 N. Pan Am Expressway · San Antonio, Texas 78218-5212
[phone] · FAX [phone]
www.friedrich.com
Printed in the U.S.A.
TECHNICAL SUPPORT
CONTACT INFORMATION

Table Of Contents
Important Safety Information ....................................................................................................................2-4
Introduction ..................................................................................................................................................4
Unit Introduction ..........................................................................................................................................5
Unit Model and Serial Number Identication ...............................................................................................6
Technical Specications ..............................................................................................................................7
Precautions for use .....................................................................................................................................8
Control Panel Operation ..............................................................................................................................9
Remote Control Operation .........................................................................................................................10
Window Adapter Kit Installation .............................................................................................................11-12
Condensation Handling ..............................................................................................................................13

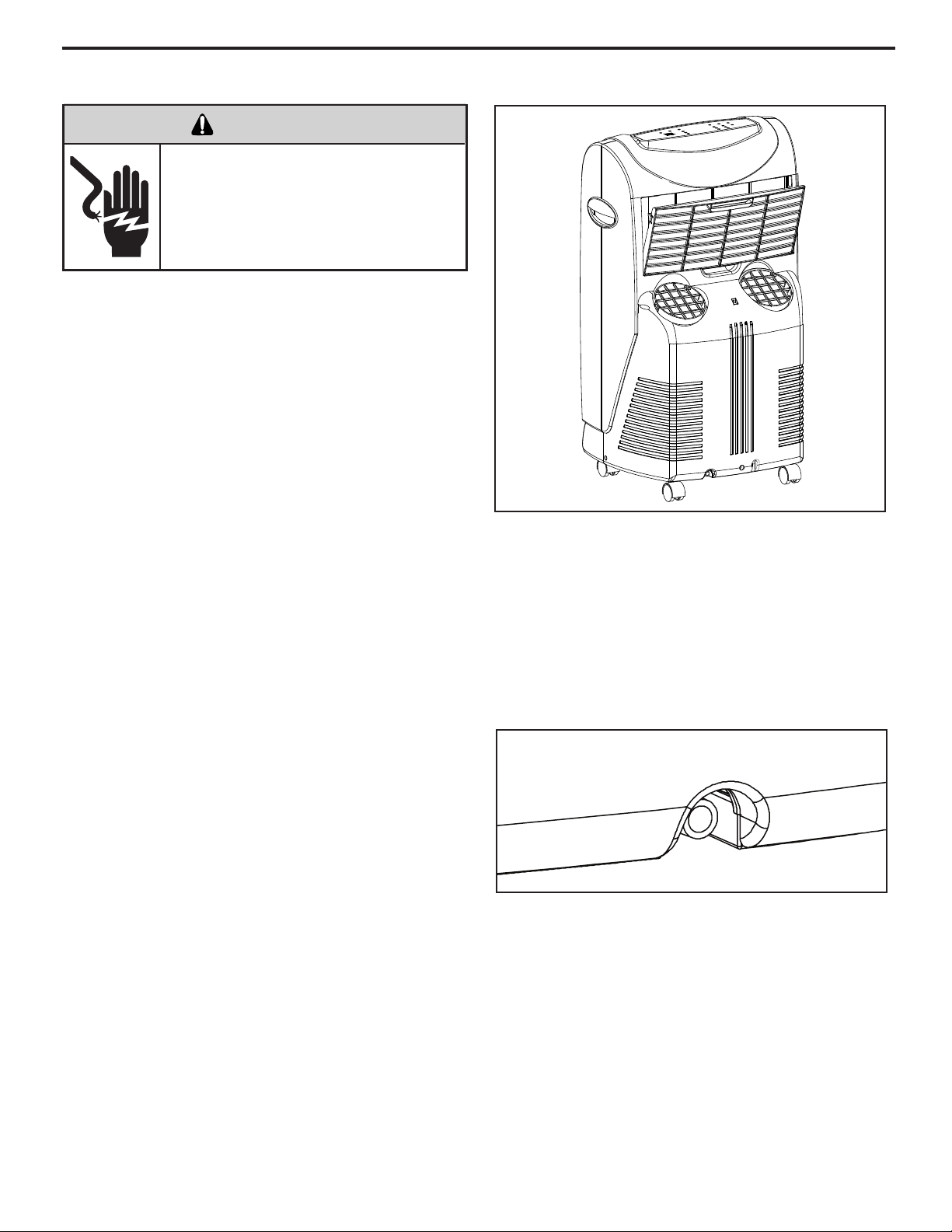

Maintenance and Service ...........................................................................................................................14

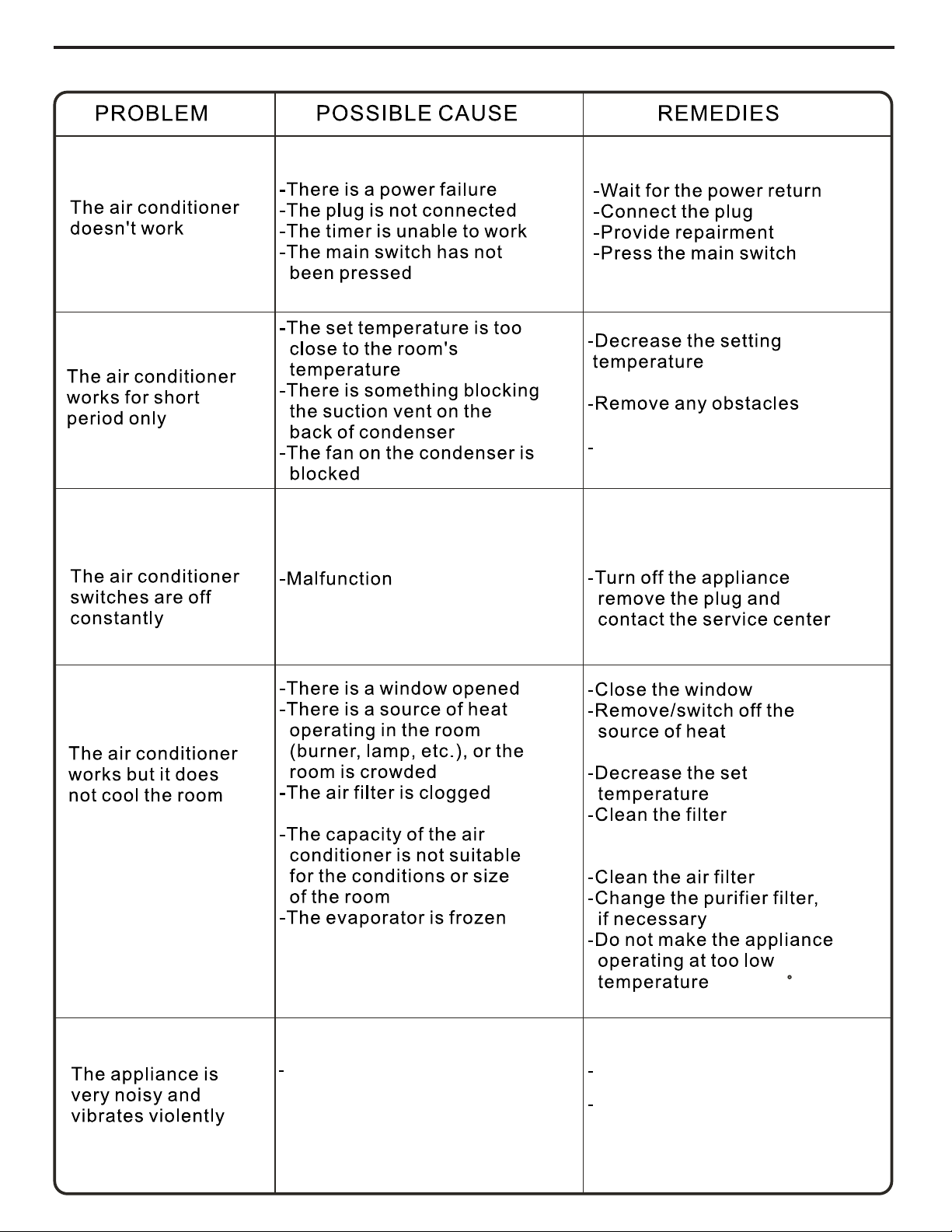

Troubleshooting ..........................................................................................................................................15

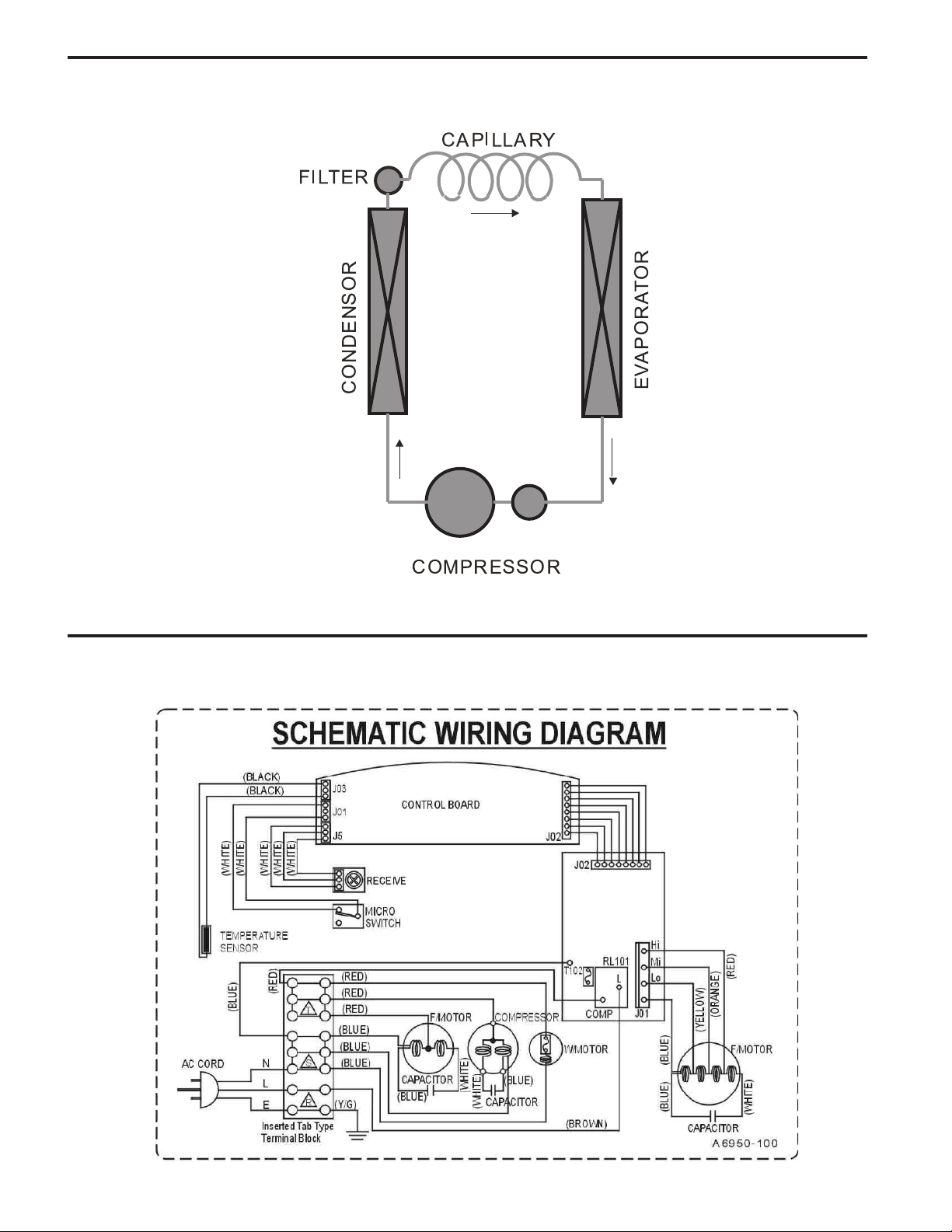

Refrigeration System Diagram ....................................................................................................................16
Wiring Diagrams .........................................................................................................................................17
Warranty .....................................................................................................................................................18
1

IMPORTANT SAFETY INFORMATION
The information contained in this manual is intended for use by a qualied service technician who is familiar
with the safety procedures required for installation and repair, and who is equipped with the proper tools and
test instruments required to service this product.
Installation or repairs made by unqualied persons can result in subjecting the unqualied person making
such repairs as well as the persons being served by the equipment to hazards resulting in injury or electrical
shock which can be serious or even fatal.
Safety warnings have been placed throughout this manual to alert you to potential hazards that may be
encountered. If you install or perform service on equipment, it is your responsibility to read and obey these
warnings to guard against any bodily injury or property damage which may result to you or others.
PERSONAL INJURY OR DEATH HAZARDS
ELECTRICAL HAZARDS:
Unplug and/or disconnect all electrical power to the unit before performing inspections, •
maintenance, or service.
Make sure to follow proper lockout/tag out procedures.•
Always work in the company of a qualied assistant if possible. •
Capacitors, even when disconnected from the electrical power source, retain an electrical charge •
potential capable of causing electric shock or electrocution.
Handle, discharge, and test capacitors according to safe, established, standards, and approved •
procedures.
Extreme care, proper judgment, and safety procedures must be exercised if it becomes necessary •
to test or troubleshoot equipment with the power on to the unit.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read
and obey all safety messages.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,
and tell you what will happen if the instructions are not followed.
This is a safety Alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol with the word “WARNING”
or “CAUTION”. These words mean:
You can be killed or seriously injured if you do not follow instructions.
You can receive minor or moderate injury if you do not follow instructions.
A message to alert you of potential property damage will have the
word “NOTICE”. Potential property damage can occur if instructions
are not followed.
WARNING
CAUTION
NOTICE
2

Do not spray or pour water on the return air grille, discharge air grille, evaporator coil, control panel, •
and sleeve on the room side of the air conditioning unit while cleaning.
Electrical component malfunction caused by water could result in electric shock or other electrically •
unsafe conditions when the power is restored and the unit is turned on, even after the exterior is dry.
Never operate the A/C unit with wet hands.•
Use air conditioner on a single dedicated circuit within the specied amperage rating. •
Use on a properly grounded outlet only.•
Do not remove ground prong of plug.•
Do not cut or modify the power supply cord.•
Do not use extension cords with the unit.•
Follow all safety precautions and use proper and adequate protective safety aids such as: gloves, •
goggles, clothing, adequately insulated tools, and testing equipment etc.
Failure to follow proper safety procedures and/or these warnings can result in serious injury or death.•
REFRIGERATION SYSTEM HAZARDS:
Use approved standard refrigerant recovering procedures and equipment to relieve pressure before •
opening system for repair.
Do not allow liquid refrigerant to contact skin. Direct contact with liquid refrigerant can result in minor •
to moderate injury.
Be extremely careful when using an oxy-acetylene torch. Direct contact with the torch’s ame or hot •
surfaces can cause serious burns.
Make sure to protect personal and surrounding property with re proof materials.•
Have a re extinguisher at hand while using a torch.•
Provide adequate ventilation to vent off toxic fumes, and work with a qualied assistant whenever •
possible.
Always use a pressure regulator when using dry nitrogen to test the sealed refrigeration system for •
leaks, ushing etc.
Make sure to follow all safety precautions and to use proper protective safety aids such as: gloves, •
safety glasses, clothing etc.
Failure to follow proper safety procedures and/or these warnings can result in serious injury or death.•
MECHANICAL HAZARDS:
Extreme care, proper judgment and all safety procedures must be followed when testing, •
troubleshooting, handling, or working around unit with moving and/or rotating parts.
Be careful when, handling and working around exposed edges and corners of sleeve, chassis, and •
other unit components especially the sharp ns of the indoor and outdoor coils.
Use proper and adequate protective aids such as: gloves, clothing, safety glasses etc.•
Failure to follow proper safety procedures and/or these warnings can result in serious injury or death.•
3

PROPERTY DAMAGE HAZARDS
FIRE DAMAGE HAZARDS:
Read the Installation/Operation Manual for this air conditioning unit prior to operating.•
Use air conditioner on a single dedicated circuit within the specied amperage rating. •
Connect to a properly grounded outlet only.•
Do not remove ground prong of plug.•
Do not cut or modify the power supply cord.•
Do not use extension cords with the unit.•
Failure to follow these instructions can result in re and minor to serious property damage.•
WATER DAMAGE HAZARDS:
Improper installation maintenance, or servicing of the air conditioner unit, or not following the above •
Safety Warnings can result in water damage to personal items or property such.
Insure that the unit has a drain hose properly connected. (Drain hose is optional, see page13)•
Do not drill holes in the bottom of the drain pan or the underside of the unit. •
Failure to follow these instructions can result in damage to the unit and/or minor to serious property •
damage.
4
INTRODUCTION
This service manual is designed to be used in conjunction with the installation manuals provided with each unit.
This service manual was written to assist the professional HVAC service technician to quickly and accurately
diagnose and repair any malfunctions of this product.
This manual, therefore, will deal with all subjects in a general nature. (i.e. all text will pertain to all models).
Regarding the Portable Air Conditioner
This Portable Air Conditioner is designed to provide a quick and easy cooling solution for areas that either do not have
air conditioning or areas that the current system cannot maintain at a comfortable level.
This unit is also great as a back-up system in case the primary cooling system should fail.
Other means of conditioning should be employed when the indoor temperature is either below 17°C (63°F) or above
35°C (95°F) .
This unit is designed with human comfort in mind.
IMPORTANT:It will be necessary for you to accurately identify the unit you are
servicing, so you can be certain of a proper diagnosis and repair.
(See Unit Identication.)

UNIT INTRODUCTION
5
1. Control panel
2. Air outlet
3. Signal receptor
4. Handle
5. Caster
6. Air outlet hose
7. Air lter
8. Air intake hose
9. 1/2" water outlet drain
10. Power supply cord

6
Portable
2nd and 3rd DIGIT - Approximate
BTU/HR (Cooling)
Heating BTU/Hr capacity listed in the
Specication/Performance Data Section
Design Series
Serial Number
Decade Manufactured
L=0 C=3 F=6 J=9
A=1 D=4 G=7
B=2 E=5 H=8
Year Manufactured
A=1 D=4 G=7 K=0
B=2 E=5 H=8
C=3 F=6 J=9
Month Manufactured
A=Jan D=Apr G=Jul K=Oct
B=Feb E=May H=Aug L=Nov
C=Mar F=Jun J=Sept M=Dec
L H G K 00001
Production Run Number
Product Line
R = RAC
RAC SERIAL NUMBER IDENTIFICATION GUIDE
MODEL NUMBER CODE
UNIT MODEL AND SERIAL NUMBER UNIT IDENTIFICATION
P 09 A

TECHNICAL SPECIFICATIONS P09A AND P12A
7
Model
Cooling Capacity
BTU/h Voltage / Hz Amps Watts
Dimensions
(W” x H” x D”)
Dehumidication
(Pints/Hour)
Indoor Air
Circulation
(CFM)
Refrigerant
Charge)
(R-22)
Locked
Rotor
Amps
Net
Weight
(lbs.)
Circuit
Rating
Plug Face
(NEMA#)
P09A 8900 115/60 8923 19.5” x 33.6” x 15.5” 4.2 212 18 40.5 80 125V/15A 5-15P
P12A 11500 115/60 10.5 1280 19.5” x 33.6” x 15.5” 4.2 235 24.7 40.5 86 125V/15A 5-15P
Model
Cooling Capacity
BTU/h Voltage / Hz Amps Watts
Dimensions
(W” x H” x D”)
Dehumidication
(Pints/Hour)
Indoor Air
Circulation
(CFM)
Refrigerant
Charge)
(410 A)
Locked
Rotor
Amps
Net
Weight
(lbs.)
Circuit
Rating
Plug Face
(NEMA#)
P09B 10000 115/60 10.8 1200 19.25” x 33.62” x 15.55” 4.2 224 21.2 50 77.2 125V/15A 5-15P
P12B 12000 115/60 11.5 1300 19.25” x 33.62” x 15.55” 4.2 235 24.7 50 81.6 125V/15A 5-15P

PRECAUTIONS FOR USE
8
Make sure the unit is installed in an accessible location. •
Do not locate the unit in direct sunlight so as to avoid discoloration of the plastic. •
Keep the unit 1 meter away from television sets or radios to avoid the risk of electromagnetic interference.•
Ensure that the discharge air outlet is free from obstructions and not impeded by walls or other structures. •
Operate the unity ONLY in the upright position.•
When unplugging the unit, hold the power plug securely and pull it out carefully.•
Do not use damaged or improper AC socket.•
Do not use the unit near gas appliances, or
in the vicinity of ammable liquids.
Failure to follow this warning could result in
serious injury or death.
WARNING
EXPLOSION HAZARD

CONTROL PANEL OPERATION
9
Dehumidifying and cooling operation
The operating range for cooling operation is 60°F - 90°F,
and the operating range for dehumidifying is 68°F - 88°F.
Power source
• The AC socket must be rm and reliable.
• Don’t connect the portable air conditioner to a multiple
socket outlet which is also being used for other electrical
appliances.
• Insert the AC power plug securely into the AC socket before
using the unit, when it beeps after two seconds, press ON/
OFF button, the unit begins to run.
LCDI power cord information
All Friedrich portable air conditioners are shipped from the
factory with a Leakage Current Detection Interrupter (LCDI)
equipped power cord. The LCDI device meets the UL and
NEC requirements for cord connected air conditioners effec-
tive August 2004.
To test your power supply cord:
1. Plug power supply cord into a grounded 3 prong outlet.
2. Press RESET (See drawing below).
3. Press TEST (listen for click; Reset button trips and pops
out).
4. Press and release RESET (listen for click; Reset button
latches and remains on). The power supply cord is ready
for operation.
NOTE: LCDI device is not intended to be used as a switch.
Once plugged in the unit will operate normally without the
need to reset the LCDI device.
If the device fails to trip when tested or if the power supply
cord is damaged it must be replaced with a new supply cord
from the manufacturer. We recommend you contact our
Technical Assistance Line at [phone]. To expedite
service, please have your model and serial number available.
WARNING: NEVER
CUT OR REMOVE
THE GROUNDING
PRONG FROM
PLUG. NEVER USE
EXTENSION CORDS
TO OPERATE AN
AIR CONDITIONER.
TEST
RESET
Test Button
Reset Button
Test Button
Reset Button
Mode control
The mode control has three settings– Cool, Dehumidify
and Fan. The settings are adjusted with the Mode Control
button. A light will indicate which setting is currently being
used.
Cooling operation
1. Press MODE button to choose the cooling mode, LCD
window will show “cool”.
During the cooling operation, always place the air exhaust
hose through an open window.
2. Repeatedly press TEMP + or TEMP - button to set a
proper room TEMP. between 60°F - 90°F.
3. Press FAN SPEED button to choose between low,
medium and high speeds.
NOTE:
In order to improve the cooling efciency:
a) If your room is directly exposed to the sun, draw the
curtains.
b) Do not place near other heat source.
1. Keep the windows and the doors closed to aid in ef fectively
dehumidifying the room.
2. Press MODE button to choose the dehumidifying mode,
LCD window will show “DRY”, the fan speed cannot be
adjusted.
When used as dehumidier only it is not necessary to install
the exhaust hose.
To set the time to start the machine, with the unit off (but power
supplied), press TIMER button, the LCD window will show
“”, continually press the TIMER button, set the preferred
start time. The setting range is 1-24 hours.
To set the time to stop the machine, with the unit running,
press TIMER button, the LCD window will show “ ”,
continually press the TIMER button ,set the preferred time to
stop the machine. The setting range is 1-24 hours
NOTE: During timer mode if the TIMER button is pressed
again it will cancel the timer operation.
Warning Light
Condensed water may accumulate in the unit. If the internal
tank becomes full, the Warning Light will come on and the
unit will not operate until the unit has been drained.
Dehumidifying Operation
Time Set Function

10
REMOTE CONTROL
Used for adjusting the timer and •
temperature
The default display on control •
panel is room temperature.
When the "• " or the " "
button is pressed in cool mode,
the set temperature is displayed
and may be adjusted. After 15
seconds the display will revert
back to room temperature.
Timer setting is available from •
1-24 hours by pressing the
button " " on " ".
Press this button to change the
operation mode in the order of:
Cool
Fan
Dehumidify
On/Off
: HIGH : MED :LOW
In running mode:
Auto switch off
In standby mode:
Auto switch on
Press the " " or the " "
button to adjust the time setting
for 1 hour interval.
The functions work the same as your air conditioner’s touch controls.
All key function can be accessed from the remote control.
Battery replacement: Remove the cover on the back of the remote control and insert the batteries with the (+) and (-)
poles pointing in the proper direction.
CAUTION
Use only AAA or IEC R03 1.5V batteries.
Remove the batteries if the remote control is not used for a month or longer.
Do not attempt to recharge the supplied batteries.
All batteries should be replaced at the same time, do not mix old battery.
Do not dispose of the batteries in a re as they may explode.
Air Conditioner Remote Control
Notes:
- Do not drop the remote control.
- Do not place the remote control in a
location exposed to direct sunlight.
- The remote control should be placed
about 1 meter or more away from TV,
or any electrical appliances.
Time/Temperature Set Control
Mode Control
LCD Display
Power Control
Fan Speed Control
On / Off Timer Control
Farenheit/Celsius Button

4
Window adapter kit
Window Panel
Instructions for assembling the window adapter kit
1. Insert tube adapters through the back of the window panel.
2. Secure each tube adapter with four screws through the
front of the window panel.
3. Insert window panel extensions into window panel. Lightly
tighten the screws in the window panel to hold the
extensions in place.
Window Panel
Extension
Tube Adapters
Window Panel
Extension screws
Back of
window panel
Air Exchange Tubes
Screws
Tube Adapters
Window panel
Window panel extensions
Window adapter kit
An installation parts kit is packed with your unit in a separate
carton. Before you discard the packaging that your unit came
in, please locate the carton that contains these parts and
ensure that all parts are present.
Window panel Attaches to window opening to
allow air exchange for system air
transfer.
Window panel extensions Extends window panel to fit
windows of various dimensions.
Tube adapters Connect Air exchange tubes to
window panel.
Screws 12 screws are included for
assembling the window adapter
kit. Some screws may be partially
assembled onto window panel.
Air exchange tubes Exchanges air between the unit
and outdoors.
Minimum window extension 26"
Maximum window extension 46"
Minimum hose extension 20"
Maximum hose extension 60"
Window adapter kit
An installation parts kit is packed with your unit in a separate
carton. Before you discard the packaging that your unit came
in, please locate the carton that contains these parts and
ensure that all parts are present.
• Window panel - Attaches to window opening to allow air
exchange for system air transfer.
• Window panel extensions - Extends window panel to t
windows of various dimensions.
• Tube adapters - Connect air exchange tubes to window
panel.
• Screws - 12 screws are included for assembling the
window adapter kit. Some screws may be partially
assembled onto window panel.
• Air exchange tubes - Exchanges air between the unit
and outdoors.
4
Window adapter kit
Window Panel
Instructions for assembling the window adapter kit
1. Insert tube adapters through the back of the window panel.
2. Secure each tube adapter with four screws through the
front of the window panel.
3. Insert window panel extensions into window panel. Lightly
tighten the screws in the window panel to hold the
extensions in place.
Window Panel
Extension
Tube Adapters
Window Panel
Extension screws
Back of
window panel
Air Exchange Tubes
Screws
Tube Adapters
Window panel
Window panel extensions
Window adapter kit
An installation parts kit is packed with your unit in a separate
carton. Before you discard the packaging that your unit came
in, please locate the carton that contains these parts and
ensure that all parts are present.
Window panel Attaches to window opening to
allow air exchange for system air
transfer.
Window panel extensions Extends window panel to fit
windows of various dimensions.
Tube adapters Connect Air exchange tubes to
window panel.
Screws 12 screws are included for
assembling the window adapter
kit. Some screws may be partially
assembled onto window panel.
Air exchange tubes Exchanges air between the unit
and outdoors.
WINDOW ADAPTER KIT INSTALLATION
11

5
Window installation
Maintain a clear distance (from walls, furniture, etc.)
of at least 10 inches around the unit to allow proper
air circulation and prevent damage to the unit.
Important: Do not over-stretch the exhaust tube or
make any unnecessary bends in it.
Installing the window adapter kit
Note: The window adapter kit must be installed and
connected for the air conditioner to work properly in
Cool mode. The window adapter kit is not required
when using the unit in Heat, Dehumidify, or Fan
modes.
Your window adapter kit has been designed to fit
most standard vertical and horizontal window
applications. However, it may be necessary for you to
improvise/modify some aspects of the installation
procedures for certain types of windows.
1. Open window. (fig.A)
2. Place window panel with extensions into window
frame and adjust to width of window. (fig.B)
Window adapter kit may be installed vertically as
well as horizontally. This installaton may also be
used for crank style windows. (fig.E)
3. Tighten the four screws on the window panel to
secure the window panel extensions.
4. Close window. (fig.C)
5. The window adapter kit should now fit securely
within the window frame and you can now attach
the air exchange tubes. If you are having trouble
attaching the air exchange tubes, you may attach
the tubes prior to installing the window adapter kit.
Attaching the air exchange tubes to the air
conditioner
1. Attach the tubes to the window adapter kit.
2. Attach the other end to the air conditioner.
To attach air exchange tubes: push tube onto tube
adapter and twist until the tab is in place in the hole
on the tube.
To remove air exchange tubes: twist the end until the
tab is clear of the hole in the tube and pull off.
Do not attach the tubes if using the unit in
dehumidify or heat mode.
A
D
E
C
B
Vertical installation
7
89
Installing the window adapter kit
Note: The window adapter kit must be installed and
connected for the air conditioner to work properly in Cool
mode. The window adapter kit is not required when using
the unit in Dehumidify or Fan modes.
Your window adapter kit has been designed to t most
standard vertical and horizontal window applications.
However, it may be necessary for you to modify some
aspects of the installation procedures for certain types of
windows.
1. Open window.
2. Place window panel with extensions into window frame
and adjust to width of window.
Window adapter kit may be installed vertically as well as
horizontally. This installation may also be used for crank
style windows.
3. Tighten the four screws on the window panel to secure
the window panel extensions.
4. Close window.
5. The window adapter kit should now t securely within the
window frame and you can now attach the air exchange
tubes. If you are having trouble attaching the air exchange
tubes, you may attach the tubes prior to installing the
window adapter kit.
Attaching the air exchange tubes to the air
conditioner
1. Attach the tubes to the window adapter kit.
2. Attach the other end to the air conditioner.
To attach air exchange tubes: push tube onto tube adapter
and twist until the tab is in place in the hole on the tube.
To remove air exchange tubes: twist the end until the tab is
clear of the hole in the tube and pull off.
Do not attach the tubes if using the unit in dehumidify
mode.
Maintain a clear distance (from walls, furniture, etc.)
of at least 10 inches around the unit to allow proper
air circulation and prevent damage to the unit.
Important: Do not over-stretch the exhaust tube or
make any unnecessary bends in it.
12

Your ZoneAire® Portable Air Conditioner is designed to
evaporate the condensation removed from the interior space
through the exhaust hose. Under certain conditions it is
possible that the unit will not evaporate 100% of the removed
moisture.
The unit is designed with a built-in reservoir to accumulate
excess condensate and help dispose of it.
Internal Water Level
1. Under any mode if the water level is in the “low” area the
unit will function normally.
2. If the water level is in the “normal” area the unit will
continue to function normally while internally evaporating
the condensate.
3. If the unit cannot evaporate all of the condensate internally,
the tank may become full. If the tank becomes full, the unit
will turn off, and the Water Full light will illuminate.
Draining Water
The water can be drained from the unit by removing the base
stopper and letting the water drain by gravity.
1. When the WATER FULL lamp is on unplug the unit
and move the unit to a suitable location for draining the
condensation.
2. Using the gravity drain method, ensure that the base
stopper is located above a suitable area for draining the
condensate and remove the stopper. Re-install the stopper
once all water has drained.
3. Return the unit to the original location and restore power
and duct connections.
4. The WATER FULL indicator should be off and the unit will
return to normal operating mode.
Permanent Drainage
For permanent and continuous drainage, a 1/2" hose may be
attached to the unit and led down a drain.
8
Maintenance
Draining excess water
Condensed water may accumulate in the unit. If the
internal tank becomes full, the Warning Light will shine
and the unit will not operate until the unit has been
drained.
First, uplug electrical cord from wall outlet. Then, drain
excess water from the tank by placing a pan under the
drain valve, removing the drain plug, and letting the
water drain into the pan.
When the water stops draining out, replace the drain
plug, and remove the pan of water. Operate the air
conditioner in fan mode to dry the interior of the unit.
Always drain the unit before putting it into storage.
Cleaning and Maintenance
• The unit has an air filter that must be cleaned with
water every two weeks and put back in the unit after it
is completely dry.
• The air discharge grille can be cleaned with a rag or
sponge, warm water and mild detergent.
• Never use hot water, bleach, gasoline, acids, cleaning
fluid or a brush to clean the unit. This will damage the
cabinet and the air discharge area.
• Do not wash the unit with a hose.
Cleaning the filter.
1. Turn Power OFF.
2. Remove the air filter by grasping the bottom and
pulling it up and out of the unit.
3. Wash in hot soapy water, rinse and shake dry.
4. Replace the filter with the front of the filter toward you.
5. To dry the filter thoroughly, run your unit in fan mode
for a few minutes. Remember, only a clean filter works
properly and delivers top efficiency at every setting.
Air Conditioner Remote Control
AAA IEC R031.5V
+
-
AAA IEC R03
1.5V
The functions work the same as your air conditioner’s
touch controls.
Batteries: Remove the cover on the back of the remote
controller and insert the batteries with the (+) and (-)
poles pointing in the proper direction.
Drain Valve
Warning: Make sure unit is unplugged before
performing any maintenance procedure.
Proper use and care of
your air conditioner will
help ensure longer life of
the unit. It is
recommended to have a
professional annually
inspect and clean the coils
and condensate water
passages. Expense of
annual inspection is the
consumer’s responsibility.
CAUTION:
• Use only AAA or IEC R03 1.5V batteries.
• Do not attempt to recharge the supplied batteries
• All batteries should be replaced at the same time.
• Do not dispose of the batteries in a fire as they may
explode.
• Do not mix old and new batteries.
• Do not install the batteries with the polarity (+/–)
reversed.
• Do not mix alkaline, standard (carbon - zinc), or
rechargeable (nickel-cadmium) batteries.
• Keep batteries and other things that could be
swallowed away from young children. Contact a
doctor immediately if an object is swallowed.
10
CAUTION
Failure to keep air filter clean will result
in poor air circulation. DO NOT operate
without filter. This can render the unit
inoperative.
Removing the filter
CONDENSATION HANDLING
13

MAINTENANCE / SERVICE
Unplug and/or disconnect all electrical power
to the unit before performing inspections,
maintenances or service.
Failure to do so could result in electric shock,
serious injury or death.
WARNING
RISK OF ELECTRIC SHOCK
Preparation for storage
1. Turn off the air conditioner, disconnect the power.
2. Perform proper maintenance to the air lter and other
parts.
3. Open the base stopper to drain out all of the water from
the base. Operating the unit in fan only mode for 12 hours
will help ensure there is no moisture within the unit.
4. Cover the unit to prevent dust or lth from entering the unit.
Cleaning the air lter
If the air lter is blocked with a lot of dust, the air ow volume
will be reduced. Clean the lter once every two weeks.
Open and clean the air lter:
1. Pull the lter out as shown in the drawing.
2. Take out the air lter from the lter cover.
3. Wash the air lter by immersing it gently into warm (about
40°C or 104°F) water with a neutral detergent or vacuum
the lter clean.
4. Rinse the lter and dry it thoroughly in a shaded place.
5. Install the air lter back to its original place.
Cleaning the air conditioner
Clean the surface of the unit with a damp cloth, then dry us-
ing a duster or similar.
Do not use chemical solvent (like benzene or alcohol) to
clean the surface of the unit. If you do so, the surface may
be scratched, damaged or even cause the case to become
deformed.
Prior to operating seasons
1. Check to ensure that the air inlets and outlets of the unit
are not blocked.
2. Make sure that air lter is properly in place before operat-
ing the machine. If the machine is operated with air lter
removed, dust and foreign objects will result in faulty per-
formance of the air conditioner.
Drain valve
14

TROUBLESHOOTING
15

16
TROUBLESHOOTING
The compressor bolts are
loose or copper tubes are
contacting other metal parts
Tighten bolts
Adjust copper tubes
Unblock
(below72 F)

17
REFRIGERATOR SYSTEM DIAGRAM
SCHEMATIC WIRING DIAGRAM

18
Friedrich Air Conditioning Company
P.O. Box 1540
San Antonio, TX 78295
210.357.4400
www.friedrich.com
PORTABLE AIR CONDITIONERS
LIMITED WARRANTY
FIRST YEAR
ANY PART: If any part supplied by FRIEDRICH fails because of a defect in workmanship or material within twelve months from
date of original purchase, FRIEDRICH will repair the product at no charge, provided the product is transported to a Friedrich
Authorized Service Center for repair. ALL transportation charges are the sole responsibility of the owner. This remedy is expressly
agreed to be the exclusive remedy within twelve months from the date of the original purchase.
SECOND THROUGH FIFTH YEAR
SEALED REFRIGERANT SYSTEM: If the Sealed Refrigeration System (defined for this purpose as the compressor, condenser
coil, evaporator coil, reversing valve, check valve, capillary, filter drier, and all interconnecting tubing) supplied by FRIEDRICH in
your Room Air Conditioner fails because of a defect in workmanship or material within sixty months from date of purchase,
FRIEDRICH will pay a labor allowance and parts necessary to repair the Sealed Refrigeration System; PROVIDED FRIEDRICH will
not pay the cost of diagnosis of the problem, removal, freight charges, and transportation of the air conditioner to and from the
Service Agency, and the reinstallation charges associated with repair of the Sealed Refrigeration System. All such cost will be the
sole responsibility of the owner. This remedy is expressly agreed to be the exclusive remedy within sixty months from the date of the
original purchase.
APPLICABILITY AND LIMITATIONS: This warranty is applicable only to units retained within the Fifty States of the U.S.A., District
of Columbia, and Canada. This warranty is not applicable to:
1. Air filters or fuses.
2. Products on which the model and serial numbers have been removed.
3. Products which have defects or damage which results from improper installation, wiring, electrical current
characteristics, or maintenance; or caused by accident, misuse or abuse, fire, flood, alterations and/or misapplication
of the product and/or units installed in a corrosive atmosphere, default or delay in performance caused by war,
government restrictions or restraints, strikes, material shortages beyond the control of FRIEDRICH, or acts of God.
OBTAINING WARRANTY PERFORMANCE: Service will be provided by the FRIEDRICH Authorized Dealer or Service
Organization in your area. They are listed in the Yellow Pages. If assistance is required in obtaining warranty performance, write
to: Room Air Conditioner Service Manager, Friedrich Air Conditioning Co., P.O. Box 1540, San Antonio, TX 78295-1540.
LIMITATIONS: THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES. Anything in the warranty
notwithstanding, ANY IMPLIED WARRANTIES OF FITNESS FOR PARTICULAR PURPOSE AND/OR MERCHANTABILITY
SHALL BE LIMITED TO THE DURATION OF THIS EXPRESS WARRANTY. MANUFACTURER EXPRESSLY DISCLAIMS AND
EXCLUDES ANY LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGE FOR BREACH OF ANY EXPRESSED OR
IMPLIED WARRANTY.
NOTE: Some states do not allow limitations on how long an implied warranty lasts, or do not allow the limitation or exclusion of
consequential or incidental damages, so the foregoing exclusions and limitations may not apply to you.
OTHER: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
PROOF OF PURCHASE: Owner must provide proof of purchase in order to receive any warranty related services.
All service calls for explaining the operation of this product will be the sole responsibility of the consumer.
All warranty service must be provided by an Authorized FRIEDRICH Service Agency, unless authorized by FRIEDRICH prior to
repairs being made.
(7-06)
