Frigidaire FAC086L7A2 User manual

ROOM AIR CONDITIONER
Model No.
FAC086L7A
©2002 Electrolux Home Products, Inc.
All rights reserved
FACTORY PARTS CATALOG
ROOM AIR CONDITIONER
WIRING DIAGRAM - # 309341601
OWNER’S GUIDE - # 309000825
ENERGY GUIDE - # 309369904
ELECTROLUX HOME PRODUCTS, INC
P.O.BOX 212378, AUGUSTA, GA 30917
PRODUCT NO. BASE MODEL NO. SERIES VOLTS BTU-COOLING
FAC086L7A2 FAC086L7A Gallery 115 8000 BTU
MARKET
USA
Publication No.
5995374419
020617
-EN/SERVICE /KC
345

06/02 2
Publication No. FAC086L7A
5995374419
CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 06/02
* = Non-Illustrated Parts
FAC086L7A Publication No.
5995374419
CABINET FRONT AND WRAPPER
POS. NO PART NO DESCRIPTION
1 309643602 Cabinet,wrapper
* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs
8 309640204 Louver Assy,Includes8&9
8 309639302 * Louver,horizontal
9 309647201 * Louver,vertical ,with link
12 309343501 Filter,air ,7.12 x 17.31 ,no frame
17 309640104 Front Assembly,cabinet ,w/8,9,12,38,43
* 3015312 Screw,8-18AB x 0.500
19 309340802 Overlay,control
25 309328603 Door,fresh air vent
25* 309330201 Detent,vent
26 309638201 Handle,vent door
38 309646301 Panel,cabinet front
43 309646401 Frame,cabinet front
70 309342201 Enclosure,elec control mt
78 309342604 Remote Control,transmitter ,with batteries
* 309369904 Energy Guide,FAC086L7A2

06/02 4
Publication No. FAC086L7A
5995374419
CONTROLS

# = Fast-moving Parts 5 06/02
* = Non-Illustrated Parts
FAC086L7A Publication No.
5995374419
CONTROLS
POS. NO PART NO DESCRIPTION
7 # 309643801 Control Box
10 309643702 Bulkhead
10* 309111201 Grommet,wire protector
12 5304413782 Holder,thermistor ,w/seal
13 # 5304426336 Capacitor,250 V ,35+10 mfd
14 3015312 Screw,8-18AB x 0.500
15 309351901 Strap,capacitor mtg.
17 # 309343101 Cord-electric power,18 AWG ,115 V
* 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding
70 309342201 Enclosure,elec control mt
71 # 309340503 PC Board,power ,w/temp sensor
72 # 309340505 PC Board,input ,11.5 MM display
72*# 5304417643 Ribbon Protector
74 5303301590 Screw,6-20AB x 0.38
75 5304413781 Support,PC board
76 309111601 Transformer,120/12 Volt

06/02 6
Publication No. FAC086L7A
5995374419
AIR HANDLING PARTS

# = Fast-moving Parts 7 06/02
* = Non-Illustrated Parts
FAC086L7A Publication No.
5995374419
AIR HANDLING PARTS
POS. NO PART NO DESCRIPTION
1 # 309624502 Fan Blade,with clamp
2 3202975 Screw,10-16AB x 0.72 ,square drive
3 309643901 Housing,fan shroud
4 5303303759 Seal,bottom
4 5304421913 Seal,top
6 08007481 Nut,Keps ,motor mtg ,(4)
8 # 309644302 Motor,fan
10 309643702 Bulkhead
11 # 309631701 Blower Wheel
12 309112101 Clamp,blower wheel mt ,compression
15 309642901 Housing,blower scroll ,Extended
16 309100201 Clip,evap/bulkhead
20 309643002 Plate,housing/scroll

06/02 8
Publication number FAC086L7A
5995374419
COMPRESSOR PARTS

06/02 9
FAC086L7A Publication No.
5995374419
COMPRESSOR PARTS
POS. NO PART NO DESCRIPTION
1 # 309616919 Compressor
2 5303283877 Grommet,compressor mtg ,(3)
3 5308006948 Nut,compressor mtg ,(3)
6 3201668 Gasket,terminal cover
7 5304405245 Cover,compr terminal
8 # 5303317553 Overload Protector
9 3201670 Nut,terminal cover
10 # 5303317601 Start Assist Kit,compressor
11 # 309619313 Evaporator
12 # 5303303197 Condenser
13 # 309642801 Tray,evap drip
14 309644003 Base,compressor mt. ,with studs
16 # 5304426332 Capillary Tube,28 inch long
17 # 5300265301 Drier-filter,service kit
19* 309112501 Washer,metallic

06/02 10
Publication No. FAC086L7A
5995374419
WINDOW MOUNTING PARTS

# = Fast-moving Parts 11 06/02
* = Non-Illustrated Parts
FAC086L7A Publication No.
5995374419
POS. NO PART NO DESCRIPTION
1 5304407729 Seal,window stuffer
2 5303211056 Bracket,sash lock
4 309644902 Frame Extension Kit,accordian ,LH & RH ,incl. 4,14,15
4 5304423372 Extension,sliding frame ,LH cab front ,w/closure panel
5 08016226 Seal,top rail/cab
14 5304423373 Extension,sliding frame ,RH cab front ,w/closure panel
15 309645501 Panel,accordian ,RH/LH ,window closure
16 5304417362 Rail,retainer ,top
17 3002803 Screw,wood, type 17 ,10-12 x 0.750
18 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs
20 5304411997 Screw,8-18 x 0.750
22 5304403252 Rail,retainer ,bottom
23 3001806 Screw,23(T) ,10-32 x 0.310
24 5308002974 Screw,wood,type 17 ,8-15 x 0.500
WINDOW MOUNTING PARTS

06/02 12
Publication No. FAC086L7A

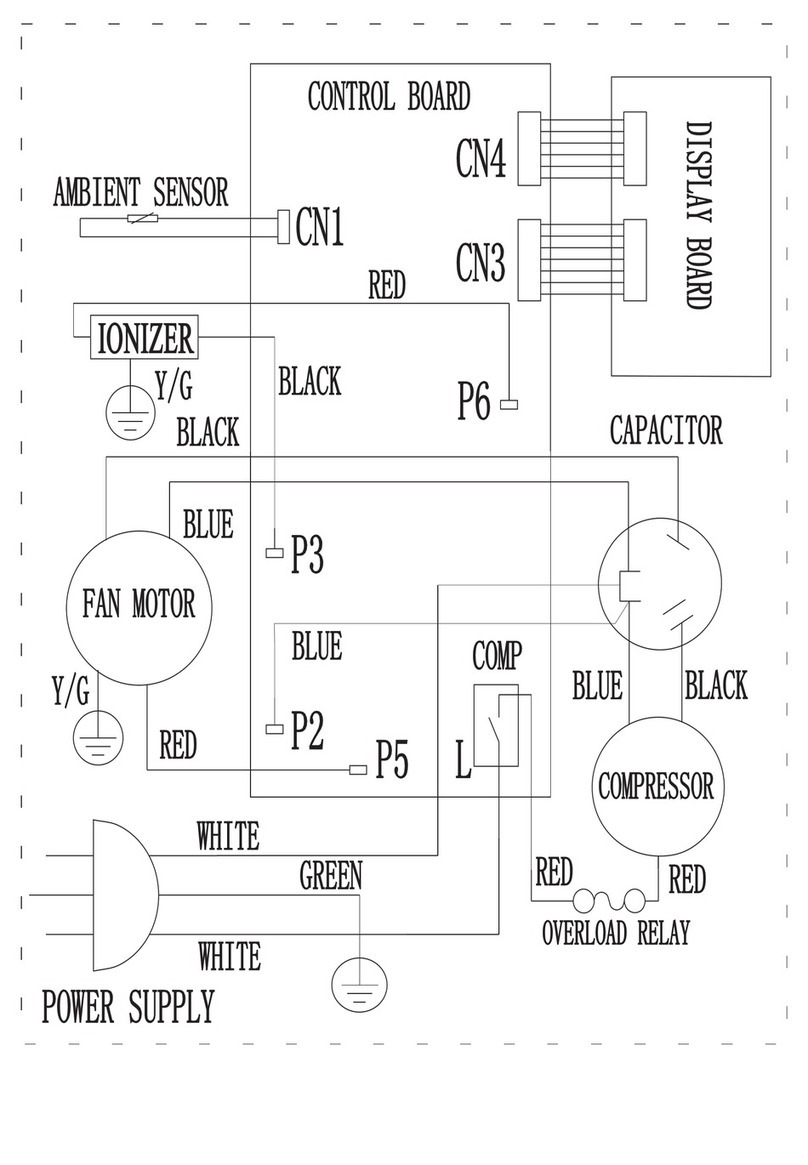

5995374419 WIRING DIAGRAM
