2INTRODUCTION
Welcome to our family
Model Number
Serial Number
Purchase Date
Thank you for bringing Frigidaire into your
home! We see your purchase as the
beginning of a long relationship together.
This manual is your resource for the use and
care of your product. Please read it before
using your appliance. Keep it handy for
quick reference. If something doesn’t seem
right, the troubleshooting section will help
you with common issues.
FAQs, helpful tips and videos, cleaning
products, and kitchen and home accessories
are available at www.frigidaire.com.
We are here for you! Visit our website, chat
with an agent, or call us if you need help. We
may be able to help you avoid a service visit.
If you do need service, we can get that
started for you.
Let’s make it ocial! Be sure to register your
product.
Keep your product info here so it’s easy to
find.

3
For Your Safety
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance. Read product
labels for flammability and other warnings.
Prevent Accidents
WARNING
To reduce the risk of fire, electrical shock, or
injury to persons when using your air
conditioner, follow basic precautions,
including the following:
đBe sure the electrical service is adequate
for the model you have chosen. This
information can be found on the serial
plate, which is located on the side of the
cabinet and behind the grille.
đIf the air conditioner is to be installed in a
window, you will probably want to clean
both sides of the glass first. If the window
is a triple-track type with a screen panel
included, remove the screen completely
before installation.
đBe sure the air conditioner has been
securely and correctly installed according
to the separate installation instructions
provided with this manual. Save this
manual and the installation instructions for
possible future use in removing or
reinstalling this unit.
đWhen handling the air conditioner, be
careful to avoid cuts from sharp metal fins
on front and rear coils.
WARNING
Avoid fire hazard or electric shock. Do not
use an extension cord or an adaptor plug.
Do not remove any prong from the power
cord.
Electrical Information
WARNING
The complete electrical rating of your new
room air conditioner is stated on the serial
plate. Refer to the rating when checking the
electrical requirements.
đBe sure the air conditioner is properly
grounded. To minimize shock and fire
hazards, proper grounding is important.
The power cord is equipped with a
three-prong grounding plug for protection
against shock hazards.
đYour air conditioner must be used in a
properly grounded wall receptacle. If the
wall receptacle you intend to use is not
adequately grounded or protected by a
time delay fuse or circuit breaker, have a
qualified electrician install the proper
receptacle.
đDo not run air conditioner without outside
protective cover in place. This could result
in mechanical damage within the air
conditioner.
đDo not use an extension cord or an
adapter plug.

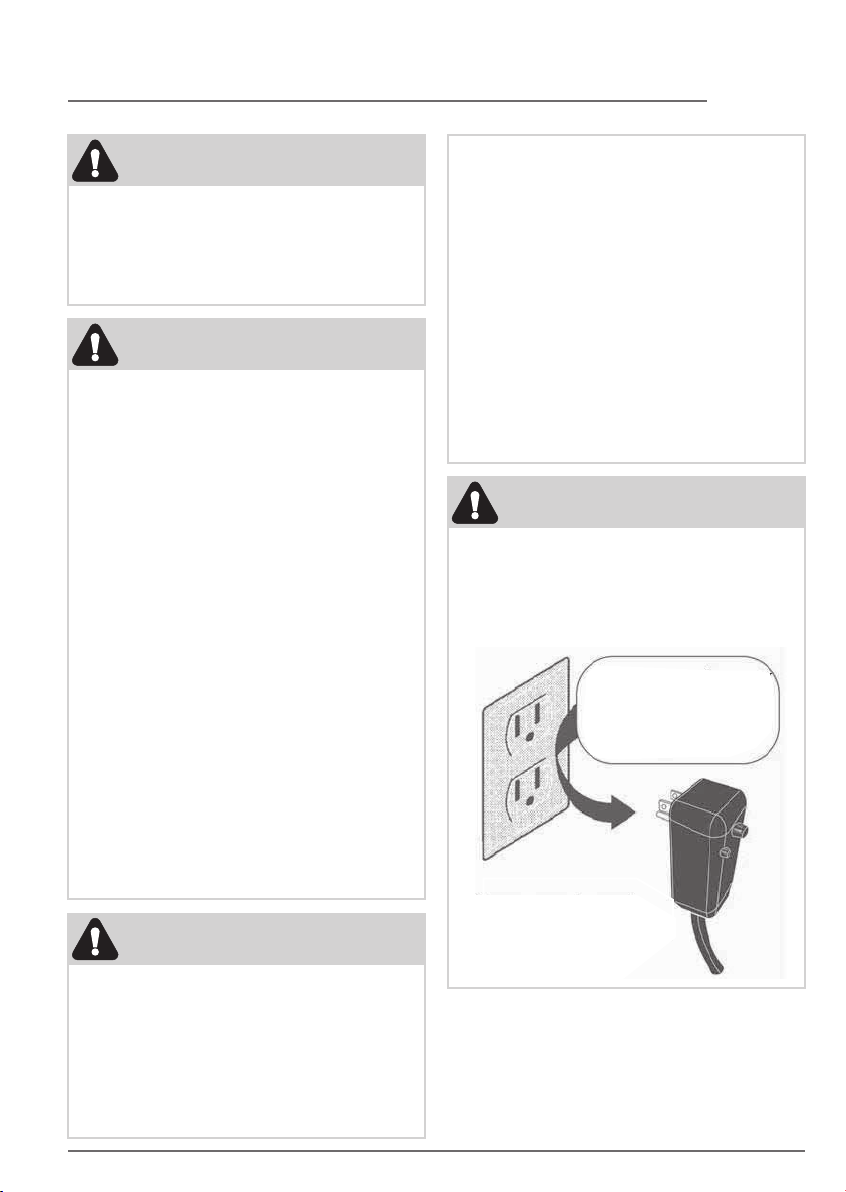

Grounding type wall receptacle
Do not, under any
circumstances, cut,
remove, or bypass the
grounding prong.
Power supply cord
with 3-prong grounding
plug and current
detection device

4IMPORTANT SAFETY INSTRUCTIONS
NOTE
The power supply cord with this air
conditioner contains a current detection
device designed to reduce the risk of fire.
Please refer to the section ‘Operation of
Current Device’ for details.
In the event that the power supply cord is
damaged, it cannot be repaired. It must be
replaced with a cord from the product
manufacturer.
SAFETY PRECAUTIONS
DANGER! Avoid Serious Injury or Death
đThis air conditioner contains no
user-serviceable parts. Always call an
authorized Electrolux servicer for repairs.
đDo not insert or place fingers or objects
into the air discharge area in the front of
the unit.
đDo not start or stop the air conditioner by
unplugging the power cord or turning o
the power at the electrical box.
đDo not cut or damage the power cord.
đIf the power cord is damaged, it should
only be replaced by an authorized
Electrolux servicer.
đIn the event of a malfunction (sparks,
burning smell, etc.), immediately stop the
operation, disconnect the power cord, and
call an authorized Electrolux servicer.
đDo not operate the air conditioner with
wet hands.
đDo not pull on the power cord.
đDo not drink any water that is drained
from the air conditioner.
SAFETY PRECAUTIONS
CAUTION! Avoid Injury or damage to the
unit or other property
đProvide ventilation per installation
instructions.
đDo not direct airflow at fireplaces or other
heat related sources as this could cause
flare ups or make units run excessively.
đDo not climb on or place objects on
outdoor part of the unit.
đDo not hang objects off the unit.
đDo not place containers with liquids on
the unit.
đTurn off the air conditioner at the power
source when it will not be used for an
extended period of time.
đPeriodically check the condition of the
unit’s installation accessories for any
damage.
đDo not apply heavy pressure to the
radiator fins of the unit.
đOperate the unit without air filter in place.
đDo not block or cover the intake grille,
discharge area and outlet ports.
đEnsure that any electrical/electronic
equipment is one yard away from the unit.
đDo not use or store flammable gases near
the unit.
đDo not touch the metal parts of the unit
when removing the filter. Injuries can
occur when handling sharp metal edges.
đDo not use water to clean inside the air
conditioner. Exposure to water can
destroy the insulation, leading to possible
electric shock.
đWhen cleaning the unit, first make sure
that the power and circuit breaker are
turned off.
WARNING
FOR FLAMMABLE REFRIGERANT
đƫ+ƫ*+0ƫ1/!ƫ)!*/ƫ0+ƫ!(!.0!ƫ0$!ƫ
defrosting process or to clean, other than
those recommended by the manufacturer.
đƫ+ƫ*+0ƫ,%!.!ƫ+.ƫ1.*ċ
đƫ!ƫ3.!ƫ0$0ƫ0$!ƫ.!".%#!.*0/ƫ)5ƫ*+0ƫ
contain an odour.
đƫ+),(%*!ƫ3%0$ƫ*0%+*(ƫ#/ƫ.!#1(0%+*/ƫ
shall be observed.
đƫ!!,ƫ2!*0%(0%+*ƫ+,!*%*#/ƫ(!.ƫ+"ƫ
obstruction.

5IMPORTANT SAFETY INSTRUCTIONS
đƫ$!ƫ,,(%*!ƫ/$((ƫ!ƫ/0+.! ƫ%*ƫƫ.++)ƫ
without continuously operating ignition
sources (for example: open flames, an
operating gas appliance) and ignition
sources or (for example: an operating
electric heater) close to the appliance.
đƫ$!ƫ,,(%*!ƫ/$((ƫ!ƫ/0+.! ƫ/+ƫ/ƫ0+ƫ
prevent mechanical damage from
occurring.
đƫƫ3.*%*#ƫ0$0ƫ0$!ƫ,,(%*!ƫ/$((ƫ!ƫ
stored in a well-ventilated area where the
room size corresponds to the room area
as specified for operation.
đƫ*5ƫ,!./+*ƫ3$+ƫ%/ƫ%*2+(2! ƫ3%0$ƫ3+.'%*#ƫ
on or breaking into a refrigerant circuit
should hold a current valid certificate from
an industry-accredited assessment
authority, which authorizes their
competence to handle refrigerants safely
in accordance with an industry recognized
assessment specification.
đƫ!.2%%*#ƫ/$((ƫ+*(5ƫ!ƫ,!."+.)! ƫ/ƫ
recommended by the equipment
manufacturer. Maintenance and repair
requiring the assistance of other skilled
personnel shall be carried out under the
supervision of the person competent in
the use of flammable refrigerants.
đƫƫƫ)+ %"5ƫ0$!ƫ(!*#0$ƫ+"ƫ0$!ƫ,+3!.ƫ
cord or use an extension cord to power
the unit.
đƫƫƫ/$.!ƫƫ/%*#(!ƫ+10(!0ƫ3%0$ƫ+0$!.ƫ
electrical appliances. Improper power
supply can cause fire or electrical shock.
đƫ(!/!ƫ"+((+3ƫ0$!ƫ%*/0.10%+*ƫ.!"1((5ƫ0+ƫ
handle, install, clear, service the air
conditioner to avoid any damage or
hazard. Flammable Refrigerant R32 is used
within air conditioner. When maintaining
or disposing the air conditioner, the
refrigerant (R32 or R290) shall be
recovered properly, shall not discharge to
air directly.
đƫ+ƫ*5ƫ+,!*ƫ"%.!ƫ+.ƫ !2%!ƫ(%'!ƫ/3%0$ƫ
which may generate spark/arcing shall be
around air conditioner to avoid causing
ignition of the flammable refrigerant used.
Please follow the instruction carefully to
store or maintain the air conditioner to
prevent mechanical damage from
occurring.
đƫ())(!ƫ.!".%#!.*0ƫġƫăĂƫ%/ƫ1/! ƫ%*ƫ%.ƫ
conditioner. Please follow the instruction
carefully to avoid any hazard.
đƫ$!ƫ.!".%#!.0%*#ƫ/5/0!)ƫ/$+1( ƫ*+0ƫ
receive maintenance, service, or repair by
any person.
đƫ*/1.!ƫ0$0ƫ0$!ƫ.!ƫ%/ƫ%*ƫ0$!ƫ+,!*ƫ+.ƫ0$0ƫ
it is adequately ventilated before breaking
into the system or conducting any hot
work. A degree of ventilation shall
continue during the period that the work
is carried out. The ventilation should safely
disperse any released refrigerant and
preferably expel it externally into the
atmosphere.
đƫ$!'ƫ0$0ƫ(%*#ƫ3%((ƫ*+0ƫ!ƫ/1&!0ƫ0+ƫ
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
đƫ* !.ƫ*+ƫ%.1)/0*!/ƫ/$((ƫ,+0!*0%(ƫ
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used. The following leak detection
methods are deemed acceptable for all
refrigerant systems. Electronic leak
detectors may be used to detect
refrigerant leaks but, in the case of
FLAMMABLE REFRIGERANTS, the
sensitivity may not be adequate, or may
need re-calibration. (Detection equipment
shall be calibrated in a refrigerant-free
area.) Ensure that the detector is not a
potential source of ignition and is suitable
for the refrigerant used. Leak detection
equipment shall be set at a percentage of

6IMPORTANT SAFETY INSTRUCTIONS
NOTE
đƫDo not use this device to turn the unit on
or off.
đƫAlways make sure the RESET button is
pushed in for correct operation.
đƫThe power supply cord must be replaced
if it fails to reset when either the TEST
button is pushed, or it cannot be reset. A
new one can be obtained from the
product manufacturer.
đƫIf power supply cord is damaged, it
CANNOT be repaired. It MUST be replaced
by one obtained from the product
manufacturer.
Plug in & press RESET
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO
buttons on the plug head. Press the TEST
button. You will notice a click as the
RESET button pops out.
3. Press the RESET button again, you will
notice a click as the button engages.
4. The power supply cord is now supplying
electricity to the unit. (This is also
indicated by a light on the plug head).
READ THIS SECTION BEFORE ATTEMPTING
TO OPERATE AIR CONDITIONER.
Unit must be upright for one hour prior to
operating.

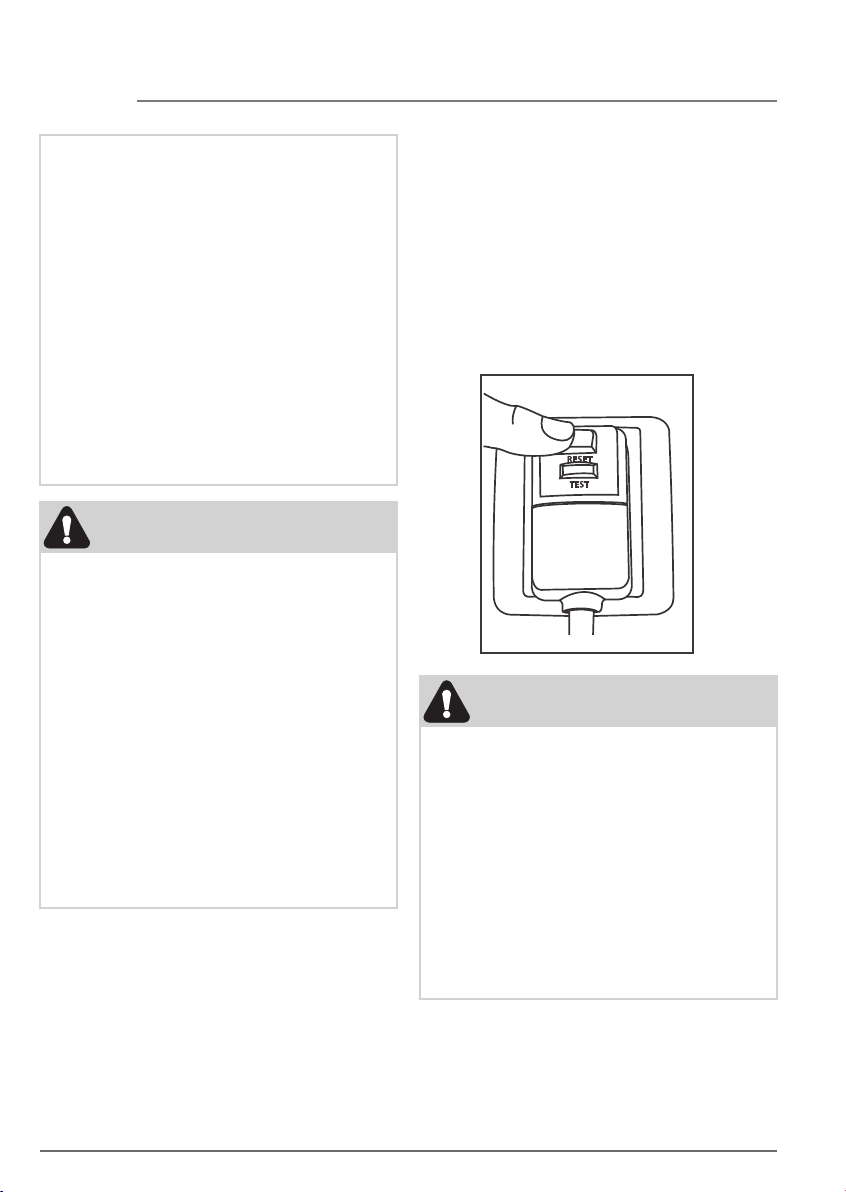

The power supply cord contains a current
device that senses damage to the power
cord. To test your power supply cord do the
following:
Operation of Current Device
CAUTION
đƫ$%/ƫ,,(%*!ƫ%/ƫ*+0ƫ%*0!* ! ƫ"+.ƫ1/!ƫ5ƫ
persons (including children) with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the
appliance by a person responsible for their
safety.
đƫ$%( .!*ƫ/$+1( ƫ!ƫ/1,!.2%/! ƫ0+ƫ!*/1.!ƫ
that they do not play with the appliance.
đƫ"ƫ0$!ƫ/1,,(5ƫ+. ƫ%/ƫ )#! Čƫ%0ƫ)1/0ƫ!ƫ
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
đƫ$!ƫ,,(%*!ƫ/$((ƫ!ƫ%*/0((! ƫ%*ƫ
accordance with national wiring
regulations.
the LFL of the refrigerant and shall be
calibrated to the refrigerant employed,
and the appropriate percentage of gas (25
% maximum) is confirmed. Leak detection
fluids are also suitable for use with most
refrigerants but the use of detergents
containing chlorine shall be avoided as the
chlorine may react with the refrigerant
and corrode the copper pipe-work.
NOTE Examples of leak detection fluids
are
– bubble method,
– fluorescent method agents.
If a leak is suspected, all naked flames
shall be removed/extinguished.
If a leakage of refrigerant is found contact
local manufacture to replace unit.

7PACKAGING & NORMAL SOUNDS

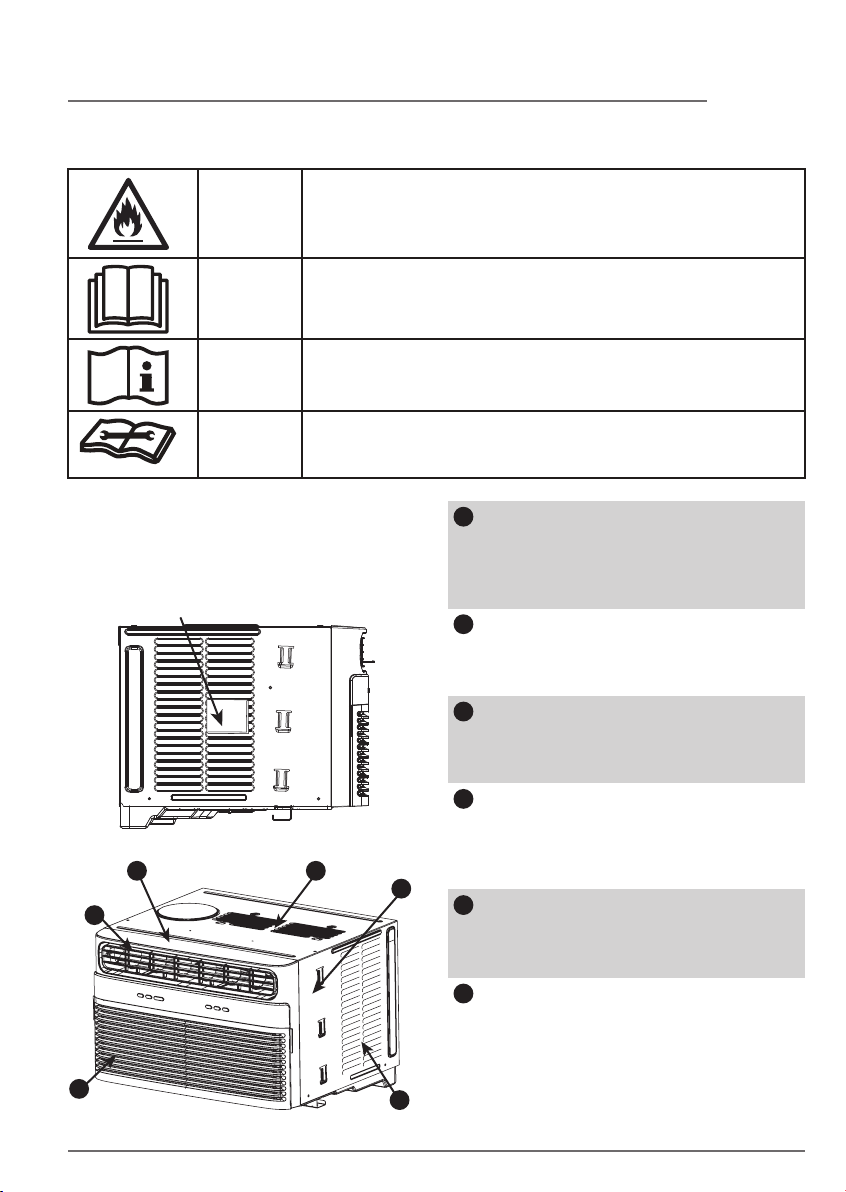

Explanation of symbols displayed on the unit
WARNING
This symbol shows that this appliance used a flammable
refrigerant. If the refrigerant is leaked and exposed to an
external ignition source, there is a risk of fire.
This symbol shows that the operation manual should be read
carefully.
This symbol shows that a service personnel should be
handling this equipment with reference to the installation
manual.
This symbol shows that information is available such as the
operating manual or installation manual.
CAUTION
CAUTION
CAUTION
Packaging
Normal Sounds
Remove all packaging from inside the
carton, along with any inserts placed into
the side louvers.
PACKAGING INSERTS
1
2
3 4 5
6
Vibration
Unit may vibrate and make noise
because of poor wall or window
construction or incorrect installation.
5
Pinging or Swishing
Droplets of water hitting condenser
during normal operation may cause
“pinging or swishing” sounds.
Note: Don’t try to drill any holes on the
base pan to eliminate the normal
sounds, otherwise it will void the
warranty.
6
Gurgle/Hiss
“Gurgling or hissing” noise may be
heard due to refrigerant passing
through evaporator during normal
operation.
1
Sound of Rushing Air
At the front of the unit, you may hear
the sound of rushing air being moved
by the fan.
2
High pitched Chatter
Today’s high eciency compressors
may have a high pitched chatter during
the cooling cycle.
3
Noise when unit starts
A “da-da” sound may occur when the
unit is turned on in thirty seconds due
to the compressor starting (For Inverter
type). It is normal.
4

8AIR CONDITIONER FEATURES
ELECTRONIC CONTROL
Before you begin, thoroughly familiarize yourself with the control panel and remote control
and all its functions (as shown below). The unit can be controlled by the touch pad alone, or
with the remote control.

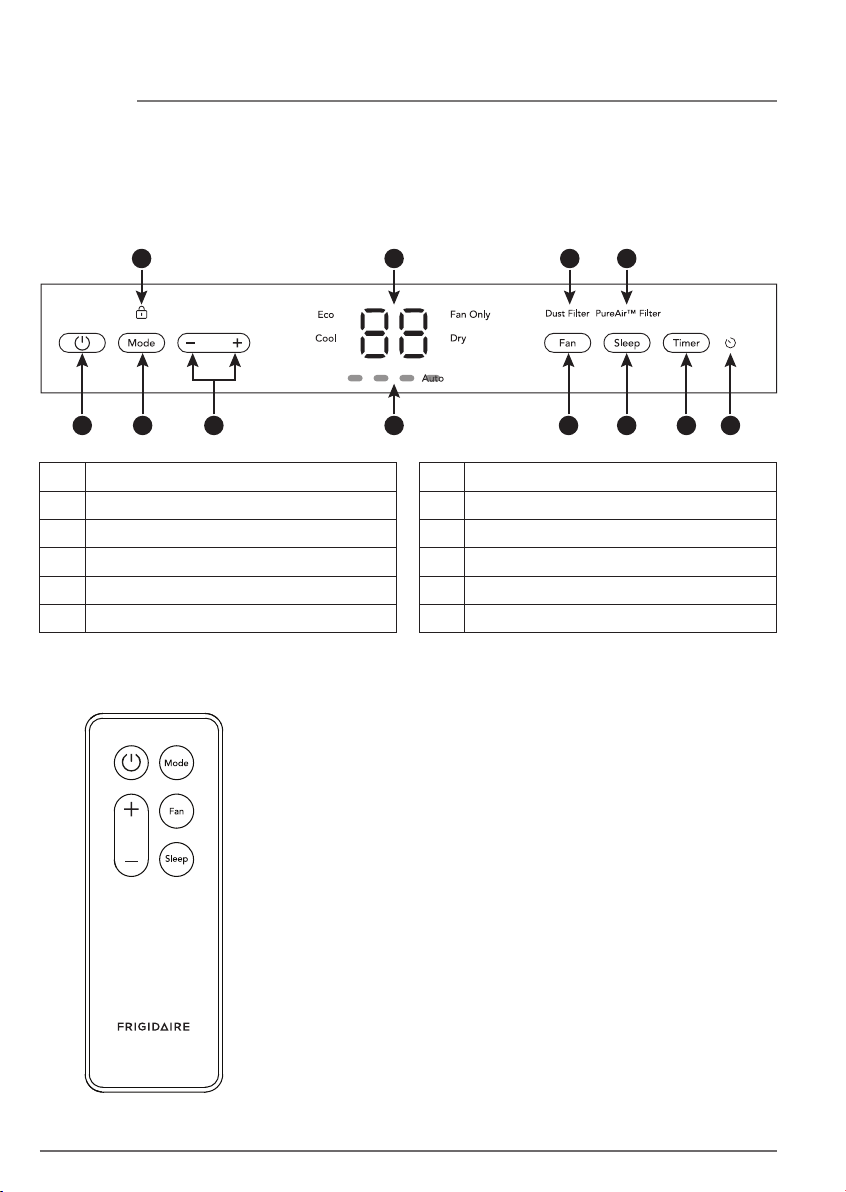

Air Conditioner Features
IJKL
ATurns Unit On Or O
BSet Mode
CAdjusts Temperature/Timer
DFan speed display
EFan speed button
FSleep button
GTimer button
HTimer icon
IPureAirTM Filter icon
JDust Filter change icon
KDisplays Temperature/Time
LChild lock icon
REMOTE CONTROL
A B E F G HDC
Battery Size: AAA
Warning: Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc),
or rechargeable (nickel-cadmium) batteries.
Caution for ingestion. Keep out of the reach
of children.
Note: Some feature can only be controlled
by control panel.

9OPERATING INSTRUCTIONS
NOTE
The following instructions represent the
touch pad. The same instructions can be
used for the remote control.

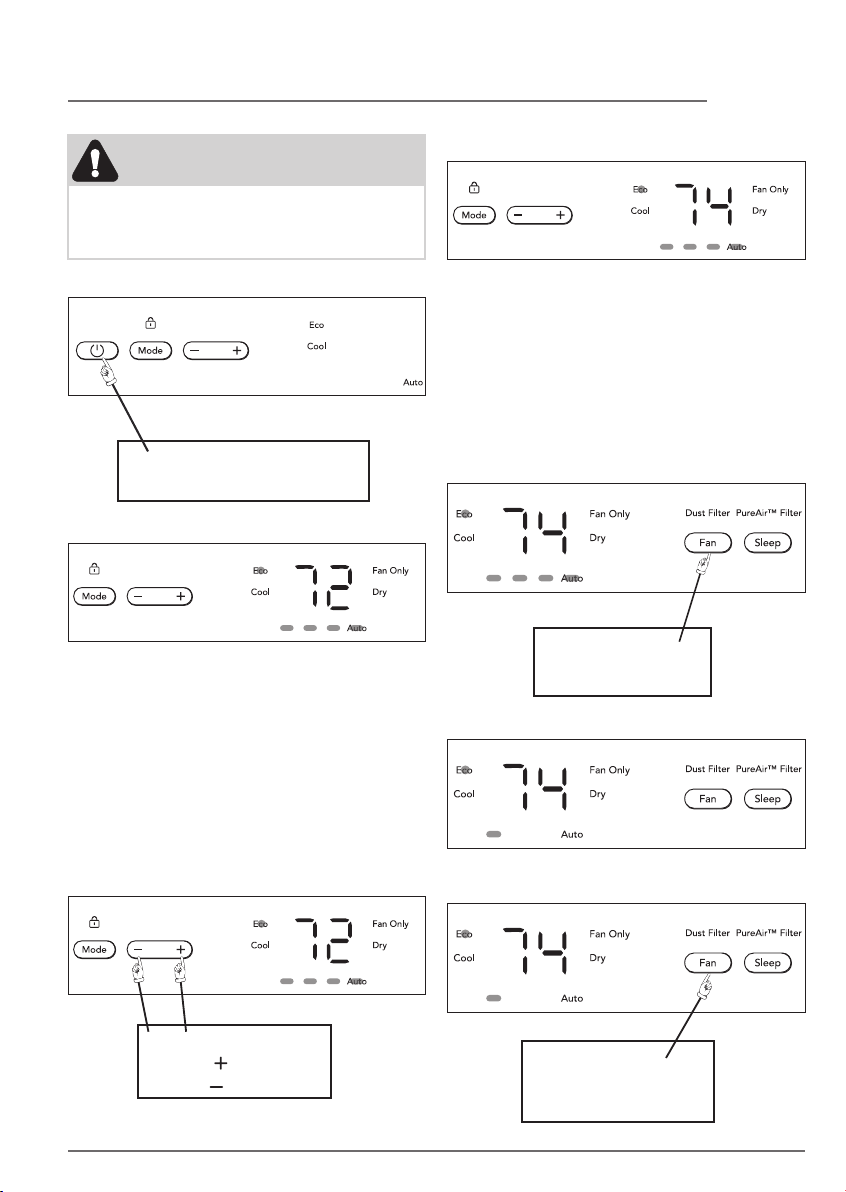

TO TURN UNIT ON:
PRESS ON/OFF BUTTON
DO THIS:
YOU WILL SEE:
NOTE: The unit will run in Eco(energy
saver) mode when powered on each time,
if last shutdown is in cool or Eco(energy
saver) mode. In this mode, the fan will
continue to run for 3 minutes after
compressor shuts o. The fan then cycles on
for 120 seconds at 10 minutes intervals until
the room temperature is above the set
temperature, at which time the compressor
turns back on.
TO CHANGE TEMPERATURE SETTING:
PRESS TO RAISE
PRESS TO LOWER
DO THIS:
YOU WILL SEE:
Note: The display will show the set
temperature during normal operation, press
either up ( + ) or down ( – ) button to adjust
the set temperature to the desired setting.
The unit will beep twice if the temperature
up ( + ) or down ( – ) button is pressed
continuously when the set temperature
reaches the upper/lower limits 90°F or
60°F.
YOU WILL SEE:
TO USE AUTO FAN FEATURE:
DO THIS:
PRESS FAN BUTTON,
CHOOSE AUTO
TO ADJUST FAN SPEEDS:
DO THIS:
PRESS TO SELECT

10 OPERATING INSTRUCTIONS
Note: Fan starts at High Speed and adjusts
to a slower speed the room temperature
dictates. For example, if the room doesn't
get too warm, it will stay at the slowest
speed. If the room temperature rises quickly,
such as a door being opened, it will
automatically go to the highest speed. The
fan speeds will re-adjust back to the slowest
speed as the room returns to the original set
temperature. Press the fan button to adjust
the fan speed manually.
YOU WILL SEE: COOL FEATURE:
DO THIS:
PRESS MODE
BUTTON
CHOOSE COOL
TO OPERATE ON FAN ONLY:
DO THIS:
PRESS MODE
BUTTON
CHOOSE FAN ONLY
Note: Use this function only when cooling is
not desired, such as for room air circulation
or to exhaust stale air on some models. You
can choose any fan speed you prefer.
(Except “Auto Fan”). During this function,
display will only show the actual room
temperature and the set temperature can
not be changed.
YOU WILL SEE:
Note: In this mode, the fan remains on all the
time with the compressor cycling on and o
when room temperature is reached.
YOU WILL SEE:
DRY FEATURE:
DO THIS:
PRESS MODE
BUTTON
CHOOSE DRY
Note: In this mode, the air conditioner will
work like a dehumidifier, but it will cool the
room down meanwhile. The temperature
can be adjusted between 62 °F (17 °C) and
86 °F (30 °C) and fan speed will be held at
Auto speed.
YOU WILL SEE:

11OPERATING INSTRUCTIONS
Eco (ENERGY SAVER) MODE:
The unit is factory set to run in Eco (energy
saver) mode. We recommend leaving the
unit in Eco mode to help save energy and
money. However, if you would like to switch
out of Eco mode, press the mode button
until another mode is selected.
In Eco mode, the fan will continue to run for
3 minutes after the compressor shuts o.
The fan then cycles on for 120 seconds at 10
minutes intervals until the room temperature
is above the set temperature, at which time
the compressor turns back on.
YOU WILL SEE:
DO THIS:
PRESS MODE
BUTTON
CHOOSE Eco
NOTE:
Please note, that if the unit is changed to
'Cool' or 'Fan only' mode then shut o, the
unit will turn back on in Eco mode. This is
mandatory per government regulations. If
the unit is changed to 'Cool' or 'Fan Only'
mode and a power failure occurs, once the
power is restored the unit will return to
'Cool' or 'Fan Only' mode.

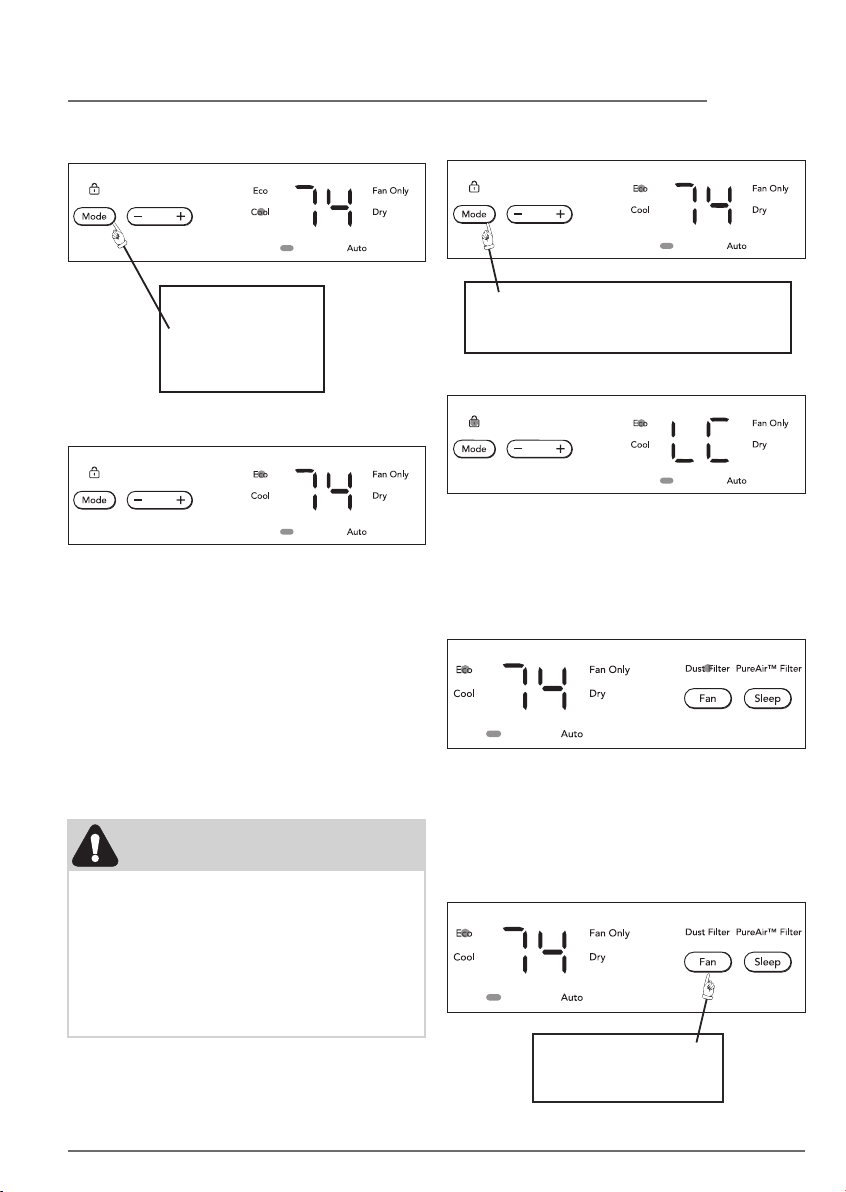

TO ACTIVATE THE CHILD LOCK FEATURE:
DO THIS:
PRESS AND HOLD THE
“Mode” BUTTONS FOR 3 SECONDS
Note: Press and hold the “Mode” button for 3
sec can activate or deactivate the LOCK
function. The display will show LC for 5 secs.
The control panel will be lock and the setting
can not be changed.
YOU WILL SEE:
CHECK DUST FILTER FEATURE:
Note: This feature is a reminder to clean the
Dust Filter (See Care and Cleaning) for more
ecient operation. The LED (light) will
illuminate after 250 hours of operation. To reset
after cleaning the filter, hold the "Fan" button 3
seconds and the light will go o.
YOU WILL SEE:
DO THIS:
HOLD FAN BUTTON
3 SECONDS

12
DIMMING DISPLAY:
After 60 seconds of control inactivity the display and indicator lights will turn o. Press any
button on the control panel or remote control and the display will resume. Please note that
if the unit is in Eco mode and the set temperature has been reached the unit may appear o.
However, the unit is on and will continue to sample the air every 10 minutes. To confirm,
press any button on the control panel or remote control to illuminate the display to show
unit in Eco mode.
SLEEP FEATURE:
Note: The display will show SL for 3 secs. T he
display and indicator lights will turn down
25%.
In this mode, the unit will select Auto fan speed
automatically, and the selected temperature will
increase by 2 °F 30 minutes after the mode is
selected. The temperature will then increase by
another 2 °F after an additional 30 minutes. This
new temperature will be maintained for 7 hours
before it returns to the originally selected
temperature. This ends the "Sleep" mode and
the unit will continue to operate as originally
programmed. The "Sleep" mode program can
be cancelled at any time during operation by
pressing the "Sleep" again, “Fan speed” or
“Mode” button.
YOU WILL SEE:
DO THIS:
PRESS SLEEP
BUTTON
OPERATING INSTRUCTIONS
PUREAIRTM FILTER(sold separately):
PUREAIRTM FILTER INDICATOR:
RESET PUREAIRTM FILTER LIGHT:
This unit has available space for use of
PureAir
TM
Filters(sold separately). There are
dierent types of PureAir
TM
Filters, which are
sold separately. You can purchase PureAir
TM
Filters by scanning QR code behind the air inlet
grille or by visiting Frigidaire.com or by calling
the Frigidaire Customer Service Center
1-800-944-9044(US) / 1-800-265-8352
(Canada).
Note: If the PureAir
TM
filter is installed the
PureAir
TM
Filter indicator will glow white.
After 1440 hours of operation the PureAir
TM
Filter indicator will turn red. To reset, replace
with new PureAir
TM
Filter, then hold the "Sleep"
button 3 for seconds.
Red light
DO THIS:
HOLD SLEEP BUTTON
3 SECONDS
White light

13OPERATING INSTRUCTIONS
TO CHANGE THE TEMPERATURE SCALE
(°F OR °C):
DO THIS:
PRESS AND HOLD THE UP/DOWN
BUTTONS SIMULTANEOUSLY
FOR 3 SECONDS
TO ACTIVATE TIMER FEATURE:
Note: For Delay Stop or Start, press the Timer
button when the unit is in the On or O
position. Then tap or hold the “  ” or “  ”
button to change delay timer at 0.5 hour
increments, up to 10 hours, then at 1 hour
increments up to 24 hours. After 5 seconds, the
control will count down the time remaining until
Stop or Start (8, 7.5, 7, etc.).
Pressing the unit On/O button at any time will
cancel the Delay Start/Stop function. Or press
the timer button for 2 seconds
TO SET TIMER
DO THIS:
PRESS TIMER
BUTTON
DO THIS:
PRESS UP/DOWN
BUTTONS
YOU WILL SEE:
Note: The control is capable of displaying
temperature in degrees Fahrenheit or
degrees Celsius.
TO TURN UNIT OFF:
DO THIS:
PRESS
ON/OFF BUTTON
Note: After the unit is turned o, the light on
the display will gradually fade away in 3
seconds. The unit will always return to “eco”
mode and “auto” fan speed setting when it
is turned on again.
YOU WILL SEE:

14 OPERATING INSTRUCTIONS
FAULT CODES:
Error Code Description
EH00 Internal memory chip failure
When below error code show on the display, please contact your Authorized Frigidaire
Service Center.
EH60
Indoor ambient temperature sensor is open/short circuited
EH0b
Communication malfunction of main control board.
Note: The error code will be separated to 2 part and shown in the display alternately in 1
second intervals, for example, when the fault code “EH00” occur, the panel will first display
“EH” for 1 sec, then display “00” for another sec and keep repeatedly showing “EH” and
“00” until the issue is solved. Please contact your Authorized Frigidaire Service Center.
SHOW “EH” FOR ONE SECONDS: THEN SHOW “00” FOR ANOTHER SECONDS:
đThere is a 2-Second delay for the
compressor shutting down when selecting
FAN ONLY. This is to cover the possibility
of having to roll through to select another
mode.
đThe control will maintain the set
temperature within 2 degrees Fahrenheit,
between 60°F and 90°F degrees.
đAfter a power outage, the unit will
memorize the last setting and return the
unit to the same setting once power is
restored.
Now that you have mastered the operating
procedure, here are more features in your
control that you should become familiar
with.
ADDITIONAL THINGS YOU SHOULD KNOW
NOTE
The "Cool" circuit has an automatic 3
minutes time delayed start if the unit is
turned o and on quickly. This prevents
overheating of the compressor and possible
circuit breaker tripping. The fan will
continue to run during this time.

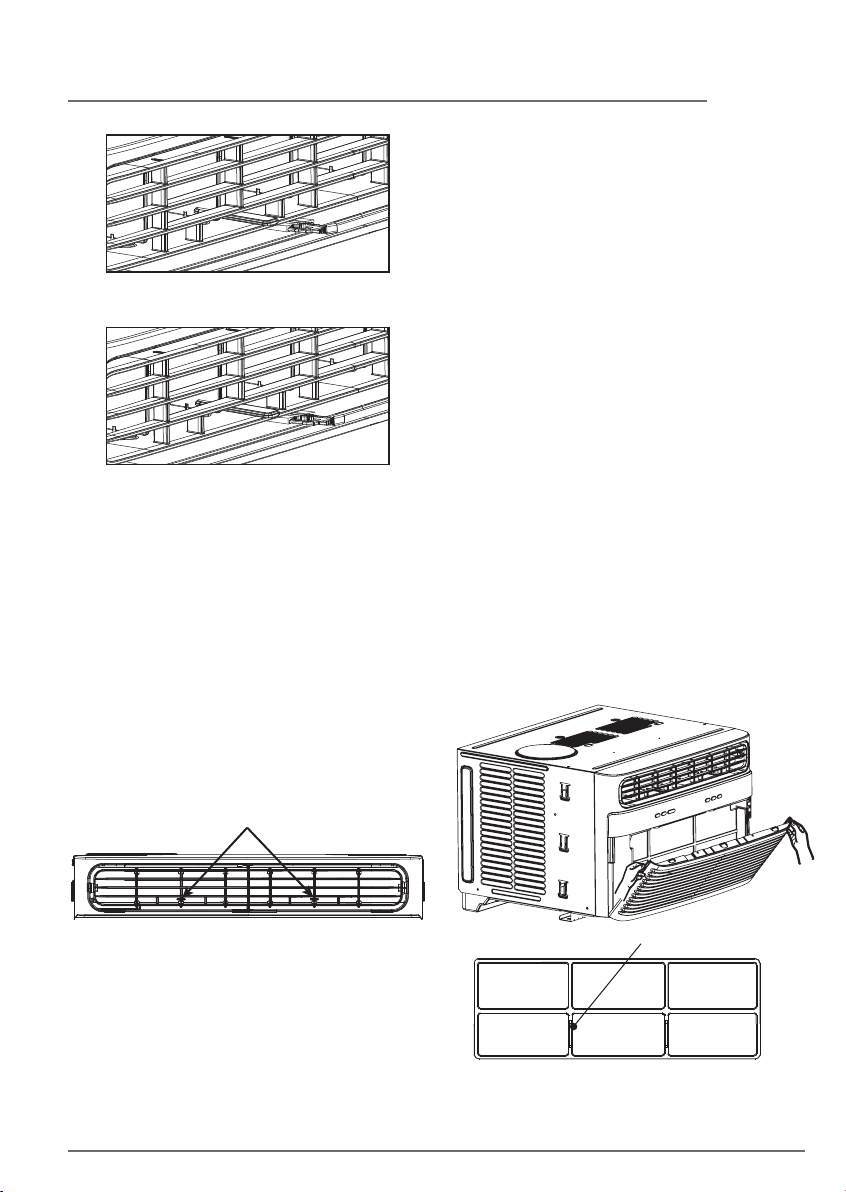

Fresh Air Vent Control (on some models)
The Fresh Air Vent allows the air conditioner
to:
1. Recirculate inside air - Vent Closed (see
Fig. 1)
2. Draw fresh air into the room - Fresh Air
(see Fig. 2)
3. Exchange air from the room - Vent Open
(see Fig. 3)
Figure 1 (VENT CLOSED)
đThe unit should be operated in a
temperature range of indoor side 60°F -
90°F (16°C - 32°C), outdoor side 64°F -
109°F (18°C - 43°C). Performance may be
reduced outside of these operating
temperatures.

15CARE AND CLEANING
Air Directional Louvers
Slider Type
Air directional louvers control air flow
direction. Your air conditioner has the louver
type described below.
The louvers will allow you to direct the air
flow Up or Down and Left or Right
throughout the room as needed. Drag the
adjuster lever until the desired
Left/Right direction is obtained. Pivot
horizontal louvers until the desired
Up/Down direction is obtained.
Figure 3 (VENT OPEN)
(6-WAY)
ADJUSTER LEVER
Clean your air conditioner occasionally to
keep it looking new. Be sure to unplug the
unit before cleaning to prevent shock or
fire hazards.
The Dust filter should be checked at least
once a month to see if cleaning is necessary.
Trapped particles in the Dust filter can build
up and cause an accumulation of frost on
the cooling coils.

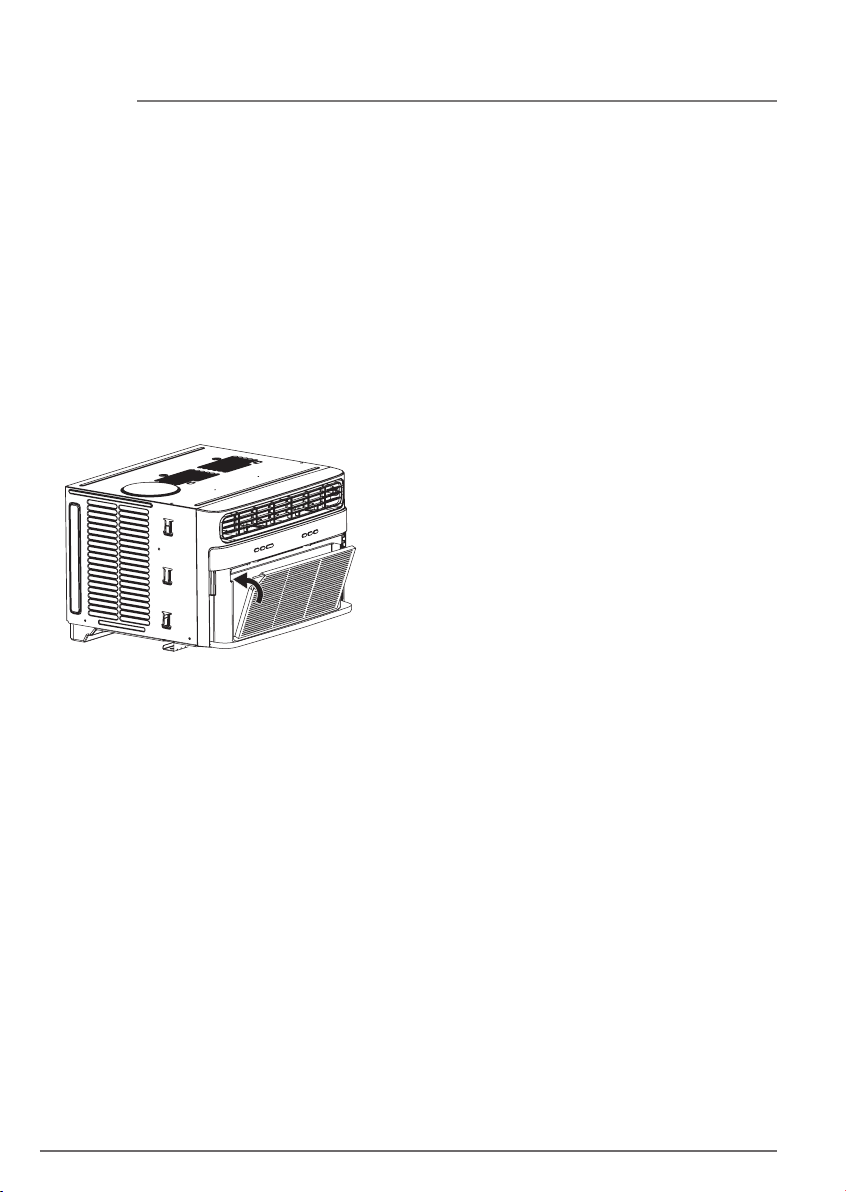

NOTE: When replacing the Dust filter after
cleaning, make sure the tabs on the air filter
are on the upper part of filter, and placed
outward as shown in the drawing on the left
side.
Dust Filter Cleaning
đPush the vent handle to the Vent Closed
position(where applicable).
đOpen the front panel.
đGrasp the Dust filter by the center and pull
up and out.
đWash the Dust filter using liquid
dishwashing detergent and warm water.
Rinse Dust filter thoroughly. Gently shake
excess water from the Dust filter. Be sure
Dust filter is thoroughly dry before
replacing.
đOr instead of washing, you may vacuum
the Dust filter clean.
Dust Filter
Tab
Figure 2 (FRESH AIR)

16 CARE AND CLEANING & ENERGY SAVING IDEAS
đDo not block air flow inside with blinds,
curtains or furniture; or outside with
shrubs, enclosures, or other buildings.
đThe capacity of the room air conditioner
must fit the room size for efficient and
satisfactory operation.
đInstall the room air conditioner on the
shady side of your home. A window that
faces north is best because it is shaded
most of the day.
đClose the fireplace damper, floor and wall
registers so cool air does not escape up
the chimney and into the duct work.
đKeep blinds and drapes in other windows
closed during the sunniest part of the day.
đClean the air filter as recommended in the
section “Care and Cleaning”.
đProper insulation and weather stripping in
your home will help keep warm air out and
cool air in.
đExternal house shading with trees, plants
or awnings will help reduce the air
conditioner’s work load.
đOperate heat producing appliances such
as ranges, washers, dryers and
dishwashers during the coolest part of the
day.
Energy Saving Ideas
Winter Storage
If you plan to store the air conditioner
during the winter, remove it carefully from
the window according to the installation
instructions. Cover it with plastic or return it
to the original carton.
Cabinet Cleaning
đBe sure to unplug the air conditioner to
prevent shock or fire hazard. The cabinet
and front may be dusted with an oil-free
cloth or washed with a cloth dampened in
a solution of warm water and mild liquid
dishwashing detergent. Rinse thoroughly
and wipe dry.
đNever use harsh cleaners, wax or polish on
the cabinet front.
đBe sure to wring excess water from the
cloth before wiping around the controls.
Excess water in or around the controls
may cause damage to the air conditioner.
đPlug in air conditioner.
PUREAIRTM FILTER(sold separately):
This unit has available space for use of
PureAirTM Filters(sold separately). There are
dierent types of PureAirTM Filters, which are
sold separately. You can purchase PureAirTM
Filters by scanning QR code behind the air
inlet grille or by visiting Frigidaire.com or by
calling the Frigidaire Customer Service
Center 1-800-944-9044(US) /
1-800-265-8352 (Canada).
To install the PureAirTM Filter:
1. Remove the Dust filter as instructed in the
Dust filter cleaning section.
2. Insert the PureAirTM filter in the reserved
space behind the Dust filter as shown below.
The PureAirTM filter should be replace with a
new one after its service life is reached.
To remove the filter grape the tab on the
left upper corner and pull out.
Note: If the PureAirTM filter is installed
properly the PureAirTM Filter indicator will
glow white. Otherwise reinstall the filter.
3. Reinstall the Dust filter and air inlet grille.

Air conditioner turns
on and o rapidly.
đƫƫƫDirty Dust filter - air restricted. Clean filters. Refer to Care and Cleaning
section.
đƫƫƫPureAirTM filter(sold separately) may be dirty. Replace with new filter. Refer
to Care and Cleaning section. To defrost, set to FAN ONLY mode.
đƫƫƫ10/% !ƫ0!),!.01.!ƫ!40.!)!(5ƫ$+0ċƫ!0ƫƫ/,!! ƫ0+ƫƫ"/0!.ƫ/!00%*#ƫ0+ƫ
bring air through cooling coils more frequently.
Air conditioner
cooling, but room is
too warm - NO ice
forming on cooling
coil behind
decorative front.
đƫƫƫDirty Dust filter - air restricted. Clean filters. Refer to Care and Cleaning
section.
đƫƫ PureAirTM filter(sold separately) may be dirty. Replace with new filter. Refer
to Care and Cleaning section. To defrost, set to FAN ONLY mode.
đƫƫƫ!),!.01.!ƫ%/ƫ/!0ƫ0++ƫ$%#$ċƫ!0ƫ0!),!.01.!ƫ0+ƫƫ(+3!.ƫ/!00%*#ċ
đƫƫƫ%.ƫ %.!0%+*(ƫ(+12!./ƫ,+/%0%+*! ƫ%),.+,!.(5ċƫ+/%0%+*ƫ(+12!./ƫ"+.ƫ!00!.ƫ%.ƫ
distribution.
đƫƫƫ.+*0ƫ+"ƫ1*%0ƫ%/ƫ(+'! ƫ5ƫ .,!/Čƫ(%* /Čƫ"1.*%01.!Čƫ!0ċƫġƫ.!/0.%0/ƫ%.ƫ
distribution. Clear blockage in front of unit.
đƫƫƫ++./Čƫ3%* +3/Čƫ.!#%/0!./Čƫ!0ċƫ+,!*ƫġƫ++(ƫ%.ƫ!/,!/ċƫ(+/!ƫ ++./Čƫ
windows, registers, etc.
đƫƫƫ*%0ƫ.!!*0(5ƫ01.*! ƫ+*ƫ%*ƫ$+0ƫ.++)ċƫ((+3ƫ %0%+*(ƫ0%)!ƫ0+ƫ.!)+2!ƫ
“stored heat” from walls, ceiling, floor and furniture.
Air from unit does not
feel cold enough.
đƫƫƫ++)ƫ0!),!.01.!ƫ!(+3ƫćĀŋƫĨāćŋĩċƫ++(%*#ƫ)5ƫ*+0ƫ+1.ƫ1*0%(ƫ.++)ƫ
temperature rises above 60°F (16°C).
đƫƫƫ!),!.01.!ƫ/!*/%*#ƫ!(!)!*0ƫ0+1$%*#ƫ+( ƫ+%(Čƫ(+0! ƫ!$%* ƫ%.ƫü(0!.ċƫ
Straighten away from coil.
đƫƫƫ!/!0ƫ0+ƫƫ(+3!.ƫ0!),!.01.!ċƫ
đƫƫƫ+),.!//+.ƫ/$10ġ+ûƫ5ƫ$*#%*#ƫ)+ !/ċƫ%0ƫ,,.+4%)0!(5ƫăƫ)%*10!/ƫ
and listen for compressor to restart when set in the COOL mode.
Before calling for service, review this list. It may save you time and expense. This list
includes common occurrences that are not the result of defective workmanship or materials
in this appliance.
17BEFORE YOU CALL
SOLUTIONOCCURRENCE
Air conditioner will
not operate.
đƫƫƫ((ƫ,(1#ƫ %/+**!0! ċƫ1/$ƫ,(1#ƫü.)(5ƫ%*0+ƫ3((ƫ+10(!0ċ
đƫƫƫ(1#ƫ1..!*0ƫ!2%!ƫ.%,,! ċƫ.!//ƫ0$!ƫƫ100+*ċ
đƫƫƫ+1/!ƫ"1/!ƫ(+3*ƫ+.ƫ%.1%0ƫ.!'!.ƫ0.%,,! ċƫ!,(!ƫ"1/!ƫ3%0$ƫ0%)!ƫ !(5ƫ
type or reset circuit breaker.
đƫƫƫ+*0.+(ƫ%/ƫċƫ1.*ƫ+*0.+(ƫƫ* ƫ/!0ƫ0+ƫ !/%.! ƫ/!00%*#ċ
Air conditioner
cooling, but room is
too warm - ice
forming on cooling
coil behind
decorative front
đƫƫƫ10 ++.ƫ0!),!.01.!ƫ!(+3ƫćĀƫŋƫĨāćŋĩċƫ+ƫ !".+/0ƫ0$!ƫ+%(Čƫ/!0ƫƫƫ
mode.
đƫƫƫDust filter may be dirty. Clean filter. Refer to Care and Cleaning section. To
defrost, set to FAN ONLY mode.
đƫƫƫPureAirTM filter(sold separately) may be dirty. Replace with new filter. Refer
to Care and Cleaning section. To defrost, set to FAN ONLY mode.
đƫƫƫ!),!.01.!ƫ%/ƫ/!0ƫ0++ƫ(+3ƫ"+.ƫ*%#$0ġ0%)!ƫ++(%*#ċƫ+ƫ !".+/0ƫ0$!ƫ+%(Čƫ/!0ƫ0+ƫ
FAN ONLY mode. Then, set temperature to a higher setting.

Room too cold.
đƫƫƫSet temperature too low. Increase set temperature.
đƫƫƫRemote Sensing activated (on some models) and remote control located in
Hot Spot - Relocate remote control or deactivate remote sensing.
Remote Sensing
Deactivating
Prematurely (some
models).
đƫƫƫRemote control not located within range. Place remote control within 20
feet & 120° radius of the front of the unit.
đƫƫƫRemote control signal obstructed. Remove obstruction.
SOLUTIONOCCURRENCE
Water dripping
INSIDE when unit is
cooling.
đƫƫƫ),.+,!.ƫ%*/0((0%+*ċƫ%(0ƫ%.ƫ+* %0%+*!.ƫ/(%#$0(5ƫ0+ƫ0$!ƫ+10/% !ƫ0+ƫ((+3ƫ
water drainage. Refer to installation instructions or check with installer.
Noise when unit is
cooling.
đƫƫƫ%.ƫ)+2!)!*0ƫ/+1* ċƫ$%/ƫ%/ƫ*+.)(ċƫ"ƫ0++ƫ(+1 Čƫ/!0ƫ0+ƫ(+3!.ƫƫ/!00%*#ċƫ
đƫƫƫ%* +3ƫ2%.0%+*ƫġƫ,++.ƫ%*/0((0%+*ċƫ!"!.ƫ0+ƫ%*/0((0%+*ƫ%*/0.10%+*/ƫ+.ƫ
check with installer.
18 BEFORE YOU CALL
Water dripping
OUTSIDE when unit is
cooling.
đƫƫƫ*%0ƫ.!)+2%*#ƫ(.#!ƫ-1*0%05ƫ+"ƫ)+%/01.!ƫ".+)ƫ$1)% ƫ.++)ċƫ$%/ƫ%/ƫ*+.)(ƫ
during excessively humid days.
If These Solutions Fail, Call 1-800-944-9044(US)/1-800-265-8352(Canada)
For Frigidaire Service.

Exclusions
This warranty does not cover the following:
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
If You Need
Service
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
USA
1.800.944.9044
Electrolux Major Appliances
10200 David Taylor Drive
Charlotte, NC 28262
Your appliance is covered by a limited one-year warranty for functional repairs only. For one year from your
original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that
prove to be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions. After one year from your original date of purchase, the consumer
will be responsible for diagnostic, labor and parts costs as well as any removal, transportation and
reinstallation expenses which are incurred during service on components.
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE
YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX
SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE
AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR
ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF
IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY
FROM STATE TO STATE.
Keep your receipt, delivery slip, or some other appropriate payment record to establish the
warranty period should service be required. If service is performed, it is in your best interest to
obtain and keep all receipts. Service under this warranty must be obtained by contacting
Electrolux at the addresses or phone numbers below.
This limited warranty only applies in the USA and Canada. In the USA, your appliance is warranted by
Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your
appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any
obligations under this warranty. Obligations for service and parts under this warranty must be performed by
Electrolux or an authorized service company. Product features or specifications as described or illustrated are
subject to change without notice.
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to
floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
19MAJOR APPLIANCE LIMITED WARRANTY

welcome home
Frigidaire.com
1-800-944-9044
Frigidaire.ca
1-800-265-8352
owner support
accessories
service
Our home is your home. Visit us if you
need help with any of these things:
registration
(See your registration card
for more information.)
