General The Fronius Datamanager 2.0 is a network-compatible datalogger which com-
bines the functionality of the Fronius Com Card, the Fronius Datalogger Web,
the Fronius Power Control Card, and the Fronius Modbus Card on one plug-in
card.
The Fronius Datamanager 2.0 website provides a quick overview of the photovol-
taic system.
The website can be accessed with a web browser via a direct connection or on the
internet, if properly configured.
When connected to Fronius Solar.web, the real-time and archived data of a
photovoltaic system can be easily accessed via the internet or the Fronius Sol-
ar.web app. No difficult configuration is required. Data is sent automatically from
the Fronius Datamanager 2.0 to Fronius Solar.web. Fronius Solar.web is equipped
with an easy-to-configure system monitoring feature with an automatic alarm.
The alarm can be signaled via SMS or e-mail.
Available ver-
sions of the
Fronius
Datamanager 2.0
The Fronius Datamanager 2.0 is available in the following versions:
-Without Fronius Com Card function
(for Fronius Galvo Fronius Symo, and Fronius Primo inverters)
-With Fronius Com Card function
(for Fronius IG, Fronius IG Plus, Fronius IG Plus V,
Fronius IG Plus A, Fronius CL, Fronius CL USA, Fronius IG 300–500 invert-
ers)
-In external housing with Fronius Solar Net IN and Fronius Solar Net OUT
connection sockets
(Fronius Datamanager Box 2.0, e.g., for inverters without plug-in card slots or
for photovoltaic systems with a separate Fronius Datamanager 2.0)
Provided that the inverter is not fitted as standard with the Fronius Datamanager
2.0, existing inverters can be upgraded with the Fronius Datamanager 2.0 plug-in
card.
Applicable DAT-
COM Compon-
ents
The Fronius Datamanager 2.0 plug-in card installed in the inverter or the separ-
ate Fronius Datamanager Box 2.0 can be operated with the following DATCOM
components:
- up to 100 x Fronius inverters
(incl. the inverter in which Fronius Datamanager 2.0 is
installed)
- up to 10 x Fronius Sensor Card or Fronius Sensor Box
- up to 10 x Fronius Public Display Card or Fronius Public Display
Box
- up to 1 x Fronius Interface Card or Fronius Interface Box
- up to 200 x Fronius String Control
9
EN-US

Prerequisites for
operation
In order to ensure flawless data exchange online, a suitable internet connection
is required:
-For cabled internet solutions, Fronius recommends a download speed of at
least 512 kbit/s and an upload speed of
at least 256 kbit/s.
-For solutions with mobile internet services, Fronius recommends a minimum
transmission standard of 3G with reliable signal strength.
These specifications do not provide an absolute guarantee of flawless operation.
High error rates in the transmission, reception fluctuations, or connection dro-
pouts can have an adverse effect on Fronius Datamanager 2.0's online operation.
Fronius recommends on-site testing to ensure that the connections meet the
minimum requirements.
For operation with an antenna extension.
If you want to connect your inverter(s) to the internet using WLAN, we recom-
mend the following approach:
-Test your signal strength in the exact position where the inverter is to be in-
stalled and make sure the Datamanager 2.0 card is activated.
-Connect to the WLAN network using a smartphone, laptop, or tablet, and
test the connection.
The free website "www.speedtest.net" can be used to check whether the con-
nection meets our recommended download speed of at least 512 kbit/s and
an upload speed of 256 kbit/s.
Since the Fronius Datamanager 2.0 acts as a datalogger, no other datalogger may
be present in the Fronius Solar Net ring.
There must only be one Fronius Datamanager 2.0 for each Fronius Solar Net ring.
The Fronius Datamanager 2.0 must be in secondary mode if installed in Fronius
Galvo and Fronius Symo inverters.
The following DATCOM components must not be operated together with Fronius
Datamanager 2.0 in a Fronius Solar Net ring:
-Fronius Power Control Card/Box
-Fronius Modbus Card
-Fronius Datalogger Web
-Fronius Personal Display DL Box
-Fronius Datalogger easy/pro
-Fronius Datamanager
-Fronius Datamanager 2.0 Box
To use the Fronius Datamanager 2.0
-the plug-in card must be installed in an inverter,
or
-there must be a Fronius Datamanager Box 2.0 in the Fronius Solar Net ring.
The Fronius Datamanager 2.0 plug-in card and the Fronius Com Card must not
be used together in one inverter.
Inverter soft-
ware required
Fronius Datamanager 2.0 requires the following inverter software versions for its
operation:
Inverter required software version according to display
(MainControl)
Fronius IG 15–60 V2.9.4 or higher
10

Inverter required software version according to display
(MainControl)
Fronius IG 2000–
5100
starting from series no 19153444
Fronius IG 300–500 V3.6.4.0 or higher
Fronius IG Plus 35–
150
V4.22.00 or higher
Fronius IG TL * -
Fronius CL V4.22.00 or higher
Fronius Agilo * -
Fronius Agilo Out-
door *
-
Fronius Agilo TL * -
Fronius Galvo -
Fronius Symo -
Fronius Symo Hybrid -
Fronius Primo -
Fronius Eco -
* Only in conjunction with Fronius Datamanager Box 2.0
The relevant inverter software version can be downloaded for free from our
homepage (http://www.fronius.com).
If you have any questions, please contact [e-mail].
Notes regarding
radio certifica-
tion
The Fronius Datamanager 2.0 plug-in card and Fronius Datamanager Box 2.0 are
equipped with a wireless module.
Wireless modules in the USA require FCC certification:
11
EN-US

FCC
This device conforms to the limit values for a Class B digital device,
pursuant to Part 15 of the FCC regulations. These limits are de-
signed to provide reasonable protection against harmful interfer-
ence in a residential installation. This device generates and uses
high frequency energy and, if not used in accordance with the in-
structions, may interfere with radio communications. However,
there is no guarantee that interference will not occur in a particular
installation.
If this device does cause harmful interference to radio or television
reception, which can be determined by turning the device off and
on, the user is encouraged to try to correct the interference by one
or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the distance between the device and the receiver.
-Connect the device to a different circuit than the receiver.
-Consult the dealer or an experienced radio/TV technician for
help.
FCC ID: PV7-WIBEAR11N-DF1
Industry Canada RSS
This device complies with Industry Canada license-exempt RSS
standards. Operation is subject to the following two conditions:
(1) this device is not permitted to cause harmful interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device.
IC ID: 7738A-WB11NDF1
Unless otherwise expressly permitted by the manufacturer, changes or modifica-
tions to the wireless module are not allowed and lead to a loss of the right of use
of the device by the user.

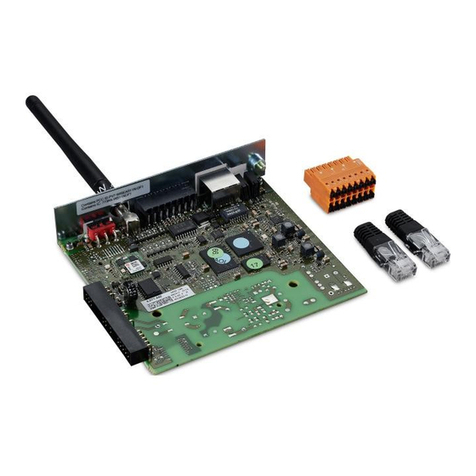

Scope of Supply Fronius Datamanager 2.0 plug-in card
-1 x Fronius Datamanager 2.0 plug-in card
-1 x Fronius Solar Net termination plug
-1 x 16-pin plug
-1 x FCC sticker label, three parts
Additional equipment depending on the inverter:
-1 x antenna
-1 x Fronius Solar Net termina-
tion plug
Fronius Galvo
Fronius Symo
Fronius Primo
-1 x antenna
-1 x 1 m RG58 antenna cable
-1 x mounting bracket
-1 x double-sided adhesive tape
Fronius IG
Fronius IG Plus
Fronius IG Plus V
-1 x antenna
-1 x 3 m RG58 antenna cable
-1 x mounting bracket
-1 x double-sided adhesive tape
Fronius IG 300 - 500
Fronius CL
Fronius CL - USA
12

-1 x antenna
-1 x 0.4 m RG58 antenna cable
-1 x 3/4 in. screw joint
-1 x 3/4 in. hex nut
-1 x 3/4 in. seal
Fronius IG 2000 - 5100 - USA
Fronius IG Plus - USA
Fronius IG Plus V - USA
Fronius Datamanager Box 2.0
-1 x Fronius Datamanager Box 2.0 with wall bracket
-2 x Fronius Solar Net termination plugs
-1 x 16-pin plug
-1 x antenna
-1 x 3 m RG58 antenna cable
-1 x mounting bracket
-1 x double-sided adhesive tape
-2 x installation anchors + screws
-1 x "DATCOM Cabling" leaflet
Using the Sticker
Labels
IMPORTANT! If the three-part sticker label included in the scope of supply for
the Datamanager 2.0 has not already been affixed to the inverter at the factory,
this must be done now.
Position of the sticker label on the inverter:
Fronius IG
Fronius IG Plus
Fronius IG Plus V
Fronius IG Plus A
Fronius Galvo
Fronius Symo
Fronius Primo
For Fronius Galvo, Fronius Symo, and Fronius Primo inverters, the sticker label
information is located on the rating plate.
Using the sticker labels:
(1) (2) (3)
(1) On the cardboard packaging of
the inverter or the Fronius
Datamanager 2.0
(2) On the Fronius Datamanager
2.0 plug-in card
(3) On the inverter
Configuration
Examples Linking Inverters with a Fronius Datamanager 2.0 Plug-in Card to a PC:
13
EN-US

IN
(1)
(2)
(3)
(4)
WLAN
OUT
(1) Inverter
(2) Fronius Datamanager 2.0
(3) Fronius Solar Net termination
plug
(4) PC/laptop
IMPORTANT!When linking an inverter with Fronius Datamanager 2.0 to a PC,
one Fronius Solar Net termination plug must be connected at each free IN or
OUT connection.
Linking Inverters with a Fronius Datamanager 2.0 Plug-in Card to Other In-
verters, a Fronius Sensor Box, and a PC:
IN
IN
IN
OUT
OUT
OUT
IN
(1)
(6)
(4) (7)
(2)
(3)
(5) (8)
LAN / WLAN
(9)
(1) Inverter with
(2) Fronius Datamanager 2.0
(3) PC/laptop
(4) Inverter with
(5) Fronius Com Card
(6) Fronius Sensor Box
(7) Inverter
(8) Fronius Com Card
(9) Fronius Solar Net termination
plug
When linking several DATCOM components to Fronius Datamanager 2.0:
Use the data cable to connect the IN connection socket of Fronius Datamanager
2.0 with the OUT connection socket of the next DATCOM component. A Fronius
Solar Net termination plug must be inserted into the empty IN connection sock-
et of the last DATCOM component.
With the following inverters, the inverter with Fronius Datamanager 2.0 must al-
ways be connected either at the start or end of the data chain:
Fronius IG, Fronius IG Plus, Fronius IG Plus V, Fronius IG Plus A, Fronius CL,
Fronius CL USA and Fronius IG 300–500.
14

Linking Two Inverters with Fronius Com Card or Com Card Function to a
Fronius Datamanager Box 2.0 and a Smartphone:
IP
B A
Fronius
Datamanager Box 2.0
IN
OUT
IN OUT
=
~
IN
OUT
=
~
WLAN
(1) (2)
Fronius
Solar.web App
(3)
(4)
(5) (5)
(1) Inverter with Fronius Com
Card or Com Card function
(2) Inverter with Fronius Com
Card or Com Card function
(3) Fronius Datamanager Box 2.0
(4) Smartphone with Fronius Sol-
ar.web App
(5) Fronius Solar Net termination
plug
When linking several DATCOM components with a Fronius Datamanager Box 2.0,
each of the DATCOM components must be cabled from the IN connection sock-
et to the OUT connection socket of the next DATCOM component.
Fronius Solar Net termination plugs must be inserted into empty IN or OUT con-
nection sockets of the last DATCOM components.
15
EN-US

Calculating the data volume
General When operating Fronius Datamanager 2.0, data are generated and need to be
transmitted via the internet.
In order to select a suitable internet connection, it is necessary to calculate the
data volume.
Calculating data
volumes
The following information is used to calculate the data volume per month when
operating the Fronius Datamanager 2.0.
Hourly upload Up to firmware
version 3.17
From firmware
version 3.17
upwards
Total 8 MB 650 MB
+ for each additional Fronius inverter 5 MB
+ for each additional Fronius Smart Meter 7 MB
Daily/weekly upload
(without night mode)
Up to firmware
version 3.17
From firmware
version 3.17
upwards
Total 307 kB 650 MB
+ for each additional Fronius inverter 520 kB
+ for each additional Fronius Smart Meter 769 kB
Daily/weekly upload
(with night mode active)
Up to firmware
version 3.17
From firmware
version 3.17
upwards
Total 100 kB 350 MB
+ for each additional Fronius inverter 520 kB
+ for each additional Fronius Smart Meter 769 kB
Calculation of memory sectors per day according to chapter "Calculating
memory capacity" on page 68.
The data volume may increase due to the following factors:
-Disconnections
-Restarting the inverter
-Firmware updates
-Remote control (VPP, Cloud Control)
-Fault diagnosis by technical support
-Remote system monitoring via Fronius Solar.web
IMPORTANT! Fronius recommends a flat rate to avoid costs for data volumes
that were not taken into account in the preliminary calculation.
16

General information for the network administrat-
or
Requirements Configuring a network for Fronius Datamanager 2.0 requires knowledge of net-
work technology.
If Fronius Datamanager 2.0 is being integrated into an existing network, the
Fronius Datamanager 2.0 address must be adapted to the network.
Example: network address range = 192.168.1.x, subnet mask = 255.255.255.0
-An IP address between 192.168.1.1 and 192.168.1.254 must be assigned to
Fronius Datamanager 2.0.
-The IP address selected may not be already assigned in the network.
-The subnet mask must correspond to the existing network (e.g.,
255.255.255.0).
If Fronius Datamanager 2.0 will be sending service messages and/or data to
Fronius Solar.web, then a gateway address and a DNS server address must also
be entered. Fronius Datamanager 2.0 uses the gateway address to access the in-
ternet. The IP address of the DSL router can be used as a gateway address, for
example.
IMPORTANT!
-Fronius Datamanager 2.0 may not have the same IP address as the PC/
laptop!
-Fronius Datamanager 2.0 cannot connect itself to the internet. A router
must be used for a DSL connection to the internet.
General Firewall
Settings
DSL routers mostly enable you to send data to the internet and, therefore, do not
normally have to be configured.
Server addresses for data transfer
If a firewall is used for outgoing connections, the following protocols, server ad-
dresses and ports must be allowed for successful data transfer:
-Tcp fronius-se-iot-dm-1.azure.devices.net:8883
-Tcp fronius-se-iot-dm-1.azure.devices.net:443
-Tcp fronius-se-iot-dm-2.azure.devices.net:8883
-Tcp fronius-se-iot-dm-2.azure.devices.net:443
-Tcp fronius-se-iot-dm-1.telemetry.azure.devices.net:8883
-Tcp fronius-se-iot-dm-1.telemetry.azure.devices.net:443
-Tcp fronius-se-iot-dm-2.telemetry.azure.devices.net:8883
-Tcp fronius-se-iot-dm-2.telemetry.azure.devices.net:443
-Fdmp-solarweb.com:49049 (dm local port 54321)
-Tcp http://www3.fronius.com:80
-Tcp ftp://transfer.fronius.com:21
-Tcp provisioning-lite.solarweb.com:443
-Tcp froniusseiot.blob.core.windows.net:443
If existing firewall rules block the connection to the Fronius system monitoring,
the following firewall rules must be added:
17
EN-US

49049/UDP
output
80/TCP *)
input
Sending service messages x -
Connecting to Datamanager via Fronius Sol-
ar.web x -
Connecting to Datamanager via Fronius Sol-
ar.access or Fronius Solar.Service - x
Accessing the Datamanager website - x
Configure the firewall so that the IP address of Fronius system monitoring can
send data to port 49049/UDP from “fdmp.solarweb.com”.
*) We recommend only allowing access to the web interface of the Fronius sys-
tem monitoring from a secure network. If access via the internet is absolutely ne-
cessary (e.g. for service purposes during a limited time period), configure the net-
work router so that requests for any external port are redirected to port 80/TCP.
Caution - this will make the inverter visible on the internet and more likely to be
subject to network attacks.
Sending Service
Messages via a
DSL Internet
Connection
Normally, no additional router configuration is required for a regular DSL inter-
net connection to access Fronius Solar.web and/or send service messages, be-
cause connections from the LAN to the internet are open.
Using Fronius
Solar.web and
Sending Service
Messages
However, an internet connection is required to use Fronius Solar.web and send
service messages.
Fronius Datamanager 2.0 cannot connect itself to the internet. A router must be
used for a DSL connection to the internet.
18

Controls, connections and indicators
Safety WARNING!
Danger due to incorrect operation.
This can result in severe personal injury and damage to property.
▶Do not use the functions described here until you have fully read and under-
stood the Operating Instructions.
▶Do not use the functions described here until you have fully read and under-
stood all of the Operating Instructions of the system components, especially
the safety rules.
19
EN-US

Controls, con-
nections, and in-
dicators
(5)
(1)
(2) (3)
(6)
(7)
(8)
(9)
(7)
(11)
(9)
(8)
(6)
(10)
Fronius Galvo
Fronius Symo
Fronius Primo
Fronius IG
Fronius IG Plus
Fronius IG Plus V
Fronius IG Plus A
Fronius CL
Fronius CL USA
Fronius IG 300 - 500
(1) (6)
(13)
(12)(11)(8) (9)(7)
(4)
(5) (2)
(3)
(4)
No. Function
(1) IP switch
For changing the IP address:
20
