FrSky Horus X12S-ISRM User manual

Meanings of Special Markings
Pay special attention to safety where indicated by the following marks:
DANGER- Procedures which may lead to dangerous conditions and cause death/serious injury if not carried
out properly.
WARNING- Procedures which may lead to a dangerous condition or cause death or serious injury to the user if
not carried out properly or procedures where the probability of superficial injury or physical damage is high.
CAUTION- Procedures where the possibility of serious injury to the user is small, but there is a danger of injury,
or physical damage, if not carried out properly.
= Mandatory = Prohibited
Warning: Always keep electrical components away from small children.
Due to unforeseen changes in production, the information contained in this manual is subject to change without notice. Specifications
● Model Name: Horus X12S-ISRM
● Number of Channels: 16 channels (Up to 32 channels)
● Operating Voltage: DC9.6V
● Operating Temperature: -10~60℃
● Industrial screen: high resolution TFT (480*272), readable outdoor
● Compatibility: FRSKY A Series, D16 Series Receivers
● 16M Flash
* SD card is not supplied with X12S-ISRM Horus, please purchase separately.
● Audio Speech Outputs (values, alarms, settings, etc.)
● Full telemetry and real-time data logging
● Antenna detection and SWR warning
● Integrated GPS module and 6-axis sensor (3-axis gyro and 3-axis accelerator)
● All CNC 6 ball bearings gimbals with accuracy hall sensor and extensible by stick ends
● Safe power switch with integrated strap base
● Two types trainer ports
● Inbuilt wireless trainer system
● 6 position encoder for easier flight modes switch
● FrSky FrTX operation system
● MP3 Player
● Industrial High Resolution TFT Screen Readable Outdoor
● Internal and External Antenna selectable
Features
Cautions on handling antenna of External Module
Do not touch the antenna during operation. Doing so could interfere with transmission, causing a crash.
Do not carry the transmitter by the antenna. The antenna wire could break and prevent transmission.
Do not pull the antenna forcefully. The antenna wire could break and prevent transmission.
Notes and Warnings for Battery & Charger
The eight-cell NiMH battery is for use only in your Horus X12S-ISRM.
Be sure to use the built-in battery charger to charge the battery.
Be careful not to drop the battery.
Don't pull the battery wires as this could produce, short-circuits and cause the battery to explode.
Do not remove the battery from the Horus X12S-ISRM transmitter while the voltage warning is blinking as
this could cause internal settings and memories to be destroyed.
Be sure to turn off the Horus X12S-ISRM before charging the battery.
The Power Indicator LED will be on during charging, and be off after the charging is finished.
Overview
(Switch Default Settings)
● SA: 3 positions, Short Lever
● SB: 3 positions, Long Lever
● SC: 3 positions, Long Lever
● SD: 3 positions, Short Lever
● SE: 3 positions, Short Lever
● SF: 2 positions, Long Lever
● SG: 3 positions, Short Lever
● SH: 2 positions, Momentary;
Long Lever
You can choose the Switch and define
its positions in the Input and Output
Map screen.
Trainer port
Slider Slider
Internal Antenna for X12S-ISRM
External Antenna Port for X12S-ISRM
External RF
Module Slot
USB Port
TF Card Slot
L1
L2
Earphone Port
Charge/Alarm LED Diaplay Screen
Stick
(J3)
(J4) Stick
(J1)
(J2)
PgUp, PgDn,
Joystick
Charge Jack
Linear(L1, L2)
Speaker Digital Trim
Power Swich
SA, SB, SE, SF SC, SD, SG, SH
S1, M-POS, S2
Encoder
SYS, MOL, TELE, RTN
FrSky Electronic Co., Ltd. www.frsky-rc.com Contact us: [email protected]
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
Version
1.1
FrSky Horus X12S-ISRM Manual
FrSky Electronic Co., Ltd. www.frsky-rc.com Contact us: [email protected]
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
Version
1.1
FrSky Horus X12S-ISRM Manual
FrSky Electronic Co., Ltd. www.frsky-rc.com Contact us: [email protected]
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
Version
1.1
FrSky Horus X12S-ISRM Manual
FrSky Electronic Co., Ltd. www.frsky-rc.com Contact us: [email protected]
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
Version
1.1
FrSky Horus X12S-ISRM Manual
Introduction
Thank you for purchasing the FrSky Horus X12S-ISRM digital telemetry radio system. In order to make the best use
of your system and to fly safely, please read this manual carefully. If you have any difficulties while using your
system, please consult the manual, your hobby dealer, or FrSky technical support.
+X
+Y
+Z
SMA Connector
Infinity 24 Antenna
Recommended 2.4GHz optional
high-gain antenna for achieving
higher performance and further
range.

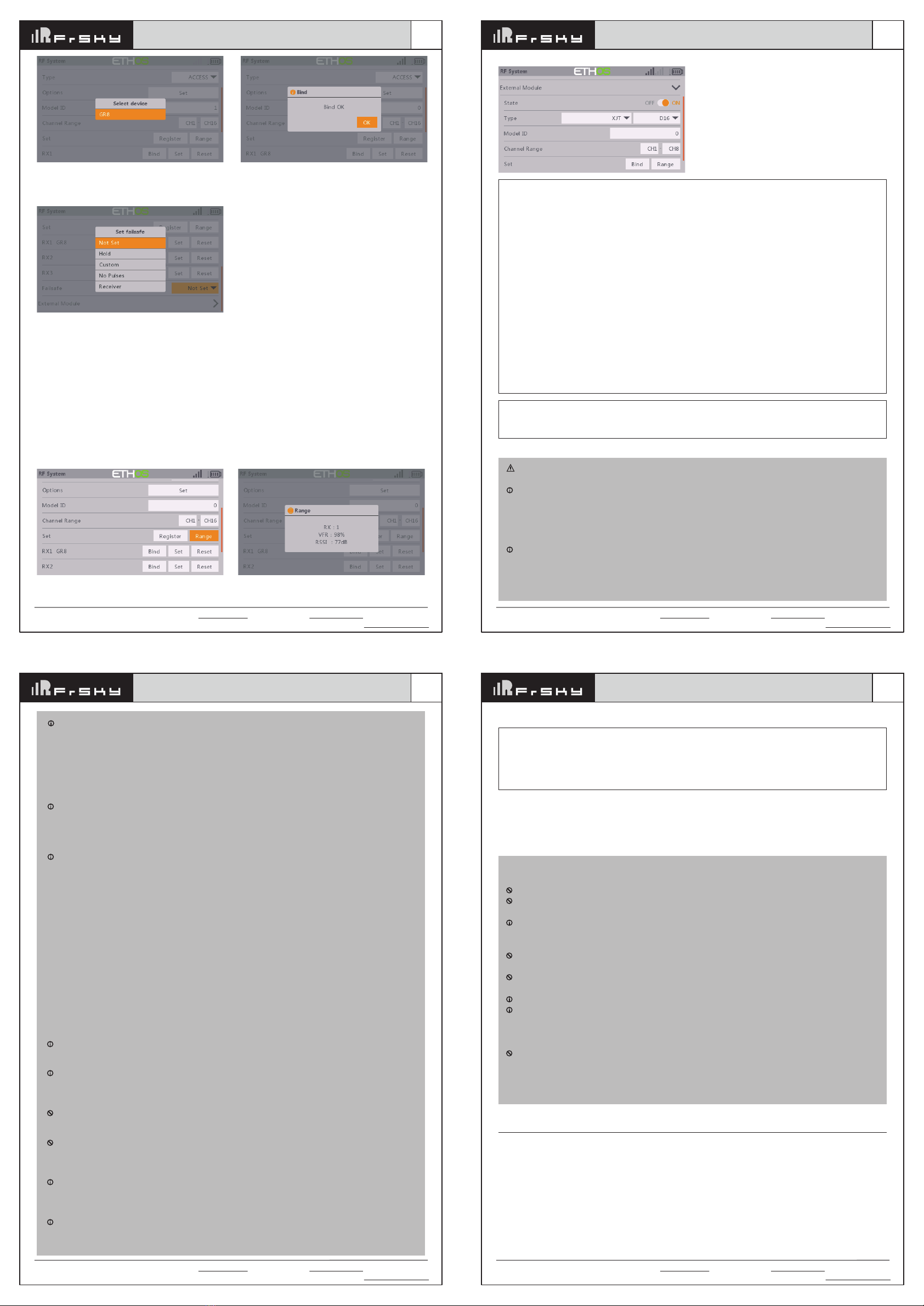

Model Setup Procedure-Internal Module
Step 1:
Touch the screen or use the navigation keys to enter the
RF system menu.
Choose the INT MODULE. Then turn ON INTERNAL RF, select the OUTSIDE or INSIDE ANTENNA ( Dual internal
antennas and external antenna work simultaneously while selecting the OUTSIDE ANTENNA.)
Set the Mode for TANDEM X20 internal RF corresponding to your receiver (ACCESS, ACCST D16).
Step 2: Configure the model channel and create the model name. Step 2: Set the Channel Range
The TANDEM RF module supports 24 channels. the channel range is configurable, and it needs to be double
checked before use.
Step 5: Automatic binding (Smart Match )
Move the cursor to Rx1[BIND],and select it, power your receiver, select the RX, and complete the process, the
system will confirm "Bind succeed". (Pressing the "F/S" button is not required in ACCESS to Bind. Please the
receivers manual for details).
Step 3: Set the Receiver Number
The system will assign you the receiver a number
automatically, when you create a new model, and this
can be easily changed. The range of the Model ID is
00-63, with the default number being 01. Once the
receiver is set to the desired number and is bound to the
TANDEM X20, the bind procedure will not need to be
repeated unless the receiver number is changed. At this
point, set the receiving number to your preferred
number and repeat the binding operation.
Step 4 : Registration
In ACCESS model, select the STATE [Register] into Registration status on radio side. Then Press the F/S button
and power on your receiver, and select the “RX Name XX” and [REGISTER] to complete the Registration process
then power down the receiver.
Create the model
Step 1:
First go to System Settings, then click Model Select to select the model type.
ETHOS Operating System

Where to Fly
We recommend that you fly at a recognized model airplane flying field. You can find model clubs and fields
by asking your nearest hobby dealer.
Always pay particular attention to the flying field’s rules, as well as the presence and location of
spectators, the wind direction, and any obstacles on the field. Be very careful flying in areas near power lines,
tall buildings, or communication facilities as there may be radio interference in their vicinity.
At the flying field
To prevent possible damage to your radio gear, turn the power switches on and off in the proper sequence:
1. Pull throttle stick to idle position, or otherwise disarm your motor/engine.
2. Turn on the transmitter power and allow your transmitter to reach its home screen.
3. Confirm the proper model memory has been selected.
4. Turn on your receiver power.
5. Test all controls. If a servo operates abnormally, don’t attempt to fly until you determine the cause
of the problem. (For PCM systems only: Test to ensure that the Failsafe settings are correct by
waiting at least 2 minutes after adjusting then, turning the transmitter off and confirming the proper
surface/throttle movements. Turn the transmitter back on.)
6. Start your engine.
7. Complete a full range check.
8. After flying, bring the throttle stick to idle position, engage any kill switches or otherwise disarm
your motor/engine.
If you do not turn on your system on and off in this order, you may damage your servos or control surfaces,
flood your engine, or in the case of electric-powered or gasoline-powered models, the engine may unexpect-
edly turn on and cause a severe injury.
Make sure your transmitter can’t tip it over. If it is knocked over, the throttle stick may be accidentally
moved, causing the engine to speed up. Also, damage to your transmitter may occur.
In order to maintain complete control of your aircraft it is important that it remains visible at all times. Flying
behind large objects such as buildings, grain bins, etc. must be avoided. Doing so may interrupt the radio
frequency link to the model, resulting in loss of control.
Do not grasp the transmitter's antenna during flight. Doing so may degrade the quality of the radio frequency
transmission and could result in loss of control.
As with all radio frequency transmissions, the strongest area of signal transmission is from the sides of
the transmitter's antenna. As such, the antenna should not be pointed directly at the model. If your flying style
creates this situation, easily move the antenna to correct this situation
Before taxiing, be sure to extend the transmitter antenna to its full length.
A collapsed antenna will reduce your flying range and cause a loss of control. It is a good idea to avoid
pointing the transmitter antenna directly at the model, since the signal is weakest in that direction.
Don’t fly in the rain! Water or moisture may enter the transmitter through the antenna or stick openings
and cause erratic operation or loss of control. If you must fly in wet weather during a contest, be sure to cover
your transmitter with a plastic bag or waterproof barrier. Never fly if lightning is expected.
