Shortening Disposal Unit
(SDU 50, SDU 90 and BKSDU)
Installation, Operation, Service and Parts Manual

ii
NOTICE
IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS
ENODIS EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART
PURCHASED DIRECTLY FROM FRYMASTER DEAN, OR ANY OF ITS AUTHORIZED
SERVICE CENTERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS
ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER,
FRYMASTER DEAN AND ITS AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS,
DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE DIRECTLY
OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF ANY
MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICE
CENTER.
NOTICE
Drawings and photos used in this manual are intended to illustrate operational, cleaning
and technical procedures and may not conform to on-site management operational
procedures.
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause property
damage, injury or death. Read the installation, operating and maintenance instructions
thoroughly before installing, operating or servicing this equipment.
DANGER
Hot vegetable oil will cause severe burns. Allow vegetable oil to cool to 100°F (38°C)
before transporting to the disposal site. Use extreme caution when transporting and
disposing of spent vegetable oil.
DANGER
Before each use inspect the cover to ensure the cover gasket is present and properly
placed. DO NOT use the disposal unit if this gasket is damaged or missing.

iii
Shortening Disposal Unit (SDU)
Installation, Operation, Service, and Parts Manual
TABLE OF CONTENTS
Page
1. INTRODUCTION 1
1.1 Service Information and Parts Ordering..............................................1
1.2 Installation, Operating and Service Personnel.....................................1
1.3 Definitions ................................................................................................1
1.4 Shipping Damage Claim Procedure ......................................................2
1.5 What To Do If Your Equipment Arrives Damaged.............................2
2. ASSEMBLY AND OPERATION..........................................................2
2.1 Equipment Description...........................................................................2
2.2 Equipment Assembly ..............................................................................3
2.3 Equipment Operation .............................................................................3
2.4 Cleaning....................................................................................................5
3. SERVICE PROCEDURES.....................................................................5
3.1 General.....................................................................................................5
3.2 Replacing Worn or Damaged O-Rings..................................................5
3.3 Replacing Worn Pump Vanes and/or Pump Shaft Seal ......................5
4. PARTS LIST............................................................................................7

SHORTENING DISPOSAL UNIT
(SDU 50, SDU 90 AND BKSDU)
INSTALLATION, OPERATION, SERVICE AND PARTS
1
1. INTRODUCTION
1.1 Service Information and Parts Ordering
Included with the unit when shipped from the factory is a list of Factory Authorized Service Centers
(FASCs). Refer to this list to find the FASC nearest you. If you do not have access to this list,
contact the Frymaster Technical Service Department at 1-800-551-8633 or 1-318-865-1711.
Service information may be obtained by contacting your local FASC. Information may also be
obtained by calling the Frymaster Technical Service Department at 1-800-551-8633 or 1-318-865-
1711 or by e-mail: [e-mail]. In order to assist you as quickly as possible, the FASC
or Service Department representative requires certain information about your equipment. The
information is printed on a data plate located on the tank cover. When requesting service, please
have the following information ready:
Model Number:
Serial Number:
In addition to the model number, and serial number, please be prepared to describe the nature of the
problem and have ready any other information that you think may be helpful in solving your
problem. Parts orders may be placed directly with your local FASC or distributor. When ordering
parts, the following information is required:
Model Number:
Serial Number:
Item Part Number:
Quantity Needed:
RETAIN AND STORE THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE USE.
1.2 Installation, Operating and Service Personnel
Installation, Operating, and Service information for this equipment has been prepared for use by
qualified and/or authorized personnel only, as defined in Section 1.3.
1.3 Definitions
QUALIFIED AND/OR AUTHORIZED OPERATING PERSONNEL
Qualified/authorized operating personnel are those who have carefully read the information in this
manual and have familiarized themselves with the equipment functions, or who have had previous
experience with the operation of the equipment covered in this manual.
QUALIFIED SERVICE PERSONNEL
Qualified service personnel are those who are familiar with this equipment and who have been
authorized by Frymaster L.L.C. to perform service on equipment manufactured by Frymaster. All
authorized service personnel are required to be equipped with a complete set of service and parts

2
manuals, and to stock a minimum amount of parts for Frymaster equipment. A list of Factory
Authorized Service Centers (FASCs) was included with this equipment when shipped from the
factory. Unless specifically indicated otherwise in this manual, failure to use qualified service
personnel will void the Frymaster Warranty on this equipment.
1.4 Shipping Damage Claim Procedure
This equipment was carefully inspected and packed before leaving the factory. The transportation
company assumes full responsibility for safe delivery upon acceptance of the equipment for
transport.
1.5 What to Do If Your Equipment Arrives Damaged
1. File a claim for damages immediately, regardless of the extent of damages.
2. Inspect for and record all visible loss or damage and ensure that this information is noted on
the freight bill or express receipt and is signed by the person making the delivery.
3. Concealed loss or damage that was unnoticed until the equipment was unpacked should be
recorded and reported to the freight company or carrier immediately upon discovery. A
concealed damage claim must be submitted within 15 days of the date of delivery. Ensure that
the shipping container is retained for inspection.
DOES NOT ASSUME RESPONSIBILITY
FOR DAMAGE OR LOSS INCURRED IN TRANSIT.
2. ASSEMBLY AND OPERATION
2.1 Equipment Description
The Shortening Disposal Unit (SDU) is designed for the safe transportation of used shortening or
cooking oil from the kitchen to a disposal container. There are two sizes – the SDU 50 (holding up
to 50 lbs./23 kg) and the SDU 90 (holding up to 90 lbs./41 kg) of shortening. Both sizes are
identical in construction and operation except for the volume of shortening that can be handled. The
units consist of a tank to receive waste shortening/oil from a fryer and a heavy-duty manual pump
for transferring the shortening/oil to a disposal container. Both models are equipped with 7" (178
mm) wheels and foldable handles. The pump is mounted at a convenient height that allows it to be
operated from a standing position. The height of the discharge pipe allows pumping directly into a
standard 55-gallon drum.
The BKSDU is equipped with a 120VAC or 240VAC tank heater to prevent solid shortening from
solidifying prior to disposal. The BKSDU is equipped with a receptacle that accepts a three-prong,
grounded plug for protection against shock hazard. The power cord should be plugged directly into
a properly grounded, three-hole wall or floor receptacle. Do not cut off, remove, or otherwise
bypass the grounding prong on the power cord plug. CAUTION: Risk of fire and electric shock.
Replace only with manufacturer’s cord set, part number 8071224 for 120V or part number
106-4697 for 240V.

3
With the cover open, the top of the tank is 9¾ inches (248 mm) above the floor, permitting it to be
positioned directly beneath the drains of most fryers. (NOTE: The tanks on SDUs built before
January 2004 are 11½ inches (292 mm) high.). If using an SDU built before January 2004, the filter
pan cover on Frymaster PRO Series electric and gas fryers must be removed to allow the unit to be
positioned beneath the drain.
A variant of the SDU 50, the BKSDU is equipped with a 120V or 240V heater to prevent shortening
from solidifying in the reservoir.
2.2 Equipment Assembly
Assembly of the unit is a four-step process:
1. Remove the two bolts (or lock pins if manufactured prior to May 2006) from the handle-mounting
bracket and raise the handle to the upright position. Reinstall the bolts (or lock pins) in the bracket.
2. Ensure the O-rings and the bottom 2 inches of the suction tube are lubricated with Accrolube
with Teflon or an equivalent light oil or grease.
3. Turn the pump and suction tube upside down and carefully pour no more than one cup of
cooking oil down the tube. Rotate the pump handle slowly three or four times to prime the
pump.
4. Insert the suction tube through the pipe bracket on the handle and into the pickup tube on top of
the reservoir. Push down on the pump assembly and ensure the suction tube is fully seated.
2.3 Equipment Operation
WARNING
DO NOT use this unit to dispose of water or Boil-out solution. Introduction of water
or solvents into the unit will permanently damage the pump.
1. Turn the fryer off prior to draining into SDU. If so equipped, ensure the fryer drainpipe is firmly
threaded into the frypot drain valve.
2. Open the cover, verify that the crumb screen and rubber gasket on the inside cover are in place,
and position the unit so that the opening is directly under the frypot drainpipe.
Cover Gasket
Crumb Tray

4
DANGER
Before each use inspect the cover to ensure the cover gasket is present and
properly placed. DO NOT use the disposal unit if this gasket is damaged or
missing.

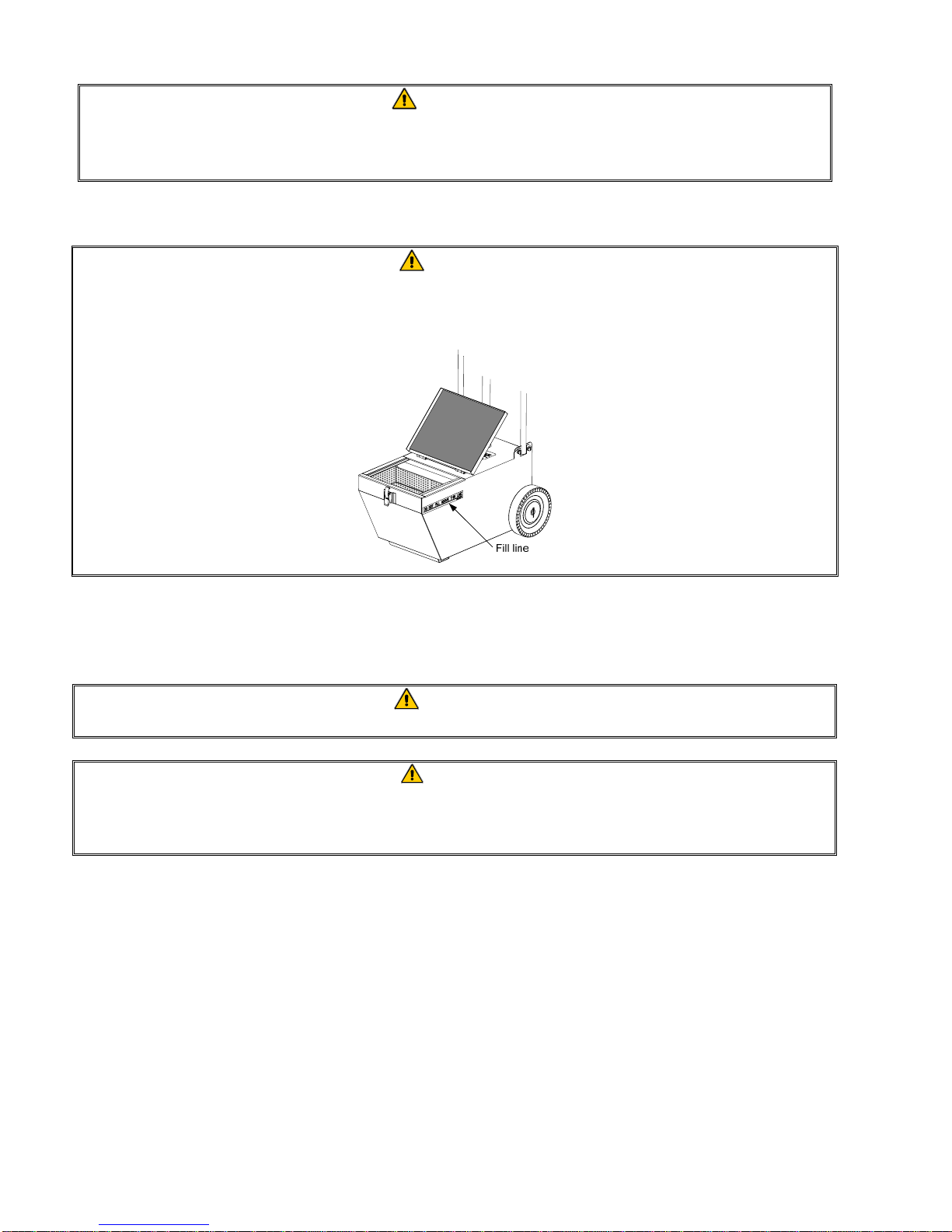

3. Slowly open the drain valve. Regulate flow with the drain valve to prevent splashing.
DANGER
DO NOT OVERFILL! Do not fill the reservoir above the fill lines on the sides of the
reservoir. Moving the SDU with an overfilled reservoir may result in spills and injury
to personnel who come in contact with the spilled shortening.
4. Carefully withdraw the unit far enough to allow the cover to be closed. Latch the cover in the
closed postion. Using the handle, carefully tip the unit back slightly for ease of handling and roll
the unit to the disposal site.
WARNING
DO NOT use the pump or discharge piping assembly as a handle!
DANGER
To minimize the potential for burns, shortening/oil must always be allowed to cool
below 100°F (38°C) before draining into the SDU and transporting to the disposal
area. However, DO NOT allow shortening to solidify in the SDU.
The unit is designed to be moved, when properly filled, at an average walking pace on a flat
surface. Care must be taken at all times when moving hot shortening or oil. Rough terrain or
sudden stops and starts may cause the contents of the reservoir to spill or splash out of the
reservoir, possibly causing serious injury to personnel. Always ensure that the cover is latched
shut when moving the unit.
5. At the disposal site, lift the pump assembly lock pin and rotate the discharge pipe as necessary to
position the discharge nipple over the opening of the disposal container. Release the lock pin to
secure the pump assembly in position. Turn the pump handle clockwise. The pump should start
discharging oil after a few turns. Continue turning the handle until the MSDU reservoir is empty.
NOTE: The pump is NOT self-priming. If it has not been used for several days, it may have lost
its prime and may need to be re-primed in accordance with Step 3 of Section 2.2.

5
6. On BKSDU units, the built-in heater may be connected to a grounded 120VAC or 240VAC
receptacle to prevent shortening from solidifying in the tank when immediate transfer to a
disposal container is not possible.
2.4 Cleaning
Clean the crumb screen with a solution of detergent and water. Clean the exterior surfaces of the
SDU with a soft cloth and a solution of detergent and water. It is not necessary to clean the interior
of the reservoir, but if desired it may be wiped down with clean paper towels to remove excess
residual shortening.
WARNING
DO NOT clean the interior of the reservoir with water or detergent. Introduction of
water or detergent into the unit will permanently damage the pump.
3. SERVICE PROCEDURES
3.1 Introduction
Other than routine cleaning and the replacement of worn suction tube O-rings, the SDU is
maintenance free. After long use, the pump vanes and pump shaft seal may require replacement due
to wear. Frymaster recommends worn pump vanes and/or pump shaft seals be replaced by an FASC,
but store personnel may perform these service actions without voiding the warranty.
3.2 Replacing Worn or Damaged O-Rings
If pump efficiency degrades, it is likely that the O-rings on the suction tube are worn or damaged.
To replace the O-rings, follow the steps below.
1. Lift the pump assembly straight up and out of the handle assembly.
2. Remove the worn or damaged O-rings from the grooves at the bottom of the suction tube and
replace with new O-rings. Apply Accrolube with Teflon grease or equivalent to bottom 2 inches
of the suction tube.
3. Insert the suction tube through the tube bracket in the handle and into the receiver on top of the
reservoir. Push down on the pump assembly to make sure the suction tube is fully seated.
3.3 Replacing Worn Pump Vanes and/or Pump Shaft Seal
Depending upon the amount of use, the vanes in the pump assembly will eventually wear, reducing
the efficiency of the pump. The pump shaft seal can also become worn and start to leak. A kit for
replacing the vanes and the seal is available. The pump shaft seal can also be purchased as a
separate item. To replace the pump vanes, and/or the pump shaft seal, follow the steps below (refer
also to the illustration on Page 6).
1. Loosen the setscrew securing the pump handle to the pump shaft and slip the handle off the shaft.
If unit is a BKSDU remove the eight screws that secure the pump cover in place and remove the
cover.

6
2. Remove the five screws securing the front cover and remove the cover.
If replacing the pump shaft seal only, remove the old seal and install the replacement as shown in
the illustration below, then go to Step 5.
If replacing the pump vanes, go to Step 3.
3. Grasp the pump shaft and carefully pull the rotor assembly straight out of the pump housing far
enough to expose the vanes. IMPORTANT: The vanes are spring-loaded. Use one hand to
hold the vanes while pulling the rotor assembly the rest of the way out of the housing. Carefully
release the vanes and discard the worn vanes, springs, and rods.
Step 5 - Replace gasket.
Step 1 - Loosen
setscrew and
remove handle.
Step 2 - Remove cover
screws and cover.
Step 3 - Grasp
shaft and pull
rotor assembly
out of housing.
Step 4 - Replace
vanes, spring,
and rod.
Pump shaft seal fits into the
recess of the pump cover.
4. Assemble the replacement vanes, spring and rod into the rotor assembly. Compress the vane
spring and carefully insert the rotor assembly back into the pump housing.
5. Position the replacement gasket on the pump body, slip the cover over the shaft, and align the
pins in the cover with the holes in the pump housing. Reinstall the five screws removed in Step
2 and tighten securely (torque to approximately 60 inch-pounds).
6. Slip the pump handle back onto the shaft and align the screw hole in the handle with the screw
hole in the shaft. Tighten the setscrew loosened in Step 1 securely.

7

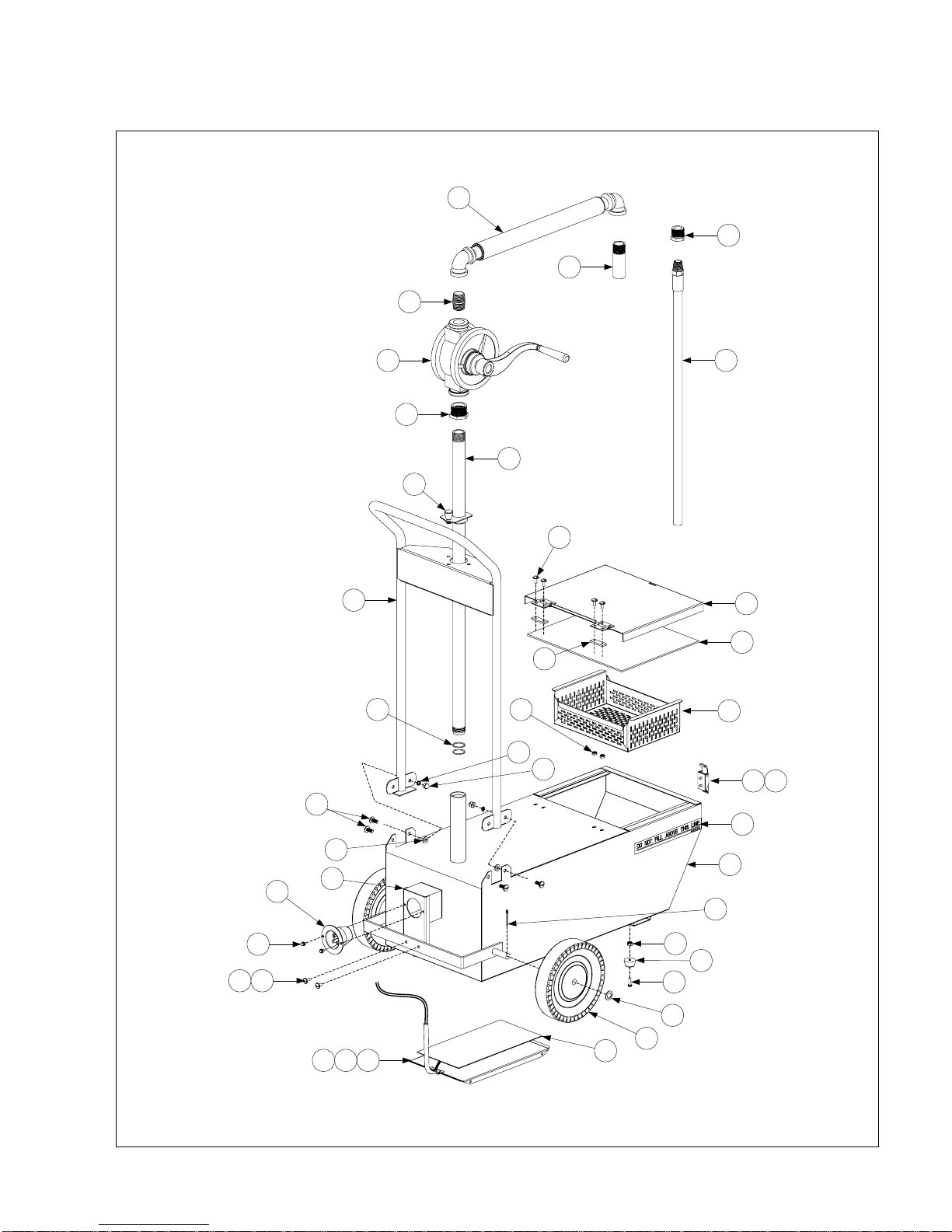

4. PARTS LIST
5
17
22 23
32
31
33
9
28
1
2
3
4
6
7
8
10 12
13
11
14
15
16
20
21
25
26
27
29
1611
30
18
34
383736
35
19
NOTE: See Page 6 for BKSDU
pump assembly components.
24

8
Item Part # Component
1 Pipe Assembly, Discharge
823-4600
Standard (includes Item 2) (use 823-4617 for BKSDU)
823-4598
For use with Item 4 (Hose Discharge) (includes Item 3)
2 813-0115 Nipple, ¾-inch x 3-inch Toe
3 813-0031 Bushing, ¾-inch x ½-inch
4 810-1845
Hose, 24-inch Discharge (Optional) (use 810-2797 for 48-inch hose)
5 813-0109 Nipple, ¾-inch x Close
6 810-0784
Pump (includes handle 810-0657, which may be ordered separately)
* 826-1053
Kit, Pump Repair (includes two vanes, one spring, one rod, one gasket.)
* 816-0401 Seal, Pump Shaft
7 813-0032 Bushing 1-inch x ¾-inch Hex
8 823-4581 Pipe Assembly, Suction
9 810-0777 Pin, Plunger
10 Handle Assembly
823-2038 SDU50 and BKSDU
823-2421 SDU90
11 809-0119 Screw, 10-32 x ½-inch Slotted Head
12 Cover and Hinge Assembly
823-1683SP
SDU50 and BKSDU (does not include gasket (Item 13))
823-2422SP
SDU90 (does not include gasket (Item 13))
13 Gasket, Cover (attach with 3M 1300L adhesive or equivalent)
816-0134 SDU50 and BKSDU
816-0264 SDU90
14 816-0133 Gasket, Cover Hinge
15 Screen, Crumb
824-0438 SDU50 and BKSDU
824-0615 SDU90
16 826-1376 Nut, 10-32 Keps Hex (Pkg. of 10)
17 816-0132
O-ring, Suction Pipe Assembly (2 required)
18 809-0200 Washer, Wheel ½” SAE
19 809-0193 Washer, ¼-inch Nylon Flat
20 809-0191 Lock Washer, ¼-inch
21 809-0047 Nut, ¼-20 S/S Cap
22 810-0742 Latch, Tank Cover
23 809-0359 Screw, #8 x ¼-inch
24 809-1001 Screw, ¼-20 x ½” Slotted Head
25 802-0227 Label, Fill Line
26 Tank and Axle Assembly
823-4580SP SDU50 and BKSDU
826-2103 SDU50 Retrofit Kit for SDU’s manufactured before Jan. 2004.
823-4583 SDU90 If replacing tank manufactured pre-Jan.2004, 823-4581 will also be needed.
27 823-1911
Housing, 120VAC Receptacle (BKSDU only) (use 823-5060 for 240VAC)
28 807-1219
Receptacle, 120V 3-wire (BKSDU only) (use 807-4108 for 240VAC)
29 809-0266
Screw, #10 x ½-inch Phillips Truss Head (use 809-0396 for 240VAC Receptacle)
30 810-0783 Cotter Pin, Wheel
31 809-0054
Nut, 10-32 Elastic Lock (BKSDU only)
32 814-0051
Bumper, Rubber (BKSDU only)
33 809-0122
Screw, 10-32 x ⅝-inch Slotted Round Head (BKSDU only)
34 810-1112 Wheel, 7-inch x 1½-inch
35 807-1577
Heater, 120V 50W 5” x 10” (BKSDU only)
* 807-1224
Cord, Power – 120VAC (BKSDU only)** (use 106-4697 for 240VAC)
36 823-1915
Shield Heater (BKSDU only)
37 809-0104
Screw, 8-32 x ½-inch Slotted Truss Head (BKSDU only)
38 809-0247
Nut, 8-32 Keps Hex (BKSDU only)
* 815-0661 Adhesive, 3M 1300L
* Not illustrated.
** CAUTION: Risk of fire and electric shock. Replace only with manufacturer’s cord set, part No. 8071224 for 120V.

9

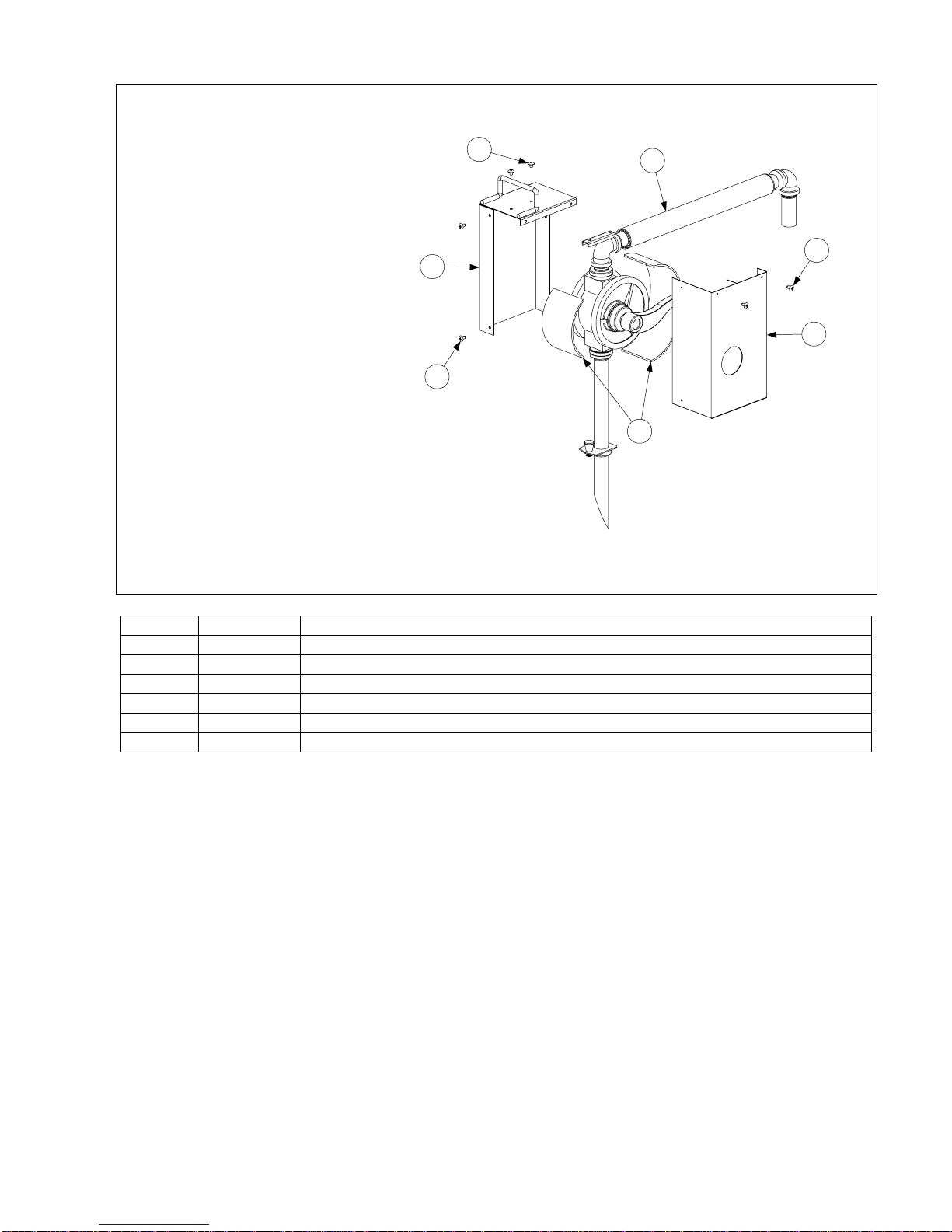

NOTE: The BKSDU pump
assembly is identical to the SDU
50/SDU 90 pump assembly except
for the addition of the pump cover
and insulation and the modified
discharge pipe assembly.
1
2
3
4
5
6
6
ITEM PART # COMPONENT
1 823-1847 Cover and Handle Assembly, BKSDU
2 900-4429 Box, BKSDU Pump
3 811-0861 Insulation, 3-inch X 50-foot Adhesive-Backed Foam
4 823-4617 Pipe Assembly, BKSDU Discharge
5 809-0477 Screw, #10 X ¼-inch Philips Truss Head
6 809-0266 Screw, #10 X ½-inch Philips Truss Head

Frymaster, L.L.C., 8700 Line Avenue, PO Box 51000, Shreveport, Louisiana 71135-1000
Shipping Address: 8700 Line Avenue, Shreveport, Louisiana 71106
TEL [phone] FAX (Parts) 1-318-688-2200 FAX (Tech Support) 1-318-219-7135
PRINTED IN THE UNITED STATES SERVICE HOTLINE
1-800-551-8633 819-5703
SEPTEMBER 2005
