User Manual
Tower Battery Pack
BB-192/09T, BB-240/10T

Fortron Source (Europa) GmbH
Carl-Friedrich-Benz-Straße 13, 47877 Willich, GERMANY
Tel: [phone]
POWER NEVER ENDS
1. Important Safety Warnings
Please comply with all warnings and operating instructions in this
instruction strictly. Read carefully the following instructions before installing
the unit. Do not operate this unit before reading through all safety
information and operating instructions carefully.
Do not try to assemble or repair the unit yourself, contact your local
supplier, seek for help of qualified technician
To eliminate any overheating of the battery box, keep all ventilation
openings free from obstruction and do not place any foreign objects on
top of the battery bank. Keep the battery box 20 cm away from the wall.
Make sure the battery box is installed within the proper environment as
specified. (0-40°C and 30-90% non-condensing humidity)
Do not install the battery box under direct sunlight. Your warranty will be
void if the batteries fail due to overheating.
This battery box is not designed for use in dusty, corrosive and salty
environment.
The warranty for this battery bank will be void if water or other liquid is
spilled or poured directly onto the battery box. Similarly, we do not
warrant any damage to the battery box if foreign objects are deliberately
or accidentally inserted into the battery box enclosure.
The battery will discharge naturally if the system is unused for a period of
time.
It should be recharged every 2-3 months if unused. If this is not done,
then the warranty will be null and void. During normal operation, the
batteries will be automatically remained in charged condition.
Servicing of batteries should be performed or supervised by trained
personnel with knowledge of batteries and the required precautions.
When replacing batteries, it is necessary to replace ALL batteries with the
same quantity, type & capacity.
CAUTION –Do not dispose of battery or batteries in a fire. The battery
may explode.
CAUTION –Do not open or mutilate the batteries. The electrolyte from
the batteries is toxic and harmful to the skin and eyes.
CAUTION –Risk of Electric Shock –Hazardous voltage may exist between
battery terminals and ground. Test before touching with bare hands.

Fortron Source (Europa) GmbH
Carl-Friedrich-Benz-Straße 13, 47877 Willich, GERMANY
Tel: [phone]
POWER NEVER ENDS
CAUTION –A battery can present a risk of electrical shock and high short
circuit current. The following precaution should be observed when
working on batteries:
1. Remove watches, rings, or other metal objects.
2. Use tools with insulated handles.
3. Wear rubber gloves and boots.
4. Do not lay tools or metal parts on top of batteries.
5. Disconnect charging source prior to connecting or disconnecting battery
terminals.
Do not plug or unplug the battery connector if UPS works in DC
(discharging) mode.
2. Installation and Setup
NOTE: Before installation, please inspect the unit. Be sure that nothing inside
the package is damaged. Please keep the original package in a safe place for
future use
2.1 rear picture view
Caution: Only the red mark screws
are locking cover. The rest 4 units
are for connector inside.
DON NOT unscrew it.
UPS rear panel,
Battery connector

Fortron Source (Europa) GmbH
Carl-Friedrich-Benz-Straße 13, 47877 Willich, GERMANY
Tel: [phone]
POWER NEVER ENDS

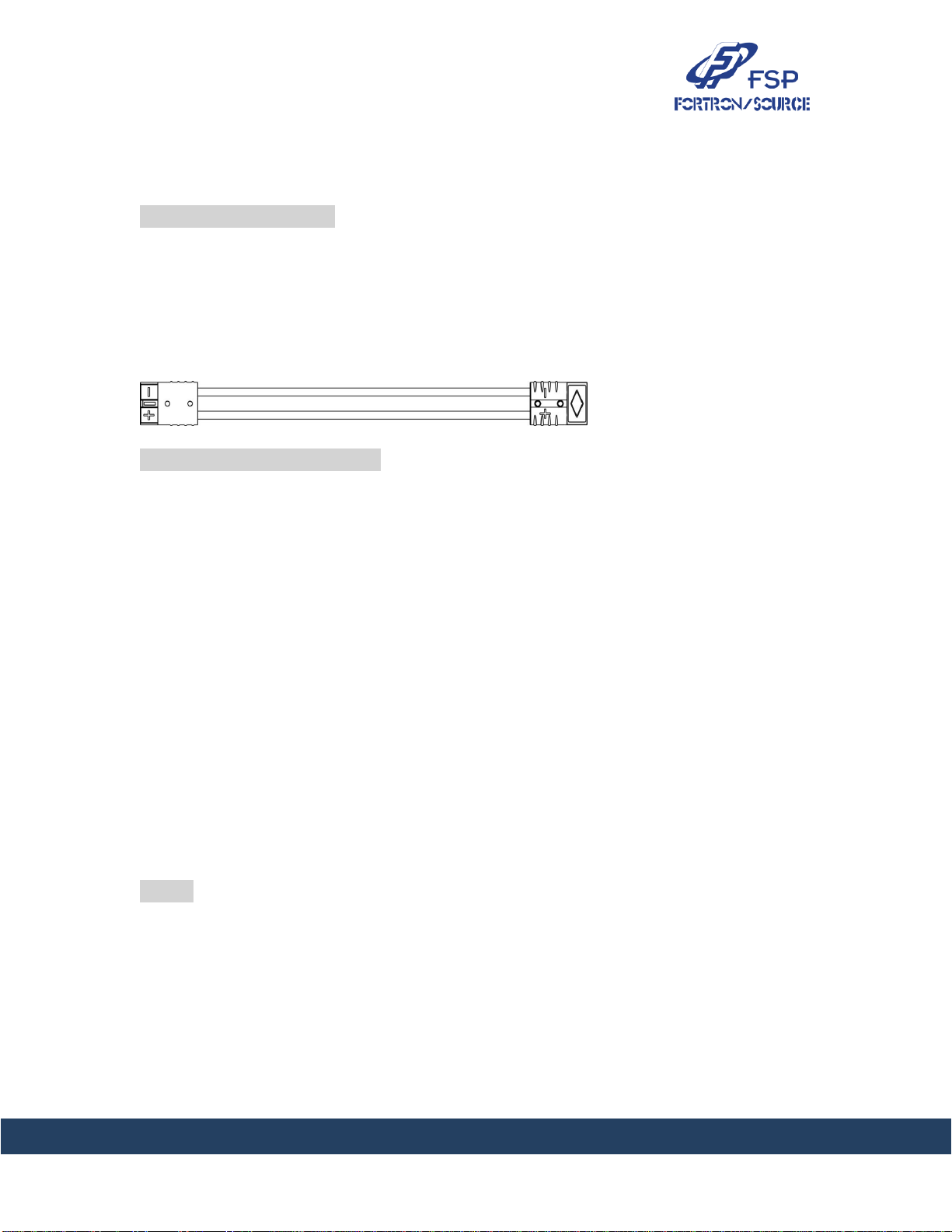

2.2 Installation and Setup with UPS
Unpacking & Inspection
1. Remove the battery pack from the packing.
Note: The battery pack is very heavy, be cautious when unpacking and lifting the
unit to avoid injury.
2. Check the inside package
Battery pack unit
Battery connection cable x 1
Selecting Installation Position
It is necessary to select a proper environment to install the unit, in order to
minimize the possibility of damage to the battery bank and extend the life of the
batteries. Please follow the instructions below:
1. Keep at least 20cm (8 inches) clearance from the rear panel of the unit
from the wall or other obstructions.
2. Do not block the air-flow to the ventilation openings of the unit.
3. Please ensure the installation site environmental conditions are in
accordance with the unit’s working specifications to avoid overheat and excessive
moisture.
4. Do not place the unit in a dusty or corrosive environment or near any
flammable objects.
5. This unit is not designed for outdoor use.
3. Battery Installation
If your battery pack is not installed with batteries, please follow proper
procedure to put batteries inside of unit.
NOTE: MAKE SURE THAT THE BATTERY PACK IS DISCONNECTED FROM THE
UPS BEFORE PERFORMING THE FOLLOWING SEQUENCE OF OPERATIONS.

Fortron Source (Europa) GmbH
Carl-Friedrich-Benz-Straße 13, 47877 Willich, GERMANY
Tel: [phone]
POWER NEVER ENDS
WARNING:
The equipment should be installed from service personnel
When installing the batteries, use the same number and type of batteries
showed in the battery label
Do not open or mutilate the battery or batteries, released electrolyte is
harmful to the skin and eyes
A battery can present a risk of electric shock and high short circuit
current. The following precaution should be observed when working on
batteries
A) Remove watches, rings or other metal objects.
B) Use tools with insulated handles
4. Storage & Maintenance
The unit contains no user-serviceable parts. If the battery service life (3~5 years
at 25°C ambient temperature) has been exceeded, the batteries must be
replaced. In this case, please contact your dealer.
Storage
Before storing, charge the unit 4 hours. Store the unit covered and
upright in a cool, dry location. During storage, recharge the battery in
accordance with the following table:
Storage Temperature
Recharge Frequency
Charging Duration
-25°C - 40°C
Every 3 months
1-2 hours
40°C - 45°C
Every 2 months
1-2 hours
Be sure to deliver the spent battery to a recycling facility or ship it to your dealer in
the replacement battery packing material.
