INTRODUCTION
The HuddleVU system allows for multiple users to share and view their laptops, tablets, and smart phones
screens on a main display. Unlike conventional presentation systems, anyone participating can lead the
presentation at any given time at the push of a button. LED’s indicate which user is currently live and when
the system is busy.
HuddleVU creates the ideal environment for people to view and share ideas. The systems include all the
necessary video switching equipment, control hardware, display power control and color-coded captive HDMI
cables. It is a very simple yet effective system to quickly install and use.
There are two model styles available:
The HV-1000 single table box system employs a single FSR HV-T6 table box that allows 1 to
4 users to plug in and power their laptops or other input devices and simply push a button to
display their desktop information on the main display. Any user can switch to their own laptops,
tablets, and smartphones at any time simply by pushing their button on the T6 housing.
The individual HV systems accommodate from 3 to 7 users depending on the model. Each user
has their own FSR HV-T3 table box to plug into. Each table box contains a pullout HDMI cable
and an AC outlet. A single push of a button on each T3 is all that is needed to display the laptop
or iPad’s desktop information onto the main display. An HV-CTL Controller and up to two DV-
HSW-41 HDMI Switchers are included on all systems. The HV-CTL has a power switch, two
AC outlets to power the DV-HSW-41 HDMI Switchers and an additional AC outlet to power the
main display. The HV-CTL is the main termination point for the system components. When
four or less inputs are used the HV-CTL switching can be serially controlled by an external
control system.
FEATURES:
• Single button press user selection
• No software or programming required
• Simple installation
• Create attractive workspaces
• Hardware and cables included
• Conversion kits available for VGA and audio input
• Systems with four or less inputs can be controlled by an external control system
APPLICATIONS:
• Classrooms
• Libraries
• Conference Rooms
• Educational Facilities
• Corporate Teleconference Rooms
• Learning Centers
• Training Rooms

6
Huddle-VU
MOUNTING INFORMATION
HV-T3 INSTALLATION INSTRUCTIONS
SLOTS USED FOR 5/8" TO
1-1/8" THICK TABLE TOPS
SLOTS USED FOR 1-1/8" TO
1-9/16" THICK TABLE TOPS
3.50" DIAMETER
(2) MOUNTING
CLAMP
(2) MOUNTING
SCREW
MOUNTING
CLAMP AND
MOUNTING
SCREW
INSTALLED MOUNTING
CLAMP AND
MOUNTING
SCREW
(SEE BELOW)
HV-T3 ASSEMBLY
TABLE
DRILL 3.50" DIAMETER HOLE IN TABLE TOP.
1.
2. INSERT HV-T3 ASSEMBLY AND ORIENT AS REQUIRED.
3. INSTALL MOUNTING CLAMPS TO ASSEMBLY AND SECURE TO TABLE BY
SCREWING MOUNTING SCREWS TO UNDERSIDE OF TABLE.
MAKE ELECTRICAL CONNECTIONS AS REQUIRED. ENSURE HDMI
CONNECTOR CAN BE PULLED OUT 3'-0".
4. CUSTOMER TO PROVIDE
KO SLUG/PENNY/OTHER
HARD FLAT PIECE FOR
SCREW END, WITH SOFT
TABLE WOOD
HV-T3 TABLE BOX INSTALLATION
NOTE: TABLE BOXES ARE AUTOMATICALLY
GROUNDED WHEN THAY ARE PLUGGED INTO AN
AC OUTLET. IF THE UNITS ARE NOT PLUGGED
INTO AN AC OUTLET THEY MUST BE MANUALLY
GROUNDED.

7Huddle-VU
ASSEMBLED VIEW
UNDERSIDE VIEW OF SHROUD
HV-T6 SUB-ASS'Y
INSTALL DESIRED BRACKETS INTO THE
'HV-T6' SUB-ASS'Y. DROP THE SUB-ASS'Y
INTO THE HOLE IN THE TABLE
(COVER ORIENTATION IS PRE-SET
BY THE SHROUD INSTALLATION).
INSTALL CLAMP SHROUD TO UNDERSIDE
OF TABLE HOLE WITH (5) WOOD SCREWS
AS SHOWN. ORIENT PER DESIRED
COVER SWING DIRECTION.
PASS THE DESIRED-LENGTH (2) LONG
SCREWS THRU THE SH ROUD AND THREAD
INTO THE SUB-ASS'Y. TURN THE 3/8"-LONG
CLAMP NUTS UP SNUG AGAINST THE
SHROUD BASEPLATE TO PULL THE
SUB-ASS'Y DOWN COMPLETELY INTO
PLACE IN THE PRE-CUT 6.00" DIA. HOLE.
MAKE ELECTRICAL CONNECTIONS AS
REQUIRED AND TIE-WRAP CABLES TO
TIE-TABS. ENSURE HDMI CONNECTORS IN
THE SUB-ASS'Y CAN BE PULLED OUT 3'-0"
PRIOR TO SECURING CABLES TO TIE TABS.

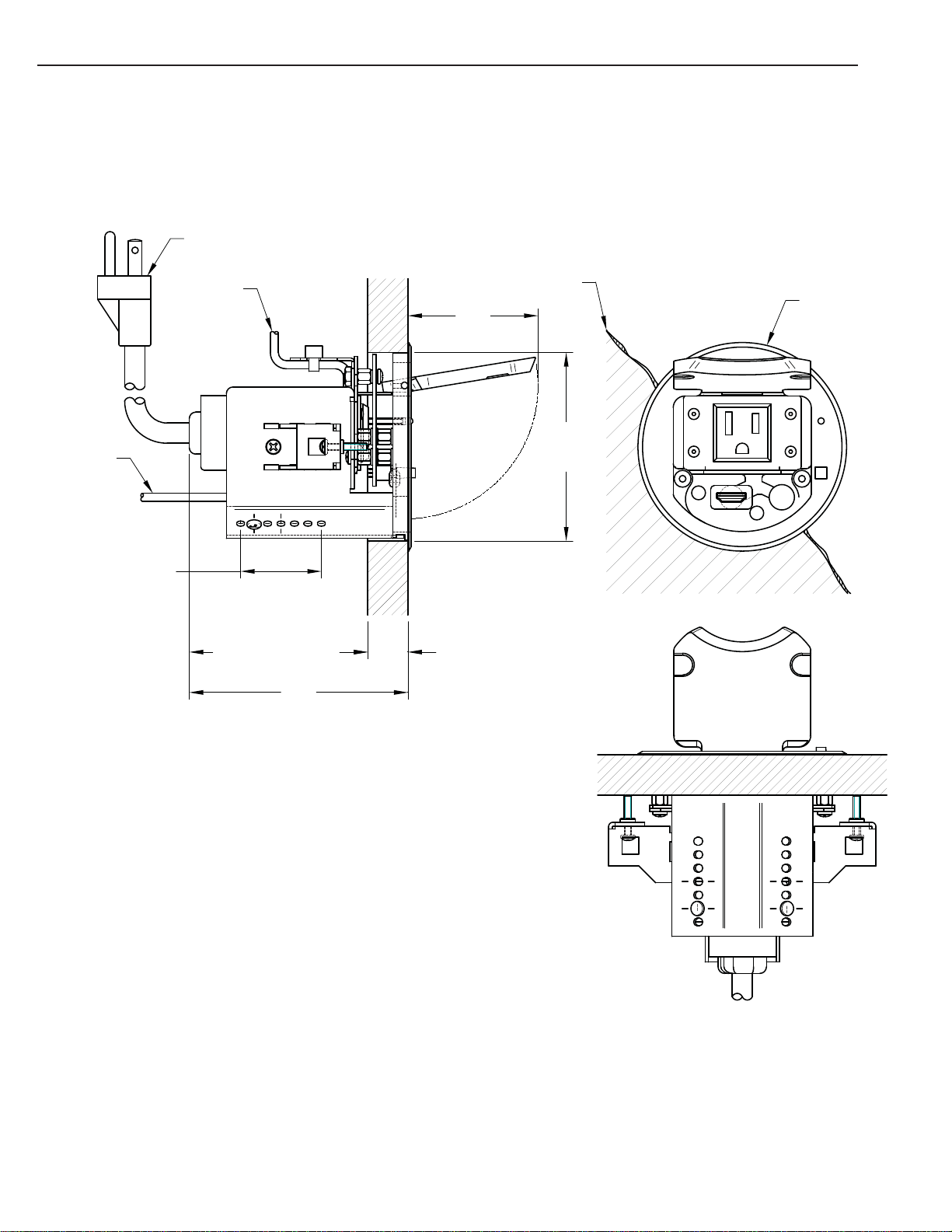

HV-T6 INSTALLATION
INSTRUCTIONS
(5) #6 / #8
MOUNTING
SCREW
HOLES
6.00" DIA. THRU
HOLE IN TABLE
2
1
3
4
PRE-CUT 6.00" DIA.
HOLE IN TABLE
3/4" MIN. - 2-1/4" MAX.
TABLE THICKNESS
(7) CABLE
TIE TAB
(5) #6 / #8 x 1/2"
WOOD SCREW
(2) #6-32 x 2.00" or 2-1/2" or 3" LONG
PAN HEAD SCREW
(2) 3/8"-LONG
CLAMP NUTS
3.50
7.00
3.38
9.00
2.75
5.50
2.75
5.50 7.00
HV-T6 TABLE BOX INSTALLATION
NOTE: TABLE BOXES ARE AUTOMATICALLY
GROUNDED WHEN THAY ARE PLUGGED INTO AN
AC OUTLET. IF THE UNITS ARE NOT PLUGGED
INTO AN AC OUTLET THEY MUST BE MANUALLY
GROUNDED.

8
Huddle-VU
1. LOOSEN BASE PLATE SCREWS AND SEPARATE
BASE PLATE FROM TABLE BRACKET. DETERMINE
EQUIPMENT LOCATION AND MOUNT TABLE
BRACKET TO UNDERSIDE OF TABLE WITH
SUPPLIED #8 WOOD SCREWS OR CUSTOMER
SUPPLIED #8 COUNTER-SUNK HARDWARE.
TABLE BRACKET
(4) #8 COUNTER-SUNK HARDWARE
2. REMOVE AND DISCARD EXISTING SCREWS FROM
HV-CTL UNIT. 3. INSTALL HV-CTL TO BASE PLATE WITH SUPPLIED #6 HARDWARE.
HV-CTL
REMOVE AND DISCARD
BASE PLATE
TABLE
(4) #6-32 x 3/8" LONG
HUDDLEVU BRACKET SET INSTALLATION

9Huddle-VU
a. INSTALL DV-HSW-41 TO BASE PLATE WITH SUPPLIED
M3 HARDWARE.
4A. INSTALLING ONE DV-HSW-41 UNIT:
DV-HSW-41
(4) M3 x 8mm LONG
PAN-HEAD SCREW
4B. INSTALLING TWO DV-HSW-41 UNITS:
REMOVE DV-HSW-41 SIDE BRACKET AND REINSTALL
TO NEW POSITION ONTO BASE PLATE.
a.
SIDE BRACKET
b. INSTALL DV-HSW-41 MOUNTING/SUPPORT BRACKET
TO BASE PLATE WITH SUPPLIED #6 HARDWARE.
MOUNTING/
SUPPORT
BRACKET
(2) #6-32 x 3/8" LONG
PAN-HEAD SCREW
c. INSTALL DV-HSW-41 TO BASE PLATE WITH SUPPLIED
M3 HARDWARE.
(8) M3 x 8mm LONG
PAN-HEAD SCREW
(2) DV-HSW-41
OMIT THESE SCREWS FOR
EASE OF FIELD SERVICE
OMIT THIS SCREW FOR
EASE OF FIELD SERVICE

10
Huddle-VU
5A. INSTALLING ONE DV-PC2HD UNIT:
a. INSTALL MOUNTING BRACKET TO DV-PC2HD WITH #6
HARDWARE (MOUNTING BRACKET AND #6 HARDWARE
SUPPLIED WITH DV-PC2HD).
MOUNTING BRACKET
SUPPLIED WITH DV-PC2HD
#6-32 x 1/4" LONG
PAN-HEAD SCREW
SUPPLIED WITH
DV-PC2HD
DV-PC2HD
(2) #6-32 x 3/8" LONG
PAN-HEAD SCREW
b. INSTALL DV-PC2HD WITH ATTACHED MOUNTING
BRACKET TO BASE PLATE WITH SUPPLIED #6 HARDWARE
AND #6 HARDWARE SUPPLIED WITH DV-PC2HD.
#6-32 x 1/4" LONG
PAN-HEAD SCREW
SUPPLIED WITH
DV-PC2HD
5B. INSTALLING TWO DV-PC2HD UNITS:
a. REMOVE DV-PC2HD SIDE BRACKET. INSTALL MOUNTING
BRACKET TO DV-PC2HD WITH #6 HARDWARE (MOUNTING
BRACKET AND #6 HARDWARE SUPPLIED WITH DV-PC2HD).
INSTALL DV-PC2HD WITH ATTACHED MOUNTING BRACKET
TO BASE PLATE WITH SUPPLIED #6 HARDWARE.
b. REINSTALL SIDE BRACKET TO BASE PLATE AND
SECURE DV-PC2HD WITH #6 HARDWARE SUPPLIED
WITH DV-PC2HD.
(2) DV-PC2HD
(2) #6-32 x 3/8" LONG
PAN-HEAD SCREW
(2) MOUNTING BRACKET
SUPPLIED WITH DV-PC2HD
(2) #6-32 x 1/4" LONG
PAN-HEAD SCREW
SUPPLIED WITH
DV-PC2HD
REINSTALL SIDE BRACKET
(2) #6-32 x 1/4" LONG
PAN-HEAD SCREW
SUPPLIED WITH
DV-PC2HD
REMOVE
SIDE BRACKET

11 Huddle-VU
6. REINSTALL BASE PLATE ASSEMBLY TO TABLE BRACKET AND
MAKE ELECTRICAL CONNECTIONS AS REQUIRED. TIE-WRAP
CABLES TO TIE-TABS AS REQUIRED.
(11) TIE-TAB
INSTALLED
TABLE BRACKET
BASE PLATE ASSEMBLY
TIGHTEN SCREWS
AFTER REINSTALLING
BASE PLATE ASSEMBLY
TO TABLE BRACKET
HV-CTL UNIT CAN BE
REMOVED WITHOUT
REMOVAL OF BASE
PLATE ASSEMBLY

12
Huddle-VU

13 Huddle-VU
HUDDLEVU BRACKET SET CABLING FOR A FIVE HV-T3 INSTALLATION
HUDDLEVU BRACKET SET CABLING FOR AN HV-T6 INSTALLATION
USE THE TABS PROVIDED TO SECURE THE
CABLES USING TIE WRAPS THROUGHOUT
USE THE TABS PROVIDED TO SECURE THE
CABLES USING TIE WRAPS THROUGHOUT

14
Huddle-VU
.625 MIN - 1.562 MAX
TABLE THICKNESS
2.50 MIN - 3.435 MAX
BENEATH BOTTOM
SURFACE OF TABLE
3.50 DIA
HOLE
IN TABLE
TABLE
3.88 DIA BEZEL
2.42
CURRENT
DRAW
12A, MAX.
4.06
1.50 ADJUST-
MENT RANGE
POWER CORD
CONTROL
CABLE
HDMI CABLE
MECHANICAL DIMENSIONS
HV-T3 TABLE BOX

15 Huddle-VU
4.59
2.84 ADJUSTMENT
RANGE
6.00 DIA
HOLE IN
TABLE
TABLE
4.78 BENEATH BOTTOM
SURFACE OF TABLE
5.94 BENEATH BOTTOM SURFACE OF TABLE
WITH AC BRACKETAT LOWEST LEVEL
6.50 DIA BEZEL
CABLE MUST BE LOOPED IF USED
WITH CABLE PULL BRACKET (T6-LB-CP)
TO ACCOMODATE PULLOUT LENGTH
.75 MIN - 2.25 MAX
TABLE THICKNESS
TOTAL CURRENT DRAW: 12A, MAX. T6
BLANKS PROVIDED, KEYSTONE
SNAP-IN SOLD SEPARATELY
HV-T6 TABLE BOX

16
Huddle-VU
HDMI SWITCHER POWER
SWITCHED AC POWER -TOTAL CURRENT DRAW, ALL RECEPTACLES: 12A, MAX.
MONITOR POWER HV-CTL
120VAC 50/60 Hz
15 Amp Max.
FSR
INDIVIDUAL TABLE BOX CONTROL CABLES
HV-CTL
B
B
1RGB
2
B
B
RGB
4
B
B
RGB
6
B
B
7RGB 35
T6 CONTROL
CABLES
LEFT
RIGHT
Tx Rx Tx Rx
SERIAL
12
HDMI SWITCHER CONTROL
SERIAL 1
SERIAL 2
1234
BLUE
RED
GREEN
BLK & BRN
G
N
D
I
RG
N
DAUX OUT
BGRB
WIRE COLORS:
B
R
L
Y
I
R
R
L
Y
FSR
1234
RESET
OFF
FRONT VIEW
BACK VIEW
10.64
2.00
6.06
6.48
DV-HSW-41 4X1 SWITCHER
HV-CTL CONTROL BOX

17 Huddle-VU
4.15
3.21
(2) SUPPLIED
MOUNTIN
G
BRACKET
2.98
1.03
WOODLAND PARK, NJ 07424
TEL: [phone] TO
Model
DV-PC2HD
HDMI CONVERTOR
ANALOG PC
POWER
5VDC OUTPUT ANALOG PC INPUT
HDMI VIDEO AUDIO
POWER
POWER
www.fsrinc.com
FSR
POWER INDICATOR LED
(2) SUPPLIED MOUNTING
BRACKET SCREW
BRACKETS CAN BE POSITIONED FOR
SURFACE OR UNDERSIDE MOUNTING
DV-PC2HD ANALOG PC TO HDMI
CONVERTER (OPTION)

18
Huddle-VU
IT-SACWP SWITCHED WALL PLATE (OPTION)
SWITCHED AC
12A MAX.
12V RELAY
ON +-
IT-SACWP
FSR
1.70 .15 1.43
1.57
4.09 2.72
TO AC
POWER
2.41

19 Huddle-VU
OPERATION
Power up the system via the power switch located on the AC side of the HV-CTL Control Unit. The Green
LEDs on the Table Boxes (referred to as "TB" from this point on) will flash for approximately 3 seconds and
then turn off. The system is now in the IDLE state and is ready to accept switch inputs/presses from the table
boxes. Note that the monitor and HDMI switchers are not yet turned on and no switch inputs are honored
while the LEDs are flashing.
From the IDLE state, press any one of the available switches on any of the TB's to activate the system. The
monitor and HDMI switcher(s) will be immediately powered ON and all TB Green LEDs will flash for a
short time to indicate the system is powering up. Upon release of the selected switch, the selected switch’s
corresponding Green LED will flash at a fast rate for a short duration before turning steady green (to indicate
that particular selection was recognized). All other TB LEDs remain Red and the HDMI source from that
input is selected and is routed to the monitor. While the green LEDs of the selected input switch are flashing,
no other switch selections are honored. The unit is now in the ON state and is ready to accept additional
switch presses allowing the users to switch their source's program material to the monitor. (There is no
unconnected state for the HDMI switchers.)
Subsequent switch presses on any of the TB switches for less than 3 seconds will select that TB's source and
display it on the monitor. The Green LED will flash at a fast rate for a short duration to indicate the selection
was recognized, all other TB LEDs will go Red upon release of the switch. While the green LEDs of the
selected input switch are flashing, no other switch selections are honored. The unit remains in the ON state.
To return the system to the IDLE state: Press and hold any switch for a duration of greater than 3 seconds.
The monitor and HDMI switcher(s) will be switched OFF at the 3 second mark, all TB Red LEDs will flash
for a short time (approximately 3 seconds) and then all TB LEDs will be turned OFF indicating a return to the
IDLE state.

20
Huddle-VU
HDMI Cable
To Display
(Provided)
Display
IT-SACWP
+-
ON
12V RELAY
12A MAX.
SWITCHED AC
FSR
Optional IT-SACWP-12
Switched AC Wallplate
Connects To Relay Inputs
On HV-CTL Controller
1234
B
B
1
RGB
2
B
B
RGB
4
B
B
RGB
6
B
B
7
RGB
35
T6 CONTROL
CABLES
LEFT
RIGHT
Tx Rx Tx Rx
SERIAL
12
HDMI SWITCHER CONTROL
SERIAL 1
SERIAL 2
1234
BLUE
RED
GREEN
BLK & BRN
G
N
D
I
RG
N
D
AUX OUT
BGRB
WIRE COLORS:
B
R
L
Y
I
R
R
L
Y
FSR
INDIVIDUAL TABLE BOX CONTROL CABLES
HV-CTL
Optional
IT-SACWP
*Switches are Normally Open (N.O.) contact closure to ground.
LED drive voltage is 10.5 Vdc, nominal 6 mA, current limited at LED
Captive Screw Terminal
Pin Numbering
HV-1000 Huddle -VU 4 Person
System Includes:
1 – HV-T6-BLK, 4-HDMI Input Table Box
1 – HV-CTL, Huddle-VU Control Unit
1-DV-HSW-41, HDMI Switcher
4-HDMI 6' Cables (Premounted in HV-T6-BLK)
1-HDMI 10' Cable
1 – Null Modem 6' Serial Cable
Black
Black
Red
Red
Blue
Blue
Yellow
Yellow
AC Power Can
Also Connect To
HV-CTL Controller
9' AC cord with Edison Plug
attached to T6 Table box.
(Supplied)
HV-1000 4-Person System Diagram
