Fusion Splicer 36S/37S/38S/41S Quick Reference Guide
Visible Splice Defects and Error Message
Contact Address
Q-41S-E01
Error Message Reason Solution
Too Long Fiber
• The Cleave length (bare fiber
part) is too long.
• Dust or dirt is on the objective
lens cover.
• Cleave by forcing a holder tip of fiber cutting, and
pressing to a position.
• Execute the [Dust Check]. Clean the lens cover
when dust or dirt exists.
Too Dusty Fiber
• Dust or dirt is on the fiber
surface.
• Dust or dirt is on the objective
lens cover.
• [Cleaning Arc] time is too short
or “OFF”.
• Prepare the fiber again.
• Execute the [Dust Check]. Clean the lens cover
when dust or dirt exists.
• Set the [Cleaning Arc] time. When splicing carbon
coated fibers, set to more time.
ZL/ZR Motor
Overrun
• The fiber is correctly at the
bottom of the V-groove.
• The Cleave length (bare fiber
part) is too short.
• Press RESET, and set the fiber again to seat it
correctly at the bottom of the V-groove.
• Cleave by forcing a holder tip of fiber cutting, and
pressing to a position. Check the fiber length.
Large Cleave Angle
• Bad fiber end-face.
• [Cleave Limit] is set too low.
• Check the condition of the fiber cleaver. If the blade
is worn, rotate the blade to a new position.
• Increase the [Cleave Limit] to an adequate Limit.
Cleave Shape NG • Bad fiber end-face. • Check the condition of the fiber cleaver. If the blade
is worn, rotate the blade to a new position.
Fujikura Ltd. 1-5-1 Kiba, Koto-ku, Tokyo 135-8512 Japan
Phone : [phone] Fax : [phone] https://www.fusionsplicer.fujikura.com
Fujikura (CHINA) Co., Ltd. 7thFloor, Hang Seng Bank Tower 1000Lujiazui Ring Road, Pudong New Area ShanghaiZIP200120, China
Phone : [phone] Fax : [phone] http://www.fujikura.com.cn
Fujikura Asia Ltd. 438A Alexandra Road,Block A Alexandra Technopark #08-03, Singapore 119967
Phone : [phone] Fax : [phone] http://www.fujikura.com.sg
Fujikura Europe Ltd. C51 Barwell Business Park, Leatherhead Road, Chessington, Surrey KT9 2NY. UK.
Phone : [phone] Fax : [phone] https://www.fujikura.co.uk
AFL 260 Parkway East, Duncan, SC 29334 USA
Phone : [phone] Fax : [phone] https://www.AFLglobal.com
Authorized Splicer Distributor
Bubble Separation Fat Too Thin
Fusion Splicer 36S/37S/38S/41S Quick Reference Guide
**Pull*Hold

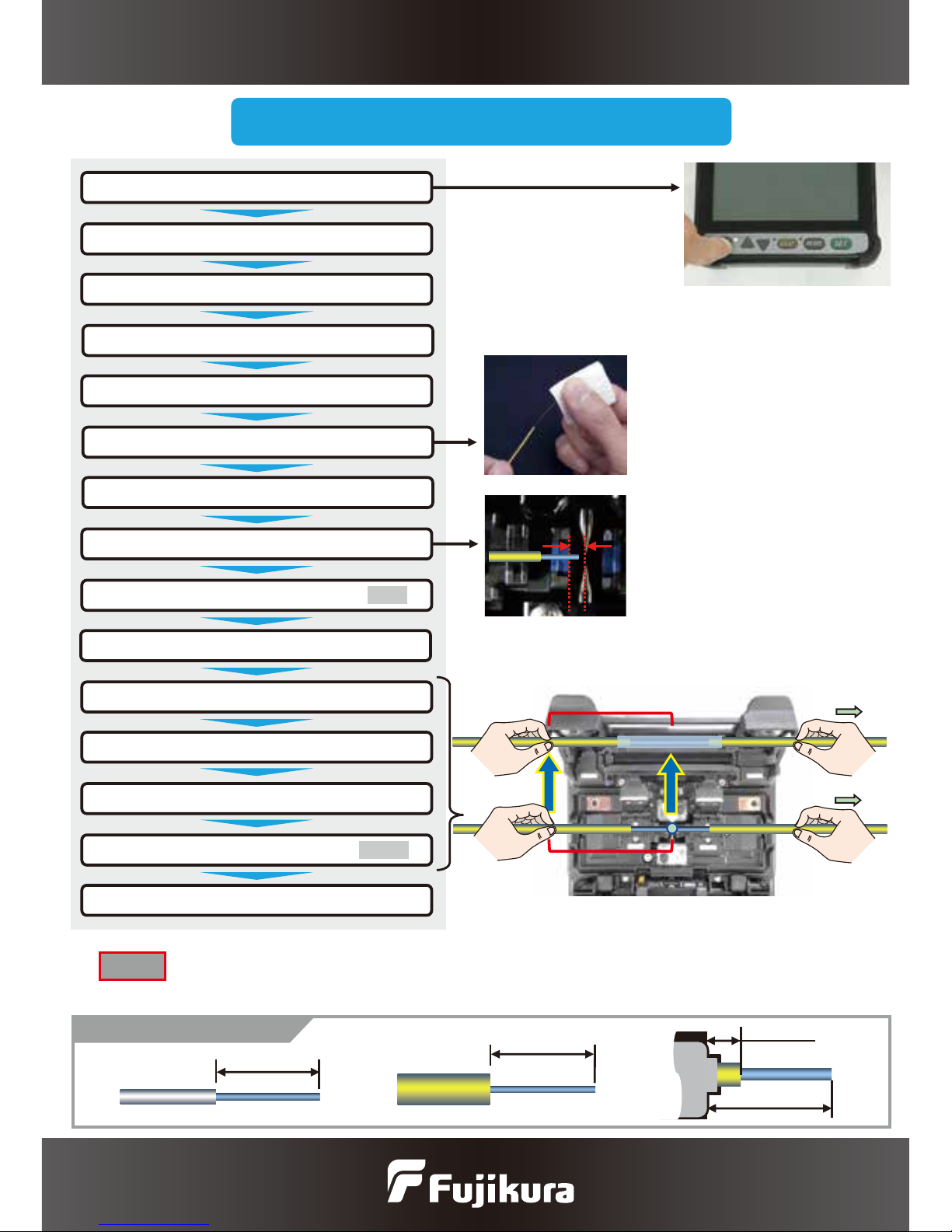

Splicing Operation
250μm
Cleave Length
900μm
5~16mm
1/5”~2/3”
5~16mm
1/5”~2/3”
When splicing only standard
SM fibers, “SM AUTO” mode is
recommended.
Heating Mode has been the
optimal conditions for the
sleeve made from FUJIKURA.
Turning splicer ON
Confirming splice and heater modes
Cleaning coating or sheath of fiber
Placing protection sleeve over fiber
Cleaning fiber
Cleaving fiber
Loading fiber onto splicer
Removing spliced fiber
Centering protection sleeve in tube heater
Completed
Stripping fiber
Centering spliced point in tube heater
Visual inspection on LCD during splice
*Hold the fiber at edge of splicer body
**Gentry pull the fiber.
・When splicer indicates following message, splice loss may be high
“Arc discharge is not stable. Electrodes should be stabilized to reform the arc discharge.”
・Load prepared SM fibers onto splicer in order to stabilize electrodes. After completeing it, re-splice fibers.
・When an altitude changes drastically, stabilizing elctrodes must be excecuted before splicing.
•Make sure the stripped fiber is
free of coating debris or
contamination.
•Use only 99% or better purity
alcohol.
•Do not allow the cleaved fiber
ends to touch anything or
become contaminated.
•Place the fiber end between
V-groove edge and Electrode
center.
Note
Closing wind protector and Press SET
Closing tube heater lidand Press HEAT
1/2”
3/64”~1/8”
1~3mm
13mm

Fusion Splicer 36S/37S/38S/41S Quick Reference Guide
**Pull*Hold
Splicing Operation
250μm
Cleave Length
900μm
5~16mm
1/5”~2/3”
5~16mm
1/5”~2/3”
When splicing only standard
SM fibers, “SM AUTO” mode is
recommended.
Heating Mode has been the
optimal conditions for the
sleeve made from FUJIKURA.
Turning splicer ON
Confirming splice and heater modes
Cleaning coating or sheath of fiber
Placing protection sleeve over fiber
Cleaning fiber
Cleaving fiber
Loading fiber onto splicer
Removing spliced fiber
Centering protection sleeve in tube heater
Completed
Stripping fiber
Centering spliced point in tube heater
Visual inspection on LCD during splice
*Hold the fiber at edge of splicer body
**Gentry pull the fiber.
・When splicer indicates following message, splice loss may be high
“Arc discharge is not stable. Electrodes should be stabilized to reform the arc discharge.”
・Load prepared SM fibers onto splicer in order to stabilize electrodes. After completeing it, re-splice fibers.
・When an altitude changes drastically, stabilizing elctrodes must be excecuted before splicing.
•Make sure the stripped fiber is
free of coating debris or
contamination.
•Use only 99% or better purity
alcohol.
•Do not allow the cleaved fiber
ends to touch anything or
become contaminated.
•Place the fiber end between
V-groove edge and Electrode
center.
Note
Closing wind protector and Press SET
Closing tube heater lidand Press HEAT
1/2”
3/64”~1/8”
1~3mm
13mm

Fusion Splicer 36S/37S/38S/41S Quick Reference Guide
AC Adapter
Battery Pack
Sheet Key Operation
Power Supply
・Charging an internal battery pack “BTR-11” is started
・Keep below practices to prevent battery damage.
Fully charge the battery after every use.
Follow bellow conditions.
Operation : -10 degree C to 50 degree C
Charging : 0 degree C to 40 degree C
Storage : -20 degree C to 50 degree C
How to recharge battery
How to check remaining capacity
・If splicer is already equipped with the battery, turn
splicer ON. Power source of "Battery" is automatically
identified and the remaining battery capacity is
displayed on the "READY" screen.
Confirm power saving function is working when using
battery pack.
When LED blink at the time of charge is early,
degradation of a battery and failure can be
considered. Charge is not performed.
Exchange for New BTR-11.
ADC-19A
AC power cord
・Input power : AC100-240V, 50-60Hz
・Use only supplied AC power cord.
・When using an AC power generator,
check output voltage periodically with
a circuit tester.
Insert AC cord into the AC inlet of the AC adapter. The power ON LED of the AC
adapter changes green color when suitable AC voltage is supplied.
If high AC Voltage is supplied, AC adapter will immediately be damaged.
AC Operation
Note
ØTurning ON
Press key until green LED turns on.
ØTurning OFF
Press key until red LED turns on.
Then, release key to turn off.
ON/OFF key
・Power ON/OFF
HEAT keyUP/DOWN key
・Move cursor
・Change value
・Heater ON/OFF
RESET key
・Stop and back to
Ready
SET key
・Execute Splice
・To next page in
the menu
where AC adapter “ADC-19A” is connected to an Inlet.
Inlet
Fusion Splicer 36S/37S/38S/41S Quick Reference Guide

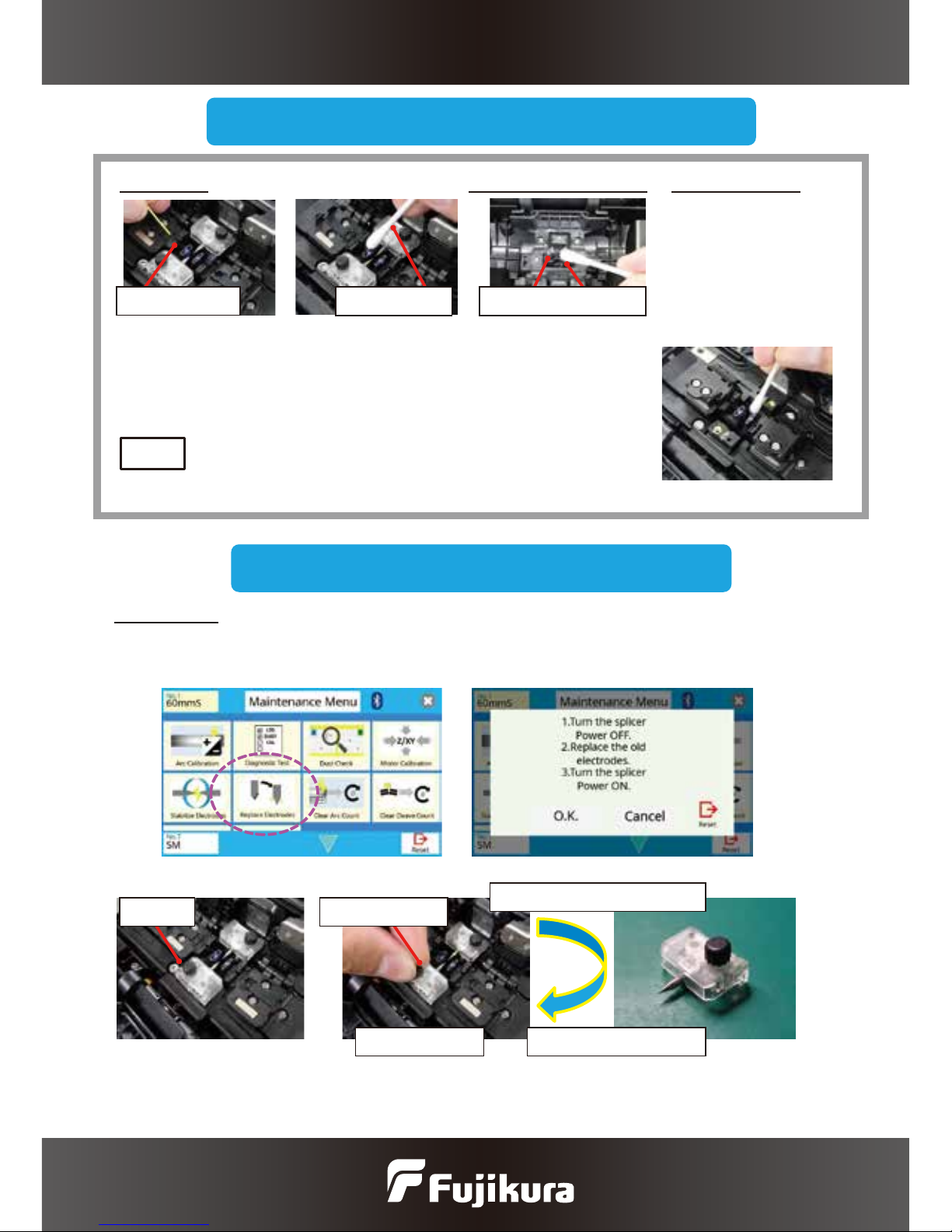

Periodical Maintenance
Cleaning before Splice Operation
1) Remove electrodes before cleaning objective lens cover.
2) Do not contact the electrode tips.
3) Use only 99% or better purity of alcohol.
•Load prepared fibers onto the splicer.
•Execute [Stabilized Electrodes]
•[Arc Calibration] is executed.
Electrodes
•When “Replace electrodes” message appears, or when the tip is damaged, replace electrodes.
•Execute [Replace Electrodes]
Install new electrode
Note
Remove the old electrode
When lens is dirty, clean it.
Cotton swab
•Exchange to new electrode.
Fiber Clamp Chips
V-groove
•Clean bottom of V-groove with a thin cotton
swab with alcohol.
•Remove excess alcohol from V-grooves with a
clean dry swab.
•Use a cleaved fiber end-face to dislodge.
Fiber Clamp Chips Fiber Cleaver
Objective Lenz
Prepared fiber
•Clean rubber pads.
•
•Clean blade.
screws
Tighten screws
Loosen screws
Clean rubber anvil.

Fusion Splicer 36S/37S/38S/41S Quick Reference Guide
Periodical Maintenance
Cleaning before Splice Operation
1) Remove electrodes before cleaning objective lens cover.
2) Do not contact the electrode tips.
3) Use only 99% or better purity of alcohol.
•Load prepared fibers onto the splicer.
•Execute [Stabilized Electrodes]
•[Arc Calibration] is executed.
Electrodes
•When “Replace electrodes” message appears, or when the tip is damaged, replace electrodes.
•Execute [Replace Electrodes]
Install new electrode
Note
Remove the old electrode
When lens is dirty, clean it.
Cotton swab
•Exchange to new electrode.
Fiber Clamp Chips
V-groove
•Clean bottom of V-groove with a thin cotton
swab with alcohol.
•Remove excess alcohol from V-grooves with a
clean dry swab.
•Use a cleaved fiber end-face to dislodge.
Fiber Clamp Chips Fiber Cleaver
Objective Lenz
Prepared fiber
•Clean rubber pads.
•
•Clean blade.
screws
Tighten screws
Loosen screws
Clean rubber anvil.
