Fujioh FS-700 User manual

(Illustration: FS-890V/890R)
FS-700/890V (Discharge Type)
FS-890R (Circulation Type)
TABLE OF CONTENTS
1F03 1281
Thank you very much for your purchase of our cooker hood.
Before installing the cooker hood, please read this Manual thoroughly.
Keep this manual in a convenient place for future reference.
To the sales shop/installer:
After installing, please give
this manual to the user
without fail.
Safety Precautions ...........................2, 3
Preparation ...........................................4
Name of Parts ...............................................4
Dimensions....................................................5
Installation ......................................6~12
Preparation and Check before Mounting.......6
Cooker Hood Mounting .................................9
Assembly.....................................................10
Operation Check..........................................11
Installation Manual
Cooker Hood
*1F031281*

2
Safety Precautions
Be sure to disconnect the power plug from
the wall outlet, or switch off the breaker when
care and maintenance. Also, don’t handle the
power plug or breaker with wet hand.
Electric shock or injury may result in.
Disconnect
the plug
Breaker
Never attempt to disassemble, repair, or modify.
Entrust them to the qualified technician, otherwise fire,
electric shock, or abnormal performance may occur.
Disassembly,
repair, or
modification
prohibited
When passing a metal duct through the wall composed of metal lath,
wire lath, or metal board, be careful not to touch these parts electrically.
Fire or electric shock may result in if leakage current flows.
Assembly
cautioned
Read the following safety instructions before mounting, and install the cooker hood properly and securely.
These instructions are for correct installation of the product to prevent any risk of hazards or damages inflicting on
you or others. The instructions are classified into 2 categories as "WARNING" and "CAUTION" depending on their
emergency and severity. Pay attention and strictly observe the instructions as they are critical for safety.
WARNING Alerts possible risk of death or serious injury, if not observed.
CAUTION Alerts possible risk of injury or physical damage, if not observed.
WARNING
means prohibition. It indicates actions, if any, that mustn't be done.
(Left symbol: Disassembly prohibited)
means forcible execution. It indicates actions, if any, that must be done.
(Left symbol: Disconnect the plug from the wall outlet)
Example
When dust accumulated on the blades of the
power plug or on their roots, wipe off well.
Fire may result in.
Wipe off
dust
Choose a mounting location where sufficient air flow
is maintained.
CO poisoning may result if not ventilated adequately
while using a natural vent type stove, etc.
Air supply
cautioned
When there may be a gas leak in your gas hob,
don’t switch on or off the cooker hood.
Gas explosion may result in.
Operation
prohibited
Don’t pour water on the electric parts.
Fire or electric shock may result in.
Pouring
water
prohibited
wet hand
Electric wiring must be made properly by the professional installer or personnel.
Incorrect wiring may be cause of electric leakage or fire.
Assembly
cautioned
Mounting work should be done by 2 persons minimum.
The weight of the cooker hood is about 15kg (FS-700V),
17kg (FS-890V, 890R).
Mounting
cautioned
The air must not be discharged into a flue that is used for exhausting fumes
from appliances burning gas or other fuels.
(Not applicable to appliances that only discharge the air back into the room.)
Improper
discharge
prohibited
Regulations concerning the discharge of air have to be fulfilled.
Observe
regulations
Using
prohibited
Don’t connect to the power voltage other than 220V/230V/240V AC.
Fire or electric shock may result in.

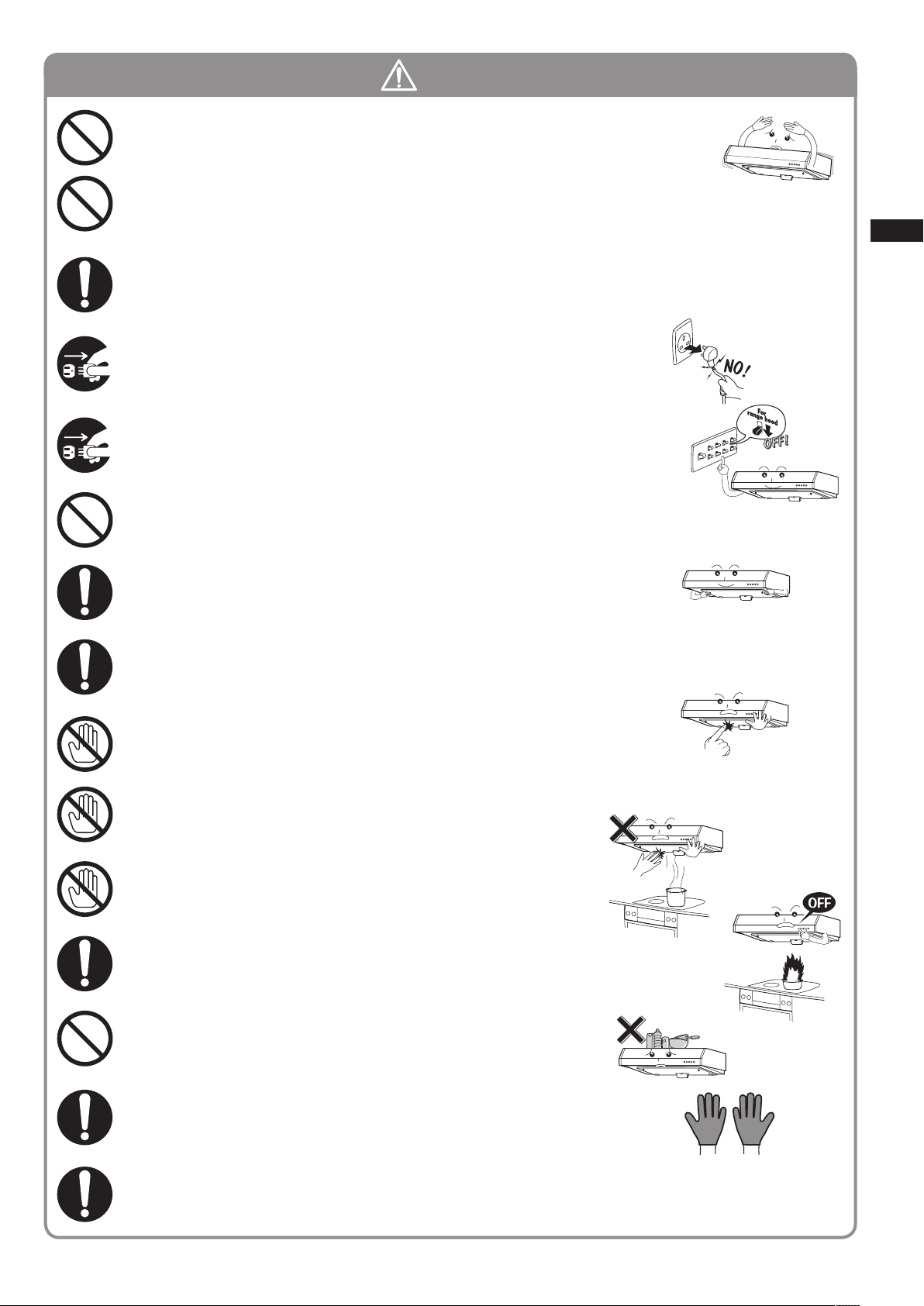

3
Safety Precautions
Be sure to disconnect the power plug from the wall outlet,
or switch off the breaker when not using for a long time.
Insulation may be deteriorated, and fire or electric shock may
result in.
Disconnect
the plug
Disconnect
by holding
the plug
Don’t touch the filter or parts around it while cooking.
The filter or parts may drop, and burn or injury may result in.
Mounting
cautioned
Using
prohibited
Assemble the fan or component parts securely.
Injury by dropping may result in.
Assembly
cautioned
Contact
prohibited
If the power cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
Switch off the cooker hood at once
when oil caught fire while cooking.
It’s dangerous if not stop as fire is built up.
Mount the product securely after selecting a solid place.
Dropping may result in injury.
Operation
prohibited
Wear gloves
Prohibited
Replace the
cord if it’s
damaged
CAUTION
When disconnecting the power plug, hold the plug itself.
Don’t pull the cord anyway.
The cord may be damaged, and fire or electric shock may
result in.
Assembly
cautioned
Contact
prohibited
Contact
prohibited
Be sure to wear gloves when care and maintenance.
Injury by the sharp edges or corners may result in.
Ensure that electric wiring is made safely according
to the standard or regulations related.
Incorrect wiring may result in fire or electrical shock.
Don’t touch the lamp cover or around it.
As it becomes high temperature, burning
may result in.
During operation, never insert fingers or other objects.
Failure or injury may result in.
Do not put anything on the cooker hood.
It may be cause of fire, failure, or injury by dropping.
Never use the product in a wet place such as bath room, etc.
(Use a ventilation fan for bath room.)
It may be cause of fire or failure if used.
Mounting
cautioned
Improper
discharge
prohibited
The minimum distance between the supporting surface for the cooking vessels
on the hob and the lowest part of the cooker hood. When the cooker hood
is located above a gas appliance, this distance shall be at least 80cm. If the
instructions for installation for the gas hob specify a greater distance, this has
to be taken into account.
The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other fuels
(not applicable to appliances that only discharge the air back into the room).

4
Preparation
Name of Parts
Preparation
Push-button switch
Lamp cover
Slot filter
Body
Fan
Oil tray
Rectifier panel
Power plug
Exhaust port (1)
Washer-head wood screw
(∅5.1×45) (4)
Hanger (2)
FS-700/890V only
Soft tape (1)
Accessories

5
Preparation
Dimensions
R3
R9
12
150
600
150
30
530
150 75
900
150 50
30
60 90
550
145
840
700
165
75
550
46090
Power plug
Length : 1m or more
150
30
530
530
∅148
Cooker hood mounting hole detailed
550
145
155
44
Power plug
Length : 1m or more
Body Mounting Hole:2-∅9
FS-700
FS-890V
FS-890R
Body Mounting Hole:2-∅9
(Unit: mm)
Standard Mounting Height
Mount the cooker hood at a place where more than 800mm between the surface of the gas range
and the bottom of the cooker hood is cleared. (800mm for optimum performance.)
150 50
865
(2440)
550
800 or more than 800
(Unit: mm)

6
Installation
Preparation and Check before Mounting
1
Checking mounting surface strength
The mounting surface should have sufficient strength enough to support the cooker hood.
Mount the cooker hood on a place durable to support the weight of the cooker hood.
[Weight: 15kg (FS-700V) / 17kg (FS-890V, FS-890R)]
In the case of boarded wall
If the thickness is more than 20mm, mount the cooker hood directly to the wall.
If the thickness is less than 20mm, embed a reinforcing board and mount the cooker hood to this board.
In the case of a concrete/tile faced wall
Embed a reinforcing board in the wall in advance, or use a curl plug or the like.
Installation
2
Power supply plug
The power plug of this cooker hood is 5A 3-pin plug (Type-BF: BS1363).
Be sure to use the wall outlet only for the cooker hood.
1. Mount the cooker hood carefully and avoid contact with any metal parts (the lath in
the wall or the like) of the building.
2. Never embed the body of the cooker hood in the wall. Otherwise, leakage current in
the wall, if any, flows to the body of the cooker hood.
3. The air must not be discharged into a flue that is used for exhausting fumes from
appliances burning gas or other fuels (not applicable to appliances that only discharge
the air back into the room).
4. The minimum distance between the supporting surface for the cooking vessels on the
hob and the lowest part of the cooker hood. When the cooker hood is located above
a gas appliance, this distance shall be at least 80cm.
If the instructions for installation for the gas hob specify a greater distance, this has to
be taken into account.
5. Use a gas range having a narrower width than that of the cooker hood.
6.
Avoid using the cooker hood with changes in the specification, for instance, with modifying
the switch.
7. Do not install the cooker hood in a wet area or in other wet rooms since it may result in
electric shock or damage.
8. Do not install the cooker hood at a place where its ambient temperature exceeds 40°C,
otherwise it may result in failure.
9. To protect your hands from injury, wear working gloves when installing the cooker hood.
10. If the power cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
11. If it's possible to touch the fan when inserting hand from the outer port of the exhaust
duct because its length is rather short, take some measures for preventing from
inserting hand.
CAUTION

7
Installation
Note
Place the range hood on the sheet etc. as shown
in order not to scratch the floor.
3
Checking accessory parts
Take out the main unit and accessory parts (screws, exhaust port, etc.)
from the packing box, and check whether there is any shortage.

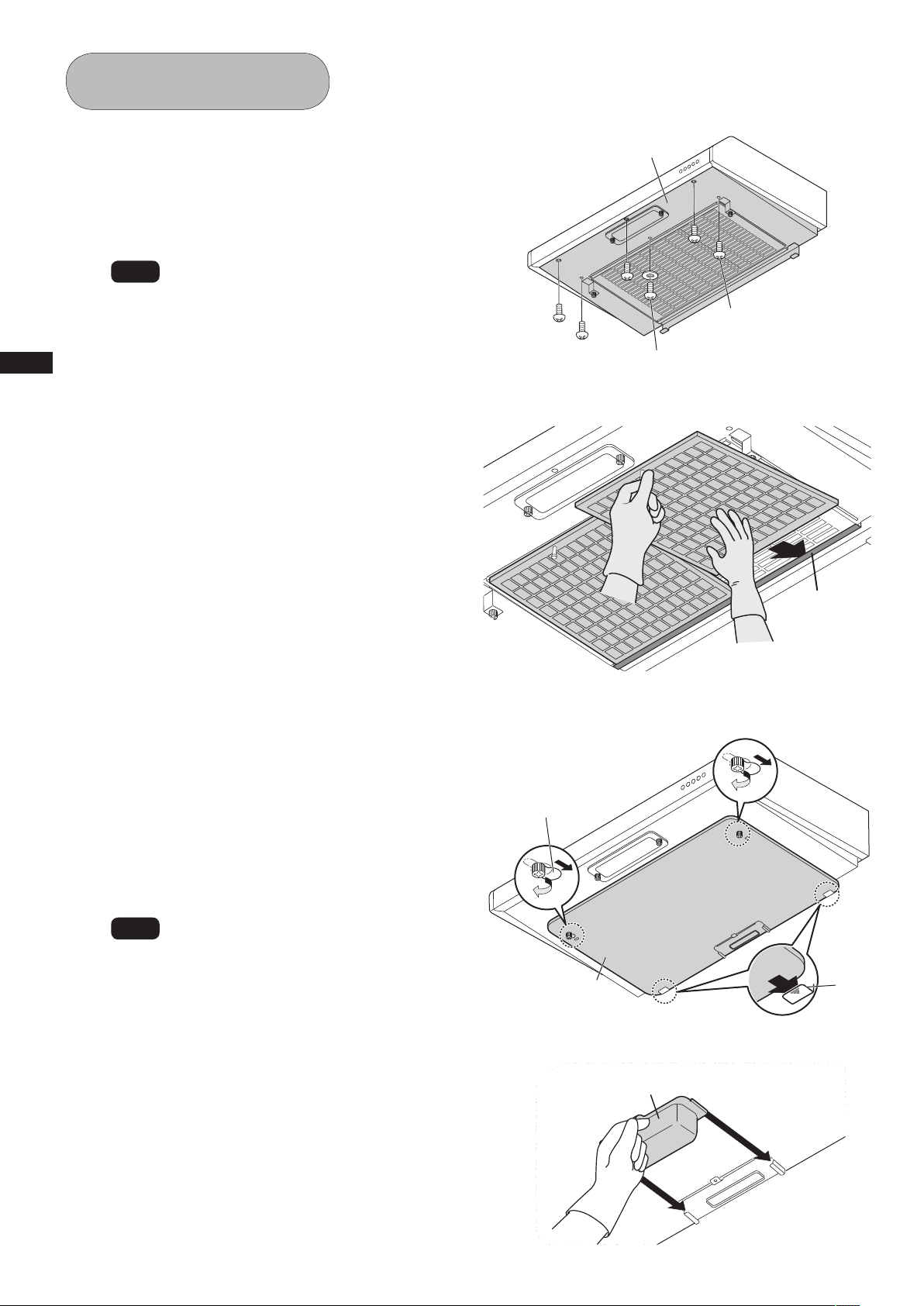

4
Removing rectifier panel
Loosen the mounting screws attaching the
rectifier panel, pull the rectifier panel upward
slightly to free the mounting screws from the
mounting guide holes and the body catches.
5
Removing slot filter
(FS-700: 1 filter, FS-890V/890R: 2 filters)
To remove the filters, for each filter, hold the knob,
push the filter downwards, and then pull forwards.
6
Removing hood cover
Remove 5 (M4×10) screws and 1 (M4×10
with washer) screw fixing the hood cover and
detach it.
Hood cover
M4×10
(with washer)
M4×10
Rectifier panel
Catch
Mounting screw
Catch
Slot filter

8
Installation
Note
When attaching the exhaust port, pay attention to its shutter opening direction.
If it's installed incorrectly, it may cause bad discharge, abnormal noise, etc.

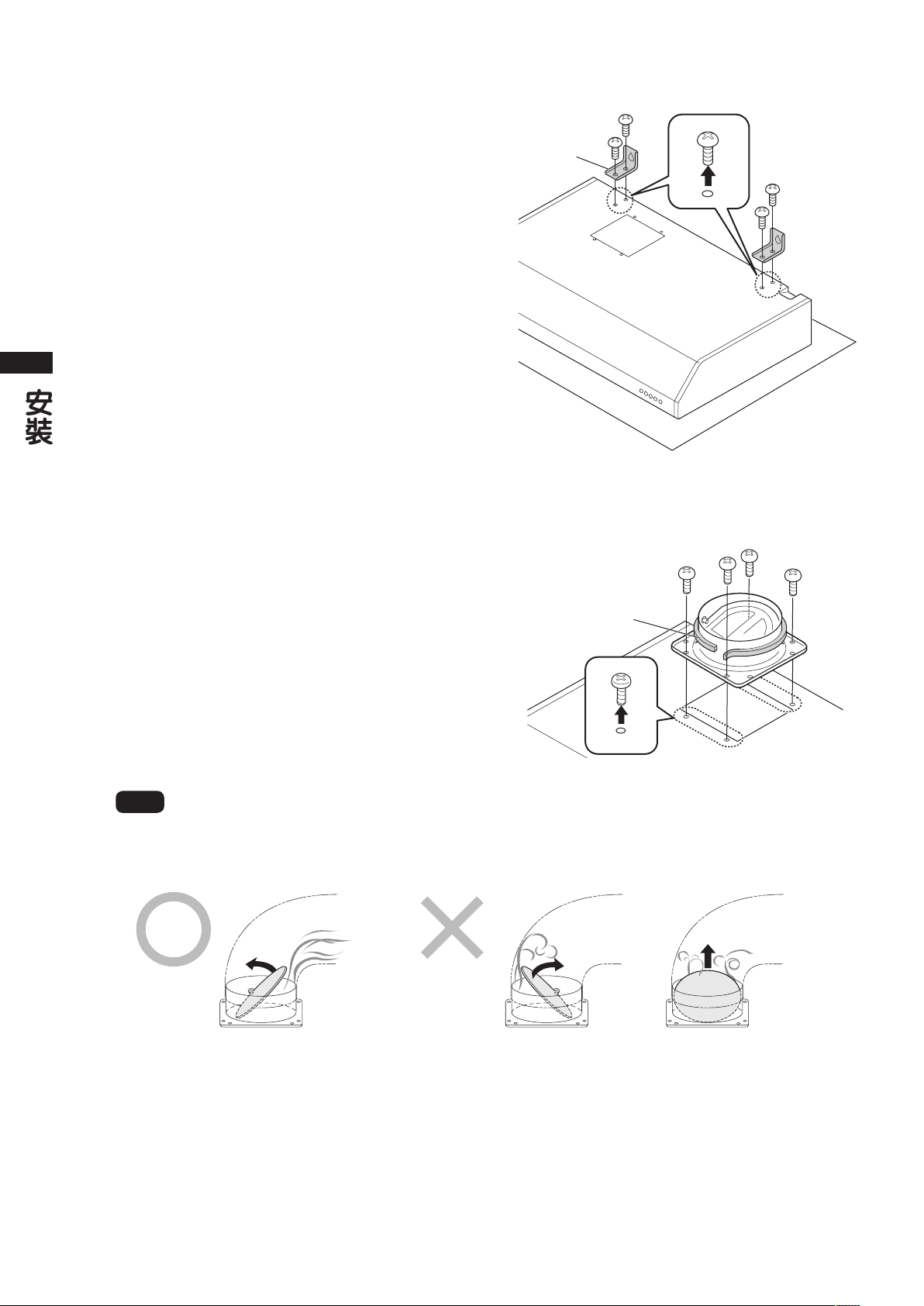

8
Fixing the exhauset port (FS-700/890V only)
The fixing screws are supplied with attaching to the
top plate.
Firmly fix the exhaust port by fastening fixing
screws (M4×8).
Then attach the supplied soft tape around the
exhaust port.
7
Fixing the hangers
The fixing screws are supplied with attaching
to the top plate.
Firmly fix the hangers by fastening truss head
machine screws (M5×10).
Hanger
Soft tape
Correct Wrong

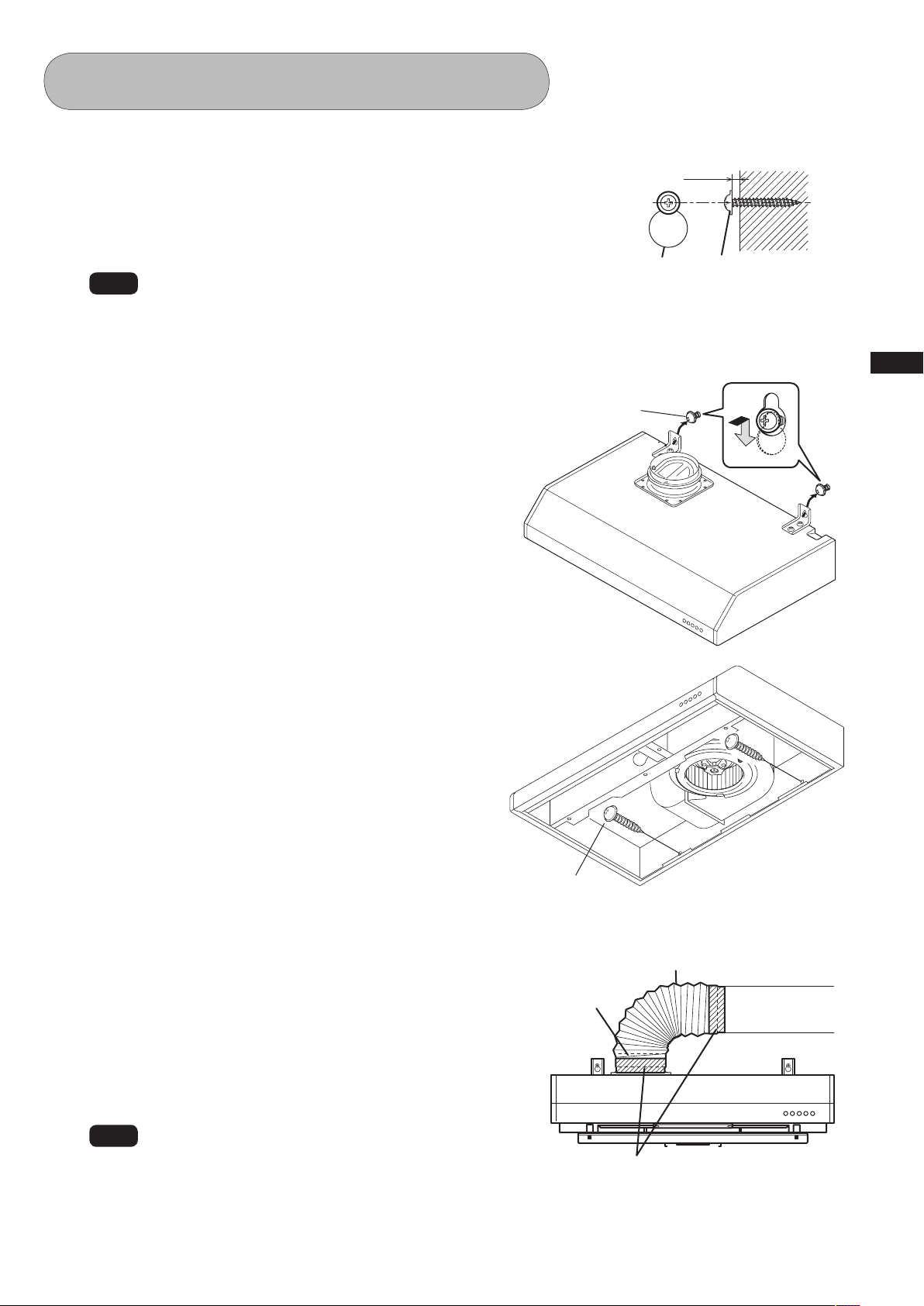

9
Installation
Note
Please use suitable accessories during installation (refer to page 4).
May add or opt for other accessories as reinforcement when necessary.
2
Mount the cooker hood
1) Hook the keyholes of the cooker hood on the
washer-head wood screws, and tighten the
screws.
2) Put 2 washer-head wood screws to the rear of
the cooker hood and tighten them securely.
Cooker Hood Mounting
1
Screw in washer-head wood screws on the wall
Referring to "Dimensions" on page 5, insert the washer-head
wood screws (∅5.1×45) into the mounting wall for the left and
right keyholes of the hanger. Allow about 5mm space between
the wall and screwheads for hanging the cooker hood.
3
Connection of duct and exhaust port
(FS-700/890V only)
Connect ∅150 flexible tube duct or the like
with the exhaust port.
Make the exhaust port secure and air-tight
using non-flammable tape such as aluminium
tape, etc. (not supplied)
Washer-head
wood screw
Keyhole
5mm
Washer-head
Wood screw
Washer-head
Wood screw
Note
The longer the exhaust duct, the lower the ventilation.
Exhaust port
Flexible tube duct
Ta ping with nonflammable materials
(Aluminum tape, etc.)

10
Installation
Assembly
1
Attaching hood cover
Hook the rear of the hood cover on the catches,
then raise its front. With holding the hood cover,
fix it using 5 (M4×10) screws and 1 (M4×10 with
washer) screw.
2
Attaching slot filter
Place the rear of the slot filter in the catch,
push it back and upward and then slide
forward until the filter is firmly set in place.
4
Attaching oil tray
Hold the tab and set the oil tray on the
guide rail of the cooker hood, then push it
completely to the end.
3
Attaching rectifier panel
Holding the rectifier panel with both hands,
place the rear of the panel in front of the
catches and in line with the mounting guide
holes. Then slide the panel back to engage
the mounting guides and attach the catches.
Tighten the mounting screw to attach the
panel firmly.
Hood cover
M4×10
(with washer)
M4×10
Catch
Rectifier panel
Mounting guide hole
Catch
Note
Make sure that the rectifier panel is fixed
securely. It may be a cause of dropping if
not fixed firmly.
Note
Make sure that a M4×10 screw and washer are
used at the position shown in the diagram.
Oil tray

11
Installation
1
Power supply
Connect the power plug to the wall outlet (220V/230V/240V AC).
2
Operation check
1) While operating the cooker hood by pushing the applicable control switches,
check the air flow or presence of abnormal vibration or the like.
2) The lamp is turned ON and OFF when the LIGHT control switch is pushed,
refer to the operation manual for details.
Operation Check

󲗙󰳣󲗫󲗚
FS-700/890V (排煙式)
FS-890R (循環式)
內容目錄
1F03 1281
󱾬󱢨󱦝󱥨󰬧󰒜󰟆󰌐
在安裝抽油煙機之前，請先通讀本手冊。
󱡤󰃷󰀆󰬧󰀆󱼱󰁡󱄁
󱵐  󱜞󱡤󰓄󲗫
󱜞󲗝󱡤󰃷
󰾃󰩊
󰀉2, 3
󰗦4
 󱽨󰬧󰶅4
 5
󱜞6
 󱜞󰬧󰗦󰌹󰅵6
 󱜞󰒜󰟆󰌐9
 󰽭󱜞 10
 󱮍󱚿󰌹󰅵 11
安裝手冊
抽油煙機
*1F031281*

2
安全措施
 維修保養時必須把插頭從牆上的插座中拔出，或切斷
電源開關。同時，請不要用濕手摸插頭或電源開關。
 󰃛󰃟󱈸󱟗󱽭󰬧󱼳
󲀲
󰒜󰟆󰌐
󰩊
󱽭󰗢󱺕󱻎
不要嘗試拆卸、修理、或改裝。
 󲀙󱡤󱛃󲗝󰃛󰃟󱧂󰝄󱟗󱽭󰩴󰬡󰩅
󰴖󰎳
󰦏󱜞
 在把金屬導管穿過有鋼筋、金屬線、或金屬板的牆壁時，
請注意不能讓電流碰到這些金屬部分。
 󰅆󰃟󰘿󱽭󰔇󰔇󱮏󰃟󰬡󰩅󱧂󰝄󱟗󱽭󰬧󱼳
󱜞󱱒󰁡󰓄

󱡤󱜞󰽛󱺯󱣲󱭑󲀖󲗝󰎴󰲐󱜞󰒜󰟆󰌐

󱭑󲀖󰁗󰝭󰎴󰲐󱜞󰃷󰩇󲗝󱮤󱼳󱥕
 󲀖󰆦󰿌󱲭󱞔󰬧󰵬󰝭󱣠󰓄 󲁑
 󱡤󱲭󱞞󰆩󰟓󱡎󰁁󰳣
警告
󰰏󰃛󰅆󱮫󰃟󰌐󰃛󰬡󰩅死亡重傷󰬧󱼳
注意
󰰏󰃛󰅆󱮫󰃟󰌐󰃛󰬡󰩅受傷人體損害󰬧󱼳
警告
表示禁止。所述的行為（如果有）是絕對不能做的。
 （左圖：禁止拆卸）
表示強制執行。所述的行為（如果有）是必須做的。
 （左圖：把插頭從牆上的插座中拔出）
例
 插頭的插件或插頭坐上有灰塵時，請清潔乾淨。
 󰃛󰃟󱈸󱧂󰝄󰬧󱼳
󰖌󰙯󰝅
 務必安裝在空氣流通順暢的地方。
 󰩊󱈲󰞳󱭯󲁢󰡀󰝈󰸨󰁡󲗝󰅆󱭯󲁢󰂞󰃛󱧂󰟐󰐶󰏽
󰓄
󰶯󰐶󰔇󱭯
 在爐具有漏氣的可能性時，不要打開或關上抽油煙機。
 󰃛󰃟󱧂󰐶󲆌󰠻󰝬󰬧󱼳
󰴖󰎳󱮍󱚿
 不要注水到通電部分。
 󰃛󰃟󱈸󱧂󰝄󱟗󱽭󰬧󱼳
󰴖󰎳󰓄󰑃
 電線必須由專業安裝公司或人員正確地佈線。
 󰎴󰲐󰬧󰿔󱆙󰃛󱈸󰘿󱽭󱧂󰝄󰸨
󱜞󱱒󰁡󰓄
 安裝作業必須有至少 2 人以上進行。
 󰒜󰟆󰌐󰬧󱲭󱲯󰼶 󲗙󲗚󲗙󲗚
󱜞󰁡󰓄
 空氣不得排入用於排放燃氣或其他燃料設備廢氣的煙道。
 （只將空氣排放到室內的家電除外）
󰴖󰎳
󰩵󰐶
 必須遵守有關排氣的規定。
󱮫󱞛
󰴖󰎳󰩊  不要連接到高於 220V/230V/240V 電壓的電源上。
 󰃛󰃟󱈸󱧂󰝄󱟗󱽭󰬧󱼳

3
安全措施
󰒜󰟆󰌐
󰩊
長期不使用時務必把插頭從牆上的插座中拔出，
或切斷電源開關。
 󱆙󰽹󰿛󲆌󰬧󱄇󱈸󱧂󰝄󱟗󱽭󰬧󱼳
󲀲
󲀲

做飯時不要觸動過濾器或其周圍的部分。
 󱮏󰛯󰬧󱯺󱆙󰃛󰘨󰒜󲗝󱄇󱭵󰠗
󱜞󰁡󰓄
󰴖󰎳󰩊
安全地安裝排風扇或其他配件。
 󰃛󰃟󱈸󱧂󰝄󱟗󱽭󰬧󱼳
󱜞󱱒󰁡󰓄
󰴖󰎳󱟗
如果電源線有破損，必須由製造商、製造商的代理
或具備相同資格的人來更換，以免出現危險。
在做飯時發生油著火的情況，請立即關掉抽油煙機。
 󰅆󰷤󱻎󰃛󰃟󱺊󰝄󰬧󱼳
選擇牢固的地方安全地安裝本產品。
 󱏃󰃛󱭵
󰴖󰎳󱮍󱚿

󰴖󰎳
󰃑
󰱅󱽭󰿔
注意
在拔出插頭時，請拿著插頭拔，不要拉電線部分。
 󱽭󰿔󰁆󰱅󲗝󰃛󰃟󱈸󱧂󰝄󱟗󱽭󰬧󱼳
󱜞󱱒󰁡󰓄
󰴖󰎳󱟗
󰴖󰎳󱟗
在維修保養時務必戴上手套。
 󱵌󰬧󱮿󰿛󱞹󱆙󱧂
必須保證電線是按照相關的標準或規定佈線的。
 󰎴󰲐󰬧󰿔󰃛󱈸󱧂󰝄󱟗󱽭󰬧󱼳
不要觸摸燈罩或其周圍的部分。
 󱆙󲆏󰗸󱈸󰠜
運行時，絕對不要把手指或其他物體插進去。
 󰃛󰃟󱈸󰱅󰬧󱼳
請不要把東西放置在抽油煙機上。
 󰄢󱞓󱏃󰃛󰃟󱧂󱧂󰝄󰱅󰬧󱼳
絕對不要在浴室等潮濕的地方使用本產品。（浴室請使用排氣扇。）
 󰃛󰃟󱈸󱧂󰝄󱟗󱽭󰬧󱼳
󱜞󰁡󰓄
󰴖󰎳
󰩵󰐶
爐具上支架的表面與抽油煙機最低部分的最小距離限度。
 如果抽油煙機安裝在燃氣爐具上方時，這個距離應至少在 80 厘米以上。
 如果燃氣爐具的安裝說明指定一個更高的距離時，請酌情考慮。
空氣不得排入用於排放燃氣或其他燃料設備廢氣的煙道。
 （只將空氣排放到室內的家電除外）

4
準備
零件的名稱
準備
󱷓󱺕󱻎
󰠐󱂉
󱮏󰛯󰾸
󰌐󲆌
󲁢
󰒜󰭟
󰔇󰄰
󱽭󰗢󲀲
󰐶󲗙󲗚
󱎏󲀲󰃴󱙎󰾎
󲗙∅󲗚󲗙󲗚
󲗙󲗚
僅限 FS-700/890V
󱪾󲗙󲗚
附件

5
準備
尺寸
R3
R9
12
150
600
150
30
530
150 75
900
150 50
30
60 90
550
145
840
700
165
75
550
46090
150
30
530
530
∅148
󰒜󰟆󰌐󱜞󱠨󰽛
550
145
155
44
FS-700
FS-890V
FS-890R
󱽭󰗢󲀲
󰿔󱺊󰻢
󱽭󰗢󲀲
󰿔󱺊󰻢
󰌐󲆌󱜞󱱒2-∅9
󰌐󲆌󱜞󱱒2-∅9
󲗙 󲗚
標準安裝高度
󰒜󰟆󰌐󰬧󱜞󲀙󰡀󰬧󱛏󱾯󱉆󰒜󰟆󰌐󰬧󱯺󰭰󱨉  󲗙 󱆙󰃙󲗚
150 50
865
(2440)
550
800800
󲗙 󲗚

6
安裝
安裝前的準備和檢查
1
檢查安裝面的強度
󱜞󱾯󲀙󱧩󰬧󰒜󰟆󰌐
󰒜󰟆󰌐󱜞󰒜󰟆󰌐󱲭󱲯󰬧󰀆
 󱲭󱲯󲗫󲗙󲗚󲗙󲗚
牆面是石膏板的情況
󰅆󰰚󱇮󰄰󱧊󱮏 󲗝󰭭󱜞󰡟
󰅆󰰚󱇮󰄰 󲗝󱡤󱫧󰄰󲗝󰞳󰒜󰟆󰌐󱜞󱫧󰄰
牆面是混凝土 / 瓷磚的情況
󲀟󱫧󰄰󲗝󱄃󰩊󰡟󰸨
安裝
2
電源插頭
󰒜󰟆󰌐󰬧󱽭󰗢󲀲󰝭    󱇛󲀲󲗙󲗫󲗚
󱆙󰩊󰡟󱽭󰗢
 󰽛󱜞󰒜󰟆󰌐󲗝󱮵󱉆󰹰󱜡󰬧󱲱󱯺󲗙󰡟󱜡󰬧󱶀󰸪󰸨󲗚󱟗
 󰽹󱞔󰒜󰟆󰌐󰬧󰌐󲆌󰡟󱜡󰅆󰡟󱜡󰃟󱽭󰔇󰃛󰒜󰟆󰌐󰌐
 󰶯󰐶󰩊󰀈󰠋󰐶󰠋󱟹󰐶󰬧󰟆󱮔
 󲗙󰶯󰐶󰬧󱽭󱼄󲗚
 󰡀󰅐󰬧󱛏󱾯󱉆󰒜󰟆󰌐󰃙󱯺󰬧󰃙󱨉󱽝󱻷
  󰅆󰒜󰟆󰌐󱜞󰠋󰐶󰡀󰀆󰁡󲗝󱭮󱨉󱽝󱈷  󰻢
  󰅆󰠋󰐶󰡀󰬧󱜞󱡎󰁁󰃑󲆏󰬧󱨉󱽝󲗝󱡤󱱑󱄁
 󰩊󰀈󰒜󰟆󰌐󰬧󰠋󰐶󰡀
 󱮵󰩊󱣸󱞛󰆩󰬧󰒜󰟆󰌐󲗝󱺕󱻎󱛽󱜞󰸨
 󱞔󰒜󰟆󰌐󱜞󰚄󰛒󰬧󰀆󰚄󰛒󰬧󲗝󱧂󱟗󱽭󰱅
 󱞔󰒜󰟆󰌐󱜞󰧼󰗸󱧊󱮏  󰬧󰀆󲗝󱧂󰩇󱆙󰩴
 󰝭󱣪󱽕󲗝󱜞󰁡󱡤
 󰅆󱽭󰗢󰿔󰱅󲗝󲀙󰩓󱜴󱭵󰃢󰦏󰃟󰭰󱥷󰆩󰬧󰃑󲗝󱮵
󱭵
 󰅆󰝭󰐶󰹟󰰔󲗝󱕈󱭾󱟗󲁢󰁡󲗝󱡤󰃟󰬧󰀉
󱻦󰎳󱭾
注意

7
安裝
注
󰟓󰳣󰒜󰟆󰌐󰸨󱣪󰡶󱮵
󰄰
3
檢查附件配件
󰌐󱻰󱱒󲗙󱙎󰾎󲗝󰐶󰸨󲗚󱜞󰹤󲗝󰌹󰅵󰃟󰞨󰰔󱁫
4
拆取整流板
󲆪󱺕󱜞󰔇󰄰󰬧󱜞󱱒󱙎󰾎󲗝󰔇󰄰󰵮
󰵮󱧂󲗝󱣽󱜞󱱒󱙎󰾎󱜞󱱒󰋍󰌐󲆌

5
取下過濾網
(FS-700：1 個過濾網 ,
FS-890V/890R：2 個過濾網 )
󱮏󰛯󰾸󰁡󲗝󱮏󰛯󰾸󱰋󱞔󱮿󰀑󱳡󲗝
󱮿󲗝󰞳
6
拆取機罩
󰌐󱂉󰬧  󲗙󲗚󱙎󰾎  
󲗙 󰃟󲗚󱙎󰾎󲆪󱺕
󰌐󱂉

󲗙󰃟󲗚

󰔇󰄰

󱜞󱱒󱙎󰾎

󱮏󰛯󰾸

8
安裝
注
󱜞󰐶󰁡󲗝󱡤󰓄󰐶󰄰󰬧󱺕󰀆󰅆󰐶󱜞󰎴󰲐󱆙
󱈸󰐶󱆙󱻴󰩇󰩅󰩴󲀈󰸨󱊎󰦈󱤥
8
固定排氣口（僅限 FS-700/890V）
󰬧󱙎󰾎󱜞󲀓󰄰
󰿌󰊱󰅐󲀲󰌐󰇳󱙎󰾎 󲗝󰐶󰡳
󲗝󰬧󱪾󱜞󱥭󰐶
7
固定掛具
󰬧󱙎󰾎󱜞󲀓󰄰
 󰿌 󰊱 󰅐 󲀲 󰌐 󰇳 󱙎 󰾎  󲗝
󰡳

󱪾
正確 錯誤
