Fujioh FSR-30 User manual

1U02 2281
READ AND SAVE THESE INSTRUCTIONS.
Keep this manual in a convenient place for future reference.
FUJI INDUSTRIAL CO., LTD.
TABLE OF CONTENTS
Safety Instructions................................................................................................ 2, 3
Name of Parts .......................................................................................................... 4
Operating the Range Hood ...................................................................................... 5
How to Use............................................................................................................... 5
Care and Maintenance............................................................................................. 6
Disassembling..................................................................................................... 7
Cleaning.............................................................................................................. 7
Re-assembling .................................................................................................... 8
Replacing the Light Bulb ..................................................................................... 8
Requesting Service.................................................................................................. 9
Prior to Requesting Service ................................................................................ 9
Inspection Label.................................................................................................. 9
Specifications......................................................................................................... 10

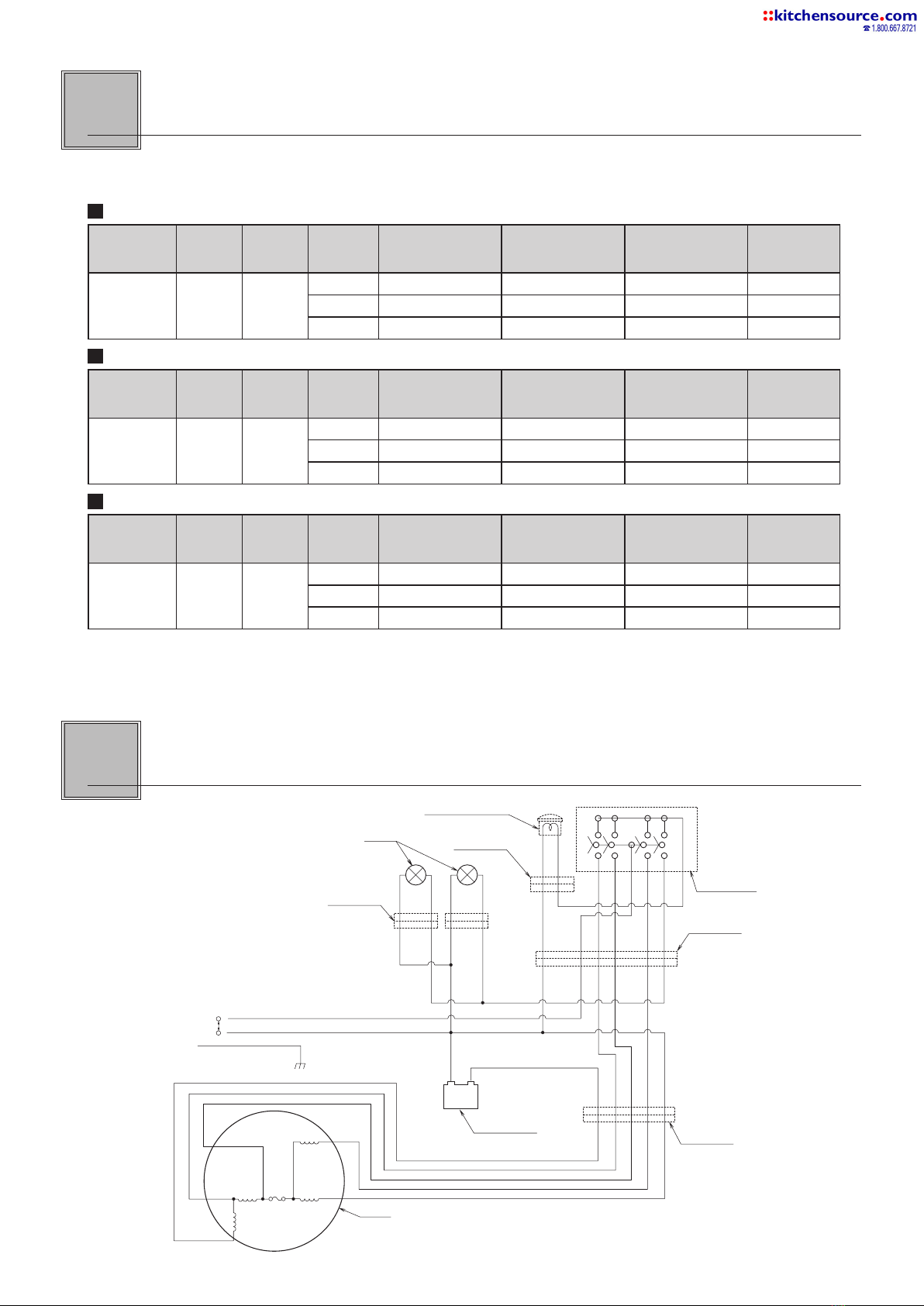

Circuit Diagram ...................................................................................................... 10

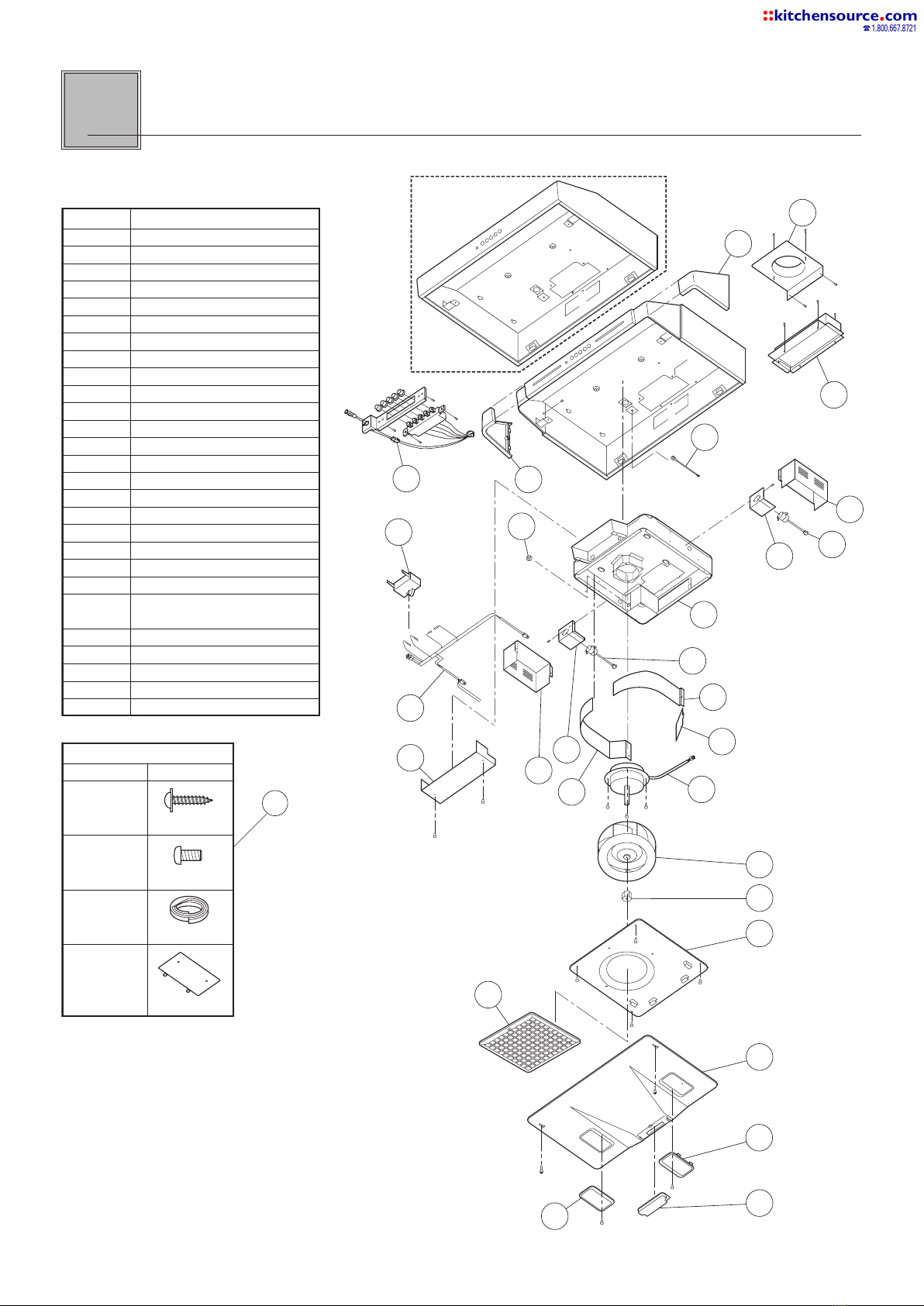

Parts List ................................................................................................................ 11
Limited Product Warranty....................................................................................... 12
Range Hood
OPERATION MANUAL
MODEL: FSR-30/FSR-36
FES-30/FES-36
*1U022281*
Made in Japan
English
2~12
Français
13~24
Español
25~36
嶄 猟
37~48
Illustration: FSR-30/FSR-36

2
SAFETY INSTRUCTIONS
Before installation and operation, read these instructions carefully and use this product only in the manner described
by the manufacturer in the operation manual.
The signal words shown below are used to alert you to potential personal injury and property damage hazards.
There are three hazard classifications based on potentially dangerous situations.
Obey all safety instructions that show these symbols to avoid possible injury, death and/or property damage.
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
CAUTION used without the safety alert symbol indicates a potentially
hazardous situation which, if not avoided, may result in property damage.
WARNING
1. TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the
manufacturer.
b) Before servicing or cleaning the unit, switch power off at service panel and lock the service
disconnecting means to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag,
to the service panel.
2. TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambeing foods (i.e. Crepes Suzette,
Cherries Jubilee, Peppercorn Beef Flambe).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.
3. TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL
THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - you may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You have a class ABC extinguisher, and know how to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit.
4. Do not place any electrical parts in water or spray water on them. Such a situation could result in
fire or electrical shock.
5. In the situation of a potential gas leakage, do not switch the unit on and off as it could result in a
gas explosion.
6. Do not attempt to modify or repair this product. Refer all servicing to qualified personnel, otherwise
it may result in fire, electric shock, or injury.
WARNING:
CAUTION:
CAUTION:

3
CAUTION
3. Read specification label on this product for further information and requirements.
2. To reduce the risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent
exhaust air into spaces within walls, ceilings or into attics, crawl spaces or garages.
4. Switch power off at the service panel when you won’t be using the range hood for a long period. If
you do not do so, damage to the electrical insulation may result.
5. Fasten the filter and other parts securely. Incorrect attachment may result in personal injury or
damage to property.
1. For general ventilating use only. Do not use to exhaust hazardous or explosive material and vapors.
8. To protect hands from injury from the edges of the sheet metal, wear working gloves while
servicing.
: means prohibition. It indicates actions, if any, that
mustn’t be done.
: means forcible execution. It indicates actions, if any,
that must be done.
NOTE:
The safety instructions are explained with the following
pictographic symbols.
6. Do not use a commercially sold filter or filter cover on the filter part as it may affect its performance
and cause trouble.
7. Keep your hands and other objects away from the fan while it is in motion. If not, personal injury or
damage may result.

4
Name of parts
FSR-30/FSR-36
FES-30/FES-36
Switch
Lamp cover
Filter
Body
Oil tray
Rectifier panel
Lamp box
Fan case cover
< Control Switch Buttons >
LOW Button .........In case of light cooking
pilot lamp ........ Lights while the FAN is in motion
OFF Button........Stop FAN operation
LIGHT Button ......Turn ON/OFF lights
HIGH Button ......In case of heavy
cooking (smoke)
MEDIUM Button..... Usual position

5
Operating the Range Hood
1
Push one of the switches (Low, Medium, or High) according to your cooking need.
The fan will start rotating.
2
To stop the fan, just push the OFF button.
3
Push the LIGHT button if you want to turn the light on.
To turn it off, push the LIGHT button again.

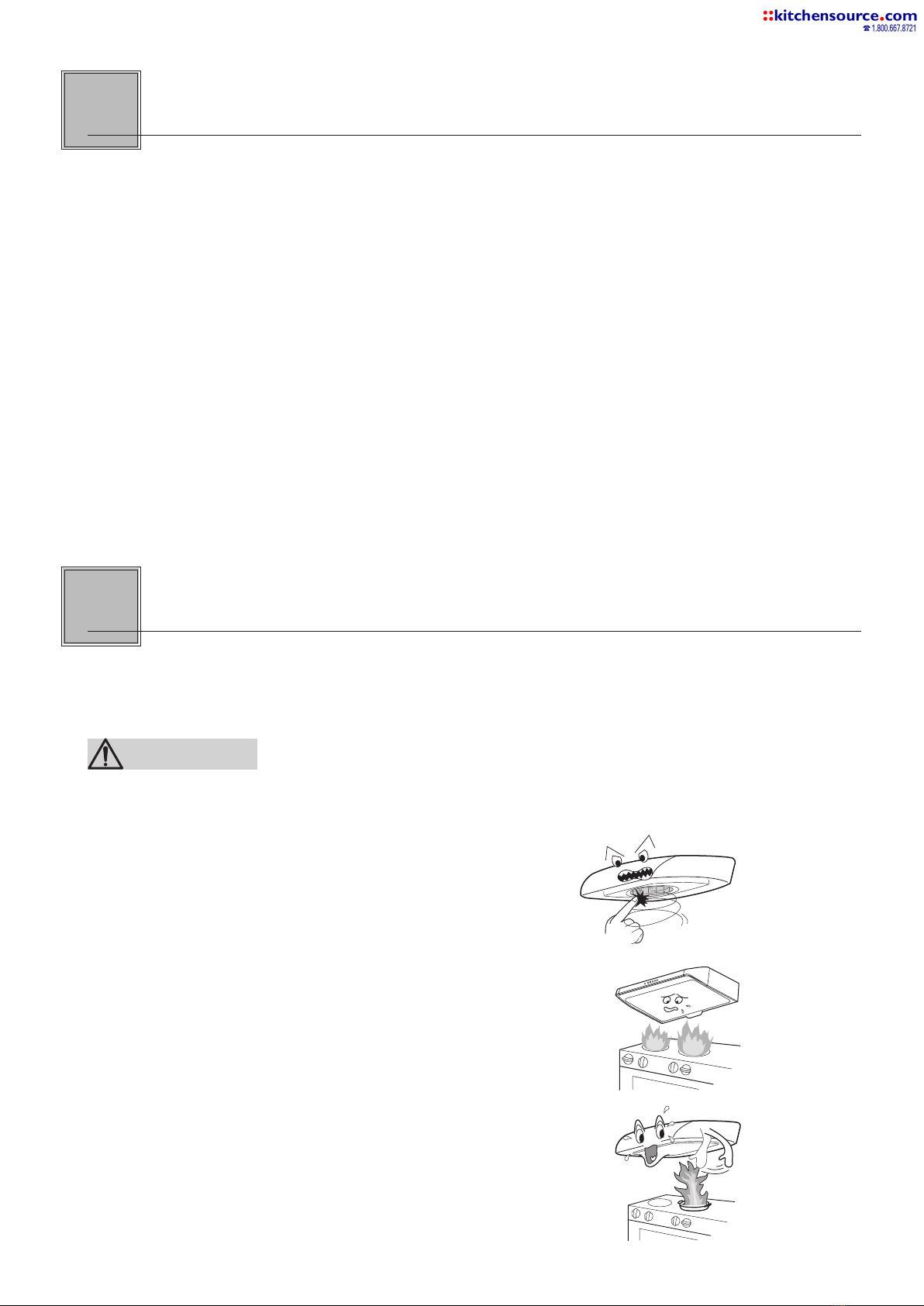

NOTE:
The pilot lamp turns on when the fan is rotating.
The range hood has five control switch buttons and one pilot lamp on its front panel.
• Duringcooking,donottouchtheltersortheir
screws. If the filters are attached incorrectly,
they may become detached and fall down.
• Donottouchthelampsortheirperipheralareas
when they are ON, or injury may result.
• Do not use a gas range with nothing on the
burners. Otherwise the range hood could
become overheated and might cause damage
to the unit.
• Stopoperationoftherangehoodimmediatelyif
a fire occurs while cooking. Continued operation
of the range hood will add intensity to the fire.
How to use
Before operation, make sure that the oil tray is installed securely on the rectifier panel.
CAUTION

6
Care and maintenance
Clean the range hood often (especially, clean the filter/s once a month) as it becomes dirty,
function may deteriorate if it’s left unclean. For a family size of 4 to 5 people and cooking
twice a day, clean the filter once every two weeks to avoid grease build-up, which is difficult
to clean.
CAUTION
• Before replacingthelight bulborcleaning the
range hood, be sure to set the lamp and off
switches to the OFF position, then switch off
the breaker at service panel.
• Forsafety,alwayswearworkinggloves,safety
glasses or goggles while cleaning the filter, etc.
• Keep other people at a safe distance when
cleaning to avoid injury from unexpected falling
of filter or splashing of detergent.
• Ifthebulbburnsout,waituntilithascooledoff
before removing, or you may burn your hand.
CAUTION
• Do not splash water on the electrical parts
such as the switches, motors or connectors.
Do not use a spray type detergent to clean
electrical parts. It may cause electrical shock
or damage to the unit.
• Do not use solvents such as thinner, benzine
or polishing powder for cleaning the painted
surfaces, face plates, etc. as these parts may
become dull or scratched.
• Donotwashpartswithanytypeofhardbrush
as they can cause damage.

7

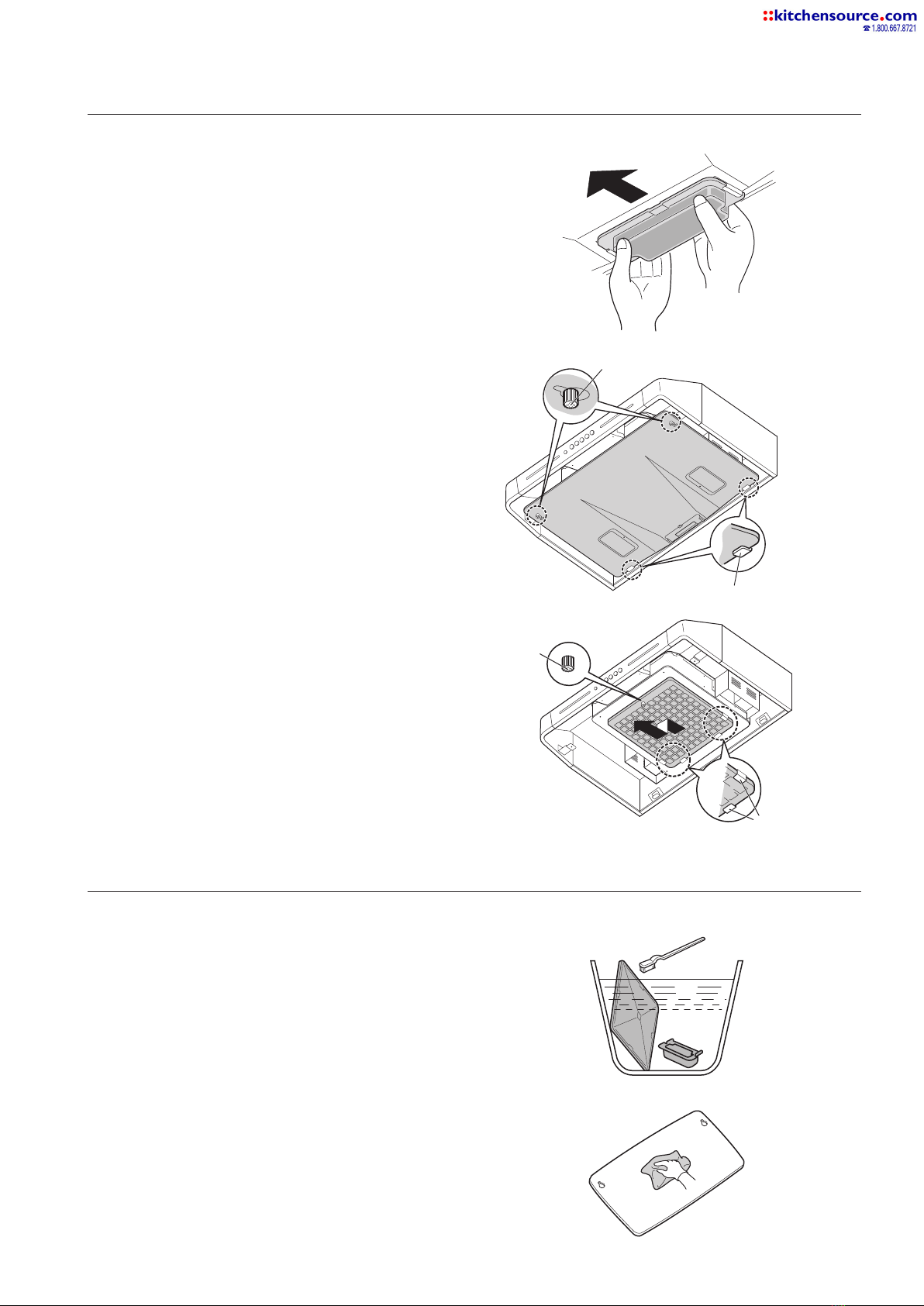

Disassembling
1
Oil tray
Hold the oil tray at its both ends and
slide forward.
NOTE:
The tray may be filled with oil, so be
careful when removing it.
1
Filter and oil tray
After immersing the filter and oil tray in
water with a mild detergent for 30 to 40
minutes, wash them with a toothbrush or
the like to remove dirt.
Clean the filter frequently to avoid
grease contamination and grease build-
up, which is difficult to clean.
2
Rectifier panel
Loosen the mounting screws attaching
the rectifier panel, pull the rectifier
panel forward slightly to free the
mounting screws from the mounting
guide holes and the body catches.
NOTE:
Use a screwdriver if they are tight.
3
Filter
First, remove one knob fixing the
filter, then slide it to the arrow
direction to disengage from the
catches.
Cleaning
Mounting screw
Catch
Knob
Catch
2
Rectifier panel
Wash the rectifier panel in tepid water with
a mild dissolved detergent. After washing,
wipe it off thoroughly with a dry cloth.

8

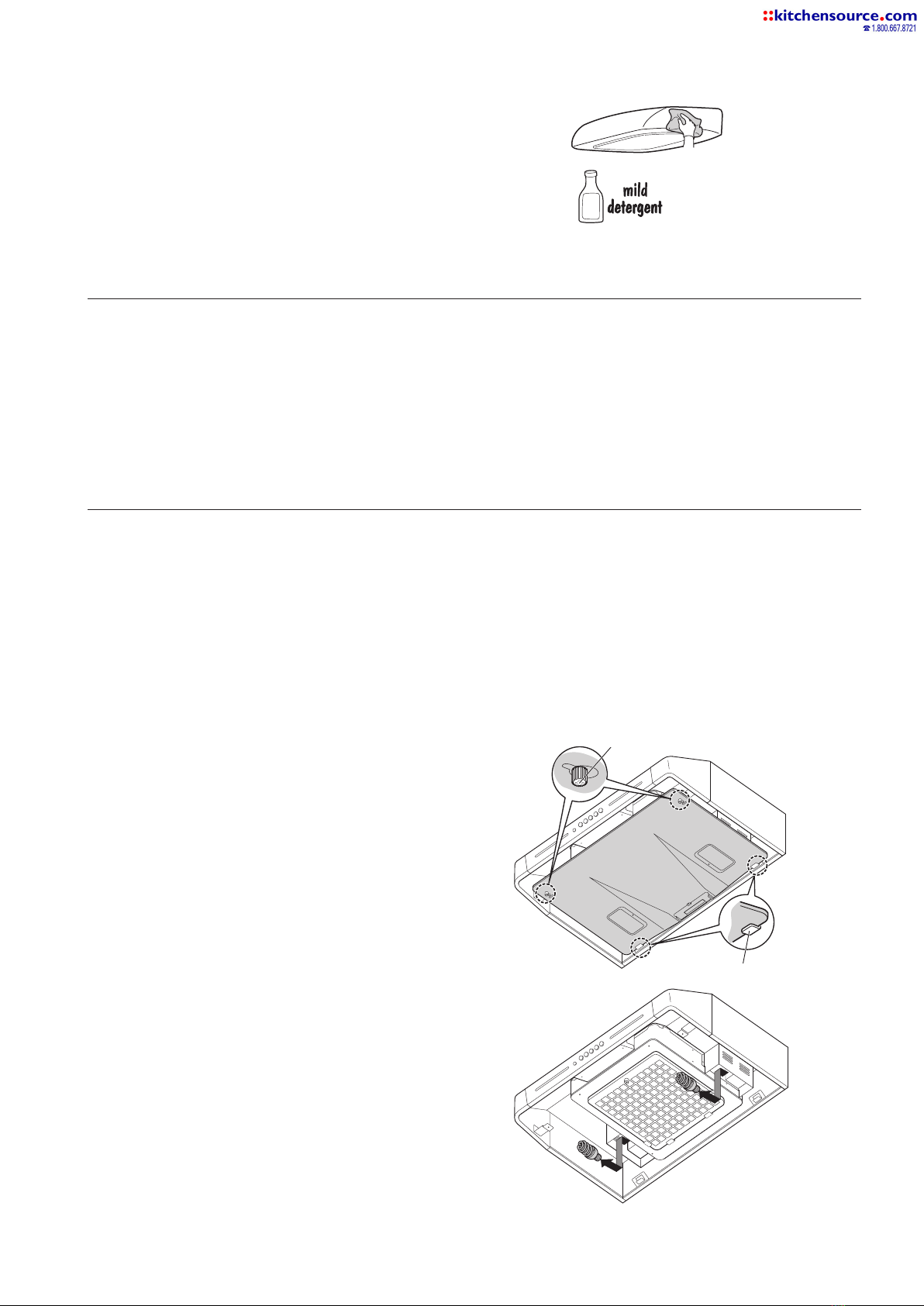

Replacing the light bulb
Two 13 Watt compact fluorescent light bulbs (not supplied) can be installed in this range
hood.
The light bulbs to purchase are two compact fluorescent light bulbs (Minitwist, E26, 120V,
13W).
The following light bulbs are recommended for this range hood.
• SYLVANIACF13EL/MICRO120V,13W
Re-assembling
Re-assembly will be done by following the disassembly procedure in reverse order described
in Item “disassembling”.
(1) Make sure that the filter is fixed in the appropriate position firmly.
(2) Make sure that there is no abnormal vibration sound when running blower.
3
Range hood body
Wipe the range hood body off with a cloth
immersed in a mild detergent. Then, wipe off
moisture thoroughly with a dry cloth.
1
Remove the rectifier panel (refer to page 7
"Disassembling").
NOTE:
As the panel may have grease build-up, be
careful when removing it.
2
Replace the light bulb with a new one.
3
Fasten the two screws firmly after
re-assembling the rectifier panel.
Mounting screw
Catch

9

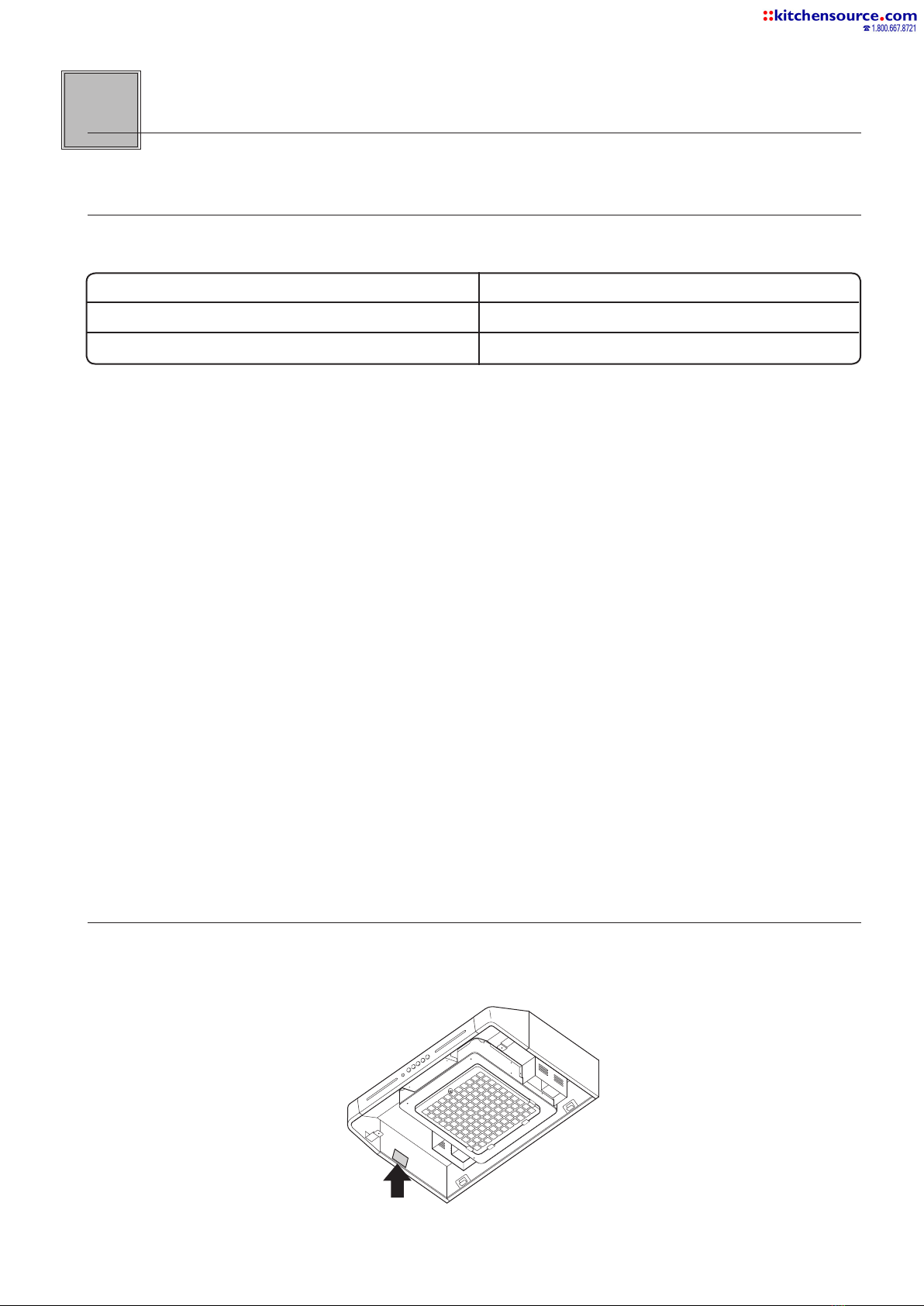

Requesting service
Prior to requesting service
Prior to requesting service, do the following check by yourself for common errors.
NOTE:
•Service parts are kept at the manufacturer for a maximum of six years after ceasing the
production of this model.
•Requesting service can be done by contacting the dealer who sold the range hood.
•When the range hood is not working normally even after checking common errors, please
provide the following information to Fuji Industrial USA, Inc. (FIU).
Fuji Industrial USA, Inc. 16300 Christensen Rd., Ste 212
Seattle WA 98188-3403
Telephone: [phone]
After Service Division Telephone: 1-866-FUJI IND
(1-866-385-4463)
a. Product--------------------------- Range Hood
b. Model Number ----------------- FSR-30/FSR-36/FES-30/FES-36
c. Date of purchase
d. What is the problem?
e. Owner's address
f. Owner's telephone number
g. Suggested date for service person's visit
Inspection label
Situation Check
Range Hood does not operate. Is power switch on at the service breaker?
Range Hood is noisier than usual or vibrating. Is the filter contaminated by grease?
The model number is indicated on the inspection label, which is attached on the fan case
cover of the range hood.

10
AC120V
60Hz
Pilot Lamp
Lamp
Fan Switch
Yellow
Red
Red
White
Black
Black Black
White
Black White
Black
White
Black WhiteWhite
Black
White
Green
Connector
Connector
Connector
Connector
Black Black
Red Red
Orange
Brown
Blue
Orange
Brown
Blue
Orange
Brown
Blue
Capacitor
Gray
Red
White
Motor
Specifications
Circuit diagram
Refer to the following table.
NOTE:
FUJI INDUSTRIAL CO., LTD. has measured airflow under HVI-916 and sound levels
under HVI-915.
Model Voltage
(V)
Frequency
(Hz) Speed
Power Consumption
(W)
Air Flow (CFM)
(0 in wg)
Air Flow (CFM)
(0.1 in wg)
Sound Level
(Sone)
FSR-30/36
FES-30/36 120 60
Hi 125 230 210 7.0
Med 100 190 160 4.5
Low 75 130 120 1.5
Model Voltage
(V)
Frequency
(Hz) Speed
Power Consumption
(W)
Air Flow (CFM)
(0 in wg)
Air Flow (CFM)
(0.1 in wg)
Sound Level
(Sone)
FSR-30/36
FES-30/36 120 60
Hi 125 240 210 6.5
Med 100 200 160 4.5
Low 75 130 130 1.5
Model Voltage
(V)
Frequency
(Hz) Speed
Power Consumption
(W)
Air Flow (CFM)
(0 in wg)
Air Flow (CFM)
(0.1 in wg)
Sound Level
(Sone)
FSR-30/36
FES-30/36 120 60
Hi 125 270 240 6.5
Med 100 210 180 4.5
Low 75 150 140 2.0
In case of 7" Round Vertical Discharge
In case of 3-¼"×10" Vertical Discharge
In case of 3-¼"×10" Horizontal Discharge

11
Parts list
FES type
27
17
16
8
26
25
24
23
23
22
21
1
20
19
18
14
12
15
13
11
11
10
9
8
7
6
5
2
4
3
Six(6) Pieces
Washer Head
Wood Screw
One(1) Piece
Soft Tape
Cover Plate
Attachment
Figure
Name of parts
Rectifier Panel, for 36" Hood
Four(4) Pieces
Screw
Attachment
Duct Joint (Round Type)
Duct Joint (Rectangular Type)
Oil Tray
Lamp Cover
Rectifier Panel, for 30" Hood
Filter
Fan Case Cover
Fan
Motor
Capacitor
Connector Wire Unit
Switch Wire Cover
Fan Guide(L)
Fan Guide(R)
Lamp Wire Unit
Lamp Receptacle Mount(L)
Lamp Receptacle Mount(R)
Lamp Box
Strain Relief
Fan Case
Switch Unit
Earth Wire Unit
25
24
27
26
23
22
21
20
19
18
17
16
15
13
12
11
10
9
8
7
6
5
4
3
2
1
Component/PartNo
Fan Guide(B)
14
One(1) Piece
Nut
Corner Cap(L)
Corner Cap(R)
