FUJIPLA AL-MEISTER ALM3222 User manual

AL-MEISTER ALM3222 Instruction Manual < Rev. 2>
Page 1of 63
AL-MEISTER
ALM3222
Instruction Manual
Thank you very much for purchasing the FUJIPLA ALM3222 Auto
Laminator. Due to the possibility of damage and for personal safety
reasons only trained personnel should operate this machine! Please
read through this manual carefully before operation. Please keep this
manual and refer to it whenever necessary.
Ver 1.1 [US]
Ver 2 by Brian Jennett (includes Ver 1.2 [US]) 11/6/13
Rev by Brian Jennett: 11/22/13, 11/27/13, 12/2/13, 12/9/13, 12/17/13, 3/10/14, 3/20/14, 3/27/14,
4/4/14, 6/6/14, 6/26/14, 7/7/14, 8/12/14, 8/26/14, 10/16/14, 1/23/15, 2/26/15, 5/8/15, 6/29/15

AL-MEISTER ALM3222 Instruction Manual < Rev. 2>
Page 2of 63
Contents
SPECIFICATIONS ............................................................................................................................................4
MAIN FEATURES............................................................................................................................................5
IMPORTANT SAFETY PRECAUTIONS..............................................................................................................6
INSTALLATION...............................................................................................................................................7
REQUIREMENTS OF PAPER TO BE LAMINATED ............................................................................................8
RECYCLING INFORMATION ...........................................................................................................................9
INCLUDED COMPONENTS...........................................................................................................................10
2. NAMES AND FUNCTIONS ........................................................................................................................11
2-1. EXTERIOR .........................................................................................................................................11
2-2. INTERIOR..........................................................................................................................................12

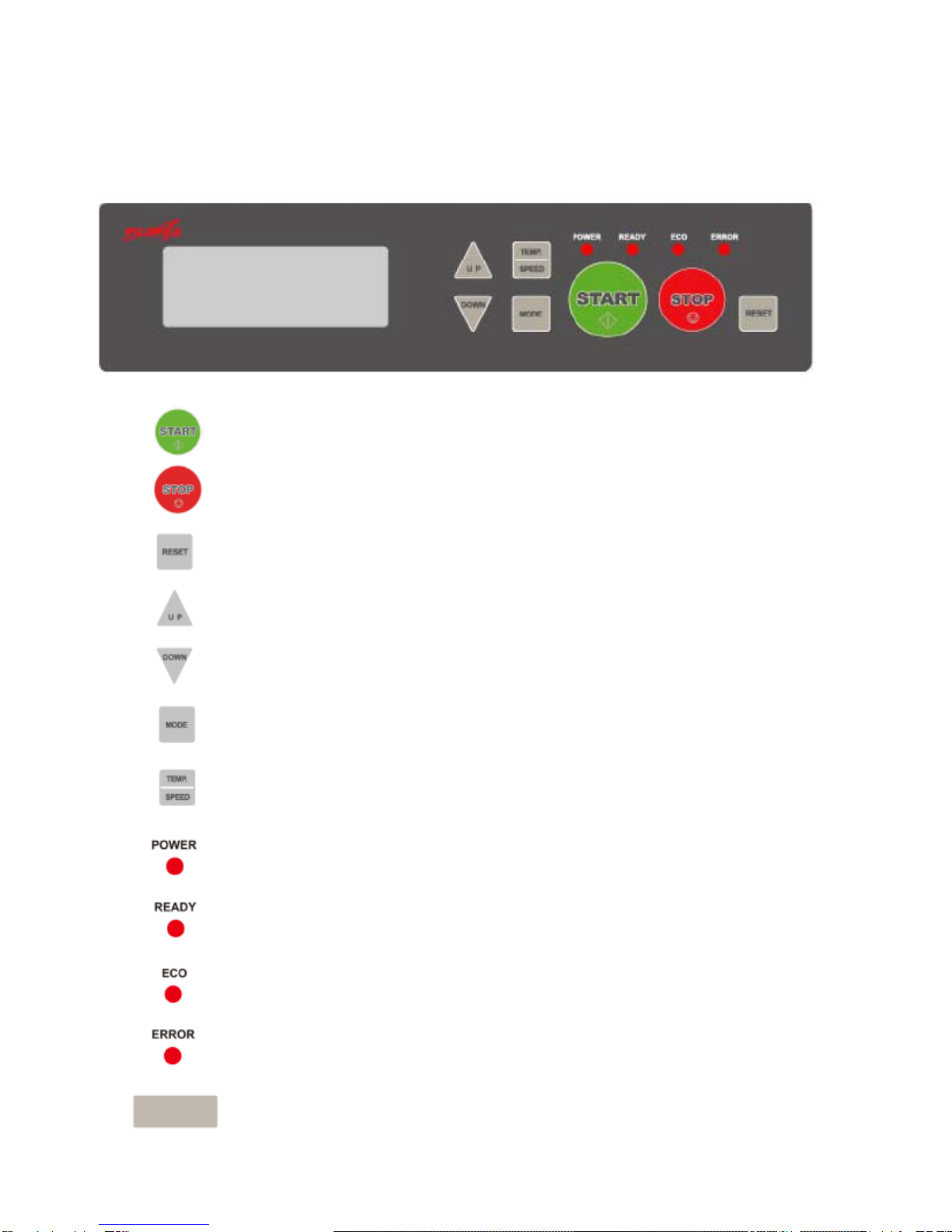

2-3. OPERATION PANEL...........................................................................................................................13

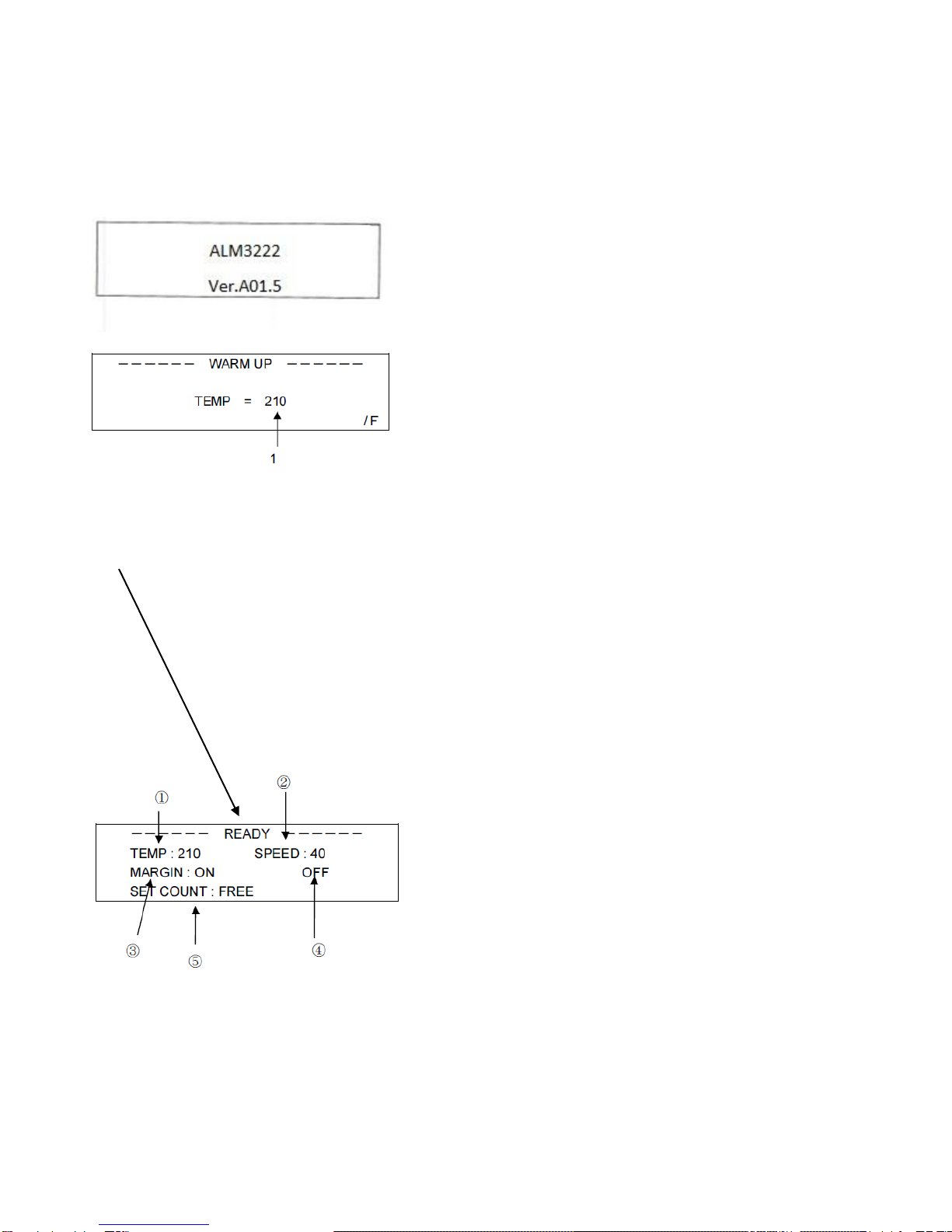

2-4. LCD DISPLAY.....................................................................................................................................14

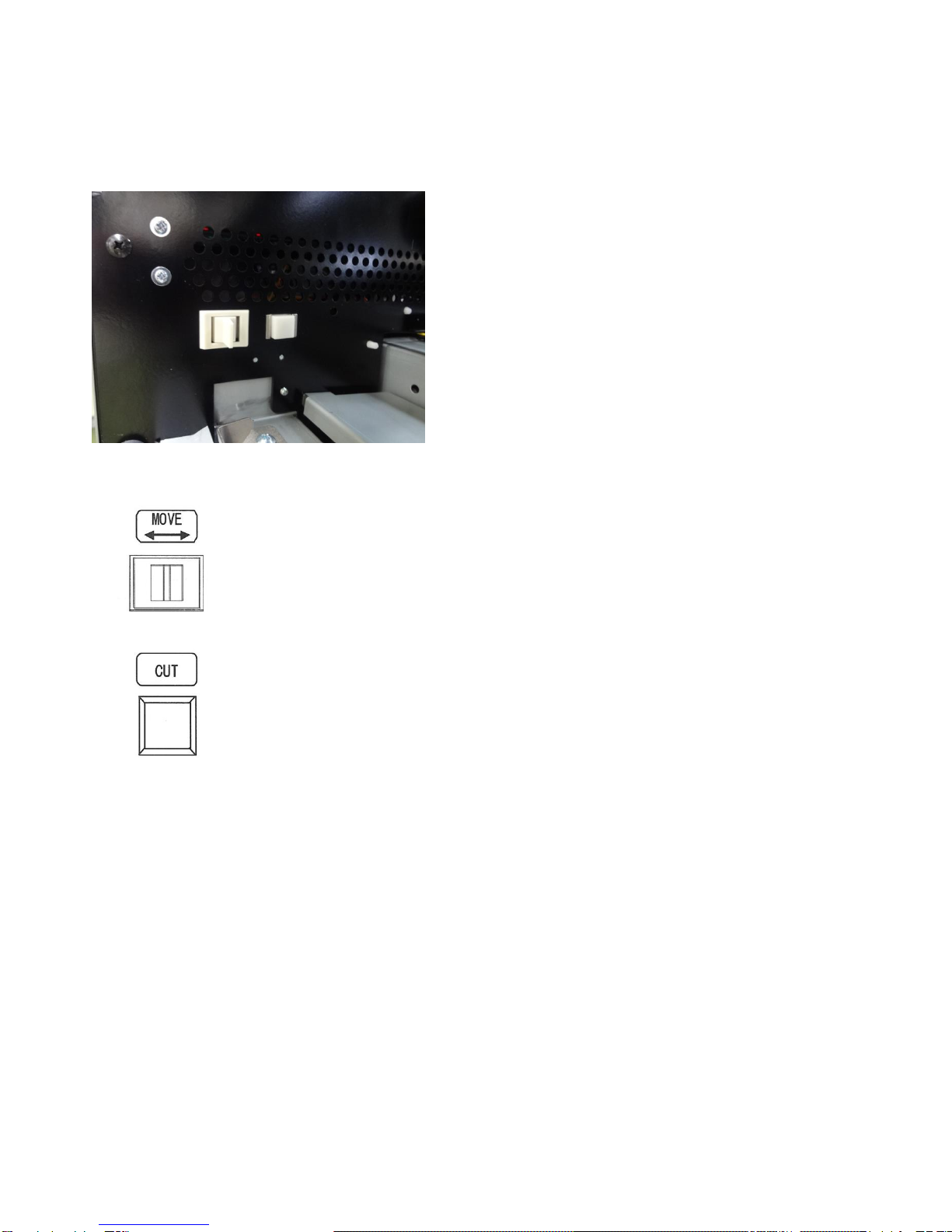

2-5. OTHER SWITCHES AND BUTTONS....................................................................................................16
3. INSTALLATION.........................................................................................................................................18
3-1. INSTALLING THE ALM3222...............................................................................................................18
3-2. SET FEEDER TRAY .............................................................................................................................18
3-3. SET EXIT TRAY ..................................................................................................................................18
3-4. SET WASTE COLLECTION BOX ..........................................................................................................19
3-5. CONNECT POWER CORD..................................................................................................................19
4. SET LAMINATION FILM/MANUAL MODE................................................................................................20
5. AUTOMATIC OPERATION ........................................................................................................................33
5-1. WARM UP ........................................................................................................................................33
5-2. SETTINGS..........................................................................................................................................35
5-2-1. SET TEMPERATURE ...................................................................................................................35
5-2-2. SET SPEED .................................................................................................................................36
5-2-3. SET TRIMMER MARGIN.............................................................................................................37
5-2-4. MODE MENUS ..........................................................................................................................39
5-2-5 SET COUNT.................................................................................................................................41
5-2-6. MARGIN SET .............................................................................................................................43
5-2-7. CUT ADJUST ..............................................................................................................................44
5-2-8. FINE MODE ADJUST ..................................................................................................................46

AL-MEISTER ALM3222 Instruction Manual < Rev. 2>
Page 3of 63
5-2-9. PAPER FEED ADJUST (SOFTWARE)............................................................................................47
5-2-10. TOTAL COUNT.........................................................................................................................48
5-2-11. CHECK FILM INFO....................................................................................................................49
5-2-12. PAPER FEED RESIST ROLLER PRESSURE ADJUSTMENT (MECHANICAL)..................................50
5-2-13. PAPER SKEW ADJUST..............................................................................................................52
5-3. SET PAPER ........................................................................................................................................53
5-4. START OPERATION...........................................................................................................................55
5-5. ECO MODE (Power Saving Mode)....................................................................................................56
5-6.TERMINATE LAMINATION.................................................................................................................56
6. LONG MODE............................................................................................................................................57
7. TROUBLESHOOTING/ERROR MESSAGES.................................................................................................58
8. CLEANING THE HEAT ROLLERS................................................................................................................63

AL-MEISTER ALM3222 Instruction Manual < Rev. 2>
Page 4of 63
SPECIFICATIONS
The ALM3222 is spec’d for 16 mil maximum paper/film thickness. This table shows maximum paper stock
thickness given the thickness and number of sheets of film used:
Model
ALM3222
Minimum
Maximum
Feeder Tray Capacity
1
200 pages (20# copy paper), less for thicker paper
Paper Width
8-1/8”
13”
Finished & Trimmed Width
8-9/16”
13”
Paper Length
6-1/2”
20” in normal mode, unlimited length in “LONG MODE”
Operating Temperature
170F
270F
Operating Speed (in. per min.)
20
68
Finished Size (W x L) and
Trimming Methods
Letter (8.5”x 11”); With Margin: 8.74" X 11.24"; Without Margin: 8.5" X 11".
Double Letter (11”x 17”); With Margin: 11.24" X 17.24"; Without Margin: 11" X 17"
Digital Paper (12”x 18”) With Margin: 12.24" X 18.24"; Without Margin: 12" X 18"
Processing Speed
200 sheets/hour at 8.5” long
Maximum Laminated Thickness
16mil (.016”) (including film thickness)
Exit Tray capacity
200 pages (20# copy paper laminated with 5mil film), less for thicker paper
Warm-up Time
Approx. 5-7 minutes
Power Source
AC 120V 60 Hz
Power Consumption
1200W, 10A
Dimensions (W x L x H)
50.0"(W) X 23.6"(D) X 43.3"(H) with Stand, Feeder Tray, Feeder Tray Extension and
Exit Tray installed.
Weight
Laminator : 97 LBS; Stand : 52.9 LBS
Environmental Restrictions
Within the range of 32F to 86F (68 +/- 40F recommended)/an altitude below 6600'.
Accessories
Box 1: Feeder Tray -- Extension Feeder Tray -- Exit Tray -- Power Cord
Box 2: Stand -- Assembly instructions for stand -- Screws and tool for assembling
stand-- Waste collection box.
ALM3222 Absolute Maximum Paper Thickness Table
Available
film
thicknesses
(MIL)
One-sided lamination
Two-sided lamination
MAXIMUM PAPER THICKNESS:
MAXIMUM PAPER THICKNESS:
MIL
COVER
INDEX
METRIC
(gsm)
MIL
COVER
INDEX
METRIC
(gsm)
1.2
14.8
120#
180#
312
N/A
1.5
14.5
114#
170#
309
13
105#
158#
286
3
13
105#
158#
286
10
90#
135#
245
5
11
100#
150#
271
6
40#
60#
162

AL-MEISTER ALM3222 Instruction Manual < Rev. 2>
Page 5of 63
MAIN FEATURES
The AL-MEISTER ALM3222 is a fully automatic hot laminator that will feed, laminate, cut and trim
around all four sides of paper. Once threaded and set up properly, place printed paper on the Feeder
Tray and press the [START] button for full automatic operation.
1. Laminating Size/Laminating Film:
Letter/Double Letter/Digital sized paper can be laminated automatically. The film is specially produced.
Glossy and matte types are available.
2. Finish with, or without margin:
With margin: The ALM3222 will trim leaving a 0.11” margin of film outside the edge of the paper. The
paper is completely encapsulated to enhance durability and resistance to liquids.
Without margin: The ALM3222 will trim laminated paper to the paper size. The surface of the paper is
protected with the edges exposed.
3. Feeds 200 sheets automatically:
Automatic feeding of up to 200 sheets on the tray enables fully automatic operation.
4. Speedy Lamination:
Any manual preparatory tasks that were needed in traditional encapsulation are now unnecessary. It
takes only 3 minutes to laminate 10 sheets of letter size paper.
5. Eco Mode saves power consumption:
For more details, see ECO MODE (Power Saving Mode).

AL-MEISTER ALM3222 Instruction Manual < Rev. 2>
Page 6of 63
IMPORTANT SAFETY PRECAUTIONS
The following safety precautions must be observed for your safety during the operation of this product.
Please read the cautions and warnings carefully. Please keep this manual and refer to it whenever
necessary.
General Caution
Electric Shock Indicates the potential for electric shocks.
Tangling Warning Indicates possible injuries caused by tangling in a rotating machine
part.
Amputation Warning Indicates possible serious injuries such as finger amputation.
Heat Warning Indicates the potential for injuries caused by extreme heat.
Don’t Do Indicates unspecified acts that are forbidden.
Unplug immediately Indicates a dangerous situation. Unplug the ALM3222 from the
wall outlet and call for service.
These two different words are used on the machine according to the level of danger.
WARNING In the case of incorrect use, there can be serious injury.
CAUTION Injury to the operator or damage to equipment possible. There can also be a
machine malfunction.

AL-MEISTER ALM3222 Instruction Manual < Rev. 2>
Page 7of 63
INSTALLATION
To avoid fire, electric shock, or any danger, do not install the machine in a place like:
In direct sunshine or near an air
conditioner.
In an extremely cold area.
In an extremely dusty area.
In an extremely humid/dry area.
In/near a heating appliance or extremely hot
area.
On an uneven or shaky floor.
POWER SUPPLY/GROUND WIRE
1. Use the appropriate power supply. Always connect to AC120V. Unstable voltage may cause electric shock,
fire, or damage to the machine. Always avoid using multiple outlet connections.
2. Pay attention to the amperage. Unless the amperage is enough, it may cause fire or malfunction. A
dedicated circuit is highly recommended.
3. Ensure a ground connection is correctly made to avoid any danger or electrical problems. Do not alter the
power cord.
4. Handle power cord with care.
Do not set the machine on the power cord. Do not pull the power cord forcibly.
Do not place the machine near heated equipment.
Damage to the power cord may cause fire, electric shock or damage to the machine and the operator.

AL-MEISTER ALM3222 Instruction Manual < Rev. 2>
Page 8of 63
REQUIREMENTS OF PAPER TO BE LAMINATED
Always follow these instructions for safe operation.
1. What to wear
In order to avoid any possible danger
•Do not wear neck-ties or necklaces that are loose.
•Do not wear loose clothes. If entangled, turn off the power or unplug immediately.
•Be careful that your hair does not get caught in the machine.
2. Operation
• Always close the covers.
• When you are in a closed room, ventilate well.
•Do not spill water on the machine or handle it with wet hands.
•Do not leave the machine during operation. The socket outlet should be installed near the equipment and
be easily accessible.
3. in an emergency
•If a malfunction occurs switch off and/or unplug immediately.
• Contact your dealer or the DryLam Tech-Line for assistance.
•Do not attempt to disassemble/repair /alter the machine yourself without authorization.
4. Others
In order to avoid serious personal injury or damage to the machine:
• Do not use the machine for any other purposes than what it was designed for.
• Do not put heavy items on the machine or subject it to physical abuse.
• Always unplug the machine before moving it.
•Remember that the laminated objects can be very hot.
•Machine may be damaged when incorrectly used.
• Do not drop metal items such as paper clips or staples inside the machine.
•Do not remove the covers from the machine or otherwise defeat the safety switches.
•Never alter or modify the machine.
•Do not remove caution labels from the machine.
•Always use our exclusive AL-ROLL lamination film.

AL-MEISTER ALM3222 Instruction Manual < Rev. 2>
Page 9of 63
REQUIREMENTS OF PAPER TO BE LAMINATED (cont’d)
Do not laminate:
•Money or valuable securities.
•Paper with staples.
•Magnets or magnetic documents.
•Flammable paper or material that is affected by heat such as vinyl chloride or polyethylene.
•Unique and irreplaceable documents.
•Paper thicker than 0.4mm including film thickness.
•Paper that discolors and changes in quality with heat such as thermal papers and crayoned pictures.
•Paper that contains a lot of moisture.
•Items other than paper (magnets, vinyl, etc.)
•Paper that is curved or has creases.
CLEANING OF EXTERIOR
Be sure that the machine is unplugged.
Before cleaning the machine turn off the power and let the machine cool down.
Wipe off stains with a soft cloth. When stains are persistent use a firmly squeezed soft cloth soaked in a small
quantity of water or detergent. Wipe off the residue of detergent with a cloth soaked in water.
USEFUL INFORMATION –FILM END
This model has a function that gives caution that the film will end soon. The final few feet of film has either
black colored film or the black colored tape on the film. Please note when doing continuous lamination, that
one or two sheets may be laminated with the black tape when film runs out. Therefore, in order to avoid this
problem, please check the remaining film amount on the display from time to time. It is recommended to
provide extra prints when laminating.
RECYCLING INFORMATION
This is a serviceable electronic device which contains components which should be replaced at the end of their
effective lives. You can help control emerging risks by disposing of the electronic device separately from your
domestic waste. Electric and electronic devices marked with a crossed out waste bin indicate that these
products should not be disposed of together with domestic waste as there may be a severe impact on the
environment as well as human health due to the possibly of hazardous materials.

AL-MEISTER ALM3222 Instruction Manual < Rev. 2>
Page 10 of 63
INCLUDED COMPONENTS
Please check all these components are included.
ALM3222
Feeder Tray
Feeder Tray Extension
Exit Tray
Power Cord
Wastebasket
Stand
Stand Assembly Instructions
Tool for assembling Stand
Screws for assembling Stand
