1 . DESCRIPTION OF EACH
CONTROL OPERATION

1-1. COOLING AND DRY OPERATION
1-1-1. COOLING AND DRY CAPACITY CONTROL
A sensor (room temperature thermistor) built in the indoor unit body will usually perceive
difference or variation between a set temperature and present room temperature,
and controls the operation speed of the compressor.
The outdoor unit operates according to the highest request capacity of indoor unit
to meet the demand capacity of all the indoor units.
The capacity control of the low request capacity indoor unit is controlled by Branch box EEV.
Minimum Maximum
( Table 1 : Compressor speed range )
01-01
AOYG45LAT8 18rps 90rps
When the start-up control finished, the outdoor unit starts the target low pressure control.
The outdoor unit selects the target low pressure within the following range,
it is decided by the highest request capacity from indoor units.
1.90MPa
1.62MPa
3.30MPa
2.33MPa
The outdoor fan speed is controlled to keep the high pressure to the constant range for stabilizing
the distribution performance.

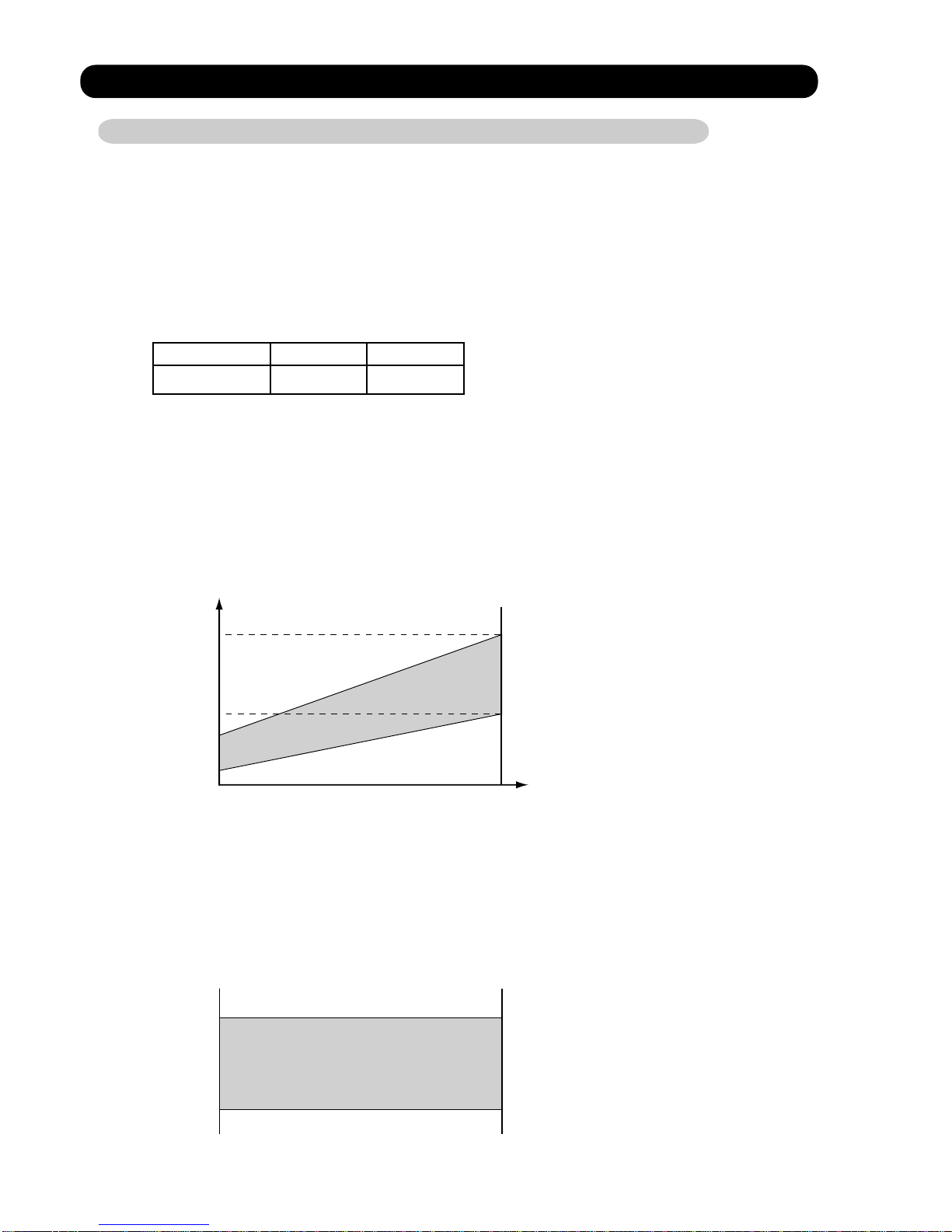

( Fig. 1 : Target high pressure range)
< Target high pressure control >
< Target low pressure control >
( Fig. 2 : Target low pressure range)
0.82MPa
1.27MPa
Target high pressure
Target low pressure
High
pressure
Outdoor
temperature

1-2. HEATING OPERATION
1-2-1. HEATING CAPACITY CONTROL
A sensor (room temperature thermistor) built in the indoor unit body will usually perceive
difference or variation between a set temperature and present room temperature,
and controls the operation speed of the compressor.
The outdoor unit operates according to the highest request capacity of indoor unit
to meet the demand capacity of all the indoor units.
The capacity control of the low request capacity indoor unit is controlled by Branch box EEV.
( Table 2 : Compressor speed range )
01-02
Minimum Maximum
AOYG45LAT8 18rps 96rps
0.85MPa
0.75MPa
The outdoor fan speed is controlled to keep the low pressure to the constant range for the following reasons.
1. Frost prevention
2. Low pressure over rise prevention
( Fig. 5 : Target low pressure range)
< Target low pressure control >
Target low pressure
When the start-up control finished, the outdoor unit starts the target high pressure control.
The outdoor unit selects the target high pressure within the following range,
it is decided by the highest request capacity from indoor units.
< Target high pressure control >

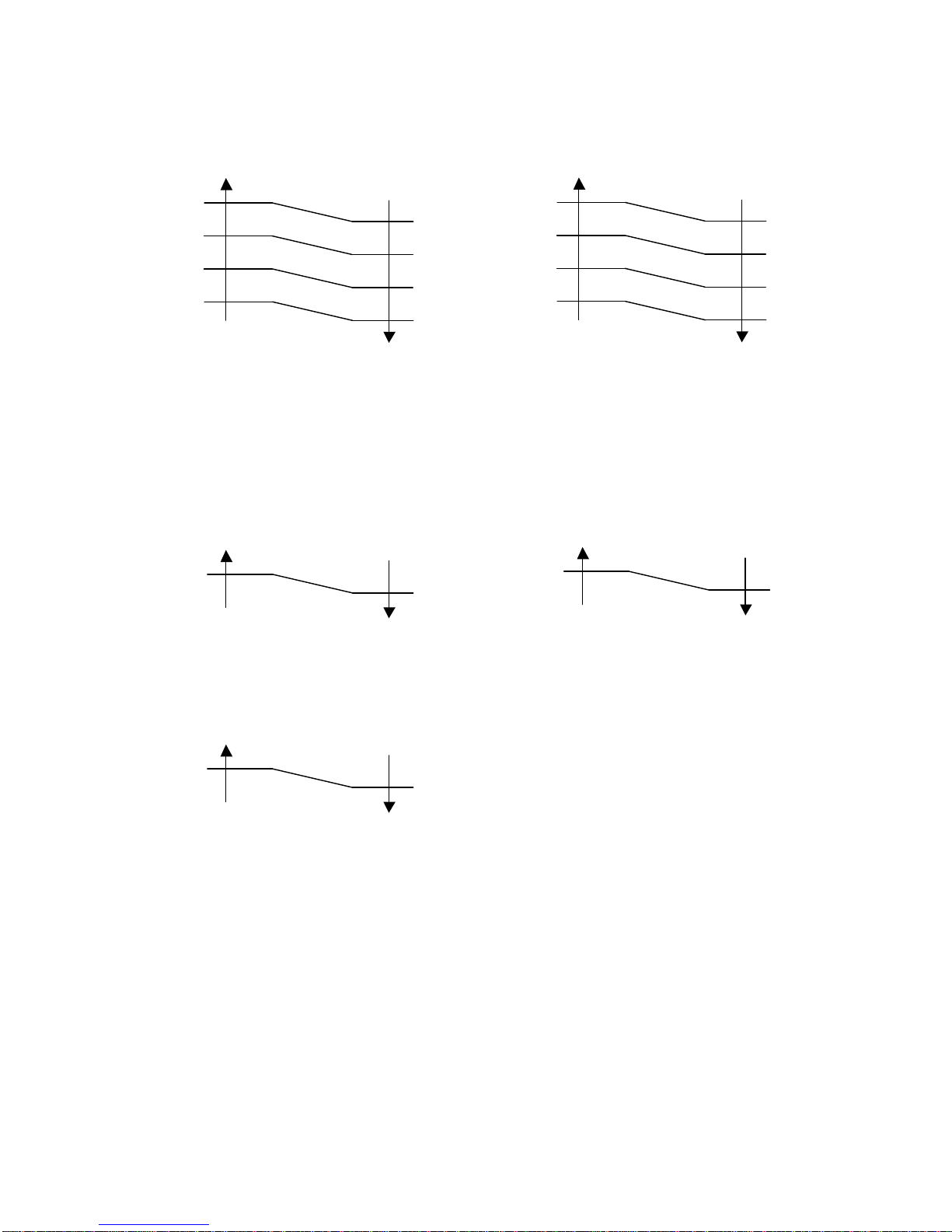

( Fig. 3 : Target high pressure range
for NORMAL HEATING OPERATION)
2.26MPa
3.11MPa
Target high pressure
1.31MPa
1.88MPa
( Fig. 4 : Target high pressure range
for MIN. HEAT OPERATION)
Target high pressure

1-3. AUTO CHANGEOVER OPERATION
When the air conditioner is set to the Auto mode by remote controller, operation starts in the optimum
mode from among the Heating, Cooling, Dry and Monitoring mode. During operation, the
optimum mode is automatically switched in accordance with temperature changes. The temperature
can be set between 18°C and 30°C in 1°C steps.
When operation starts, indoor fan and outdoor fan are operated for around 3 minutes.
Room temperature and outdoor temperature are sensed, and the operation mode is selected
in accordance with the table below. <Monitoring mode>
Cooling mode
25°C Heating mode
( Table 3 : Operation mode selection table )
Room temperature (TR)
TR> Ts+2°C
Ts+2°C TR Ts -2°C *Middle zone
TR < Ts -2°C Heating
When Cooling or Dry mode was selected at and air flow mode is Auto, the air conditioner operates as follow.
The same operation as COOLING OPERATION AND DRY OPERATION of page 01-01 is performed.
When the room temperature has remained at set temperature -1.5°C, operation is automatically
switched to Dry mode.
If the room temperature reaches set temperature +2°C during Dry mode, operation returns to Cooling.
When Heating was selected at , the same operation as HEATING OPERATION of page
01-02 is performed.
When the compressor was stopped for 6 consecutive minutes by the temperature control function
after the Cooling(Auto:Dry) or Heating mode was selected at above, operation is switched
to Monitoring and the operation mode is selected again.
1
1
2
31
41
( Fig. 6 : Outdoor temperature zone selection )
01-03
Cooling
(Autmatic dry)
Operation mode
*If it's Middle zone, operation mode of indoor unit is selected as below.
(1). Same operation mode is selected as outdoor unit.
If outdoor unit is operating in Cooling, Dry, and Heating mode,
indoor unit will be operated by the same operation mode.
(2). Selected by the outdoor temperature.
If outdoor unit is operating in other than Cooling, Dry, and Heating mode,
indoor unit will be operated according to the outdoor temperature as below.
Cooling
Cooling Dry
(X zone)
Dry
(J zone)
Compressor stop
When the room
temperature drops
When the room
temperature rises
Ts +2°C
Ts -0.5°C
Ts -1.5°C
Ts +1°C
Ts -1.5°C
Ts -2.5°C
( Fig.7 : Auto changeover : Cooling - Dry )
TR : Room temperature
Ts : Setting temperature
TR : Room temperature
Ts : Setting temperature
( Air flow mode : Auto )

01-04
START
Room temp. Ts+2°C?
COOLING (AUTO:DRY)
OPERATION
HEATING OPERATION
YES
YES
NO
NO
NO
AUTO CHANGEOVER operation flow chart
TS: Setting temperature
Room temp. Ts -2°C?
Thermostat remains
in OFF state for 6 minutes or
longer?
System stops
or operation command other than
auto changeover operation?
NO
Thermostat remains
in OFF state for 6 minutes or
longer?
System stops
or operation command other than
auto changeover operation?
Middle zone
NO
Operation mode of
outdoor unit : Cooling or Dry?
YES
NO
Operation mode of
outdoor unit : Heating?
YES
NO
YES
Outdoor temperature 25°C?
NO
YES
YES
NO
YES
YES

1-4. INDOOR FAN CONTROL
01-05
1. Fan speed
( Table 4 : Indoor fan speed table)
Hi
Me+
Me
Lo
Quiet
Cool Air Prevention
S-Lo
Hi
Me
Lo
Quiet
*Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
ASYG07LJCA
1050
1000
950
850
710
600
480
1050
950
850
680
600
X, J zone:680
ASYG09LJCA
Hi
Me+
Me
Lo
Quiet
Cool Air Prevention
S-Lo
Hi
Me
Lo
Quiet
*Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
1100
1040
980
850
710
600
480
1100
980
850
680
600
X, J zone:680
ASYG12LJCA
Hi
Me+
Me
Lo
Quiet
Cool Air Prevention
S-Lo
Hi
Me
Lo
Quiet
*Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
1200
1130
1050
910
710
600
480
1200
1050
880
680
600
X, J zone:680
ASYG18LFCA
Hi
Me+
Me
Lo
Quiet
Cool Air Prevention
S-Lo
Hi
Me
Lo
Quiet
*Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
1220
1120
1020
900
710
660
480
1220
1020
900
710
660
X, J zone:710
ASYG24LFCA
Hi
Me+
Me
Lo
Quiet
Cool Air Prevention
S-Lo
Hi
Me
Lo
Quiet
*Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
1430
1320
1220
1020
900
720
480
1480
1220
1020
900
720
X, J zone:900
Hi
Me+
Me
Lo
Quiet
Cool Air Prevention
S-Lo
Hi
Me
Lo
Quiet
*Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
AUYG07LVLA
590
570
540
490
440
400
300
590
540
490
440
400
X, J zone:440
*Note, during Economy operation and operation mode is Fan, air flow is 1 step downs.
(Hi > Me, Me > Lo, Quiet > Soft Quiet)

ARYG09LLTA (Static pressure:25Pa)
Hi
Me
Lo
Quiet
S-Lo
Hi
Me
Lo
Quiet
Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
X, J zone:960
1260
1160
1060
960
500
1260
1160
1060
960
500
AUYG12LVLA
Hi
Me+
Me
Lo
Quiet
Cool Air Prevention
S-Lo
Hi
Me
Lo
Quiet
Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
650
620
580
520
460
400
300
660
580
520
460
400
X, J zone:460
01-06
Hi
Me+
Me
Lo
Quiet
Cool Air Prevention
S-Lo
Hi
Me
Lo
Quiet
*Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
AUYG09LVLA
590
570
540
490
440
400
300
590
540
490
440
400
X, J zone:440
AUYG14LVLA
Hi
Me+
Me
Lo
Quiet
Cool Air Prevention
S-Lo
Hi
Me
Lo
Quiet
Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
X, J zone:460
740
700
670
600
480
400
300
730
630
540
460
400
AUYG18LVLA
Hi
Me+
Me
Lo
Quiet
Cool Air Prevention
S-Lo
Hi
Me
Lo
Quiet
Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
X, J zone:460
840
800
750
650
500
400
300
790
660
570
460
400
ARYG07LLTA (Static pressure:25Pa)
Hi
Me
Lo
Quiet
S-Lo
Hi
Me
Lo
Quiet
Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
X, J zone:880
1160
1000
940
880
500
1160
1000
940
880
500

ARYG12LLTA (Static pressure:25Pa)
Hi
Me
Lo
Quiet
S-Lo
Hi
Me
Lo
Quiet
Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
X, J zone:1030
1340
1240
1140
1030
500
1340
1240
1140
1030
500
ARYG18LLTA (Static pressure:25Pa)
Hi
Me
Lo
Quiet
S-Lo
Hi
Me
Lo
Quiet
Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
1380
1300
1220
1140
600
1380
1300
1220
1140
600
X, J zone:1140
01-07
ARYG14LLTA (Static pressure:25Pa)
Hi
Me
Lo
Quiet
S-Lo
Hi
Me
Lo
Quiet
Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
X, J zone:1030
1560
1400
1240
1030
500
1560
1400
1240
1030
500
ABYG14LVTA
Hi
Me+
Me
Lo
Quiet
Cool Air Prevention
S-Lo
Hi
Me
Lo
Quiet
Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
X, J zone:670
850
850
800
740
670
500
300
850
800
740
670
500
ABYG18LVTA
Hi
Me+
Me
Lo
Quiet
Cool Air Prevention
S-Lo
Hi
Me
Lo
Quiet
Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
X, J zone:740
1040
1000
950
800
740
500
300
1040
950
800
740
500

01-08
AGYG09LVCA
Hi
Me
Lo
Quiet
Cool Air Prevention
S-Lo
Hi
Me
Lo
Quiet
Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
1120/950
1000/850
860/730
660/560
660/560
660/560
1120/950
960/820
820/700
660/560
570/480
-
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
1230
1090
940
750
680
680
1230
1070
910
750
680
X, J zone:750
Upper & Lower
air flow mode Upper air flow mode
AGYG12LVCA
Hi
Me
Lo
Quiet
Cool Air Prevention
S-Lo
Hi
Me
Lo
Quiet
Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
1240/1040
1080/920
910/770
660/560
660/560
660/560
1240/1040
1050/890
860/730
660/560
570/480
-
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
1300
1140
980
750
680
680
1300
1120
930
750
680
X, J zone:750
Upper & Lower
air flow mode Upper air flow mode
AGYG14LVCA
Hi
Me
Lo
Quiet
Cool Air Prevention
S-Lo
Hi
Me
Lo
Quiet
Soft Quiet
Auto
Operation mode
Heating
Cooling / Fan
Dry
Air flow mode Fan Speed
1330/1120
1140/970
940/800
660/560
660/560
660/560
1330/1120
1100/930
890/750
660/560
570/480
-
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
Upper / Lower
1370
1180
1020
750
680
680
1370
1160
960
750
680
X, J zone:750
Upper & Lower
air flow mode Upper air flow mode

The airflow can be switched in 5 steps such as Auto, Quiet, Lo, Me, Hi,
while the indoor fan only runs.
When Fan mode is set at (Auto), it operates on (Me) Fan Speed.
2. FAN OPERATION
3. COOLING OPERATION (Auto : Cooling)
Switch the airflow [Auto], and the indoor fan motor will run according to a room temperature,
as shown in Fig 8.
On the other hand, if switched in [Hi] [Quiet], the indoor motor will run at a constant airflow of [Cooling]
operation modes Quiet, Lo, Me, Hi.
( Fig.8 : Airflow change - over )
When the room
temperature rises
When the room
temperature drops
TR : Room temperature
Ts : Setting temperature
TR-Ts > +2°C
=
+1°C > TR-Ts
+2°C > TR-Ts > +1°C
=
TR-Ts > +2.5°C
=
+1.5°C > TR-Ts
+2.5°C > TR-Ts > +1.5°C
=
Hi
Me
Lo =
=
=
=
4. DRY OPERATION (Auto : Dry)
During the dry operation, the fan speed setting can not be changed,
it operates automatically as shown in Fig. 8
Room temperature variation which the room temperature sensor of the indoor unit body has detected.
( Fig. 9 : Indoor fan control )
10 30 60 180 60 180 60 10 30 (sec)
Fan OFF
OFF
< Compressor >
ON
Setting air flow
S-Lo
< Indoor fan air flow mode >
< All models >
< All models >
< All models >
01-09

The maximum value of the indoor fan speed is set as shown in Fig 10, based on the detected
temperature by the indoor heat exchanger sensor in heating mode.
< ASYG type >
01-10
5. HEATING OPERATION
Switch the airflow [Auto], and the indoor fan motor will run according to a room temperature,
as shown in Fig 10.
On the other hand, if switched in [Hi] [Quiet], the indoor motor will run at a constant airflow
of [Heat] operation modes Quiet, Lo, Me, Hi, as shown in Table 4.
6. COOL AIR PREVENTION CONTROL (For Heating and Min. Heat operation)
( Fig.10 : Airflow change - over ( Heating : Auto ) )
TR-Ts > -1.5°C
=
-2.5°C > TR-Ts
-1.5°C > TR-Ts > -2.5°C
=
TR-Ts > -1°C
=
-2°C > TR-Ts
-1°C > TR-Ts > -2°C
=
When the room
temperature rises When the room
temperature drops
TR : Room temperature
Ts : Setting temperature
Lo
Me
Me+
42°C
30°C
34°C
When Indoor
heat exchanger
temperature rises When Indoor
heat exchanger
temperature drops
Hi
*Me+ or setting
FAN mode
Cool air
prevention
39°C
37°C
37°C
32°C
28°C
S-Lo
*Lo or setting
FAN mode
29°C
When Indoor
heat exchanger
temperature rises When Indoor
heat exchanger
temperature drops
*Lo or setting
FAN mode
37°C 32°C
24°C
*Hi or setting
FAN mode
S-Lo
During NORMAL HEATING OPERATION
< ARYG type >
*Lower speed is selected
Field setting is necessary at AR and AU type as "Cool air prevention : effective"
TR-Ts > -1.5°C
=
-2.5°C > TR-Ts
-1.5°C> TR-Ts > -2.5°C
=
TR-Ts > -1°C
=
-2°C > TR-Ts
-1°C > TR-Ts > -2°C
=
When the room
temperature rises When the room
temperature drops
Lo
Me
Hi
< AUYG / ARYG / ABYG / AGYG type >
< ASYG type >
( Fig.11 : Airflow change - over for cool air prevention)
*Lower speed is selected

01-11
34°C
When Indoor
heat exchanger
temperature rises When Indoor
heat exchanger
temperature drops
Lo
39°C Auto
When Indoor
heat exchanger
temperature rises When Indoor
heat exchanger
temperature drops
Lo
Auto
32°C
37°C
During MIN. HEAT OPERATION
< ASYG / AUYG / ABYG type > < ARYG type >
< ABYG / AUYG type >
42°C
30°C
34°C
When Indoor
heat exchanger
temperature rises When Indoor
heat exchanger
temperature drops
Hi
*Me+ or setting
FAN mode
Cool air
prevention
39°C
37°C
37°C
32°C
24°C
S-Lo
*Lo or setting
FAN mode
< AGYG type >
*Lower speed is selected
42°C
30°C
31°C
When Indoor
heat exchanger
temperature rises When Indoor
heat exchanger
temperature drops
Hi
*Me or setting
FAN mode
Cool air
prevention
39°C
37°C
34°C
29°C
24°C
S-Lo
*Lo or setting
FAN mode
*Lower speed is selected
31°C
When Indoor
heat exchanger
temperature rises When Indoor
heat exchanger
temperature drops
Lo
39°C Auto
< AGYG type >

1-5. LOUVER CONTROL
Each time the button is pressed, the air direction range
will change as follow:
(Function Range)
(Table9 : Recommended Operation Range)
01-12
Use the air direction adjustments within the ranges shown above.
The vertical airflow direction is set automatically as shown, in accordance with the type of operation selected.
Cooling / Dry mode : Horizontal flow
Heating mode : Downward flow ASYG07/09/12: , ASYG18/24:
When the temperature of the air being blown out is low at the start of heating operation or during
defrosting, the airflow direction temporarily becomes to prevent cold air being blown onto the body.
During use of the Cooling and Dry modes, do not set the Air Flow Direction Louver in the Heating
range ( ) for long period of time, since water vapor many condense near the outlet louvers and
drop of water may drip from the air conditioner. During the Cooling and Dry modes, if the Air Flow
Direction Louvers are left in the heating range for around 30 minutes, they will automatically
return to position .
(Fig.12 : Virtical Air Direction Range)
Cooling / Heating / Dry mode / Fan mode
Cooling / Dry / Fan mode( ) :
Heating / Fan mode( ) : ASYG07/09/12 [ ], ASYG18/24 [ ]
3. SWING OPERATION
When the swing signal is received from the remote controller, the vertical louver starts to swing.
(Swinging Range) 1 3 14
466
Vertical Airflow Swing Operation
Horizontal Airflow Swing Operation ( For ASYG18/24 )
When the swing signal is received from the remote controller, the horizontal louver starts to swing.
Cooling / Heating / Dry / Fan mode :
(Swinging Range) 5
1
Vertical and Horizontal Airflow Swing Operation
When the indoor fan is S-Lo or Stop mode, the swing operation is interrupted
and it stops at either upper end or bottom end.
When the indoor fan is S-Lo or Stop mode, the swing operation is interrupted
and it stops at either upper end or bottom end.
When the horizontal swing signal is input from remote control, the combination of the vertical
and horizontal swing operation is performed.
12345
2. HORIZONTAL LOUVER CONTROL ( For ASYG18/24 )
Horizontal Louver
Each time the button is pressed, the air direction
range will change as follows.
(Function Range)
Cooling / Heating / Dry / Fan mode
(Fig.13 : Horizontal Air Direction Range)
Power Diffuser doesn't swing in any swing operation.
For Compact Wall Mounted Type, Wall Mounted Type < ASYG07/09/12/18/24 >
1. VERTICAL LOUVER CONTROL
Power DiffuserVertical Louver
Vertical Louver
<Wall Mounted Type><Compact Wall Mounted Type>
ASU7/9/12RLF changes by manual.
3 6
4

01-13
1. VERTICAL LOUVER CONTROL
Each time the button is pressed, the air direction range will change as follows:
Use the air direction adjustments within the ranges shown above.
The vertical airflow direction is set automatically as shown, in accordance with the type of operation selected.
(Function Range)
(Fig.14 : Air Direction Range)
(Operation Range)
Cooling / Heating / Dry / Fan mode :
Cooling / Dry / Fan mode Horizontal flow
Heating mode Downward flow
2. SWING OPERATION
When the swing signal is received from the remote controller, the vertical louver starts to swing.
The range of swing depends on the set airflow direction.
When the indoor fan is either at S-Lo or Stop mode, the swinging operation is interrupted
and it stops at either upper end or bottom end.
( Stop mode means Operation stop.)
During AUTO mode operation, for the first minute after start-up, air-flow will be horizontal
; the air direction cannot be adjusted during this period.

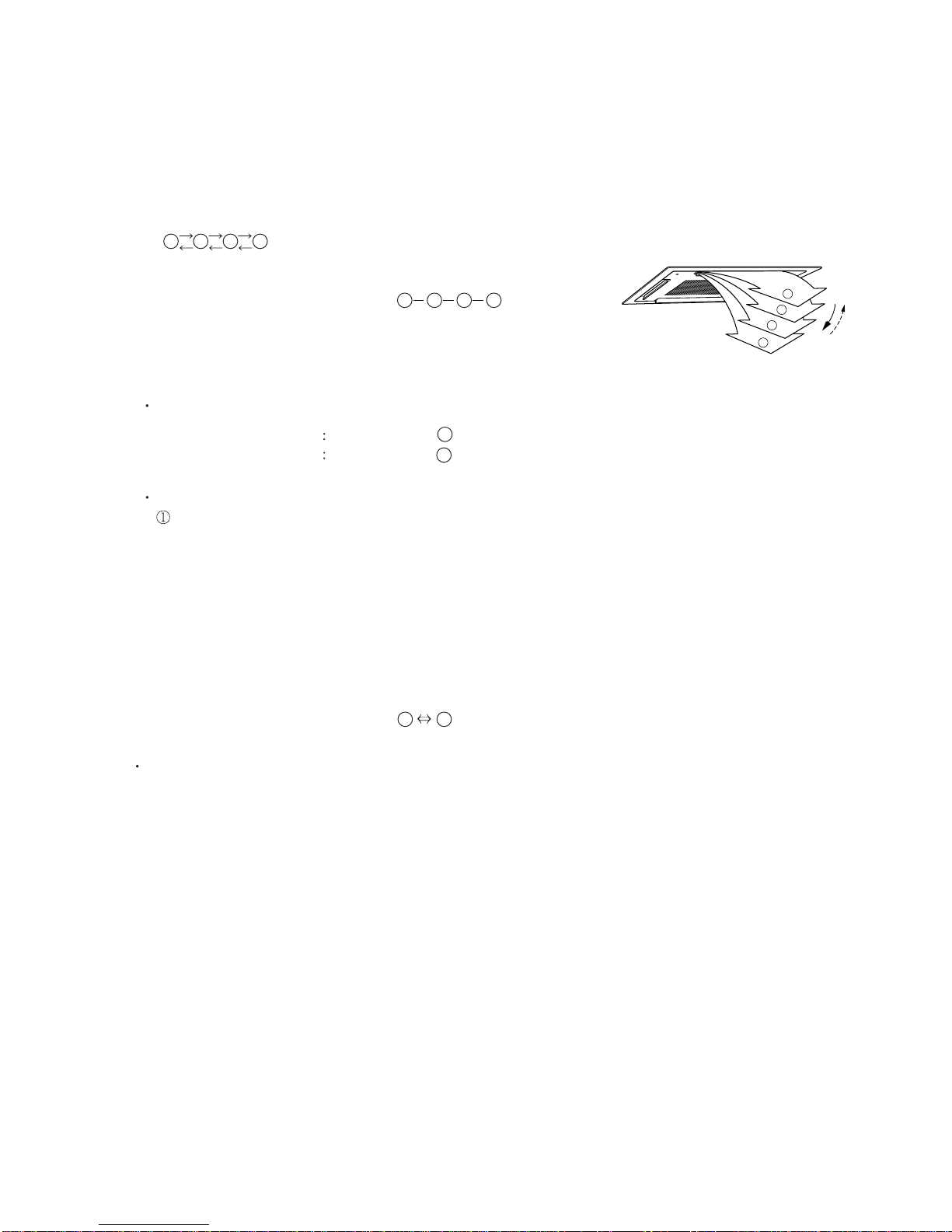

For Compact Cassette Type < AUYG07/09/12/14/18 >
1 2 3 4
1 2 3 4
1
1 4
4
1
2
3
4
(Swinging Range)
Cooling / Heating / Dry / Fan mode :

01-14
( Air Direction Range : Ceiling installation)
For Floor / Ceiling Type < ABYG14/18 >
1-1. VERTICAL LOUVER CONTROL
Each time the button is pressed, the air direction range will
change as follows:
Use the air direction adjustments within the ranges shown above.
The vertical airflow direction is set automatically as shown, in accordance with the type of operation selected.
Cooling / Dry / Fan mode Horizontal flow
Heating mode Downward flow
(Function Range)
(Operation Range)
1-2. SWING OPERATION
When the swing signal is received from the remote controller, the vertical louver starts to swing.
The range of swing depends on the set airflow direction.
When the indoor fan is either at S-Lo or Stop mode, the swinging operation is interrupted
and it stops at either upper end or bottom end.
The indoor fan motor starts after the louver reaches to the setting position.
( Stop mode means Operation stop.)
1
4
5
6
7
32
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1
7
(Swinging Range)
7
Cooling / Dry / Fan mode
Heating mode
6
7
( Air Direction Range : Floor installation)
Cooling / Heating / Dry / Fan mode :

2-1. HORIZONTAL LOUVER CONTROL
Each time the button is pressed, the air direction range will
change as follows:
Cooling / Heating / Dry / Fan mode :
Use the air direction adjustments within the ranges shown above.
(Function Range)
(Air Direction Range : Ceiling installation)
(Operation Range)
2-2. SWING OPERATION
When the swing signal is received from the remote controller, the horizontal louver starts to swing.
The range of swing depends on the set airflow direction.
When the indoor fan is either at S-Lo or Stop mode, the swinging operation is interrupted
and it stops at either upper end or bottom end.
01-15
( Stop mode means Operation stop.)
1 2 3 4 5
1 2 3 4 5
1345
2
(Swinging Range)
Cooling / Heating / Dry / Fan mode 5
1 2 3 4 5
(Air Direction Range : Floor installation)

01-16
For Floor Type < AGYG09/12/14 >
1. VERTICAL LOUVER CONTROL
2. SWING OPERATION
Each time the button is pressed,
the air direction range will change as follows:
Use the air direction adjustments within the ranges shown above.
The vertical airflow direction is set automatically as shown, in accordance with the type of operation selected.
Cooling / Dry / Fan mode Horizontal flow
Heating mode Downward flow
When the temperature of the air being blown out is low at the start of heating operation or during
defrosting, the airflow direction temporarily becomes to prevent cold air being blown onto the body.
During Monitor operation in AUTO CHANGEOVER mode, the airflow direction automatically
becomes , and it cannot be adjusted.
(Function and Operation Range)
When the swing signal is received from the remote controller, the vertical louver starts to swing .
(Swinging Range)
When the indoor fan is either at S-Lo or Stop mode, the swinging operation is interrrupted
and it stops at either upper end or bottom end.
(Air Direction Range)
Cooling / Heating / Dry / Fan mode :

1-6. OUTDOOR FAN CONTROL
( Table 5 : Outdoor fan speed table)
01-17
1. Fan speed table
Table 5 shows the fan speed of the outdoor unit.
0
1
2
3
4
5
6
7
8
9
10
11
[rpm]
AOYG45LAT8
Fan step
0
250
290
340
390
460
580
690
800
890
910
950
Fan speed
*
*If the fan motor is running over than 400rpm, it start up process is stopped in all conditions. [ Prevent the big wind operation ]
When the fan motor is stopped, it can not restart for 10 seconds.
*
< Heating mode >
3. Initial fan speed control
< Cooling and Dry mode >
690rpm
10°C
Outdoor
temperature
890rpm
30°C 580 ~ 890rpm
20°C 250 ~ 890rpm
10°C 0 ~ 890rpm
Outdoor
temperature 460 ~ 910rpm
5°C 460 ~ 950rpm
Outdoor
temperature
2. Limit of fan speed range
< Cooling and Dry mode >
Fig.15 shows the limit of fan speed range changes by outdoor temperature.
< Heating mode >
Fixed at 690rpm
390rpm
Initial fan speed is decided by outdoor temperature.
( Fig.15 : Limit of fan speed range )
( Fig.16 : Initial fan speed range )
Even if during EEV initialization, outdoor unit fan starts.

1-7. COMPRESSOR CONTROL
1. OPERATION SPEED RANGE
The operation speed of the compressor is different based on the operation mode as
shown in theTable 6.
Heating
Minimum Maximum
( Table 6 : Compressor operation speed range )
2. OPERATION SPEED CONTROL AT START-UP
The compressor speed soon after the start-up is controlled as following.
( Fig.17 : Pttern 1)
01-18
33
90
40
47
180 240
AOYG45LAT8 18rps 96rps
2-1 Cooling and Dry mode start-up procces
< Pattern 1 >
Dry / Cooling
Minimum Maximum
18rps 90rps
70
54
(rps)
Upper
limit
speed
(sec)300 330
20
90
33
40
180 240
54
47
(rps)
Upper
limit
speed
(sec)300 360
70
390
Elapsed time
Elapsed time
< Pattern 2 >
If it does not meet the condition of pattern 2, the compressor will start at pattern 1.
( Fig.18 : Pattern 2)
Over 32°C
Below 3 hours
Target pressure control
Start-up procces 2
Oil recovery / Defrost
Compressor control
before operation stops Stop time of
compressor Compressor
temperature
Condition
1
2
3
If it meets one of the following conditions, the compressor will start at pattern 2.

( Fig.19 : Heating start-up pattern 1)
33
90
40
47
690 720
2-2 Heating mode start-up procces
< Pattern 1 >
70
60
(rps)
Upper
limit
speed
(sec)780 840
Elapsed time
( Fig.20 : Heating start-up pattern 2)
20
90
33
40
150 210
60
47
(rps)
Upper
limit
speed
(sec)270 330
70
390
Elapsed time
< Pattern 2 >
3. LIMIT OF THE COMPRESSOR SPEED RANGE
The compressor speed range is limited by outdoor temperature as shown in Fig.21
21 ~ 90rps
40°C 18 ~ 90rps
10°C 25 ~ 90rps
-5°C 27 ~ 90rps
-10°C * 0rps
*Protection stop for low outdoor temperature.
It will be released when outdoor temperature
becomes over than -10°C
Outdoor
temperature 21 ~ 90rps
12°C 18 ~ 96rps
5°C 23 ~ 96rps
-15°C 25 ~ 96rps
Outdoor
temperature
< Cooling and Dry mode > < Heating mode >
( Fig.21 : Limit of the compressor speed range )
01-19
If it does not meet the condition of pattern 2, the compressor will start at pattern 1.
Over 32°C
Below 3 hours
Target pressure control
Start-up procces 2
Oil recovery / Defrost
Compressor control
before operation stops Stop time of
compressor Compressor
temperature
Condition
1
2
3
If it meets one of the following conditions, the compressor will start at pattern 2.
