DESIGN & TECHNICAL MANUAL
INDOOR
OUTDOOR
AOU9RLFC
AOU12RLFC
AOU18RLFC
AUU9RLF
AUU12RLF
AUU18RLF
AIR CONDITIONER
Cassette type

DTR_AU051E_01
2013.02.28
1. INDOOR UNIT
CASSETTE TYPE :
AUU9RLF
AUU12RLF
AUU18RLF

CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF
CONTENTS
1. INDOOR UNIT
1. FEATURES.............................................................................................................. 01 - 01
2. REMOTE CONTROLLER............................................................................. 01 - 03
3. SPECIFICATIONS.............................................................................................. 01 - 05

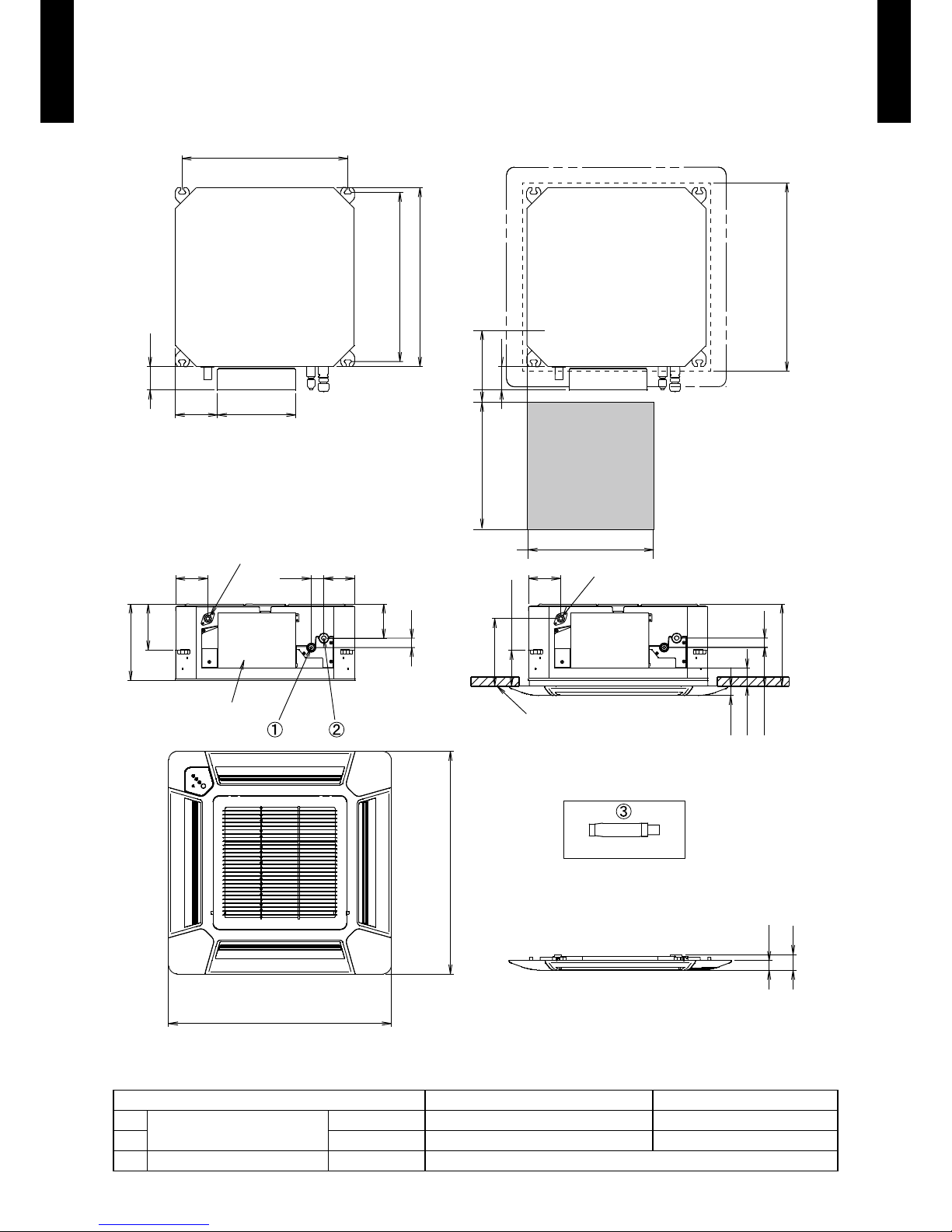

4. DIMENSIONS ........................................................................................................ 01 - 06
5. WIRING DIAGRAMS........................................................................................ 01 - 08
6. CAPACITY TABLE ............................................................................................ 01 - 09
6-1. COOLING CAPACITY ....................................................................................... 01 - 09
6-2. HEATING CAPACITY .........................................................................................01 - 11
7. FAN PERFORMANCE.................................................................................... 01 - 13

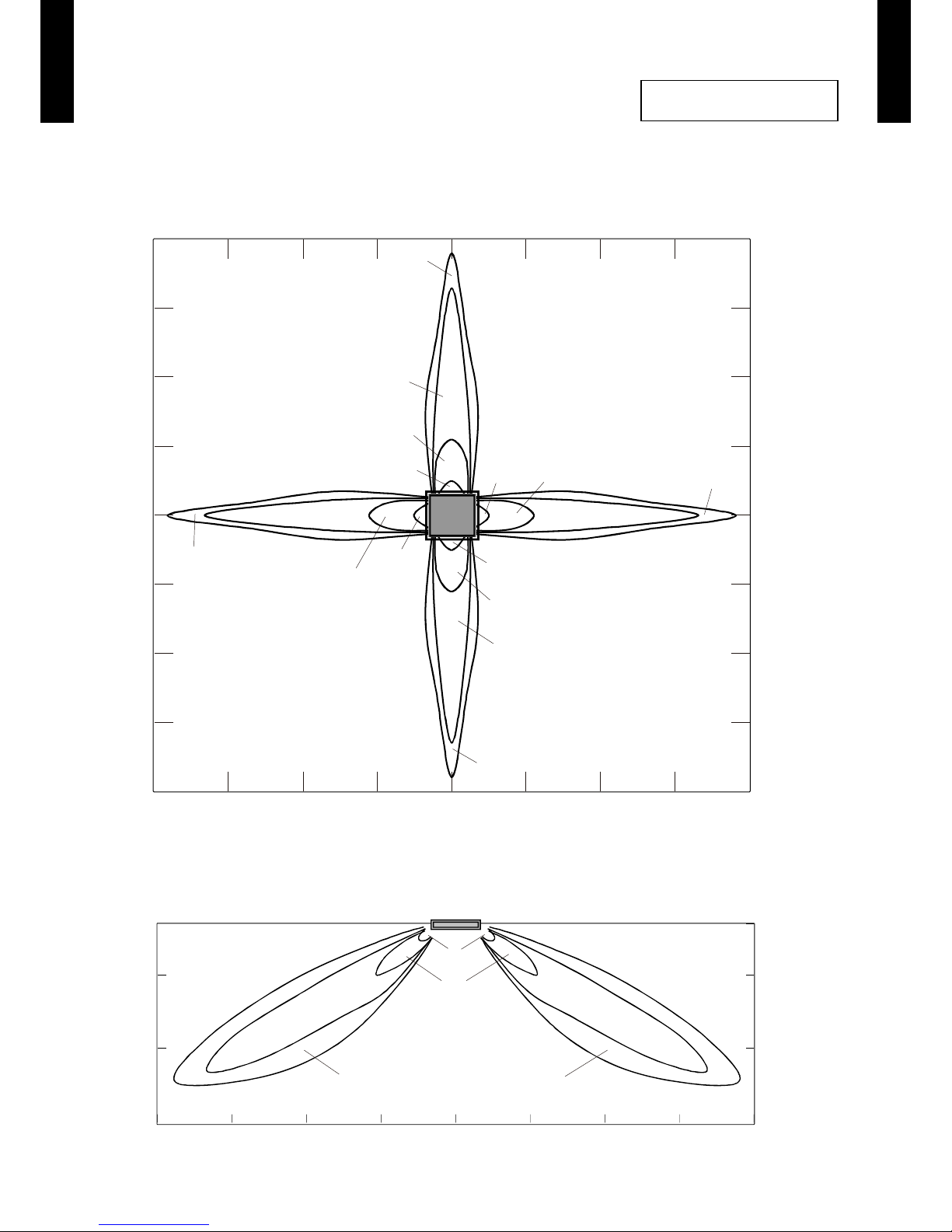

7-1. AIR VELOCITY DISTRIBUTION ...................................................................... 01 - 13
7-2. AIRFLOW ............................................................................................................ 01 - 19
7-2-1. STANDARD CEILING MODE .................................................................. 01 - 19
7-2-2. HIGH CEILING MODE ............................................................................. 01 - 22
8. OPERATION NOISE (SOUND PRESSURE)................................. 01 - 25
8-1. NOISE LEVEL CURVE...................................................................................... 01 - 25
8-2. SOUND LEVEL CHECK POINT ...................................................................... 01 - 27
9. ELECTRIC CHARACTERISTICS........................................................... 01 - 28
10. SAFETY DEVICES ............................................................................................ 01 - 29
11. EXTERNAL INPUT & OUTPUT............................................................... 01 - 30
11-1. EXTERNAL INPUT............................................................................................. 01 - 30
11-2. EXTERNAL OUTPUT ........................................................................................ 01 - 31
12. FUNCTION SETTINGS .................................................................................. 01 - 33
12-1. INDOOR UNIT..................................................................................................... 01 - 33
12-2. INDOOR UNIT (Setting by remote controller) ............................................ 01 - 34
12-3. WIRED REMOTE CONTROLLER ................................................................... 01 - 38
13. OPTIONAL PARTS ........................................................................................... 01 - 41
13-1. CONTROLLERS................................................................................................. 01 - 41
13-2. CASSETTE GRILLE .......................................................................................... 01 - 41
13-3. OTHERS .............................................................................................................. 01 - 42

- (01 - 01) -
CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF
FEATURES1.
MODEL

AUU9RLF / AOU9RLFC
AUU12RLF / AOU12RLFC
AUU18RLF / AOU18RLFC
FEATURES

Energy saving
z
All DC design•
Heat exchange efciency increased and larger air ow by adoption of new type turbo fan•
2-stage turbo fan
z
High efciency design by 2 stage structure
+
2 stage
Previous turbo fan
In the case of a
conventional fan, the air
outlet range was narrow
as the airow moved to
the motor side which
meant the velocity of air
passing through the heat
exchanger was uneven.
2-stage turbo fan
A evenly spread air distribution across
the heat exchanger is possible due
to the new 2 stage turbo fan which
produces two separate airow
streams.
Heat exchange
efciency:
20%UP
1-stage
2-stage
Wind
velocity
Fast
Slow
Easy maintenance
z
Maintenance of fan motor and fan
Maintenance of the fan motor and fan can be done easily after taking off the panel as the bell mouth of the fan
can be removed easily.
A : Fan motor B : 2-stage turbo fan
C : Bell-mouth D : Panel

Long life lter
: standard equipment

Adaptation of transparent drainage parts
During installation, maintenance and operation, the drain pump and
kit can be checked easily.
Compact design
z
Easy installation by taking off ceiling panel of 23-5/8in. x 23-5/8in.(600mm x 600mm) size
22-7/16in.
(570mm) 22-7/16in.
(570mm)
High lift drain pump
z
27-9/16in.
(700mm)
Quiet quality
z
Optimization of wing form (laminar
wing type) and wing number (7 blades
each)
Airow runs through smoothly
along the laminar wing
No airow separation
Adoption of laminar wing
Spin direction Airow direction
Quiet
Quiet
Designed by CFD-analysis (uid) simulations
Laminar wing
A
B
C
D
2
3
1
Grille cover
Easy installation
z
Easy setting by wireless or
wired remote controller

- (01 - 02) -
CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF
MIN. HEAT Operation
z
The room temperature can be set to go no lower than 50°F (10°C),
thus ensuring that the room does not get too cold when not occupied.
Caution)
When the room temperature is higher than 50°F (10°C), “•MIN. HEAT” operation will not start. Operation starts and maintains the room
temperature at 50°F (10°C) when the temperature drops below 50°F (10°C).
When “•MIN. HEAT” operation stops, the room set temperature quickly returns to the preset temperature.
Economy operation
z
The power consumption can be reduced.
FUNCTION SETTING


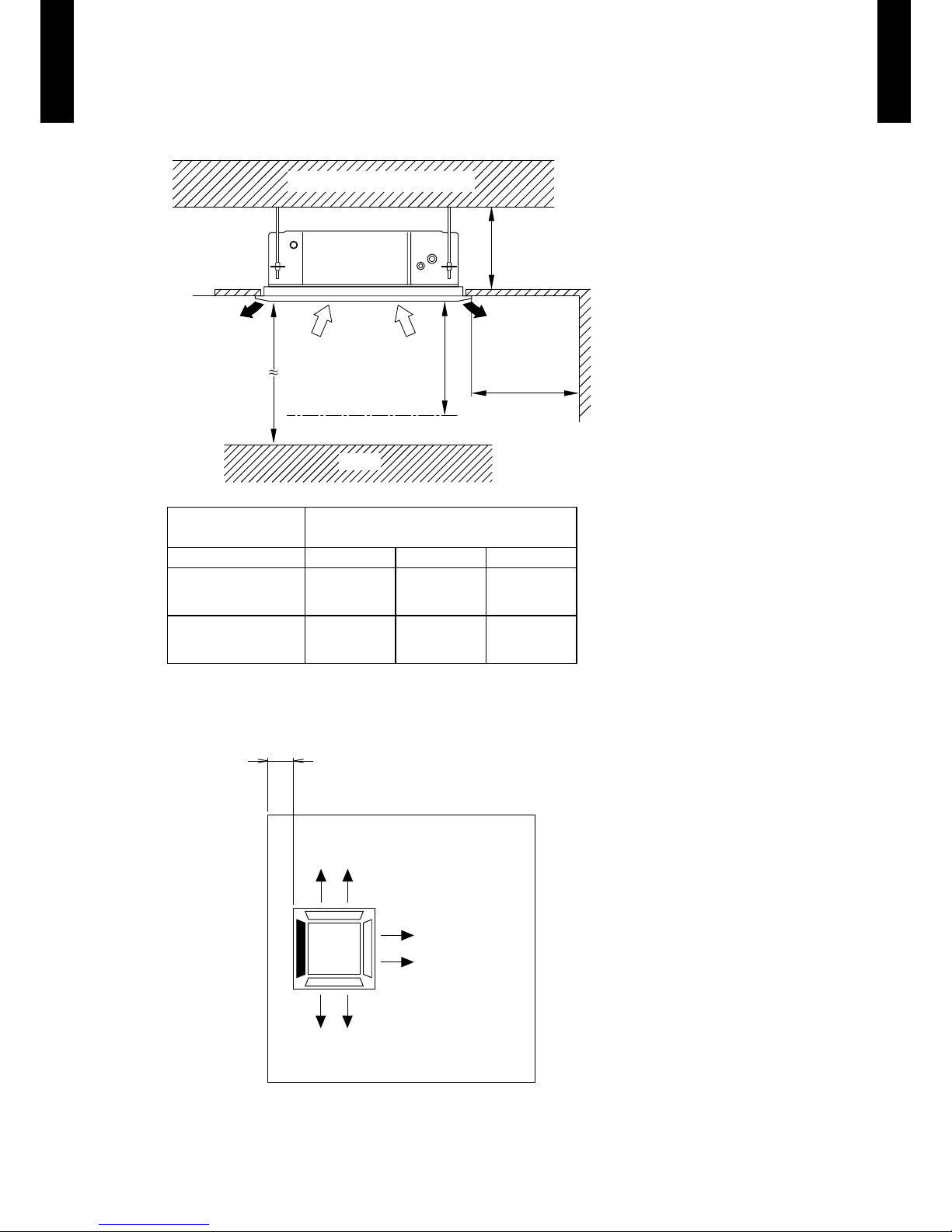

Outlet direction selection
z
Performs operation matched to the number of outlets when 4 directions are unnecessary and•
outlets are blocked when the ceiling cassette is installed in a corner, etc.
Ceiling switching function
z
Air reaches sufciently up to 9ft. (3m) height, even it is compact cassette type.
Also delivers air to high ceilings by selecting the mode and raising the air ow according to the
height of the ceiling.
Standard ...Operates at normal airow.
Mode 1 ...Airow becomes greater than normal.
Cooling room temperature correction
z
Heating room temperature correction
z
Auto restart
z
The unit will restart automatically when the current returns even when there is a power interruption
during operation.
68°F
(20°C)
50°F
(10°C)
“MIN. HEAT”
Button ON
Indoor unit
operation START
4-way direction 3-way direction
4-way direction mode: Set when there are 4 outlets
(shipped state).
3-way direction mode: Set when there are 3 outlets.
9ft.
(3m)
8ft.
(2.7m)
High ceiling (Mode 1) Standard ceiling (Standard)

- (01 - 03) -
CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF

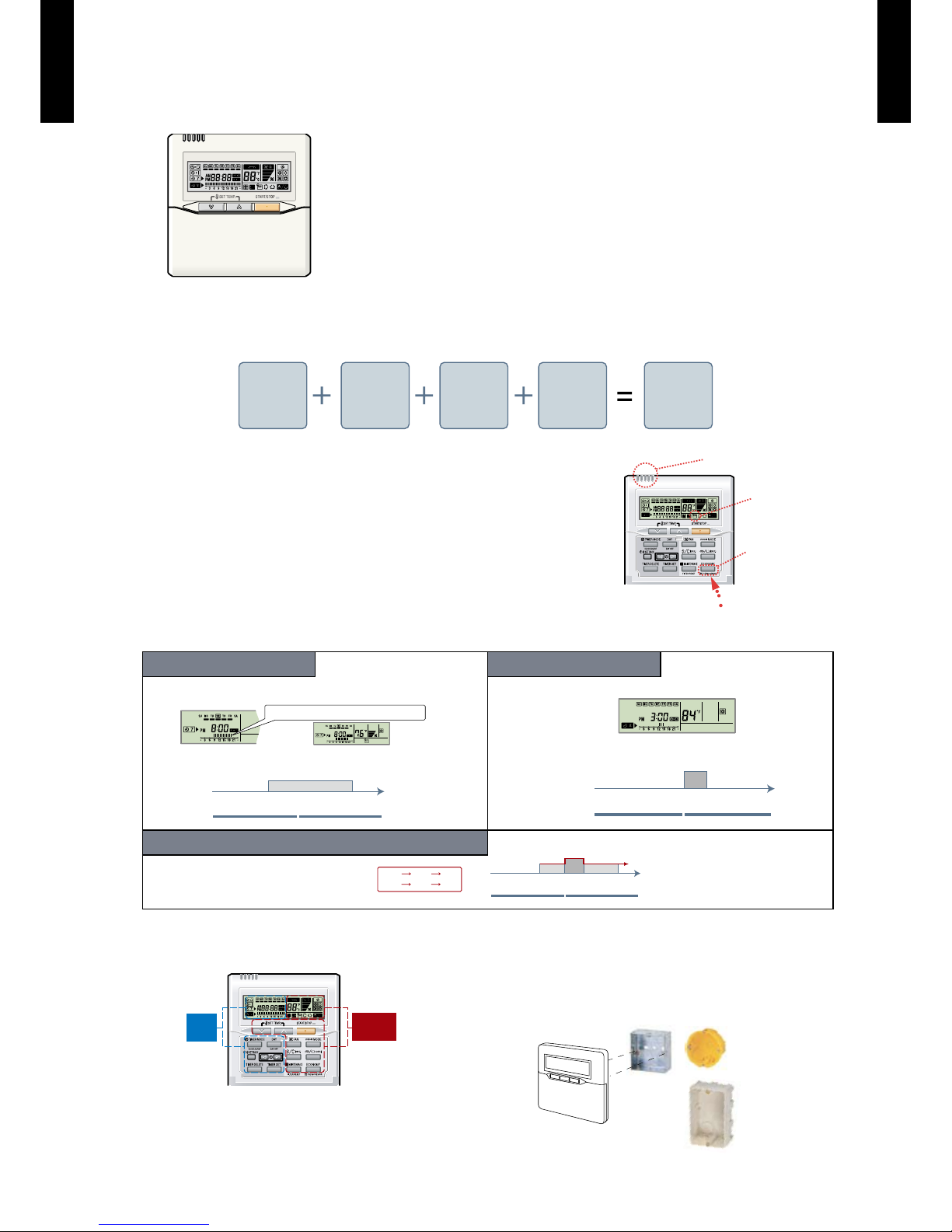

REMOTE CONTROLLER2.
WIRED REMOTE CONTROLLER
FEATURES

High performance and compact size
z
Thermo
sensor
Individual
control
Weekly
timer
Setback
timer
Wired
remote
controller
Sensor part
Thermo sensor
display
Control part for
changing the
thermo sensor
Accurate and comfortable
z
Indoor temperature can be detected accurately by the inclusion of a
thermo sensor in the body of the wired controller.
Our system can correspond to various scenes.
This wired remote controller and the optional remote sensor allows
exibility in sensor location, and suitable for all requirements.
Built-in timers
z
Weekly timer Setback timer
Possible to set ON/OFF time to operate twice each day of the
week.
Possible to set temperature for two time spans and for each
day of the week.
At "Weekly timer" + "Set back timer" setup
76°F (24°C)
0 3 6 9 12 15 18 21 O'clock
12 3 6 9 12 3 6 9
time
AM PM
Easy-to-understand time bar display
Example : setup screen
(Set to Wednesday: 8:00 to 20:00.)
Screen
after setup
84°F (28°C)
0 3 6 9 12 15 18 21 O'clock
12 3 6 9 12 3 6 9
time
AM PM
Example : setup screen
(Set from Sunday to Saturday: 12:00 to 15:00, 84°F (28°C).)
76°F 84°F 76°F 0 3 6 9 12 15 18 21 O'clock
12 3 6 9 12 3 6 9
time
AM PM
76°F (24°C) 84°F (28°C)
24°C 28°C 24°C
Easy-to-understand operation
z
[Variable timer control]
The operation/display sections are zoned according
to time and operation, enabling variable programming
to match application.
Simple installation
z
Components are compatible with standard switch
boxes. Flat back surface allows equipment to be
installed wherever it is needed.
Timer
area
Operation
area
European
switch box
JIS box
Various timer setup available (ON/OFF/WEEKLY).●
Equipped with weekly timer as standard function. ●
(Start/Stop function is twice per day for a week)
When setting up the timer, start/stop and temperature setup can ●
be changed.
When a failure occurs, the error code is displayed.●
Error history.(Last 16 error codes can be accessed.)●
The room temperature can be controlled by detecting the ●
temperature accurately with Built-in thermo sensor.

- (01 - 04) -
CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF

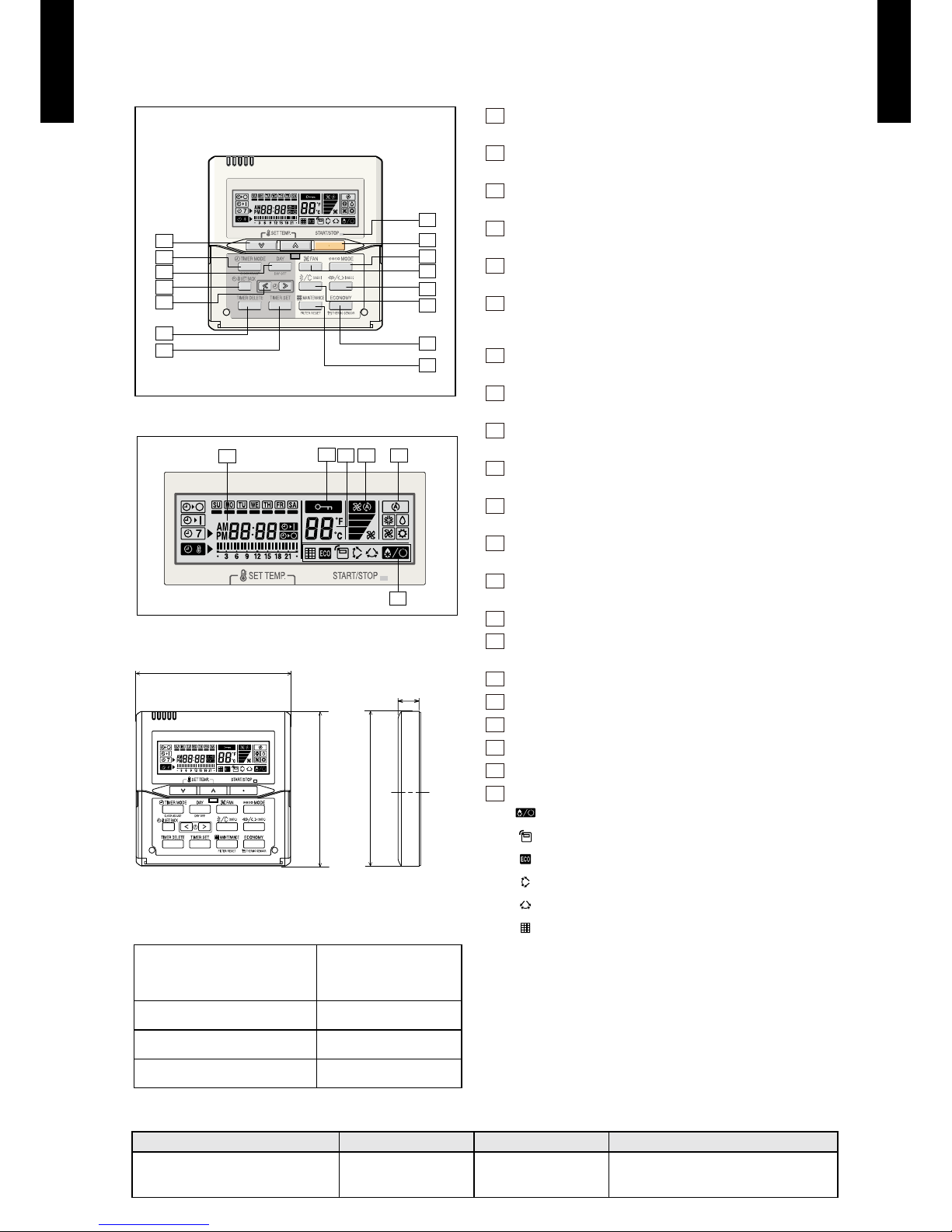

FUNCTIONS

Display panel
DIMENSION

SPECIFICATION

15
11
10
9
8
21
3
5
14
4
12
13
6
7
17
16 18
19 20
21
4-23/32 (120)
4-23/32 (120)
4-23/32 (120)
23/32 (18)
Side ViewFront View
SIZE [H x W x D]: in.(mm) 4-23/32 x 4-23/32 x 23/32
(120 x 120 x 18)
WEIGHT oz. (g) 5.6 (160)
CABLE LENGTH ft. (m) 33 (10)
POWER (V) 12
1START/STOP button
Pressed to start and stop operation.
2SET TEMP. button
Selects the setting temperature.
3MODE button
Selects the operating mode (AUTO, HEAT, FAN, COOL, DRY).
4FAN button
Selects the fan speed (AUTO, QUIET, LOW, MED, HIGH).
5ECONOMY (THERMO SENSOR) button
Turns the economy efcient mode on and off.
6TIMER MODE (CLOCK ADJUST) button
Selects the timer mode (OFF TIMER, ON TIMER, WEEKLY
TIMER). Sets the current time.
7DAY (DAY OFF) button
Temporarily cancels one day timer.
8SET BACK button
Pressed to select the set back timer.
9Set time button
Pressed to set time.
10 TIMER DELETE button
Deletes the weekly timer schedule.
11 TIMER SET button
Sets the date, hour, minute and on-off time.
12  Verticalairowdirectionandswingbutton
Push for two seconds to change the swing mode.
13  Horizontalairowdirectionandswingbutton
Push for two seconds to change the swing mode.
14 FILTER RESET button
15 Operation lamp
Lights during operation and when the timer is on.
16 Timer and clock display
17 Operation mode display
18 Fan speed display
19 Operation lock display
20 Temperature display
21 Function display
Defrost display
Thermo sensor display
Economy display
Vertical swing display
Horizontal swing display
Filter display
Functions will be different due to type of indoor unit.
For details, please see operation manual.
WIRING SPECIFICATIONS

Use Cable size Wire type Remarks
Remote controller cable 22AWG
(0.33 mm2)Polar 3 core Use sheathed PVC cable
[Unit : in. (mm)]

- (01 - 05) -
CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF
SPECIFICATIONS3.
Note :
Specications are based on the following conditions.
Cooling : Indoor temperature of 80°F (26.67°C) DB / 67°F (19.44°C) WB, and outdoor temperature of 95°F (35°C) DB / 75°F (23.9°C) WB.
Heating : Indoor temperature of 70°F (21.11°C) DB / 59°F (15°C) WB, and outdoor temperature of 47°F (8.33°C) DB / 43°F (6.11°C) WB.
Pipe length : 24ft.7in (7.5m), Height difference:0 m. (Outdoor unit-Indoor unit)
The protective function may work when using it outside the operation range.
*: The maximum current is the maximum value when operated within the operation range.
Type COMPACT CASSETTE MODEL
INVERTER HEAT PUMP
Model name AUU9RLF AUU12RLF AUU18RLF
Power source 208 / 230V ~ 60Hz
Available boltage range 187 - 253V ~ 60Hz
Capacity
Cooling
Rated kW 2.64 3.52 5.28
Btu/h 9,000 12,000 18,000
Min - Max kW 0.90 - 3.60 0.90 - 4.00 0.90 - 5.90
Btu/h 3,100 - 12,000 3,100 - 13,600 3,100 - 20,100
Heating
Rated kW 3.52 4.69 6.33
Btu/h 12,000 16,000 21,600
Min - Max kW 0.90 - 5.28 0.90 - 5.70 0.90 - 7.50
Btu/h 3,100 - 18,000 3,100 - 19,400 3,100 - 25,600
Input power
Cooling Rated
kW
0.62 0.94 1.61
Max 1.40 1.45 2.15
Heating Rated 0.89 1.44 1.76
Max 1.80 2.00 2.60
Current Cooling Rated A3.0 4.4 7.1
Heating 4.1 6.7 7.7
EER Cooling kW/kW 4.25 3.74 3.28
Btu/hW 14.5 12.8 11.2
COP Heating kW/kW 3.95 3.25 3.59
Btu/hW 13.5 11.1 12.3
SEER Cooling Btu/hW 24.0 21.9 20.1
HSPF Heating Btu/hW 13.0 12.2 11. 5
Power factor Cooling %90 94 98
Heating 94 94 99
Moisture removal pints/h (l/h) 1.3 (0.6) 2.5 (1.2) 4.6 (2.2)
Maximum operating current * Cooling A9.3 9.4 10.0
Heating 10.8 10.9 14.0
Fan
Airow rate
Cooling
High
CFM
(m3/h)
318 (540) 359 (610) 400 (680)
Med 288 (490) 312 (530) 341 (580)
Low 259 (440) 277 (470) 288 (490)
Quiet 230 (390) 241 (410) 241 (410)
Heating
High 318 (540) 359 (610) 471 (800)
Med 288 (490) 312 (530) 400 (680)
Low 259 (440) 277 (470) 341 (580)
Quiet 230 (390) 241 (410) 265 (450)
Type × Q'ty Turbo fan × 1
Motor Output W 54 54 54
Sound pressure level
Cooling
High
dB (A)
33 37 40
Med 32 33 36
Low 29 31 32
Quiet 28 28 28
Heating
High 34 37 44
Med 32 33 40
Low 29 31 36
Quiet 27 28 30
Heat exchanger type
Dimensions
(H × W × D) in. (mm) 8-9/32 × 51-9/16 × 17/32 + 8-9/32 × 49-7/32 × 17/32
(210×1310×13.3 + 210×1250×13.3)
Fin pitch FPI 21
Rows × Stages 2 × 10
Pipe type Copper tube
Fin type Aluminum
Dimensions
(H × W × D)
Net in. (mm) 9-21/32 × 22-7/16 × 22-7/16 (245×570×570)
Gross 10-7/16 × 28-3/4 × 24-19/32 (265×730×625)
Weight Net lbs. (kg) 33 (15)
Gross 40 (18)
Connection pipe Size Liquid in. (mm) Ø1/4 (Ø6.35)
Gas Ø3/8 (Ø9.52) Ø1/2 (Ø12.7)
Method Flare
Operation range Cooling °F (°C) 64 to 90 (18 to 32)
%RH 80 or less
Heating °F (°C) 60 to 88 (16 to 30)
Remote controller type Wired [Wireless(option)]
Drain hose
Material HARD PVC
Size in. (mm) Ø3/4 (Ø20.7) (I.D.)
Ø1-1/16 (Ø26.6) (O.D.)
Cassette
grille
Model name UTG-CCGF
Material PS
Color WHITE
(Approximate color of MUNSELL N9.25 /)
Dimensions
(H × W × D)
Net in. (mm) 1-15/16 × 27-9/16 × 27-9/16 (49 × 700 × 700)
Gross 4-23/32 × 30-1/8 × 29-23/32 (120 × 765 × 755)
Weight Net lbs. (kg) 5.7 (2.6)
Gross 10 (4.5)

- (01 - 06) -
CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF
DIMENSIONS4.
MODEL
 : AUU9RLF, AUU12RLF, AUU18RLF
Unit : in.(mm)
(Drain hose)
20-7/8 (530): Hanging bolt position
4-1/32 (102)
5-5/16
(135) 9-27/32 (250)
27-9/16 (700)
27-9/16 (700)
2-15/16 (75)
1-3/16 (30)
1-3/16 (30)
10-5/16 (262)
21-1/4 (540): Hanging bolt position
Ƒ,QGRRUXQLW
ƑWRWR : Ceiling openings
 &DVVHWWHJULOOHPRXQWLQJVWDWH
Top view
5-29/32 to 7-7/8 (150 to 200)Min. 17-23/32 (450)
Min. 17-23/32 (450)
Maintenance space
6LGHYLHZ
8-15/32 (215)
4-27/32 (123)
2-9/32 (58)
4-1/2 (114)
5-3/4 (146)
4-1/4 (108)
4-1/32 (102)
9-21/32 (245)
1-3/16 (30)
1-9/16 (40) 3-29/32 (99)
Drain port
Control box
Ceiling
Drain port
Be sXre to leave
maintenance space
for fXtXre service
at the GesignateG
position.
Bottom view
1-3/16 (30) 1-15/16 (49)
6LGHYLHZ
AUU9RLF, AUU12RLF AUU18RLF
Refrigerant pipe are
connection
Liquid Ø1/4 in. (Ø6.35 mm) Ø1/4 in. (Ø6.35 mm)
Gas Ø3/8 in. (Ø9.52 mm) Ø1/2 in. (Ø12.70 mm)
Drain hose connection Drain hose I.D. Ø3/4 in. , O.D. Ø1-1/16 in.

- (01 - 07) -
CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF
INSTALLATION PLACE

39-3/8 (1000)
or more
39-3/8 (1000)
or more
94-1/2 (2400)
or more
10-5/16 (262)
or more
Strong and durable ceiling
Obstruction
Floor
H
H (The maximum height from oor to
ceiling) Unit: in. (mm)
Model name AUU9 AUU12 AUU18
Standard mode 106-5/16
(2700)
106-5/16
(2700)
106-5/16
(2700)
High Ceiling mode -118 -1/8
(3000)
118 -1/8
(3000)
3-way directions setting
z
3-15/16 (100) or more
*
To set “3-way directions”, the air outlet shutter plate (UTR-YDZB) sold separately must be
installed and “outlet-direction” switched to “3-way” by remote controller.
*When installing the indoor unit, be careful about the maintenance space.
Unit : in. (mm)

- (01 - 08) -
CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF
WIRING DIAGRAMS5.
MODEL
 : AUU9RLF, AUU12RLF, AUU18RLF

- (01 - 09) -
CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF
CAPACITY TABLE6.
COOLING CAPACITY6-1.
MODEL
 : AUU9RLF
AFR : Air Flow Rate (CFM)
TC : Total Capacity (kBtu/h)
SHC : Sensible Heat Capacity (kBtu/h)
IP : Input Power (kW)
AFR : Air Flow Rate (m3/min)
TC : Total Capacity (kW)
SHC : Sensible Heat Capacity (kW)
IP : Input Power (kW)
MODEL
 : AUU12RLF
AFR : Air Flow Rate (CFM)
TC : Total Capacity (kBtu/h)
SHC : Sensible Heat Capacity (kBtu/h)
IP : Input Power (kW)
AFR : Air Flow Rate (m3/min)
TC : Total Capacity (kW)
SHC : Sensible Heat Capacity (kW)
IP : Input Power (kW)
AFR 318
Indoor temperature
°FDB 64 70 75 80 85 90
°FWB 54 60 53 67 71 73
Outdoor temperature
°FDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
67 8.4 6.8 0.47 9.5 6.8 0.48 10.1 7.5 0.49 10.8 7.9 0.49 11.5 8.1 0.50 11.9 9.0 0.50
77 8.0 6.7 0.53 9.1 6.7 0.54 9.6 7.4 0.55 10.2 7.8 0.55 10.9 7.9 0.56 11.3 8.8 0.56
87 7.6 6.5 0.60 8.6 6.5 0.61 9.0 7.1 0.61 9.7 7.5 0.62 10.4 7.7 0.62 10.7 8.5 0.63
95 7.1 6.2 0.60 8.0 6.2 0.61 8.4 6.9 0.61 9.0 7.2 0.62 9.6 7. 4 0.63 9.9 8.2 0.63
104 6.0 5.8 0.51 6.8 5.8 0.52 7.1 6.3 0.52 7.7 6.7 0.53 8.2 6.8 0.53 8.4 7.6 0.54
115 5.5 5.4 0.51 6.2 5.4 0.52 6.6 5.9 0.52 7.0 6.2 0.53 7. 5 6.4 0.54 7. 8 7.1 0.54
AFR 9.0
Indoor temperature
°CDB 17. 8 21.1 23.9 26.7 29.4 32.2
°CWB 12.2 15.6 17.7 19.4 21.7 22.8
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
19.4 2.47 2.00 0.47 2.80 2.00 0.48 2.95 2.20 0.49 3.16 2.31 0.49 3.37 2.37 0.50 3.48 2.63 0.50
25.0 2.35 1.97 0.53 2.66 1.97 0.54 2.80 2.17 0.55 3.00 2.28 0.55 3.20 2.33 0.56 3.30 2.59 0.56
30.6 2.23 1.90 0.60 2.51 1.90 0.61 2.65 2.09 0.61 2.84 2.20 0.62 3.03 2.25 0.62 3 .13 2.50 0.63
35.0 2.07 1.83 0.60 2.34 1.82 0.61 2.46 2.01 0.61 2.64 2.11 0.62 2.82 2.16 0.63 2.91 2.40 0.63
40.0 1.76 1.69 0.51 1.99 1.69 0.52 2.09 1.86 0.52 2.24 1.95 0.53 2.40 2.00 0.53 2.47 2.22 0.54
46.0 1.62 1.57 0.51 1.83 1.57 0.52 1.93 1.73 0.52 2.06 1.82 0.53 2.20 1.86 0.54 2.27 2.07 0.54
AFR 359
Indoor temperature
°FDB 64 70 75 80 85 90
°FWB 54 60 53 67 71 73
Outdoor temperature
°FDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
67 11.3 8.3 0.72 12.7 8.3 0.73 13.4 9.1 0.74 14.4 9.6 0.75 15.3 9.8 0.75 15.8 10.9 0.76
77 10.7 8.2 0.81 12 .1 8.2 0.82 12.7 9.0 0.83 13.6 9.4 0.84 14.6 9.7 0.85 15.0 10.7 0.85
87 10.1 7. 9 0.90 11.4 7.9 0.92 12.1 8.7 0.93 12.9 9.1 0.94 13.8 9.3 0.95 14.2 10.4 0.95
95 9.4 7.6 0.91 10.6 7.6 0.92 11.2 8.3 0.93 12.0 8.8 0.94 12.8 9.0 0.95 13.2 10.0 0.96
104 8.0 7.0 0.77 9.0 7.0 0.79 9.5 7.7 0.79 10.2 8.1 0.80 10.9 8.3 0.81 11.2 9.2 0.81
115 7.4 6.6 0.78 8.3 6.6 0.79 8.8 7. 2 0.80 9.4 7.6 0.80 10.1 7.8 0.81 10.4 8.6 0.82
AFR 10.2
Indoor temperature
°CDB 17. 8 21.1 23.9 26.7 29.4 32.2
°CWB 12.2 15.6 17.7 19.4 21.7 22.8
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
19.4 3.30 2.43 0.72 3.73 2.43 0.73 3.93 2.68 0.74 4.21 2.81 0.75 4.50 2.88 0.75 4.64 3.20 0.76
25.0 3.13 2.39 0.81 3.54 2.39 0.82 3.73 2.64 0.83 4.00 2.77 0.84 4.27 2.83 0.85 4.40 3.15 0.85
30.6 2.97 2.31 0.90 3.35 2.31 0.92 3.53 2.55 0.93 3.78 2.67 0.94 4.05 2.74 0.95 4.17 3.04 0.95
35.0 2.76 2.22 0.91 3.12 2.22 0.92 3.28 2.45 0.93 3.52 2.57 0.94 3.76 2.63 0.95 3.88 2.92 0.96
40.0 2.34 2.05 0.77 2.65 2.05 0.79 2.79 2.26 0.79 2.99 2.38 0.80 3.20 2.43 0.81 3.30 2.70 0.81
46.0 2.16 1.92 0.78 2.44 1.92 0.79 2.58 2 .12 0.80 2.76 2.22 0.80 2.95 2.27 0.81 3.04 2.53 0.82

- (01 - 10) -
CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF
MODEL
 : AUU18RLF
AFR : Air Flow Rate (CFM)
TC : Total Capacity (kBtu/h)
SHC : Sensible Heat Capacity (kBtu/h)
IP : Input Power (kW)
AFR : Air Flow Rate (m3/min)
TC : Total Capacity (kW)
SHC : Sensible Heat Capacity (kW)
IP : Input Power (kW)
AFR 400
Indoor temperature
°FDB 64 70 75 80 85 90
°FWB 54 60 53 67 71 73
Outdoor temperature
°FDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
67 15.8 10.5 1.07 17.8 10.5 1.09 18.8 11.6 1.10 20.1 12 .1 1.11 21.5 12.4 1.12 22.2 13.8 1.13
77 15.0 10.4 1.21 16.9 10.3 1.23 17.8 11.4 1.24 19.1 12.0 1.25 20.4 12.3 1.27 21.0 13.6 1.27
87 14.1 10.2 1.35 16.0 10.2 1.37 16.9 11.2 1.38 18.0 11.8 1.40 19.3 12.1 1.41 19.9 13.4 1.42
95 14.1 10.3 1.55 15.9 10.3 1.58 16.8 11.3 1.59 18.0 11.9 1.61 19.2 12.2 1.63 19.8 13.5 1.64
104 10.9 9.0 1.12 12.3 9.0 1.14 12.9 9.9 1.15 13.9 10.4 1.17 14.8 10.6 1.18 15.3 11.8 1.19
115 10.1 8.3 1.13 11.4 8.3 1.15 12.0 9.2 1.16 12.9 9.6 1.17 13.7 9.9 1.18 14.2 11.0 1.19
AFR 11.3
Indoor temperature
°CDB 17. 8 21.1 23.9 26.7 29.4 32.2
°CWB 12.2 15.6 17.7 19.4 21.7 22.8
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
19.4 4.62 3.07 1.07 5.22 3.07 1.09 5.50 3.39 1.10 5.89 3.55 1.11 6.30 3.64 1.12 6.49 4.04 1.13
25.0 4.39 3.04 1.21 4.96 3.03 1.23 5.23 3.34 1.24 5.60 3.51 1.25 5.98 3.59 1.27 6.17 3.99 1.27
30.6 4.15 2.99 1.35 4.68 2.99 1.37 4.94 3.29 1.38 5.29 3.46 1.40 5.65 3.54 1.41 5.83 3.93 1.42
35.0 4.14 3.01 1.55 4.67 3.01 1.58 4.93 3.32 1.59 5.28 3.48 1.61 5.64 3.56 1.63 5.81 3.96 1.64
40.0 3.18 2.64 1.12 3.60 2.63 1.14 3.79 2.91 1.15 4.06 3.05 1.17 4.34 3 .12 1.18 4.47 3.47 1.19
46.0 2.95 2.44 1.13 3.34 2.44 1.15 3.52 2.69 1.16 3.77 2.83 1.17 4.03 2.89 1.18 4.15 3.21 1.19

- (01 - 11) -
CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF
HEATING CAPACITY6-2.
MODEL
 :
AUU9RLF
AFR : Air Flow Rate (CFM)
TC : Total Capacity (kBtu/h)
IP : Input Power (kW)
AFR : Air Flow Rate (m3/min)
TC : Total Capacity (kW)
IP : Input Power (kW)
MODEL
 :
AUU12RLF
AFR : Air Flow Rate (CFM)
TC : Total Capacity (kBtu/h)
IP : Input Power (kW)
AFR : Air Flow Rate (m3/min)
TC : Total Capacity (kW)
IP : Input Power (kW)
AFR 318
Indoor temperature
°FDB 60 65 70 75
Outdoor temperature
°FDB °FWB TC IP TC IP TC IP TC IP
-5 -7 14.7 1.84 14.3 1.88 14.0 1.92 13.3 1.99
5 3 16.1 1.79 15.7 1.83 15.4 1.87 14.6 1.94
14 12 16.8 1.73 16.4 1.76 16.0 1.80 15.2 1.87
23 19 17. 3 1.67 16.9 1.70 16.5 1.74 15.7 1.81
32 28 17.4 1.61 17.0 1.64 16.6 1.68 15.7 1.74
41 37 17.4 1.67 17.0 1.71 16.6 1.74 15.8 1.81
47 43 18.9 1.73 18.5 1.76 18.0 1.80 17.1 1.87
50 47 20.9 1.75 20.4 1.79 19.9 1.83 18.9 1.90
59 50 21.6 1.76 21.1 1.80 20.6 1.84 19.6 1.91
AFR 9.0
Indoor temperature
°CDB 15.6 18.3 21.1 23.9
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP
-20.6 -21.7 4.31 1.84 4.20 1.88 4.10 1.92 3.90 1.99
-15.0 -16.1 4.73 1.79 4.61 1.83 4.50 1.87 4.28 1.94
-10.0 -11.1 4.91 1.73 4.80 1.76 4.68 1.80 4.45 1.87
-5.0 -7.2 5.08 1.67 4.96 1.70 4.84 1.74 4.59 1.81
0.0 -2.2 5.10 1.61 4.98 1.64 4.86 1.68 4.61 1.74
5.0 2.8 5.11 1.67 4.99 1.71 4.87 1.74 4.62 1.81
8.3 6.1 5.54 1.73 5.41 1.76 5.28 1.80 5.01 1.87
10.0 8.3 6.12 1.75 5.98 1.79 5.83 1.83 5.54 1.90
15.0 10.0 6.34 1.76 6.19 1.80 6.04 1.84 5.74 1.91
AFR 359
Indoor temperature
°FDB 60 65 70 75
Outdoor temperature
°FDB °FWB TC IP TC IP TC IP TC IP
-5 -7 15.8 2.23 15.4 2.27 15.0 2.32 14.3 2.36
5 3 17.6 2.16 17.2 2.21 16.8 2.25 15.9 2.34
14 12 18.3 2.09 17.8 2.13 17.4 2.17 16.5 2.26
23 19 19.2 2.01 18.7 2.05 18.2 2.10 17. 3 2.18
32 28 19.5 1.95 19.0 1.99 18.5 2.03 17.6 2.11
41 37 19.7 1.86 19.2 1.90 18.8 1.94 17.8 2.02
47 43 20.4 1.92 19.9 1.96 19.4 2.00 18.4 2.08
50 47 22.5 1.94 22.0 1.98 21.4 2.02 20.4 2.10
59 50 23.3 1.95 22.8 1.99 22.2 2.03 21.1 2.11
AFR 10.2
Indoor temperature
°CDB 15.6 18.3 21.1 23.9
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP
-20.6 -21.7 4.63 2.23 4.52 2.27 4.41 2.32 4.19 2.36
-15.0 -16.1 5.16 2.16 5.03 2.21 4.91 2.25 4.66 2.34
-10.0 -11.1 5.36 2.09 5.23 2.13 5.10 2.17 4.85 2.26
-5.0 -7.2 5.61 2.01 5.48 2.05 5.35 2.10 5.08 2.18
0.0 -2.2 5.70 1.95 5.57 1.99 5.43 2.03 5.16 2.11
5.0 2.8 5.78 1.86 5.64 1.90 5.50 1.94 5.23 2.02
8.3 6.1 5.99 1.92 5.84 1.96 5.70 2.00 5.42 2.08
10.0 8.3 6.60 1.94 6.44 1.98 6.28 2.02 5.97 2.10
15.0 10.0 6.84 1.95 6.67 1.99 6.51 2.03 6.19 2.11

- (01 - 12) -
CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF
MODEL
 :
AUU18RLF
AFR : Air Flow Rate (CFM)
TC : Total Capacity (kBtu/h)
IP : Input Power (kW)
AFR : Air Flow Rate (m3/min)
TC : Total Capacity (kW)
IP : Input Power (kW)
AFR 471
Indoor temperature
°FDB 60 65 70 75
Outdoor temperature
°FDB °FWB TC IP TC IP TC IP TC IP
-5 -7 19.3 2.42 18.9 2.47 18.4 2.52 17.5 2.63
5 3 20.7 2.63 20.2 2.68 19.7 2.74 18.8 2.85
14 12 22.2 2.68 21.6 2.73 21.1 2.79 20.1 2.90
23 19 23.1 2.79 22.6 2.85 22.0 2.91 20.9 3.03
32 28 23.3 3.02 22.8 3.08 22.2 3.14 21.1 3.19
41 37 25.5 2.67 24.9 2.73 24.3 2.78 23.1 2.90
47 43 26.9 2.50 26.2 2.55 25.6 2.60 24.3 2.70
50 47 29.7 2.23 29.0 2.28 28.3 2.32 26.9 2.42
59 50 30.8 2.24 30.1 2.29 29.3 2.34 27.9 2.43
AFR 13.3
Indoor temperature
°CDB 15.6 18.3 21.1 23.9
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP
-20.6 -21.7 5.67 2.42 5.53 2.47 5.40 2.52 5.13 2.63
-15.0 -16.1 6.08 2.63 5.93 2.68 5.79 2.74 5.50 2.85
-10.0 -11.1 6.50 2.68 6.34 2.73 6.19 2.79 5.88 2.90
-5.0 -7.2 6.78 2.79 6.62 2.85 6.45 2.91 6.13 3.03
0.0 -2.2 6.84 3.02 6.68 3.08 6.51 3.14 6.19 3.19
5.0 2.8 7.47 2.67 7.29 2.73 7.12 2.78 6.76 2.90
8.3 6.1 7.88 2.50 7.69 2.55 7.50 2.60 7.13 2.70
10.0 8.3 8.71 2.23 8.50 2.28 8.29 2.32 7.88 2.42
15.0 10.0 9.02 2.24 8.81 2.29 8.59 2.34 8.16 2.43

- (01 - 13) -
CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF
FAN PERFORMANCE7.
AIR VELOCITY DISTRIBUTION7-1.
MODEL : AUU9RLF

Air velocity distribution
z
Top view
Vertical ap : Up
7 (2.0) 7 (2.0)
7 (2.0)
7 (2.0)
3 (1.0)
3 (1.0)
3 (1.0)
3 (1.0)
2 (0.5)
2 (0.5)
2 (0.5)
2 (0.5)
1 (0.25)
1 (0.25)
1 (0.25)
1 (0.25)
Unit : ft./s (m/s)
(m)(f t.)
00
3
3
7
7
10
10
13
13
1
1
2
2
3
3
4
4
(m)
(f t.)
0
0
11
33 77 1010 1313
22 33 44
Side view
Vertical ap : Up
7 (2.0)
3 (1.0)
2 (0.5) 2 (0.5)
1 (0.25) 1 (0.25)
Unit : ft./s (m/s)
(m)(f t.)
0
0
3
7
9
1
2
2.7
(m)
(f t.)
0
0
11
33 77 1010 1313
22 33 44
Conditions
Fan speed : High
Operation mode : FAN

- (01 - 14) -
CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF
Air velocity distribution
z
Side view
Vertical ap : Down
7 (2.0) 7 (2.0)
5 (1.5) 5 (1.5)
3 (1.0) 3 (1.0)
2 (0.5) 2 (0.5)
1 (0.25) 1 (0.25)
Unit : ft./s (m/s)
(m)(f t.)
0
0
3
7
9
8
1
2
2.7
2.5
(m)
(f t.)
0
0
11
33 77 1010 1313
22 33 44
Air temperature distribution
z
Side view
Vertical ap : Down
86 (30) 86 (30)
82 (28) 82 (28)
79 (26) 79 (26)
75 (24) 75 (24)
72 (22) 72 (22)
Unit : °F (°C)
(m)(f t.)
0
0
3
7
9
8
1
2
2.7
2.5
(m)
(f t.)
0
0
11
33 77 1010 1313
22 33 44
Note: Reference data
Conditions
Fan speed : High
Operation mode : Heating
Vertical ap: Downward (4Way)

- (01 - 15) -
CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF
MODEL : AUU12RLF

Air velocity distribution
z
Top view
Vertical ap : Up
7 (2.0) 7 (2.0)
7 (2.0)
7 (2.0)
3 (1.0)
3 (1.0)
3 (1.0)
3 (1.0)
2 (0.5)
2 (0.5)
2 (0.5)
2 (0.5)
1 (0.25)
1 (0.25)
1 (0.25)
1 (0.25)
Unit : ft./s (m/s)
(m)(f t.)
00
3
3
7
7
10
10
13
13
1
1
2
2
3
3
4
4
(m)
(f t.)
0
0
11
33 77 1010 1313
22 33 44
Side view
Vertical ap : Up
7 (2.0)
3 (1.0)
2 (0.5) 2 (0.5)
1 (0.25) 1 (0.25)
Unit : ft./s (m/s)
(m)(f t.)
0
0
3
7
9
1
2
2.7
(m)
(f t.)
0
0
11
33 77 1010 1313
22 33 44
Conditions
Fan speed : High
Operation mode : FAN

- (01 - 16) -
CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF
Air velocity distribution
z
5 (1.5) 5 (1.5)
3 (1.0) 3 (1.0)
2 (0.5) 2 (0.5)
1 (0.25) 1 (0.25)
Unit : ft./s (m/s)
(m)(f t.)
0
0
3
7
9
8
1
2
2.7
2.5
(m)
(f t.)
0
0
11
33 77 1010 1313
22 33 44
Air temperature distribution
z
86 (30) 86 (30)
82 (28) 82 (28)
79 (26) 79 (26)
75 (24) 75 (24)
72 (22) 72 (22)
Unit : °F (°C)
(m)(f t.)
0
0
3
7
9
8
1
2
2.7
2.5
(m)
(f t.)
0
0
11
33 77 1010 1313
22 33 44
Note: Reference data
Conditions
Fan speed : High
Operation mode : Heating
Vertical ap: Downward (4Way)

- (01 - 17) -
CASSETTE TYPE AUU9-18RLF CASSETTE TYPE AUU9-18RLF
MODEL : AUU18RLF

Air velocity distribution
z
Top view
Vertical ap : Up
7 (2.0) 7 (2.0)
7 (2.0)
7 (2.0)
3 (1.0)
3 (1.0)
3 (1.0)
3 (1.0)
2 (0.5)
2 (0.5)
2 (0.5)
2 (0.5)
1 (0.25)
1 (0.25)
1 (0.25)
1 (0.25)
Unit : ft./s (m/s)
(m)(f t.)
00
3
3
7
7
10
10
13
13
1
1
2
2
3
3
4
4
(m)
(f t.)
0
0
11
33 77 1010 1313
22 33 44
Side view
Vertical ap : Up
7 (2.0)
3 (1.0)
2 (0.5)
2 (0.5)
1 (0.25) 1 (0.25)
Unit : ft./s (m/s)
(m)(f t.)
0
0
3
7
9
1
2
2.7
(m)
(f t.)
0
0
11
33 77 1010 1313
22 33 44
Conditions
Fan speed : High
Operation mode : FAN
