Fujitsu AWTZ14LBC User manual

KEEP THIS OPERATION MANUAL
FOR FUTURE REFERENCE
FUJITSU GENERAL LIMITED
OPERATING MANUAL
P/N9315236036-01
Indoor Unit
AWTZ14LBC
AWTZ18LBC
Outdoor Unit
AOTZ14LBC
AOTZ18LBC
R410A
REFRIGERANT
This Air Conditioner contains and operates
with refrigerant R410A and Polyol Ester oil.
THIS PRODUCT MUST ONLY BE INSTALLED OR SERVICED
BY QUALIFIED PERSONNEL.
Refer to Commonwealth, State, Territory and local legislation,
regulations, codes, installation & operation manuals, before
the installation, maintenance and/or service of this product.
ROOM AIR CONDITIONER
CEILING WALL TYPE
HEAT & COOL MODEL
(REVERSE CYCLE)

1
CONTENTS
SAFETY PRECAUTIONS ........................................ 1
FEATURES AND FUNCTIONS ............................... 2
NAME OF PARTS ................................................... 3
PREPARATION ....................................................... 5
OPERATION ........................................................... 7
ADJUSTINGTHE DIRECTION OF
AIR CIRCULATION ................................................. 9
SWING OPERATION ............................................. 10
TIMER OPERATION .............................................. 11
SLEEPTIMER OPERATION .................................. 12
ECONOMY OPERATION...................................... 13
SAFETY PRECAUTIONS
●Do not attempt to install this air conditioner by yourself.
●This unit contains no user-serviceable parts. Always consult authorized service per-
sonnel for repairs.
●When moving, consult authorized service personnel for disconnection and installa-
tion of the unit.
●Do not become excessively chilled by staying for lengthy periods in the direct cooling
airflow.
●Do not insert fingers or objects into the outlet port or intake grilles.
●Do not start and stop air conditioner operation by disconnecting the power supply
cord and so on.
●Take care not to damage the power supply cord.
●In the event of a malfunction (burning smell, etc.), immediately stop operation, dis-
connect the power supply plug, and consult authorized service personnel.
●If the power supply cord of this appliance is damaged, it should only be replaced by
the authorized service personal, since special purpose tools and specified cord are
required.
●Provide occasional ventilation during use.
●Do not direct air flow at fireplaces or heating apparatus.
●Do not climb on, or place objects on, the air conditioner.
●Do not hang objects from the indoor unit.
●Do not set flower vases or water containers on top of air conditioners.
●Do not expose the air conditioner directly to water.
●Do not operate the air conditioner with wet hands.
●Do not pull power supply cord.
●Turn off power source when not using the unit for extended periods.
●Check the condition of the installation stand for damage.
●Do not place animals or plants in the direct path of the air flow.
●Do not drink the water drained from the air conditioner.
●Do not use in applications involving the storage of foods, plants or animals, precision
equipment, or art works.
●Connection valves become hot during Heating; handle with care.
●Do not apply any heavy pressure to radiator fins.
●Operate only with air filters installed.
●Do not block or cover the intake grille and outlet port.
●Ensure that any electronic equipment is at least one metre away from either the in-
door or outdoor units.
●Avoid installing the air conditioner near a fireplace or other heating apparatus.
●When installing the indoor and outdoor unit, take precautions to prevent access to
infants.
●Do not use inflammable gases near the air conditioner.
DANGER!
CAUTION!
HI-POWER OPERATION....................................... 13
COIL DRY OPERATION ........................................ 14
AUTOMATIC FILTER CLEANING
FUNCTION ........................................................... 15
PERFOMING MAINTENANCE ............................. 17
PERFOMING MAINTENANCE
(CONTINUED) ...................................................... 20
MANUAL AUTO OPERATION ............................. 22
TROUBLESHOOTING .......................................... 23
OPERATINGTIPS ................................................. 24

2
FEATURES AND FUNCTIONS
INVERTER
At the start of operation, a large power is used to bring the
room quickly to the desired temperature. Afterwards, the
unit automatically switches to a low power setting for eco-
nomic and comfortable operation.
COIL DRY OPERATION
The Indoor unit can be dried by pressing the COIL DRY but-
ton on the Remote Control Unit so as to avoid going moldy
and restrain the breed of bacterium.
AUTO CHANGEOVER
The operation mode (cooling, dry, heating) is switched au-
tomatically to maintain the set temperature, and the tem-
perature is kept constant at all times.
WIRELESS REMOTE CONTROL UNIT
The Wireless Remote Control Unit allows convenient con-
trol of air conditioner operation.
HORIZONTAL AIRFLOW: COOLING/
DOWNWARD AIRFLOW: HEATING
For cooling, use horizontal airflow so the cool air does not
blow directly on the occupants in the room. For heating,
use downward airflow to send powerful, warm air to the
floor and create a comfortable environment.
SWING OPERATION
The airflow-direction louvers move (swing) automatically.
In addition, up, down, left, and right airflow directions can
be selected using the Remote Control Unit.
MILDEW-RESISTANT FILTER
The AIR FILTER has been treated to resist mildew growth,
thus allowing cleaner use and easier care.
SUPER QUIET OPERATION
When the SUPER QUIET button is pressed, the unit begins
SUPER QUIET Operation; the indoor unit’s airflow is reduced
to produce quieter operation.
AUTO FILTER MAINTENANCE FUNCTION
The filter is automatically cleaned after a set amount of time
of air conditioner operation.
INTERNAL UV CLEANING
Growth of mold and various germs inside the indoor unit is
suppressed with UV (ultraviolet rays).

3
1
2
9
0
D
G
H
E
F
0
A
B
C
IL
J
K
3
N
4
578
6
MAINTENANCE SIGN TIMER OPERATION HI-POWER SUPER QUIET
O
P
R
Q
S
U
T
W
V
X
Y
[
`b
]
\
Z
ac
e
h
i
l
m
n
q
r
d
f
p
s
o
j
k
g
M
Fig. 3
Fig. 1
Fig. 2
Fig. 4
Fig. 6
This figure shows the control display when all indicator lamps are on. It may differ from the actual display.
Fig. 5
NAME OF PARTS

4
NAME OF PARTS
Fig. 1 Indoor Unit
1Intake Grilles
2UV Lamp (4 position)
3Indicator (Fig. 2)
4MAINTENANCE SIGN Indicator Lamp (red)
5TIMER Indicator Lamp (green)
●If theTIMER indicator lamp flashes when the
timer is operating, it indicates that a fault has
occurred with the timer setting (See Page 24
Auto Restart).
6OPERATION Indicator Lamp (red)
7SUPER QUIET Indicator Lamp (green)
8HI-POWER Indicator Lamp (orange)
9Remote Control Signal Receiver
0Open Panel (Fig.3)
AMAINTENANCE/MANUAL AUTO button
●When kept on pressing the MANUAL AUTO
button for more than 10 seconds, the forced
cooling operation will start.
●The forced cooling operation is used at the
time of installation.
Only for authorized service personnel's use.
●When the forced cooling operation starts by
any chance, press the START/STOP button
to stop the operation.
BAir Filter
CDust Box
DAir Flow Direction Louver
ERight-Left Louver
(behind Air Flow Direction Louver)
FPower Diffuser
GPower Supply Cord
HPower Supply Plug
Fig. 4 Outdoor Unit
IIntake Port
JOutlet Port
KPipe Unit
LDrain Port (bottom)
Fig. 5 Remote Control Unit
MSignal Transmitter
NRemote Control Unit Display (Fig. 6)
OCOIL DRY Display
POperating Mode Display
QFAN CONTROL Display
RECONOMY Operation
STransmit Indicator
TTemperature Display
USWING Display
VBattery Indicator Display
WON TIMER Display
XOFF TIMER Display
YSTART/STOP button
ZSET TEMP. button ( / )
[COOL button
\DRY button
]HEAT button
`SLEEP button
aAUTO button
bFAN button
cCOIL DRY button
dFILTER button
eHI-POWER button
fSUPER QUIET button
gFAN CONTROL button
hECONOMY button
iSWING button
jAIR DIRECTION (Left-Right) button
kAIR DIRECTION (Up-Down) button
lON TIMER button
mOFF TIMER button
nSET TIME buttons ( / )
oSET (TIMER) button
pCANCEL (TIMER) button
qTEST RUN button
rRESET button
sCLOCK ADJUST button

5
Prompts to change remote control's batteries
●Remote control periodically starts and stops.
Battery Indicator Display (Fig.6 V) shown during operations.
• At start-up: blinks 5 times
• At shut-down: remains lit for about 10 minutes.
If the Battery Indicator Display is shown, please change your batteries as soon as
possible, even if your remote control is still usable.
Open gently (do not be
too rough).
About the TEST RUN button
●This button is used when installing the air conditioner and should not be used
under normal conditions, as it will cause the air conditioner’s thermostat func-
tion to operate incorrectly.
●If this button is press during normal operation, the unit will switch to the test
operation mode and the OPERATION Indicator Lamp (red) (Fig.2 6) and TIMER
Indicator Lamp (green) (Fig.2 5) on the Indoor Unit will flash simultaneously.
●To the stop the test operation mode, press the START/STOP button (Fig.5 Y) to
stop the air conditioner.
About the Compulsory Cooling Mode
●If the TEST RUN button (Fig.5 q) is pressed during the cooling mode, the unit will change to the compulsory cooling mode
and the room will be cooled regardless of the thermostat setting.
●Use the compulsory cooling mode to collect refrigerant in the outdoor unit before moving the air conditioner. (Do not use
this button under normal conditions.)
TEST RUN button

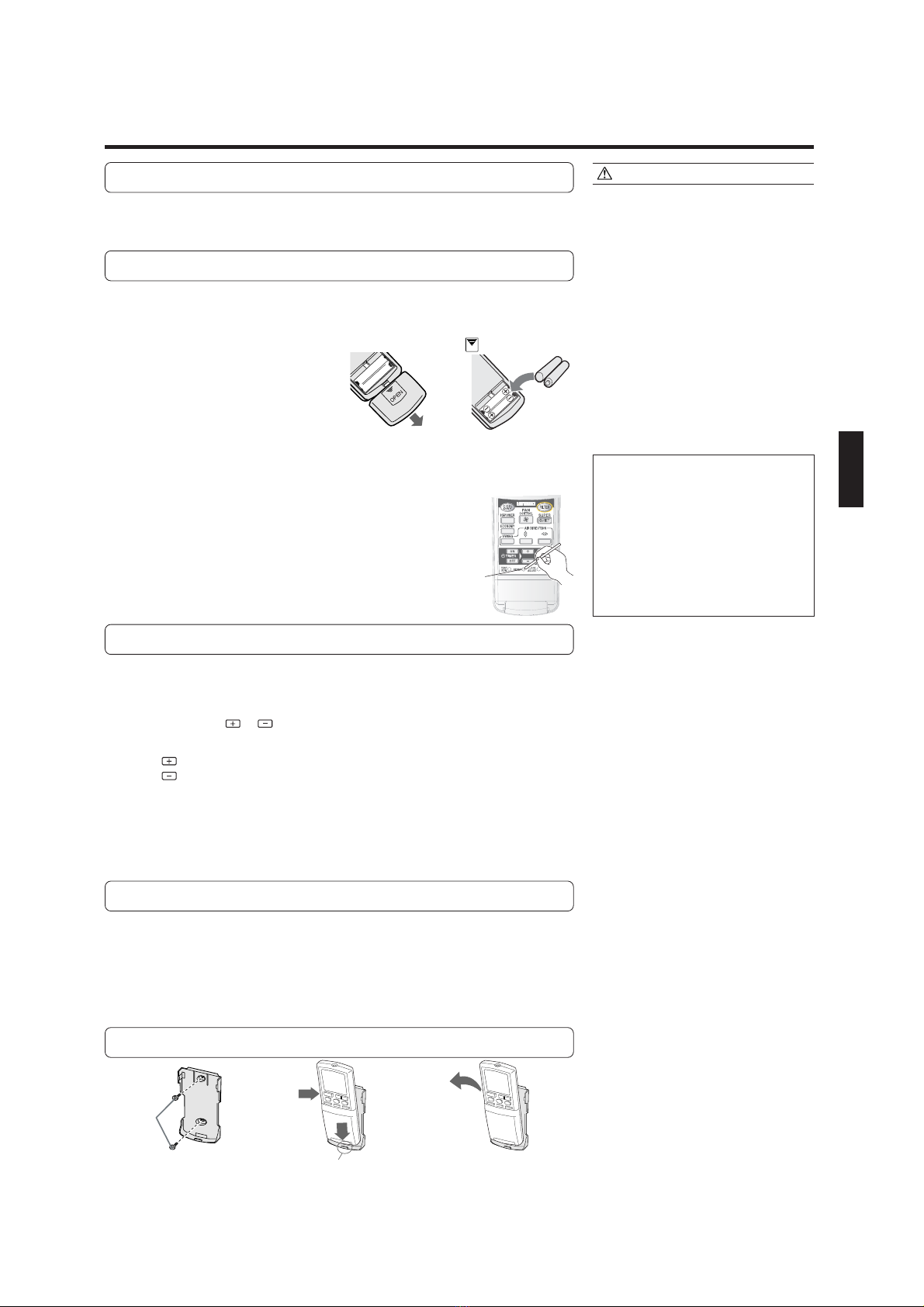

PREPARATION
Take hold of both sides
of the cover, and insert
the cover into its place
until you hear a click.
How to open and close the remote control's cover.

6
Turn on the Power
Connect the Power Supply Plug (Fig. 1 H) to an electrical outlet;
in the case of a direct line connection, turn on the circuit breaker.
Load Batteries (LR03 ××
××
×2)
1Press and slide the battery compartment lid on the re-
verse side to open it.
Slide in the direction of the arrow while pressing the mark.
2Insert batteries.
Be sure to align the battery polarities (+/-) correctly.
3Close the battery compartment lid.
4About the RESET (Fig.5 r) button
• If the remote control is unable to function
normally after the batteries are changed,
please press the RESET button (Fig.5 r).
• Press the RESET button (Fig.5 r) using a
ball-point pen or other such items with a
relatively sharp tip.
Set the Current Time
1Press the CLOCK ADJUST button (Fig. 5 s)
Use the tip of a ball-point pen or other small object to press the button.
2Use the / SET TIME buttons (Fig. 5 n)to adjust
the clock to the current time.
button: Press to advance the time.
button: Press to reverse the time.
(Each time the buttons are pressed,the time will be advanced/reversed in
one-minute steps.hold the buttons depressed to change the time quickly
in ten-minute steps.)
3Press the SET button (Fig. 5 o).
This completes the time setting and starts the clock.
To Use the Remote Control Unit
●The Remote Control Unit must be pointed at signal receiver (Fig. 1 9) to operate
correctly.
●Operating Range: About 7 meters.
●When a signal is properly received by the air conditioner, a beeping sound will
be heard.
●If no beep is heard, press the Remote Control Unit button again.
Remote Control Unit Holder
CAUTION!
●Take care to prevent infants from
accidentally swallowing batteries.
●When not using the Remote Control Unit
for an extended period, remove the
batteries to avoid possible leakage and
damage to the unit.
●If leaking battery fluid comes in contact
with your skin, eyes, or mouth, immedi-
ately wash with copious amounts of
water, and consult your physician.
●Dead batteries should be removed
quickly and disposed of properly, either
by placing in a public battery collection
receptacle, or by returning to appropriate
authority.
●Do not attempt to recharge dry batteries.
●Please always press the RESET button
after changing batteries to avoid the
possibility of functional errors.
Never mix new and used batteries, or
batteries of different types.
Batteries should last about one year
under normal use.
In any of the following situations, please
change your batteries.
• The Battery Indicator Display is shown
• No data transmission possible unless
close to Indoor Unit
• The Remote Control Unit is unable
to work properly
RESET
botton
1Mount the Holder. 2Set the Romote Control
Unit.
3To remove the Remote Con-
trol Unit (when use hand).
Screws
Insert
Press in
Pull out

7
OPERATION
To Select Mode Operation
Press the necessary Operation button.
Cooling Operation: Press the COOL button (Fig.5 [)
Heating Operation: Press the HEAT button (Fig.5 ])
Dry Operation : Press the DRY button (Fig.5 \)
Auto Operation : Press the AUTO button (Fig.5 a)
Fan Operation : Press the FAN button (Fig.5 b)
The Indoor Unit's OPERATION Indicator Lamp (red) (Fig.2 6) will light.
The Air conditioner will start operating.
Pressing the unit's START/ STOP button (Fig.5 Y) will run the unit in its most
recently-used mode.
To Set the Thermostat
Press the SET TEMP. button (Fig. 5 Z).
: Press to raise the thermostat setting.
: Press to lower the thermostat setting.
●Thermostat setting range:
Cooling/Dry ........................ 18 to 30 °C
Heating ............................... 16 to 30 °C
AUTO .................................. 18 to 30 °C
The thermostat can not be used to set room temperature during the FAN Mode (the
temperature will not appear on the Remote Control Unit’s Display).
To Set the Fan Speed
Press the FAN CONTROL button (Fig. 5 g).
Each time the button is pressed, the fan speed changes in the following order:
About three seconds later, the entire display will reappear.
When set to AUTO:
Cooling : As the room temperature approaches that of the thermostat setting,
the fan speed becomes slower.
Heating : Fan operates so as to optimally circulate warmed air.
However, the fan will operate at very low speed when the tempera-
ture of the air issued from the indoor unit is low.
Fan : The fan operates at the low speed.
Super Quiet Operation:
Press the SUPER QUIET button(Fig.5 f).
The Indoor Unit's SUPER QUIET Indicator Lamp (green) (Fig.2 7) will light. (No
display on the Remote Control Unit)
SUPER QUIET operation begins.
The Indoor Unit's airflow will be reduced for quieter operation.
●In SUPER QUIET mode, any of the changes listed below will switch SUPER QUIET
Operations off.
• Changing the Fan Speed.
• Switching to HI-POWER Operation.
●When the Air Conditioner's operations are stopped, SUPER QUIET Operation is
cancelled. When the unit is started again, it will run at the Fan Speed displayed
on the Remote Control Unit's FAN CONTROL Display.
●During SUPER QUIET Operation, Heating and Cooling and Dry performance will
be reduced somewhat.
AUTO
Example: When set to COOL
Example: When set to 28°C

8
To Stop Operation
Press the START/STOP button (Fig.5 Y).
The OPERATION Indicator Lamp (red) (Fig. 2 6) will go out.
About AUTO CHANGEOVER Operation
AUTO: ●When AUTO CHANGEOVER operation first selected, the fan will oper-
ate at very low speed for about one minute, during which time the unit
detects the room conditions and selects the proper operating mode.
If the differance between thermostat setting and actual room tempera-
ture is more than +2 °C →Cooling or dry operation
If the difference between thermostat setting and actual room tempera-
ture is within ±2 °C →Monitor operation
If the difference between thermostat setting and actual room tempera-
ture is more than –2 °C →Heating operation
●When the air conditioner has adjusted your room’s temperature to near
the thermostat setting, it will begin monitor operation. In the monitor
operation mode, the fan will operate at low speed. If the room tem-
perature subsequently changes, the air conditioner will once again
select the appropriate operation (Heating, Cooling) to adjust the tem-
perature to the value set in the thermostat.
(The monitor operation range is ±2 °C relative to the thermostat set-
ting.)
●If the mode automatically selected by the unit is not what you wish,
select one of the mode operation (HEAT, COOL, DRY, FAN).
About Mode Operation
Heating: ●Use to warm your room.
●When Heating mode is selected, the air conditioner will operate at very
low fan speed for about 3 to 5 minutes, after which it will switch to the
selected fan setting. This period of time is provided to allow the indoor
unit to warm up before begin full operation.
●When the room temperature is very low, frost may form on the outside
unit, and its performance may be reduced. In order to remove such
frost, the unit will automatically enter the defrost cycle from time to
time. During Automatic Defrosting operation, the OPERATION Indica-
tor Lamp (red) will flash, and the heat operation will be interrupted.
Cooling: ●Use to cool your room.
Dry: ●Use for gently cooling while dehumidifying your room.
●You cannot heat the room during Dry mode.
●During Dry mode, the unit will operate at low speed; in order to adjust
room humidity, the Indoor Unit’s fan may stop from time to time. Also,
the fan may operate at very low speed when adjusting room humidity.
Fan: ●Use to circulate the air throughout your room.
During Heating mode:
Set the thermostat to a temperature set-
ting that is higher than the current room
temperature. The Heating mode will not
operate if the thermostat is set lower than
the actual room temperature.
During Cooling/Dry mode:
Set the thermostat to a temperature set-
ting that is lower than the current room
temperature. The Cooling and Dry modes
will not operate if the thermostat is set
higher than the actual room temperature
(in Cooling mode, the fan alone will oper-
ate).
During Fan mode:
You can not use the unit to heat and cool
your room.

9

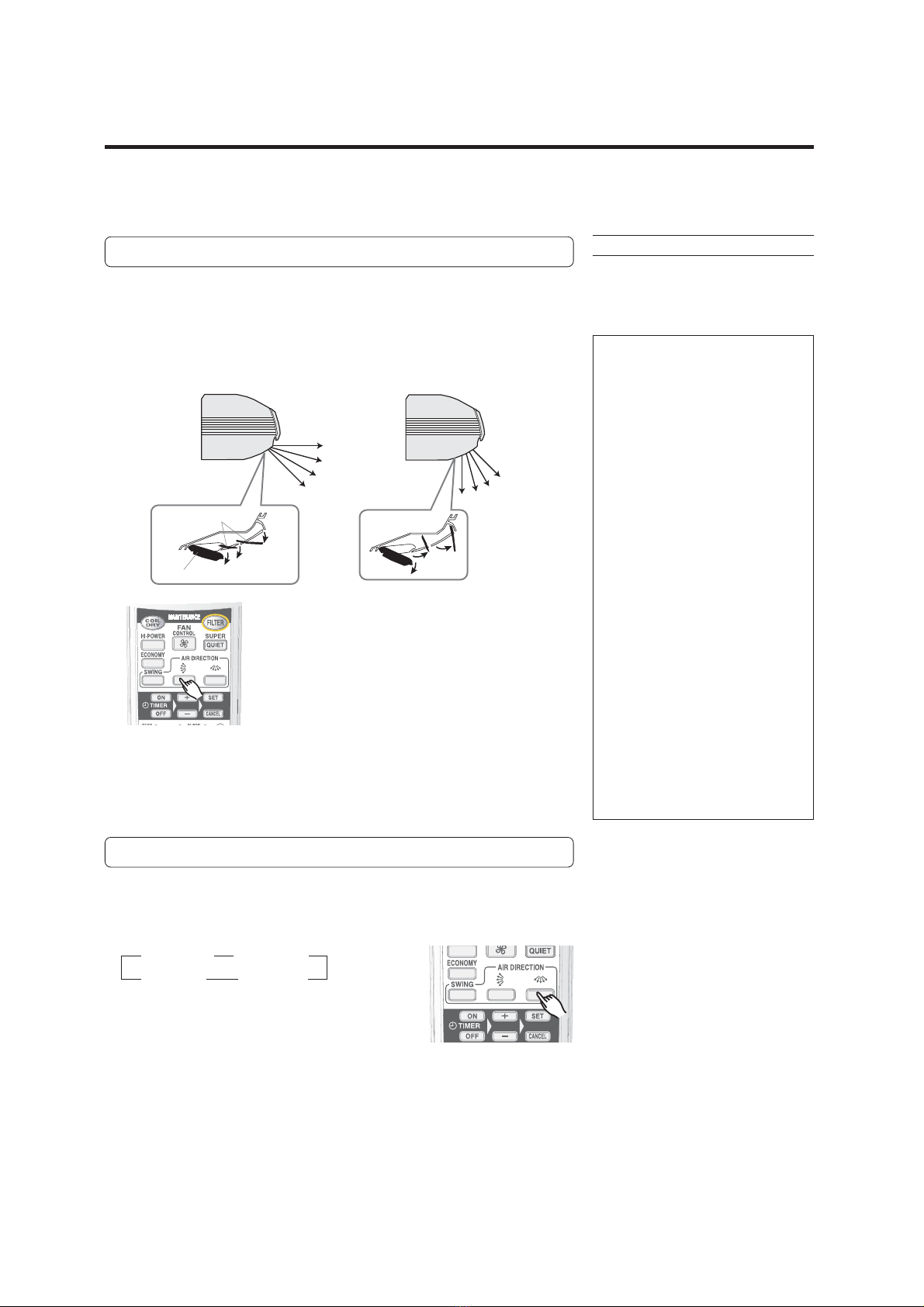

ADJUSTING THE DIRECTION OF AIR CIRCULATION
●Adjust the up, down, left, and right air directions with the AIR DIRECTION buttons on the Remote Control Unit.
●Use the AIR DIRECTION buttons after the Indoor Unit has started operating and the airflow-direction louvers have
stopped moving.
* The Remote Control Unit
display does not change.
Vertical Air Direction Adjustment
Open the lid on the Remote Control Unit.
Press the AIR DIRECTION (Up-Down) button. (Fig. 5 k)
●When the AIR DIRECTION (Up-Down) button (Fig.5 k) is pushed, the airflow
direction changes within the range to the following.
●You can select the desired airflow direction.
Right-Left Adjustment
Open the lid on the Remote Control Unit.
Push the AIR DIRECTION (Left-Right) button (Fig.5 j).
●When the AIR DIRECTION (Left-Right) button (Fig.5 j) is pushed, the airflow
direction will change in the following order.
● You can select the desired airflow direction.
● The Indoor Unit is set for front airflow when the unit
is turned on.
About airflow direction adjustments
●When the unit is turned on or the op-
eration mode is changed, the position
of the airflow-direction louvers is au-
tomatically set as listed below to match
the operation mode (heating, cooling,
etc.) selected.
Cooling/Dry/Fan: 1horizontal airflow
Heating: 7downward airflow
● During HI-POWER operation (see page
12), the up/down airflow direction is set
automatically to optimize the heating
and cooling performance.
● When the AIR DIRECTION buttons on
the Remote Control Unit are pressed,
it may take a short time for the up/
down airflow-direction louvers or the
left/right airflow-direction louvers to
reach the desired position.
During that time, the airflow direction
cannot be adjusted even if the AIR DI-
RECTION buttons are repeatedly
pressed.
● During the monitor period in the auto
mode (see page 7), horizontal airflow
direction is set and cannot be adjusted.
● If the AIR DIRTCTION (Up-Down) but-
ton is pressed during the up/down
swing operation (see page 11), the up/
down swing operation will stop. In
addition, if the AIR DIRECTION (Left-
Right) button is pressed during the left/
right swing operation, the left/right
swing operation will stop.
* The up/down airflow-direction louvers move in the
direction of the arrow from the closed position.
● In order to maximize the heating and cooling
performance, use the ranges above.
Fan range 12345678
* The Remote Control Unit
display does not change.
ss
t
t
Front airflow Right airflow
Front airflow
Left airflow
RDANGER!
●Never place fingers or foreign objects in-
side the outlet ports, since the internal fan
operates at high speed and could cause
personal injury.
1
5
6
7
8
2
3
4
Cooling/Dry range1234 Heating range5678
Air flow-direction
louvers
Power diffuser

10
SWING OPERATION
Begin air conditioner operation before performing this procedure.
To select SWING Operation
Open the Remote Control Unit lid to perform swing operation
settings.
Press the SWING button (Fig. 5 i).
The SWING Display (Fig. 6 U) will light.
Each time the SWING button is pressed, the swing operation will change in the
following order.
To stop SWING Operation
Press the SWING button (Fig.5 i) and select STOP.
Airflow direction will return to the setting before swing was begun.
Up/down swing operation Left/right swing operation
Swing operation stops Up/down/left/right swing operation
About Swing Operation
● Up/down swing: Swing operation begins using the
following range according to the current airflow direc-
tion.
Airflow direction is 1–4 (for cooling, dry, fan).
With the upper airflow-direction louver in the
horizontal position, the lower airflow-direction
louver moves (swings) to direct airflow to a wide
area.
Airflow direction is 5–8 (for heating, fan).
With the airflow-direction louvers set for down-
ward or straight down airflow, airflow is directly
mainly at the floor.
● Left/right swing: The airflow-direction louvers move
(swing) in the left/right airflow direction.
● Up/down/left/right swing: The airflow-direction louvers
move (swing) in both the up/down and left/right airflow
directions.
●The SWING operation may stop temporarily when the
air conditioner’s fan is not operating, or when operating
at very low speeds.
●If the AIR DIRECTION (Up-Down) button is pressed
during the up/down swing operation, the up/down
swing operation will stop and if the AIR DIRECTION
(Left-Right) button is pressed during the left/right swing
operation, the left/right swing operation will stop.

11
TIMER OPERATION
To Cancel the Timer
Press the CANCEL button.
To Change the Timer Settings
Perform operations 2–4.
To Stop Air Conditioner Operation
while the Timer is Operating
Press the START/STOP button.
To Use the OFF TIMER or ON TIMER
Open the Remote Control Unit lid to perform the timer function settings.
1Press the desired Operation button or START/STOP
button (Fig. 5 Y).
(if the unit is already operating, proceed to step 2).
The Indoor Unit’s OPERATION Indicator Lamp (red) (Fig. 2 6) will light.
2Select the desired timer operation time, and then press
the OFF TIMER button (Fig. 5 m) or the ON TIMER but-
ton (Fig. 5 l).
The OFF or ON timer indicator flashes.
3Use the SET TIME buttons (Fig. 5 n) to adjust the de-
sired OFF time or ON time.
Button: Press to advance the time.The time advances in 5-minutes
increments.
Button: Press to reverse the time.The time goes backward in 5-minute
increments.
4Point the Remote Control Unit towards the Indoor Unit
and press the SET button (Fig. 5 o).
The OFF or ON timer Indicator stops flashing.
The TIMER Indicator Lamp (green) (Fig.2 5)on the Indoor Unit will light.
If the ON TIMER function is selected, the air conditioner operation stops.
To Use the Program timer
1Press the START/STOP button (Fig. 5 Y)
(if the unit is already operating, proceed to step 2).
The Indoor Unit’s OPERATION Indicator Lamp (red) (Fig. 2 6) will light.
2Set the desired times for OFF timer and ON timer.
See the section “To Use the OFF timer or ON timer” to set the desired
mode and times.
The indoor unit’s TIMER Indicator Lamp (green) (Fig.2 5) will light.
Before using the timer function,be sure that the Remote Control Unit is set to the correct current time (See page 6).
To Cancel the Timer
Press the CANCEL button.
TIMER Indicator Lamp (green) will go
out.Canceling the OFF TIMER or the ON
TIMER
1. Press the TIMER button of the function to
cancel (OFF or ON).
2. Press the CANCEL button.
To Change the Timer Settings
1. Press the TIMER button of the function
to change (OFF or ON).
2. Set the timer using the “ ” and “ ”
TIMER buttons.
3. Press the SET button.
To Stop Air Conditioner Operation
while the Timer is Operating
Press the START/STOP button.
About the Program timer
● The PROGRAM timer allows you to integrate OFF timer and ON timer operations
in a single sequence. The sequence can involve one transition from OFF timer to
ON timer,or from ON timer to OFF timer,within a twenty-four hour period.
● The first timer function to operate will be the one set nearest to the current
time.The order of operation is indicated by the arrow in the Remote Control
Unit’s display (OFF →ON,or OFF ←ON).
● One example of PROGRAM timer use might be to have the air conditioner auto-
matically stop (OFF timer)after you go to sleep,then start (ON timer)automatically
in the morning before you arise.

12
SLEEP TIMER OPERATION
→ 1.0 →2.0 →3.0 →5.0 →7.0 →9.0(hour)
(RESET)
→ 1.0 → 2.0 → 3.0 → 5.0 → 7.0 → 9.0(hour)
(RESET)
To Use the SLEEP timer
While the air conditioner is operating or stopped, press the
SLEEP button (Fig. 5 `).
Each time the button is presssd, the time changes in the following order:
The Indoor Unit’s OPERATION Indicator Lamp (red) (Fig. 2 6) and theTIMER Indica-
tor Lamp (green) (Fig. 2 5) light.
To Change the Timer Settings
Press the SLEEP button (Fig.5 `) once to display the last set-
ting time.
Press the SLEEP button (Fig.5 `) again to change the time.
Each time the button is pressed, the time changes in the following order (Change
from the last setting time):
Confirmation of TIMER's time
The left time of the TIMER which is being set currently will be displayed for 5 min-
utes.
Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operate is stopped.
To Cancel the Timer:
Press the CANCEL (TIMER) button.
To Stop the Air Conditioner During Timer
Operation:
Press the START/STOP button.

13
HI-POWER OPERATION
Begin Air Conditioner operation before performing this procedure.
Open the Remote Control Unit lid.
To Use the HI-POWER Operation
Press the HI-POWER button(Fig.5 e).
The Indoor Unit's HI-POWER Indicator Lamp (orange) (Fig.2 8) will light.
HI-POWER operation begins.
To Stop the HI-POWER Operation
Press the HI-POWER button(Fig.5 e) again.
The Indoor Unit's HI-POWER Indicator Lamp(orange) (Fig.2 8) will go out.
Normal operation begins.
However, HI-POWER operation will automatically stop under the following conditions.
● If SUPER QUIET Operations are selected during HI-POWER Operation, HI-POWER will be cancelled.
● During cooling mode
The room temperature is 1°C below the thermostat setting or 30 minutes has passed since the HI-POWER operation began.
● During heating mode
The room temperature is 2°C above the thermostat setting.
● During fan mode
15 minutes has passed since the HI-POWER operation began.
About HI-POWER Operation
● During cooling mode
The Indoor unit will operate at maximum power until the room temperature is 1°C below the thermostat setting.
● During heating mode
The Indoor unit will operate at maximum power until the room temperature is 2°C above the thermostat setting.
● During dry mode
The airflow can not be set during HI-POWER operation
● During fan mode
The airflow from the Indoor Unit is increased.
ECONOMY OPERATION
Begin Air Conditioner operation before performing this procedure.
Open the Remote Control Unit lid.
To Use the ECONOMY Operation
Press the ECONOMY button (Fig.5 h).
"ECO" appears on the Remote Control Unit display.
Economy operation begins.
To Stop the ECONOMY Operation
Press the ECONOMY button (Fig.5 h) again.
"ECO" disappears from the Remote Control Unit display.
Normal operation begins.
About ECONOMY Operation
At the maximum output, ECONOMY Operation is approximately 70% of normal air conditioner operation for cooling and
heating.
When ECONOMY operation is performed during the cooling mode, dehumidification is improved. This function is especially
convenient when you want to remove the humidity in the room without significantly lowering the room temperature.
During ECONOMY operation, the thermostat setting automatically changes according to the temperature to avoid Unneces-
sary cooling and heating for the most economical operation.
● If the room is not cooled(or heated) well during economy operation, select normal operation.
● Once air conditioner operation is stopped, normal operation begins when the indoor unit is turned on again.
● During the monitor period in the AUTO mode, the air conditioner operation will not change to ECONOMY operation even if
ECONOMY operation is selected by pressing the ECONOMY operation button.

14
COIL DRY OPERATION
●After allowing the interior of the indoor unit time to dry, run the UV filter clean, to limit mold and bacteria on the interior of
the unit and on the air filter. This function shows clear results after cooling or dehumidifying.
●For COLID DRY Operation, press the COIL DRY button. Cleaning operations will run for about 20 minutes and stop automati-
cally.
To start COIL DRY Operation
Press the COIL DRY button (Fig.5 c) (when the air conditioner
is operating or stopped).
Only the OPERATION Indicator Lamp (red) (Fig2. 6)on the Indoor Unit will light.
“COIL DRY” appears on the Remote Control Unit display and disappears after ap-
proximately 20 minutes.
If the COIL DRY button (Fig5. c) is pressed again during COIL DRY operation, COIL
DRY operation will start again.
To stop COIL DRY Operation
Press the START/STOP button (Fig.5 Y) during COIL DRY op-
eration.
The OPERATION Indicator Lamp (red) (Fig2. 6)on the Indoor Unit will go out.
● The Remote Control Unit will be in the operation-stopped condition.
NOTE!
●When COIL DRY operation begins, the
Indoor Unit operates in the heating
mode and the fan mode to dry the inside
of the Indoor Unit. As a result, the room
temperature and humidity may rise
slightly.
●COIL DRY operation cannot be used to
clean the air in the room.
●COIL DRY operation is most effective
when performed frequently.
About COIL DRY Operation
The following procedures are performed during COIL DRY operation before the
operation automatically stops after approximately 20 minutes.
1Drying
After about 18 minutes of COIL DRY Operation, drying shall be performed on the
interior of the indoor unit. All dirt and foul odors are to be removed from the air
filter.
2UV filter cleaning (about 2 minutes)
UV rays are discharged onto the air filter, so that all dirt, odor, and dust undergo
disinfecting and deodorizing processing, and are recycled into the dust box. At
the same time, the air filter's disinfecting and deodorizing functions are reset,
and returned to cleaning mode.
3Operations stop
The COIL DRY operation come to an end.

15

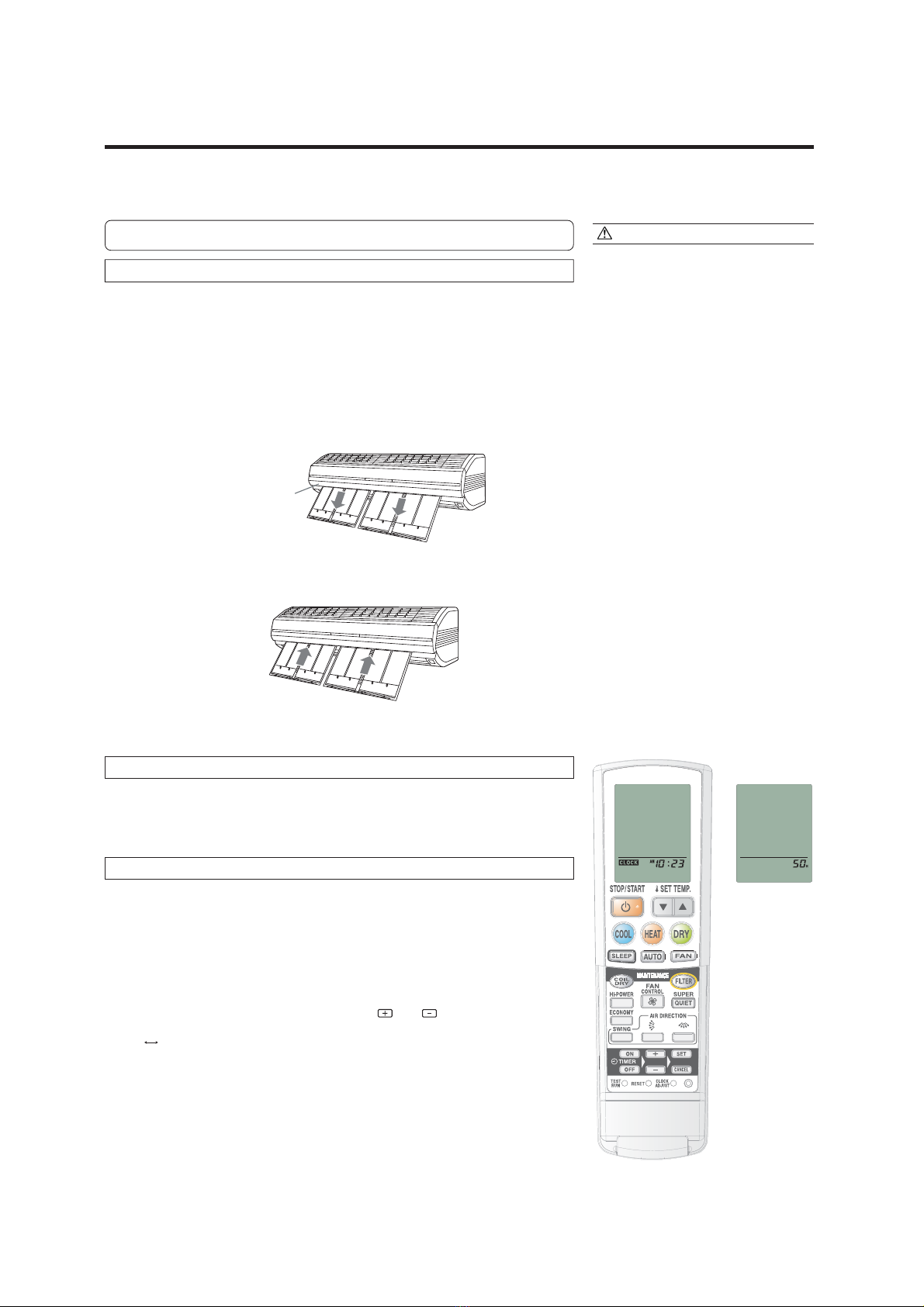

AUTO FILTER MAINTENANCE FUNCTION
●This is a convenient function that automatically removes dust from the air filters after a set amount of time of air conditioner
operation.
●The auto filter maintenance function can also be started using the remote control unit.
CAUTION!
Do not touch the air filters during the auto
filter maintenance.
●The Indoor Unit may malfunction if the
air filters are pulled or pushed.
●If the air filters are unnecessarily pulled,
they may be damaged or fall and cause
personal injury.
Auto Filter Maintenance
About operating the Auto Filter Maintenance
●Auto filter maintenance is performed after the air conditioner operates for a set
amount of time and is stopped or the FILTER button (Fig.5 d) on the Remote
Control Unit is pressed.
●During auto filter maintenance, the MAINTENANCE SIGN Indicator Lamp (red)
(Fig.2 4) on the Indoor Unit will light.
1. Air filters come out
●The air filters automatically come out of the indoor unit under the open panel. At
this time, the dust on the air filters is collected in the dust boxes (behind the open
panel).
Open panel
2. Air filter retract
●After the air filters come out, they automatically retract to their original positions
in the Indoor Unit.
●When the auto filter maintenance is complete, the MAINTENANCE SIGN Indica-
tor Lamp (red) (Fig.2 4) on the Indoor Unit goes out.
MAINTENANCE SIGN Indicator Lamp(red) flashes
The MAINTENANCE SIGN Indicator Lamp (red) (Fig.2 4) will flash during auto filter
maintenance if the air filters are not Installed or are pulled. If this occurs during air
conditioner operation, unplug the power supply cord from the Electrical outlet and
follow procedures "Dust Box Maintenance" to install the air filters.
Changing the FILTER MAINTENANCE Interval
The filter maintenance interval can be changed.
Some dust may be tough to clear away with Auto Filter Maintenance.
In such a situation, please switch the Interval to 50H for more thorough cleaning.
While cleaning, please place the remote control in stop mode (so that only the CLOCK
and the time are displayed).
1. Hold down the SET TIME button (Fig.5 n) for at least 3 seconds.
Switches from displaying the current time to displaying the interval, and begins
blinking.
2. Set the interval using the SET TIME button's and keys (Fig.5 n).
Pressing these buttons will allow you to scroll between the figures below.
50H 100H
Factory settings are 100H.
For more detailed FILTER MAINTENANCE, set to 50H.
3. Point the remote control to the main unit and press the SET button (Fig.5 o).
The display will stop blinking and send signals to the Indoor Unit.
If you do not press the SET button (Fig.5 o), there is no way to save the work
time settings.

16
AUTO Filter Maintenance using the Remote Control Unit
Press the FILTER btton(Fig.5 d)
(When the Air Conditioner is operating or stopped.)
The MAINTENANCE SIGN Indicator Lamp (red) (Fig.2 4) on the Indor Unit will light.
Auto filter maintenance begins.
●If the FILTER button is pressed during Air Conditioner operation, the Air Condi-
tioner will stop, auto filter maintenance will be perfomed, and the air conditioner
will start operating again after the auto filter maintenance is complete.
●Even if the FILTER button is pressed during the auto filter maintenance, the clean-
ing will not stop.
About the notification for Dust Box cleaning
●When auto filter maintenance is not activated, but the Indoor Unit's MAINTE-
NANCE SIGN Indicator Lamp (red) (Fig.2 4) is illuminated, this means that it is
time to perform dust box cleaning. In such a situation, please clean your dust
box.
●Due to differences in Auto Filter Maintenance intervals, there are also differences
in the amount of time that an air conditioner runs before its MAINTENANCE
SIGN Indicator Lamp (red) (Fig.2 4) is lit.
●While the MAINTENANCE SIGN Indicator Lamp (red) is illuminated, Auto Filter
Maintenance will not work. (Even if you press the Remote Control Unit's FILTER
button, it will not run). In such a situation, please clean the DUST BOX, and press
the MAINTENANCE/ MANUAL AUTO button (Fig.3 A) . The MAINTENANCE SIGN
Indicator Lamp (red) (Fig.2 4) will go out.
●The MAINTENANCE SIGN Indicator Lamp (red) will only light up when the Air
Conditioner is running or coming to a halt.
●If you put out the MAINTENANCE SIGN Indicator Lamp (red) (Fig.2 4) without
cleaning the Dust Box, the next time that Auto Filter Maintenance runs, dust may
spill out from the unit. When the MAINTENANCE SIGN Indicator Lamp (red) (Fig.2
4) is illuminated, please be sure to clean the Dust Box.
About the Auto Filter Maintenance function
●Depending on how dirty the air filters are, all of the dust may not be removed
from the air filters during the auto filter maintenance. In this case, perform
auto filter maintenance again.
●If dust remains on the air filters after auto filter maintenance has been per-
formed a number of times, perform dust box maintenance (see page 17)
●Depending on the condition of the dust on the air filters, such as if the dust is
particularly oily or hardened, the dust may not be removed during the auto
FILTER MAINTENANCE. In this case, remove the air filters and clean with water
(see page 20).
●During auto filter maintenance, clicking or hissing sounds may be producd.
●During FILTER MAINTENANCE, if you pull or push the filter upwards, the
FILTER MAINTENANCE process will stop and the MAINTENANCE SIGN Indica-
tor Lamp (red) (Fig.2 4) will blink.
At this time, please refer to Dust Box Maintenance, FILTER Installation.
●If the FILTER is inserted too low, it will automatically correct itself by moving
upwards.
●If there are any objects located under the indoor unit, should the FILTER fall
out, it would hit these objects and would no longer be able to work properly.
Auto filter maintenance interval Interval before maintenance sign
indicator lamp (red) is illuminated
50 hours 2000 hours
100 hours 4000 hours

17
PERFORMING MAINTENANCE
●Frequent maintenance will extend the life of the air conditioner and improve the cooling and heating performance.
●Before maintenance, stop air conditioner operation using the remote control and unplug the power supply cord from the
electrical outlet.
CAUTION!
Before cleaning the air conditioner, be sure to turn it off
and unplug the power supply cord from the electrical
outlet.
The internal fan operates at high speed and could cause
personal injury.
When removing the dust boxes and grill, do not touch any
metal parts (heat exchanger, etc.).
Personal injury may result.
When cleaning the air conditioner, do not stand on any
unstable objects.
You might fall and personal injury could result.
When cleaning the dust boxes and grill, be sure to install
them securely.
If the dust boxes and grill are not properly installed,
they could fall and cause personal injury.
Dust Box Maintenance
●If the MAINTENANCE SIGN Indicator Lamp (red) (Fig.2 4) on the Indoor
Unit is lit, be sure to clean the dust boxes. If the Indoor Unit is installed in
an area with a lot of dust, clean the dust boxes every 3 months even if the
MAINTENANCE SIGN Indicator Lamp (red) (Fig.2 4) is not lit.
●When cleaning the dust boxes, dust may fall to the floor. Lay newspaper,
etc. under the Indoor Unit before cleaning the dust boxes.
1. Remove the dust boxes and air filters from the indoor unit. Remove the air filters
from the dust boxes.
Preparation ●Stop the air conditioner using the Remote Control Unit.
●Unplug the power supply cord from the electrical outlet.
1. Open the open panel.
Open panel
Grab both sides of the open panel and fully open the
open panel. Continue to open the open panel past the
horizontal position. (The panel will remain open even
after it is released.)
2. Remove the dust box's lock.
Dust boxes
“Click”
“Click”
Latches
Move the holding positions (yellow) on either side of the
dust boxes (2 on the left and right) inwards, and remove
the lock.
3. Remove the dust boxes and air filters.
Grab the center of each dust box, lift the bottom in direc-
tion 1, and then remove the dust box in direction 2.
(Remove the dust boxes and air filters together.)
1
2
4. Remove the air filter from each dust box.
Grab the holding position on the air filter and pull the air
filter out from the dust box in the direction of the arrow.
Holding
position
Dust box
Air filter
●When the air filter is removed from the dust box, dust
may fall from the dust box. Lay newspaper, etc. under
the dust box before removing the air filter.
MAINTENANCE SIGN TIMER OPERATION HI-POWER SUPER QUIET

18
2. Remove the dust collected in the dust boxes and clean the dust boxes.
1. Open the dust boxes.
1Hold the latch (light blue) on both sides of the interior
of the dust box, and pull outwards until you hear a
"catch" sound.
2Open the interior of the box.
●Be gentle when opening, as excess force may result in
damage and malfunction.
●When opening the inner case, dust collected inside the
dust box may fall out. During this process, please place
newspapers or some other cover under the dust box.
3Cleaning the interior of the box.
• Use a vacuum to clean up the dust on the brush and
the box, or use a brush to wipe this dust away.
●Do not be too forceful when opening up the brush holder.
Otherwise, this may result in damage and malfunction.
2. Wash the front and rear cases with water
if they are extremely dirty.
1Lightly rub the brushes clean with 40°C–45°C hot wa-
ter. If the brushes are difficult to clean, apply a mild
synthetic laundry detergent (low or neutral alkalinity)
and rub lightly.
2Rub the front and rear cases lightly with a sponge.
3Rinse under running water.
4Remove the water from the front and rear cases.
5Wipe the brushes and cases with a towel, etc., and
place in a shaded area to dry.
● Do not use a cleaner other than a mild synthetic laundry
detergent (low or neutral alkalinity).
● Do not clean with hot water above 60°C.
● Do not clean with any abrasive or hard object.
● Do not dry with hot air from a hair dryer, etc.The cases
may be deformed and the brushes may come off.
Latch
"Click"
"Click"
Inner case
Outer case
Brush holder
Outer case
Inner case
Brush
● After washing with water, make sure the dust boxes are
completely dry before installation. The brushes are espe-
cially difficult to dry so wipe them with a towel, etc. to
make sure they are completely dry. If the dust boxes are
installed wet, the dust may not be removed from the air
filters during auto filter maintenance.
3. Dust box installation
1First pull down on the outer casing, and then cover up
the inner casing.
2Put the latches (light blue) on either side into their
place.
● When installing the dust box, please insert the latch di-
rectly into its correct position. If the latch is not fully in
place, and the box is installed onto the main unit, Auto
Filter Maintenance will not work.
Inner case
Outer case
"Click"
latch
"Click"

19

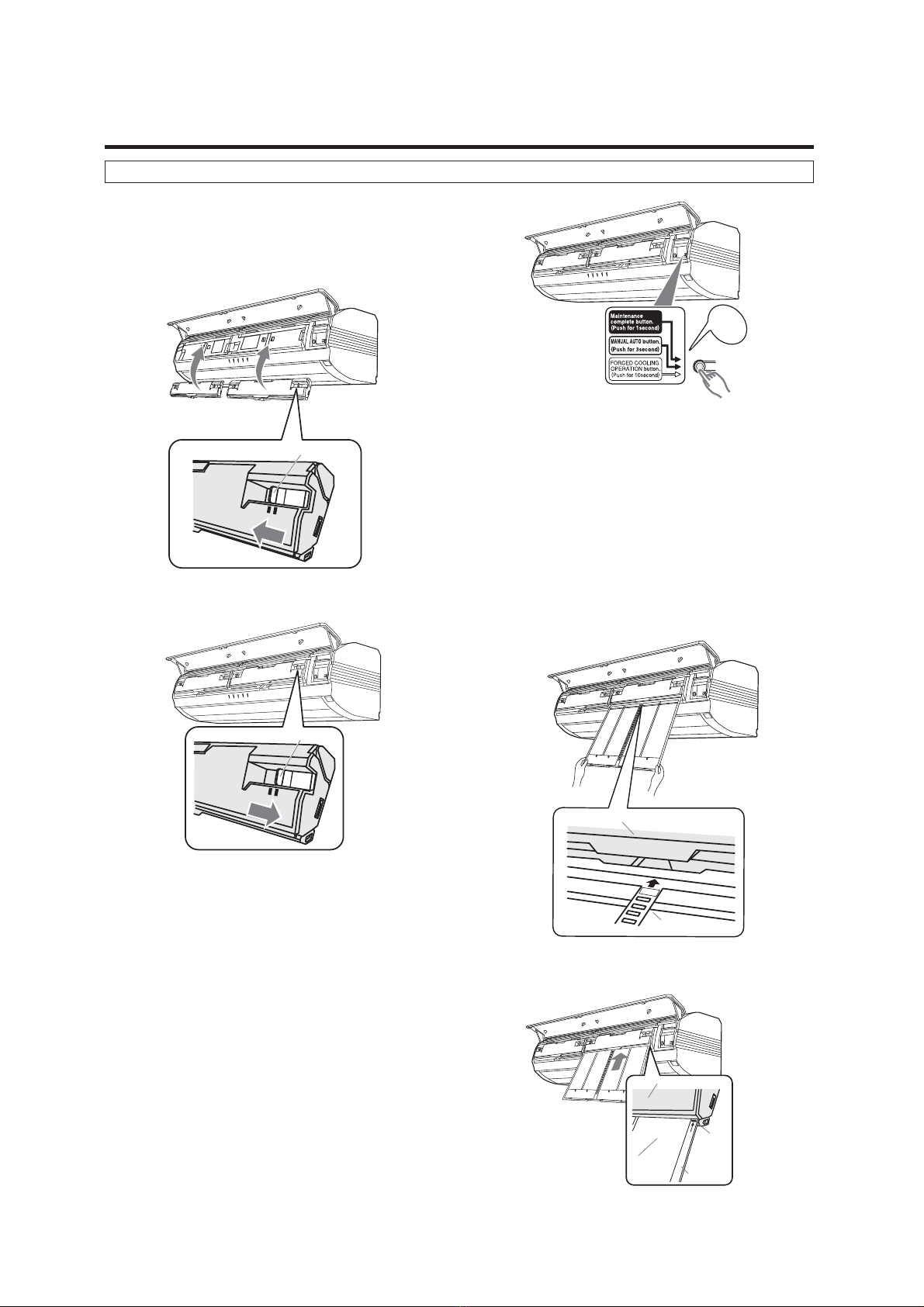

3. Install the dust box onto the main unit, press the "MAINTENANCE / MANUAL AUTO" button, and then insert the air filter.
1. Install the dust box onto the main unit.
1Make sure that the dust box's 2 yellow latches are
open.
2Open the front panel and insert the dust box into the
unit until you hear it catch in place.
3Insert the dust box fully and move the two latches on
either side outside to lock it in place.
●If the latches are locked while installing the dust box,
malfunctions may result and the dust box may fall out.
●During installation, make sure that you have a good
grip of the middle of the dust box and insert it soundly
in its place. Should there be any errors in installation,
the dust box may fall out and cause injury.
2. Insert the power supply line into its socket
and press the MAINTENANCE / MANUAL
AUTO button (Fig.3 A).
1Insert the power supply line into its socket.
2Press the unit's "MAINTENANCE / MANUAL AUTO"
button.
*If the MAINTENANCE SIGN Indicator Lamp (red) (Fig.2
4) light is illuminated, it will go out at this point.
●Press down on the MAINTENANCE / MANUAL AUTO
button, and release the button when you hear a "beep."
If the MAINTENANCE / MANUAL AUTO button is held
down for more than 3 seconds, MANUAL AUTO Opera-
tion will begin (page 22).
●Please be sure to press the MAINTENANCE / MANUAL
AUTO button. Auto Filter Maintenance is unable to be
performed when the MAINTENANCE SIGN Indicator
Lamp (red) (Fig.2 4) is illuminated.
3. Insert the air filters into the unit (one on
both the left and right side).
1Insert the air filter net into the dust box slot.
2Insert the air filter until it reaches the upper limits of
the air filter frame (on both sides). (After about 2 sec-
onds, the air filter will automatically lock into its place).
Latch
Remove Lock
Latch
Lock
Remove
"click"
"Beep"
Dust Box
INLET
Direction
Air filter
Air filter Air filter
frame
Mark
Dust box
