Introduction
i
Depending on the configuration chosen, some of the hardware components described
may not be available on your system board.
You will find further information in the "BIOS Setup" description.
Further information about drivers is provided in the readme files on the hard disk, on the supplied
drivers diskettes, on the "Drivers & Utilities" or on the "ServerStart" CD.
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
!Pay particular attention to text marked with this symbol. Failure to observe this warning
endangers your life, destroys the device, or may lead to loss of data.
i
Supplementary information, remarks, and tips follow this symbol.
ÊText which follows this symbol describes activities that must be performed in the order shown.
ËThis symbol indicates that you must enter a blank space (press the Space Bar) at this point.
ÚThis symbol indicates that you must press the Enter key.
Text in this typeface indicates screen outputs.
Text in this bold typeface indicates the entries you make via the keyboard.
Text in italics indicates commands or menu items.
"Quotation marks" indicate names of chapters or terms.
Important notes
Store this manual close to the device. If you pass the device on to third parties, you should pass this
manual on with it.
!Be sure to read this page carefully and note the information before you open the device.
You cannot access the system board components without first opening the device. How
to dismantle and reassemble the device is described in the Operating Manual
accompanying the device.
Please observe the safety information provided in the "Important notes" chapter in the
device’s operating manual.
Incorrect replacement of the lithium battery may lead to a risk of explosion. It is therefore
essential to observe the instructions in the "Add-on modules" - "Replacing the lithium
battery" section.

Important notes
2 - English A26361-D1170-Z120-5-7419
The shipped version of this board complies with the requirements of the EEC
directive 89/336/EEC "Electromagnetic compatibility".
Compliance was tested in a typical PC configuration.
When installing the board, refer to the specific installation information in the
Operating Manual or Technical Manual for the receiving device.
Connecting cables for peripherals must be adequately shielded to avoid interference.
!Components can become very hot during operation. Ensure you do not touch
components when making extensions to the system board. There is a danger of burns!
i
The warranty is invalidated if the device is damaged during the installation or
replacement of system expansions. Information on which system expansions you can
use is available from your sales outlet or the customer service centre.
Information about boards
To prevent damage to the system board or the components and conductors on it, please take great
care when you insert or remove boards. Take great care to ensure that extension boards are slotted
in straight, without damaging components or conductors on the system board, or any other
components, for example EMI spring contacts.
Be especially careful with the locking mechanisms (catches, centring pins etc.) when you replace
the system board or components on it, for example memory modules or processors.
Never use sharp objects (screwdrivers) for leverage.
Boards with electrostatic sensitive devices (ESD) are identifiable by the
label shown.
When you handle boards fitted with ESDs, you must, under all
circumstances, observe the following points:
·You must always discharge static build up (e.g. by touching a
grounded object) before working.
·The equipment and tools you use must be free of static charges.
·Remove the power plug from the mains supply before inserting or
removing boards containing ESDs.
·Always hold boards with ESDs by their edges.
·Never touch pins or conductors on boards fitted with ESDs.

Features
A26361-D1170-Z120-5-7419 English - 3
Features
·System board in micro ATX format
·Intel Celeron processor with 66 MHz/100 MHz Front Side Bus for PGA 370 socket and
Pentium III with 100 / 133 MHz Front Side Bus for PGA 370 socket.
Intel Celeron and Pentium III processors support MMX technology and Intel Streaming SIMD
Extensions. The size and frequency of first-level cache and second-level cache are dependent upon
the processor used.
·Intel chipset 810E
consisting of GMCH 82810E, ICH 82801 and FWH82802
·AC'97 Audio Codec
internal: Stereo CD-In, Stereo AUX-In
external: Mono Micro-In, Stereo Line-In, Game/Midi-Port, Stereo Line-Out (max. 2 x 0,5 W/8 W)
·2 DIMM slots for 16 to 512 Mbyte main memory (SDRAM memory modules meet the PC100
specification) without ECC
·Flash BIOS
·Energy saving functions:
-ACPI and APM
-Switching on/off, standby mode, suspend mode via on/off switch
-Switching on/off via software
-Wake on RTC
-Wake on LAN
-Wake on PCI Cards
·Security functions:
-System, Setup and Keyboard password
-parallel and serial ports can be deactivated
-Cover monitoring: cover monitoring reports when the cover has been opened without
authorisation.
-Write protection for floppy disk drive
-Boot hard disk virus warning function
-Flash BIOS and EEPROMs (on the memory modules) virus protection function.
·4 PCI slots
PCI slots support 3.3 V main voltage.
·IDE hard disk controller connected to PCI bus for up to four IDE drives
(e.g. IDE hard disk drives, ATAPI CD-ROM drives)
The IDE hard disk controller are ATA33/66, ultra DMA capable and support PIO modes 0-4.
·Floppy disk drive controller (possible formats: 720 KB, 1.44 MB, 2.88 MB)
·The system board supports booting from a 120 MB IDE floppy disk drive.
·2D/3D graphics processor, 24 bit 230 MHz RAMDAC
·Monitor connector: Sub D

Features
4 - English A26361-D1170-Z120-5-7419
·1 external parallel interface (ECP- and EPP-compatible)
·1 external serial port (16C550 compatible with FIFO)
This port does not support the ring indicator signal.
·1 internal chipcard reader interface.
As an alternative the chipcard reader interface can also be used as a second serial port
(16C550 compatible with FIFO). This port does not support the ring indicator signal.
·1 internal WOL interface
·2 external PS/2 interfaces for keyboard and mouse
·2 external USB ports
·Real-time clock/calendar with integrated battery backup

Features
A26361-D1170-Z120-5-7419 English - 5

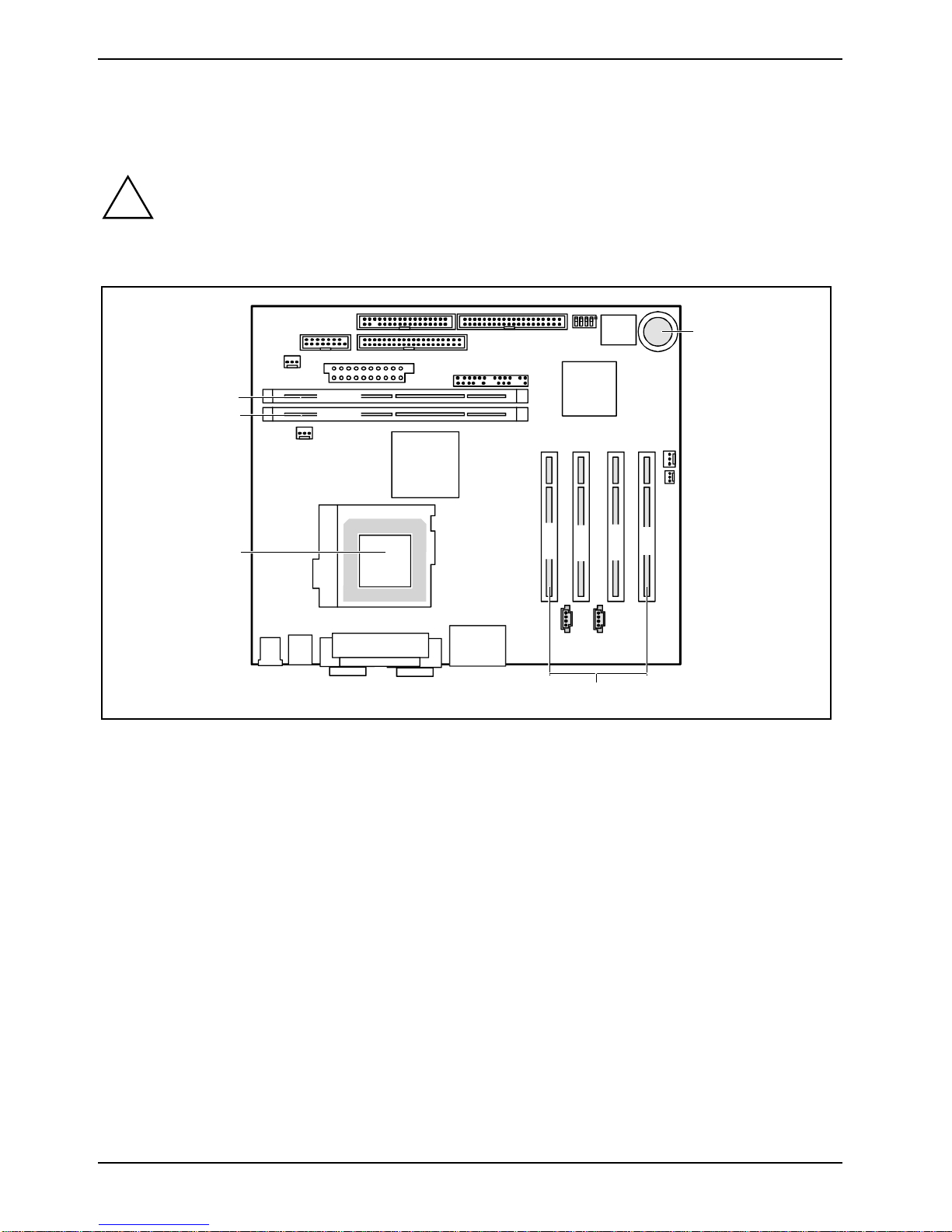

Interfaces and connectors
2
31
4
5 6 7 8
9a 9c9b
DIMM 1
DIMM 2
PCI 2
PCI 3
PCI 1
PCI 4

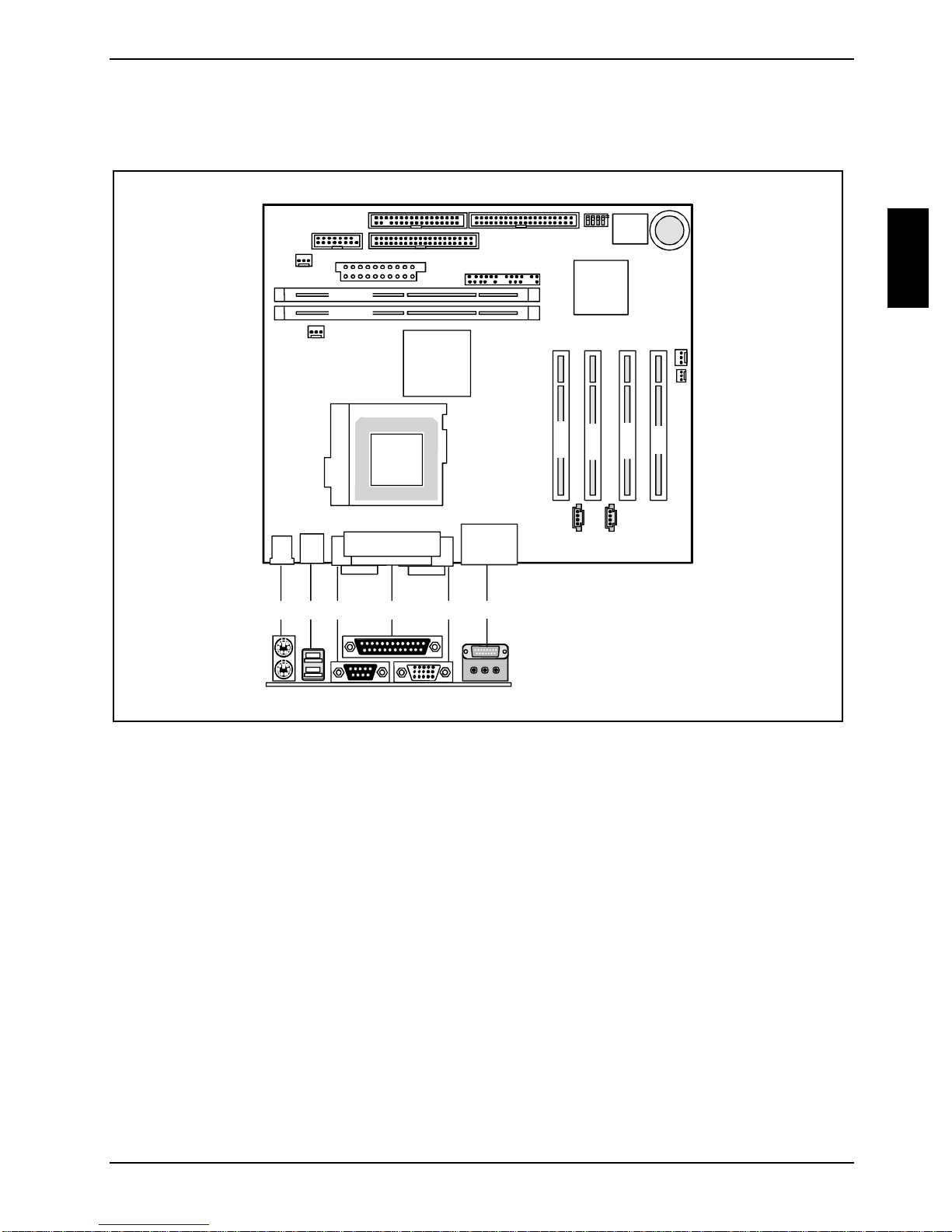

1 = PS/2 mouse port
2 = PS/2 keyboard port
3 = USB port 2
4 = USB port 1
5 = Serial port 1
6 = Parallel port
7 = VGA port
8 = Game/Midi port
9a = Audio Line-Out
9b = Audio Line-In
9c = Audio Micro-In

Features
6 - English A26361-D1170-Z120-5-7419
DIMM 1
DIMM 2
PCI 2
PCI 3
PCI 1
PCI 4
213456
8
9
10
11
7
12
1 = Chipcard reader port (optional) or serial
port 2
2 = Power supply
3 = IDE drives 3 and 4 (secondary)
4 = Floppy Disk Drive
5 = Connector for control panel and
loudspeaker
6 = IDE drives 1 and 2 (primary)
7 = Fan 2 (e.g. for the processor)
8 = Wake On LAN
9 = CD audio input
10 = AUX audio input
11 = Fan 1 (e.g. for the processor)
12 = Cover monitoring
The components and connectors marked are not necessarily present on the system board.
Hard disk connection
An ultra ATA/66 hard disk must be connected with a cable especially designed for the ATA/66
mode.
ÊConnect the end of the cable marked with blue to the system board.

Features
A26361-D1170-Z120-5-7419 English - 7
PCI bus interrupts
The following table shows which PCI bus interrupts are assigned on the system board.
PCI bus interrupt Component on system board:
A PCI bus slot 1
B PCI bus slot 2
C PCI bus slot 3
D PCI bus slot 4
D USB controller
A Graphics processor
BSMBus
BAC'97
Screen resolution
Depending on the operating system used, the screen resolutions in the following table refer to the
system board screen controller.
If you are using an external screen controller, you will find details of supported screen resolutions in
the Operating Manual or Technical Manual supplied with the controller.
Screen resolution Refresh rate (Hz) Horizontal-
rate (kHz) ** Max. number of colours
640x480 60 - 85 31,5 - 43,3 256
640x480 60 - 85 31,5 - 43,3 65536
640x480 60 - 85 31,5 - 43,3 16777216
800x600 60 - 85 35,1 - 53,7 256
800x600 60 - 85 35,1 - 53,7 65536
800x600 60 - 85 35,1 - 53,7 16777216
1024x768 60 - 85 48,8 - 68,7 256
1024x768 60 - 85 48,8 - 68,7 65536
1024x768 60 - 85 48,8 - 68,7 16777216
1152x864 60 - 85 54,4 - 76,9 256
1152x864 60 - 85 54,4 - 76,9 65536
1152x864 60 - 85 54,4 - 76,9 16777216
1280x1024 60 - 85 64,0 - 91,1 256
1280x1024 60 - 85 64,0 - 91,1 65536
1280x1024 60 - 85 64,0 - 91,1 16777216
1600x1200 60 - 75 75,0 - 93,8 256
* no 16 colour mode
** Horizontal values tolerance ±0.3 kHz.

Settings with switches
8 - English A26361-D1170-Z120-5-7419
Settings with switches
DIMM 1
DIMM 2
PCI 2
PCI 3
PCI 1
PCI 4
ON
1234

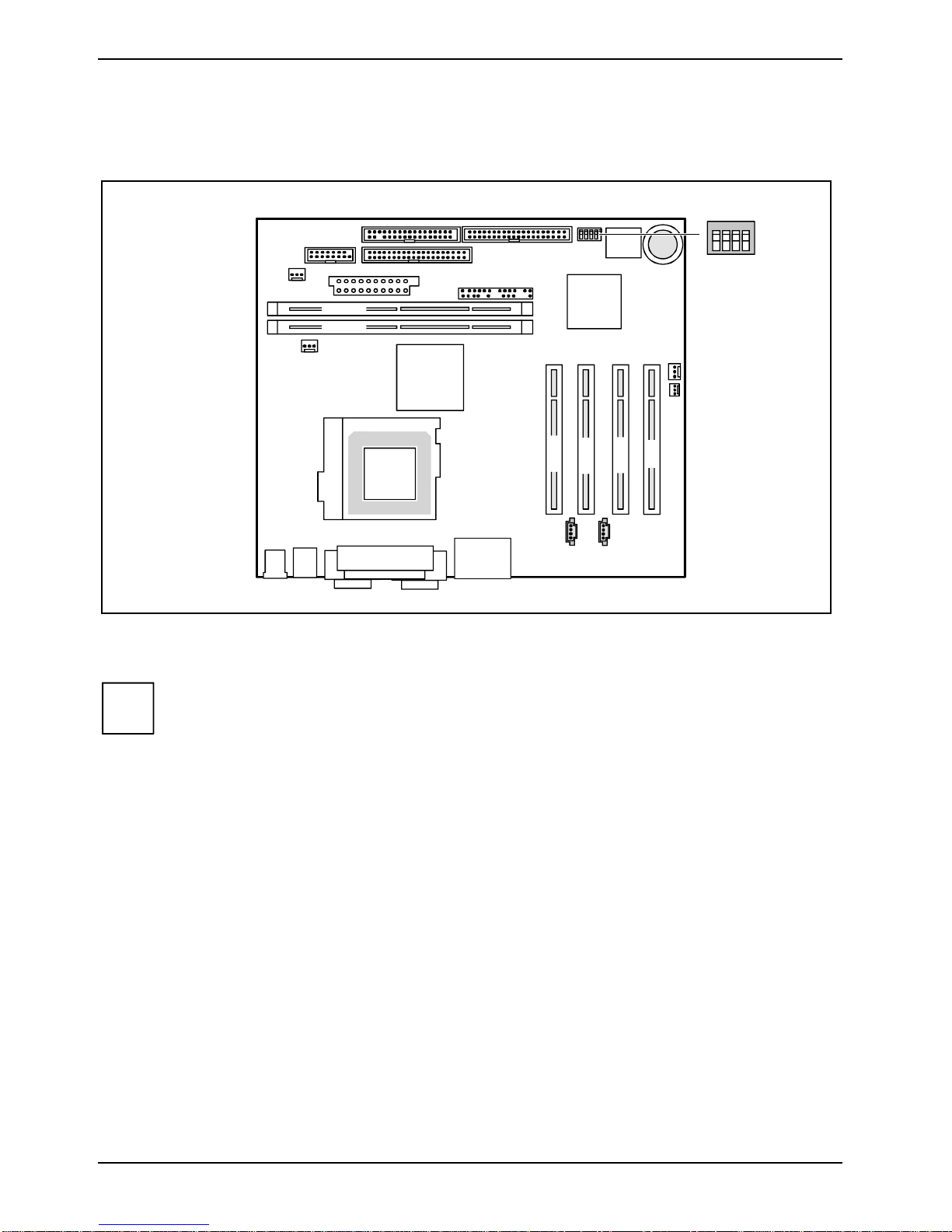

Switch 1 = must be set to off
Switch 2 = System BIOS recovery Switch 3 = Write-protection for floppy disk Switch 4 = must be set to off
i
The clock frequency of the processor is set automatically.

Settings with switches
A26361-D1170-Z120-5-7419 English - 9
Recovering System BIOS - switch 2
Switch 2 enables recovery of the old system BIOS after an attempt to update has failed. To restore
the old system BIOS you need a Flash BIOS Diskette (please call our customer service centre).
On The System BIOS executes from floppy drive A: and the inserted "Flash-BIOS-
Diskette" restores the System BIOS on the system board.
Off Normal operation (default setting).
Write protection for floppy disks - switch 3
Switch 3 is used to define whether floppy disks can be written or deleted in the floppy disk drive. To
write and delete floppy disks, the write-protection in BIOS Setup must be disabled (in menu Security,
the field Diskette Write must be set to Enabled).
On The floppy disk drive is write-protected.
Off Floppy disks can be read, written and deleted (default setting).

Add-on modules
10 - English A26361-D1170-Z120-5-7419
Add-on modules
!Exit Suspend mode, switch off the device and remove the power plug from the mains
supply, before carrying out any of the procedures described in this chapter!
Even when you have switched off the device, parts (e.g. memory modules, AGP and PCI
extension boards) are still supplied with power.
All PCI slots have bus master capability and support 3.3 V.
DIMM 1
DIMM 2
PCI 2
PCI 3
PCI 1
PCI 4
1
2
3
4
5
1 = Socket for processor with heat sink
2 = Location bank 1 for main memory
3 = Location bank 2 for main memory
4 = Lithium battery
5 = PCI slots 2, 3, 4, 1

Add-on modules
A26361-D1170-Z120-5-7419 English - 11
Installing and removing processors
32
1
A
45

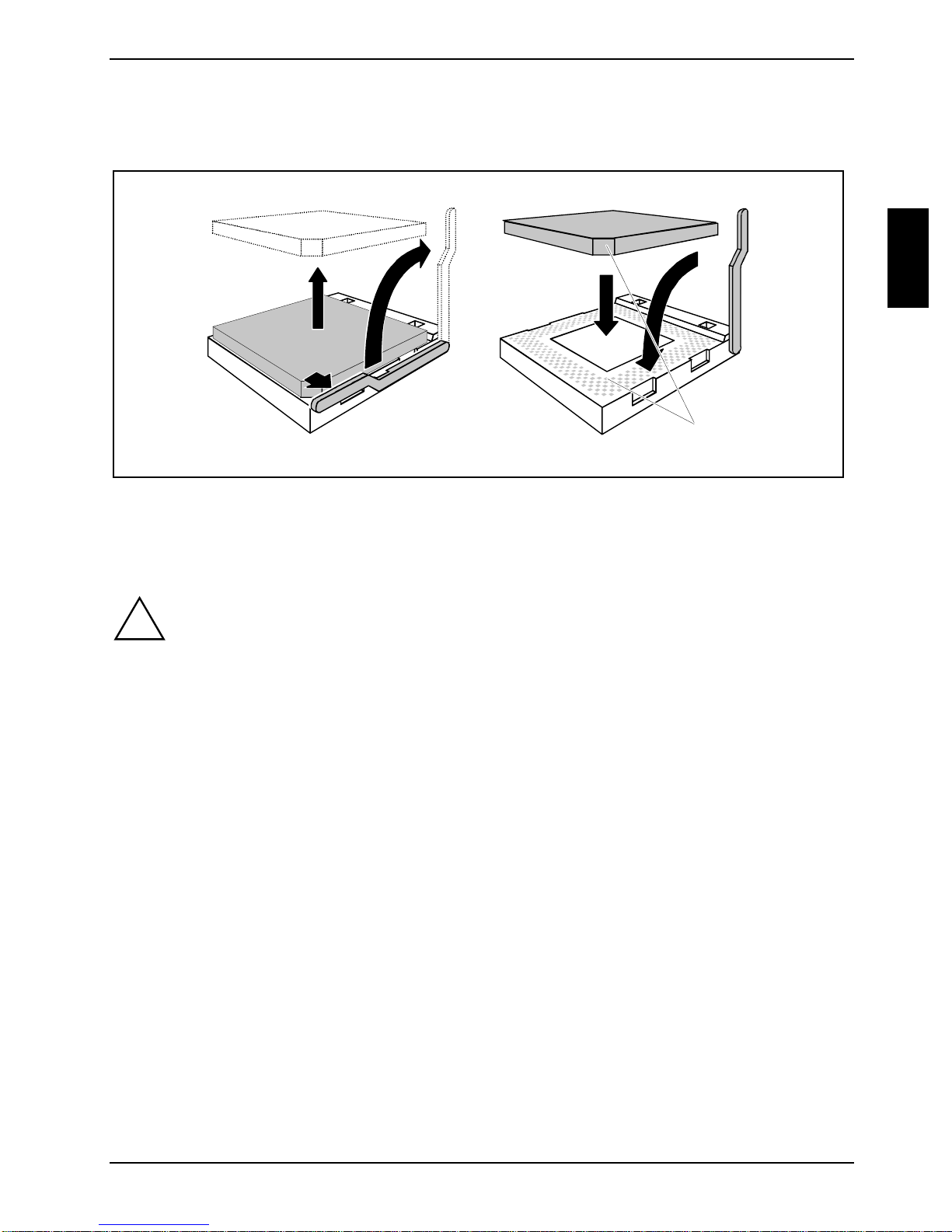

ÊPull the lever in the direction of the arrow (1) and lift it as far as it will go (2).
ÊRemove the old processor from the socket (3).
ÊInsert the new processor in the socket so that the angled corner of the processor matches the
coding on the socket (A) with regard to the position (4).
!The angled corner of the processor may be covered by the heat sink. In this case let
yourself be guided by the marking in the rows of pins on the underside of the processor.
ÊPush the lever back down so that it snaps into place.

Add-on modules
12 - English A26361-D1170-Z120-5-7419
Upgrading main memory
These slots are suitable for memory modules with 16, 32, 64, 128 and 256 Mbyte of the DIMM
format. Therefore the memory capacity of one component on the memory module may not exceed
128 Mbit (= 16 MB). Memory modules with different memory capacities can be combined.
!You may only use unbuffered 3.3 V memory modules. Buffered memory modules are not
supported.
SDRAM memory modules must be designed for a clock frequency of 100 MHz (meets
PC100 specification).
Installing a memory module
2
2

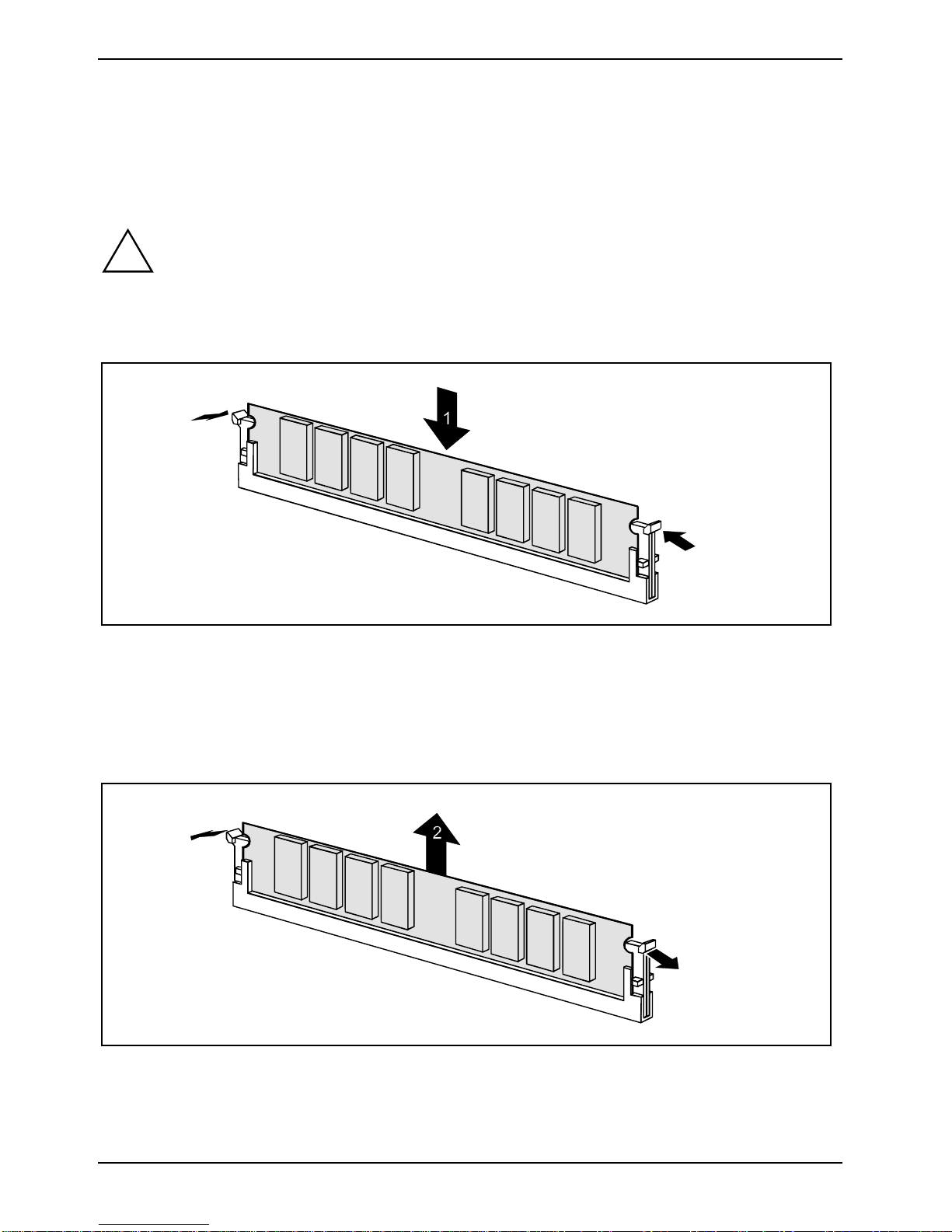

ÊPush the holders on each side of the memory compartment outwards.
ÊInsert the memory module into the location.
Watch the coding of the memory module when doing so.
ÊAt the same time flip the lateral holders upwards until the memory module snaps in place.
Removing a memory module
1
1
ÊFlip the holders to the right and left of the location outwards.
ÊPull the memory module out of its location.
