Fujitsu D3231-S User manual

TechNotes V0.9
Industrial Mainboard Series
D3231-S
D3235-S
D3236-S

a
g
e
2
Page
TechNotes D323x-S V0.9 Page 2 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Content
1Safety Instructions 5
2Feature Overview D323x-S 6
2.1 Basic Layout D3231-S 10
2.2 Basic Layout D3235-S 11
2.3 Basic Layout D3236-S 12
2.4 Block Diagram “Q87” 13
2.5 Block Diagram “H81” 14
2.6 External Connectors D3231-S / D3236-S 15
2.7 External Connectors D3235-S 16
2.8 Onboard components D323x-S 17
2.9 Summary: Feature Differences D323x-S 18
2.10 I/O-Shield 19
3Interfaces & Connectors 20
3.1 Frontpanel Connector 20
3.2 Internal Serial (COM) Port Connector 21
3.3 External Serial (COM) Port 21
3.4 Internal Parallel Port Connector 22
3.5 Internal USB2.0 Connector (2 Ports) 22
3.6 Internal USB3.0 Connector (2 Ports) 23
3.7 External USB3.0 Connector 23
3.8 Keyboard Port 24
3.9 Mouse Port 24
3.10 LAN Connector 25
3.11 DVI-I Connector 25
3.12 DisplayPort V1.2 Connector 26
3.13 Serial ATA Connectors 26
3.14 mSATA Connector 27
3.15 Fan Connectors 28

a
g
e
3
Page
TechNotes D323x-S V0.9 Page 3 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
3.16 Power Supply Fan Connector 28
3.17 High Definition Frontpanel Audio Connector (HD Audio) 29
3.18 AC97 Frontpanel Audio Connector (Legacy Audio) 29
3.19 S/PDIF Connector 30
3.20 GPIO (Feature Connector) 31
3.21 Power Supply Connector 32
3.22 Additional Power Supply Connector 32
3.23 Chassis Intrusion 33
4System Monitoring 34
4.1 D3236-S / D3231-S: Temperature Sensors and Fan Connectors 35
4.2 D323x-S: SystemGuard 36
4.3 D323x-S: SystemGuard - Details 37
4.4 SilentFanConfigManager –Customize System Monitoring Settings 38
4.5 Components for continous 24/7 operation @ +60°C 39
4.6 Capacitor Endurance Time Comparison 40
4.7 Temperature Reference Points D323x-S 41
4.8 BMC –BIOS Default Settings 42
4.9 ATX Power Supply 43
5Display Options 44
5.1 VGA Output 44
5.2 DVI Output 45
5.3 HDMI Output 46
5.4 DisplayPort Output 47
5.5 Dual Digital plus VGA Output (3 Displays) 48
5.6 Three Digital Outputs (3 Displays) 49
6Operating System Support 50
6.1 Support for Windows 7 / Windows 8 51
7Mainboard Tools 52
Common Mainboard Tools 52
7.1 BIOS Boot Logo Tool 52
7.2 EditCMOS 52
7.3 OEMIDENT 52
7.4 SystemGuard 53
Industrial Tools 54
7.5 SilentFanConfig-Manager 54

a
g
e
4
Page
TechNotes D323x-S V0.9 Page 4 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
7.6 Windows System-Monitoring API (BMCAPI) 54
7.7 Linux System-Monitoring Driver (“LM-Sensors”) 54
8Known Issues & Important Notes 55
8.1 Driver support for MS Windows XP / MS Win8 55
8.2 Memory Issue 55
8.3 Possible Power Supply Issue 55
8.4 SATA Interface (Intel chipset limitation) 56
8.5 Graphics driver issue with future Core-i3 / Pentium-G processor 56
8.6 mSATA support 56
8.7 USB3.0 Performance 57
9Miscellaneous 58
9.1 Trusted Platform Module (TPM) 58
9.2 System Watchdog (WD) 59
9.3 BIOS Update / BIOS Recovery 62
9.4 BIOS/CMOS Reset: 63
9.5 BIOS integrated HW Diagnostic Tool 64
9.6 BIOS integrated Erase Disk Tool 64

a
g
e
5
Page
TechNotes D323x-S V0.9 Page 5 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
1Safety Instructions
3 Copyright2011FUJITSU
TechNotesD307x-S V1.1
Safety Instructions
Do not connect or disconnect any cables or modules to or from any onboard connectors (except
for the rear I/O connectors) until the mainboard is completely powered down.
Any damage caused to the mainboard by misuse of the onboard connectors is excluded from the
standard warranty. Fujitsu Technology Solutions cannot be held liable for any damage that results
from incorrect use of any onboard connectors.
The system integrator is fully responsible for the usage of appropriate connectors and cables in
order to fulfill the technical requirements (electrical contact, durability, power/current levels,
signal integrity etc.)

a
g
e
6
Page
TechNotes D323x-S V0.9 Page 6 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
2Feature Overview D323x-S
•Based on latest Intel Lynxpoint single-chip technology (iQ87 resp. iH81)
•Support for full range of latest LGA1150 Haswell processors (Intel CoreTM-i Gen 4; up to 95W TDP)
•Intel® Core™ i7 / i5 –4xxx processor series
•Future Intel® Core™ i3 – 4xxx processor series
•Future Intel® Pentium® Haswell processor series
•Future Intel® Celeron® Haswell processor series
•iAMT 9.0 / VPro 2013 Manageabilty Support
Note: Available feature set depends on PCH and
installed processor
•Max. four memory sockets DDR3-1333/1600 supporting up to 32GB
•Intel Gbit LAN i217LM (“Clarkville”) onboard
•iAMT support
•Second Intel Gbit LAN i210AT (optional)
•Teaming support

a
g
e
7
Page
TechNotes D323x-S V0.9 Page 7 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview D323x-S
•Trusted Platform Module TPM V1.2 (Infineon) onboard (optional)
•Latest Intel®HD Graphics (integrated in processor)
•Simultaneous use of integrated graphics and PCIe graphics possible
•Onboard option for up to three digital displays (1 x DVI / 2 x DisplayPort V1.2)
or two digital displays (2 x DisplayPort V1.2) and 1 x VGA (DVI-I via VGA converter)
•Support of 4k resolutions (3840 x 2160) via DisplayPort V1.2
•PCI Express Gen3 (Q87) / PCI Express Gen2 (H81)

a
g
e
8
Page
TechNotes D323x-S V0.9 Page 8 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview D323x-S
•Internal Socket for USB stick / Dongle onboard (optional)
•USB 3.0 onboard
•Multichannel audio (5.1) incl. S/PDIF onboard
•6-Layer PCB
•Improved electrical signal quality
•Improved durability

a
g
e
9
Page
TechNotes D323x-S V0.9 Page 9 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview D323x-S
Designed & approved for 24/7 continuous operation @ 60°C
High Efficiency core voltage regulator design (80-85%)
Extended lifecycle up to 5 years
BIOS-POST/-Boot & OS –HW Watchdog onboard
Easy SW integration via Windows API & Linux Driver
mSATA Socket onboard(optional)
for OS installation or harddisk caching
incl. USB 2.0 interface for USB-based moduls

a
g
e
1
Page
TechNotes D323x-S V0.9 Page 10 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview D323x-S
2.1 Basic Layout D3231-S

a
g
e
1
Page
TechNotes D323x-S V0.9 Page 11 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview D323x-S
2.2 Basic Layout D3235-S

a
g
e
1
Page
TechNotes D323x-S V0.9 Page 12 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview D323x-S
2.3 Basic Layout D3236-S

a
g
e
1
Page
TechNotes D323x-S V0.9 Page 13 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview D323x-S
2.4 Block Diagram “Q87”

a
g
e
1
Page
TechNotes D323x-S V0.9 Page 14 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview D323x-S

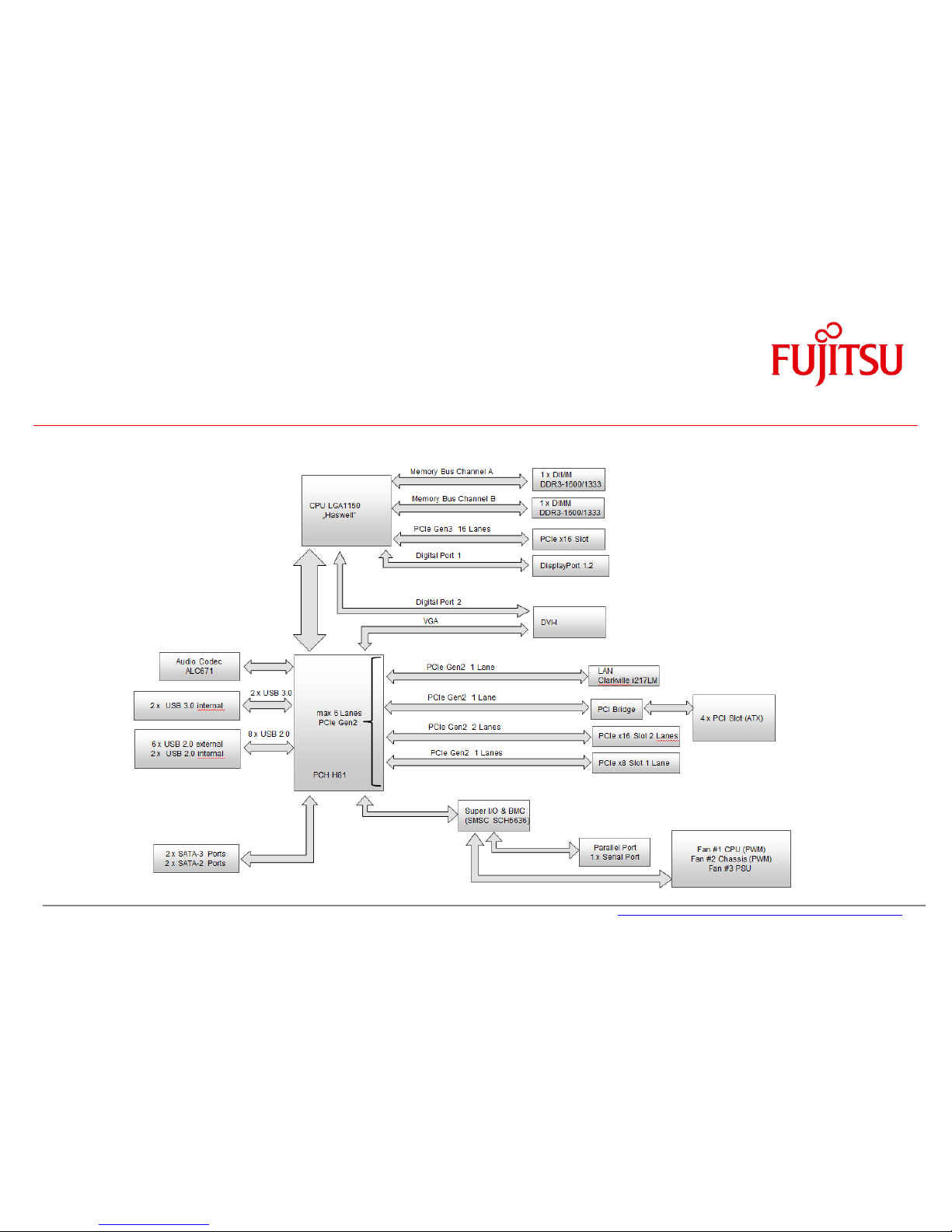

2.5 Block Diagram “H81”

a
g
e
1
Page
TechNotes D323x-S V0.9 Page 15 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview D323x-S
2.6 External Connectors D3231-S / D3236-S
PS/2 Kbd / Mouse
4 x USB 2.0
Dual DisplayPort V1.2
COM1; DVI-I
LAN2 / 2 x USB 3.0
LAN1 (iAMT) / 2 x USB2.0
Audio

a
g
e
1
Page
TechNotes D323x-S V0.9 Page 16 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview D323x-S
2.7 External Connectors D3235-S
PS/2 Kbd / Mouse
4 x USB 2.0
DisplayPort V1.2
DVI-I
LAN1 / 2 x USB2.0
Audio

a
g
e
1
Page
TechNotes D323x-S V0.9 Page 17 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview D323x-S
2.8 Onboard components D323x-S
Frontpanel
mSATA Socket 2)
Processor Fan (4 pin)
12V Supply (Processor)
PCIe x16 (16 Lanes, Gen2/3)
PCIe x8 (1 Lane, Gen2, open slot)
24 pin ATX PS
Up to 6 x SATA III
2x USB 3.0 (Frontpanel)
Fan2 (4 pin PWM)
2 x USB 2.0 (Internal)
Intrusion 2)
Frontpanel Audio & S/PDIF 2)
6 Layer PCB
Up to 4 x PCI
1 x PCIe x16 (4 lanes/2lanes, Gen2)
Processor LGA1150
COM Port
8 Bit GPIO 2)
USB 2.0 Socket (Stick) 2)
Fan 4 (4 pin PWM)1)2)
Fan3 (4 pin PWM / 3 pin) 2)
Parallel Port
1) PSU fan and FAN4 shared!
(BIOS Setup Option)
2) Not available on D3235-S
PSU Fan Control 1)
SCSI LED

a
g
e
1
Page
TechNotes D323x-S V0.9 Page 18 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview
2.9 Summary: Feature Differences D323x-S
Feature
D3231-S
D3236-S
D3235-S
Chipset (PCH)
Q87
Q87
H81
Memory Sockets / max. RAM
4 / 32GB
4 / 32GB
2 / 16GB
PCIe x16 (PEG Slot)
Gen3
Gen3
Gen2
PCIe x16- 16 lanes / PCIe x16- 4 lanes/ PCIe x16- 2 lanes /
PCIe x8- 1 lane / PCI
x / x / -- / x / 1
x / x / -- / x / 4
x / -- / x / x / 4
mSATA Socket / 8 Bit GPIO / TPM V1.2
x / x / x
x / x / x
-- / -- / --
USB2.0 Ports internal / external
41) / 6
41) / 6
2 / 6
USB3.0 Ports internal / external
2 / 2
2 / 2
2 / --
Supported Fans / PowerSupply Fan Control
4 / x
4 / x
2 / x
SATA2 / SATA3
-- /6
-- /6
2 / 2
S-PDIF / Intrusion / SCSI LED
x / x / x
x / x / x
-- / -- / x
COM-Port external / COM-Port internal / Parallel Port internal
1 / 1 / 1
1 / 1 / 1
-- / 1 / 1
DVI-I / DisplayPort 1 / DisplayPort 2
x / x / x
x / x / x
x / x / --
Dual LAN / Intel iAMT 9.0 - vPro 2013 Manageability
x / x
x / x
-- / --
BIOS-POST / BIOS-Boot / OS –HW Watchdog onboard
x / x / x
x / x / x
x / x / x
EraseDisk (BIOS Feature) included
x
x
x
1) Therof two ports used for USB stick (dongle) and mSATA socket

a
g
e
1
Page
TechNotes D323x-S V0.9 Page 19 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview
2.10 I/O-Shield
Spring Steel Sheet
Enforcement Sheet
D3235-S
Rear Side: EMI Gasket
(Foam with Copper Nickel
fabric)
Nominal force: ~ 75 N
for specified ATX IO “letterbox”
Note: ATX Chassis “letterbox” for I/O shield:
Nom. size = 158.75 x 44.45mm
Tolerance = +/- 0.2mm
D3231-S
D3236-S

a
g
e
2
Page
TechNotes D323x-S V0.9 Page 20 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
3Interfaces & Connectors
3.1 Frontpanel Connector
Power LED:
Anode: Pin 2 –current source 12mA up to 4V
Cathode: Pin 4 (suitable for various LED colors)
HDD LED:
Anode: Pin 1 –current source 6mA up to 4V
Cathode: Pin 3 (suitable for various LED colors)
Speaker Output:
Differential audio signal; max. 2W RMS / 4Ohm
