Introduction
This Technical Manual describes the system boards of the PRIMERGY 870 server systems, which
can be equipped with up to four Intel Xeon processors.
You may find further information in the description "BIOS Setup".
Further information to drivers is provided in the readme files on hard disk or on the supplied drivers
diskettes or on the "Drivers & Utility" or "ServerStart" CD.
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
!Pay particular attention to texts marked with this symbol. Failure to observe this warning
endangers your life, destroys the system, or may lead to loss of data.
iThis symbol is followed by supplementary information, remarks and tips.
²
Texts which follow this symbol describe activities that must be performed in the order shown.
Texts in italics indicate commands or menu item.
"Quotation marks" indicate names of chapters and terms that are being emphasized.
Overview
The PRIMERGY 870 server systems mainly consist of the following plug-in boards:
• I/O board
• Processor board
• Memory board (2x)
• Interface board
• SCSI board (3x)
• Power supply board
• ECU board
• Drive board (2x)

Introduction Abbreviations
2 - English U41029-J-Z146-1-7400
Abbreviations
ASIC Application Specific Integrated Circuit
ASR&R Automatic Server Recovery & Restart
BIOS Basic Input Output System
CAN Controller Area Network (CAN-Bus)
CPU Central Processing Unit
DAC Disk Array Controller
DIMM Dual Inline Memory Module
DIP Dual Inline Package
DMA Direct Memory Access
ECU Environment Control Unit
EDO-DRAM Enhanced Data Output Dynamic Random Access Memory
FPM Fast Page Mode
I2O Intelligent Input Output
IDE Integrated Drive Electronics
ISA Industry Standard Architecture
ISP In-System Programmable
LAN Local Area Network
LCD Liquid Crystal Display
LED Light-Emitting Diode
LVD Low Voltage Differential
MINT Multiprocessor Interrupt (Controller)
OLR On-Line Replaceable
PIIX4 PCI/ISA Bridge and IDE Accelerator
PCI Peripheral Component Interconnect
PIO Programmed Input Output
PXB PCI Expander Bridge
RTC Real Time Clock
RTDS Remote Test and Diagnostic System (RemoteView)
SAF-TE SCSI Accessed Fault-Tolerant Enclosure
SCA Single Connected Attachment
SCSI Small Computer System Interface
SE Single Ended
STM SAF-TE Terminator Module
USB Universal Serial Bus
VGA Video Graphics Array

Abbreviations Important notes
U41029-J-Z146-1-7400 English - 3
Important notes
Store this manual close to the device. If you pass on the device to third parties, you should also
pass on this manual.
!Be sure to read this page carefully and note the information before you open the Server.
Please note the information provided in the chapter "Safety" in the Operating Manual of
the server.

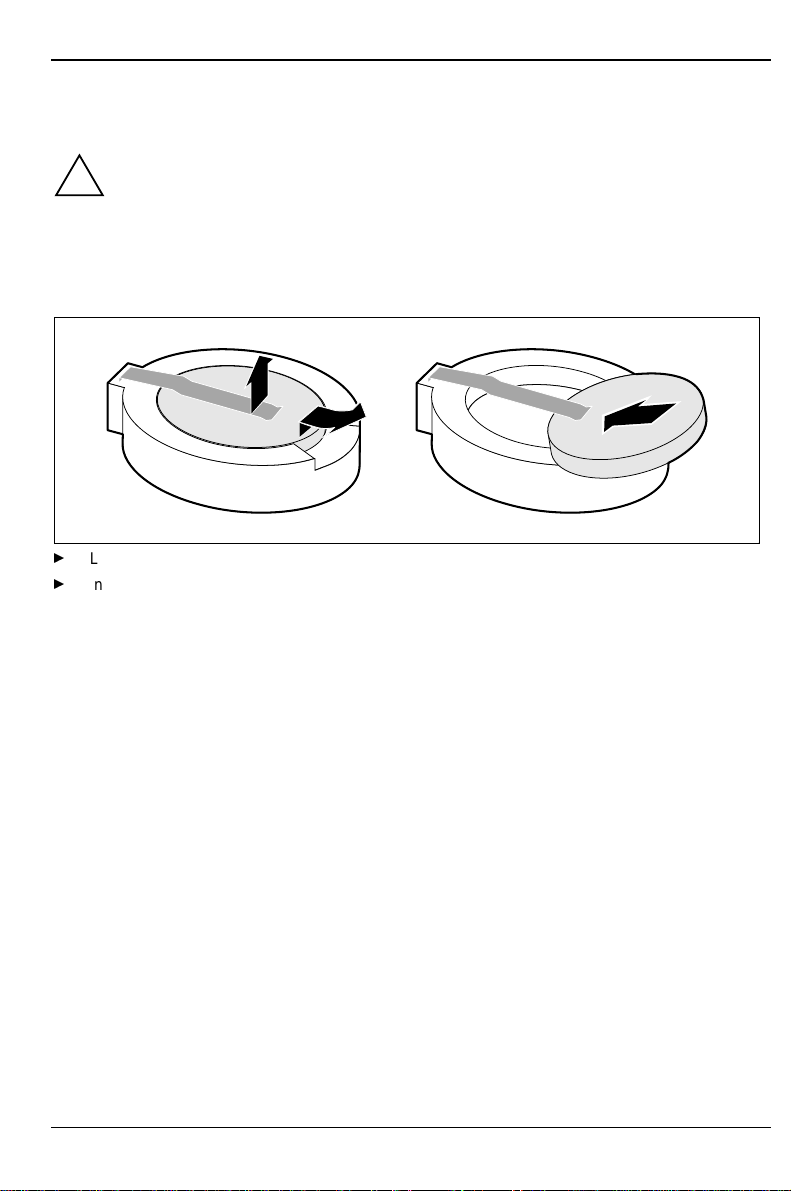

Incorrect replacement of the lithium battery may lead to a risk of explosion. It is therefore
essential to observe the instructions in the chapter "I/O board" - "Replacing the lithium
battery".
The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer (CR2032).
Do not throw lithium batteries into the trashcan. It must be disposed of in accordance with
local regulations concerning special waste.
Connecting cables for peripherals must be adequately insulated to avoid interference.
!Components can become very hot during operation. Make sure you do not touch
components when making extensions to the boards. There is a danger of burns!
iThe warranty expires if the device is damaged during the installation or replacement of
system expansions. Information on which system expansions you can use is available
from your sales office or the customer service.
Boards with electrostatic sensitive devices (ESD) may be identified by labels.
When you handle boards fitted with ESDs, you must observe the following points under all
circumstances:
• You must always discharge yourself (e.g. by touching a grounded object) before working.
• The equipment and tools you use must be free of static charges.
• Pull out the power plug before inserting or pulling out boards containing ESDs.
• Always hold boards with ESDs by their edges.
• Never touch pins or conductors on boards fitted with ESDs.

I/O board Abbreviations
4 - English U41029-J-Z146-1-7400
I/O board
Features
• Intel Chipset 82450NX
• 512 Kbytes Flash BIOS
• Intel i960 processor for PCI-to-PCI-Bridge, I2O and Server Management
• Intel 82527 CAN controller
• Intel 82558 Fast Ethernet LAN controller
• two Symbios 53C875 Ultra Wide SCSI controller
• Cirrus CL-GD5446 graphics controller with 2 Mbyte video memory
• IDE hard disk controller connected to PCI bus for up to two IDE drives
ultra DMA33 mode capable, supports PIO modes 0-4
• Real-time clock/calendar with integrated battery backup
• Floppy disk controller (up to 2.88 Mbytes format)
• four 64 bit hot-plug PCI slots
• four 32 bit hot-plug PCI slots
• two 32 bit PCI slots (one slot shared)
• four ISA slots (three slots shared)
• two 32-bit PCI slots over i960 processor (both shared)
• PS/2 mouse port
• PS/2 keyboard port
• four external serial ports
• USB (Universal Serial Bus)
• CAN bus
• LAN port
• Cover detection
• Remote On possible via modem, via internal fax modem and via the four external serial ports
• Wake On LAN

Interfaces and connectors I/O board
U41029-J-Z146-1-7400 English - 5

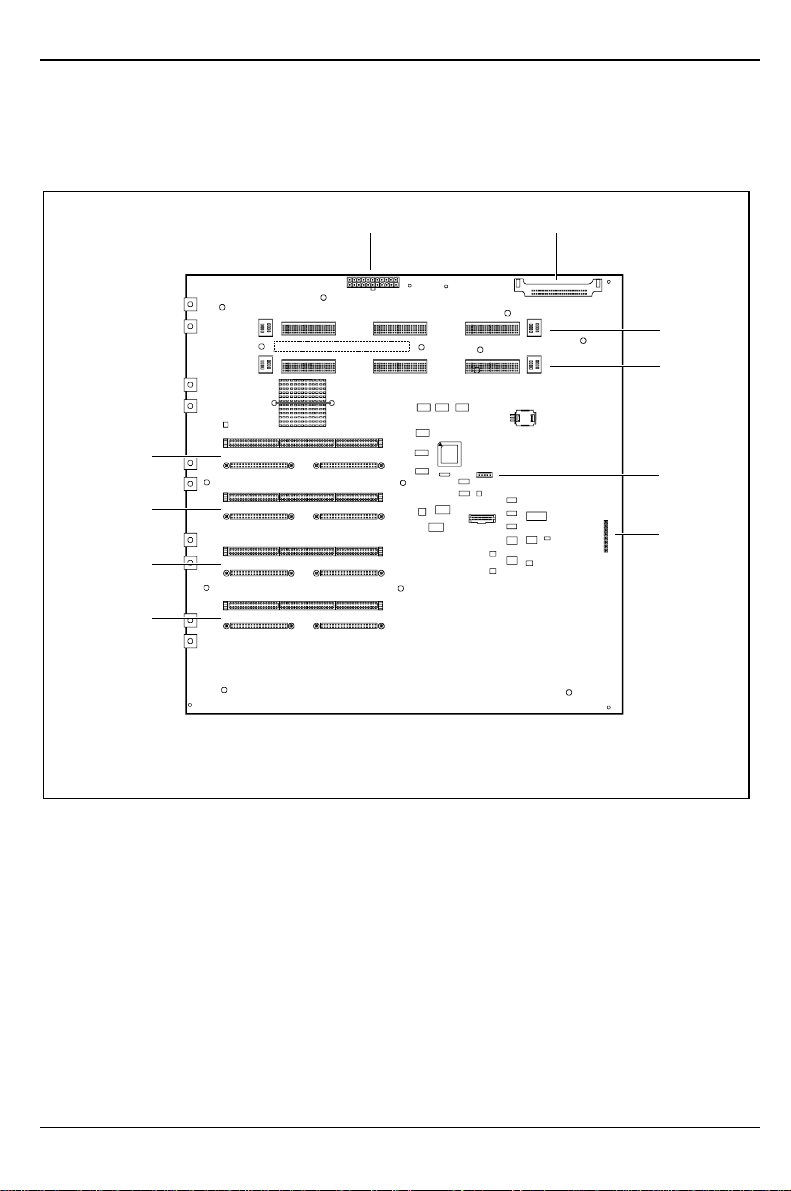

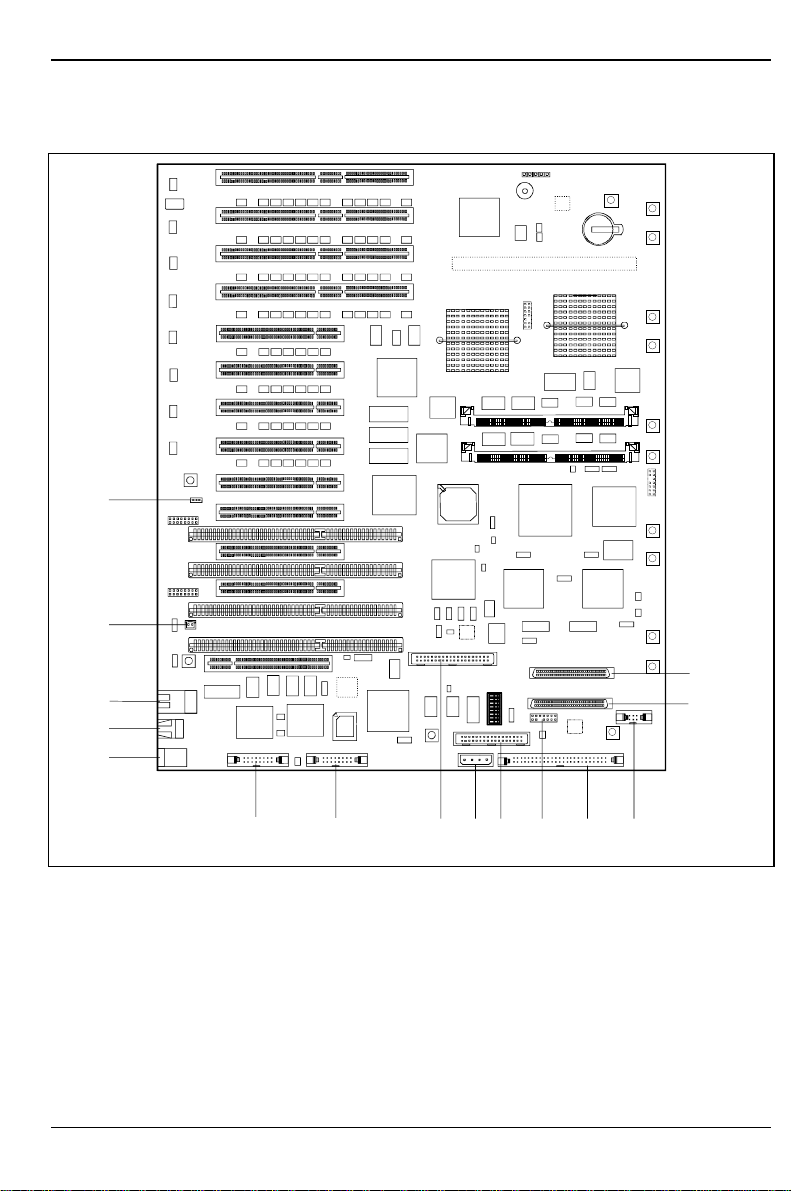

Interfaces and connectors
1
2
3
4
5
6
8
9
11
13
7
14
12
15
10
1
2
3
4
6
5
7
8
9
10
11
12
13
12
11
10
1 = SCSI 1 16 bit
2 = SCSI 2 16 bit
3 = Cover detection
4 = ECU
5 = ISP
6 = Floppy disk drive
7 = IDE power supply
8 = IDE drives
9 = Hot-plug PCI panel for 64 bit slots
10 = Hot-plug PCI panel for 32 bit slots
11 = Keyboard and mouse
12 = USB
13 = LAN
14 = Remote On (Fax modem / Internal Modem
On)
15 = Wake up on LAN

I/O board Possible screen resolution
6 - English U41029-J-Z146-1-7400
Possible screen resolution
Depending on the operating system used the screen resolutions in the following table refer to the
screen controller on the I/O board. If you are using an external screen controller, you will find details
of supported screen resolutions in the Operating Manual or Technical Manual supplied with the
controller.
Screen resolution Refresh rate (Hz) Horizontal-
rate (kHz) ** Max. number of colors
640x350 70 31,5 16
640x350 84 38 16
640x480 60 31,5 16777216
640x480 75 37,5 16777216
640x480 85 43,4 16777216
640x480 100 50,6 16777216
720x400 70 31,5 16
720x400 84 38 16
800x600 60 38 65536
800x600 60 38 16777216
800x600 72 48 65536
800x600 72 48 16777216
800x600 75 47 65536
800x600 75 47 16777216
800x600 85 53,7 65536
800x600 85 53,7 16777216
800x600 100 63 65536
800x600 100 63 16777216
1024x768 87 interlaced 36 256
1024x768 87 interlaced 36 65536
1024x768 60 48,4 256
1024x768 60 48,4 65536
1024x768 75 60 256
1024x768 75 60 65536
1024x768 85 68,7 256 *
1024x768 100 81 256 *
1280x1024 87 interlaced 49 16
1280x1024 87 interlaced 49 256
1280x1024 60 63,7 256 *
1280x1024 75 80,4 256 *
* no 16 color mode
** The horizontal rate values may have a tolerance range of ± 0.3 kHz.

Settings with the switch block I/O board
U41029-J-Z146-1-7400 English - 7
Settings with the switch block
OFF
ON
12345678
1
2
3
4
6
5
7
8
9
10
11
12
13
12
11
10

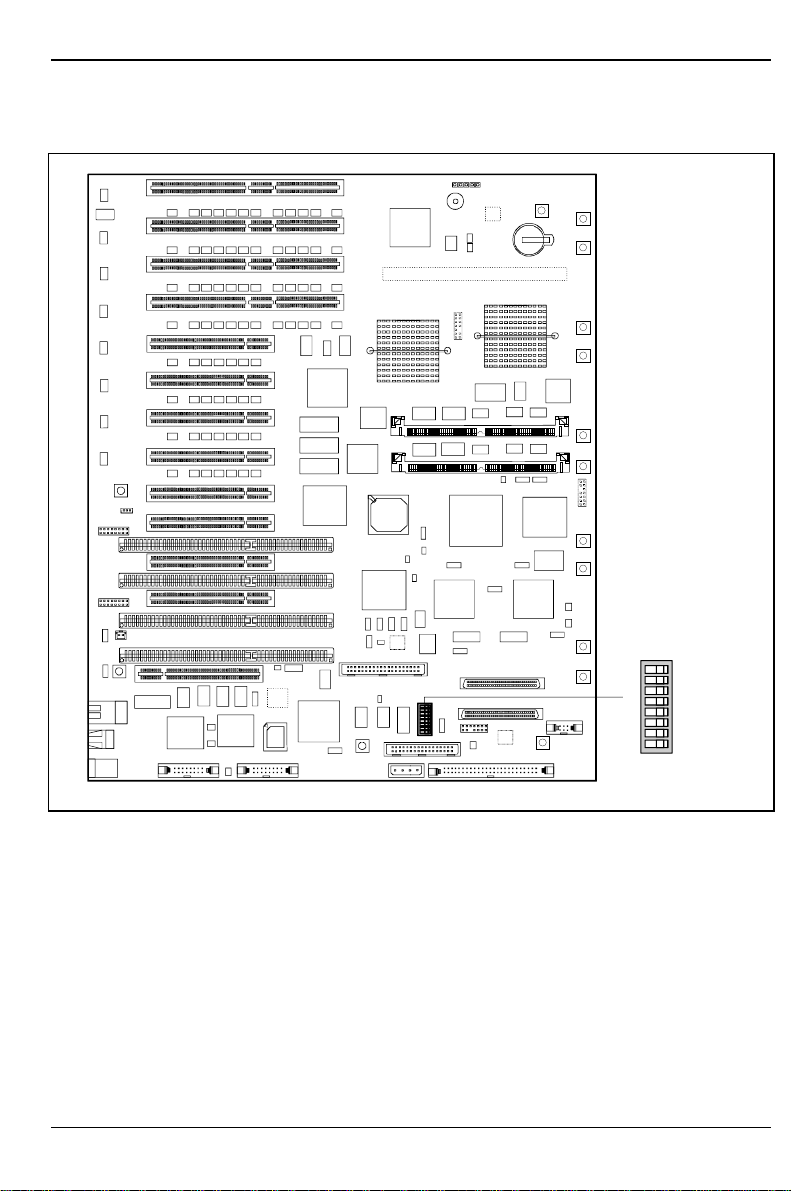

Switch 1 to 5 = not used
Switch 6 = Write protection for floppy disks Switch 7 = Skipping password query Switch 8 = Recovering system BIOS

I/O board Settings with the switch block
8 - English U41029-J-Z146-1-7400
Write protection for floppy disks - switch 6
Switch 6 is used to define whether floppy disks can be written or deleted in the floppy disk drive. To
write and delete floppy disks, the write -protection in BIOS setup must be disabled (in menu Security,
the field Diskette Write must be set to Enabled).
on The floppy disk drive is write-protected.
off Read, write and delete floppy disks is possible (default setting).
Skipping the password query - switch 7
Switch 7 is used to define whether the password is queried at system startup, if the password
protection is enabled in BIOS Setup (in Security menu , the Password field must be set to Enabled).
on The password query is effective.
off The password query is skipped (default setting).
Recovering System BIOS - switch 8
Switch 8 enables recovery of the old system BIOS after an attempt to update has failed. To restore
the old system BIOS you need a Flash BIOS Diskette (please call our customer service).
on The system boots from the "Flash BIOS floppy disk" from Drive A and reprograms
the system BIOS on the I/O board.
off The system is started with the system BIOS on the I/O board. The system BIOS
cannot be reprogrammed. (Default setting)

Add-on modules I/O board
U41029-J-Z146-1-7400 English - 9
Add-on modules
1
2
3
4
6
5
7
8
9
10
11
12
13
12
11
10
1
2
3
6
4
5
9
8
7
7
9
10

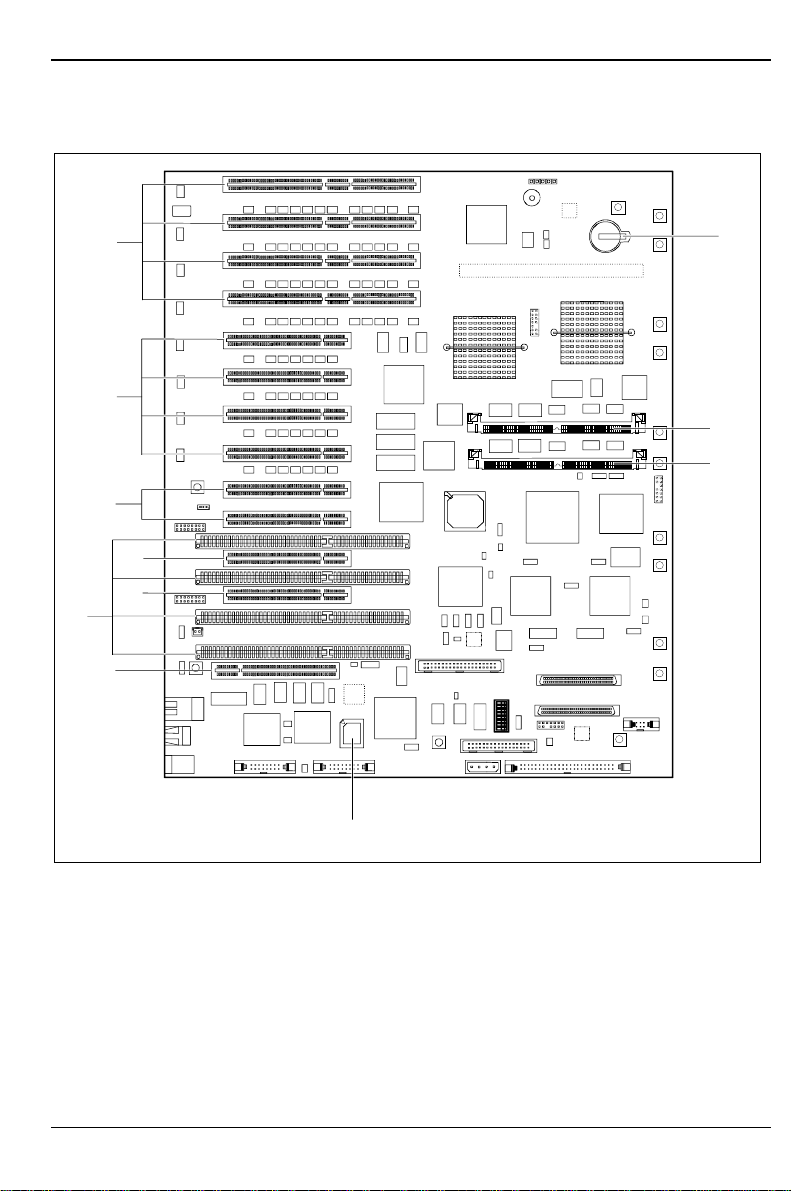

1 = Battery
2 = Slots for i960 memory (odd)
3 = Slots for i960 memory (even)
4 = Flash BIOS
5 = Interface board
6 = ISA slots
7 = 32 bit PCI slots (bus 1-i960)
8 = 32 bit PCI slots (bus 0-0A)
9 = 32 bit Hot-plug PCI slots (bus 2-0B)
10 = 64 bit Hot-plug PCI slots (bus 3-1A)
All PCI slots have bus master capability.

I/O board Add-on modules
10 - English U41029-J-Z146-1-7400
Memory extension for i960
The I/O board is equipped with two installation banks (even and odd) for memory modules. Both
memory banks can be equipped with single-sided or double-sided memory modules. Equipping
must begin with the even installation bank.
The board supports a maximum of 16 Mbytes.
Only the combination possibilities listed in the following table are permitted.
Even Bank Odd Bank Maximum memory
configuration
4 Mbyte single-sided no memory module 4 Mbyte
4 Mbyte single-sided 4 Mbyte single-sided 8 Mbyte
8 Mbyte double-sided 8 Mbyte double-sided 16 Mbyte
Equipping sequence/slot priority
Equip the slots according to the following table. Go through the table from top to bottom. The priority
decreases from top to bottom.
Board Slot
12345678910 11 12 13
PCI screen controller* 1. 1.
PCI DAC (one) 1.
64 bit PCI controller 1. 2. 3. 4.
PCI DAC (several) 2. 4. 6. 1. 3. 5.
ISA controller 4. 3. 2. 1.
32 bit PCI controller (other) 2. 3. 5. 7. 1. 4. 6. 8. 10. 9. 12.
*: The PCI screen controller must be inserted in either slot 9 or slot 10.

Add-on modules I/O board
U41029-J-Z146-1-7400 English - 11
ISA bus resources
Device IRQ Address DMA
Keyboard 1
Serial port COM 2 3 03F8, 02F8, 03E8, 02E8
Serial interface COM1 4 03F8, 02F8, 03E8, 02E8
5
Floppy disk drive controller 6 2
Parallel interface LPT1 7 0278, 0378, 03BC 0, 1, 3
Real-time clock (RTC) 8
free 9, 10, 11
Mouse controller 12
Numeric processor 13
IDE controller 14 1F0-1F7
free 15
Serial port COM 3 possible: 15, 12, 11, 10,
9, 7, 6, 5, 4(shared with
COM1), 3
03F8, 02F8, 03E8, 02E8
Serial port COM 4 possible: 15, 12, 11, 10,
9, 7, 6, 5, 4, 3(shared
with COM2)
03F8, 02F8, 03E8, 02E8
"IRQ" = interrupt assigned as shipped
"Address" = this address can be used for your particular device
"Address" = this DMA can be used for your particular device
Default settings are shown in bold print.

I/O board Add-on modules
12 - English U41029-J-Z146-1-7400
PCI bus resources
PCI slots
The following table shows an overview of the PCI slots:
PCI
slot # Label PCI Bus
#
PCI bus name 64bit/
32bit
Hot
Plug
Shared Description
1 X100 3 PCI-Bus 3-1A 64 bit yes no 64 bit hot-plug PCI bus slot
2 X101 3 PCI-Bus 3-1A 64 bit yes no 64 bit hot-plug PCI bus slot
3 X102 3 PCI-Bus 3-1A 64 bit yes no 64 bit hot-plug PCI bus slot
4 X103 3 PCI-Bus 3-1A 64 bit yes no 64 bit hot-plug PCI bus slot
5 X200 2 PCI-Bus 2-0B 32 bit yes no 32 bit hot-plug PCI bus slot
6 X201 2 PCI-Bus 2-0B 32 bit yes no 32 bit hot-plug PCI bus slot
7 X202 2 PCI-Bus 2-0B 32 bit yes no 32 bit hot-plug PCI bus slot
8 X203 2 PCI-Bus 2-0B 32 bit yes no 32 bit hot-plug PCI bus slot
9 X300 0 PCI-Bus 0-0A 32 bit no no 32 bit PCI bus slot
10 X301 0 PCI-Bus 0-0A 32 bit no yes 32 bit PCI bus slot
11 X400 1 PCI-Bus 1-i960 32 bit no yes 32 bit PCI bus slot
12 X401 1 PCI-Bus 1-i960 32 bit no yes 32 bit PCI bus slot
PCI bus names
The I/O board is equipped with four physical PCI buses.
PCI bus name Description
PCI-Bus 0-0A 32 bit PCI bus
PCI-Bus 2-0B 32 bit hot-plug PCI bus
PCI-Bus 1-i960 32 bit PCI bus
PCI-Bus 3-1A 64 bit hot-plug PCI bus

Add-on modules I/O board
U41029-J-Z146-1-7400 English - 13
PCI device numbers
The following table shows the device numbers assigned to the PCI devices and PCI slots on the I/O
board:
PCI bus
number PCI bus Device number PCI-AD Device
0 PCI-Bus 0-0A 2 AD18 PIIX4
0 PCI-Bus 0-0A 3 AD19 VGA
0 PCI-Bus 0-0A 4 AD20 MINT-ASIC
0 PCI-Bus 0-0A 5 AD21 I960RD, I2O controller and
PCI-to-PCI bridge
0 PCI-Bus 0-0A 12 AD28 PCI Slot 9, X300
0 PCI-Bus 0-0A 13 AD29 PCI Slot 10, X301
0 PCI-Bus 0-0A 16 (10h) - MIOC
0 PCI-Bus 0-0A 17 (11h) - reserved
0 PCI-Bus 0-0A 18 (12h) - PXB 0, PCI Bus 0A
0 PCI-Bus 0-0A 19 (13h) - PXB 0, PCI Bus 0B
0 PCI-Bus 0-0A 20 (14h) - PXB 1, PCI Bus 1A
0 PCI-Bus 0-0A 21 (15h) - not used, PCI Bus 1A is
64 bit in width
1 PCI-Bus 1-i960 1 AD17 Ethernet controller
1 PCI-Bus 1-i960 2 AD18 SCSI controller 1
1 PCI-Bus 1-i960 3 AD19 SCSI controller 2
1 PCI-Bus 1-i960 4 AD20 PCI slot 11, X400
1 PCI-Bus 1-i960 5 AD21 PCI slot 11, X401
2 PCI-Bus 2-0B 12 AD28 PCI slot 5, X200
2 PCI-Bus 2-0B 13 AD29 PCI slot 6, X201
2 PCI-Bus 2-0B 14 AD30 PCI slot 7, X202
2 PCI-Bus 2-0B 15 AD31 PCI slot 8, X203
3 PCI-Bus 3-1A 12 AD28 PCI slot 1, X100
3 PCI-Bus 3-1A 13 AD29 PCI slot 2, X101
3 PCI-Bus 3-1A 14 AD30 PCI slot 3, X102
3 PCI-Bus 3-1A 15 AD31 PCI slot 4, X103

I/O board Add-on modules
14 - English U41029-J-Z146-1-7400
PCI bus slots and PCI bus devices
The following table shows the assignment of the four different PCI buses to the PCI slots and PCI
devices.
PCI bus name PCI bus
number Slot/Devic ePCI slot 64 bit/ 32 bit Hot- plug Shared Description
PCI-Bus 0-0A 0 X300 9 32 bit no no 32 bit PCI bus slot 1
PCI-Bus 0-0A 0 X301 10 32 bit no yes 32 bit PCI bus slot 2
PCI-Bus 0-0A 0 CL-
GD5446 - 32 bit - - VGA controller
PCI-Bus 0-0A 0 MINT - 32 bit - - Multiprocessor
Interrupt Router and
I/O APIC
PCI-Bus 0-0A 0 I960RD - 32 bit - - I2O controller and
PCI-to-PCI bridge
PCI-Bus 1-i960 1 X400 11 32 bit no yes 32 bit I2O PCI bus
slot 1
PCI-Bus 1-i960 1 X401 12 32 bit no yes 32 bit I2O PCI bus
slot
PCI-Bus 1-i960 1 53C875J - 32 bit - - SCSI controller 1
PCI-Bus 1-i960 1 53C875J - 32 bit - - SCSI controller 2
PCI-Bus 1-i960 1 82C558 - 32 bit - - 10/100Mbit Ethernet
controller
PCI-Bus 2-0B 2 X200 5 32 bit yes no 32 bit hot-plug PCI
bus slot 1
PCI-Bus 2-0B 2 X201 6 32 bit yes no 32 bit hot-plug PCI
bus slot 2
PCI-Bus 2-0B 2 X202 7 32 bit yes no 32 bit hot-plug PCI
bus slot 3
PCI-Bus 2-0B 2 X203 8 32 bit yes no 32 bit hot-plug PCI
bus slot 4
PCI-Bus 3-1A 3 X100 1 64 bit yes no 64 bit hot-plug PCI
bus slot 1
PCI-Bus 3-1A 3 X101 2 64 bit yes no 64 bit hot-plug PCI
bus slot 2
PCI-Bus 3-1A 3 X102 3 64 bit yes no 64 bit hot-plug PCI
bus slot 3
PCI-Bus 3-1A 3 X103 4 64 bit yes no 64 bit hot-plug PCI
bus slot 4

Add-on modules I/O board
U41029-J-Z146-1-7400 English - 15
Interrupt Request Levels
The following applies to all four PCI buses: All INTA# PCI interrupts of a PCI bus are carried on
various PCI bus interrupts of the PCI interrupt controller (MINT-ASIC or MINT-ASIC plus PIIX4 for
PCI bus 0A). This prevents PC boards in different slots of the same PCI bus from using the same
PCI interrupt.
The VGA controller, the MINT-ASIC, the I960 I2O controller and the PCI-to-PCI bridge do not use
PCI interrupts.
The following tables show the interrupt assignment of the four PCI buses.
PCI-Bus 0-0A
The PCI bus interrupts of the compatible 32 bit PCI bus, PCI bus 1-0A, are carried on both the PIIX4
Southbridge and on the MINT-ASIC.
PIIX4 PCI bus interrupt Slot 9
Bus 0-0A Slot 1
Connector X300
Slot 10
Bus 0-0A Slot 2
Connector X301
PCI-INTA# INTA# INTB#
PCI-INTB# INTB# INTC#
PCI-INTC# INTC# INTD#
PCI-INTD# INTD# INTA#
MINT PCI bus interrupt Slot 9
Bus 0-0A Slot 1
Connector X300
Slot 10
Bus 0-0A Slot 2
Connector X301
MINT-PCI-INT0# INTA# INTB#
MINT-PCI-INT1# INTB# INTC#
MINT-PCI-INT2# INTC# INTD#
MINT-PCI-INT3# INTD# INTA#
PCI-Bus 2-0B
The PCI bus interrupts of the 32 bit hot-plug PCI bus, PCI bus 2-0B, are only carried on the MINT-
ASIC.
MINT PCI bus
interrupt Slot 5 Bus 2-0B Slot 1
Connector X200
Slot 6
Bus 2-0B Slot 2
Connector X201
Slot 7
Bus 2-0B Slot 3
Connector X202
Slot 8
Bus 2-0B Slot 4
Connector X203
MINT-PCI-INT4# INTA# INTB# INTC# INTD#
MINT-PCI-INT5# INTB# INTC# INTD# INTA#
MINT-PCI-INT6# INTC# INTD# INTA# INTB#
MINT-PCI-INT7# INTD# INTA# INTB# INTC#

I/O board Add-on modules
16 - English U41029-J-Z146-1-7400
PCI-Bus 3-1A
The PCI bus interrupts of the 64 bit hot-plug PCI bus, PCI bus 3-1A, are only carried on the MINT-
ASIC.
MINT PCI bus
interrupt Slot 1 Bus 3-1A Slot 1
Connector X100
Slot 2
Bus 3-1A Slot 2
Connector X101
Slot 3
Bus 3-1A Slot 3
Connector X102
Slot 4
Bus 3-1A Slot 4
Connector X103
MINT-PCI-INT8# INTA# INTB# INTC# INTD#
MINT-PCI-INT9# INTB# INTC# INTD# INTA#
MINT-PCI-INT10# INTC# INTD# INTA# INTB#
MINT-PCI-INT11# INTD# INTA# INTB# INTC#
PCI-Bus 1-i960
The PCI bus interrupts of the 32 bit PCI bus are only carried on the MINT-ASIC.
MINT PCI bus
interrupt Slot 11 Bus 1-i960 Slot
1
Connector X400
Slot 12
Bus 2-i960 Slot
1
Connector X401
Ethernet
Controller
Intel 82558
SCSI
Controller
1 SYM
53C875J
SCSI
Controller
2 SYM
53C875J
MINT-PCI-INT12# INTA# INTB#
MINT-PCI-INT13# INTB# INTC# INTB#
MINT-PCI-INT14# INTC# INTD# INTC#
MINT-PCI-INT15# INTD# INTA# INTD#

Add-on modules I/O board
U41029-J-Z146-1-7400 English - 17
Replacing the lithium battery
!Incorrect replacement of the lithium battery may lead to a risk of explosion.
The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer (CR2032).
Do not throw lithium batteries into the trashcan. It must be disposed of in accordance with
local regulations concerning special waste.
Make sure that you insert the battery the right way round. The plus pole must be on the
top!
1
23
+
+++
²
Lift the contact (1) a few millimeters and remove the battery from its socket (2).
²
Insert a new lithium battery of the same type in the socket (3).

Processor board Add-on modules
18 - English U41029-J-Z146-1-7400
Processor board
The CPU modules and the memory boards are plugged onto the processor board.
12
3
4
5
6
8
9
10
7
LED 8
LED 1
1 = Power supply
2 = Voltage regulator
3 = Memory board 1
4 = Memory board 0
5 = I2C bus
6 = Indicators (LED)
7 = CPU 3
8 = CPU 2
9 = CPU 1
10 = CPU 0

Add-on modules Memory boards
U41029-J-Z146-1-7400 English - 19
Memory boards

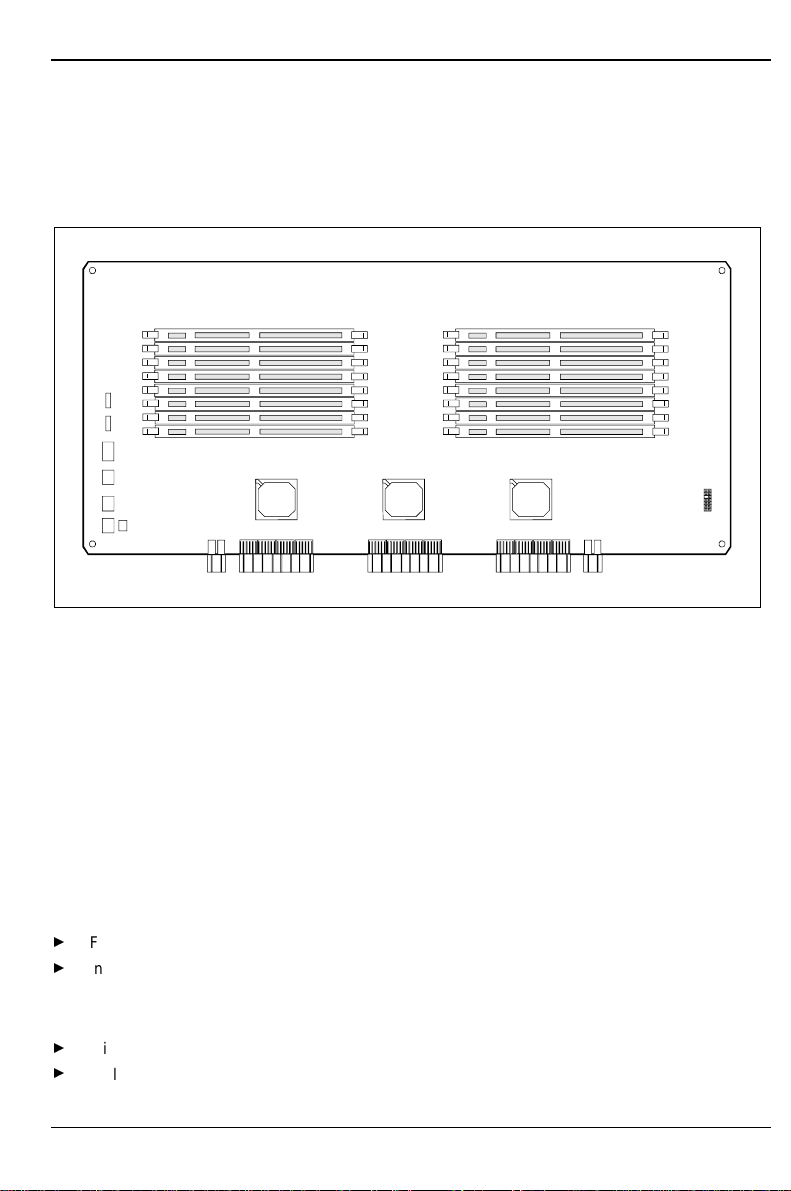

The memory board is equipped with 16 slots for memory modules. The organization in four memory
banks A to D enables fast memory access with four-fold interleave. The maximum memory
configuration is 4 Gbytes per memory board.
3A
2A
2B
3B
2C
3C
2D
3D
1A
0A
0B
1B
0C
1C
0D
1D
3A
2A
2B
3B
2C
3C
2D
3D
1A
0A
0B
1B
0C
1C
0D
1D
Four identical memory modules must be installed per memory bank. Partial equipping of a memory
bank is not possible. The equipping sequence of the memory banks is arbitrary.
Each slot has a clear address (e.g. 2B): Here the letter specifies the memory bank to which the slot
belongs, and the number specifies the slot number within the memory bank. 2B therefore
designates slot 2 in memory bank B.
The memory modules must meet the following specifications:
• Socket: DIMM
• Memory type: EDO-DRAM
• Voltage: 3.3 V
• Speed: 50 ns or 60 ns
• Refresh mode: 2k, 4k or 8k
• Memory organization: 4Mx72, 8Mx72, 16Mx72 or 32Mx72
• Memory size: 32 Mbyte, 64 Mbyte, 128 Mbyte or 256 Mbyte
• Memory technology: 16 Mbit or 64 Mbit
Installing memory modules
²
Flip the holders on each side of the relevant location outwards.
²
Insert the memory module in the slot while folding the side holders up until the memory module
engages.
Removing a memory module
²
Flip the holders to the right and left of the location outwards.
²
Pull the memory module out of its location.

Power supply board Add-on modules
20 - English U41029-J-Z146-1-7400
Power supply board

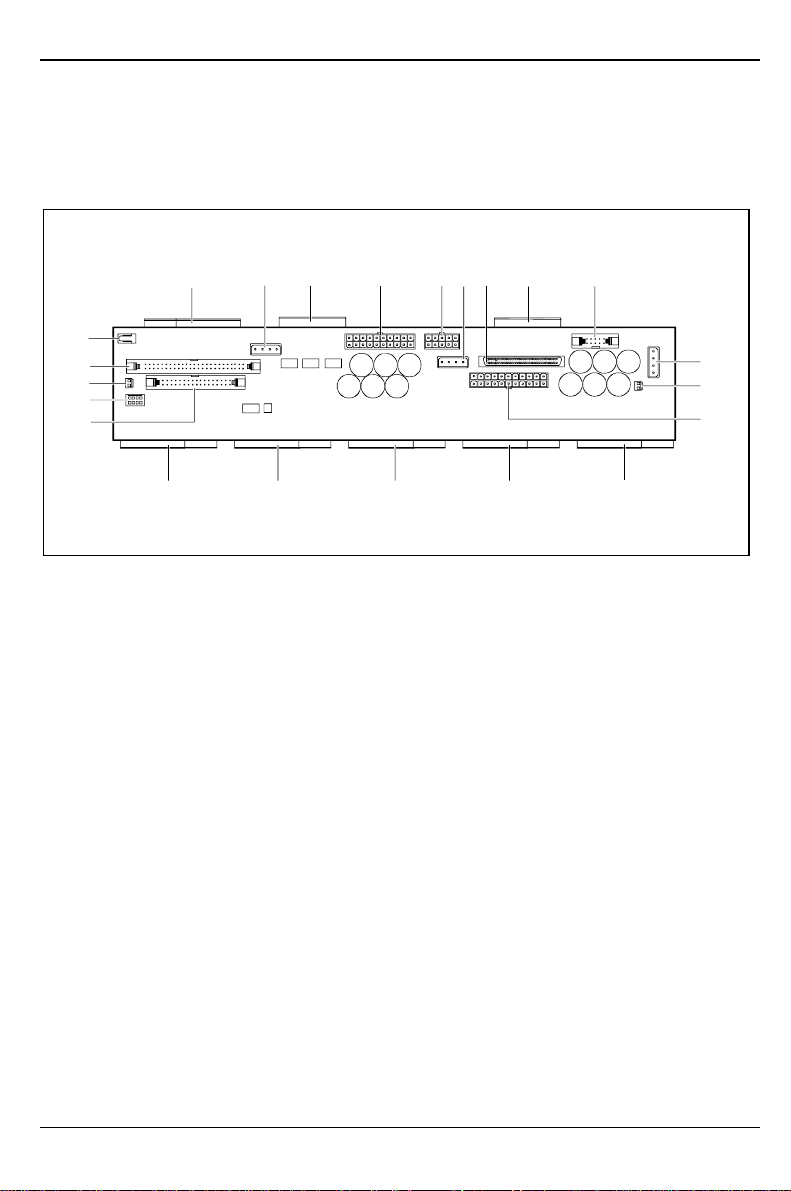

The power supply board makes the connection between the power supply modules and the other
system components.
123456789
10
11
131415
1617
18
19
20
21
22
12
1 = Control panel
2 = Power supply for hard disk drives
3 = Accessible drives
4 = System fan
5 = Drive fan
6 = Power supply for hard disk drives
7 = SCSI input
8 = Accessible drives
9 = STM
10 = Power supply for hard disk drives
11 = Safety switch
12 = Cover - power supply
13 = Power supply unit - Power supply 1
14 = Power supply unit - Power supply 2
15 = Power supply unit - Power supply 3
16 = Power supply unit - Power supply 4
17 = Power supply unit - Power supply 5
18 = Floppy disk drive
19 = Fan error indicators (LEDs)
20 = Safety switch
21 = I/O board
22 = Break-in detection switch
