Preface

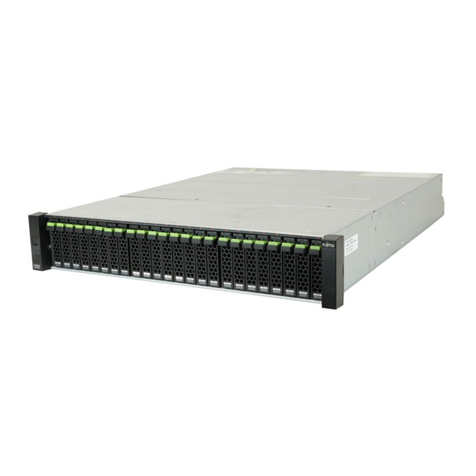

This manual briefly explains the operations that need to be performed by the user in order to connect an
ETERNUS DX to a server running Solaris OS, HP-UX, AIX, Windows®, Linux, VMware ESX, PAN Manager, Citrix®
XenServer®, Oracle Linux, or Oracle VM Server for x86 via a Fibre Channel interface.
This manual should be used in conjunction with any other applicable user manuals, such as those for the
ETERNUS DX, server, OS, Fibre Channel cards, and drivers.
Refer to "FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- Notations" for the notations
used in this manual such as product trademarks and product names. For storage systems that are supported
by the OS, refer to the Server Support Matrix of the ETERNUS DX.
8th Edition
June 2015
The Contents and Structure of this Manual
This manual is composed of the following two chapters.
•"Chapter 1 Workflow" (page 6)
This chapter describes the workflow when setting up a storage system.
•"Chapter 2 Setting Up the ETERNUS DX" (page 8)
This chapter describes how to set up a storage system.
3
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-7962-08ENZ0

Table of Contents
Chapter 1 Workflow 6
Chapter 2 Setting Up the ETERNUS DX 8
2.1 Common Settings ........................................................................................................................... 8
2.1.1 Setting the To-Server Connection Type (Setting the FC Port Parameters)..............................................................8
2.1.2 Creating the Server Accessible LUN Groups (Setting the LUN Groups)...................................................................9
2.1.3 Setting the Host Responses ................................................................................................................................10
2.1.4 Setting the CA Port Groups..................................................................................................................................10
2.1.5 Registering the WWNs of the Accessing Fibre Channel Cards (Setting FC Host)...................................................10
2.1.6 Allocating LUN Groups (Setting the Host Affinity)...............................................................................................11
2.2 Specific Settings ........................................................................................................................... 11
2.2.1 Setting the CA Reset Groups................................................................................................................................11
2.2.2 Setting the Subsystem Parameters .....................................................................................................................11
2.3 Checking the WWNs ..................................................................................................................... 11
4
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-7962-08ENZ0

List of Tables
Table 2.1 FC port parameter settings (FC-AL connection) ..........................................................................................8
Table 2.2 Transfer Rate setting values (for FC-AL connection) ...................................................................................8
Table 2.3 FC port parameter settings (Fabric connection) .........................................................................................8
Table 2.4 Transfer Rate setting values (for Fabric connection) ..................................................................................9
Table 2.5 Host response settings .............................................................................................................................10
5
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-7962-08ENZ0

Chapter 1
Workflow
This manual is used when performing the setup procedures described in the "Setting Up the ETERNUS DX"
section of the "FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (Fibre Channel)" for
each OS.
Required Documents
•"FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (Fibre Channel) Fibre Channel
Switch Settings"
•"Fabric OS Administrator's Guide Supporting Fabric OS"
•"FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (Fibre Channel) for Oracle Solaris"
•"ETERNUS Web GUI User's Guide"
Workflow
Setting the FC Port Parameters
Set the to-server connection type.
•"2.1.1 Setting the To-Server Connection Type (Setting the FC Port Parameters)" (page 8)
Setting the LUN Groups
Set the server accessible LUN groups.
•"2.1.2 Creating the Server Accessible LUN Groups (Setting the LUN Groups)" (page 9)
Setting the Host Responses
Set the host responses to match the connection configuration.
•"2.1.3 Setting the Host Responses" (page 10)
6
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-7962-08ENZ0

Setting the CA Port Groups
Create a group of ports for each CA type.
•"2.1.4 Setting the CA Port Groups" (page 10)
Setting the FC Host
Register the WWNs of the accessing Fibre Channel cards.
•"2.1.5 Registering the WWNs of the Accessing Fibre Channel Cards (Setting FC Host)" (page 10)
Setting the Host Affinity
Define the relationship between the FC host, the CA port group, and the LUN group.
•"2.1.6 Allocating LUN Groups (Setting the Host Affinity)" (page 11)
Setting the Specific Parameters
Set the required parameters according to the OS and the connection configuration.
•"2.2 Specific Settings" (page 11)
Checking the WWNs
Check information that is necessary for connecting to the server.
•"2.3 Checking the WWNs" (page 11)
After completing all the required procedures in this manual, follow the procedures in "FUJITSU Storage
ETERNUS DX Configuration Guide -Server Connection- (Fibre Channel)" for each OS.
Chapter 1 Workflow
7
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-7962-08ENZ0

Chapter 2
Setting Up the ETERNUS DX
2.1 Common Settings
This section explains the settings required for all server OSs, regardless of the connection configuration.
See the "ETERNUS Web GUI User's Guide" for details of how to set up and operate ETERNUS Web GUI.
2.1.1 Setting the To-Server Connection Type (Setting the FC Port Parameters)
For each connection configuration, set the indicated items only. All other parameters should be left on their
default values.
•Specify "Fabric connection" for connections to the Fibre Channel switches.
•Specify "FC-AL connection" for direct connections to the Fibre Channel cards. Specify "Fabric connection" for
direct connections to 16Gbit/s Fibre Channel cards (maximum transfer rate) with a transfer rate of 16Gbit/s.
Table 2.1 FC port parameter settings (FC-AL connection)
Parameter Solaris OS
HP-UX, AIX, Windows®, Linux, VMware
ESX, PAN Manager, Citrix XenServer,
Oracle Linux, Oracle VM Server for x86
Connection FC-AL
Set Loop ID Manual
Loop ID Values from 0x10 upwards
(Except 0x7D)
0x00
Transfer Rate See the table below (*1)
Frame Size 2048
Reset Scope I_T_L
Release Reservation if Chip is Reset Disable
*1: Set the appropriate value from the following table. Do not use [Auto-negotiation].
Table 2.2 Transfer Rate setting values (for FC-AL connection)
Fibre Channel card maximum speed Transfer rate setting value
16Gbit/s CA 8Gbit/s CA
16Gbit/s — 8Gbit/s
8Gbit/s 8Gbit/s 8Gbit/s
4Gbit/s 4Gbit/s 4Gbit/s
Table 2.3 FC port parameter settings (Fabric connection)
Parameter Setting value
Connection Fabric
8
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-7962-08ENZ0

Parameter Setting value
Transfer Rate See the table below (*1)
Frame Size 2048
Reset Scope I_T_L
Release Reservation if Chip is Reset Disable
*1: Set the appropriate value from the following table.
Table 2.4 Transfer Rate setting values (for Fabric connection)
Fibre Channel switch maximum
speed
Transfer rate setting value
16Gbit/s CA 8Gbit/s CA
16Gbit/s 16Gbit/s (*1) 8Gbit/s
8Gbit/s 8Gbit/s 8Gbit/s
4Gbit/s 4Gbit/s 4Gbit/s
*1: Specify "Auto Negotiation" for direct connections to 16Gbit/s Brocade Fibre Channel cards.
Make sure to prepare and set up Fibre Channel switches for Fibre Channel connections. For setting details,
refer to "FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (Fibre Channel) Fibre Chan-
nel Switch Settings" or "Fabric OS Administrator's Guide Supporting Fabric OS".
2.1.2 Creating the Server Accessible LUN Groups (Setting the LUN Groups)
Create LUN groups for the server to access. Refer to "Connectivity Management" in "ETERNUS Web GUI User's
Guide" for details, and set the LUN groups.
Depending on the OS version, the server may not recognize the ETERNUS DX unless a LUN group is as-
signed from LUN0. In this case, assign a LUN group starting from LUN0 in ascending order.
Chapter 2 Setting Up the ETERNUS DX
2.1 Common Settings
9
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-7962-08ENZ0

2.1.3 Setting the Host Responses
The host response parameters for the ETERNUS DX must be set to match the way the server processes the
responses to requests from the ETERNUS DX. Setting of the host response must be done before connecting
the ETERNUS DX to the server.
Set the parameters that are described below for each OS.
Retain the default values for all of the parameters that are not described below.
When setting the access path using the ETERNUS SF Storage Cruiser, the host responses for FC host will be
set to default values. Set the host response after setting the access path using the ETERNUS SF Storage
Cruiser.
Table 2.5 Host response settings
OS Conditions Host response selection
Solaris (*1) When using the OS standard Multipath Driver
(MPxIO)
Solaris MPxIO
Other cases Default
Windows®
Linux
VMware ESX
Citrix XenServer
Oracle VM Server for x86
– Default
HP-UX – HP-UX
AIX When using Symantec Storage Foundation AIX VxVM
Other cases AIX
IBM SVC – SVC
*1: An Oracle-brand Fibre Channel card driver may be used for Fujitsu Fibre Channel cards.
To confirm which driver should be used, check the "Notes" and "Fibre Channel Cards that Require an Ora-
cle-brand Driver" sections in "FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (Fi-
bre Channel) for Oracle Solaris".
2.1.4 Setting the CA Port Groups
Create new FC port groups and register the ports as members of the groups. A port group is a group of ports
that access the same LUN group (ports that are used for multipath connection to the server or for connecting
to the cluster configuring server). Configure the host affinity setting for each FC port group.
2.1.5 Registering the WWNs of the Accessing Fibre Channel Cards (Setting FC Host)
Register the WWN of each Fibre Channel card installed in the server that will access the ETERNUS DX. At the
same time, set the host response numbers registered in "2.1.3 Setting the Host Responses" (page 10) to ac-
cept these WWNs.
Registering the FC host WWNs and setting up Host Affinities as described elsewhere, allows limits to be set
on which servers are allowed to access which ETERNUS DX LUNs.
Chapter 2 Setting Up the ETERNUS DX
2.1 Common Settings
10
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-7962-08ENZ0

2.1.6 Allocating LUN Groups (Setting the Host Affinity)
Allocate the relationship between registered FC hosts (WWN), CA port groups, and LUN groups using the Host
Affinity setting function to specify which LUNs to be accessed. This sets access restrictions to the ETERNUS DX
from each server.
Refer to "Connectivity Manangement" in "ETERNUS Web GUI User's Guide" for details, and set the LUN groups.
•When setting LUNs that are to be recognized for multiple ports in a multipath configuration or a cluster
configuration, create a LUN Group, and set this same LUN Group to all of the ports.
•If the one-to-one relationship between the WWNs and Fibre Channel cards cannot be determined, the
Host Affinity may not be set correctly. In this case, various settings may need to be tried until the server
is able to recognize the ETERNUS DX logical disks.
2.2 Specific Settings
The required settings vary according to the OS and the connection configuration.
Check the various cases described below, and perform any required settings.
2.2.1 Setting the CA Reset Groups
Because all of the ports are configured to be members of one CA reset group in the initial setting, the reset
group settings do not need to be changed.
2.2.2 Setting the Subsystem Parameters
2.2.2.1 Load Balance (for HP-UX Only)
For HP-UX connection, select "Disable" for "Load Balance" in the "Setup Subsystem Parameters" function. This
prevents sense responses that require access retries from being issued when the ETERNUS DX is overloaded.
For HP-UX server, improper logs may be recorded unless sense response is restricted. Therefore, "Load Bal-
ance" should be disabled. (Sense response should be restricted.)
Note that changing the "Load Balance" setting has no affect on non-HP-UX servers.
2.2.2.2 Reject INQUIRY from Unauthorized Host
Only when using the VERITAS Volume Manager Dynamic Multipathing (VxVM DMP) function, select "Enable".
2.3 Checking the WWNs
Use ETERNUS Web GUI to check the WWN of each ETERNUS DX. They are required for connecting the ETERNUS
DX to the server.
Chapter 2 Setting Up the ETERNUS DX
2.2 Specific Settings
11
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
Copyright 2015 FUJITSU LIMITED
P3AM-7962-08ENZ0

FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection-
(Fibre Channel) ETERNUS DX60 S3/DX100 S3/DX200 S3, ETERNUS DX500 S3/DX600 S3, ETERNUS
DX8700 S3/DX8900 S3 Disk Storage System, ETERNUS DX200F All Flash Array Settings
P3AM-7962-08ENZ0
Date of issuance: June 2015
Issuance responsibility: FUJITSU LIMITED
•The content of this manual is subject to change without notice.
•This manual was prepared with the utmost attention to detail. However, Fujitsu shall assume no responsibility for any
operational problems as the result of errors, omissions, or the use of information in this manual.
•Fujitsu assumes no liability for damages to third party copyrights or other rights arising from the use of any information
in this manual.
•The content of this manual may not be reproduced or distributed in part or in its entirety without prior permission from
Fujitsu.
