Fujitsu 7119601 User manual
F
u
jit
s
u
3
.
2
T
B
F
l
as
h
A
c
ce
l
er
a
to
r
C
a
r
d
User's
Guide
For
Product
Models
7119601
and
7119603
Fujitsu
3.2
TB
Flash
Accelerator
Card
User's
Guide
For
Product
Models
7119601
and
7119603
C120-0067-02EN
Preface
This
document
describes
the
Fujitsu
3.2
TB
Flash
Accelerator
Card
for
product
models
7119601
and
7119603,
which
may
be
mounted
on
the
Oracle
or
Fujitsu
SPARC
M12/M10
system.
Before
you
read
this
document,
we
recommend
reading
the
Fujitsu
SPARC
M12
Quick
Guide
or
Fujitsu
M10/SPARC
M10
Systems
Quick
Guide.
Fujitsu
SPARC
M12
is
sold
as
SPARC
M12
by
Fujitsu
in
Japan.
Fujitsu
SPARC
M12
and
SPARC
M12
are
identical
products.
Fujitsu
M10
is
sold
as
SPARC
M10
by
Fujitsu
in
Japan.
Fujitsu
M10
and
SPARC
M10
are
identical
products.
The
preface
includes
the
following
sections:
-Using
the Product
Safely
-Organization
and
Contents
of
This
Manual
-Related
Manuals
-Text
Conventions
-Warning/Importance
Indications
-Document
Feedback
-Revision
History
Using
the
Product
Safely
Handling of This Manual
This
manual
contains
important
information
necessary
for
using
this product
safely.
Read
this
manual
and
the
manuals
described
in "Related
Manuals"
thoroughly
before
using
the
product.
In
particular,
before
attempting
to
use
the
product,
carefully
read
and
understand
the
safety
precautions
described
in
these
various
manuals.
Keep
this
manual
in
a
safe
and
convenient
location
for
quick
reference.
Fujitsu
makes
every
effort
to
prevent
injury
to
users
and
bystanders
as
well
as
property
damage.
Be
sure
to
use
the
product
in
accordance
with
the
instructions
in
this
manual.
Product Notice
This product
is
designed
and
manufactured
for
use
in
standard
applications
such
as
office
work,
personal
devices,
and
general
industrial
use.
This
product
is
not
intended
for
special
uses
(nuclear-reactor
control
in
atomic
energy
facilities,
aeronautic
and
space
systems,
air
traffic
control,
operation
control
in
mass
transit
systems,
life
support,
or
missile
launch
controls)
where
particularly
high
reliability
requirements
exist,
where
the
pertinent
levels
of
safety
are
not
guaranteed,
or
where
a
failure,
an
operational
error,
or
some
other
factor
could
be
life-threatening
or
cause
a
physical
injury
(referred
to
below
as
"high-risk"
use).
Customers
considering
the
use
of
this
product
for
high-risk
applications
must
have
safety-assurance
measures
in
place
beforehand.
Moreover,
they
are
requested
to
consult
our
sales
representative
before
embarking
on
such
specialized
use.
Security Export Control
Exportation/release
of
this
document
may
require
necessary
procedures
in
accordance
with
the
regulations
of
the
Foreign
Exchange
and
Foreign
Trade
Control
Law
of
Japan
and/or
US
export
control
laws.
Preface
C120-0067-02ENi
FCC Class B Notice
This
device
complies
with
Part
15
of
the
FCC
Rules.
Operation
is
subject
to
the
following
two
conditions:
1. This
device
may
not
cause
harmful
interference.
2. This
device
must
accept
any
interference
received,
including
interference
that
may
cause
undesired
operation.
Note
- This
equipment
has
been
tested
and
found
to
comply
with
the
limits
for
a
Class
B
digital
device,
pursuant
to
Part
15
of
the
FCC
Rules.
These
limits
are
designed
to
provide
reasonable
protection
against
harmful
interference
in
a
residential
installation.
This
equipment
generates,
uses
and
can
radiate
radio
frequency
energy
and,
if
not
installed
and
used
in
accordance
with
the
instructions,
may
cause
harmful
interference
to
radio
communications.
However,
there
is
no
guarantee
that
interference
will
not
occur
in
a
particular
installation.
If
this
equipment
does
cause
harmful
interference
to
radio
or
television
reception,
which
can
be
determined
by
turning
the
equipment
off
and
on,
the
user
is
encouraged
to
try
to
correct
the
interference
by
one
or
more
of
the
following
measures:
- Reorient
or
relocate
the
receiving
antenna.
-Increase
the
separation
between
the
equipment
and
receiver.
- Connect
the
equipment
into
an
outlet
on
a
circuit
different
from
that
to
which
the
receiver
is
connected.
- Consult
the
dealer
or
an
experienced
radio/television
technician
for
help.
FCC
WARNING
- Changes
or
modification
not
expressly
approved
by
the
party
responsible
for
compliance
could
void
the
user's
authority
to
operate
the
equipment.
ICES-003 Class B Notice - Avis NMB-003, Classe B
CAN
ICES-3
(B)
/
NMB-3
(B)
Korean Class B Notice
This
equipment
is
home
use
electromagnetic
wave
suitability
equipment
and
to
be
used
mainly
at
home
and
it
can
be
used
in
all
areas.
이기기는가정용전자파적합기기로서주로가정에서사용하는것을목적으로하며,
모든지역에서사용할수있습
다.
Trademarks
-Oracle
is
a
registered
trademark
of
Oracle
Corporation
and/or
its
subsidiaries
and
affiliates
in
the
United
States
and
other
countries.
- SAMSUNG,
PM1725a,
and
PM1725b
are
trademarks
of
SAMSUNG
ELECTRONICS.
- Other
company
names
and
product
names
are
the
trademarks
or
registered
trademarks
of
their
respective
owners.
- Trademark
indications
(TM,
(R))
are
omitted
for
some
system
and
product
names
in
this
document.
This
document
shall
not
be
reproduced
or
copied
without
the
permission
of
Fujitsu
Limited.
All
Rights
Reserved,
Copyright
(C)
Fujitsu
Limited
2018,
2019
Organization
and
Contents
of
This
Manual
This
document
consists
of
the
following
chapters
and
appendixes.
Chapter
1 Overview
This
chapter
provides
an
overview
of
the
Fujitsu
3.2
TB
Flash
Accelerator
Card.
Chapter
2
Fujitsu
3.2
TB
Flash
Accelerator
Card
Installation
Preface
C120-0067-02ENii
Prompt Environment/Privilege
for
Operation
{0}
ok OpenBoot
PROM
XSCF> XSCF
shell
$ General
user
shell
for
OS
# Superuser
shell
for
OS
This
chapter
provides
information
on
installing
the
Fujitsu
3.2
TB
Flash
Accelerator
Card.
Chapter
3
Fujitsu
3.2
TB
Flash
Accelerator
Card
Settings
This
chapter
describes
how
to
configure
the
Fujitsu
3.2
TB
Flash
Accelerator
Card.
Appendix
A
Precautions
and
Restrictions
This
appendix
describes
precautions
and
restrictions
on
the
Fujitsu
3.2
TB
Flash
Accelerator
Card.
Appendix
B
Specifications
This
appendix
shows
the
specifications
of
the
Fujitsu
3.2
TB
Flash
Accelerator
Card.
Appendix
C Environmental
Information
This
appendix
provides
environmental
information
on
the
Fujitsu
3.2
TB
Flash
Accelerator
Card.
Related
Manuals
All
documents
for
your
server
are
available
online
at
the
following
locations.
■Sun
Oracle
software-related
documents
(Oracle
Solaris,
etc.)
http://docs.oracle.com/en/
■Fujitsu
documents
Global
site
http://www.fujitsu.com/global/products/computing/servers/unix/sparc/downloads/manuals/
Japanese
site
http://www.fujitsu.com/jp/products/computing/servers/unix/sparc/downloads/manual/
Text
Conventions
■Abbreviation
for
Oracle
Solaris
Oracle
Solaris
may
be
abbreviated
as
"OS"
in
this
document.
■Prompts
in
command
examples
In
command
examples,
the
environment
or
privilege
for
the
operation
is
distinguished
by
the
displayed
prompt.
The
following
table
shows
the
relationship
between
prompts
and
environments/
privileges
for
operations.
Warning/Importance
Indications
This
manual
uses
the
following
indications
to
provide
warnings
and
indicate
useful
information
to
the
user
to
prevent
personal
injury
and
property
damage.
Preface
C120-0067-02ENiii
Warning
–
Indicates
a
hazardous
situation
that
could
result
in
death
or
injury
if
the
product
is
not
used
properly
(a
potentially
dangerous
situation).
Caution
–
Indicates
a
hazardous
situation
that
could
result
in
minor
or
moderate
personal
injury
and/or
property
damage,
such
as
to
the
product
itself
or
the
user's
property,
if
the
product
is
not
used
properly.
Ask
a
certified
service
engineer
or
our
sales
representative
to
perform
the
following
tasks
for
this
product
and
the
optional
products
provided
by
Fujitsu.
The
work
must
not
be
done
by
the
customer
under
any
circumstances.
Otherwise,
electric
shock,
injury,
or
fire
may
result.
- New
installation/relocation
of
the
device
- Device
inspection/repair
Edition Date Changed
Location
(Change
Classification)
(*1)
Description
of
Change
01 April
10,
2018 - First
edition
02 February 26,
2019
Whole
manual
(added/changed) Added
"PM1725b"
to
types
of
flash
cards
Changed
card
firmware
version
to
"GPNA5B3Q"
or
"GPJA0B3Q"
Appendix
A
(added) Added
"A.9
Precaution
on
the
nvmeadm
list
-s
Command"
Warning Indications in the Text
Warning
markings
are
followed
by
warning
messages.
A
warning
message
is
indented
on
the
left
and
right
sides
to
distinguish
it
from
regular
text.
Furthermore,
the
lines
immediately
before
and
after
a
warning
indication
are
left
blank.
Document
Feedback
Please
inform
us
of
any
comments
or
requests
you
may
have
about
this
document
by
contacting
us
at
the
following
URL
with
the
manual
number,
manual
title,
page
numbers,
and
specific
details:
■Global
site
http://www.fujitsu.com/global/contact/
■Japanese
site
http://www.fujitsu.com/jp/products/computing/servers/unix/sparc/contact/
Revision
History
*1
The
number/title
of
a
changed
chapter/section
is
the
one
in
the
latest
version.
However,
the
number/title
of
a
chapter/section
with
an
asterisk
is
the
one
in
the
old
version.
Preface
C120-0067-02ENiv
Ask
a
certified
service
engineer
or
our
sales
representative
to
perform
the
following
tasks
for
this
product
and
the
optional
products
provided
by
Fujitsu.
The
work
must
not
be
done
by
the
customer
under
any
circumstances.
Otherwise,
electric
shock,
injury,
or
fire
may
result.
- New
installation/relocation
of
the
device
- Device
inspection/repair
Modifying
this
product
or
recycling
and
using
a
secondhand
product
may
result
in
personal
injury
to
users
and/or
bystanders
or
damage
to
the
product
and/or
other
property.
Only
certified
service
engineers
should
perform
replacement
work.
The
work
must
not
be
done
by
the
customer
under
any
circumstances.
Otherwise,
electric
shock,
injury,
or
fire
may
result.
Product
Handling
Precautions
Maintenance
Modifying
or
Recycling
the
Product
Disposal
or
Recycling
of
Products
at
the
End
of
Their
Life
Cycles
Waste
must
be
disposed
of
in
a
professional
and
responsible
manner
in
accordance
with
environmental
regulations.
For
details,
please
contact
your
nearest
environmental
authority
or
our
sales
representative.
Replacement
Work
Personnel
Product
Handling
Precautions
C120-0067-02ENv
Contents
Preface ……………………………………………………………………………………… i
Product
Handling
Precautions …………………………………………………………… v
Chapter
1
Overview ……………………………………………………… 1
1.1 Product
and
Model
Names ……………………………………………………………… 1
1.2 Components ………………………………………………………………………………… 1
1.3 Appearance ………………………………………………………………………………… 1
1.4 Functions …………………………………………………………………………………… 2
1.5 Control
Driver ……………………………………………………………………………… 2
1.6 Operating
Environment …………………………………………………………………… 2
1.7 Status
Indicator
LEDs ……………………………………………………………………… 3
Chapter
2
Fujitsu
3.2
TB
Flash
Accelerator
Card
Installation ……… 5
Chapter
3
Fujitsu
3.2
TB
Flash
Accelerator
Card
Settings ………… 6
3.1 Checking
the
Fujitsu
3.2
TB
Flash
Accelerator
Card …………………………………… 6
3.2 Optimizing
the
Fujitsu
3.2
TB
Flash
Accelerator
Card ………………………………… 6
3.3 Checking
Various
Information
on
the
Fujitsu
3.2
TB
Flash
Accelerator
Card ……… 7
Appendix
A
Precautions
and
Restrictions …………………………… 9
A.1 Restrictions
on
Oracle
VM
Server
for
SPARC ………………………………………… 9
A.2 Restrictions
on
PHP/PPAR
DR
and
Active
Replacement …………………………… 9
A.3 Disk Label
Precaution …………………………………………………………………… 9
A.4 LBA Format
Precaution …………………………………………………………………… 9
A.5 Precaution
on
OS
Boot
From
FCode …………………………………………………… 9
A.5.1 Workaround ………………………………………………………………………………… 10
A.5.2 Corrective
Action
After
Occurrence ……………………………………………………… 10
A.6 Precaution
on
Installing
an
OS
on
the
Fujitsu
3.2
TB
Flash
Accelerator
Card ……… 10
A.6.1 Workaround ………………………………………………………………………………… 10
A.6.2 Corrective
Action
After
Occurrence ……………………………………………………… 10
A.7 Precaution
on
the
nvmeadm
namespace
-v
Command ……………………………… 11
A.8 Restriction
on
the
-n
Option
of
the
nvmeadm
Command ……………………………… 11
A.9 Precaution
on
the
nvmeadm
list
-s
Command ………………………………………… 11
A.10 Restriction
on
probe-nvme-all …………………………………………………………… 12
Contents
C120-0067-02ENvi
A.11 fwupdate
Command
Precaution ………………………………………………………… 12
Appendix
B
Specifications ……………………………………………… 13
B.1 Product
Specifications …………………………………………………………………… 13
B.2 Physical
Specifications …………………………………………………………………… 13
B.3 Environmental
Specifications …………………………………………………………… 14
B.4 Electrical
Specifications …………………………………………………………………… 14
B.5 Performance
Specifications ……………………………………………………………… 14
B.6 Reliability
Specifications ………………………………………………………………… 15
Appendix
C
Environmental
Information ……………………………… 16
C.1 Taiwan
RoHS
Declarations ……………………………………………………………… 16
C.2 China RoHS
Declarations ……………………………………………………………… 17
C.3 For
Indian
e-waste
Rules ………………………………………………………………… 17
Contents
C120-0067-02ENvii
Table
Contents
Table
1-1 Product
and
Model
Names ………………………………………………………… 1
Table
1-2 Components ………………………………………………………………………… 1
Table
1-3 Operating
Environment …………………………………………………………… 3
Table
1-4 Fujitsu
3.2
TB
Flash
Accelerator
Card
Status
Indicated
by
the
Indicator
LEDs
………………………………………………………………………………………… 4
Table
B-1 Product
Specifications …………………………………………………………… 13
Table
B-2 Physical
Specifications …………………………………………………………… 13
Table
B-3 Environmental
Specifications …………………………………………………… 14
Table
B-4 Electrical
Specifications
…………………………………………………………… 14
Table
B-5 Performance
Specifications ……………………………………………………… 14
Table
B-6 Reliability
Specifications …………………………………………………………… 15
Table
C-1 Taiwan
RoHS
Declarations ……………………………………………………… 16
Table
C-2 China
RoHS
Declarations ………………………………………………………… 17
Contents
C120-0067-02ENix
Table
1-1 Product
and
Model
Names
Item Description
Product
name Fujitsu
3.2
TB
Flash
Accelerator
Card
Model
name 7119601
(ATO),
7119603
(X-option)
Table
1-2 Components
Name Quantity Details
Fujitsu
3.2
TB
Flash
Accelerator
Card
1 Mounted
on
a
low-profile
bracket.
Access
to
manuals
for
peripherals
（CA92001-4965）
1Written
as
a
leaflet
containing
the
URL
for
manuals.
Antistatic
wrist
strap 1
Chapter
1
Overview
This
chapter
provides
an
overview
of
the
Fujitsu
3.2
TB
Flash
Accelerator
Card.
1.1 Product
and
Model
Names
Table
1-1
lists
the
product
and
model
names
of
the
Fujitsu
3.2
TB
Flash
Accelerator
Card.
1.2 Components
Table
1-2
lists
the
components
of
the
Fujitsu
3.2
TB
Flash
Accelerator
Card.
1.3 Appearance
Figure
1-1
shows
the
appearance
of
the
Fujitsu
3.2
TB
Flash
Accelerator
Card.
Chapter
1 Overview
C120-0067-02EN
1.3 Appearance
1

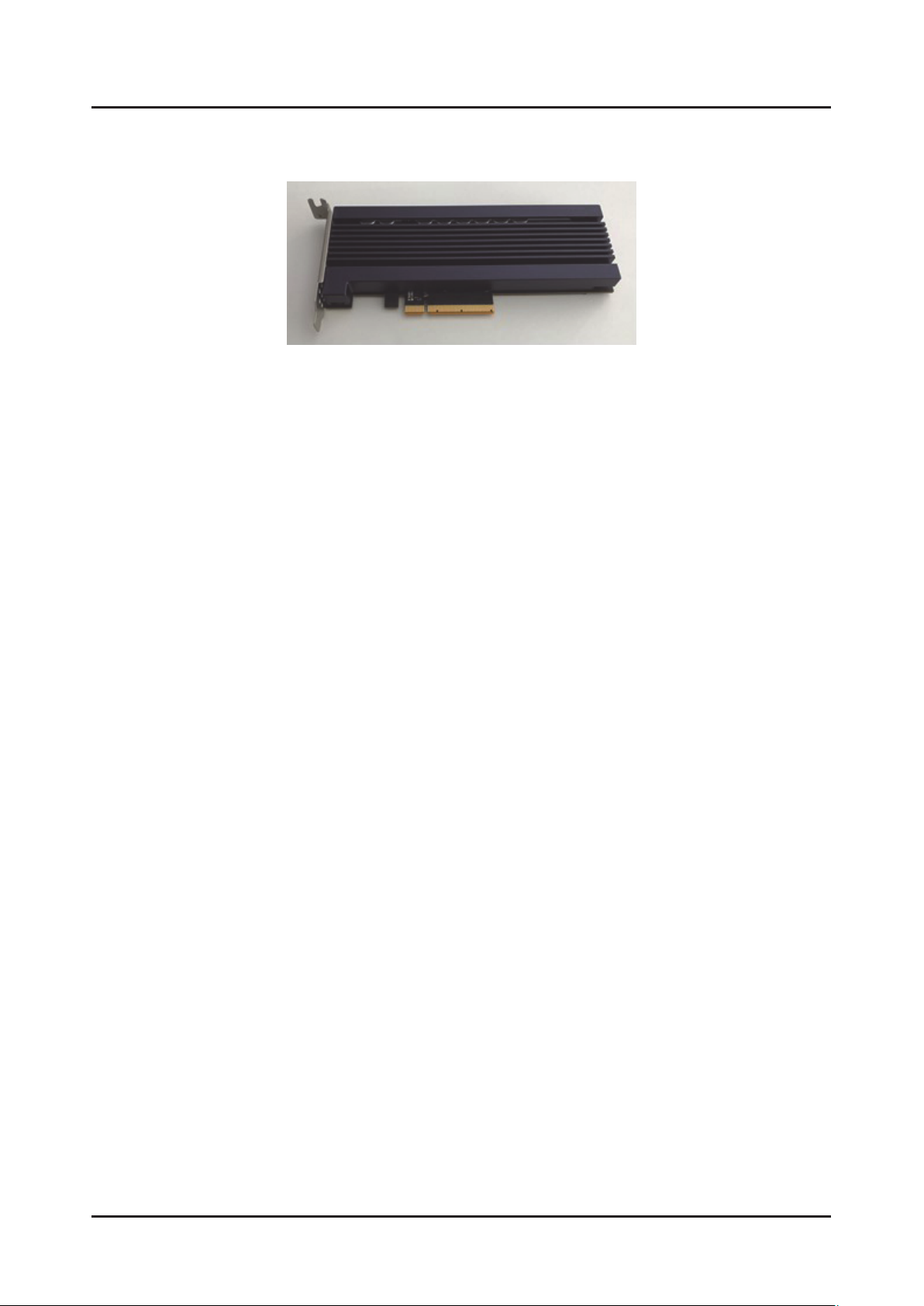

Figure
1-1 Appearance
of
the
Fujitsu
3.2
TB
Flash
Accelerator
Card
1.4 Functions
The
Fujitsu
3.2
TB
Flash
Accelerator
Card
provides
the
following
functionality.
■Through
the
adoption
of
the
NVMe
protocol,
the
card
achieves
higher-speed
throughput
compared
with
conventional
disk-based
drive
technologies.
■The
memory
is
3.2
TB
Triple
Level
Cell
(TLC)
flash.
The
OS
recognizes
it
as
one
3.2
TB
disk.
■System
performance
can
improve
significantly
when
the
card
is
used
for:
- a
large-capacity
read
cache
for
databases,
in
combination
with
the
Database
Smart
Flash
Cache
function
of
Oracle
Database
Enterprise
Edition
- a
large-capacity
read/write
cache
for
ZFS
file
systems
■The
card
can
be
used
as
the
system
boot
drive.
■Error
monitoring
and
failure
sign
monitoring
are
possible
with a
standard
tool
of
the
OS.
■The
card
is
a
suitable
product
for
enterprises
since
a
life
of
5
DWPD
x
5
years
is
guaranteed.
1.5 Control
Driver
The
nvme
driver
is
bundled
with
the
Oracle
Solaris.
1.6 Operating
Environment
Table
1-3
shows
the
operating
environment
of
the
Fujitsu
3.2
TB
Flash
Accelerator
Card.
Chapter
1 Overview
C120-0067-02EN
1.6 Operating
Environment
2
Table
1-3 Operating
Environment
Configuration Details
Mounting
server - SPARC
M12-1,
SPARC
M12-2,
SPARC
M12-2S
- SPARC
M10-1,
SPARC
M10-4,
SPARC
M10-4S
- PCI
expansion
unit
For
the
maximum
number
of
mounted
cards
on
each
server,
see
the
Fujitsu
SPARC
M12
PCI
Card
Installation
Guide
or
the
Fujitsu
M10/SPARC
M10
Systems
PCI
Card
Installation
Guide.
Supported
OS
version Oracle
Solaris
11.3 SRU
11.3.28.4.0
or
later
Supported
XCP
version - SPARC
M12-1:
XCP
3030
or
later
- SPARC
M12-2
and
SPARC
M12-2S:
XCP
3021
or
later
- SPARC
M10:
XCP
2320
or
later
Card
firmware
version GPNA5B3Q
or
GPJA0B3Q
(1)
(2)
(3)
1.7 Status
Indicator
LEDs

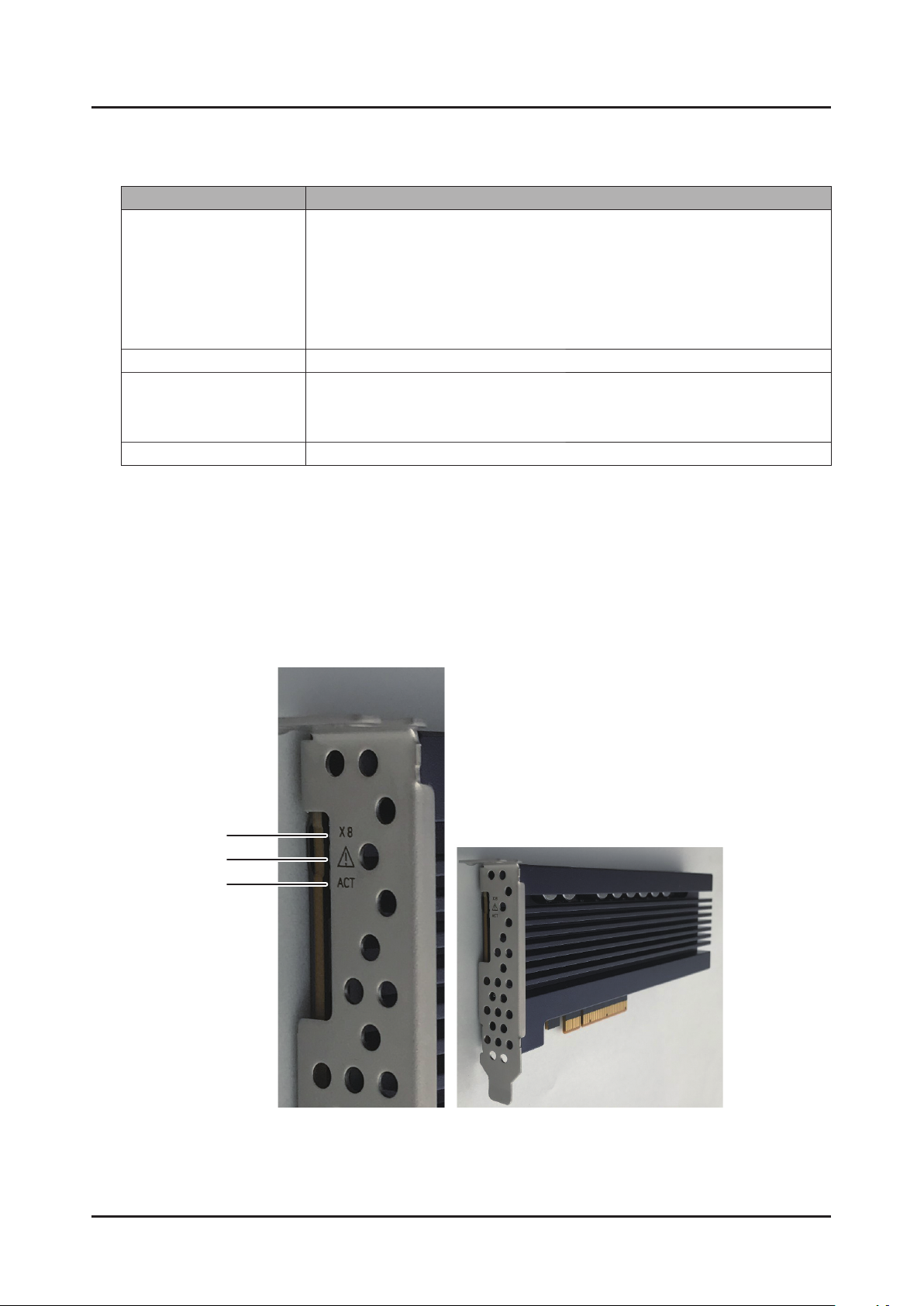

Figure
1-2
shows
the
indicator
LEDs
that
indicate
the
status
of
the
Fujitsu
3.2
TB
Flash
Accelerator
Card.
Figure
1-2 Status
Indicator
LEDs
Table
1-4
lists
the
status
of
the
Fujitsu
3.2
TB
Flash
Accelerator
Card
as
shown
by
the indicators.
Chapter
1 Overview
C120-0067-02EN
1.7 Status
Indicator
LEDs
3
Table
1-4 Fujitsu
3.2
TB
Flash
Accelerator
Card
Status
Indicated
by
the
Indicator
LEDs
No. Indicator
LED Icon Color State Meaning
(1) Transfer
Rate X8 Green On Linked
up
at
PCIe
x8
Off The
status
is
either
of
the
following:
- Linked
up
at
PCIe
x4
- No
PCIe
link
established
(2) Service
Action
Required Amber On An
error
occurred.
Off The
status
is
either
of
the
following:
-
Operating
normally
- Not
powered
on
(3) Activity
Signal ACT Green On Idle
state
Blinking I/O
access
in
progress
Off The
status
is
either
of
the
following:
-
Inoperable
state
- Not
powered
on
Chapter
1 Overview
C120-0067-02EN
1.7 Status
Indicator
LEDs
4
Chapter
2
Fujitsu
3.2
TB
Flash
Accelerator
Card
Installation
For
details
on
how
to
install
the
Fujitsu
3.2
TB
Flash
Accelerator
Card,
see
"Maintaining
the
PCI
Express
Cards"
or
"Maintaining
PCIe
Cards"
in
the
following
service
manuals
for
the
respective
models
of
the
SPARC
M12/SPARC
M10
and
the
PCI
expansion
unit:
■Fujitsu
SPARC
M12-1
Service
Manual
■Fujitsu
SPARC
M12-2/M12-2S
Service
Manual
■Fujitsu
M10-1/SPARC
M10-1
Service
Manual
■Fujitsu
M10-4/Fujitsu
M10-4S/SPARC
M10-4/SPARC
M10-4S
Service
Manual
■PCI
Expansion
Unit
for
Fujitsu
SPARC
M12
and
Fujitsu
M10/SPARC
M10
Service
Manual
Chapter
2 Fujitsu
3.2
TB
Flash
Accelerator
Card
Installation
C120-0067-02EN5
# /usr/sbin/format
Searching for disks...done
AVAILABLE DISK SELECTIONS:
:
2. c9t1d0 <SAMSUNG-MZPLL3T2HMLS-000-GPNA-2.91TB>
/pci@8300/pci@4/pci@0/pci@1/nvme@0/disk@1
/dev/chassis/SYS/PCI#2/NVME/disk
Specify disk (enter its number):
partition> print
Current partition table (original):
Total disk sectors available: 6251217517 + 16384 (reserved sectors)
Part Tag
Flag
First Sector
Size
Last Sector
0 usr wm
34
2.91TB
6251217550
1 unassigned wm
0
0
0
2 unassigned wm
0
0
0
3 unassigned wm
0
0
0
4 unassigned wm
0
0
0
5 unassigned wm
0
0
0
Chapter
3
Fujitsu
3.2
TB
Flash
Accelerator
Card
Settings
This
chapter
describes
how
to
configure
the
Fujitsu
3.2
TB
Flash
Accelerator
Card.
3.1 Checking
the
Fujitsu
3.2
TB
Flash
Accelerator
Card
You
can
check
the
Fujitsu
3.2
TB
Flash
Accelerator
Card
in
the
same
way
as detecting
a
hard
disk
drive.
The
command
shown
below
is
an
example.
3.2 Optimizing
the
Fujitsu
3.2
TB
Flash
Accelerator
Card
To
obtain
optimal
performance,
arrange
all
partitions
to
start
on
a
4
KB
boundary.
In
the
following
command
example,
the
first
sector
of
the
partition
is
not
aligned
on
a
4
KB
boundary
(1
sector
=
512
bytes).
Chapter
3 Fujitsu
3.2
TB
Flash
Accelerator
Card
Settings
C120-0067-02EN
3.2 Optimizing
the
Fujitsu
3.2
TB
Flash
Accelerator
Card
6
6 unassigned wm
0
0
0
8 reserved wm 6251217551
8.00MB
6251233934
Note
-
"256"
is
the
setting
at
shipment.
There
is
no
need
to
change
it.
# nvmeadm list -v
SUNW-NVME-1
PCI Vendor ID:
0x144d
Serial Number:
S3GYNA0JA02542
Model Number:
SAMSUNG MZPLL3T2HMLS-00003
Firmware Revision:
GPNA5B3Q
Number of Namespaces:
32
# nvmeadm getlog -h
SUNW-NVME-1
SMART/Health Information:
Critical Warning: 0
Temperature: 313 Kelvin
Available Spare: 100 percent
Available Spare Threshold: 10 percent
Percentage Used: 0 percent
Data Unit Read: 0x3d81f38 of 512k bytes.
Data Unit Written: 0x422bdab of 512k bytes.
Number of Host Read Commands: 0xf045bca
Number of Host Write Commands: 0x1027b4eb
Controller Busy Time in Minutes: 0x354
Number of Power Cycle: 0x2
Number of Power On Hours: 0x1c
Number of Unsafe Shutdown: 0x0
To
align
the
first
sector
of
the
partition
on
a
4
KB
boundary,
use
the
format
–e
command
to
change
the
first
sector
to
an
appropriate
value.
By
setting
the
first
sector
value
to
256
or
a
value
for
aligning
on
a
128
KB
boundary,
you
can
ensure
an
alignment
for
a
maximum
block
size
of
128
KB.
3.3 Checking
Various
Information
on
the
Fujitsu
3.2
TB
Flash
Accelerator
Card
You
can
check
various
information
on
the
Fujitsu
3.2
TB
Flash
Accelerator
Card
with
the
nvmeadm
command.
■Checking
the
firmware
version
■Checking
SMART
information
Chapter
3 Fujitsu
3.2
TB
Flash
Accelerator
Card
Settings
C120-0067-02EN
3.3 Checking
Various
Information
on
the
Fujitsu
3.2
TB
Flash
Accelerator
Card
7
Number of Media Errors: 0x0
Number of Error Info Log Entries: 0x0
Chapter
3 Fujitsu
3.2
TB
Flash
Accelerator
Card
Settings
C120-0067-02EN
3.3 Checking
Various
Information
on
the
Fujitsu
3.2
TB
Flash
Accelerator
Card
8
Appendix
A
Precautions
and
Restrictions
A.1 Restrictions
on
Oracle VM
Server
for
SPARC
Do
not
use
the
following
functions
to
assign
the
Fujitsu
3.2
TB
Flash
Accelerator
Card
to
a
guest
domain.
■Dynamic
PCIe
buses
assignment
function
■Dynamic
reconfiguration
function
for
PCIe
endpoint
devices
■Direct
I/O
function
(function
that
assigns
direct
I/Os,
DIOs,
or
PCle
endpoints
to domains)
A.2 Restrictions
on
PHP/PPAR
DR
and
Active
Replacement
Active
replacement
and
active
addition/removal
with
the
PCI
Hot
Plug
(PHP)
and
physical
partition
dynamic
reconfiguration
(PPAR
DR)
functions
cannot
be
used.
A.3 Disk
Label
Precaution
Only
the
EFI
disk
label
is
supported
because
the
size
of
the
Fujitsu
3.2
TB
Flash
Accelerator
Card
is
a
disk
volume
exceeding
2
TB.
A.4 LBA
Format
Precaution
The
Fujitsu
3.2
TB
Flash
Accelerator
Card
supports
only
LBA
formats
with
a
block
size
of
512
bytes.
A.5 Precaution
on
OS
Boot
From
FCode
On
the
SPARC
M10,
if
you
try
to
boot/reboot
a
logical
domain
after
a
certain
amount
of
time
has
elapsed(*)
since
physical
partition
(PPAR)
power-on,
the
boot/reboot
may
fail.
This
phenomenon
does
not
occur
on
the
SPARC
M12.
Appendix
A Precautions
and
Restrictions
C120-0067-02EN
A.5 Precaution
on
OS
Boot
From
FCode
9
Note
-
The
phrase
"after
a
certain
amount
of
time
has
elapsed"
has
the
following
meaning:
(1)
The
15-minute
period
after
the
elapse
of
"24
days,
20
hours,
16
minutes,
and
23.648
seconds"
(25th
day)
from
physical
partition
(PPAR)
power-on
(2)
The
15-minute
period
after
the
elapse
of
above
time
(1)
and
the
elapse
of
a
multiple
of
time
of
"24
days,
20
hours,
31
minutes,
and
23.648
seconds"
(50th
day,
75th
day,
and
so
on)
WARNING: Fail to attach: 8192 page size is not supported by the controller.
A.5.1 Workaround
Apply
XCP
2330
or
later.
A.5.2 Corrective
Action
After
Occurrence
If
the
system
does
not
stop
at
the
ok
prompt,
apply
break
to
the
target
domain
to
stop
at
an
ok
prompt.
After
15
minutes
have
passed,
execute
the
boot
command
again.
A.6 Precaution
on
Installing
an
OS
on
the
Fujitsu
3.2
TB
Flash
Accelerator
Card
Installation
of
an
OS
on
the
Fujitsu
3.2
TB
Flash
Accelerator
Card
may
cause
the
following
message
to
be
output,
and
the
card
may
not
appear
as
an
OS
possible
installation
destination.
A.6.1 Workaround
To
install
an
OS
on
the
Fujitsu
3.2
TB
Flash
Accelerator
Card,
use
an
OS
installation
with
Oracle
Solaris
11.3
SRU
28.4
or
later
already
applied.
You
can
create
the
OS
installation
by
using
distro_const.
For
details
on
creating
a
custom
Oracle
Solaris
11
installation
for
Oracle
Solaris
11.3,
see
the
Creating
a
Custom
Oracle
Solaris
11.3
Installation
Image.
A.6.2 Corrective
Action
After
Occurrence
None
Appendix
A Precautions
and
Restrictions
C120-0067-02EN
A.6 Precaution
on
Installing
an
OS
on
the
Fujitsu
3.2
TB
Flash
Accelerator
Card
10
