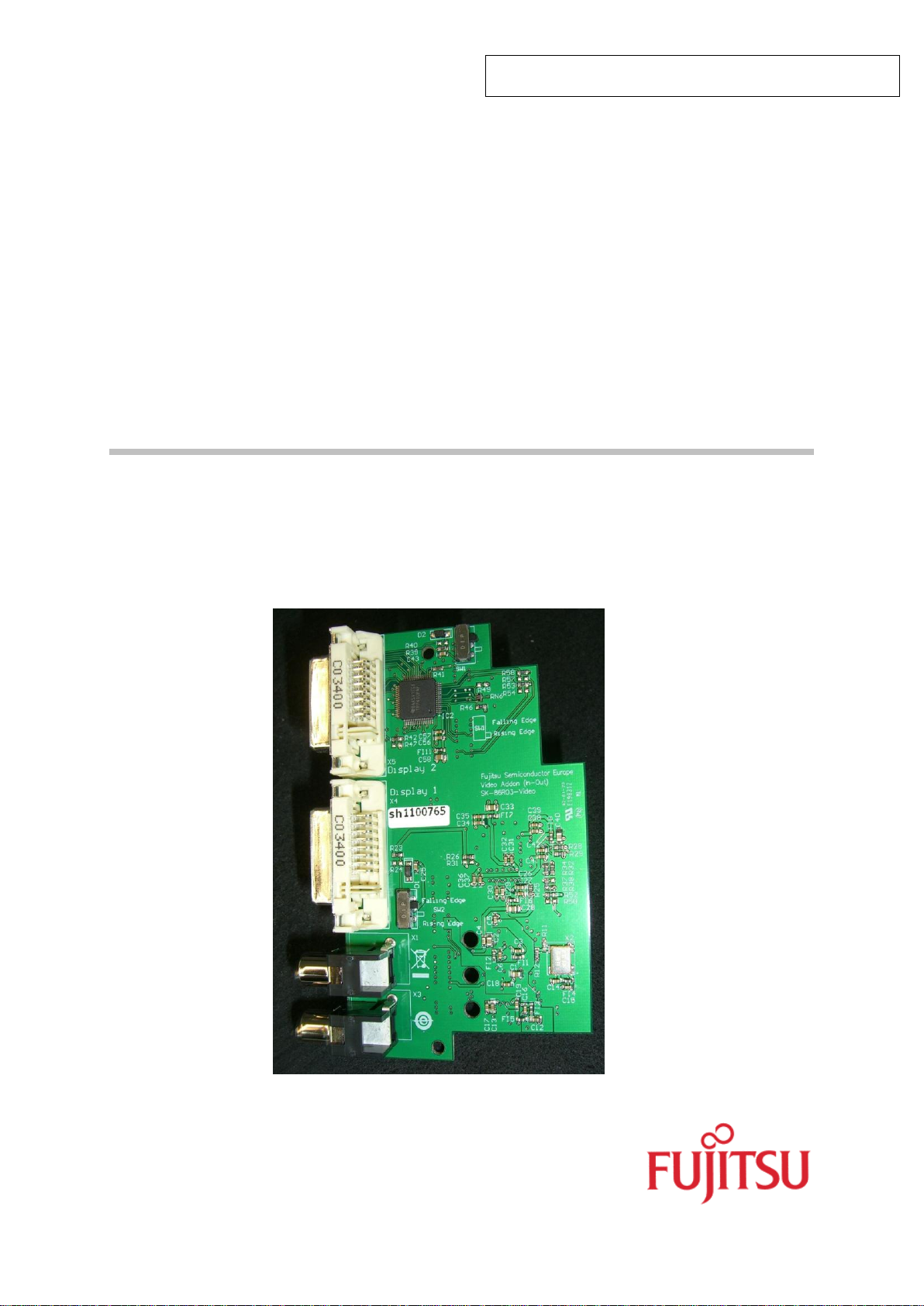

Fujitsu Sk-86r03-video User manual

Fujitsu Semiconductor Europe

User Manual

um-mb86r03-video-rev1-0

JADE-L / EMERALD-L

VIDEO-ADDON-BOARD

SK-86R03-VIDEO

USERGUIDE

Video Addon Board

SK-86R03-VIDEO

um-mb86r03-video-rev1-0 - 2 - © Fujitsu Semiconductor Europe GmbH

Revision History

Date

Issue

17June 2011

V1.0 Herbert Hönig

This document contains 14 pages.

Video Addon Board

SK-86R03-VIDEO

um-mb86r03-video-rev1-0 - 3 - © Fujitsu Semiconductor Europe GmbH

Warranty and Disclaimer

To the maximum extent permitted by applicable law, Fujitsu Semiconductor Europe GmbH restricts its

warranties and its liability for all products delivered free of charge (eg. software include or header

files, application examples, target boards, evaluation boards, engineering samples of IC’s etc.), its

performance and any consequential damages, on the use of the Product in accordance with (i) the

terms of the License Agreement and the Sale and Purchase Agreement under which agreements the

Product has been delivered, (ii) the technical descriptions and (iii) all accompanying written materials.

In addition, to the maximum extent permitted by applicable law, Fujitsu Semiconductor Europe GmbH

disclaims all warranties and liabilities for the performance of the Product and any consequential

damages in cases of unauthorised decompiling and/or reverse engineering and/or disassembling.

Note, all these products are intended and must only be used in an evaluation laboratory

environment.

1. Fujitsu Semiconductor Europe GmbH warrants that the Product will perform substantially in

accordance with the accompanying written materials for a period of 90 days form the date of

receipt by the customer. Concerning the hardware components of the Product, Fujitsu

Semiconductor Europe GmbH warrants that the Product will be free from defects in material

and workmanship under use and service as specified in the accompanying written materials

for a duration of 1 year from the date of receipt by the customer.

2. Should a Product turn out to be defect, Fujitsu Semiconductor Europe GmbH´s entire liability

and the customer´s exclusive remedy shall be, at Fujitsu Semiconductor Europe GmbH´s sole

discretion, either return of the purchase price and the license fee, or replacement of the

Product or parts thereof, if the Product is returned to Fujitsu Semiconductor Europe GmbH in

original packing and without further defects resulting from the customer´s use or the transport.

However, this warranty is excluded if the defect has resulted from an accident not attributable

to Fujitsu Semiconductor Europe GmbH, or abuse or misapplication attributable to the

customer or any other third party not relating to Fujitsu Semiconductor Europe GmbH.

3. To the maximum extent permitted by applicable law Fujitsu Semiconductor Europe GmbH

disclaims all other warranties, whether expressed or implied, in particular, but not limited to,

warranties of merchantability and fitness for a particular purpose for which the Product is not

designated.

4. To the maximum extent permitted by applicable law, Fujitsu Semiconductor Europe GmbH´s

and its suppliers´ liability is restricted to intention and gross negligence.

NO LIABILITY FOR CONSEQUENTIAL DAMAGES

To the maximum extent permitted by applicable law, in no event shall Fujitsu

Semiconductor Europe GmbH and its suppliers be liable for any damages whatsoever

(including but without limitation, consequential and/or indirect damages for personal

injury, assets of substantial value, loss of profits, interruption of business operation,

loss of information, or any other monetary or pecuniary loss) arising from the use of

the Product.

Should one of the above stipulations be or become invalid and/or unenforceable, the remaining

stipulations shall stay in full effect

Video Addon Board

SK-86R03-VIDEO

um-mb86r03-video-rev1-0 - 4 - © Fujitsu Semiconductor Europe GmbH

Contents

Revision History........................................................................................................................2

Warranty and Disclaimer..........................................................................................................3

Contents.....................................................................................................................................4

0Introduction / Features......................................................................................................5

1System Overview ................................................................................................................6

2Board Layout .....................................................................................................................8

3Running the board (Jade-L and Emerald-L) .................................................................10

4Schematic.........................................................................................................................11

5Appendix ..........................................................................................................................14

5.1 Used literature.....................................................................................................................14

Video Addon Board

SK-86R03-VIDEO

um-mb86r03-video-rev1-0 - 5 - © Fujitsu Semiconductor Europe GmbH

0 Introduction / Features

Here you will find a short summary and overview of the features that the SK-86R03-VIDEO

Board offers.

It provides

2x Video Inputs CVBS Format (Cinch Connectors) -> ITU656 decoding

2x DVI Outputs (output of RGB666)

DVI outputs can be triggered at positive or negative clock edge

Can be mounted on SK-86R03-01 (Jade-L) and SK-86R11-BASE (Emerald-L) ( as of

June 2011)

Mechanical dimensions:

- 108 x 65 mm (without connectors)

Video Addon Board

SK-86R03-VIDEO

um-mb86r03-video-rev1-0 - 6 - © Fujitsu Semiconductor Europe GmbH

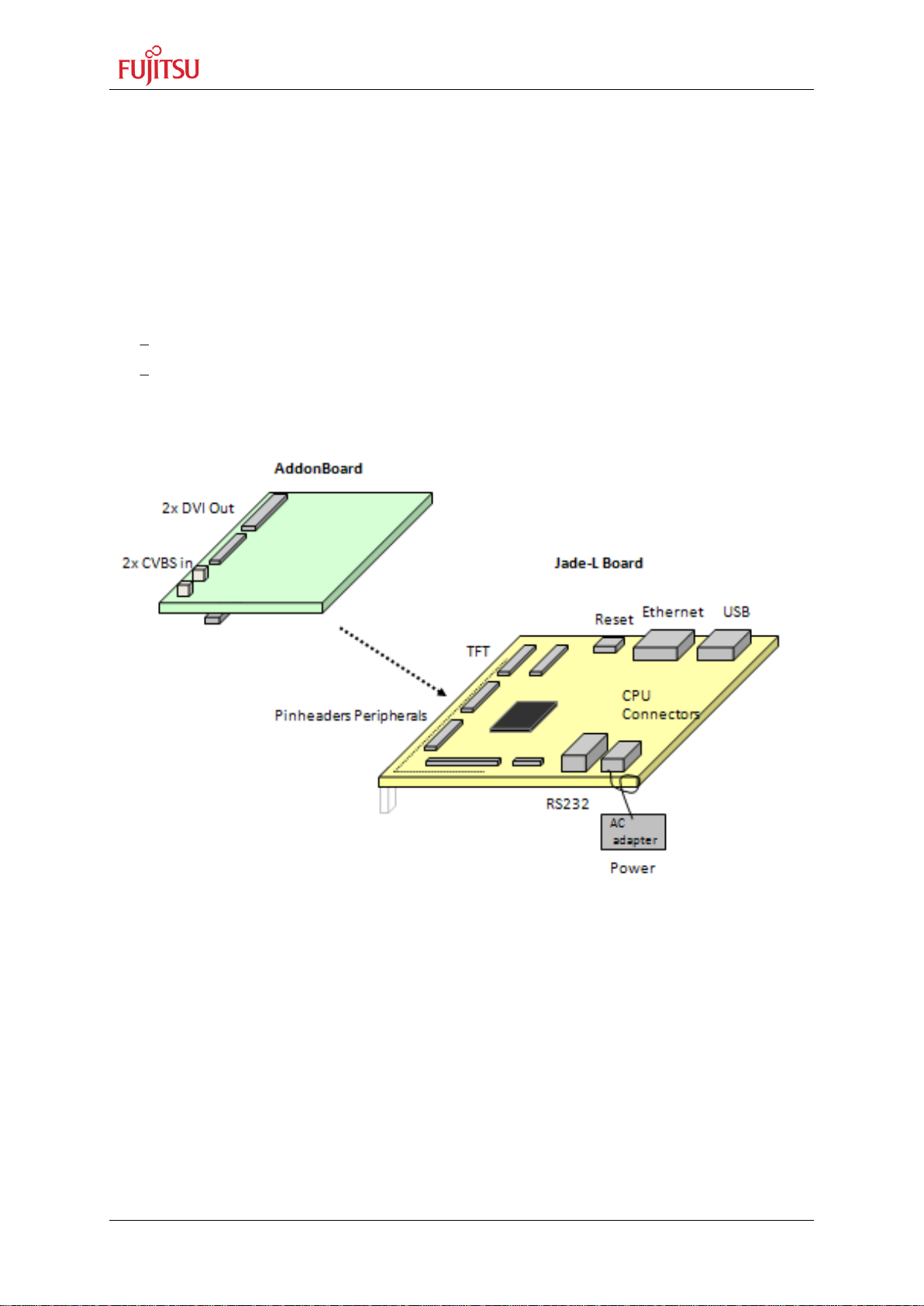

1 System Overview

The Jade-L and Emerald-L systems contains some extension connectors that can be used

to connect Video capture input (2x channels) and 2x RGB666 output.

Jade-L:

Jade-L board (SK-86R03)

Addon board , provides 2x DVI output and 2x CVBS input (SK-86R03-VIDEO)

Figure 1-1: System Overview Jade-L

Video Addon Board

SK-86R03-VIDEO

um-mb86r03-video-rev1-0 - 7 - © Fujitsu Semiconductor Europe GmbH

Emerald-L:

CPU module (Emerald-L chip, USB connectors) (MB86R11EVB-CPU01)

Base board (supplies interfaces and power) (SK-86R11-BASE)

Addon board , provides 2x DVI output and 2x CVBS input (SK-86R03-VIDEO)

Figure 1-2: System Overview Emerald-L

Video Addon Board

SK-86R03-VIDEO

um-mb86r03-video-rev1-0 - 8 - © Fujitsu Semiconductor Europe GmbH

2 Board Layout

Figure 2-1: Board Layout Top Layer

Video Addon Board

SK-86R03-VIDEO

Figure 2-2: Board Layout Bottom Layer

Video Addon Board

SK-86R03-VIDEO

3 Running the board (Jade-L and Emerald-L)

Before powering up the board, please ensure that all multiplex modes are set correct and all

interfaces connected accordingly.

set board switches appropriate to the desired function

( SW1 + SW2 can be used to trigger the DVI signal on falling/rising edge of the clock

signal), check schematic for more information

connect addon board on the baseboard

connect power supply

power indicating LEDS should light up

Figure 3-1: Running Emerald-L Board

Video Addon Board

SK-86R03-VIDEO

4 Schematic

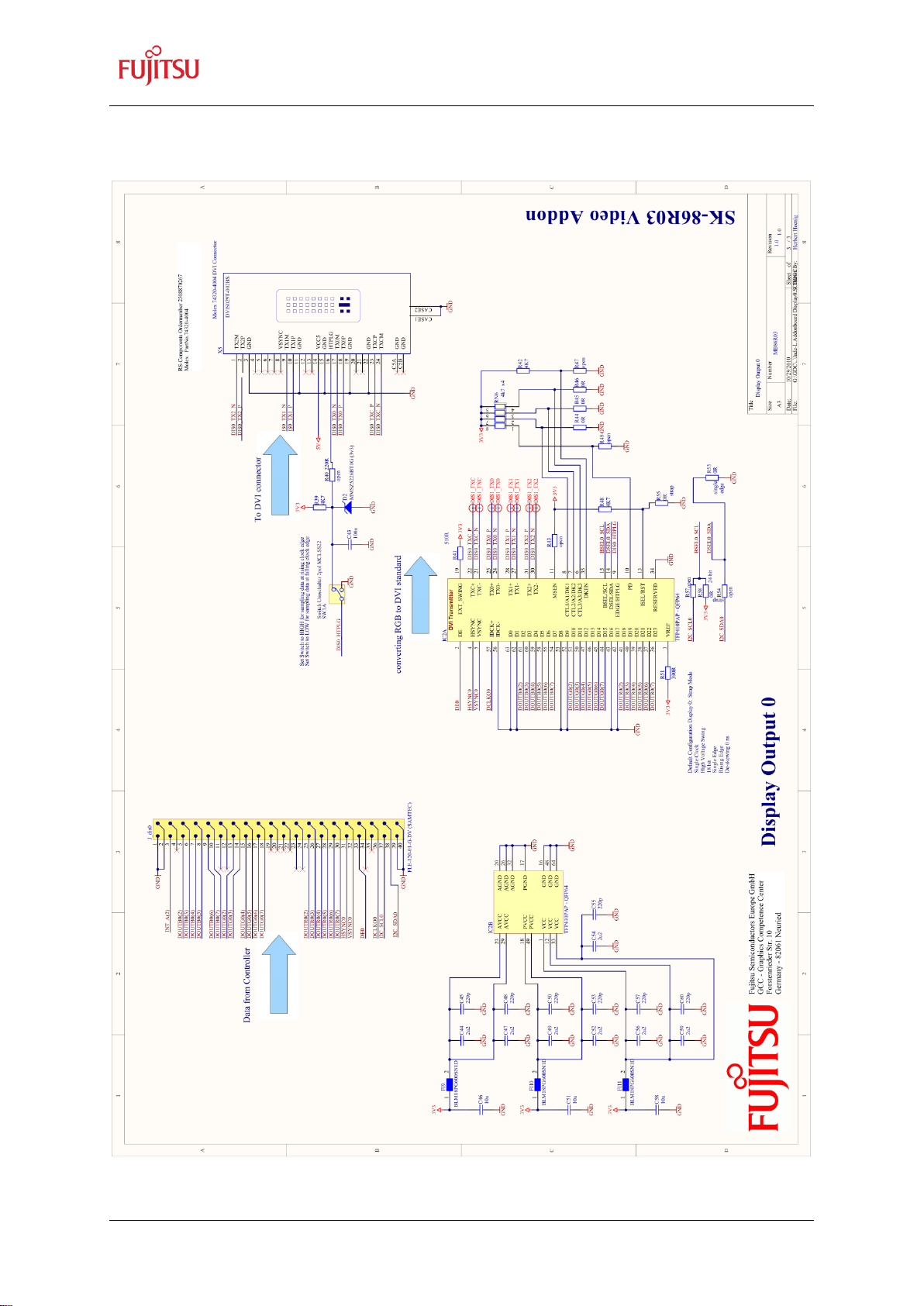

Figure 4-1: Display Output 0

Video Addon Board

SK-86R03-VIDEO

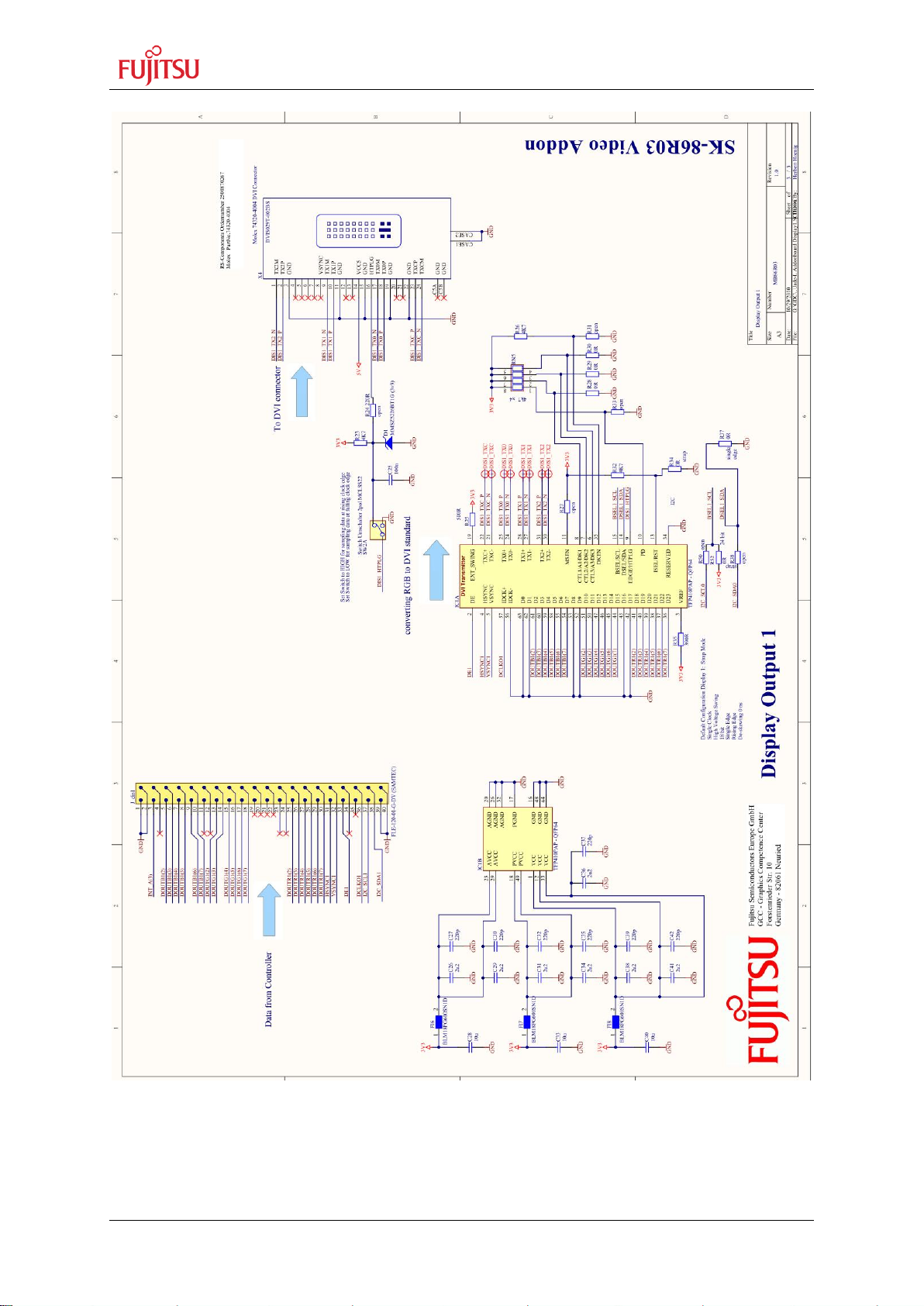

Figure 4-2: Display Output 1

Video Addon Board

SK-86R03-VIDEO

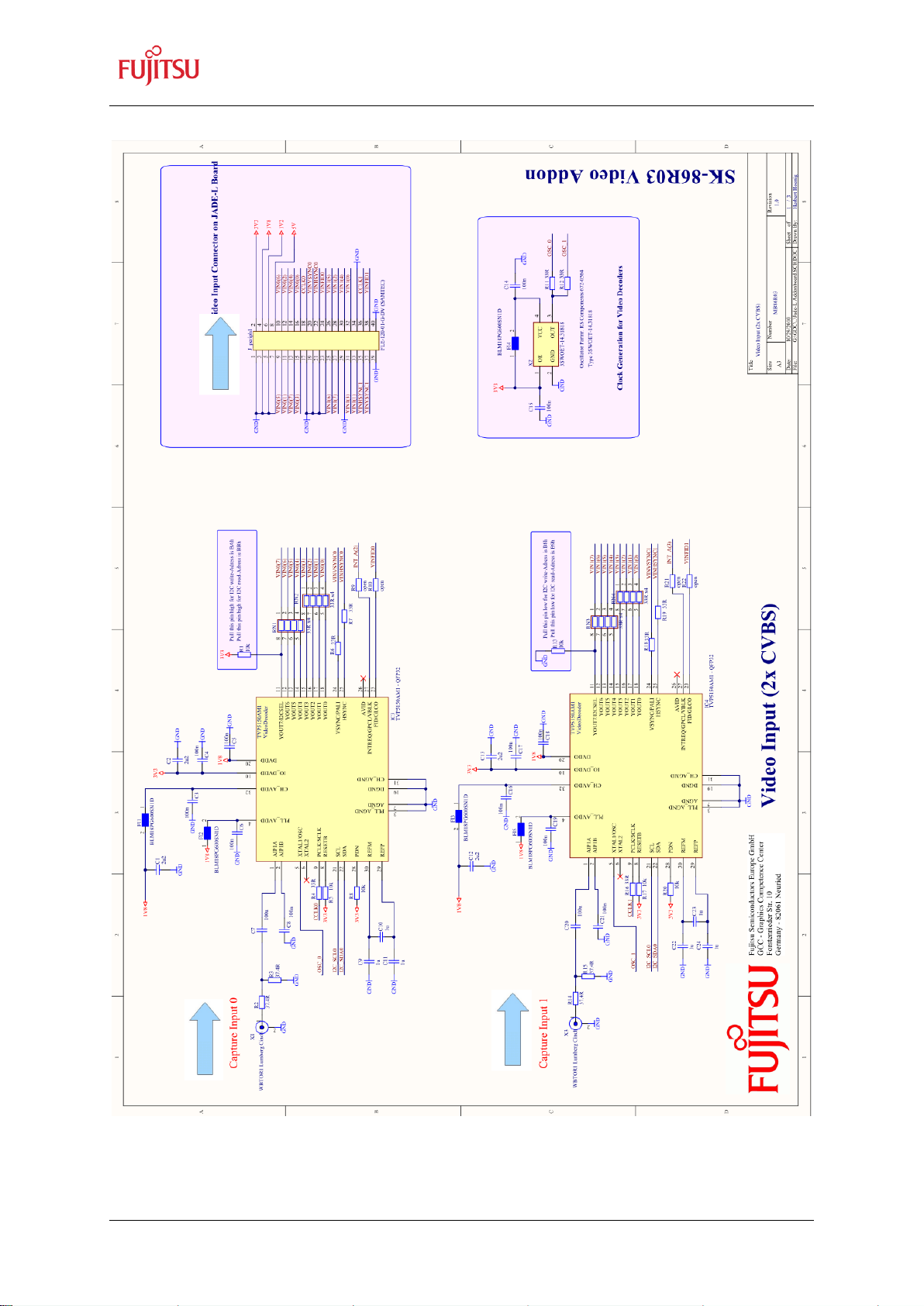

Figure 4-3: Video Inputs

Video Addon Board

SK-86R03-VIDEO

5 Appendix

5.1 Used literature

Emerald-L System:

http://www.fujitsu.com/emea/services/microelectronics/gdc/gdcdevices/mb86r11-

emerald-l.html

Emerald-L Starterkit:

http://www.fujitsu.com/emea/services/microelectronics/gdc/evalbds/emerald-l-

starterkit.html

Jade-L System:

http://www.fujitsu.com/emea/services/microelectronics/gdc/gdcdevices/mb86r03-

jade-l.html

Jade-L Starterkit:

http://www.fujitsu.com/emea/services/microelectronics/gdc/evalbds/jade-l-

starterkit.html

Fujitsu Graphic Controllers

http://www.fujitsu.com/emea/services/microelectronics/gdc/
