Full Boar FBCBC-1500 User manual

KNOW YOUR PRODUCT
WARNING: Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
0721
12V 15AMP
BATTERY CHARGER
• MICROPROCESSOR CONTROLLED
CHARGER
• UNIVERSAL BATTERY SUITABILITY
• MULTI-STEP
CHARGING CYCLE
INSTRUCTION MANUAL

2
Input voltage: 220-240V ~50Hz
Input power: 280W max.
Output: 12V DC, 2.7A/8A/15A
Battery capacity: 3 - 300Ah
Rated output current 2A: 2.7A
Battery capacity 2A: 3 – 60Ah
Rated output current 8A: 8A
Battery capacity 8A: 20 – 160Ah
Rated output 15A: 15A
Battery capacity 15A: 30 – 300Ah
Boost engine output: 100A 5 seconds

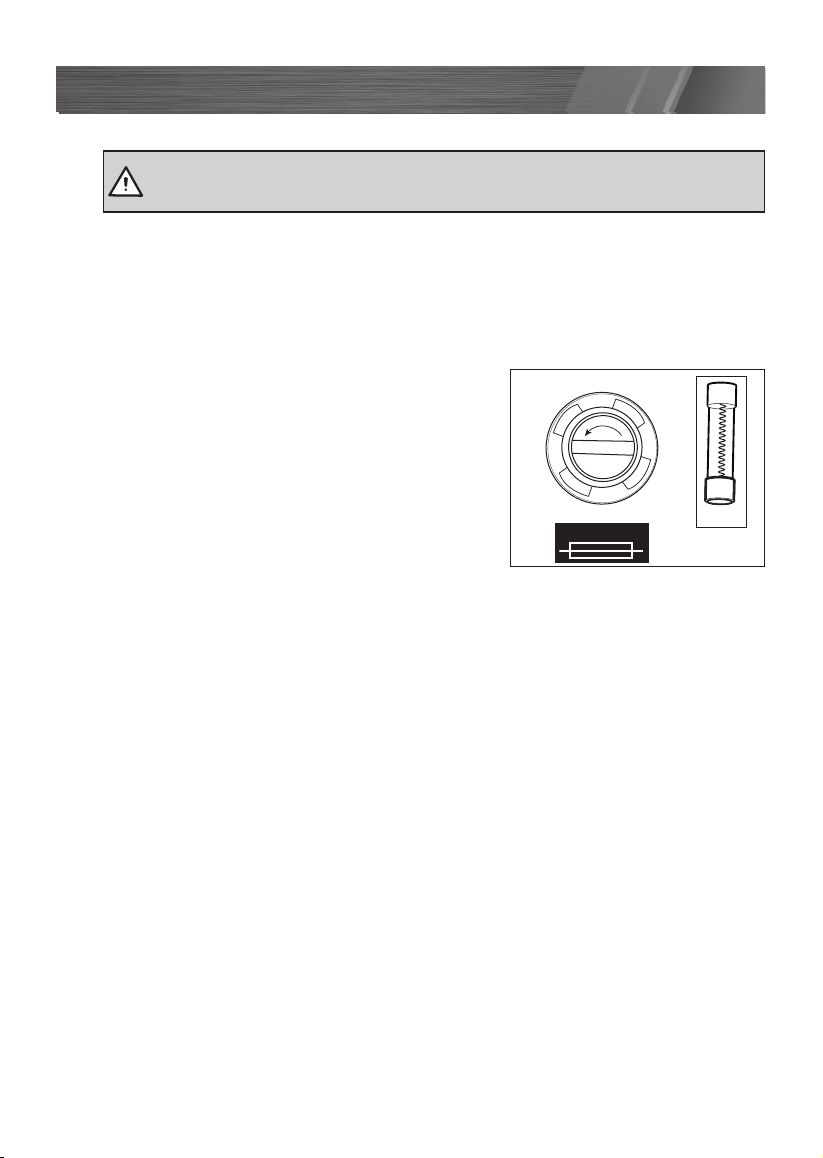

Miniature fuse: T 5A
Ambient temp.: -20°C – 40°C
IP rating: IP20
Weight (tool only): 7.5kg
SPECIFICATIONS - MODEL NO. FBCBC-1500

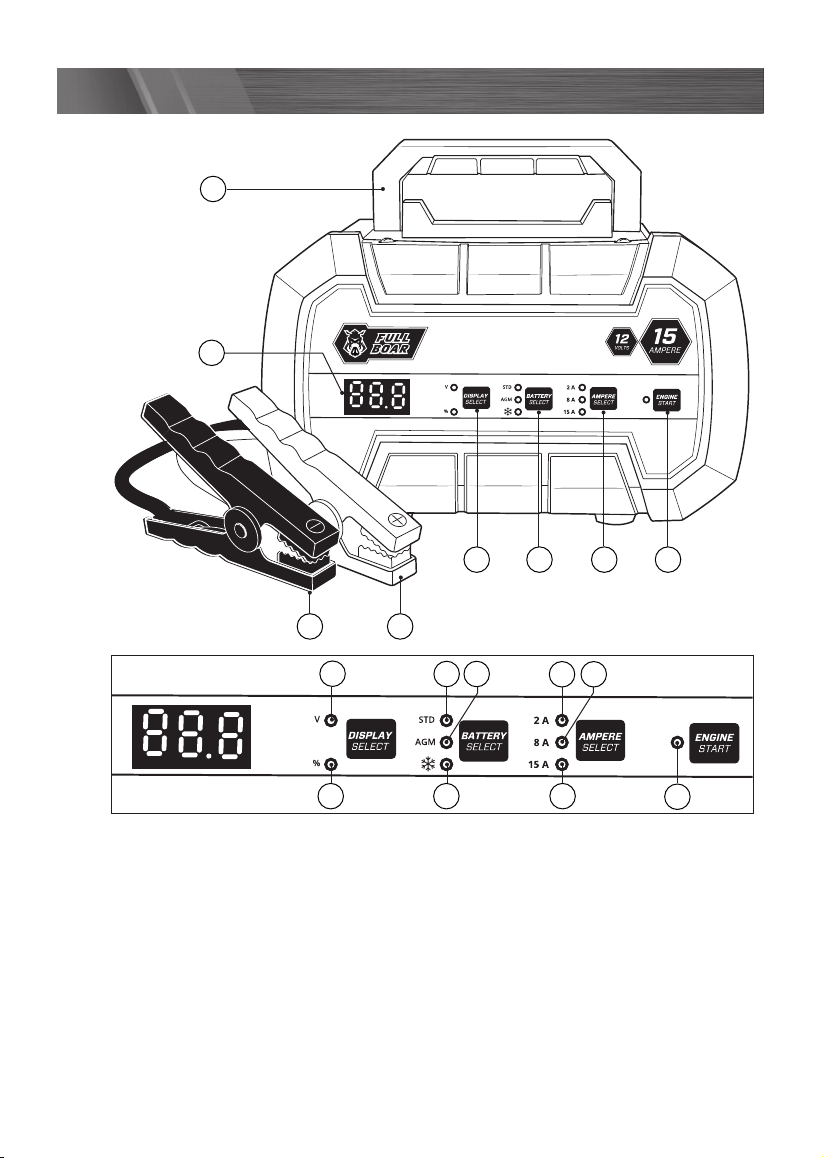

KNOW YOUR PRODUCT
1. Carry handle
2. LCD screen

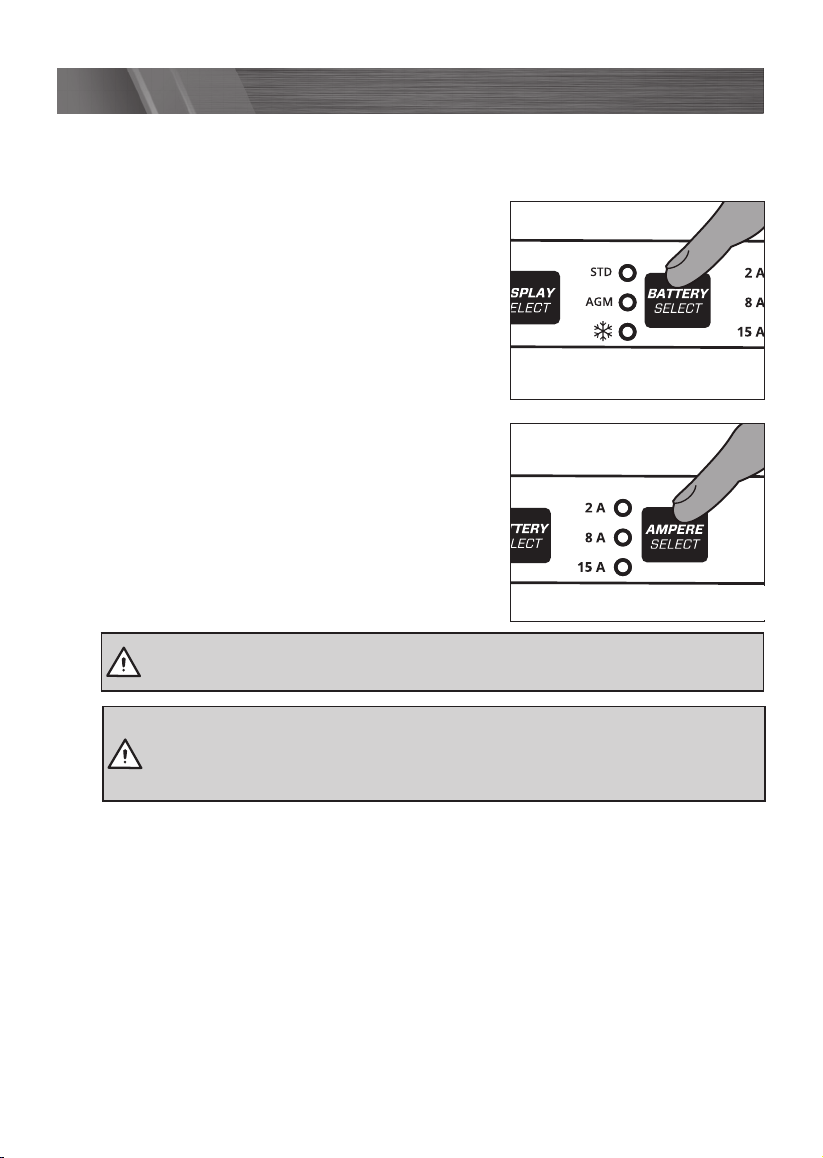

3. Display select button
4. Battery select button
5. Ampere select button
6. Engine start button
7. Black negative terminal clamp (–)
8. Red positive terminal clamp (+)
9. Battery voltage LED
10. Battery charge level LED
11. Charging a standard battery / gel
battery LED
12. Charging an AGM battery LED
13. Charging a standard / gel / AGM
battery in winter mode LED
14. Charging a battery at low current
strength LED
15. Charging a battery at moderate
current strength LED
16. Charging a battery at high current
strength LED
17. Jump start function is switched on
LED

3
KNOW YOUR PRODUCT (cont.)
LCD Screen
0.0 a) No battery connected.
b) Battery voltage below 3V.
The battery is either unsuitable for
charging or is defective.
Lo Battery in active mode.
FUL Battery fully charged.
Disconnect the charger from the
battery.
Err Battery wrongly connected (+/-
confused) or short circuit at the
terminals.
Disconnect the charger from the
battery and start the charger
process from the beginning again.
Bat Battery defective.
Disconnect the charger from the
battery.
StA Jump start function is switched ON
BATTERY CHARGER
5
Seconds
1
2
3
8
5 6
7
9
4
10
11 12
13
14 15
16 17

4
TABLE OF CONTENTS
SPECIFICATIONS....................................................... Page 02
KNOW YOUR PRODUCT........................................... Page 02
INTRODUCTION........................................................ Page 05
SAFETY INSTRUCTIONS........................................... Page 05
SETUP........................................................................ Page 11
OPERATION............................................................... Page 14
MAINTENANCE......................................................... Page 18
TROUBLE SHOOTING .............................................. Page 20
DESCRIPTION OF SYMBOLS.....................................Page 21
CONTENTS................................................................ Page 23
WARRANTY................................................................ Page 24

5
Congratulations on purchasing a Full Boar 12V 15AMP
Battery Charger.
Your Full Boar 12V 15AMP Battery Charger FBCBC-1500
has been designed for charging low maintenance and
maintenance-free 12V lead-acid batteries (wet / Ca/Ca /
EFB) and for lead gel and AGM batteries which are used
in motor vehicles. Read and understand the Owner’s
Manual before operating the 12V 15AMP Battery
Charger. Failure to do so could result in personal injury or
equipment damage.
INTRODUCTION
ELECTRICAL SAFETY
SAFETY INSTRUCTIONS
WARNING! When using mains-powered equipment, basic safety precautions,
including the following, should always be followed to reduce risk of fire, electric
shock, personal injury and material damage.
Read and understand the manual prior to operating this tool.
Save these instructions and other documents supplied with this tool for future reference.
The manufacturer cannot accept any liability for damage or accidents which arise due to a
failure to follow these instructions and the safety information.
The tool has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 220V and 240V is interchangeable for Australia and New Zealand.
If the supply cord of this power tool is damaged, it must be replaced by a specially prepared
cord available through the service organization.
Using an Extension Lead
Always use an approved heavy duty extension lead suitable for the power input of this tool.
Before use, inspect the extension lead for signs of damage, wear and ageing. Replace the
extension lead if damaged or defective. When using an extension lead on a reel, always
unwind the lead completely. Use of an extension lead not suitable for the power input of the
tool or which is damaged or defective may result in a risk of fire and electric shock.

6
GENERAL POWER TOOL SAFETY WARNINGS
SAVE THESE INSTRUCTIONS
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets
will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious personal
injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent
and ignore tool safety principles. A careless action can cause severe injury within a fraction of a
second.
WARNING! Read all safety warnings and instructions. Failure to follow all
instructions listed below may result in electric shock, fire and/or serious injury. The
term “Power Tool” in all of the warnings listed below refers to your mains operated
(corded) power tool or battery operated (cordless) power tool.

7
GENERAL POWER TOOL SAFETY WARNINGS (cont.)
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles
and grasping surfaces do not allow for safe handling and control of the tool in unexpected
situations.
5. Service
a. Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
b. If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in
order to avoid a hazard.

8
CAR BATTERY CHARGER WARNINGS
The item is not to be used by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction.
Young children should be supervised to ensure that they do not play with the appliance.
• Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury. Save all warnings and instructions for future
reference.
• This charger is not intended for any uses other than charging 12V lead acid and for lead gel and
AGM batteries which are used in motor vehicles. Do not attempt to use on other voltages and types
of batteries.
• Danger! Do not charge any frozen batteries.
• Please ensure that the vehicle is turned off completely before charging the battery.
• Do not pull the cord when disconnecting charger.
• Never attempt to dissemble the battery charger.
• To charge the battery outside the vehicle, make sure it is in a safe stable location with adequate
ventilation.
• Do not place the battery charger on top of the battery when charging.
• The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case
of misuse.
Risk of Fire & Deflagration
• Do not use chargers in environments where explosions may occur, such as in environments with
ignition sources, flammable vapours, gases, dust or similar.
• Do not use chargers with damaged cord or plug.
• Route the terminal clamps so that they cannot be caught by rotating parts in the engine
compartment.
• Do not short circuit the chargers.
• Do not shorten or extend the chargers.
• Do not wear clothing made of synthetic materials during charging. They could generate sparks due
to electrostatic charge.
Risk of Explosion & Chemical Burns
• Do not charge a battery if it is cracked or damaged.
• Do not lean over the battery. The electrolyte from the discharged battery is also liquid at low
temperatures.
• Wear protective gloves and safety glasses when working on the battery.
• Do not allow battery acid to make bodily contact. In the event of contact with battery acid
immediately flush the applicable areas with plenty of clean water and consult a doctor.
• Car batteries discharge hydrogen gas, which may ignite from flying sparks. Ensure that the clamps
are connected in the correct order to reduce the risk of sparks.
• Only charge the battery in a well-ventilated area to ensure toxic exhaust gas does not build up.
• Remove any vent caps on non-maintenance free batteries – be very careful as battery acid is highly
corrosive.
• Do not connect black terminal clamps to dead/flat battery.
• Never smoke, use an open flame or create sparks near the battery charger whilst charging as gases
may cause an explosion.
• Remove all metal jewellery, including watches and rings. Use insulated tools to avoid shorting the
battery.

9
JUMP STARTER SAFETY WARNINGS
1. Do not attempt to jump start more than 3 times. If the 3rd jump start attempt is unsuccessful, the jump
start function is unable to provide sufficient assistance for the battery in the jump start process.
2. The poles on the vehicle battery must be clean and the clamps of the jump start cable must be securely
attached to the battery poles.
3. Do not connect the clamps of the jump start cable together during jump starting – Short circuit.
4. At very low temperatures a number of jump start attempts may be required before the car starts up.
5. If you carry out any work in the engine bay of a vehicle, watch out for rotating and moving parts.
6. During jump starting, it is imperative not to wear any items of clothing made of synthetic materials in
order to avoid spark formation caused by electrostatic discharge.
7. Only grasp clamps by the insulated surfaces.
8. Make sure the vehicles are in either Neutral (Manual) or Park (Auto) with the hand brake on.
9. Do not leave either engine running unattended.
10. Keep away from children as they could potentially strangle or injure themselves.
11. Keep children away from work area
12. People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close
proximity to heart pacemaker could cause pacemaker interference or pacemaker failure. Caution is
necessary when near coil, spark plug cables, or distributor of running engine. Engine should be off
during distributor adjustment.
RISK OF FIRE & DEFLAGRATION
• Do not use the jump starter in environments where explosions may occur, such as in environments with
ignition sources, flammable vapours, gases, dust or similar.
• Ensure that the jump start cable is not damaged.
• Do not short circuit the jump starter.
• Do not shorten or extend the jump start cable.
• Do not wear clothing made of synthetic materials during charging. They could generate sparks due to
electrostatic charge.
WARNING! Save all warnings and instructions for future reference.
WARNING! Read all safety warnings and all instructions. Failure to follow
the warnings and instructions may result in electric shock, fire and/or
serious injury.

10
JUMP STARTER SAFETY WARNINGS (cont.)
RISK OF EXPLOSION & CHEMICAL BURNS
• Do not start a battery if it is cracked or damaged.
• Do not lean over the battery. The electrolyte from the discharged battery is also liquid at low temperatures.
• Wear protective gloves and safety glasses when working on the battery. Do not touch damaged or leaking
cells. Consult SDS if contact has been made.
• Do not allow battery acid to make bodily contact. In the event of contact with battery acid immediately
flush the applicable areas with plenty of clean water and consult a doctor.
• Never jump start a vehicle if the battery is frozen as the battery may explode. If the sides of the battery is
bulged, it is likely frozen.
• Car batteries discharge hydrogen gas, which may ignite from flying sparks. Ensure that the jump start cable
is connected in the correct order to reduce the risk of sparks.
• Only run the engine in a well-ventilated area to ensure toxic exhaust gas does not build up.
• Remove any vent caps on non-maintenance free batteries – be very careful as battery acid is highly
corrosive
• Only use jump starter as prescribed in the manual.
Avoid flames and sparks. Explosive gas is released from the car battery during jump starting. If you smell an
acrid odour of gas, there is an acute danger of explosion. Ventilate the room immediately and thoroughly.
Refer to the instructions issued by the car battery manufacturer.
Refer to the information and instruction issued by the vehicle manufacturer.
RISK OF ELECTRICAL SHOCK
• Ensure the ignition switch is in the OFF position on the vehicle while connecting leads.
• Do not use the jump start cable if it shows signs of wear or damage.
• Turn off the lights and power draining functions (such as the stereo and interior light) to help ease the
strain off the charged battery
• Ensure that the terminal clamps do not touch. Contact between live connections may result in sparks,
electrocution, fire, severe personal injury or even death.
• Ensure that there is no contact between the bodies of the vehicles and that no such contact occurs.
Vehicles in contact with each other could establish a ground connection and result in personal injury to the
user or bystanders.
• When disconnecting the clamps, ensure that the two clamps do not come into contact with the rotating
parts of the engine compartment.
• Do not expose jump starter to rain or wet conditions.

11
SETUP
Automatic charging (STD, AGM, Winter charging programs only)
The battery charger is a microprocessor controlled automatic charger, it is suitable
in particular for charging maintenance-free batteries and for the long-term
charging and maintenance charging of batteries which are not in constant use,
e.g. for classic cars, recreational vehicles, lawn tractors and alike. The integrated
microprocessor enables charging in several steps. The final charging step,
maintenance charging, maintains the battery capacity at 95–100% and therefore
keeps the battery fully charged at all times. The charging operation does not need
to be monitored. However, do not leave the battery unattended if you charge it
over an extended period of time, so that you can disconnect it from the mains
power supply in the event of a fault in the charger.
The battery charger is designed for mobile use only and not for installation in
caravans, mobile homes or similar vehicles. The battery charger cannot be used as
a buffer power supply, e.g. while changing a battery. Do not expose the charger to
rain or snow.
If the 12V starter battery is weak, the jump start process can be assisted by the
jump start function. The jump start function cannot be used if the starter battery
is discharged (indicated by Lo) or faulty (indicated by “BAt”) or there is no starter
battery.
All batteries have a limited service life that depends on how the battery is
maintained, among other things. Below 10.5V a vehicle battery (lead battery) is
regarded as exhaustively discharged and may suffer irreversible damage if stored
for a long period. The charger is unable to charge batteries that are damaged or
defective (e.g. cell short circuit).
WARNING! Read and understand the warnings before setup and
charging.
WARNING! Do not use for charging lithium ion phosphate rechargeable
batteries (e.g. LiFeP04) or other lithium rechargeable batteries.
WARNING! Not for recharging non-rechargeable batteries.

12
SETUP (cont.)
Charging time/hours =
Battery capacity in Ah
Amperes (charging current)
80%
2 h
Ah
5 h
10 h
20 h
30
75
150
300
Fig. 1
Charging time/hours =
Battery capacity in Ah
Amperes (charging current)
80%
2 h
Ah
5 h
10 h
20 h
30
75
150
300
Fig. 2
Calculating the charging time
The charging time depends on the charge status
of the battery. If the battery was discharged
but is chargeable (not exhaustively discharged,
“Lo” displayed, or defective), the approximate
charging time up to approx. 80% (fig. 1)
Charging can be calculated using
the following formula: (fig. 2).
Note: The charging current should
be 1/10 to 1/6 of the battery
capacity.
Charging programs
STD:
Charging program for lead acid batteries (wet, Ca/Ca, EFB batteries) and gel
batteries. The “STD” LED (11) illuminates the first time the charger is used.
AGM:
Charging program for AGM batteries. Press the Battery select button (4) to switch
from the STD to the AGM charging program.
Winter:
Recommended charging program (higher end-of-charge voltage) in cold weather
(ambient temperature -20 °C - +5 °C) for normal lead acid batteries (wet / Ca/Ca
batteries) and AGM batteries. Press the Battery select button (4) to switch from the
AGM to the “Winter” charging program.

13
KNOW YOUR PRODUCT
SETUP (cont.)
Charging program notes:
•When connecting the charger to the mains power outlet, all the LEDs will flash
briefly.
•If the voltage of the battery is below 3V, it cannot be charged.
•Press the Battery select button (4) to select the battery types or winter mode.
The corresponding LED (11,12, or 13) illuminates.
•The maximum charging current strength can be set by pressing the Ampere
select button (5). The LED corresponding to the charging current strength
(14,15, or 16) illuminates.
•The battery is charged in an automatic process consisting of not more than 6
charge settings, depending on the available battery voltage.
•The actual charging current depends on the charge setting the charger is
currently in, and may be less than the set max. charging current.
Overload cut-out
The battery charger is equipped with electronic protection against overload, short
circuit and swapped poles. A short circuit on the terminals or swapped poles (+/-
terminals at the battery poles the wrong way round) and the LCD screen (2) will
show “ERR”.

14
OPERATION

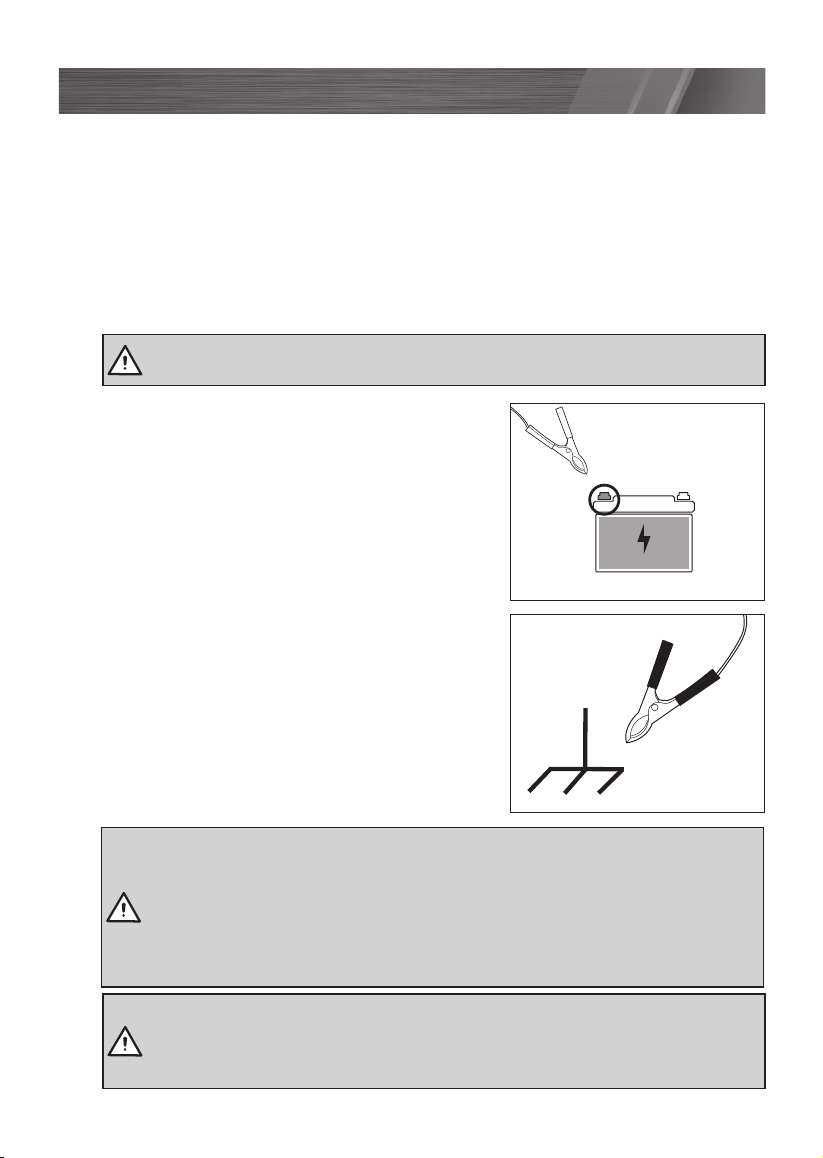

Connecting to a vehicle battery
Before charging make sure the battery terminals are really clean as grease and
dust could lead to poor connection. The battery MUST be disconnected prior to
cleaning. Check the battery and connections for any cracks or damage before
proceeding with cleaning and charging. To help ensure a good connection of the
battery charger terminal clamps, clean the battery terminals with a solution of
baking soda and water, and wipe the battery terminals with a cloth to remove any
dirt and grease.
WARNING! If the battery is still fitted to a motor vehicle, make sure that
all the electronics are turned off, and that the ignition is turned off.
+ -
Fig. 3
Fig. 4
WARNING! Under normal circumstances the negative battery pole is
connected to the bodywork and you proceed as described above. In
exceptional cases it is possible that the positive battery pole is connected
to the bodywork (positive earthing). In this case, connecting the black
negative terminal clamp (7) to the negative pole on the battery. Then
connect the red positive terminal clamp (8) to the bodywork at a point
away from the battery.
WARNING! The battery terminal not connected to the chassis has to be
connected first. The other connection is to be made to the chassis, remote
from the battery and fuel line. The battery charger is then to be connected
to the supply mains.
1. With the vehicle engine not running, connect
the red positive terminal clamp (8) to the
positive ( + ) pole on your vehicle 12V battery
(fig. 3).
2. Connect the black negative terminal clamp
(7) to an unpainted piece of metal on the
bodywork away from the battery (fig. 4).

15
OPERATION (cont.)
3. Connect the charger to a mains power socket. All the LEDs will flash briefly.
4. Press the Battery select button (4) to select
the battery types or winter mode (fig. 5). The
battery will be charged using the program
selected.
Note: The LED corresponding to the battery
type or winter mode (11,12, or 13) illuminates.
5. Press the Ampere select button (5) to select
the maximum charging current strength
(fig. 6). The battery will be charged using the
ampere selected.
Note: The LED corresponding to the charging
current strength (14,15, or 16) illuminates.
Note: The actual charging current depends on
the charge setting the charger is currently in,
and may be less than the set maximum charging
current.
6. The battery is fully charged when “FUL” appears in the LCD screen (2), the
charging process is completed.
Note: The charger holds the battery at 95% –100% available battery capacity
using pulsed charging. If the battery was discharged and the charger shows this
after just a few minutes, this indicates that the battery capacity is low. The battery
cannot be recharged any further.
5
Seconds
Fig. 5
5
Seconds
Fig. 6
WARNING! Charging may create dangerous explosive gas and therefore
you should avoid spark formation and naked flames whilst the battery is
charging. There is a risk of explosion! It is essential that you ventilate the
rooms well.
WARNING! The charging current should be 1/10 to 1/6 of the battery
capacity.

16
OPERATION (cont.)
Disconnecting from a vehicle battery (Finished charging the
battery)
1. Remove battery charger from mains power socket.
2. Remove the black negative terminal clamp ( –) (7) from the bodywork.
3. Remove the red positive terminal clamp (8) from the positive ( + ) pole of the
vehicle battery.
WARNING! In case of positive earthing, first disconnect the red positive
terminal clamp (8) from the bodywork and then the black negative terminal
clamp (7) from the negative ( –) pole of the vehicle battery.
WARNING! If the mains plug is pulled out but the charger cables are
still connected to the battery, the charger will draw off a small amount
of electricity from the battery. We therefore recommend that you always
completely remove the charger from the battery when not in use.
Jump start function
The battery voltage indicated on the LCD screen (2) must be at least 11.5V (the
higher, the better) for the jump start function to work. Even then, the jump start
function may not work (e.g. if the battery is damaged or the starter is defective). In
all cases, proceed as described below.
1. Pre-charging process: Following instructions as described in “Connecting to
a vehicle battery” to charge the battery for at least 15 minutes with a high
charging current.
WARNING! Do not press any button while the countdown or the starting
process is continuing (indicated by “StA”). Should a malfunction occur
because a button is pressed by mistake, pull out the power plug.
WARNING! After charging, disconnect the battery charger from the
supply mains. Then remove the chassis connection and then the battery
connection.
WARNING! Jump start function is for lead-acid battery only.

17
+ -
Fig. 7
OPERATION (cont.)
2. Connect the black negative terminal clamp to
the negative ( –) (7) pole on your vehicle 12V
battery (fig. 7).
3. Press the Engine start button (6) for 5 seconds
(fig. 8). This activates the jump start function.
The charger checks the existing battery
voltage.
•If the battery voltage is below 11.5V, a jump
start is not possible and the LCD screen (2) will
show “ERR”. Disconnect the charger from the
power supply and the battery. Connect the
charger to the battery and power supply again
as described in point 1. Charge the battery again for at least 15 minutes with a
high charging current. Then repeat the jump start process from point 2 if the LCD
screen (2) indicates at least 11.5V.
• If the battery voltage is 11.5V or higher, a jump start is possible. “StA” appears
on the LCD screen (2) and the jump start function LED (17) illuminates. You now
have 1 minute in which to attempt a start. During this minute the equipment
provides the jump start current (25 A – 100 A), depending on the battery voltage)
for 5 seconds. After 5 seconds the equipment goes into quiescent state (no
charging current) in order to cool down, and the LCD screen (2) starts a countdown
of 180 seconds. At the end of the countdown the charger analyses the battery.
–If jump start was successful, follow instructions as described in “Disconnecting
from a vehicle battery”
–If the jump start was unsuccessful, charge the battery again for at least 15
minutes with a high charging current. Then repeat the jump start process from
point 2 if the LCD screen (2) indicates at least 11.5V.
3. You can repeat the jump start process twice. If the 3rd jump start attempt
is also unsuccessful, do not try it again. The jump start function is unable to
provide sufficient assistance for the battery in the jump start process.
5
Seconds
Fig. 8

18
KNOW YOUR PRODUCT
MAINTENANCE
WARNING! Before carrying out any maintenance procedure, make sure
that it is disconnected from the mains power supply.
Fuses
There are fuses inside the equipment for additional electronic protection. If the
fuse suffers a defect it must be replaced by a new fuse with the same amp value.
If necessary, please contact TB Imports.
There is a miniature fuse on the rear of the
equipment (fig. 9). In the event of a fault, the user
can replace this fuse with one of the same rating.
To do so, use a suitable screwdriver to turn the
top part of the fuse holder to the left. After
replacing the fuse, turn the top part to the right
again. Slow Blow Fuse 5mm x 20mm, 5A 250V
Care of the battery
• Ensure that your battery is always fitted securely.
• A perfect connection to the cable network of the electrical system must be
ensured at all times.
• Keep the battery clean and dry. Apply a thin coating of grease to the connection
terminals using an acid-free, acid-resistant grease (Vaseline).
• Check the level of the acid in batteries that are not maintenance free versions
approximately every 4 weeks and top up with distilled water if necessary.
Cleaning
• Keep all safety devices, air vents and the motor housing free of dirt and dust as
far as possible. Wipe the equipment with a clean cloth or blow it with compressed
air at low pressure.
•We recommend that you clean the device immediately each time you have
finished using it.
•Clean the equipment regularly with a moist cloth and some soft soap. Do not
use cleaning agents or solvents; these could attack the plastic parts of the
equipment. Ensure that no water can seep into the device. The ingress of water
into an electric tool increases the risk of an electric shock.
FUSE
T 5A
5 amp
Fig. 9

19
MAINTENANCE (cont.)
Storage
•The device should be placed in a dry room for storage. Any corrosion must be
cleaned off the charging terminals.
Supply cords
•If replacement of the supply cord is necessary, this has to be done by a certified
electrician in order to avoid a safety hazard.
Note: TB Imports will not be responsible for any damage or injuries caused by the
repair of the tool by an unauthorised person or by mishandling of the tool.

20
TROUBLESHOOTING
Problem Possible Cause Remedy
Equipment does not
charge up
Charger clamps connected
incorrectly.
Connect the red clamp to the
positive pole and the back clamp
to the bodywork.
Contact between the charger
clamps.
Prevent contact.
Battery defective. Have the battery checked by an
expert and replace it if necessary.
Jump starting does
not work
Battery voltage too low. Charge battery
Fuse needs replacing Replace fuse
Temperature outside the
temperature range.
Try jump starting within the
temperature range. Ambient
temperature -15º to +40º
