Full Gauge Controls ICEMATIC II User manual

85~265Vac / 50/60Hz
16(8) A / 250Vac 1HP
±3%*
02
2
4
6
8
10
12 hrs
0
T(ON)
02
2
4
6
8
10
12 2
10
20
30
40
50
60
0
T(OFF)T(ON)
min
hrs
2
10
20
30
40
50
60
min
T(OFF)
CYCLIC TIMER
ICEMATIC II
Ver.01
ICEMATICIIV01-01T-17555
WARNING
ACESSORIES:
Use only Full Gauge Controls original accessories.
If you have any queries, please contact our technical support.
AUTHORIZED SERVICES:
The installation and maintenance of the product must be performed by qualified personnel only;
THROUGH CONTINUOUS DEVELOPMENT, FULL GAUGE CONTROLS RESERVES THE RIGHT TO
CHANGE THIS MANUAL INFORMATION AT ANY TIME, WITHOUT PRIOR NOTICE.
BEFORE THE INSTALLATION OF THE CONVERTER, WE RECOMMEND READING THE
INSTRUCTION MANUAL IN FULL TO PREVENT POSSIBLE DAMAGE TO THE PRODUCT.
PRODUCT INSTALLATION PRECAUTIONS:
Before performing any procedure on this instrument, disconnect it from the power grid;
Ensure that it has adequate ventilation, avoiding installation on control panels containing devices that
could cause it to operate outside its specified temperature range;
Install the product away from sources that may generate electromagnetic disturbances, such as:
motors, contactors, relays, electrovalves, etc.;
Have this manual in the palm of
your hand by FG Finder application.
1. DESCRIPTION
2. APPLICATIONS
3. TECHNICAL SPECIFICATIONS
5. TEST MODE
6. SIGNALING
7. CONNECTION SCHEMATIC
4. OPERATIONS
ICEMATIC II is a cyclic timer programmable by setting the output ON and OFF times. It allows an
adjustment of up to 12 hours to keep the control output activated and an adjustment of up to 60 minutes
to keep the control output off.
It is equipped with a controller power up protection, ensuring that the control output (ON) is activated
only after a minimum of two minutes. The green LED will keep flashing during this time, indicating that
the controller is counting time before activating the output.
It also has a dedicated key to reverse the output state manually, always respecting the two-minute time
before activating the control output (ON).
- ICEMATIC II can be used as a timer for any type of cyclic event, such as : regulating cooling and
defrost cycles in chambers and chambers and frigorific displays, activating lights, air conditioners,
among others. In the irrigation of plantations, it can control the operation of motor pumps or solenoid
valves for water.
Power supply
Output on time
Output off time
Maximum current
Dimensions
Accuracy
0:02 to 12 hours
From 2 to 60 minutes
68,5 x 81,0 x 28,0 mm (2,70 x 3,19 x 1,10 in)
ICEMATIC II is a cyclic timer that allows the configuration of the time that the respective
output will remain activated by setting the ON time and the OFF time. Upon power up,
ICEMATIC II waits two minutes before activating the ON output. The green LED will keep
flashing during this time, indicating that the output will be activated after that time has ddd
elapsed.
4.1 ON time adjustment:
4.2 OFF time adjustment:
4.3 Output state reversing button:
With one touch (1second) on the key you can manually
switch the output state. If the key is pressed while the
controller is counting the minimum off output time (two
minutes), the green LED will start flashing , indicating ddd
that the ON output will be activated after this time has
elapsed.
The off T time (OFF) can be configured with values between
2 and 60 minutes. Whenever the controller is counting the T
(OFF) time, the red LED will remain on and the main ddd
output (NO contact) will remain off.
The on T time (ON) can be configured with values between
00:02 and 12 hours. Whenever the controller is counting the
T (ON) time, the green LED will remain on and the main ddd
output (NO contact) will remain activated.
ICEMATIC II also has a setting that allows changing the output state every two minutes. This
operating mode can be used for functional tests of the equipment on which the controller is
installed. To perform this test, simply set the two time values in the minimum range of the scale,
as shown in the image below:
Occurrence
Output
LED STATUS / State
Red / On
Green / On
Counting the configured output ON
time.
Waiting the two minutes of protection
before activating the ON output.
Counting the configured output OFF
time.
Contact Full Gauge Controls.
Output
on
Output
off
Output
off
Output
off
Green / Flashing
Green - Yellow - Red / Flashing
L1 L1
L2 L2
Power:
85~265Vac / 50/60Hz
Output:
16(8) A / 250Vac 1HP
CARGA
02
2
4
6
8
10
12 hrs 2
10
20 30 40
50
60 min
0
T(OFF) T(ON)
*Regarding the accuracy of the controller's internal timing. The accuracy of the configured time also
depends on the adjustment made by the user.

Note: It is recommended to use a M4 or M5 screw to fasten the controller.
54,20mm (2,13'’)
68,50mm (2,70'’)
5,30mm
(0,209'’)
60,00 mm (2,36'’)
Front view Side view
02
2
4
6
8
10
12 2
10
20
30
40
50
60
0
T(OFF)T(ON)
min
hrs
28,00mm (1,10'’)
81,00mm (3,19'’)

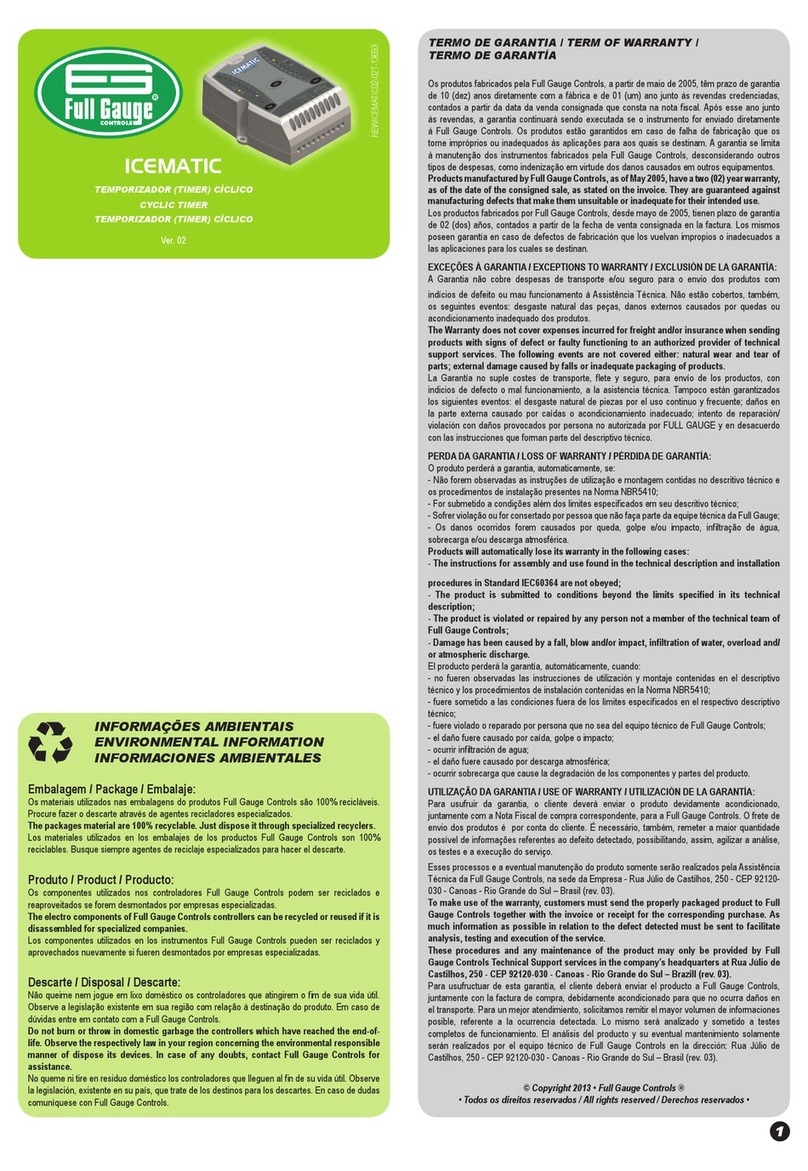

ENVIRONMENTAL INFORMATION
Package:
The packages material are 100% recyclable. Just dispose it through specialized
recyclers.
Product:
The electro components of Full Gauge Controls controllers can be recycled or reused if it
is disassembled for specialized companies.
Disposal:
Do not burn or throw in domestic garbage the controllers which have reached the end-of-
life. Observe the respectively law in your region concerning the environmental
responsible manner of dispose its devices. In case of any doubts, contact Full Gauge
Controls for assistance.
TERM OF WARRANTY - FULL GAUGE CONTROLS
Products manufactured by Full Gauge Controls, as of May 2005, have a two (02) year
warranty, as of the date of the consigned sale, as stated on the invoice. They are
guaranteed against manufacturing defects that make them unsuitable or inadequate for
their intended use.
EXCEPTIONS TO WARRANTY
The warranty does not cover expenses incurred for freight and/or insurance when
sending products with signs of defect or faulty functioning to an authorized provider of
technical support services. The following events are not covered either: natural wear and
tear of parts; external damage caused by falls or inadequate packaging of products.
LOSS OF WARRANTY
Products will automatically lose its warranty in the following cases:
- The instructions for assembly and use found in the technical description and installation
procedures in Standard IEC60364 are not obeyed;
- The product is submitted to conditions beyond the limits specified in its technical
description;
- The product is violated or repaired by any person not a member of the technical team of
Full Gauge Controls;
- Damage has been caused by a fall, blow and/or impact, infiltration of water, overload
and/or atmospheric discharge.
USE OF WARRANTY
To make use of the warranty, customers must send the properly packaged product to
Full Gauge Controls together with the invoice or receipt for the corresponding purchase.
As much information as possible in relation to the defect detected must be sent to
facilitate analysis, testing and execution of the service.
These procedures and any maintenance of the product may only be provided by Full
Gauge Controls Technical Support services in the company’s headquarters at Rua Júlio
de Castilhos, 250 - Canoas - Rio Grande do Sul - Brazil
Copyright 2019
8. DIMENSIONS
