FULTON 11575 User manual

Version 1.0
DELUXE DRILL PRESS TABLE
WITH ALUMINUM FENCE
Turn o Power Ear Protection Sharp
CAUTION Eye Protection Respiratory
Protection
Disconnect
saw from
power source
before tting
or removing
insert.
Always wear
proper eye
protection
when working
with machinery
and tools.
Always wear
proper ear
protection when
working with
machinery.
Always wear
proper respiratory
protection when
working near
airborne dust
particles.
Use caution when han-
dling sharp objects (saw
blades, router bits, drill
bits and so on). Use pro-
tective gloves whenever
possible.
Please read and fully understand
any and all safety materials that
came with your power tools or
machinery before operation. Always
follow all safety guidelines set in
place by the power tool or machine
manufacturer.
Safety First
©Copyright FULTON 2020. All images and artwork in these instructions are copyrighted by law and
may not be copied without FULTON’S expressed written consent
11575

DELUXE DRILL PRESS TABLE and PRECISION FENCE
ASSEMBLY
4
5
5
1
2
3
67
1314
15
16
16
17
18
19
20
21
22
23
24
25
SOME
ASSEMBLY
REQUIRED
Follow this exploded view
drawing to assemble the
drill press table, fence and
accessories
Fence Back View
8
8
9
10
11
12
No. Description Qty
1 24” Sticky Back Measuring Tape 1
2 Precision Aluminum Extruded Fence 1
35/16”x18 Threaded Knob 2
45/16”Washer 2
5 Fence Leveling Set Screw 4
6 Threaded Axle 1
7 Flip Stop 1
8Plastic Washer 1
9 T-Knob 1
10 Washer 1
No. Description Qty
11 Flip Stop Body 1
12 Lock Nut 1
13 Wavy Lock Washer 1
14 T-Bolt 1
15 5/16”x18 T-Bolt 2
16 Wood Screw 15
17 15” Long T-Track 2
18 1-3/8”Thick MDF Drill Press Table 1
19 3/8”Threaded Star Knob 2
20 Aluminum Hold Down Bar 2
No. Description Qty
21 Rubber PVC Tip 4
22 3/8” x 16 Threaded Hex Head Bolt 2
23 24” T-Track 1
24 3/8”x16x2” Hex Head Bolt 2
25 3/8”Washer 2
26 3/8” x 16 Post Knob 2
27 Laminated MDF Zero Clearance Insert 2
28 Leveling Screw for ZCI plate 4
26
27
28

DELUXE DRILL PRESS TABLE
DELUXE DRILL PRESS TABLE
DELUXE DRILL PRESS TABLE
HOW TO MOUNT YOUR
TABLE TOP
FULLY ADJUSTABLE
FENCE
Before mounting the drill press table, you must de-
termine the best mounting method. Your mounting
method is determined by the type of cast iron table
that is on your drill press. There are two basic types of
cast iron table tops and two basic mounting methods.
The Aluminum Mounting Track that is secured to the
bottom of the drill press table makes mounting the De-
luxe Drill Press Table quick and easy.
Slide the two 3/8”x16x2” (22) Hex Head Bolts into the
24”long track (21) that is mounted to the bottom of the
table. Position the bolts so they line up with two of the
through slots on the factory table top. Place the Fulton
Drill press table on to the factory table top so the bolts
drop through the slots. Secure the table top using the
post knobs and washers as shown here.
Place the Fulton Deluxe Drill Press Table on to your fac-
tory drill press table and the two tables. Slide one alumi-
num 3/8”hex head bolt hold downs (20) into one side of
the 24”track (21) and the another into the opposite side.
Secure the Fulton Deluxe Drill Press Table to the factory
table by clamping the two sides as shown below. The
clamps may be used in either direction depending on
the size and thickness of the factory table top.
Once installed, the aluminum fence can be adjust-
ed for squareness if needed simply by rotating two
of the four set screws with a screwdriver as shown
above. This eliminates the need for using those
tough to nd shims.
Typically found on smaller or bench
top drill press machines, the internal
slot table tops require the use of
Hold Down Clamps to mount the
Fulton Deluxe Table Top.
The through slot table top is
the most common factory
table top and allows the Fulton
Deluxe Table top to be mount-
ed using the included post
knob and bolt hardware.
SOLID SURFACE / INTERNAL SLOT
FACTORY TABLE TOP
THROUGH SLOT
FACTORY TABLE TOP
SIDE VIEW
BOTTOM VIEW
SIDE VIEW
SIDE VIEW
ALUMINUM MOUNTING TRACK
WILL BE USED FOR BOTH MOUNTING METHODS
Aluminum
Mounting Track
Depending on the thickness of your
cast iron factory table, you may need to
use a longer or shorter bolt.
Longer and shorter bolts are not included
Factory Table
Factory Table
Two hold downs are included. Extra hold downs are available for purchase
if needed for use on the top of the table.
Factory Table
Rotate the two set screws
on the back of the fence to
tip the fence forward
Rotate the two set screws
on the front of the fence to
tip the fence back

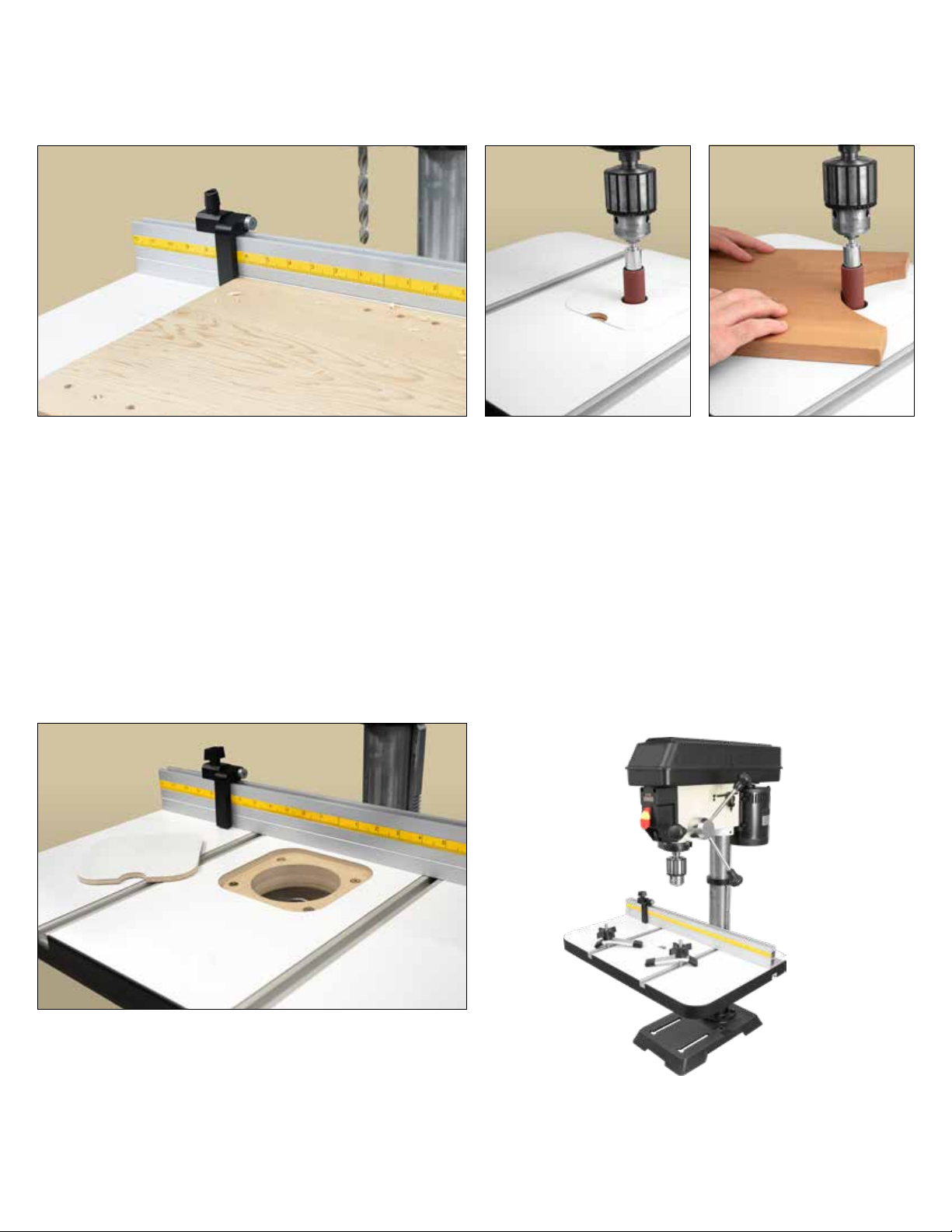

HOW TO USE THE
FLIP STOP
CONVERT YOUR DRILL PRESS INTO A
DRUM SANDER
IDEAL FOR BENCH TOP OR FLOOR
DRILL PRESSES
ZERO CLEARANCE
INSERT PLATE
The convenient ip stop is designed to make repetitive
and accurate drilling much easier. Simply insert the ip
stop into the top track of the fence. Then line the ip
stop up to the mark you need it to be placed and se-
cure with the t-knob. Once the stop is positioned and
secured, this will allow you to drill a hole at the exactly
same location on dierent boards or you can move the
stop to where ever you need it along the entire length
of the fence.
Simply drill a hole in the zero clearance insert that is
slightly larger than your sanding drum diameter to cre-
ate the perfect size opening for sanding your project.
The 3-5/8” opening underneath the insert allows you to
drop the drum sander below the surface of the table top
to ensure complete sanding surface coverage and op-
timal sanding results. Using drum sanders on your drill
press with this table is almost like using one of those ex-
pensive drum sanding machines without spending the
big money for one.
The Fulton® Deluxe Drill Press table is approximately 15”
x 24” x 13/” thick and it works with most any drill press
machine and provides you with much more versatility.
Whether you have a bench top or oor model drill press
the Fulton Deluxe Drill Press Table is the perfect wood-
workers table top solution.
Metal drill press tables don’t allow you to drill all the
way through your stock. With a zero clearance insert
and a large 35/8” diameter opening along with a full
1-3/8” thick table, you’ll be able to bore out through
holes ease with the Fulton Drill Press Table. Not to men-
tion the zero clearance also helps prevent tear-out on
the bottom of your work piece. The zero clearance in-
sert plate (25) is easy to remove and it can be leveled
by simply adjusting the pre-installed 4 leveling screws.
