Furniture of America CM3552WC-PC-2PK User manual

EASY
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
Allen Wrench (Included)
Assembly Instructions
Tools Required for Assembly:
Rev.14-07-22
Page 1 of 6
DIFFICULT
ASSEMBLY RATING

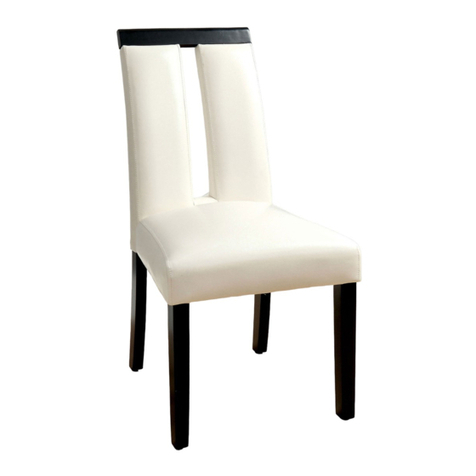

CM3552WC-PC-2PK
Phillips Screwdriver (Not Included)
CM3552BC-PC-2PK

Thank you for your purchase!
We hope you will enjoy your new product for many years to come. Our commitment
to providing quality products does not simply end when a purchase is made. We
stand behind our products and will provide any support needed in order for you to
fully enjoy your purchase. Your satisfaction is the greatest recognition we could
have.
Because we value your trust in our company, we will do our best to meet your
service expectations. Should you have any assembly related questions, parts
replacement requests, comments or suggestions, please feel free to contact us any
time. To help expedite the service, please have the assembly instructions available,
along with your order receipt.
[email protected]
www.foagroup.com
1-626-363-9311
1-626-270-4451
Monday to Friday 8:30 a.m. to 5:30 p.m. (PST)
https://twitter.com/foagroup
http://www.pinterest.com/foagroup/
http://instagram.com/foagroup#
https://www.youtube.com/user/FurnitureOfAmerica
Page 2 of 6

Page 3 of 6

Parts List Hardware List
#1 x 1 pc x 2
Backrest w/Legs
#2 x 1 pc x 2
Seat
#3 x 2 pcs x 2
Front Leg
#A x 4 pcs x 2
Bolt 1/4”x3”
#B x 4 pcs x 2
Bolt 1/4”x2-3/8”
Before you begin, please read Page 2
of “Assembly and Care Advice”.
And remember, do not tighten until
each step is completed or instructed.
#C x 3 pcs x 2
Bolt 1/4”x1-1/2”
MD
#D x 11 pcs x 2
Flat Washer
#4 x 1 pc x 2
Front Leg Support
Page 4 of 6
Note: The above parts and hardware are shown for a complete
assembly of ONE chair. However, the actual parts and hardware
(with an exception of the Allen wrench) in the box will be twice the
quantities listed to include the assembly of the second chair.
#E x 11 pcs x 2
Lock Washer
#F x 1 pc
Allen Wrench
#5 x 2 pcs x 2
Side Leg Support
#G x 6 pcs x 2
Screw
X 2

I. Place the backrest with legs (#1) on a protected surface
II. Align the seat (#2) with the pre-drilled holes of the backrest with
legs (#1).
III. Prepare 3 bolt assemblies by inserting FIRST the lock washer
(#E) onto the bolt (#C) and then the flat washer (#D) onto the
SAME bolt (#C), in that order.
IV. Insert the bolt assemblies through the holes near the center of
the seat (#2) and secure those bolts using theAllen wrench
(#F) to lock them with the backrest with legs (#1).
Turn right (clockwise) to tighten
Page 5 of 6
#C x 3 pcs
#D x 3 pcs
#E x 3 pcs
I. Prepare 4 bolt assemblies by inserting FIRST the lock washer
(#E) onto the bolt (#A) and then the flat washer (#D) onto the
SAME bolt (#A), in that order.
II. Insert the bolt assemblies through the pre-drilled holes in the
corners of the seat (#2) and secure those bolts using theAllen
wrench (#F) to lock them in with the backrest with legs (#1).
#A x 4 pcs
#D x 4 pcs
#E x 4 pcs Turn right (clockwise) to tighten

I. Align the two front legs (#3) with
the pre-drilled holes on the bottom
of the seat (#2).
II. Prepare 4 bolt assemblies by
inserting FIRST the lock washer
(#E) onto the bolt (#B) and then
the flat washer (#D) onto the
SAME bolt (#B), in that order.
III. Insert the bolt assemblies through
the pre-drilled holes in the corners
of the seat (#2) and secure those
bolts using the Allen wrench (#F) to
lock them with the two front legs
(#3).
IV. Insert the front leg support (#4)
between the two front legs (#4).
V. Insert the two side leg supports
(#5) between the front legs (#4)
and the backrest with legs.
Page 6 of 6
ASSEMBLE EVERYTHING EXACTLY THE SAME FOR THE SECOND CHAIR
Turn right (clockwise) to tighten
I. Secure the leg supports from Step 3 with 6 screws (#G) using a Phillips
screwdriver to lock them with the backrest with legs (#1) AND the two front
legs (#4).
II. Carefully turn the completed chair upright. Make sure the chair is rested on
a flat surface and it does not feel loose or wobbly. If it does, double check
that the bolts/screws are secured and properly tighten.
#G x 6 pcs
Turn right (clockwise) to tighten
#2
#B x 4 pcs
#D x 4 pcs
#E x 4 pcs
#1
