Furrion FGH4ZSA-SS User manual

*Picture shown here is for reference only.
Guide de démarrage rapide / Guía de inicio rápido
Range Cooktop
Surface de cuisson / Anafe de cocina
Model/Modèle/Modelo: FGH4ZSA-SS, FGH4ZSA-SB
Quick Start Guide

1
English
Thank you for purchasing this Furrion® product. Before operating your new
appliance, please read the Quick Start Guide carefully. Click the website: www.
furrion.com.cn to get more detail about Instruction Manual.
What’s in the Box
Make sure you have all the items in the packaging as listed below. For missing
item(s), contact your dealer.
●Single stainless steel gas cooker
unit
●Flexible gas supply hose with a
⅜” female flare fitting with a ⅝”-
18UNF thread connection
●Butyl Tape
●1 AA Battery
●Quick Start Guide
●Warranty Leaflet

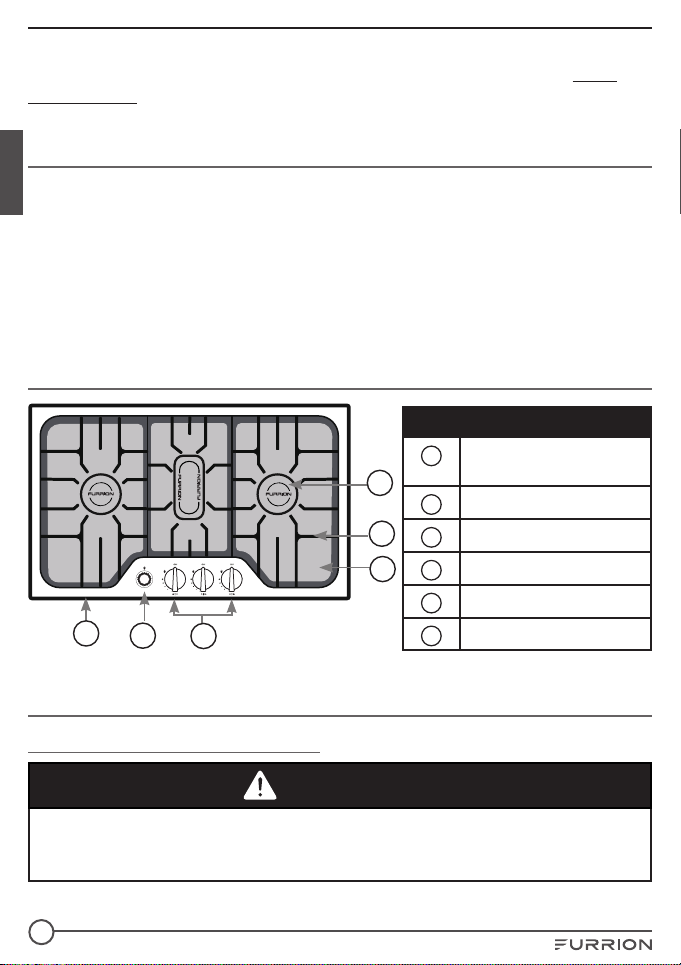

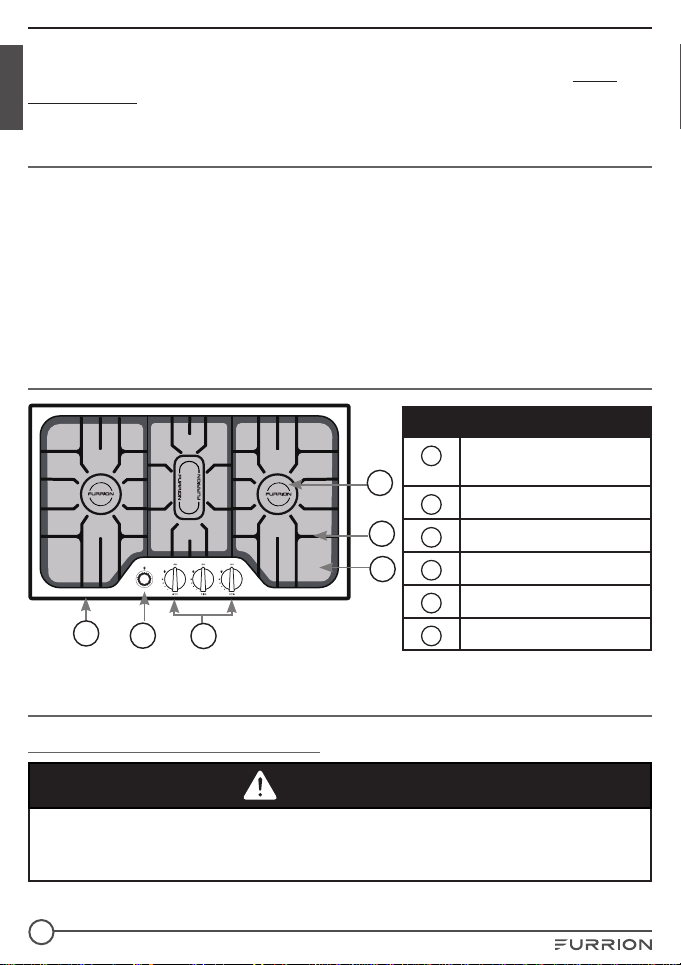

Product Overview
123
4
5
6
Item Description
1Product Rating Plate
(bottom of cooktop)
2Ignite Button
3Control Knob
4Burner Pan
5Burner Grate
6Surface Burner (large)
Installation
Cabinet Cutout Instructions
WARNING
The minimum vertical distance to combustible material above the range
cooking top is 30” (762mm), provided the overhead construction does not
extend 13” (330 mm) from the rear wall.
CCD-0005857 Rev. 01.31.2023

2
English

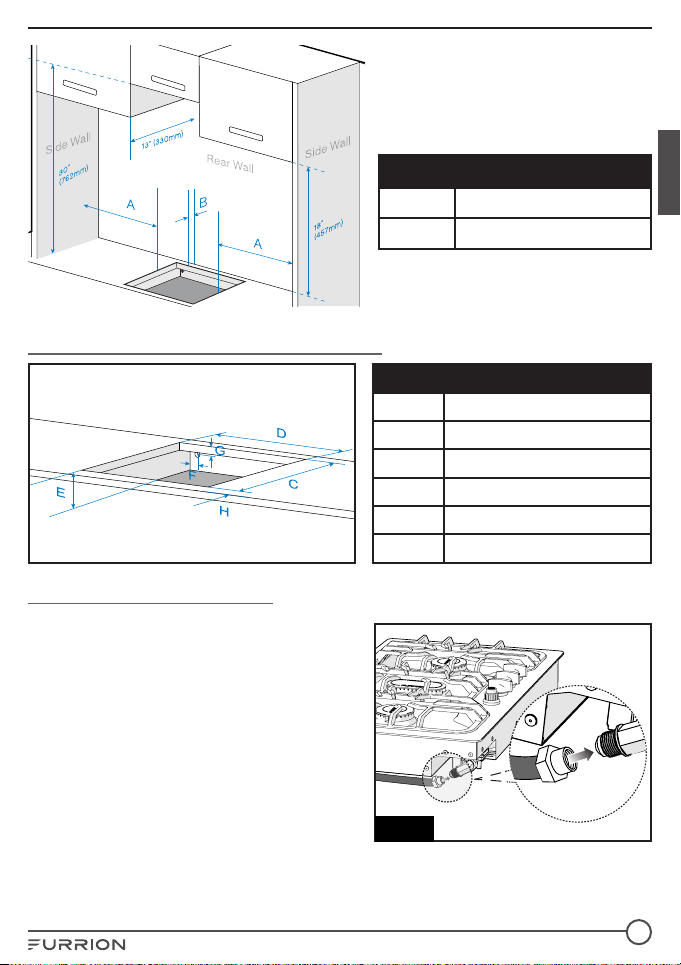

NOTE: These distances shall be
from the cutout of the countertop.
Item Dimension
A2” Min. (51mm Min.)
B2” Min. (51mm Min.)
Cabinet and counter cutout chart:
Item Dimension
C14⅜” (365mm)
D23½” (597mm)
E4” (102mm)
F1⁄" (50mm)
G3⁄" (100mm)
H3⅜" (85mm)
Gas Connection (Fig. 1)
●This cooktop can be used with Propane
Fig. 1
Gas only.
●This cooktop is fitted with a gas supply
hose with a ⅜” female flare fitting with
a ⅝”- 18UNF thread connection. For
installation use copper pipe and CSA or
UL certified connectors which conform
to USA and Canadian safety standards.
●Ensure when cooktop is installed the
flexible gas supply hose cannot touch
any moving parts.
●Make sure adequate space is available so the supply pipe will not be bent
or damage after installation.
CCD-0005857 Rev. 01.31.2023

3
English

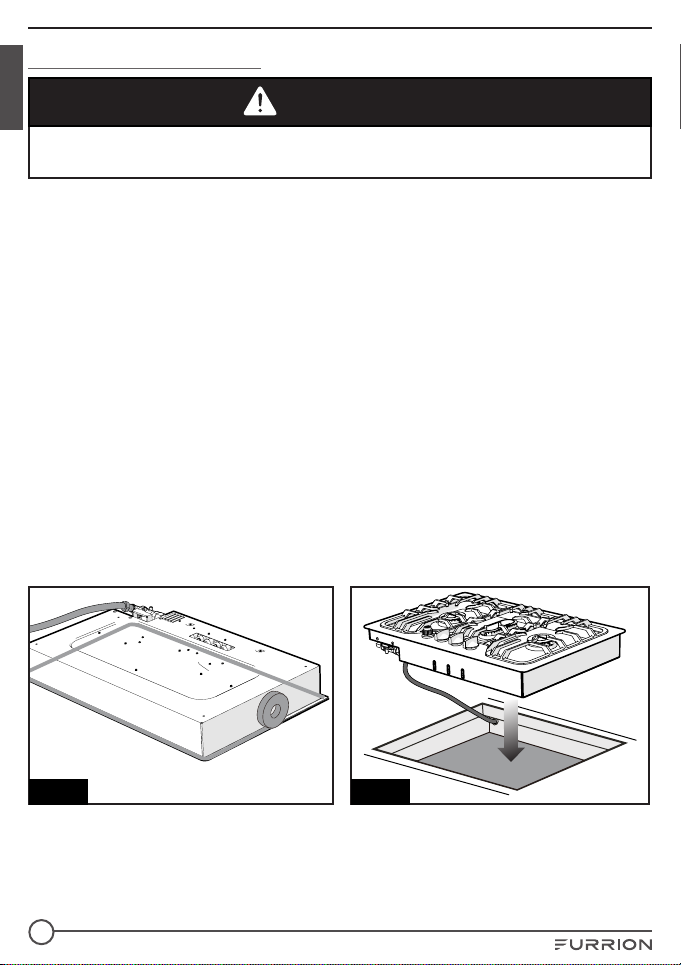

Installing the Cooktop
WARNING
Gas supply pipe must be installed with clearance from knives contacting or
cutting gas lines.
IMPORTANT: Before finally fixing the cooktop into the cabinet, ensure there
is a ventilation hole for air circulation around the cooktop in the cabinet. The
location of the ventilation hole can be located at the rear, sides or bottom of the
cabinet. The minimum diameter is 2” (50mm).
The clearance between the cooktop bottom to the combustible materials is
no less than 1” (25.4mm). Ensure the countertop, surrounding materials and
bonding agents have a temperature rating of no less than 193°F (95°C) to avoid
deformation or discoloration.
1. Affix the roll of butyl tape (included in the cooktop packaging) around the
underside edge of the cooktop. Remove the butyl tape protective film. (Fig. 2)
2. Connect a propane supply line with a ⅜” Flare Female connection to the
cooktop in the upper left rear corner of the cabinet. Tighten the gas line
joint to the cooktop using 2 wrenches.
NOTE: Make sure the gas supply pipe cannot contact any moving parts
after installed. Be sure all openings in the cabinet around the gas line are
sealed at time of installation.
3. Place the cooktop into the cutout and verify that the cooktop is level from
side to side and front to rear. Press on the cooktop edges to seal. (Fig. 3)
Fig. 2 Fig. 3
CCD-0005857 Rev. 01.31.2023

4
English
Operation
IgnitionButton Cooktop Control Knob
Lighting the Cooktop
Before Ensure all the cooktop knobs are turned to OFF position. Check the gas
supply valve at the gas tank is in OPEN position.
Standard Ignition:
1. Push and turn the desired cooktop knob counterclockwise to position.
2. Keep the cooktop control knob being pushed in and press the ignition
button repeatedly until the burner is lit.
3. Keep the cooktop knob being pushed in for 10-15 seconds until the flame
steady to disable the safety cut off.
4. Turn the control knob clockwise or counterclockwise to the desired heat
level. For simmer function, turn the control knob to the lowest setting.
5. Repeat steps 1 to 4 to light the other burner(s).
NOTES:
●This cooktop is fitted with a burner safety cut off, if a flame is not present,
the gas supply will shut off automatically.
●If no spark is present when pressing the igniter, check or replace the AA
battery by unscrewing the igniter cover. Never attempt to operate the
appliance with battery power exhausted.
Turning Off the Cooktop
WARNING
Always turn off the gas tank valve when refueling or traveling.
To turn the cooktop burners off, rotate the control knobs clockwise to the OFF
position.
CCD-0005857 Rev. 01.31.2023

5
Français
Thank you for purchasing this Furrion® product. Before operating your new
appliance, please read the Quick Start Guide carefully. Click the website: www.
furrion.com.cn to get more detail about Instruction Manual.
What’s in the Box
Make sure you have all the items in the packaging as listed below. For missing
item(s), contact your dealer.
●Single stainless steel gas cooker
unit
●Flexible gas supply hose with a
⅜” female flare fitting with a ⅝”-
18UNF thread connection
●Butyl Tape
●1 AA Battery
●Quick Start Guide
●Warranty Leaflet
Product Overview
123
4
5
6
Item Description
1Product Rating Plate
(bottom of cooktop)
2Ignite Button
3Control Knob
4Burner Pan
5Burner Grate
6Surface Burner (large)
Installation
Cabinet Cutout Instructions
WARNING
The minimum vertical distance to combustible material above the range
cooking top is 30” (762mm), provided the overhead construction does not
extend 13” (330 mm) from the rear wall.
CCD-0005857 Rev. 01.31.2023

6
Français
NOTE: These distances shall be
from the cutout of the countertop.
Item Dimension
A2” Min. (51mm Min.)
B2” Min. (51mm Min.)
Cabinet and counter cutout chart:
Item Dimension
C14⅜” (365mm)
D23½” (597mm)
E4” (102mm)
F1⁄" (50mm)
G3⁄" (100mm)
H3⅜" (85mm)
Gas Connection (Fig. 1)
●This cooktop can be used with Propane
Fig. 1
Gas only.
●This cooktop is fitted with a gas supply
hose with a ⅜” female flare fitting with
a ⅝”- 18UNF thread connection. For
installation use copper pipe and CSA or
UL certified connectors which conform
to USA and Canadian safety standards.
●Ensure when cooktop is installed the
flexible gas supply hose cannot touch
any moving parts.
●Make sure adequate space is available so the supply pipe will not be bent
or damage after installation.
CCD-0005857 Rev. 01.31.2023

7
Français
Installing the Cooktop
WARNING
Gas supply pipe must be installed with clearance from knives contacting or
cutting gas lines.
IMPORTANT: Before finally fixing the cooktop into the cabinet, ensure there
is a ventilation hole for air circulation around the cooktop in the cabinet. The
location of the ventilation hole can be located at the rear, sides or bottom of the
cabinet. The minimum diameter is 2” (50mm).
The clearance between the cooktop bottom to the combustible materials is
no less than 1” (25.4mm). Ensure the countertop, surrounding materials and
bonding agents have a temperature rating of no less than 193°F (95°C) to avoid
deformation or discoloration.
1. Affix the roll of butyl tape (included in the cooktop packaging) around the
underside edge of the cooktop. Remove the butyl tape protective film. (Fig. 2)
2. Connect a propane supply line with a ⅜” Flare Female connection to the
cooktop in the upper left rear corner of the cabinet. Tighten the gas line
joint to the cooktop using 2 wrenches.
NOTE: Make sure the gas supply pipe cannot contact any moving parts
after installed. Be sure all openings in the cabinet around the gas line are
sealed at time of installation.
3. Place the cooktop into the cutout and verify that the cooktop is level from
side to side and front to rear. Press on the cooktop edges to seal. (Fig. 3)
Fig. 2 Fig. 3
CCD-0005857 Rev. 01.31.2023

8
Français
Operation
IgnitionButton Cooktop Control Knob
Lighting the Cooktop
Before Ensure all the cooktop knobs are turned to OFF position. Check the gas
supply valve at the gas tank is in OPEN position.
Standard Ignition:
1. Push and turn the desired cooktop knob counterclockwise to position.
2. Keep the cooktop control knob being pushed in and press the ignition
button repeatedly until the burner is lit.
3. Keep the cooktop knob being pushed in for 10-15 seconds until the flame
steady to disable the safety cut off.
4. Turn the control knob clockwise or counterclockwise to the desired heat
level. For simmer function, turn the control knob to the lowest setting.
5. Repeat steps 1 to 4 to light the other burner(s).
NOTES:
●This cooktop is fitted with a burner safety cut off, if a flame is not present,
the gas supply will shut off automatically.
●If no spark is present when pressing the igniter, check or replace the AA
battery by unscrewing the igniter cover. Never attempt to operate the
appliance with battery power exhausted.
Turning Off the Cooktop
WARNING
Always turn off the gas tank valve when refueling or traveling.
To turn the cooktop burners off, rotate the control knobs clockwise to the OFF
position.
CCD-0005857 Rev. 01.31.2023

9
Español
Thank you for purchasing this Furrion® product. Before operating your new
appliance, please read the Quick Start Guide carefully. Click the website: www.
furrion.com.cn to get more detail about Instruction Manual.
What’s in the Box
Make sure you have all the items in the packaging as listed below. For missing
item(s), contact your dealer.
●Single stainless steel gas cooker
unit
●Flexible gas supply hose with a
⅜” female flare fitting with a ⅝”-
18UNF thread connection
●Butyl Tape
●1 AA Battery
●Quick Start Guide
●Warranty Leaflet
Product Overview
123
4
5
6
Item Description
1Product Rating Plate
(bottom of cooktop)
2Ignite Button
3Control Knob
4Burner Pan
5Burner Grate
6Surface Burner (large)
Installation
Cabinet Cutout Instructions
WARNING
The minimum vertical distance to combustible material above the range
cooking top is 30” (762mm), provided the overhead construction does not
extend 13” (330 mm) from the rear wall.
CCD-0005857 Rev. 01.31.2023

10
Español
NOTE: These distances shall be
from the cutout of the countertop.
Item Dimension
A2” Min. (51mm Min.)
B2” Min. (51mm Min.)
Cabinet and counter cutout chart:
Item Dimension
C14⅜” (365mm)
D23½” (597mm)
E4” (102mm)
F1⁄" (50mm)
G3⁄" (100mm)
H3⅜" (85mm)
Gas Connection (Fig. 1)
●This cooktop can be used with Propane
Fig. 1
Gas only.
●This cooktop is fitted with a gas supply
hose with a ⅜” female flare fitting with
a ⅝”- 18UNF thread connection. For
installation use copper pipe and CSA or
UL certified connectors which conform
to USA and Canadian safety standards.
●Ensure when cooktop is installed the
flexible gas supply hose cannot touch
any moving parts.
●Make sure adequate space is available so the supply pipe will not be bent
or damage after installation.
CCD-0005857 Rev. 01.31.2023

11
Español
Installing the Cooktop
WARNING
Gas supply pipe must be installed with clearance from knives contacting or
cutting gas lines.
IMPORTANT: Before finally fixing the cooktop into the cabinet, ensure there
is a ventilation hole for air circulation around the cooktop in the cabinet. The
location of the ventilation hole can be located at the rear, sides or bottom of the
cabinet. The minimum diameter is 2” (50mm).
The clearance between the cooktop bottom to the combustible materials is
no less than 1” (25.4mm). Ensure the countertop, surrounding materials and
bonding agents have a temperature rating of no less than 193°F (95°C) to avoid
deformation or discoloration.
1. Affix the roll of butyl tape (included in the cooktop packaging) around the
underside edge of the cooktop. Remove the butyl tape protective film. (Fig. 2)
2. Connect a propane supply line with a ⅜” Flare Female connection to the
cooktop in the upper left rear corner of the cabinet. Tighten the gas line
joint to the cooktop using 2 wrenches.
NOTE: Make sure the gas supply pipe cannot contact any moving parts
after installed. Be sure all openings in the cabinet around the gas line are
sealed at time of installation.
3. Place the cooktop into the cutout and verify that the cooktop is level from
side to side and front to rear. Press on the cooktop edges to seal. (Fig. 3)
Fig. 2 Fig. 3
CCD-0005857 Rev. 01.31.2023

Operation
IgnitionButton Cooktop Control Knob
Lighting the Cooktop
Before Ensure all the cooktop knobs are turned to OFF position. Check the gas
supply valve at the gas tank is in OPEN position.
Standard Ignition:
1. Push and turn the desired cooktop knob counterclockwise to position.
2. Keep the cooktop control knob being pushed in and press the ignition
button repeatedly until the burner is lit.
3. Keep the cooktop knob being pushed in for 10-15 seconds until the flame
steady to disable the safety cut off.
4. Turn the control knob clockwise or counterclockwise to the desired heat
level. For simmer function, turn the control knob to the lowest setting.
5. Repeat steps 1 to 4 to light the other burner(s).
NOTES:
●This cooktop is fitted with a burner safety cut off, if a flame is not present,
the gas supply will shut off automatically.
●If no spark is present when pressing the igniter, check or replace the AA
battery by unscrewing the igniter cover. Never attempt to operate the
appliance with battery power exhausted.
Turning Off the Cooktop
WARNING
Always turn off the gas tank valve when refueling or traveling.
To turn the cooktop burners off, rotate the control knobs clockwise to the OFF
position.
CCD-0005857 Rev. 01.31.2023

IG-FHA00017 V1.0
The contents of this manual are proprietary and copyright protected
by Lippert. Lippert prohibits the copying or dissemination of portions
of this manual unless prior written consent for an authorized Lippert
representation has been provided. Any unauthorized use shall void
any applicable warranty. The information contained in this manual is
subject to change without notice and at the sole discretion of
Lippert. Revised editions are available for free download from
lippert.com.
Please recycle all obsolete materials.
For all concerns or questions, please contact Lippert
PhL 432-LIPPERT (432-547-7378) | Web: lippert.com | E-mail:
[email protected]
CCD-0005857 Rev. 01.31.2023
