Installation Manual
IP HANDSET
Model FB-8001
SAFETY INSTRUCTIONS ................................................................................................ i
SYSTEM CONFIGURATION ........................................................................................... ii
1. MOUNTING................................................................................................................. 1
1.1 IP Handset ............................................................................................................................1
1.2 LAN Cable Fabrication..........................................................................................................3
2. SETTING UP THE EQUIPMENT ................................................................................ 4
PACKING LIST ............................................................................................................ A-1

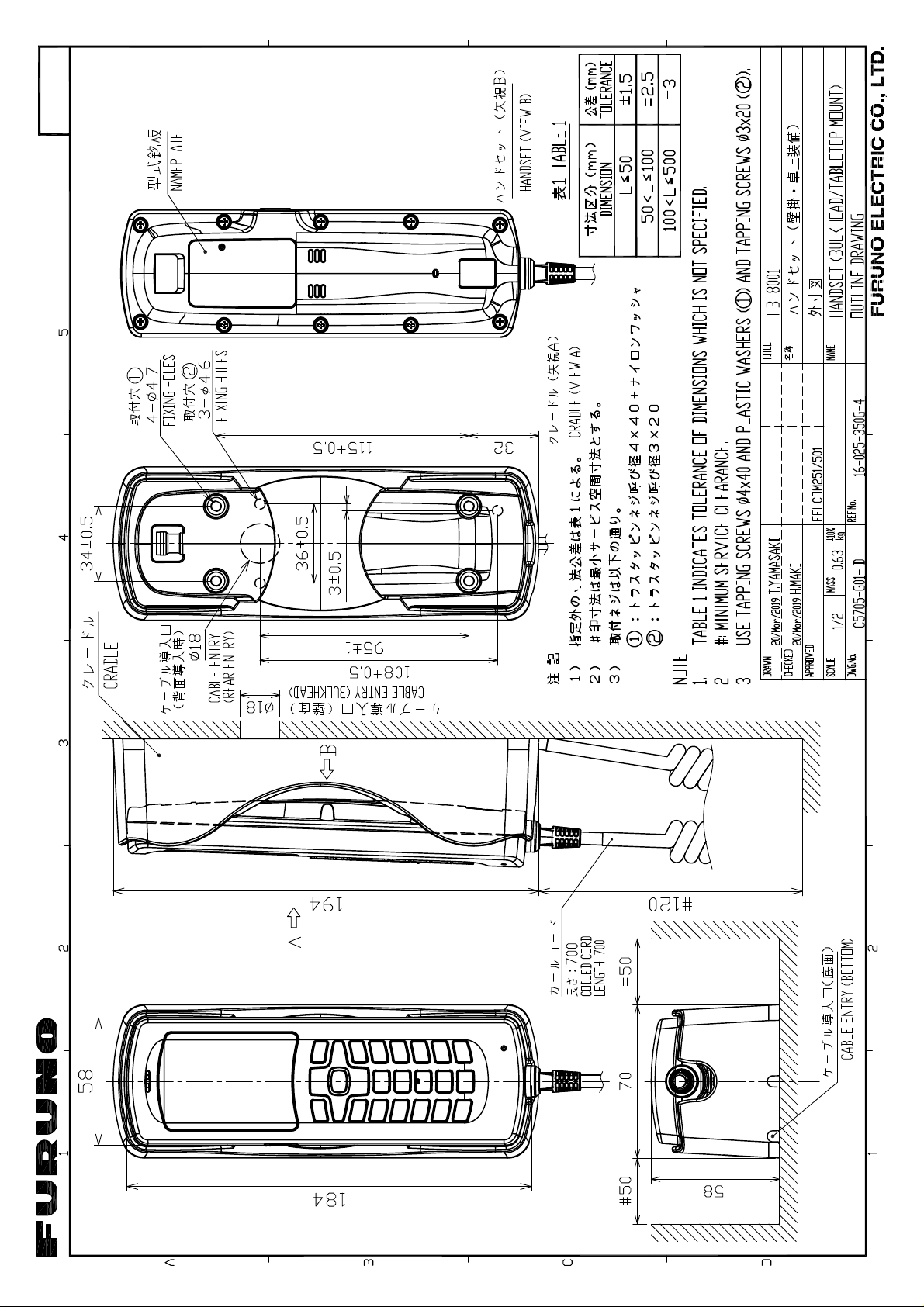

OUTLINE DRAWINGS ................................................................................................ D-1

i
SAFETY INSTRUCTIONS
Do not open the equipment unless
totally familiar with electrical circuits
and service manual.
Only qualified personnel should work
inside the equipment.
Turn off the power at the mains
switchboard before beginning the
installation. Post a sign near the
switch to indicate it should not be
turned on while the equipment is
being installed.
Fire, electrical shock or serious injury
can result if thepower is left on or is
applied while the eqiuipment is being
installed.
WARNING
Indicates a condition that can cause death or serious injury if
not avoided.
CAUTION
Indicates a condition that can cause minor or moderate injury if
not avoided.
Mandatory Action
Prohibitive Action
Read these safety instructions before you operate the equipment.
Warning, Caution
WARNING WARNING
Confirm that the power supply voltage
is compatible with the voltage rating
of the equipment.
Connection to the wrong power supply
can cause fire or damage the equipment.
Keep the following compass safe
distances to prevent interference to
a magnetic compass.
1.60 m2.40 m
IP Handset
Unit Standard
Compass
Steering
Compass

ii
SYSTEM CONFIGURATION
FELCOM501
Antenna Unit
FB-1501
FELCOM251
Antenna Unit
FB-1251
: Standard supply
: Optional or local supply
Environmental category
Units Category
Antenna Unit Exposed to the weather
Other Units Protected from the weather
AC/DC Power
Supply Unit
406080A-FUR-001
100-240V AC
12-24V DC
IP Handset
FB-8001
Alarm Panel
FB-3101
Network Equipment, IP Handset
Network Equipment, IP Handset
GS Facsimile
or
Analog Telephone
GS Facsimile
or
Analog Telephone
GS Facsimile
or
Analog Telephone
(
Up to 4 connections )
External Alarm
Communication Unit
FB-2001
Relay
AY34001
Cradle
PC
USB-RS232C
Converter
FB-3003
Telport Extender
FB-3002

1
1. MOUNTING
1.1 IP Handset
The IP Handset functions as a display and it may also be used for normal voice com-
munication. A maximum of 16 units can be installed anywhere onboard the vessel.
The IP Handset is provided with a cradle assembly (chassis cradle and cradle). The
assembly is designed for both bulkhead and desktop installations, with cable entries
for both methods.
1. To use the rear cable entry, make a hole of 18 mm (0.71") diameter in the instal-
lation site. See the outline drawing at the rear of this manual for details.
2. Install the chassis cradle with three self-tapping screws (320).
3. Connect the curled cord from the IP Handset to the RJ-45 port indicated in the
above figure.
Note: To avoid possible faults in the IP Handset, do not plug or unplug the hand-
set while the Communication Unit or PoE hub (local supply) are turned on.
4. Secure the curled cord with a cable tie (supplied).
Do not apply paint, anti-corrosive sealant or contact
spray to coating or plastic parts of the equipment.
Those items contain organic solvents that can damage
coating and plastic parts, especially plastic connectors.
NOTICE
: Screw holes,
3 places × ø4.6
Chassis
cradle
RJ-45 port for
IP Handset
RJ-45 port for
Communication
Unit
Cable tie
Curled cord from IP Handset

1. MOUNTING
2
5. Connect the LAN cable from the Communication Unit (MOD-Z072-050 (5 m), sup-
plied as installation materials) to the open RJ-45 port in the cradle.
If the bottom cable entry is used, secure the LAN cable with a cable tie (supplied).
Note: For how to fabricate the LAN cable, see section 1.2.
6. Fit the cradle to the chassis cradle, fit the supplied nylon washers to the four self-
tapping screws (440), then secure the cradle in place with the self-tapping
screws.
Cable tie
Cable from Communication
Unit
From bottom From rear
Cable from Communication
Unit
Screw holes, 4 places × ø4.7

1. MOUNTING
3
1.2 LAN Cable Fabrication
Fabricate the LAN cable (MOD-Z072-050 (5 m), supplied as installation materials) be-
tween the communication unit and cradle (IP handset) as follows. The optional FR-
FTPC-CY cable (10, 20, 30 or 50 m) is available for the IP handset.
Note: This equipment can use either straight or crossover cables.
Expose inner vinyl sheath. Remove the inner vinyl sheath by
approx. 25 mm. Be careful not to
damage inner shield and cores.
Fold back the shield, wrap it onto
the inner vinyl sheath and cut it,
leaving approx. 9 mm.
25 mm
approx. 9 mm
approx. 9 mm approx. 11 mm
Fold back drain wire and cut it,
leaving approx. 9 mm.
Straighten and flatten the cores
in colored order and cut them,
leaving approx. 11 mm.
Modular plug
Using special crimping tool
MPT5-8AS (PANDUIT CORP.), crimp
the modular plug. Finally, check the
plug visually.
Insert the cable into the modular
plug so that the folded part of the
shield enters into the plug housing.
The drain wire should be located
on the tab side of the jack.
Drain wire
1 WHT/GRN
2 GRN
3 WHT/ORG
4 BLU
5 WHT/BLU
6 ORG
7 WHT/BRN
8 BRN
WHT/ORG 1
ORG 2
WHT/GRN 3
BLU 4
WHT/BLU 5
GRN 6
WHT/BRN 7
BRN 8
[Crossover cable]
1 WHT/ORG
2 ORG
3 WHT/GRN
4 BLU
5 WHT/BLU
6 GRN
7 WHT/BRN
8 BRN
WHT/ORG 1
ORG 2
WHT/GRN 3
BLU 4
WHT/BLU 5
GRN 6
WHT/BRN 7
BRN 8
[Straight cable]
150 䡉䡉 (Communication unit side)
200 mm (IP handset side)
150 䡉䡉 (Communication unit side)
200 mm (IP handset side)
Cable jacket
Armor
Inner vinyl sheathOuter vinyl sheath Vinyl tape

4
2. SETTING UP THE EQUIPMENT
Set up the FELCOM251/501 from the Web interface and IP handset user menu after
the installation.
For details of the Web interface and IP handset user menu, see the operator’s manual
(OME-57050).

ＰＡＣＫＩＮＧ ＬＩＳＴ
16AZ-X-9859
-0
FB-8001-J/-E
N A M E
O U T L I N E
DESCRIPTION/CODE №
Q'TY
1/1
ユニット
UNIT
ﾊﾝﾄﾞｾｯﾄ
IP HANDSET
FB-8001-*
000-036-303-00
1
**
付属品
ACCESSORIES
ﾌｨﾙﾀｰｸﾘｰﾅｰ
LCD CLEANING CLOTH
19-028-3125-6
100-360-676-10
1
工事材料
INSTALLATION MATERIALS
工事材料
INSTALLATION MATERIALS
CP16-06801
001-537-170-00
1
図書
DOCUMENT
取扱説明CD
OPERATOR'S MANUAL CD
F251/501 O/M *CDROM*
000-195-892-1*
1
操作要領書
OPERATOR' S GUIDE (JP/EN)
OSC-57050-*
000-195-882-1*
1
装備要領書
INSTALLATION MANUAL
IM*-57050-*
000-195-884-1*
1
**
ｺｰﾄﾞ末尾に[**]の付いたﾕﾆｯﾄは代表の型式/ｺｰﾄﾞを表示しています。
CODE NUMBER ENDING WITH "**" INDICATES THE CODE NUMBER OF REPRESENTATIVE MATERIAL.
（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）
&=$
A-1

CODE NO.
001-537-170-00
TYPE
CP16-06801
略 図
OUTLINE
名 称
NAME
数量
Q'TY
用途／備考
REMARKS
番 号
NO.
型名／規格
DESCRIPTIONS
1/1
-0
INSTALLATION MATERIALS
工事材料表
16AZ-X-9401
(組)CHASSIS-CRADLE
CHASSIS-CRADLE
ASSEMBLY
CP16-06802
1
001-546-060-00
1
CODE
NO.
+ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ
SELF TAPPING SCREW
3X20 SUS304
3
000-167-940-10
2
CODE
NO.
+ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ
SELF-TAPPING SCREW
4X40 SUS304
4
000-162-606-10
3
CODE
NO.
ｺﾝﾍﾞｯｸｽ
CABLE TIE
CV-125N
2
000-172-164-10
4
CODE
NO.
黒ﾅｲﾛﾝﾜｯｼｬ
NYLON WASHER
NN-0408-05B
4
000-195-852-10
5
CODE
NO.
（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）
ＦＵＲＵＮＯ ＥＬＥＣＴＲＩＣ ＣＯ ．，ＬＴＤ.
C5705-M03-A
A-2

D-1
