SAFETY INSTRUCTIONS
WARNING
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Do not install the equipment where it
may get wet from rain or water splash.
Water in the equipment can result in fire,
electrical shock or damage the equipment.
Be sure that the power supply is
compatible with the voltage rating of
the equipment.
Connection of an incorrect power supply
can cause fire or damage the equipment.
The voltage rating of the equipment appears
on the label above the power connector.
ELECTRICAL SHOCK HAZARD
Do not open the equipment
unless totally familiar with
electrical circuits and
service manual.
Only qualified personnel
should work inside the
equipment.
CAUTION
Observe the following compass safe
distances to prevent interference to a
magnetic compass:
Standard
compass
Steering
compass
FA-100
1.0 m 0.6 m
CB-100
0.6 m 0.4 m
GVA-100
0.3 m 0.3 m
DB-1
0.3 m 0.3 m
PR-240-CE
0.9m 0.6 m
Attach securely protection
earth to the ship's body.
The protection earth is required
to the power supply to prevent
electrical shock

ii
TABLE OF CONTENTS
SYSTEM CONFIGURATION................................................................................iii
EQUIPMENT LISTS .............................................................................................iv
1. MOUNTING .......................................................................................................1
1.1 Antenna Unit......................................................................................................................1
1.1.1 GPS antenna unit .................................................................................................1
1.1.2 VHF antenna ........................................................................................................3
1.1.3 GPS/VHF combined antenna ...............................................................................5
1.2 Transponder Unit...............................................................................................................8
1.3 Junction Box....................................................................................................................10
1.4 Power Supply (option) .....................................................................................................11
2. WIRING............................................................................................................12
3. INPUT/OUTPUT SIGNAL................................................................................15
3.1 Inputs from Sensors.........................................................................................................15
3.2 Input/Output of AIS Signal ...............................................................................................16
3.3 Input of Gyrocompass Signal...........................................................................................17
3.4 Alarm Signal Output.........................................................................................................17
3.5 LAN Input/Output.............................................................................................................18
3.6 Jumper Setting in the Junction Box.................................................................................19
3.7 Input/Output Sentences...................................................................................................20
3.8 Changing Ship’s Mains Specifications.............................................................................21
4. SETTING AND ADJUSTMENT.......................................................................22
4.1 Setting MMSI and IMO Number.......................................................................................22
4.2 Setting Ship Name and Call Sign ....................................................................................23
4.3 Setting GPS Antenna Position and Ship’s Type...............................................................24
4.4 System Settings...............................................................................................................26
PACKING LIST
OUTLINE DRAWINGS
INTERCONNECTION DIAGRAM
SCHEMATIC DIAGRAM

iii

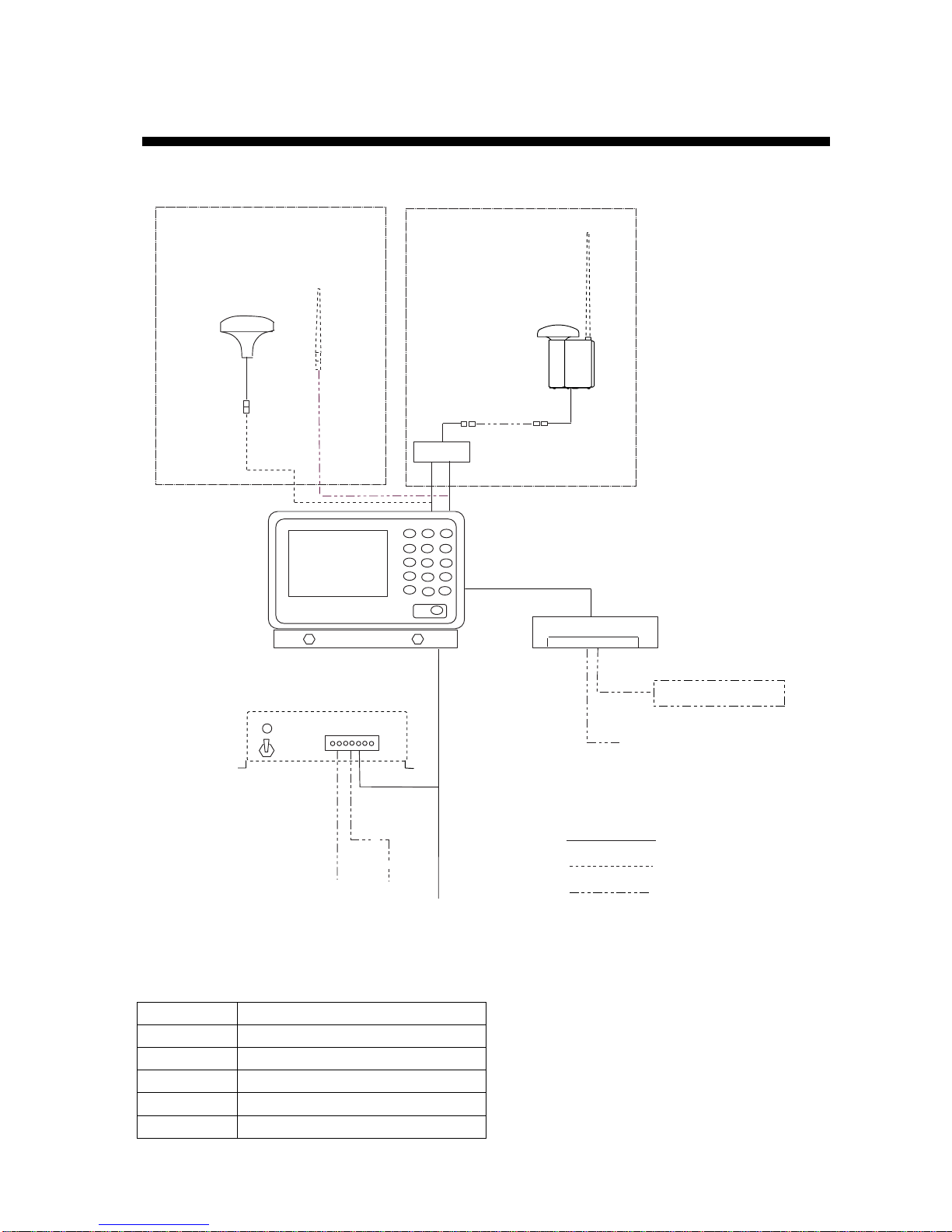

SYSTEM CONFIGURATION
:Standard 
:Option 
GPS/VHF
combinedantenna
GVA-100
GPSantenna
GSC-001
Distributorunit
DB-1
VHFantenna
Transponderunit
FA-100
JunctionboxCB-100
Otherexternalequipments
Powersupply
PR-240-CE
100/110/115/200/
220/230VAC
1
φ,50/60Hz
12-24VDC
Ship'smains
:Localsupply
Either
24VDC
GPSNavigator*
*:ExternalGPSNavigationisrequired.
Category of the units
GSC-001 Exposed to the weather
GVA-100 Exposed to the weather
FA-100 Protected from the weather
CB-100 Protected from the weather
DB-1 Protected from the weather
PR-240-CE Protected from the weather

iv
EQUIPMENT LISTS
Standard supply
No. Name Type Code no. Qty Remarks
1 Transponder Unit FA-100 - 1
2 Junction Box CB-100 - 1
GPS Antenna GSC-001 -3 GPS/VHF Combined
Antenna GVA-100* -
1 Select one.
CP24-00101* 005-950-730 1 For DB-1
CP24-00102* 005-950-700 1 For FA-100
CP05-08701* 005-949-280 1 For CB-100
CP24-00121* 005-952-350 1 For GSC-100
4 Installation Materials
CP24-00141* 005-952-330 1 For GVA-100
Optional supply
No. Name Type Code no. Remarks
1 Antenna cable set CP20-01700(30m) 004-372-110 For GPS or Combined
antenna
2 Antenna cable set CP20-01710(50m) 004-372-120 For GPS or Combined
antenna
3 Flush mount kit A OP24-1 005-950-740
4 Flush mount kit B OP24-2 005-950-750
5 Mast mount fixture CP20-01111 004-365-780 For GSC-001
6 Right-angle
antenna base No.13-QA330 000-803-239 For GSC-001
7 L-angle antenna
base No.13-QA310 000-803-240 For GSC-001
8 Antenna base for
rail mount No.13-RC5160 000-806-114 For GSC-001
9 Whip antenna FAB-151D 000-572-029 For Japan only
10 Antenna fixing
bracket 4-310071 000-572-184 For FAB-151D
11 Whip antenna 150M-W2VN 000-113-498 For outside Japan
12 Power supply PR-240-CE - Include installation materials
CP24-00151*
*: Refer to packing list at the back of this manual.

1
1. MOUNTING
1.1 Antenna Unit
1.1.1 GPS antenna unit
Install the GPS antenna unit referring to the drawing at the back of this manual D-1.
When selecting a mounting location for the antenna, keep in mind the following
points.
• Select a location out of the radar beam. The radar beam will obstruct or prevent
reception of the GPS satellite signal.
• There should be no interfering object within the line-of-sight to the satellites. Objects
within line-of-sight to a satellite, for example, a mast, may block reception or prolong
acquisition time.
• Mount the antenna unit as high as possible to keep it free of interfering objects and
water spray, which can interrupt reception of GPS satellite signal if the water freezes.
Extending antenna cable
Three types of antenna cable extensions are optionally available.

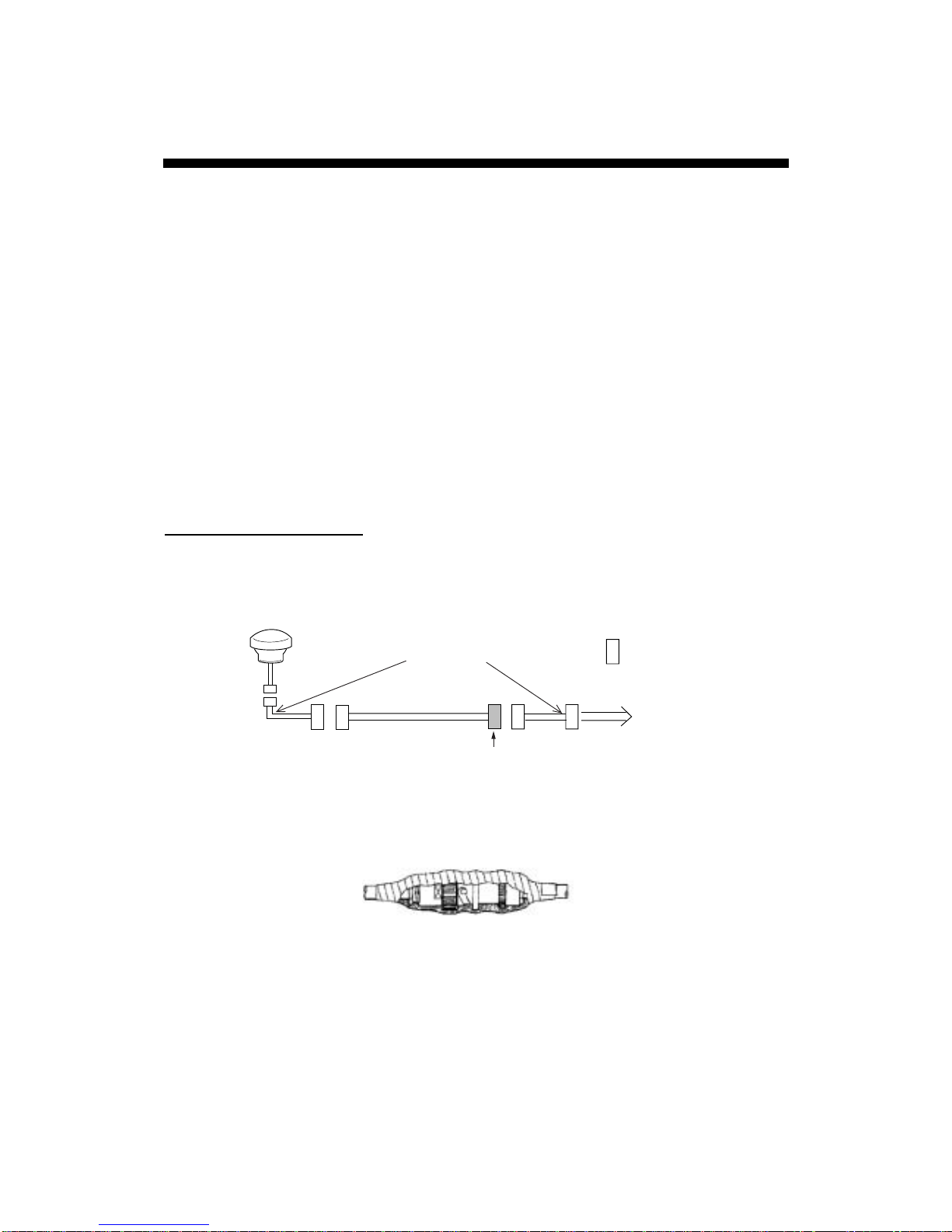

a) Antenna cable set CP20-01700
Antenna Unit
1 m Antenna Cable
30 m 1 m
Fabricate locally. (See next page.)
FA-100
: Connector
Conversion
Cable Assy.
NJ-JP-3DXV-1
◆ Waterproofing connector
Wrap connector with vulcanizing tape and then vinyl tape. Bind the tape end with
a cable-tie.
Waterproofing connector
b) Antenna cable set CP20-01710 (8D-FB-CV, 50m)
Connect the cable the same as a) above.
c) Cable type RG-10U/Y (shipyard supply)
Note: The length of this cable should be less than 20 m to prevent signal loss.
The coax. coupling cable assy.(type: NJ-TP+3DXV-1, code no.
000-123-809), coaxial connector(N-P-8DFB; supplied), vulcanizing tape
and vinyl tape are required. Fabricate both ends of the cable as shown in
the figure on the next page.

2

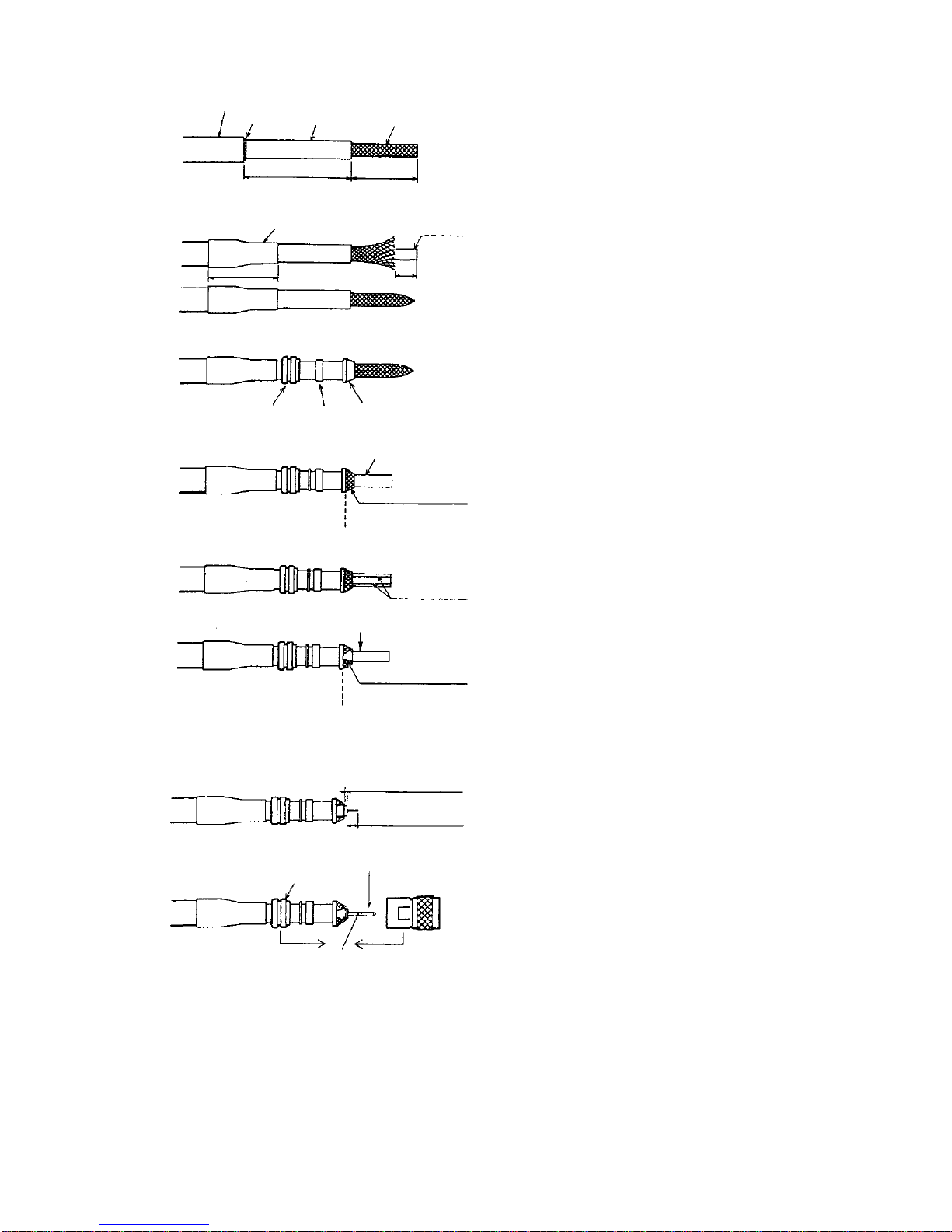

How to attach the connector N-P-8DFB for cable 8D-FB-CV
Outer SheathArmor Dimensions in millimeters.
Inner Sheath Shield Remove outer sheath and armor by the dimensions
shown left.
Expose inner sheath and shield by the dimensions
shown left.
Cut off insulator and core by 10mm.
Twist shield end.
Ship on clamp nut, gasket and clamp as shown left.
Fold back shield over clamp and trim.
Cut aluminum foil at four places, 90°from one
another.
Fold back aluminum foil onto shield and trim.
Expose the insulator by 1mm.
Expose the core by 5mm.
Slip the pin onto the conductor. Solder them together
through the hole on the pin.
Insert the pin into the shell. Screw the clamp nut into
the shell.
(Tighten by turning the clamp nut. Do not tighten by
turning the shell.)
Cover with heat-shrink tubing and heat.
30 10
Clamp
Nut Gasket
(reddish
brown)
Clamp
Aluminum Foil
Trim shield here.
Trim aluminum
tape foil here.
Insulator
1
5
Clamp Nut Pin
Shell
Solder through
the hole.
50 30
How to attach connector N-P-8DFB

3
1.1.2 VHF antenna
Location
Location of the mandatory AIS VHF-antenna should be carefully considered. Digital
communication is more sensitive than analog/voice communication to interference
created by reflections in obstructions like masts and booms. It may be necessary to
relocate the VHF radiotelephone antenna to minimize interference effects.
To minimise interference effects, the following guidelines apply:
• The AIS VHF antenna should be placed in an elevated position that is as free as
possible with a minimum of 0.5 meters in the horizontal direction from constructions
made of conductive materials. The antenna should not be installed close to any large
vertical obstruction. The objective for the AIS VHF antenna is to see the horizon
freely through 360 degrees.
• The AIS VHF antenna should be installed safely away from interfering high-power
energy sources like radar and other transmitting radio antennas, preferably at least 3
meters away from and out of the transmitting beam.
• There should not be more than one antenna on the same plane. The AIS VHF
antenna should be mounted directly above or below the ship’s primary VHF
radiotelephone antenna, with no horizontal separation and with a minimum of 2.8
meters vertical separation. If it is located on the same plane as other antennas, the
distance apart should be at least 10 meters.
Cabling
• The cable should be kept as short as possible to minimize signal attenuation.
Coaxial cables equal to or better than RG10U/Y are recommended.
• All outdoor installed connectors on coaxial cables should be fitted with preventive
isolation such as vulcanizing tape to protect against water penetration into the
antenna cable.
• Coaxial cables should be installed in separate signal cable channels/tubes and at
least 10 cm away from power supply cables. Crossing of cables should be done at
right angles (90°). The minimum bend radius of the coaxial cable should be 5 times
the cable's outer diameter.
• Install the VHF whip antenna referring to the outline drawing at the back of this
manual. Separate this antenna from other VHF radiotelephone antennas as shown
on the next page to prevent interference to the FA-100.

4
• When coaxial cable RG-10U/Y (shipyard supply) is used, attach the coaxial plug
M-P-7 (dockyard supply) as shown on the next page.
Horizontal separation distance
More than 10 m
More than 0.5 m
More than
2.8 m
Vertical separation distance
Other VHF whip antenna
Whip antenna for AIS
(GPS/VHF combined
antenna)

5
How to attach the plug M-P-7
Lay the coaxial cable and attach an M-type plug (if necessary) to the cable as
follows.
1. Remove the sheath by 30 mm.
2. Bare 23 mm of the center conductor. Trim
braided shield by 5 mm and tin.
3. Slide coupling ring onto cable.
4. Screw the plug assembly on the cable.
5. Solder plug assembly to braided shield
through solder holes. Solder contact sleeve
to conductor.
6. Screw coupling ring into plug assembly.
1.1.3 GPS/VHF combined antenna
Install the combined antenna unit referring to the outline drawing. When selecting a
mounting location for the antenna, keep in mind the following points.
• Select a location out of the radar beam. The radar beam will obstruct or prevent
reception of the GPS satellite signal.
• There should be no interfering object within the line-of-sight to the satellites. Objects
within line-of-sight to a satellite, for example, a mast, may block reception or prolong
acquisition time.
• Mount the antenna unit as high as possible. Mounting it this way keeps it free of
interfering objects and water spray, which can interrupt reception of GPS satellite
signal if the water freezes.
• Also, refer to the antenna installation guidelines page 3.
Outdoor Indoor
N-P-8DFB
N-P-8DFB
Distributor DB-1
GPS
Transponder unit
VHF
RG-10U/Y
Installation overview of GPS/VHF combined antenna
Sheath
30 mm
5 mm 2 mm
Conductor
Insulator
Braided shield
Plug assembly Contact sleeve
Cut conductor here.
Solder both
sides of hole.
Coupling ring

6
Mounting procedures
1. Dismount the bottom cover, cut the cable-tie inside the unit and take out the
coaxial connector attached to the combined box.
2. Loosen four screws to loosen whip antenna fixture and pull out the coaxial
connector coming from the combined box through the hole in the whip antenna
fixture.
3. Connect the coaxial connector to the whip antenna base and wrap the junction
part of the whip antenna with vulcanizing tape and then vinyl tape for
waterproofing.
4. Insert the whip antenna from the top of the combined antenna.
5. Secure the whip antenna with whip antenna fixture.
6. Using a new plastic band (supplied), secure the cables and coaxial connector
inside the antenna case.
7. Mount the bottom cover.
8. Fix the GPS/VHF combined antenna to the ship’s stanchion (40 to 50 mm
diameter) with antenna fixing brackets, flat washers and hex. nuts.
Note: Coat the exposed parts of bolts and nuts with silicon sealant.
Whipantennafixture
Antennafixingbracket
Bottomcover
Combinedbox
Loosenfourscrews.
(M5x16)
GPS/VHF Combined antenna

7
Stanchion
Thetopofthestanchioncome
intocontactwiththeflange.
Installing distributor unit DB-1
The length of the cable between the distributor unit and transponder unit is 1 m so
locate the distributor unit within 1 m from the transponder unit. Fix the distributor
unit on the bulkhead, facing the cable entrance downward. Remove the lid of the
distributor unit and secure the unit with two tapping screws.
Tappingscrew
(4x30)
Note: Be sure no foreign material or water enters the distributor unit.

8
1.2 Transponder Unit
The transponder unit can be installed on a desktop or flush mounted in a panel.
Install it on the chart table or near the steering place, referring to the outline
drawing.
When selecting a mounting location for the transponder, keep the following in mind:
• Keep the transponder out of direct sunlight.
• The temperature and humidity should be moderate and stable.
(Operating temperature range: -15°C to +55°C)
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Keep the unit away from electromagnetic field generating equipment such as
motor, generator.
• For maintenance and checking purposes, leave sufficient space at the sides and
rear of the unit and leave slack in cables. Refer to the outline drawing.
• A magnetic compass will be affected if the unit is placed too close to it. Observe
the following compass safe distances to prevent disturbance to the magnetic
compass:
Standard compass: 1.0 meters
Steering compass: 0.4 meters

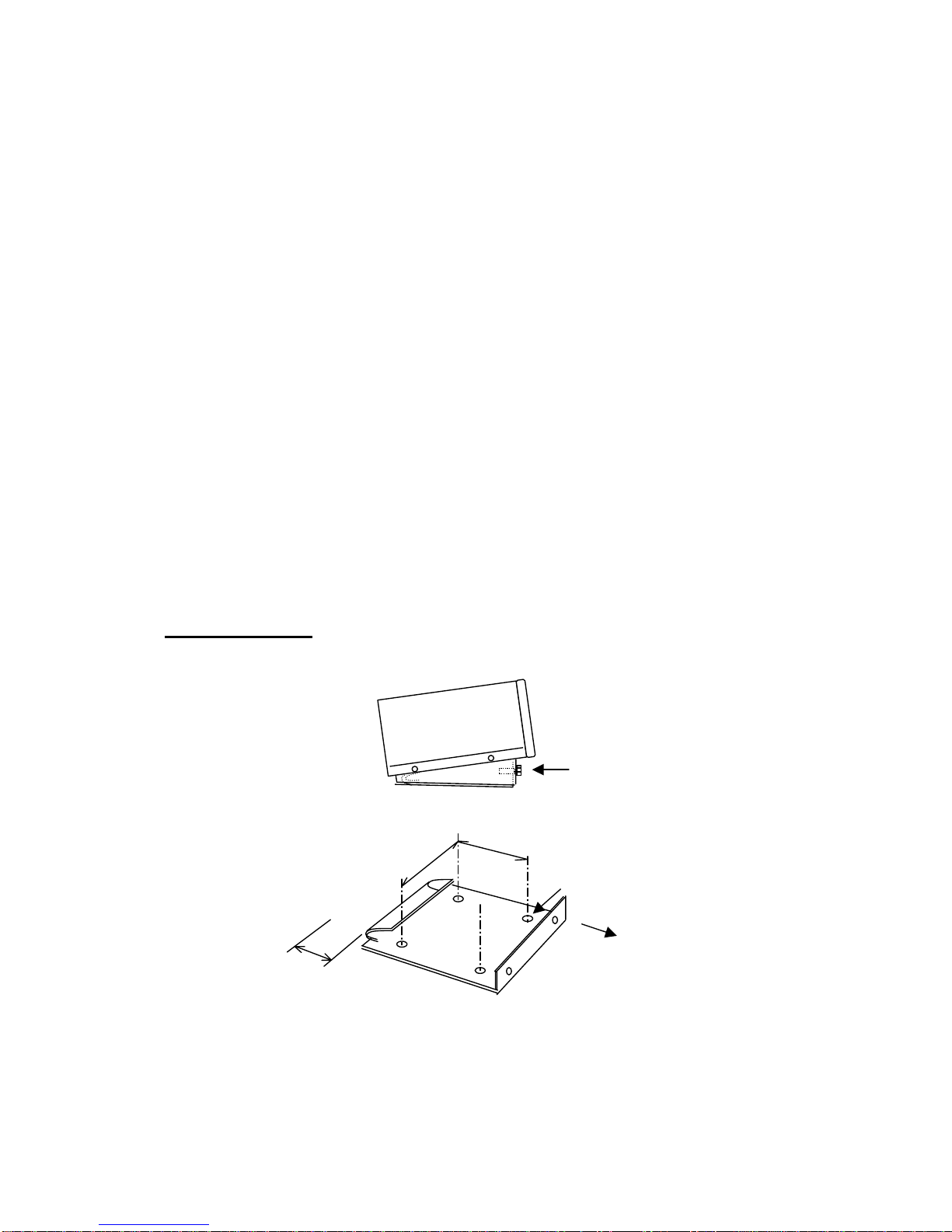

Desktop mounting
1. Remove two hex. bolts from the lower part of the transponder unit and dismount
the mounting base.
2. Fix the mounting base to the desktop with four tapping screws (6x20: supplied)
or hex. bolts.
3. Place the transponder unit on the mounting base and secure it with two hex.
bolts.
Remove two hex. bolts.
Service clearance
more than 130 mm Mounting base
Front
120 mm
120 mm
φ8

9
Flush mounting
Optional flush mount kitA or B is required for flush mounting. For mounting
dimensions, refer to the outline drawing at the back of this manual.
Flush mount kit A: Type OP24-1 Code no. 005-950-740
Name Type Code no. Qty
1 Cosmetic panel 24-003-2811 100-299-540 1
2 +Tapping screw 5x25 000-802-082 4
1. Cut out a hole in the mounting location, referring to the outline drawing.
2. Remove two hex bolts to dismount the mounting base.
3. Remove six hex bolts from the bottom of the transponder unit to dismount the
mounting pedestal.
4. Set the transponder unit to the cosmetic panel and fix them with six hex bolts.
5. Set the assembly (transponder unit and cosmetic panel) to the hole and fix it
with four tapping screws (5x25).
Flush mount kit B: Type OP24-2 Code no. 005-950-750
Name Type Code no. Qty
1 Mounting bracket 24-003-2821 100-299-550 1
2 Hex bolt M5x25 000-862-125 6
3 Hex nut M5 000-863-108 6
4 Flat washer M5 000-864-128 6
5 Spring washer M5 000-864-258 6
1. Cut out a hole in the mounting location, referring to the outline drawing.
2. Dismount the mounting base and mounting pedestal from the transponder unit.
3. Set the transponder unit to the hole. Using six hex bolts, attach the mounting
bracket at the bottom of the transponder unit from the rear of the flush mounting
panel.
4. Fix with six sets of hex bolt, nut, flat washers and spring washers from the rear
of the flush mounting panel.

10
1.3 Junction Box
Mount the junction box where the junction box is protected from rain and water
splash.
Mounting
1. Open the lid of the junction box and fix the junction box with four tapping screws
(5x20). Avoid bundling the 3.3 m cable of the junction box together with any
power cable. This causes malfunction.
2. Connect cables to the terminal board, referring to Chapter 2 and 3.
3. Fix the lid after connecting external equipment.
4. Clamp the cable with several U-type cable clamps (local supply) at suitable
intervals.
Fixing holes
(5x20 tapping screws) Cable entry
Cable clamp
Clamp the cable with
U-type cable clamps.

11
1.4 Power Supply (option)
The length of the power cable between the power supply and the transponder unit
is 3.5 m. Keep this length in mind when selecting a mounting location.A longer
cable should not be used – voltage drop will result, affecting performance.
When selecting a mounting location for the unit, keep the following in mind:
• Keep the unit out away from areas subject to water splash.
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• A magnetic compass will be affected if the unit is placed too close to it. Observe
the following compass safe distances to prevent disturbance to the magnetic
compass:
Steering compass: 0.6 m
Standard compass: 0.9 m
Fix the unit with four tapping screws (4x16) to a desktop or the deck as shown in
the figure below. It is not necessary to open the cover.

12
2. WIRING
Connect the equipment, referring to the interconnection diagram at the back this
manual.
AD-10 IN
EXTRA I/O
GPS Antenna
GSC-001
PC
AD-100
FAB-151D
Either one
RG-10U/Y
RG-10U/Y
Atta hed to Distributor
(approx. 1m)
Gyro ompass
LAN able
( ategory 4 or higher)
TTYCS-1Q**
AIS senten e out
(4800 bps)
Distributor unit
DB-1
Alarm out
GPS re eiver
Heading sensor
Speed sensor or ROT
Bea on re eiver
AIS data In/Out
Jun tion Box
CB-100
AC
IN
DC
IN
DC
OUT
12-24 VDC
(Conne t to the alternative
power sour e.)
*: If the ship's mains is 12 VDC, able length should be less than 50 m.
Ship's mains
100/110/115/200/
220/230 VAC
1φ, 50/60 Hz
Power Supply
PR-240-CE
MJ-A3SPF0013-035 (3.5 m) *
Transponder
unit
FA-100
GPS/VHF Conbined
Antenna GVA-100
8D-FB-CV, 30 m/50 m: Option
RG-10U/Y: Lo al supply
: Standard
: Option
: Lo al Supply
DPYC-1.5**
LAN
0.6 m
***
***
***
0.9 m
GPS ANTVHF ANT
Approx. 3.3 m
TTYCS-1Q** or TTYCS-4**
24 VDC
: ground is not required.
1.5 sq
AUX-2
AUX-1
EXTRA IO port: Outputs AIS sentence (4800 bps).
AUX-1, AUX-2 port: Not used.

13

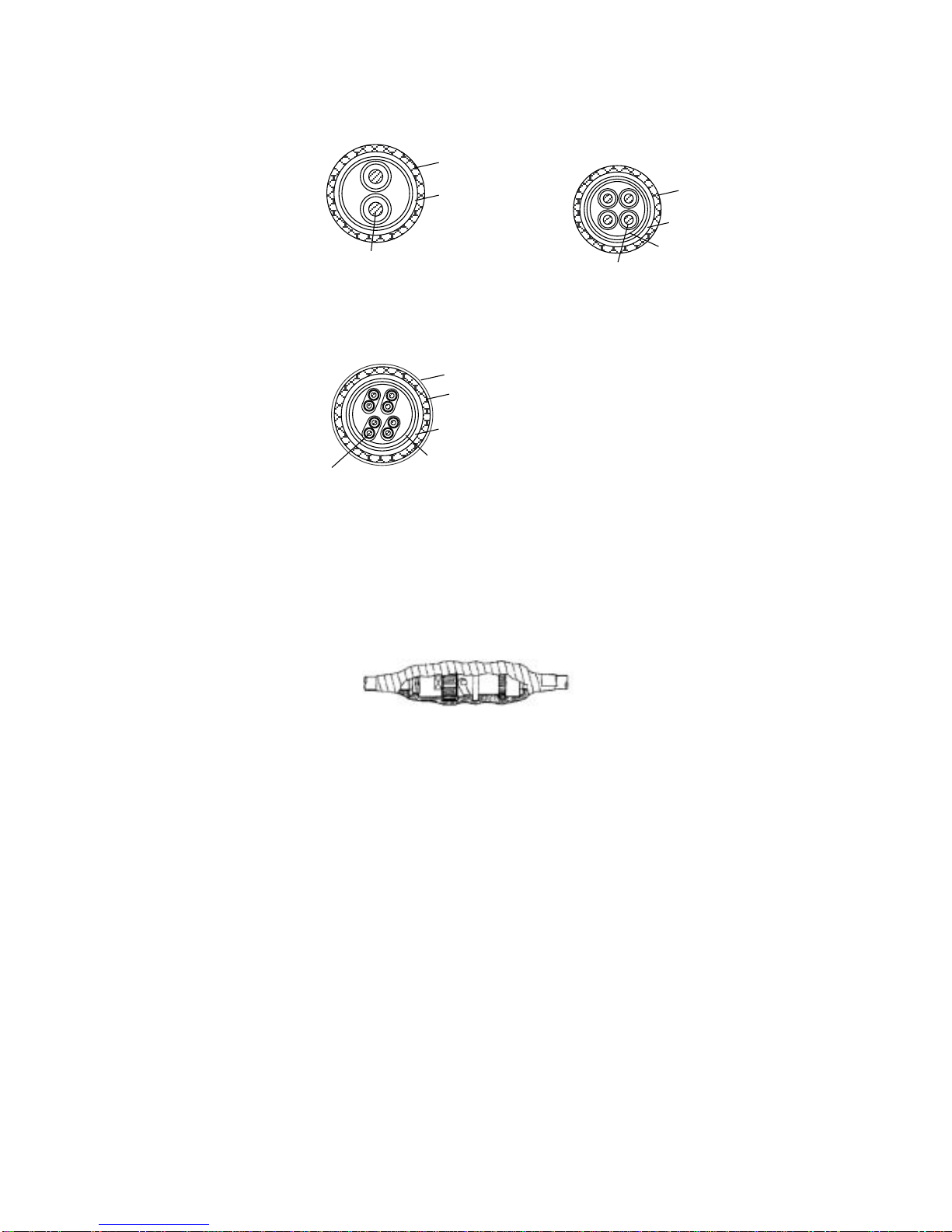

Conductor
S = 1.5 mm
φ= 1.56 mm
2
DPYC-1.5
Armor
Sheath
φ = 11.7 mm
***: Waterproofing connectors
**: DPYC-1.5, TTYCS-1Q and TTYCS-4 are Japan Industry Standard cable.
Use them or the equivalents.
Conductor
S = 0.75 mm
φ= 1.11 mm
2
TTYCS-1Q (Four core twisted)
Armor
Shield
Sheath
φ = 11.3 mm
Conductor
S = 0.75 mm
φ= 1.11 mm 2
TTYCS-4 (Four twisted pairs)
Armor
Shield
Sheath
φ = 18.5 mm Sheath
Wrap connector with vulcanizing tape and then vinyl tape. Bind
the tape end with a cable-tie.
Waterproofing connector

14
Cable Connection at Junction Box
Cable fabrication
Armor Sheath Shield
Clampherebycableclamp.
5to6mm
30
Connection
Procedure
1. Insert driver from direction 1 .
2. Tilt slightly toward 2 .
3. Insert cable core to 3 .
Core 5-6 mm
1
2
3
