Furuno IF-1500AIS User manual

AIS INTERFACE
IF-1500AIS

1
SAFETY INSTRUCTIONS
WARNING
Do not disassemble or modify the
equipment.
Fire, electrical shock or serious injury can
result.
Immediately turn off the power at the
switchboard if the equipment is emitting
smoke or fire.
Continued use of the equipment can cause
fire or electrical shock. Contact a FURUNO
agent for service.
Make sure no rain or water splash leaks
into the equipment.
Fire or electrical shock can result if water
leaks in the equipment.
Keep heater away from equipment.
A heater may melt the power cord, which
can result in fire or electrical shock.
Do not place liquid-filled containers on
the top of the equipment.
Fire or electrical shock can result.
Safety Instructions for the Operator Safety Instructions for the Installer
WARNING
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Do not install the equipment where it
may get wet from rain or water splash.
Water in the equipment can result in fire,
electrical shock or damage the equipment.
Be sure that the power supply is
compatible with the voltage rating of
the equipment.
Connection of an incorrect power supply
can cause fire or damage the equipment.
CAUTION
Observe the following compass safe
distances to prevent interference to a
magnetic compass:
Standard Steering
compass compass
0.55 m 0.35 m

2
Foreword
FURUNO Electric Company thanks you for purchasing the IF-1500AIS AIS Interface. We
are confident you will discover why the FURUNO name has become synonymous with
quality and reliability.
Your equipment is designed and constructed to meet the rigorous demands of the marine
environment. However, no machine can perform its intended function unless properly
installed and maintained. Please carefully read and follow the installation and maintenance
procedures set forth in this manual.
Thank you for considering and purchasing FURUNO.
Features
The IF-1500AIS enables connection of the FURUNO AIS Transponder FA-100 to the
NavNet2 Series radars to display AIS information on the radar and plotter displays. AIS
target data input from the transponder are selected and sorted (by range, CPA/TCPA ,etc.),
format-converted and then output to the NavNet2 series radar.
Equipment List
Name Type Code No. Qty Remarks
Standard supply
AIS Interface IF-1500AIS — 1
Installation
Materials
CP14-06500 000-040-013 1 set 1) Cable assy.
MJ-A15A3F0013-035-3A
MJ-A7SPF0003-050
MJ-A6SPF0012-050
2) Self-tapping screws 4x16,
4 pcs.
Spare Parts SP14-03301 004-000-730 1 set
Optional supply
Cable Assy. MJ-A15A3F0013-035-3A 000-145-880 1
Cable Assy. MJ-A7SPF0003-050 000-136-730 1
Cable Assy. MJ-A6SPF0012-050 000-134-424 1
Cable Assy. MJ-A6SPF0012-100 000-133-817 1

3

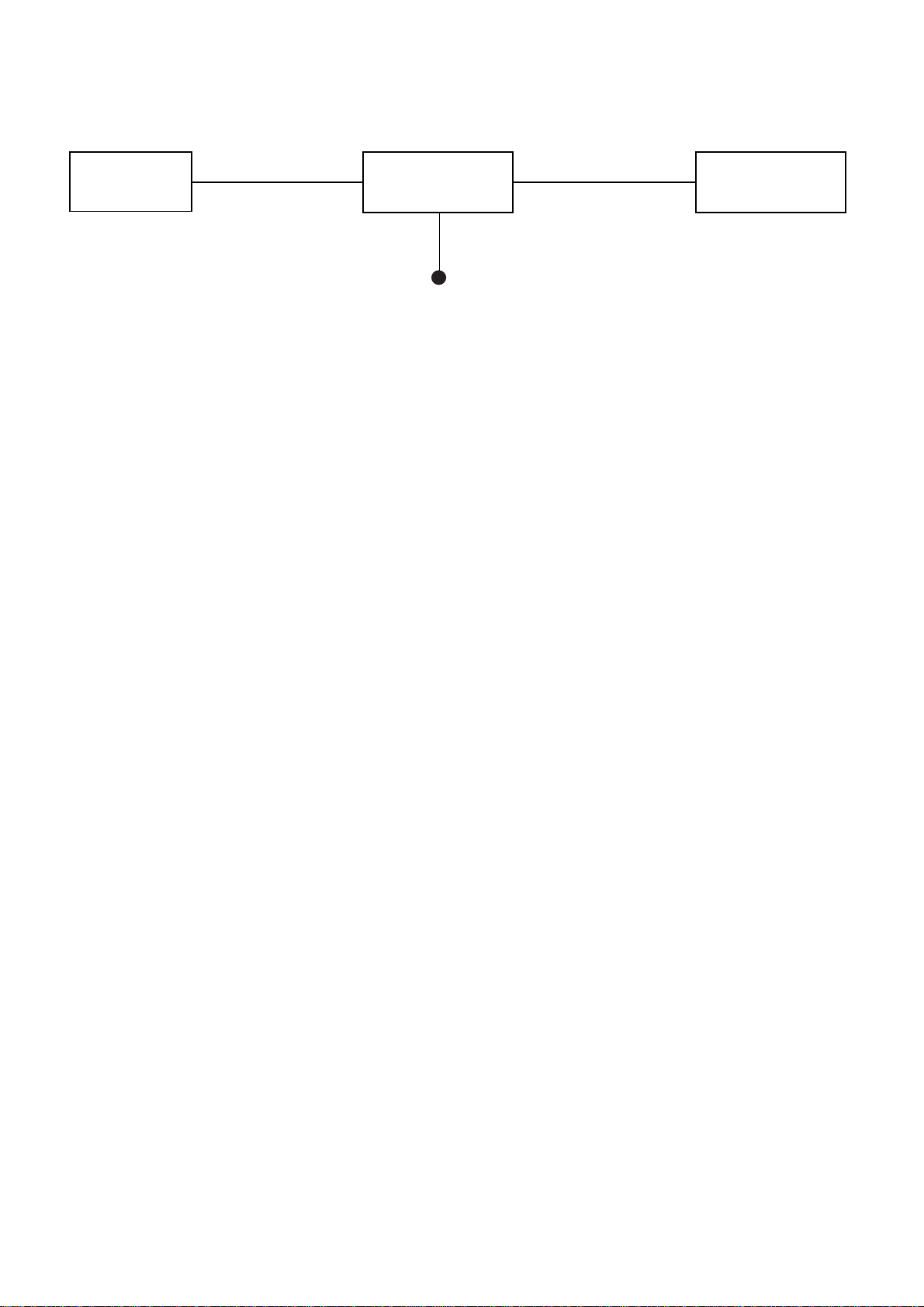

System Configuration
AIS Transponder
FA-100 IF-1500AIS
12-24 VDC
NavNet2 Series
Radar, Plotter
Cable
MJ-A15A3F0013-035
Cable
MJ-A7SPF0003-050 (5 m)
Cable
MJ-A6SPF0012-050 (5 m)*
* 10 m cable optionally
available
Mounting
The unit can be mounted on a desktop or a bulkhead. When choosing a mounting location,
keep in mind the following points:
• Consider cable lengths.
• Choose a location away from rain and water splash and one which is not in direct
sunlight.
• Observe the maintenance space noted in the outline drawing to facilitate servicing.
• Observe the compass safe distances noted in the safety instructions at the beginning of
this manual.
Fix the unit to the mounting location with four self-tapping screws (4x16). Connect cables
referring to the interconnection diagram. Run a ground wire (local supply) between the
ground terminal and ship’s superstructure.

4

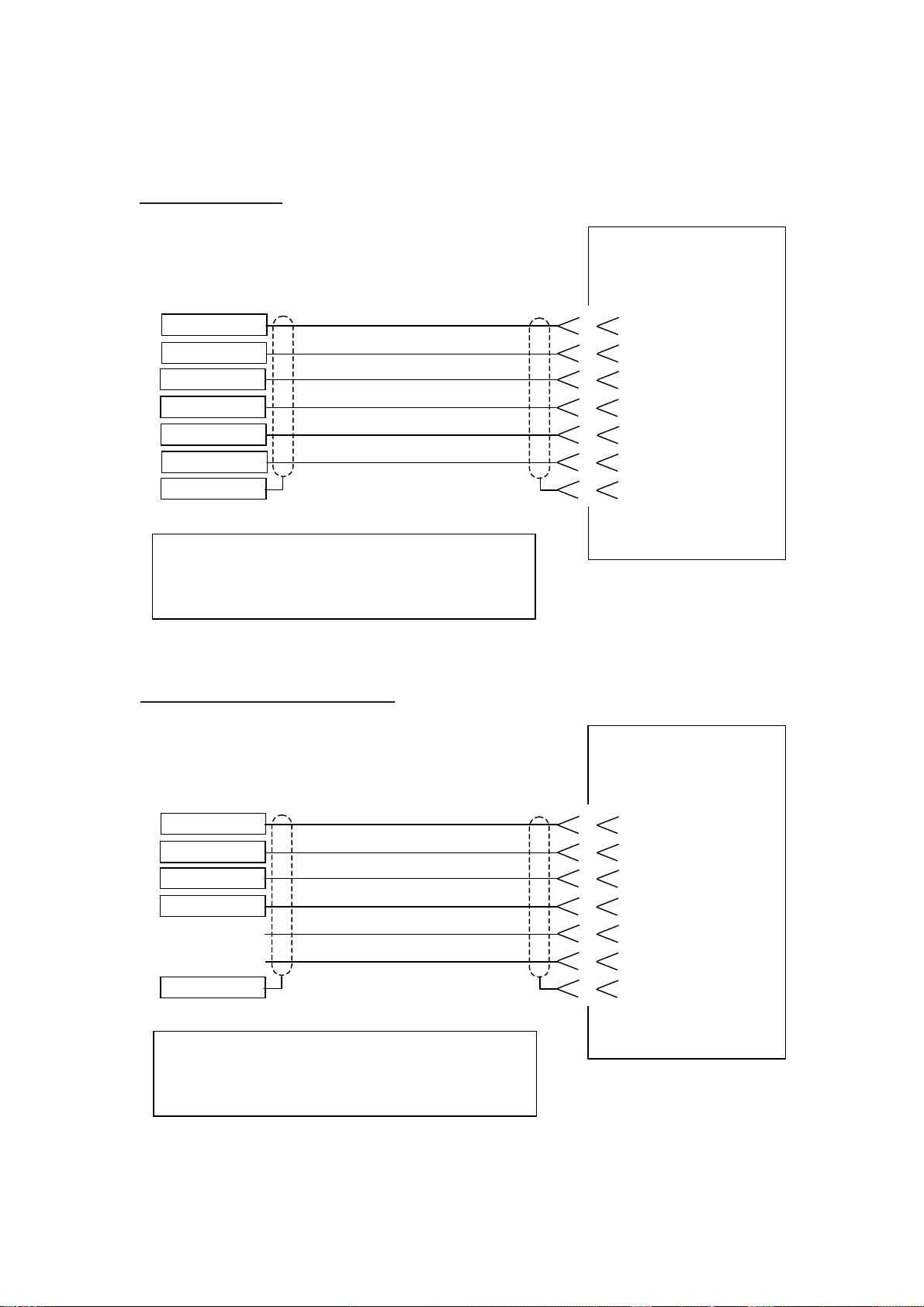

Wiring
Refer to the interconnection diagram at the back of this manual and the illustration below.
1
2
3
4
5
6
7
IF-1500AIS
J1:AIS IN
TD A
TD B
RD H
RD C
SIG. GND
SIG. GND
F.G.
RD
A
RD B
TD
A
TD B
ISO GND
F.G.
1
2
3
4
5
6
7
IF-1500AIS
J1:AIS IN
TD A
TD B
RD H
RD C
SIG. GND
SIG. GND
F.G.
RD H
RD C
TD A
TD B
N.C
N.C
F.G.
YEL
GRN
WHT
BLK
MJ-A7SPF0003-050
MJ-A7SPF0003-050
A
IS
External display
Aux. display
-
-
- Pilot
p
lu
g
A
IS
External display
Aux. display
Pilot plug
RED
BLU
YEL
GRN
WHT
BLK
RED
BLU
For IEC 61162-2
For IEC 61162-1, NMEA-0183
-
-
-
Notice:
Do not connect "SIG. GND" of the IF-1500AIS
to "Frame Ground".
ISO GND
Notice:
Do not connect "SIG. GND" of the IF-1500AIS
to "Frame Ground".

5

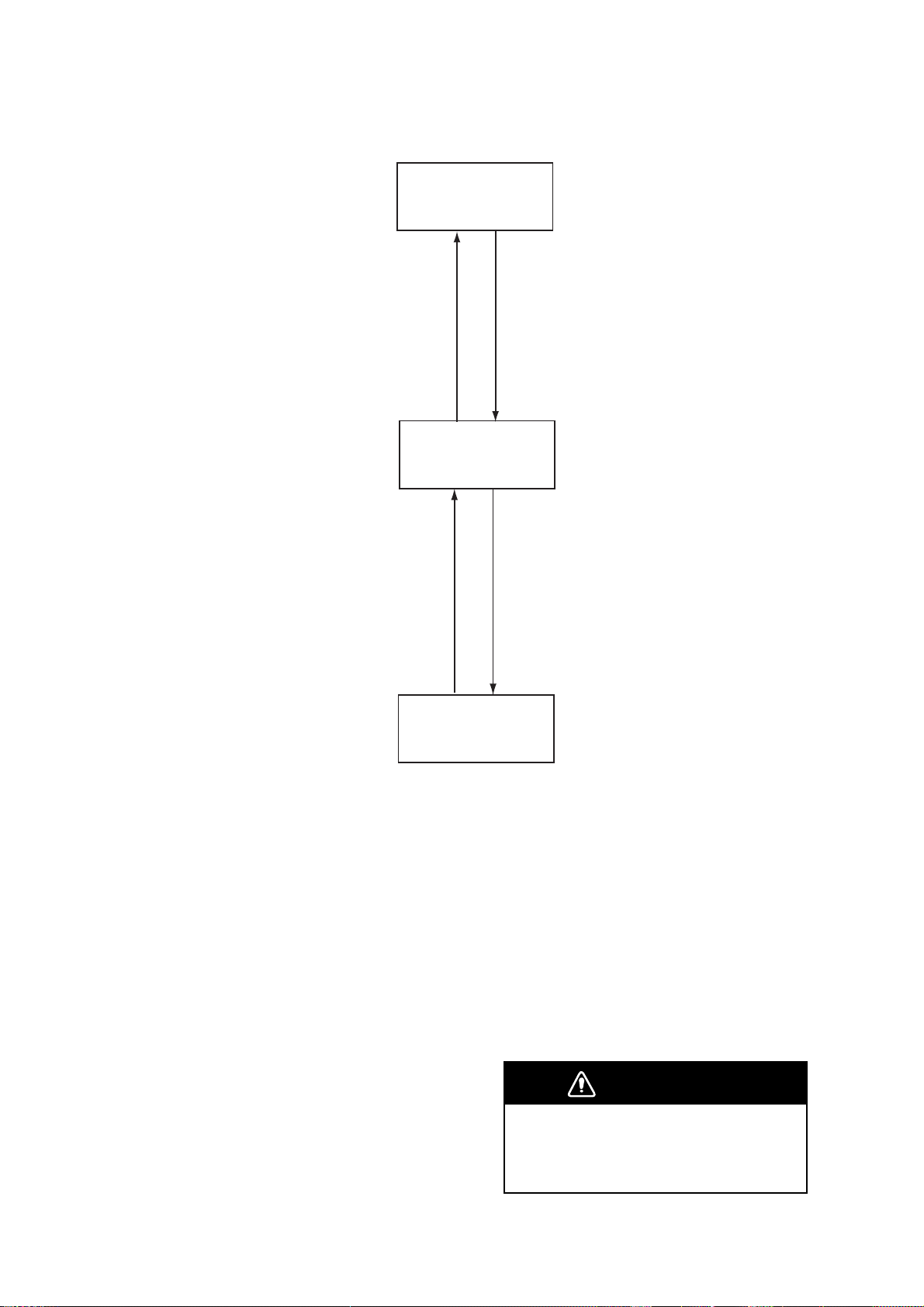

Data Sentences
The following data sentences are input to and output from the AIS Interface.
AIS
Transponder
AIS
Interface
NavNet2 Series
Radar, Plotter
VDM
VDO
ALR
ABK
TXT
ACA
LRI/LRF
VDM
VDO
ALR
TXT
P Sentences
ABM
BBM
ACK
LRI/LRF
ACK
TGT Qty
Sort Condition
Operation
No operation is required of the user. All AIS-related operations are carried out from the
NavNet2 series radar or plotter.
Cleaning
Dust may be removed from the cabinet with a soft dry cloth. For stubborn dirt, water-diluted
mild detergent may be used. Do not use chemical-based cleaning agents to clean the
cabinet; they can remove paint and markings.
Replacement of Fuse
The 3A fuse in the power cable protects the
equipment from reverse polarity and equipment
trouble. If the fuse blows, find the cause before
replacing the fuse. If it blows after replacement
request service.
WARNING
Use the proper fuse.
Use of a wrong fuse can result in damage
to the equipment or cause fire.

FURUNO IF-1500AIS
SP - 1 E4435S01B
SPECIFICATIONS OF
AIS INTERFACE
IF-1500AIS
1. PORTS
1.1 Number of ports 2 ports (IN/OUT)
1.2 Baud rate 38,400 bps
1.3 AIS IN port (RS-485) Input data: VDM, VDO, ALR, ABK, TXT, ACA, LRI/LRF
Output data: ABM, BBM, ACK, LRI/LRF
1.4 DATA OUT port Input data: ACK, Target quantity, Sort condition
Output data: VDM, VDO, ALR, TXT, P-sentences
1.5 Digital interface IEC 61162-2
2. ENVIRONMENTAL CONDITIONS
2.1 Useable temperature -15°C to 55°C
2.2 Relative humidity 95%(40°C)
2.3 EMC IEC 60945
2.4 Waterproofing IP20
3. POWER SUPPLY
12-24 VDC, 0.2-0.1 A
4. COLOR
N3.0

ＰＡＣＫＩＮＧ ＬＩＳＴ
14CS‑X‑9851 ‑3
IF‑1500AIS
N A M E O U T L I N E DESCRIPTION/CODE № Q'TY
1/1
ユニット UNIT
AISｲﾝﾀｰﾌｪｲｽ
AIS INTERFACE
IF‑1500AIS
000‑152‑849
1
予備品 SPARE PARTS SP14‑03301
ﾋｭｰｽﾞ
FUSE
FGBO‑A 3A AC125V
000‑549‑063
2
工事材料 INSTALLATION MATERIALS CP14‑06500
ｹｰﾌﾞﾙ組品MJ
POWER CABLE
MJ‑A15A3F0013‑035‑3A
000‑145‑880
1
ｹｰﾌﾞﾙ組品MJ
CABLE ASSY.
MJ‑A7SPF0003‑050
000‑136‑730
1
ｹｰﾌﾞﾙ組品MJ
SIGNAL CABLE ASSEMBLY
MJ‑A6SPF0012‑050
000‑134‑424
1
+ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ
SELF‑TAPPING SCREW
4X16 SUS304 1ｼｭ
000‑802‑080
4
図書 DOCUMENT
取扱説明書
OPERATOR'S MANUAL
OMC‑44350‑*
000‑152‑852
1
（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）
14CS‑X‑9851
A-1

Y.Hatai

NAME TYPE 名称
kg
DRAWN CHECKED APPROVED DWG.No. SCALE MASS
3421
C B A
IF‑1500AIS
D. MILLS
TAKAHASHI.T

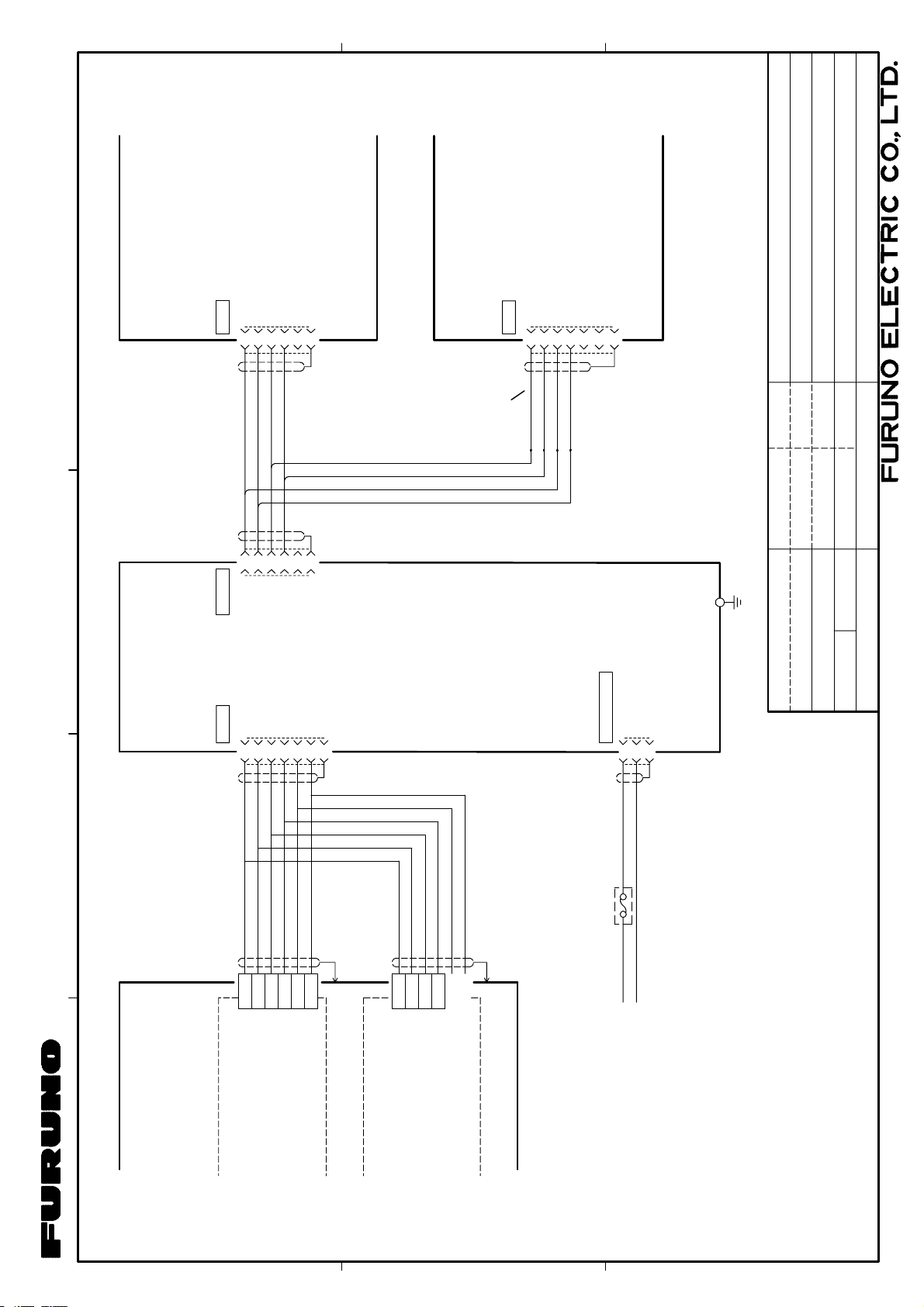

INTERCONNECTION DIAGRAM AIS INTERFACE UNIT AISインターフェイス
相互結線図
NOTE 注記 *1) コネクタは工場にて取付済み。 *2) 造船所手配。 *1. CONNECTOR PLUG FITTED AT FACTORY. *2. SHIPYARD SUPPLY.
C4435‑C01‑ B
5
*1
TD1‑A TD1‑B
SHIELD
1 2 3 4 6 7
DATA1
+12V
GND
MJ‑A7SPF
MJ‑A7SPF0007 ‑050(5m)
SOLDER
WHT YEL GRN BLU ｼﾛ
ｱｵ ｷ ﾐﾄﾞﾘ
2 3 4 5 6 1
*1
TD1‑A TD1‑B
AIS IN
1 2 3 4 5 66
3 4 1 2 5
NC NC
TD2‑A TD2‑B
*1
MJ‑A6SPF
SHIELD
DATA OUT DATA2
MJ‑A6SPF *1 MJ‑A6SPF0012‑050/100,
5/10m,φ6(MAX.10m)
TD1‑A TD1‑B
YEL GRN WHT BLU
ｷ ﾐﾄﾞﾘ ｼﾛ ｱｵ
SIG. GND SIG. GND
7 F.G. 1 2 3DC IN ‑
FUSE 3A
DC IN +
MJ‑A3SPF
12‑24VDC
*1
MJ‑A15A3F0013‑035‑3A 3.5m,φ6
PWR 12‑24VDC
WHT BLK ｼﾛ
ｸﾛ
MJ‑A7SPF003‑050, 5m,φ6
WHT BLK YEL GRN
ｼﾛ ｸﾛ ｷ ﾐﾄﾞﾘ
RED ｱｶ BLU ｱｵ
TD‑A TD‑B RD‑A RD‑B
GNDISO GNDISO
TD‑A TD‑B
NC NC
WHT BLK YEL GRN
ｼﾛ ｸﾛ ｷ ﾐﾄﾞﾘ
RED ｱｶ BLU ｱｵ
F.G.
F.G.
GND
IV‑2SQ. *2
MJ‑A7SPF
IF‑1500 AISのSIG.GNDはFG(フレームグランド)に接続しないこと。
IEC‑61162‑1/NMEA‑0183の場合
For IEC‑61162‑1/NMEA‑0183
F.G.
FA‑100 接続箱 CB‑100 Junction Box
Terminal for External Display/ Aux. Display/Pilot Plug. 外部表示器/パイロットプラグなどの端子台
IF‑1500AIS AIS INTERFACE UNIT AIS インターフェイスユニット
MODEL 18X4C,19X4C SERIES MODEL 17X4C SERIES, FR‑8002 SERIES
F.G.
IEC‑61162‑2の場合
For IEC‑61162‑2
DO NOT CONNECT "SIG. GND" of IF‑1500AIS to "FG" (Frame Ground).
NavNet2 船舶用レーダー/プロッタ NavNet2 MARINE RADAR/PLOTTER NavNet2 船舶用レーダー/プロッタ NavNet2 MARINE RADAR/PLOTTER
RD1‑H RD1‑C RD1‑H RD1‑C
RD1‑H RD1‑C RD2‑H
RD2‑C
RD‑H RD‑C
MAY 20,'05
