Fusion FZ-8 User manual
www.batcafitness.com FZ-8 Owner's Manual

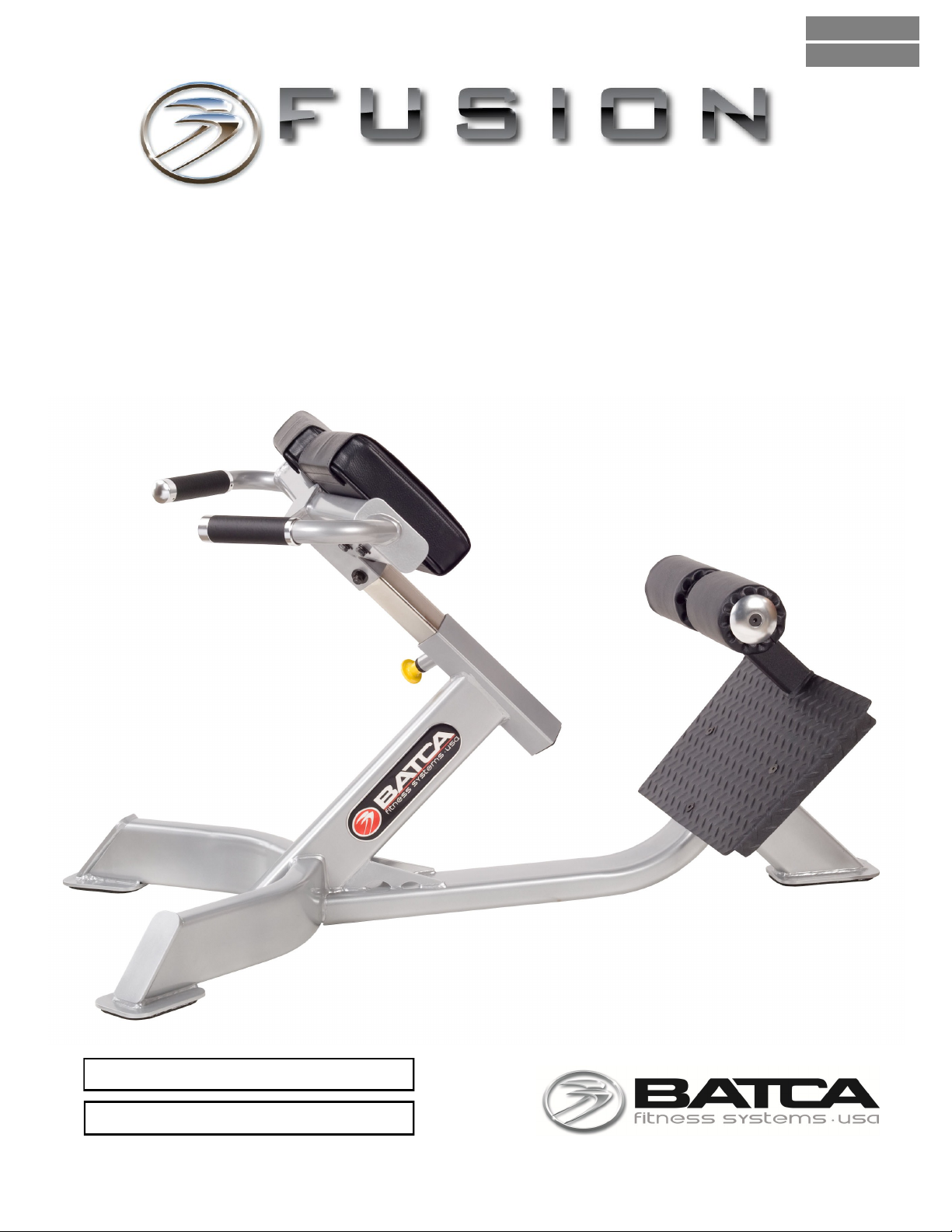

FZ-8
Owner’s Manual
45° Back Extension
F R E E W E I G H T / B O DY W E I G H T
JUNE 2012
Revision 1
Serial Number Here
Date of Purchase
1207 New Hope Road, Raleigh, NC - 919.255.1233 - www.batcafitness.com
Batca Fitness Systems 2 FZ-8 Owner's Manual
__________ Page
Instructions 2
Parts Listing 3
Hardware Comparison 4-7
Main Assembly 8-9
Congratulations on the purchase of your new Batca FZ-8 45° Back Extension. This gym will provide
you with a lifetime of enjoyment to meet your strength training needs. Batca Fitness Systems strives to
build the best quality gyms and to package these gyms in such a way to avoid any damage during shipping.
In order to get started with your assembly you should first familiarize yourself with this manual.
It is recommended that you read through each step thoroughly before you begin. Begin by opening your
boxes and separating all of your parts. Verify that all parts are accounted for and have no damage. When
all parts are accounted for, you may begin your assembly. Some items may have been pre-assembled for
your convenience. Please note that hardware quantities shown reflect total quantities for your gym and
may not reflect actual quantities in each bag. Assemble your gym on a solid level surface. This will en-
sure the best possible performance, function, and safety for the gym and your workout.
Assemble your gym according to the step by step instructions found in this manual. Failure to do
so will void your warranty and may result in personal injury. After assembly, you should check each sta-
tion to ensure correct operation. If a problem arises, recheck your assembly with these instructions to
verify correct assembly. If you are unable to correct a problem or have questions with your assembly
please contact your authorized Batca dealer.
Batca Fitness Systems has built this gym to give you a safe, effective and enjoyable
workout. However, there is a risk assumed by individuals who use this type of equipment. It
is very important that all warnings and instructions are read and followed before
beginning any exercise program.
It is also very important to read and follow the preventative maintenance schedule
described in this manual. If any of the warning labels or stickers are worn, faded, torn,
scratched or missing they should be replaced immediately.
WARNING: There is a risk assumed by individuals who use this type of equipment. To minimize
risk always follow these rules.
1) It is essential that you consult with your physician before beginning any exercise
program.
2) Inspect equipment before each use for loose, worn, or frayed parts (including cables,
nuts and bolts). Replace parts at first signs of wear (use only genuine BATCA
replacement parts). Use of equipment that is damaged, worn, frayed or not completely
assembled on a solid, level surface may result in injury.
3) Make sure all adjustment pins are fully engaged before using equipment.
4) Keep all parts of the body and clothing outside the path of any moving parts of the gym.
Be alert to the possibility of injury. Do not be careless.
5) Minors and children should not be allowed to play on or around this gym.
6) If you have any questions on proper use or maintenance of this gym, do not hesitate to
call your local BATCA FITNESS SYSTEMS distributor or BATCA FITNESS SYSTEMS at
(919) 255-1233. www.batcafitness.com
__________ Page
Upholstery 10
Maintenance 11
Warranty 12
Floor Plan Layout 13
Table of Contents
Instructions
Warning
www.batcafitness.com 3 FZ-8 Owner's Manual
Frame Components Upholstery
Hardware Tools Required
9/16” Ratchet
9/16” Wrench
Allen Wrench Set
Tape Measure
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 BFM-10785 Body and Handle
Support Assembly 1
2 BFM-51540 Chrome Adjustment 1
3 BFM-10673 Foot Plate Assembly 1
4 BFM-10784 45° Back Ext Base 1
ITEM # PART # DESCRIPTION QTY.
7 BFH-50146 3/8" Flat Washer (Black) 11
8 BFH-50147 3/8" Lock Washer (Black) 4
9 BFH-50157 3/8"-16 Nylock (Black) 5
10 BFH-50221 3” Plastic Washer 2
11 BFH-50620 BHSCS 3/8”-16 x 3/4” 2
12 BFP-51750 SHCS 3/8"-16 x 2 3/4" 2
13 BFH-51195 FHSCS 3/8”-16 x 2 1/2” 3
14 BFH-50622 Roller End Cap 2
15 BFH-50262 Silicone Gel Pack 2
16 BFP-51747 SHCS 3/8"-16 x 3" P5 4
ITEM NO. PART NUMBER DESCRIPTION QTY.
5 BFU-10121 7" Upholstery Roller 2
6 BFU-10107C Back Ext. Pad 2
Batca Fitness Systems 4 FZ-8 Owner's Manual

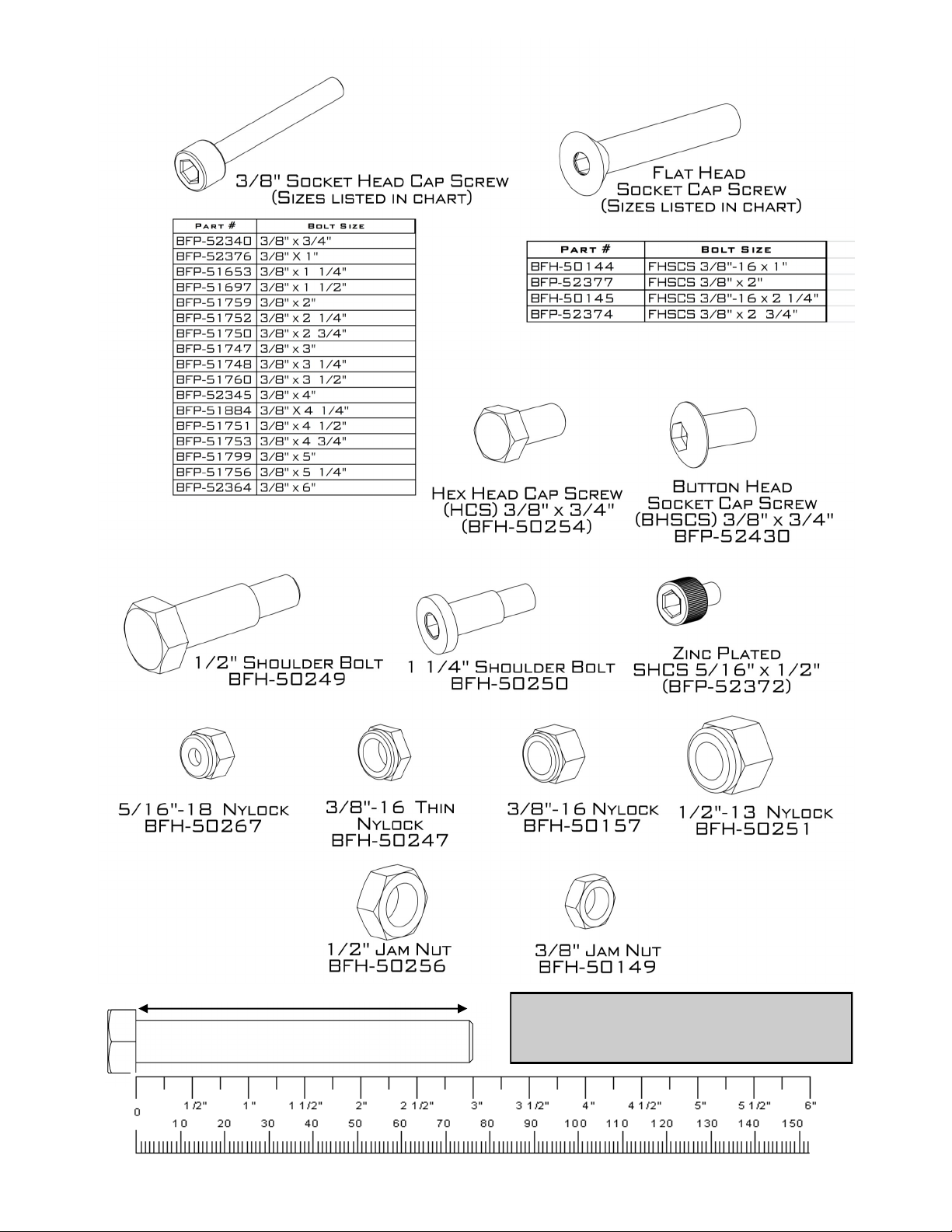

Bolt Length Note: Bolt length is
measured from the underside
of the head of the bolt.
www.batcafitness.com 5 FZ-8 Owner's Manual
Batca Fitness Systems 6 FZ-8 Owner's Manual
www.batcafitness.com 7 FZ-8 Owner's Manual
Batca Fitness Systems 8 FZ-8 Owner's Manual

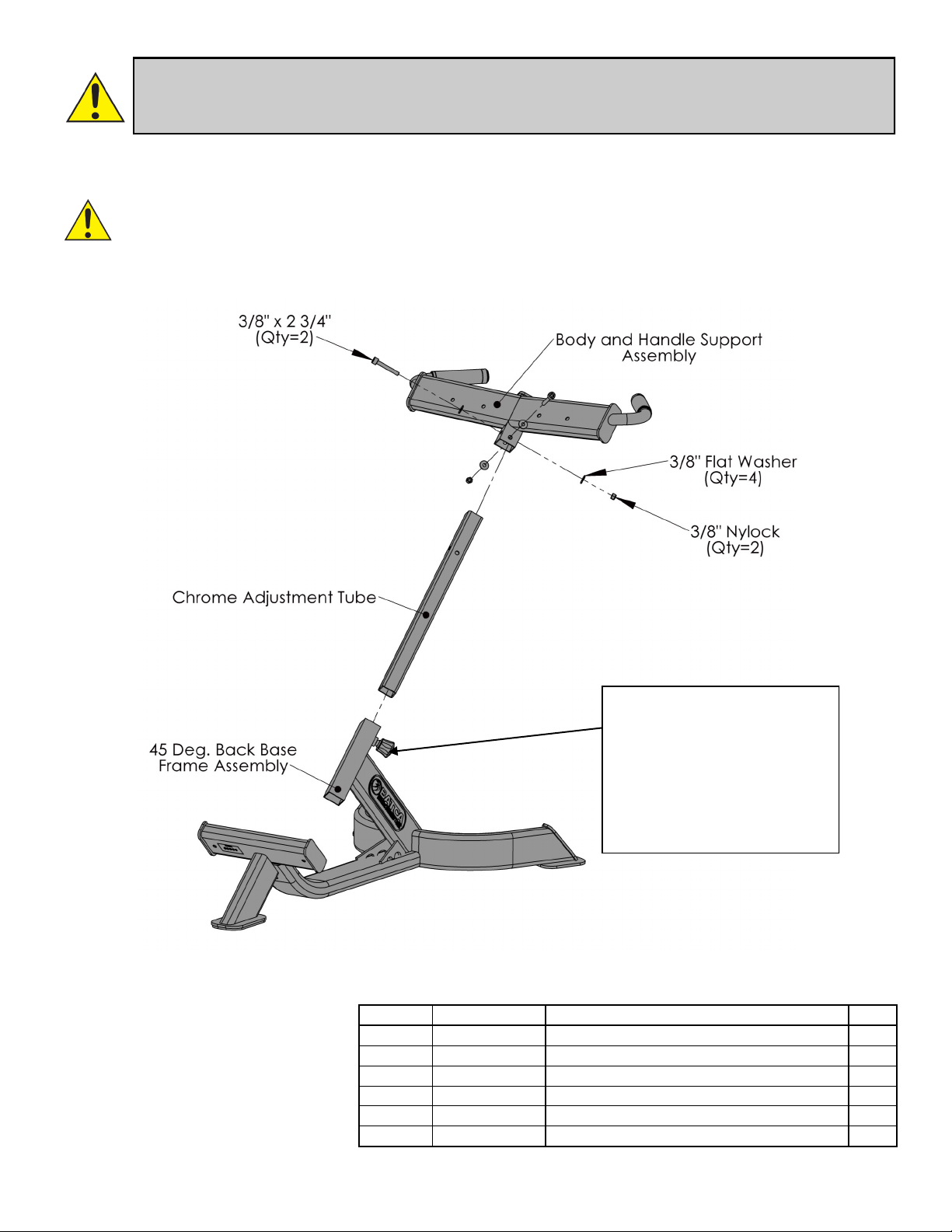

Step 1:
PLEASE FOLLOW ALL DIRECTIONS VERY CAREFULLY FOR
PROPER INSTALLATION.
Item # Part # Description Qty
1 BFM-10785 Body and Handle Support Assembly 1
2 BFM-51540 Chrome Adjustment 1
4 BFM-10784 45 Deg. Back Ext. Base 1
7 BFH-50146 3/8" Flat Washer Black 4
9 BFH-50157 3/8"-13 Nylock (Black) 2
12 BFP-51750 SHCS 3/8"-16 x 2 3/4" P5 2
Note: For a more consistent
appearance, position all bolts
in the direction shown in each
figure.
To operate the pull pin, twist
the knob to unlock the pin
and adjust the tube to the
appropriate height. Once the
height is properly adjusted,
tighten the knob back to
insure there is no movement
in the
Adjustment Tube
.
All Flat Washers and Nylocks are 3/8”
unless otherwise noted.
www.batcafitness.com 9 FZ-8 Owner's Manual

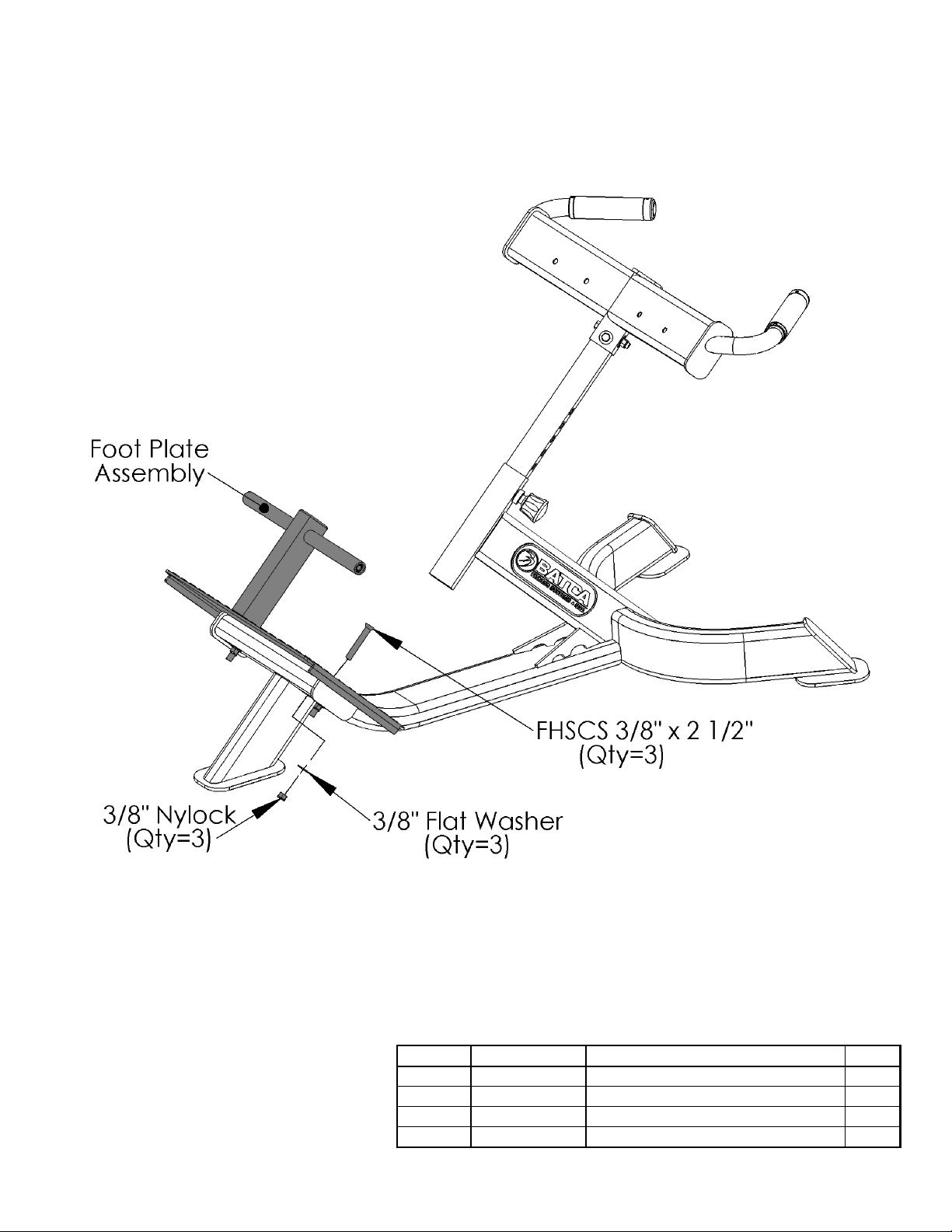

Step 2:
All Flat Washers and Nylocks are
3/8” unless otherwise noted.
Item # Part # Description Qty
3 BFM-10673 Foot Plate Assembly 1
7 BFH-50146 3/8" Flat Washer (Black) 3
9 BFH-50157 3/8"-16 Nylock (Black) 3
13 BFH-51195 FHSCS 3/8"-16 x 2 1/2" 3
Batca Fitness Systems 10 FZ-8 Owner's Manual
Step 3:
Item # Part # Description Qty
5 BFU-10121 7" Upholstery Roller 2
6 BFU-10107C Back Ext. Pad 2
7 BFH-50146 3/8" Flat Washer 4
8 BFH-50147 3/8" Lock Washer 4
10 BFH-50221 3" Plastic Washer 2
11 BFH-50620 BHSCS 3/8”-16 X 3/4” 2
16 BFP-51747 SHCS 3/8"-16 x 3" P5 4
14 BFH-50622 Roller End Cap 2
Serial Number
All Flat Washers and Nylocks are 3/8”
unless otherwise noted.
www.batcafitness.com 11 FZ-8 Owner's Manual
Batca Fitness Systems strives to give you the very best in quality, performance and safety through
carefully engineered designs and excellent workmanship. In order to maintain this high level of quality
the preventative maintenance schedule below should be followed.
Clean upholstery, grips, and roller pads with mild soap and water generally after every use. The guide
rods, chrome slides and frame should be cleaned with a cotton cloth. Upon cleaning the guide rods, a thin
layer of Silicone or Teflon gel should be applied to each rod to ensure a glass smooth performance.
An overall inspection should be done before each workout. If the warning and safety decals are worn or
have been removed they should be replaced immediately. The cables and cable systems should be inspected
for signs of wear and proper tension. In order to check cables properly you should carefully run the
cable through your fingertips, checking for signs of wear, cracks, burs and thinning spots. Replace any
part at first signs of wear. Cables should be adjusted for proper tension. See assembly instructions for
this detail. All hardware, stops, and adjustments should be checked and tightened as required.
The guide rods on your machine should be cleaned and lubricated regularly. This will ensure a glass
smooth performance from your weight stack. A thin layer of either Silicone or Teflon gel should applied
to each rod. Each pillow block bearing and flange bearing has a grease fittings that must be lubricated
regularly. Use general purpose bearing grease and follow the schedule below.
Although cables should be inspected daily, it is important that ALL cables be replaced as directed in the
schedule below. Please note that at any first sign of wear the cable should be replaced immediately.
If there are any questions concerning maintenance, please contact your local Batca dealer or contact
Batca Fitness Systems directly at:
Batca Fitness Systems
(919) 255-1233
www.batcafitness.com
Daily Weekly Monthly Quarterly Years
Commercial Home Commercial Home Commercial Home Commercial Home Commercial Home
Clean
Upholstery X X
Hand Grips X X
Roller Pads X X
Guide Rods
Chrome Slides
Frame X X
Inspect
Overall X X
Safety Decals X X
Cables
Cable Tension
Pulleys
Hardware X X
Stops
Upholstery X X
Hand Grips X X
Frame X X
Bushings
Bearings
Lubricate
Guide Rods
Bearings
Replace
Cables
Preventive Maintenance
Batca Fitness Systems 12 FZ-8 Owner's Manual
What is covered
For Residential Use:
Batca Fitness Systems warrants all of its products against defects in manufacturing, materials
and workmanship under normal use and service for one year from date of purchase including paint,
chrome, upholstery and grips. Batca Fitness Systems also warrants all cables, belts, bolts,
nuts, caps, plugs, bumpers, washers, levelers, decals, gas springs and other hardware for three
years after date of purchase; all moving parts, including pulleys, bushings, bearings and pull pins
for five years after date of purchase and warrants the frame and all welded parts for the lifetime
of the original purchaser.
For Commercial Use:
Batca Fitness Systems warrants all of its products against defects in manufacturing, materials
and workmanship under normal use and service for six months from date of purchase including
paint, chrome, upholstery and grips. Batca Fitness Systems also warrants all cables, belts,
bolts, nuts, caps, plugs, bumpers, washers, levelers, decals, gas springs and other hardware for
one year after date of purchase; all moving parts, including pulleys, bushings, bearings and pull
pins for three years after date of purchase and warrants the frame and all welded parts for ten
years after date of purchase.
What is not covered
This warranty does not cover damage, which results from shipping, misuse, abuse, neglect, care-
lessness, modification or alteration, accident, fire, flood, “acts of God” or other contingencies
beyond the control of Batca Fitness Systems. This warranty also does not cover deterioration
from wear and tear or exposure or any defect, which would not have happened if instructions in
the owner’s manual had been followed. Improper installation, improper assembly or follow-up
maintenance along with installation of parts or accessories not originally intended for products
of Batca Fitness Systems are also not covered by this warranty. Only genuine Batca parts should
be used for replacement, repair, and maintenance for this warranty to apply.
Defective parts will be repaired or replaced at Batca Fitness Systems option, without parts
charge to the purchaser. All returns require a return authorization prior to acceptance of re-
pair work. Batca Fitness Systems reserves the right to make design changes without any prior no-
tification and shall not be responsible for incidental or consequential damages.
The purchaser is responsible for shipping the defective part back to the factory. Repair or re-
placement is the exclusive and sole remedy of the purchaser. Labor charges associated with
parts changeovers are not covered by this warranty. Proof of purchase, serial number, model
number and date of purchase will be required along with all pertinent information of the alleged
damage.
This warranty applies only to the original purchaser and is not transferable. Claims under this
warranty must be made directly to Batca Fitness Systems.
Batca Fitness Systems
1207 N. New Hope Road
Raleigh, NC 27610
(919) 255-1233
www.batcafitness.com
Please keep this for your records.
Limited Lifetime Warranty
www.batcafitness.com 13 FZ-8 Owner's Manual

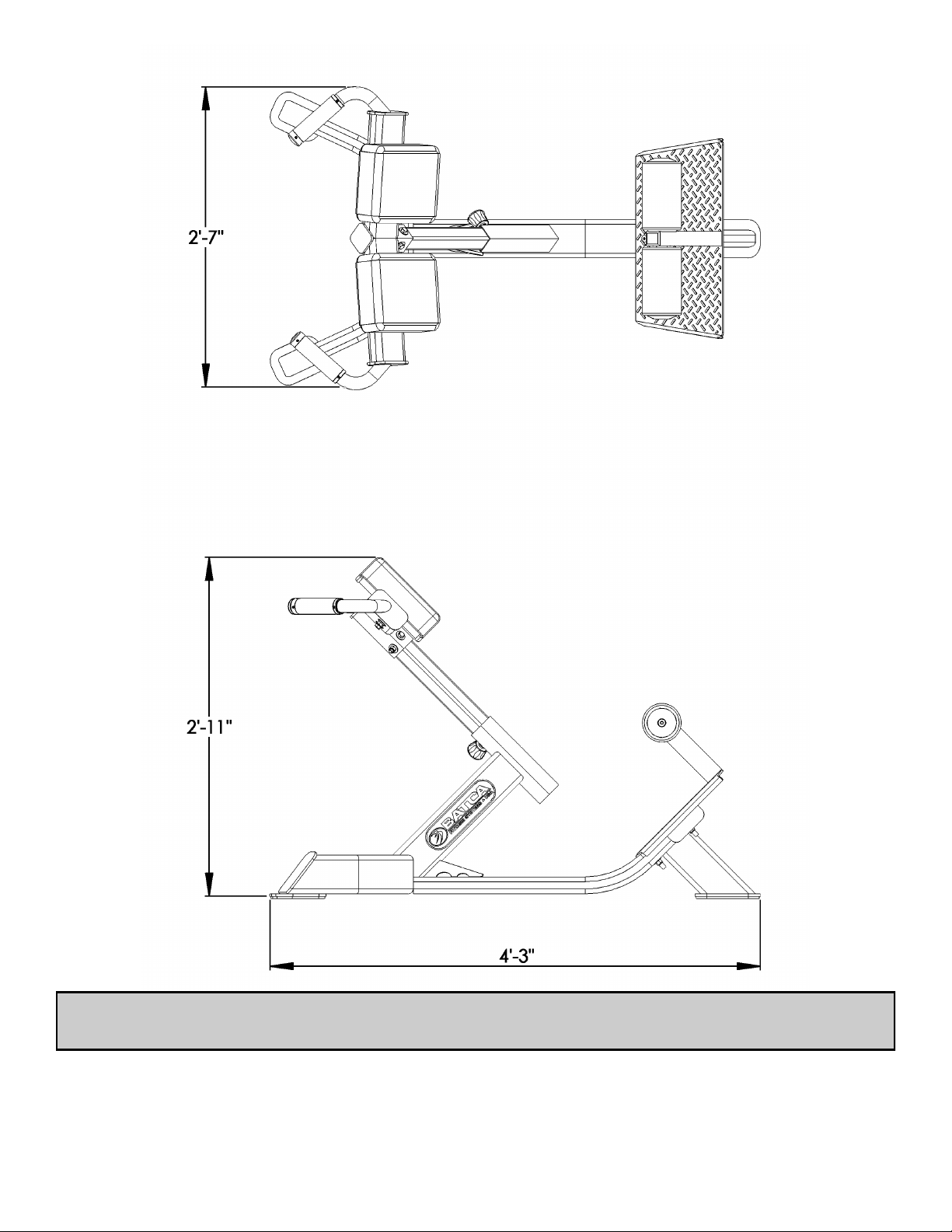

The FZ-8 45° Back Extension has a layout dimension of 2’-7” (width) x 4’-3” (length) x 2’-
11” (height). There should be a minimum of 18”, preferably 24”, of working space around
the entire unit.
Layout Diagram
