Fusion 24290 User manual

Trouble Shooting Tips
If your solar light does not come on at dusk despite following all
instructions please try the following steps:
1. Make sure that the solar light is not affected by any other light
source.
2. Ensure the solar light does not stand in the shade all day.
3. Check to see if the batteries are installed correctly.
4. If there is a protective film on the solar panel carefully remove
this.
Care Information
1. Clean any dirt and debris from the solar panel. The panel
cannot recharge if the light is obstructed. Use a soft cloth to clean
the panel. Do not use abrasives or chemicals that might scratch or
damage the UV coating.
2. In a region where snow and ice are likely and the light
assembly is covered with snow for an extended period of time the
batteries will require a recharge for at least 8 hours.
Warranty Information
1-YEAR LIMITED PRODUCT WARRANTY
This product is covered under a one year limited warranty.
Fusion Products Ltd. warrants to the original purchaser that
this product is free from defects in materials and workmanship
for the period of one year warranty from date of purchase.
For Technical Support and/or Warranty inquiries
please contact:
Fusion Products Ltd.
Monday to Friday
8:30-5:00 PM EST
2905 Argentia Road, Unit 2,3
Mississauga, Ontario L5N 8G6
Tel: [phone] Fax: [phone]
Email: [e-mail]
2 SOLAR COACH STYLE
LAMP POSTS
FUSION PRODUCTS LTD.
Model No. 24290

Contents
Overview ...........................................................................................see below
Getting Started ...................................................................................................1
About Your Solar Light ...................................................................................1
Important .............................................................................................................1
Schematic Diagram ..........................................................................................2
Operation .............................................................................................................3
Assembly & Installation............................................................................. 3-4
Battery Replacement ......................................................................................5
Trouble Shooting Tips ....................................................................................6
Care Information ..............................................................................................6
Warranty Information ....................................................................................6
Overview
This product is designed to the highest technical specifications and
standards. It will supply years of maintenance free use. Please read
these instructions thoroughly prior to installation, then store in a
safe place for future reference. If at any time you are unclear about
this product, or require further assistance please do not hesitate to
contact our trained professionals operating the customer support
line at 1-877-615-1378 Monday to Friday between the hours 8:30
AM to 5:00 PM Eastern Standard Time or email
[e-mail]
Battery Replacement
STEP 1:
Turn the switch to the <OFF> position (Figure 7).
STEP 2:
Remove the screws (4) underneath the perimeter
of the solar top/housing. Carefully lift the solar
housing away from the lantern head (Figure 8).
STEP 3:
Remove the screws (4) from the battery
compartment cover under the solar housing.
STEP 4:
Carefully separate the battery compartment cover
From the solar housing; being sure not detach any
of the connected wires (Figure 9).
STEP 5:
Replace the battery with an equivalent new solar
rechargeable battery, ensuring the correct polarity
is observed (Figure 9).
STEP 6:
Reassemble the unit by reversing the above
procedure.
STEP 7:
Allow the unit to charge for up to 2 days in
the <OFF> position. Once fully charged
turn the switch to the <ON> position
and the solar light will turn on
automatically when it becomes dark.
Caution: Rechargeable batteries contain
lithium and must be recycled or
disposed of properly. Do not mix old
and new batteries. Do not mix alkaline,
standard (carbon-zinc), or rechargeable
batteries. Do not dispose of batteries in
fire. Batteries may explode or leak.
5
Figure 7
11
Figure 8
11
Figure 9
11

Installation (Hanging Lantern)
STEP 1:
Follow Steps 1- 6 in the Standard Installation.
STEP 2:
Secure hanging bracket (G) to top pole section with screw
until secure (Figure 5).
STEP 3:
Hang lantern head assembly onto hanging bracket (Figure 5, 6).
Getting Started
Please do not throw away any packing material until all parts are
verified as present.
About Your Solar Light
During the day your solar panel will convert the sun's light
and/or UV rays into electrical power that will charge the
rechargeable battery. When it becomes dark, the solar light will
turn on using the power stored on the rechargeable battery as it
will detect no day light. The units light output strength and time
depends on how many hours and how much sunlight and/or UV
rays your panel absorbs throughout the day.
For maximum output place the solar panel in an area where
there is direct sunlight for at least 8 hours in a given day. Do not
install your solar light in a shaded area. The selected location
should not be near night time light sources such as; porch lights,
street lights or pool lights as these may cause the solar light to
turn off prematurely.
Important
•Fully charge the battery before first use. Charge under direct
sunlight in the <OFF> position for 2 days.
•For best results, locate your solar lamp in a position where it
can get direct sunlight on the solar panel and generally free
from cover and shade.
•Keep your solar lights away from other night-time light
sources, such as streetlights.
•Make sure the solar panels are not covered by dust, snow
and debris. Clean it with a soft damp cloth or paper towel
periodically. Avoid the use of abrasive cleaning agents.
•Use only rechargeable batteries for your solar lights. Replace
with a new battery of the same size each year for optimum
performance.
•The performance of the solar light will vary with the time of
year. It will deliver more light when it has had a full day in
the sun rather than a day in overcast weather.
4
1
Figure 5
11
Figure 6
11
1
1
1
2
1
1
3
1
1

Schematic Diagram
Operation
For First Time Use:
STEP 1:
Fully charge the battery before first use.
Charge under direct sunlight in the <OFF>
position for 2 days.
STEP 2: Locate the ON/OFF switch on the outer
perimeter of the solar housing (Figure 3).
STEP 3:
For daily operation, place the ON/OFF switch in
the <ON> position. Your solar light will
automatically turn on once it gets dark.

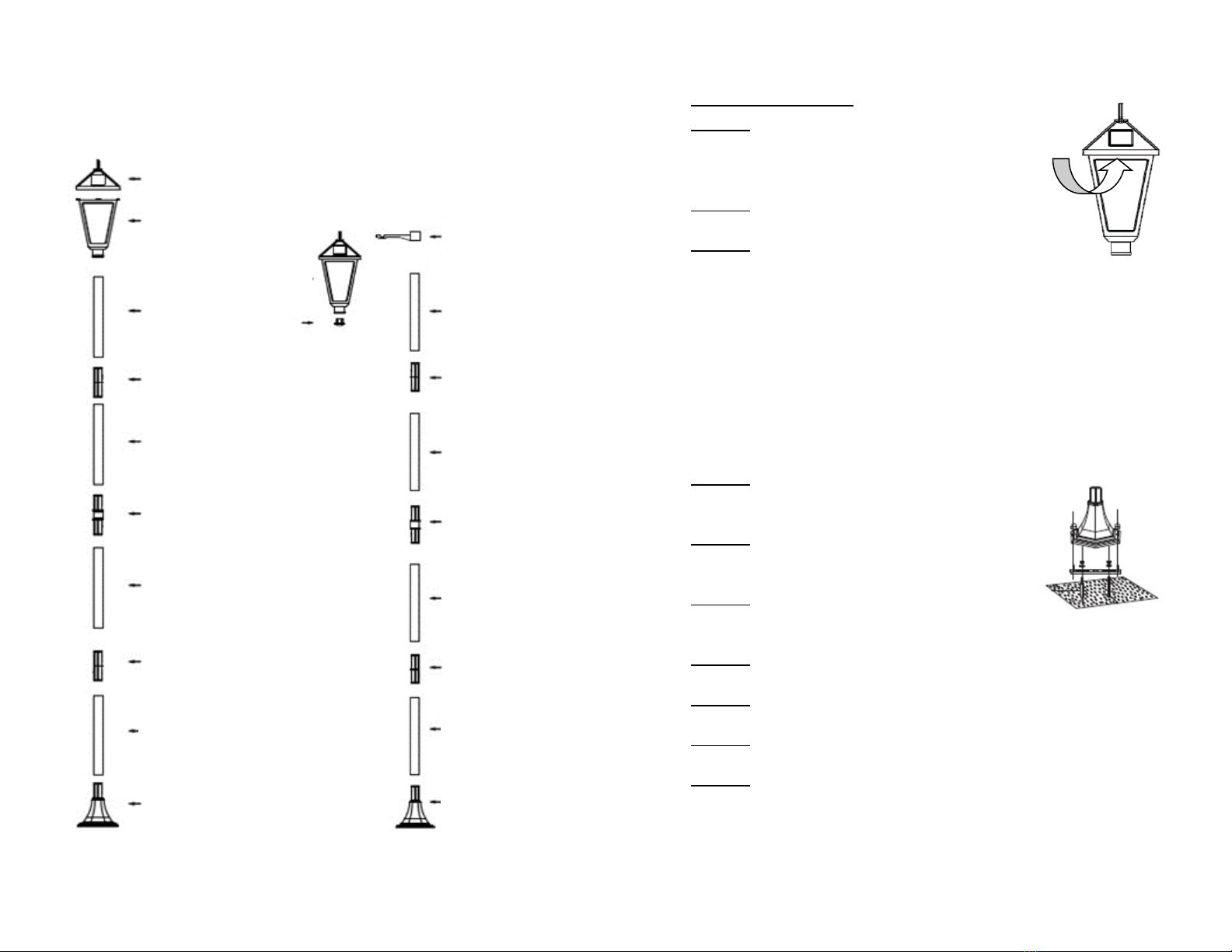

Assembly & Installation
You have the option for each lamp post to assemble as per
Figure 1 (standard), or Figure 2 (hanging lantern).
Installation (Standard)
STEP 1:
Select a suitable location to install and secure
the lamp post base (Figure 4).
STEP 2:
Press pole section (C) onto base (F) until
secure.
STEP 3:
Press pole adapter (D) into pole (C) until
secure.
STEP 4:
Press pole section (C) onto pole adapter (D) until secure.
STEP 5:
Press center pole adapter (E) into pole (C) until secure.
STEP 6:
Repeat step 4 until desired height is achieved.
STEP 7:
Press lantern head assembly (A & B) onto top pole section until
secure.
2
3
Figure 1
Standard
Figure 2
Hanging
ASOLAR HOUSING
Figure 3
11
Figure 4
11
BLANTERN HEAD
CPOLE
DPOLE
ADAPTER
CPOLE
ECENTER POLE ADAPTER
FBASE
CPOLE
DPOLE ADAPTER
CPOLE
BLANTERN
HEAD
ASSEMBLY
HLANTERN
HEAD
PLUG
GHANGING
BRACKET
CPOLE
DPOLE
ADAPTER
CPOLE
ECENTER
POLE
ADAPTER
CPOLE
DPOLE
ADAPTER
CPOLE
FBASE
