FUXTEC FX-RM Series Product information sheet

Original User Manual FUXTEC FX-RM Series_rev15

Original User Manual FUXTEC FX-RM Series_rev15
Dear customer,
We are pleased with your trust!
Please read these instructions for use before the first use and before every use!
Here you will find all the information you need for safe use and long service life of
the device. It is imperative that you observe all safety instructions in this manual!
Please keep this manual always together with the device, so that you still have it at
hand in case of doubt.
FUXTEC GmbH
Kappstraße 69, 71083 Herrenberg-Gültstein, Germany
Read and understand carefully the instructions
of this manual.
Always keep the user manual handy when
working.
Attention

Original User Manual FUXTEC FX-RM Series_rev15
3
1. Table of contents
1. Table of contents ........................................................................................................................................................ 3
2. Intended use .............................................................................................................................................................. 4
3. Product Specifications ................................................................................................................................................ 6
4. Your device at a glance ............................................................................................................................................... 8
5. Preface and preparation ........................................................................................................................................... 10

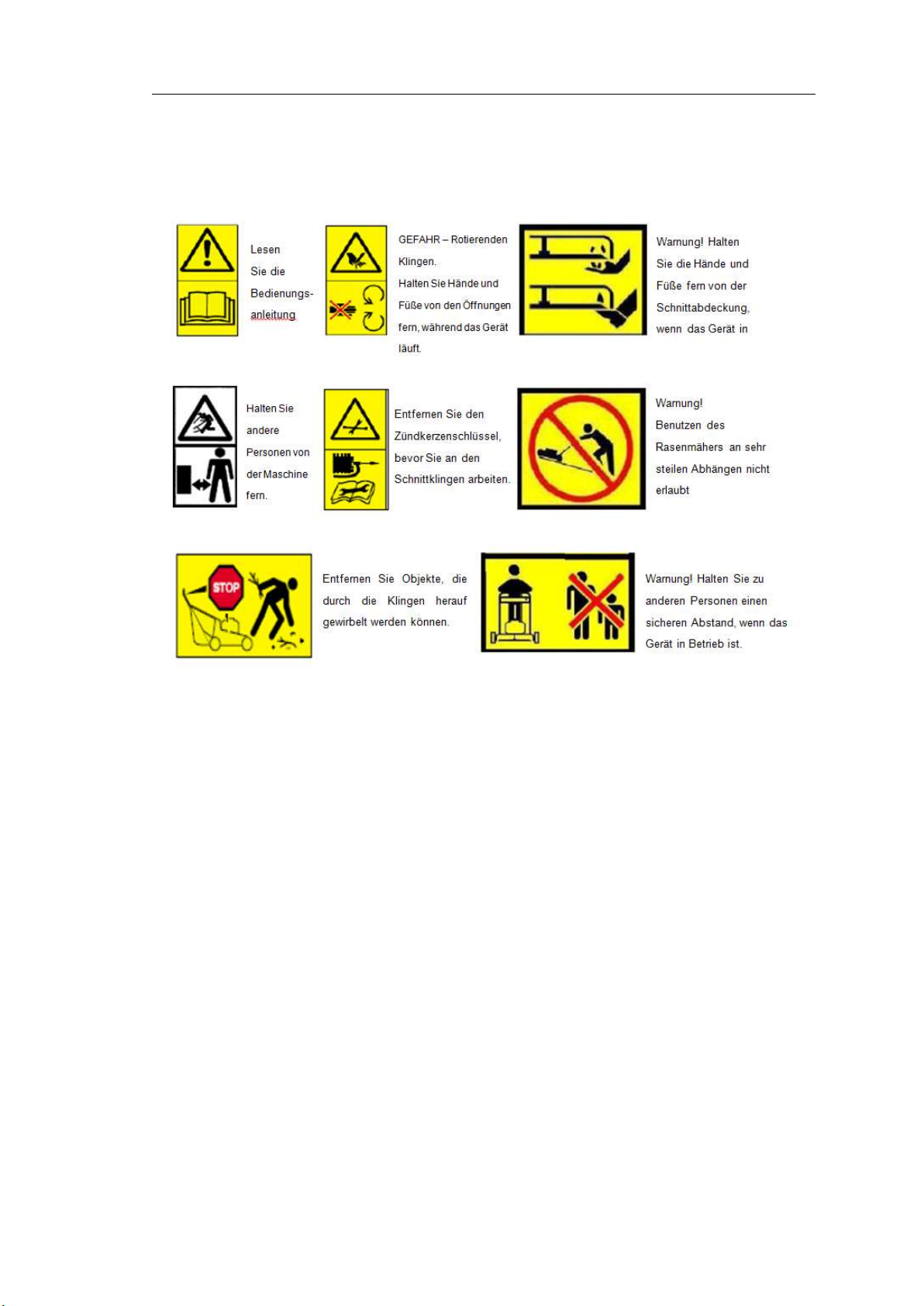

6. Description of security symbols ................................................................................................................................ 13
7. General operating and safety instructions................................................................................................................. 14
8. Installation / Presettings .......................................................................................................................................... 16
9. Starting / stopping the engine .................................................................................................................................. 21
10. Operating instructions for the lawn mower .............................................................................................................. 23
11. Maintenance and cleaning (EASY CLEAN) .................................................................................................................. 26
12. Mow and Stow Function (FX-RM46BS475IS only) ...................................................................................................... 27
13. Care, maintenance, and storage ............................................................................................................................... 28
14. Warranty .................................................................................................................................................................. 33
15. Disposal note ........................................................................................................................................................... 33
16. Spare parts ............................................................................................................................................................... 34
17. EC Declaration of Conformity .................................................................................................................................... 35

Original User Manual FUXTEC FX-RM Series_rev15
4
2. Intended use
The intended use of this device includes
 Mowing lawns
The device must not
– be used in any other way than described in this manual.
– be used in commercial applications.
– be used with accessories other than those specified by the manufacturer.
– be changed, modified, or operated in any other way than according to the
manufacturer's specifications.
Observance of these user manuals is essential for safe assembly and use. This device
is exclusively for private domestic use according to the specified intended use. All
other applications are excluded.
Vibration and noise reduction
1. To reduce the effects of vibration and noise, limit working hours, use settings for
lower vibration and noise emissions, and wear personal protective equipment.
2. Observe the following points to keep vibration and noise levels low:
1. Use the product only as intended according to its design and instructions.
2. Ensure that the product is in perfect condition and well maintained.
3. Use the right accessories and ensure that it is in good condition.
4. Hold the product firmly but not cramped by the handles provided.
5. Maintain the product according to this manual and keep it well lubricated.
6. Plan your working hours according to this manual to spread a higher load over a
more extended period.

Original User Manual FUXTEC FX-RM Series_rev15
5
Emergency
Familiarize yourself with the use of the product by reading the user manual
thoroughly. Remember the safety instructions and follow them carefully. This will
help you to avoid risks and dangers.
1. Always be attentive when using the product so that you can recognize dangers early
and react to them. Rapid intervention can prevent severe injury and damage to
property.
2. Turn off the product and disconnect the cordless high hedge trimmer, depending on
the model. Have the product repaired by a qualified expert, if necessary, before using
the product again.
1.1 Residual risks
Even if you operate this lawnmower according to the instructions, there will always
be residual risks. The following hazards can occur in connection with the design and
construction of this lawnmower:
a) Injuries and damage to property caused by flying parts.
b) Hearing damage if you do not wear suitable hearing protection or use the
lawnmower for an extended period.
c) Damage to health resulting from hand-arm vibrations if the lawnmower is
used for an extended period or is not guided correctly and maintained.

Original User Manual FUXTEC FX-RM Series_rev15
6
3. Product Specifications
Model type RM4646ECO RM4646 RM5196 RM5196eS RM5196PRO RM4839P RM5396P
Engine type OHV 4-stroke OHV 4-stroke OHV 4-stroke OHV 4-stroke OHV 4-stroke OHV 4-stroke OHV 4-stroke
Cutting width (mm) 457 457 501 501 501 470 520
Adjustable cutting
height (mm) 25 - 75 25 - 75 25 - 75 25 - 75 25 - 75 25 - 70 25 - 70
Trimmings collection
capacity (l) 50 50 60 60 60 60 60
Tank (l) 0.8 0,8 0,8 0.8 0,8 0,8 0,8
Oil capacity (l) 0.5 0,5 0,6 0.6 0,6 0,5 0,6
Displacement (cm³) 146 146 196 196 196 146 196
Nominal speed (rpm) 3,000
3,000 2,800 2,800 2,800 3,000 2,800
Unit power (KW) at
rated speed 2.2 2.2 3.9 3.9 3.9 2.2 3.9
max. engine power
(KW) 2.6 2.6 4.4 4.4 4.4 2.6 4.4
Petrol type Lead-free
gasoline
Lead-free
gasoline
Lead-free
gasoline
Lead-free
gasoline
Lead-free
gasoline
Lead-free
gasoline
Lead-free
gasoline
Sound pressure level
(dB(A)) 83.1 (k=3) 83.1 (k=3) 83.2 (k=2.5) 83.2 (k=2.5) 83.2 (k=2.5) 81.4(k=3) 85.4(k=2.5)
Sound power level
(dB(A)) 95.05 (k=0.47) 95.05 (k=0.47) 95.9(k=0.61) 95.9(k=0.61) 95.9(k=0.61) 95.04(k=0.91) 97.58(k=0.47)
Guaranteed sound
power level (db(A)) 96 96 98 98 98 96 98
Vibrations (m/s²) 5.856m/s2
(K=1.5m)
5.856m/s2
(K=1.5m)
6.36m/s2
(k=1.5) 6.36m/s2 (k=1.5)
6.36m/s2
(k=1.5) 8.61m/s2 (k=1.5)
6.19m/s2 (k=1.5)
Rear-wheel drive ● ● ● ● ● ●
FlexSpeed drive ●
Rear ejection ● ● ● ● ● ● ●
Side ejection ● ● ● ● ● ●
Mulching function ● ● ● ● ● ●
Electric start ● ●
Net weight (kg) 27 31 39 40 40 40 44

Original User Manual FUXTEC FX-RM Series_rev15
7
Model type RM51BS675IS RM51BS500 RM46BS475IS
Engine type OHV 4-stroke OHV 4-stroke OHV 4-stroke
Cutting width (mm) 501 501 457
Adjustable cutting
height (mm) 21 - 71 25 - 75 25-75
Trimmings collection
capacity (l) 60 60 60
Tank (l) 1.0 0.8 0.8
Oil capacity (l) 0.47 0.47 0.47
Displacement (cm³) 163 140 140
Nominal speed (rpm) 2,800 2,800 2800
Unit power (KW) at
rated speed 2.5 2.0 2.0
max. engine power
(KW) 2.7 2.03 2.04
Petrol type Lead-free gasoline
Lead-free
gasoline Lead-free gasoline
Sound pressure level
(dB(A)) 85.4(k=2.5) 83.8(k=2.5) 82.6 (k=3)
Sound power level
(dB(A)) 97.58(k=0.47) 96.14(k=2.2) 94.6(k=1.58)
Guaranteed sound
power level (dB(A)) 98 98 96
Vibrations (m/s²) 3.29m/s2 (k=1.5) 4.03m/s2 (k=1.5) 4.85m/s2 (k=1.5)
Rear-wheel drive ● ● ●
Flex Speed drive
Rear ejection ● ● ●
Side ejection ● ● ●
Mulching function ● ● ●
Electric start ● ●
Net weight (kg) 34 30 33

Original User Manual FUXTEC FX-RM Series_rev15
8

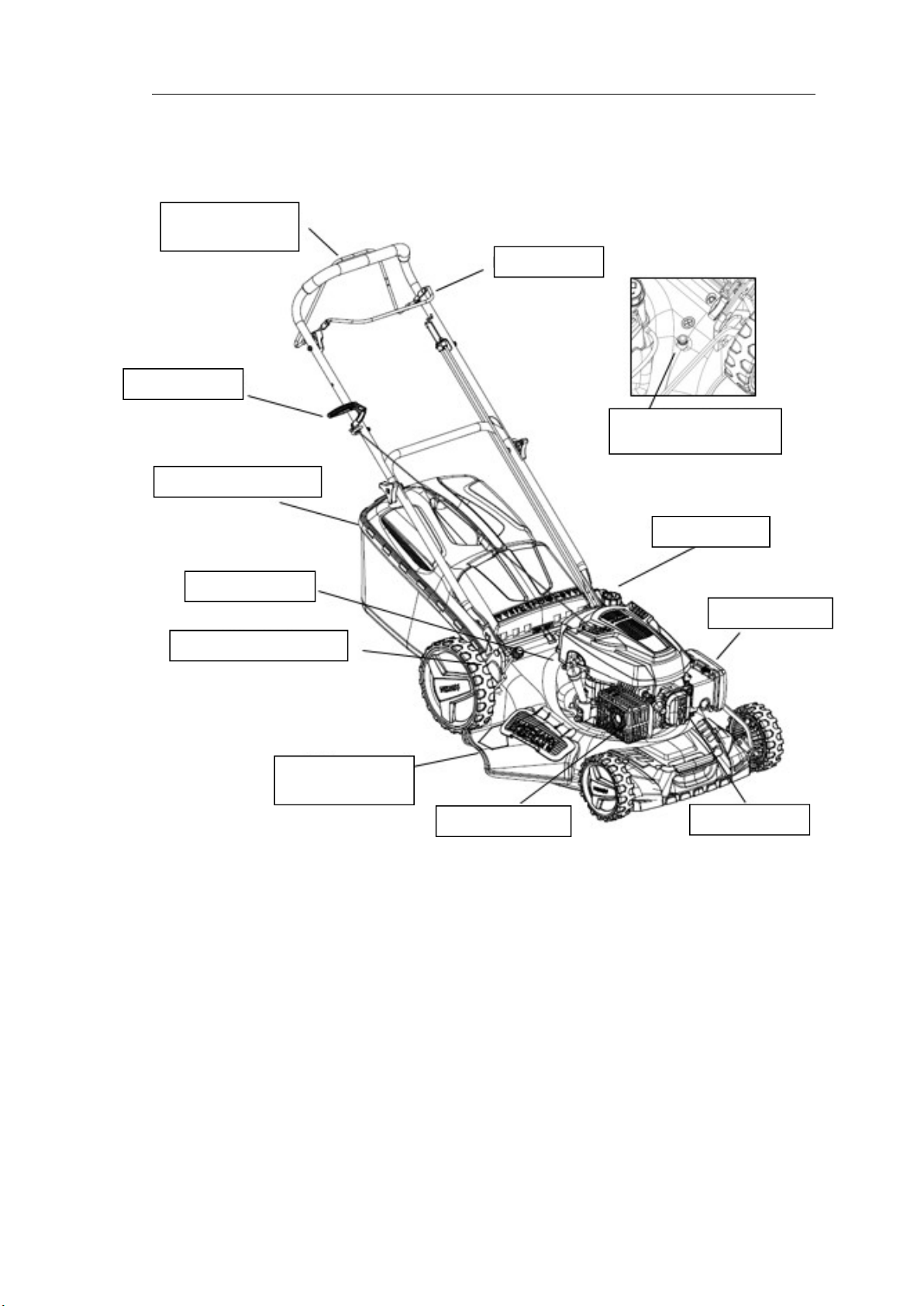

4. Your device at a glance
Except FX-RM5196eS (see next page)
Gear lever Wheel
drive
Brake lever
Easy Clean
Connection
Starter cable
Fuel cap
Grass collector
Air filter
Oil dipstick
Height adjustment
Side ejection
(optionalyl)
Exhaust pipe Spark plug

Original User Manual FUXTEC FX-RM Series_rev15
9
Model FX-RM5196eS
Gear lever Wheel
drive
Brake lever
Easy Clean Connection
Fuel cap
Air filter
Spark plug
Exhaust pipe
Side ejection
(optionalyl)
Height adjustment
Oil dipstick
Grass collector
Start button

Original User Manual FUXTEC FX-RM Series_rev15
10
5. Preface and preparation
Foreword
a) Read the instructions carefully. Familiarize yourself with the operating elements
and the proper use of the device.
b) Never allow children or other persons who are not familiar with the use of the
device to use the mower. Local regulations may limit the age of the operator.
c) Never mow when persons, especially children or pets, are nearby.
d) Remember that the user is responsible for accidents and damage to other people
or property.
Preparation
a) Always wear sturdy shoes and long pants when mowing. Do not operate the
device if you are barefoot or wearing sandals
b) Thoroughly check the areas where the device is to be used and remove all objects
that could be whirled up by the device
c) WARNING - Fuel is highly flammable
- Store the oil in appropriate and designated containers
- Only fill the tank outdoors and never smoke when filling the device
- Fill up with fuel before starting the device. Never remove the cap of the fuel tank or
fill it up while the engine is still running
- If fuel is spilled, do not attempt to start the engine under any circumstances, but
move the device away from this location. Do not start the engine until the fuel
vapors have evaporated.
- Close all fuel tanks and container caps securely.
d) Replace defective mufflers.
e) Visually inspect the device before use to check that the blades, bolts, and blade
holders are not worn or damaged. Replace worn or damaged bolts and blades in
sets.

Original User Manual FUXTEC FX-RM Series_rev15
11
Safety Instructions
a) Do not use the device in an enclosed space where dangerous carbon monoxide can
accumulate.
b) Mow only in daylight or under good artificial light.
c) If possible, avoid using the device in humid conditions.
d) Make sure that you have a firm stand on hangers.
e) Never run with the device, but walk.
f) Always mow crossways with the device on slopes and not up and down.
g) Be especially careful when changing direction.
h) Do not mow excessively steep slopes.
i) Be especially careful when mowing backward or in your direction.
j) Turn off the engine if the mower needs to be tilted due to transportation to move it
to another mowing area.
k) Never use the device with defective protective shields or without protective devices,
such as slipped discharge chutes or cuttings catcher.
l) Do not change the engine settings or increase the speed.
m) Disconnect the blades and tighten the starter cord slightly before starting the engine.
n) Start or start the engine carefully according to the instructions. Keep your feet away
from the blades.
o) Do not tilt the mower when starting the engine unless the device needs to be
inclined to start. In this case, do not tilt the device more than necessary and only lift
the part of the device that is away from the user.
p) Do not start the engine when someone is standing in front of the exhaust port.
q) Do not place your hands or feet near the rotating parts. Stay away from the exhaust
ports at all times.
r) Never lift or transport the mower while it is still in operation.

Original User Manual FUXTEC FX-RM Series_rev15
12
s) Stop the engine and remove the spark plug connector from the spark plug:
- Before cleaning a blockage or clogged pipes
- Before you check, clean, or perform any work on the device.
- After you have collided with a foreign object. Check
the device for damage and repair it before put the device back into operation.
- If the lawnmower vibrates excessively, check this immediately.
t) Stop the engine:
- When you leave the mower/ Before refilling
Maintenance and Care
a) Make sure that all nuts, screws, and bolts are tight so that the device can work safely
b) Never store the device with fuel in the tank in buildings where vapors of open flames or
sparks can be generated
c) Let the engine cool down completely before storing the device in closed rooms
d) Keep the engine, silencer, battery compartment, and fuel tank free of grass clippings,
leaves, and grease to reduce the risk of fire
e) Check the grass catcher regularly for wear or loss of functionality
f) Always replace worn or damaged parts for safety reasons
g) If the fuel tank has to be emptied, this should be done outdoors

Original User Manual FUXTEC FX-RM Series_rev15
13
Description of security symbols
The following icons are found on the device to remind you of the care and warnings that are required. The meaning of the
symbols:
IMPORTANT: This device could amputate hands and feet and throw objects. Failure to observe the following safety
instructions may result in severe injury or even death.
WARNING: Always remove the spark plug connector from the spark plug to prevent accidental operation of the device
when adjusting, transporting, or repairing it.
WARNING: Engine exhaust fumes, some of its components contain or emit carcinogenic and harmful chemicals.
ATTENTION: The exhaust muffler and other parts of the engine become very hot during the use of the device and remain
hot for some time after the device is turned off. Stay away from the hot parts of the appliance to avoid burns from contact with
the parts.

Original User Manual FUXTEC FX-RM Series_rev15
14
6. General operating and safety instructions
- Please read the user manual carefully. Familiarize yourself with the control elements and
the proper use of the device.
- Never place your hands and feet near the rotating parts of the device. Stay away from the
outlet opening at all times
- Let only responsible users who are familiar with the operation of the device use this device.
- Thoroughly check the area where the device is to be used and remove all objects that could
be thrown around by the device.
- Never use the device when persons, especially children or pets, are nearby.
- Always wear sturdy shoes and long pants when using the device. Do not operate the device
if you are barefoot or wearing open sandals.
- Do not pull the device backward unless necessary. Always look down and behind you
before and while moving the device backward.
- Never operate the mower with defective or unprotected guards, such as improperly
installed deflectors and clippings.
- Use only accessories recommended by the manufacturer
- Stop the knives when crossing gravel driveways, paths, or roads.
- Stop the engine and disconnect the spark plug connector from the spark plug,
- before you remove blockages and clear the cutting channel.
- before you check, clean, or carry out any work on the device.
- after you have detected a foreign object. check the device for damage and repair it before
you put the lawnmower back into operation.
- if the lawn mower vibrates unusually strongly, you should check it immediately
- Turn off the engine and wait until the blades have come to a complete stop before
removing the clippings.
- Use the device only in daylight or in areas that are well lit with artificial light.
- Do not operate the device if you are under the influence of alcohol or drugs.
- Never use the device on wet grass. An unstable stand can lead to slipping. Hold the handles
firmly while mowing. Never run when using the device.
- Release the self-propelled mechanism before starting the engine
- Replace defective silencers.
- Always wear safety glasses or safety goggles with side shields when using the mower
- Remove obstacles like stones, and the tree remains, etc.
- Watch out for pits, furrows, or bumps. Tall grass can hide foreign objects.
- Do not mow at differences in height, ditches, or dams. The user of the device may lose his
footing and balance
- Do not mow on excessively steep slopes.
- Note that the user of the device is responsible for accidents or injuries to other people or
property
- Be alert and switch off the device when children enter the work area.
- With rotating devices, you should mow horizontally and not vertically over the slope.
- Never allow children or persons not familiar with the operation of this lawnmower. Local

Original User Manual FUXTEC FX-RM Series_rev15
15
regulations may limit the age of the user.
- WARNING - Gasoline is extremely flammable.
- Store gasoline in containers designed for this purpose.
- Fill the tank outdoors only. Never smoke while filling the tank.
- Add gasoline before starting the engine. Never remove the filler cap or fill the tank with
gasoline while the engine is running or still hot.
- Never start the engine if the oil is spilled. Move the device to another location. Avoid any
kind of ignition or sparking until the petrol fumes are entirely removed.
- Carefully replace all fuel tank and container caps
- Inspect the blades, bolts, and cutters for visible wear and damage before using the device.
Replace worn or damaged blades and bolts in sets to avoid imbalance.
- Never change the safety devices. Check their proper function regularly.
- Keep the device free from grass, leaves, and other residues. Remove any oil or fuel
residues. Let the device cool down before storing it.
- Be incredibly attentive when changing the mowing direction on slopes.
- Never attempt to adjust the cutting height while the engine is running.
- The crop catcher and its parts are subject to wear, damage, and abrasion, which could
expose rotating parts. This can lead to objects being thrown. Check the individual parts
regularly and, if necessary, replace them with original spare parts recommended by the
manufacturer.
- The blades are sharp and cut precisely. Be careful when servicing the blades. Wrap the
blades in a cloth or wear protective gloves.
- Do not change the engine speed controller and do not overload the motor
- Be especially careful when moving the mower backward or towards you.
- Stop the blades when the mower needs to be tilted for transport, especially when crossing
surfaces other than grass.
- Disconnect all blades and control clutches before starting the engine.
- Start the engine carefully as described in the instructions, keeping your feet away from the
blades
- Do not tilt the lawnmower when you turn on the engine, except when the lawnmower
needs to be inclined to start. In this case, you should not tilt it more than necessary. Only lift
the part that is away from the user.
- Do not start the engine if you are standing in front of the outlet duct
- Never transport or carry a lawnmower while the engine is still running.
- Reduce the brake setting while turning off the engine and if the engine is equipped with a
shut-off valve. Turn off the fuel supply at the end of the mowing operation. Go slowly when
using a transport device.

Original User Manual FUXTEC FX-RM Series_rev15
16
7. Installation / Presettings
Read this manual thoroughly and carefully before installing and using your lawnmower.
IMPORTANT: The lawnmower is sold WITHOUT OIL OR FUEL. Your new lawnmower has been assembled and tested at the
factory.
REMOVE ANY CARDBOARD PARTS FROM THE LAWNMOWER
Remove the device from the box and check the entire packaging thoroughly for loose parts.
IMPORTANT: For assembly steps 1-3, depending on the model, your lawnmower will be delivered entirely pre-assembled
(assembly variant 1) or in two packages (assembly variant 2). We, therefore, ask you to consider two assembly variants in the
following. Assembly step 4 is the same for all variants.
Body version 1 (46s
models)
1. Remove the lawnmower from the packaging
2. Insert the lower spar (A) into the body and mount it laterally on the right and left with a screw.
3. Insert upper spar (B) and tighten with orange wing nut, then tighten screws + nuts on both sides.
B
A/1.
3.

Original User Manual FUXTEC FX-RM Series_rev15
17
Body version 2 (51s models)
1. Remove the lawnmower from the packaging
2. Remove the lower spar (B) from the accessory pack (or main pack) and screw it to the central unit (upper hole) with
screws + nuts (2)
3. Screw upper spar (A) to mounted lower spar (B) using orange wing nuts + screws (1).
A
B
2
1

Original User Manual FUXTEC FX-RM Series_rev15
18
IMPORTANT: on some models, the front wheels are removed to prevent damage to the axle during shipping. The wheels are
simply screwed onto the axle with the nuts supplied.
ADJUSTING THE CUTTING HEIGHT
Raise the wheels for low cutting height and lower the wheels for high cutting height. Adjust the cutting height according to your
needs centrally using the height adjustment handle (see illustration on page 2). The middle position is the most suitable
position for most lawns.
FILL OIL BEFORE STARTING THE ENGINE
Before each subsequent use, check the oil level and, if necessary, top up with SAE30 engine oil. Refer to the table in Chapter 1
Product Specification for the filling quantity.
Your lawnmower is delivered to you without 4-stroke oil.
ATTENTION: DO NOT overfill the engine with oil. It could
lead to the smoke formation in the muffler when starting.
1. Make sure that the lawnmower is level
2. Remove the dipstick from the oil filler tube
3. Insert the dipstick and pull it out slowly to check the oil level
IMPORTANT:
- Check the oil level before each use. Add oil if necessary. Fill up to the oil gauge on the dipstick.
- Change the oil every 25 working hours or every season. You will likely need to change the oil more often in dusty and dirty
conditions. Refer to chapter 10 "Changing the oil."
Refuel with SUPER GASOLINE 95 octane (no mixture)
Fill the fuel tank to the bottom of the filler neck. Do not overfill the tank. Use fresh, clean unleaded fuel. Never mix oil with
gasoline. Purchase fuel in quantities that can be used within 30 days to guarantee the freshness of the fuel.
Prolonged storage of the lawnmower will change the chemical composition of the gasoline, which can cause starting difficulties
and unsteady running of the engine.
ATTENTION: Remove any oil or gasoline residue. Do not store, spill, or use gasoline near naked flames.

Original User Manual FUXTEC FX-RM Series_rev15
19
ATTENTION: Fuels mixed with alcohol (called gasohol) or the use of ethanol or methane can attract moisture, causing
separation and formation of acid during storage. Acidic gases can damage the engine's fuel system while the device is in
storage. Drain the tank system if the device is stored for more than 30 days to avoid damage to the motor. Empty the fuel tank,
start the engine and let it run until the fuel line and carburetor are empty. Use fresh gasoline the next time you use the device.
Never use engine or carburetor cleaning agents inside the fuel tank. This can lead to permanent damage.

Original User Manual FUXTEC FX-RM Series_rev15
20
Mounting the tie bar apparatus
Mounting grass catcher bag
