FUXTEC FX-MSP2.2 Product information sheet

Original User Manual FUXTEC FX-MSP2.2_rev08
1
O
Original User Manual
FUXTEC Motor Sprayer Model FX-MSP2.2
Fig. similar
FUXTEC GmbH
Kappstrasse 69, 71083 Herrenberg-Gülstein, Germany

Original User Manual FUXTEC FX-MSP2.2
2
Table of contents
Introduction............................................................................................... 3
Safety and Warning Instructions .................................................................. 4
Commissioning of the device ....................................................................... 7
Filling and starting .................................................................................... 10
Nebulizing / Fogging ................................................................................. 14
Malfunctions and troubleshooting ............................................................... 15
Technical maintenance and storage ............................................................ 17
Technical execution .................................................................................. 19
EC Declaration of Conformity ..................................................................... 20

Original User Manual FUXTEC FX-MSP2.2
3
Introduction
The FUXTEC FX-MSP2.2 motorized sprayer is portable, flexible, and made of high-
quality / high-performance material for weed control and protection of plants in
large areas and the protection of crops. The device can also be used to remove
weeds, leaves and fertilizers, and salt spraying.
Before using your device for the first time, please read these operating instructions
carefully.
Warning!
The device is filled with a 2-stroke petrol mixture. The ratio between
gasoline and oil is fixed with a mixing rate of 25:1. Use a 2-stroke oil for
petrol engines. (It is generally forbidden to use another oil)
The device should have been in operation for 3-5 minutes before the engine
is stopped again. To avoid damages to the engine, it is generally not allowed
to run the device on the highest level before it has warmed up. Among other
things, it is strictly forbidden to stop the device at maximum speed.
To prevent fire, switch off the device when filling it with gasoline. Smoking
while filling the tank is not allowed!
Functions / Basics
 The device's main components are made of high-quality plastic; therefore,
the device has a lower weight.
 All parts are made of reinforced plastic; the steel and metal parts are rust-
free, making the materials less sensitive and more durable.
 The tank opening is kept broad, making it easy to fill the gasoline directly
from the canister.
 The processed components are of high quality and protected from heating.

Original User Manual FUXTEC FX-MSP2.2
4
Safety and Warning Instructions
1. Read the instructions carefully. Be sure that you have understood the
operating instructions precisely before you start working with the device.
2. Wear safety clothing / protective clothing such as:
1) Safety cap/protection cap
2) Safety glasses (fog)
3) Breathing mask
4) Long safety gloves
5) Safety clothing against toxic substances
6) Safety shoes
3. The following persons must not work with the device:
1) Alcoholized persons.
2) Minors and older people.
3) Persons who do not know the device.
4) People who are excited, nervous, and overtired.
5) Pregnant and breastfeeding women.
4. Prevention of fire
1) Do not light a fire or smoke near the device.
2) Do not fill the fuel tank while the engine is still warm.
3) Never fill the device after cleaning the device.
4) Always close the tank cap tightly.

Original User Manual FUXTEC FX-MSP2.2
5
5. Starting the device
1) Switch the dust nozzle to the lowest position before starting the device.
Otherwise, the chemical will be sprayed when you start the engine.
2) It is forbidden to stand at the front of the blow nozzle. Even if the spray nozzle
is closed, residues of the residual dust may be deposited on the tube.
6. Nebulizing / Fogging
1) It is recommended to use the device in cold weather. For example: in the early
morning or late afternoon. This can reduce the evaporation of the chemical and
thus improve the effect.
2) If your mouth or eyes contact the chemical, wash them out immediately with
water and see your doctor immediately.
3) If you have headaches or a dizzy spell, stop working with the device and see a
doctor for safety reasons.
4) When preparing the pesticides, the user should follow the instructions on the
label.
5) It is forbidden to use special liquids, those with strong acids or lye, etc.
Safety symbols on the device
WARNING: Improper operation can lead to
severe injuries!
Read this manual carefully to understand how to
use this device properly!
Please wear hearing protection during work!

Original User Manual FUXTEC FX-MSP2.2
6
Please wear a respirator and eye protection mask
during work!
Please wear protective gloves during work!
Please wear a protective suit during work!
Please wear safety shoes during work!
WARNING: Spray materials must not be inhaled
under any circumstances!
WARNING: highly flammable petrol mixture; avoid fire!
WARNING: Danger from hot components!
WARNING: Do not reach into nozzle or spray
openings during operation!
WARNING: Never change the device. Exhaust fumes
of this product contain chemicals that can lead to
cancer, congenital disabilities, and other diseases!

Original User Manual FUXTEC FX-MSP2.2
7
Commissioning of the device

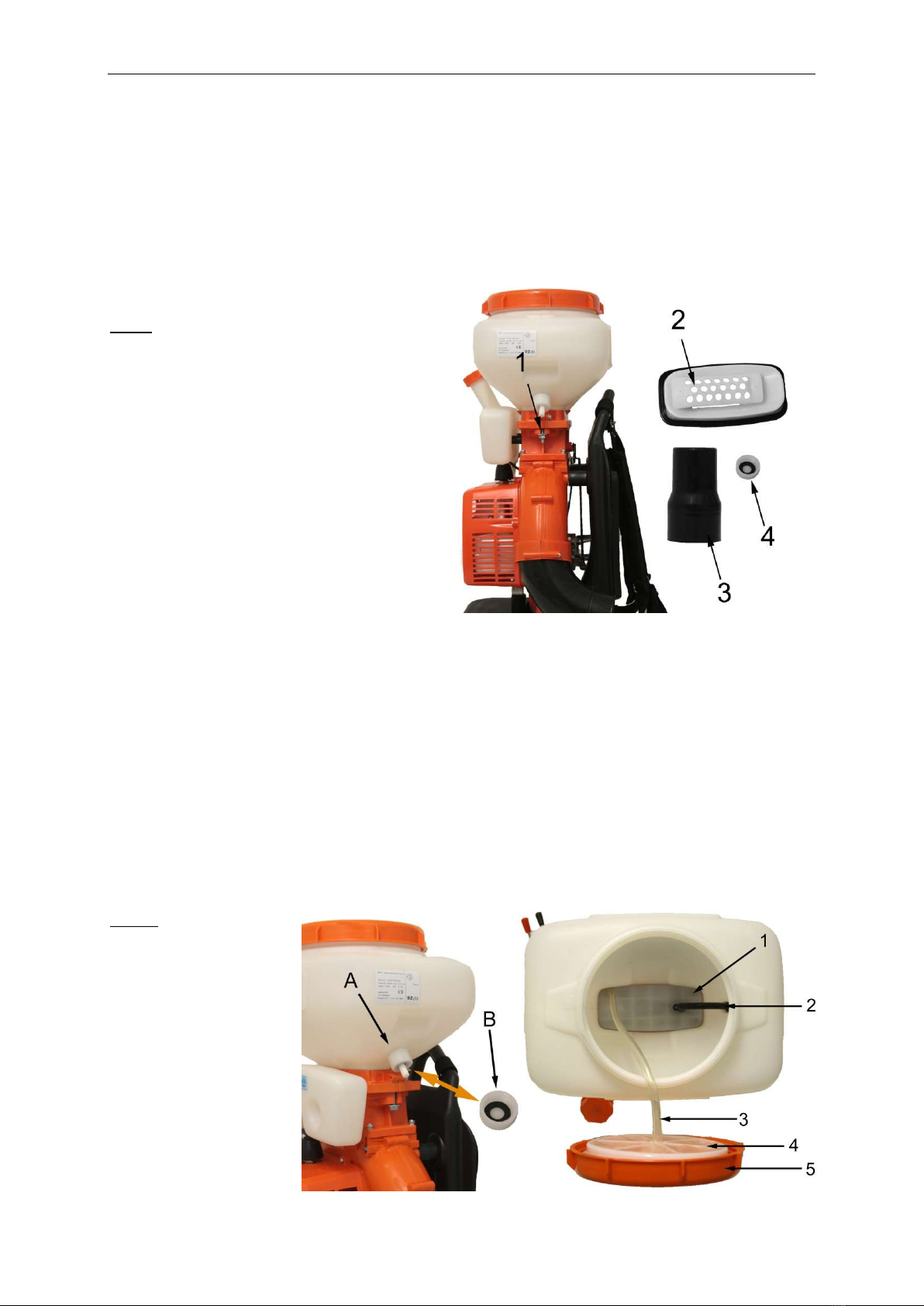

1. Change from liquid to granulate sprayer (e.g., salt)
Remove the side safety nuts (1) of the chemical tank and disassemble the tank
(see next step in fig.2. Remove the spray insert and insert the granule insert (2,
Fig.1).
Fig.1
1. Security screw
2. Granulate insert
3. Granule attachment
4. Cover
Disassembly of the chemical tank
2) Remove the lower cover "A" of the chemical tank, change the spray nozzle
connected to the rubber tube/hose, and screw on the cover "B." (Make sure that
the sealing ring is present to prevent the granules from leaking) as shown in Fig.
3.
Screw on the cover. Loosen the hoses (2+3) and the filter (5).
Fig. 2
1.Use of chemicals
2.Hose
3.Hose
4.Filling filter
5.Cover

Original User Manual FUXTEC FX-MSP2.2
8
Fig. 3
1.Sealing
2.Connection
3.Fixing screw
3)Connect the spray unit to the device as shown in Fig. 4
2. Assembly of the spray nozzle
Fig. 5
1. Flexible hose
2. Spray pipe
3. Handle/gas handle
4. Pipe Elbow
5. Spray attachment chemical
6. Pipe clamps
7. Hose
1
3
2
6
4
5
7

Original User Manual FUXTEC FX-MSP2.2
9
3. Anti- Electrostatic Installation
Dusting or spreading of the chemical granules can generate electrostatic charges.
This is proven after the application of such chemicals under certain conditions of
air temperature and humidity.
Please use the enclosed safety chain (C) to avoid electrostatic charges and mount
the cable lug (A) on the pull starter. Please loosen one screw of the starter and
push the cable lug (A) underneath. Then retighten the screw of the starter. When
the air becomes humid, the electrostatic charge is high, especially if the tube's
skin used to spray and distribute the granules is damp. Electrostatics often occur.
Please pay attention to this.
Fig. 7
The safety chain C should be freely suspended and touch the ground for grounding
during work.
At the same time, please install the ground cable (B) under the hose clamp, as
shown in Fig. 7.

Original User Manual FUXTEC FX-MSP2.2
10
Filling and starting
1.Testing before commissioning
1) Check if the spark plug etc. is loose.
2) Check if the air cooling opening is blocked to prevent overheating.
3) Check if the air filter is dirty.
4) Press the starter 2-3 times to see if the device's operation is regular.
2. Refuelling
1) Switch off the engine before filling the tank.
2) We recommend a petrol mixture 25:1 - 40:1; the oil must be 2-stroke engine
oil. For the first 4-5 hours of operation, a mixing ratio of 25:1 should be used. An
incorrect mixing ratio can destroy the function of the motor. The unit is not
designed for special fuels or ready-mixes.
3. Filling of chemicals
1) While filling the chemicals, the OPEN / CLOSE switch must be locked, as shown
in Fig.8. While the spray tank is being filled with the chemical, the device should
be placed on the floor. Otherwise, chemicals may escape from the device.
2) Because the chemical powder can easily block the spray lines, the chemical
should not be in the tank for long.
3) While spraying, the chemical tank cap should be tightly closed. After spraying
the chemical, please clean the lid of the chemical tank cap and tighten the cap.
Fig. 8

Original User Manual FUXTEC FX-MSP2.2
11
4. Cold start
Please follow the instructions before operating the device:
1) move the fuel lever to the start position (Fig. 9).
2) Pull the choke lever to the ON position.
3) Slide the start/stop switch to the start position.
5) Pull the starter cable 2-3 times and release it slowly. To avoid damage to the
engine, do not remove the handle quickly.
6) Close the choke and pull the starter cable until the device ignites.
7) Let the device run at low speed for 2-3 minutes, then you can activate the
spraying system.

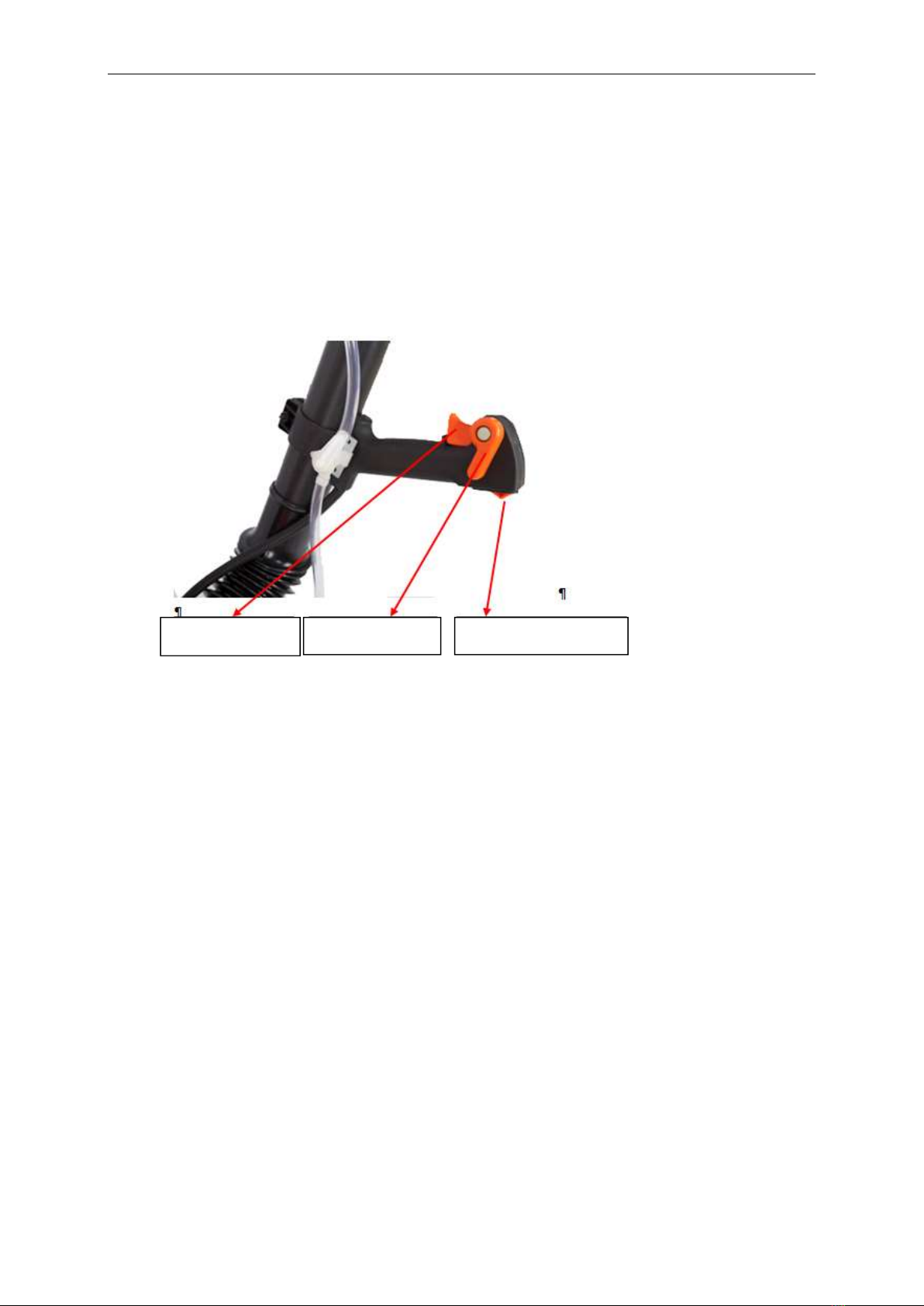

Throttle lever
Locking lever
Start/Stop switch

Original User Manual FUXTEC FX-MSP2.2_rev08
12

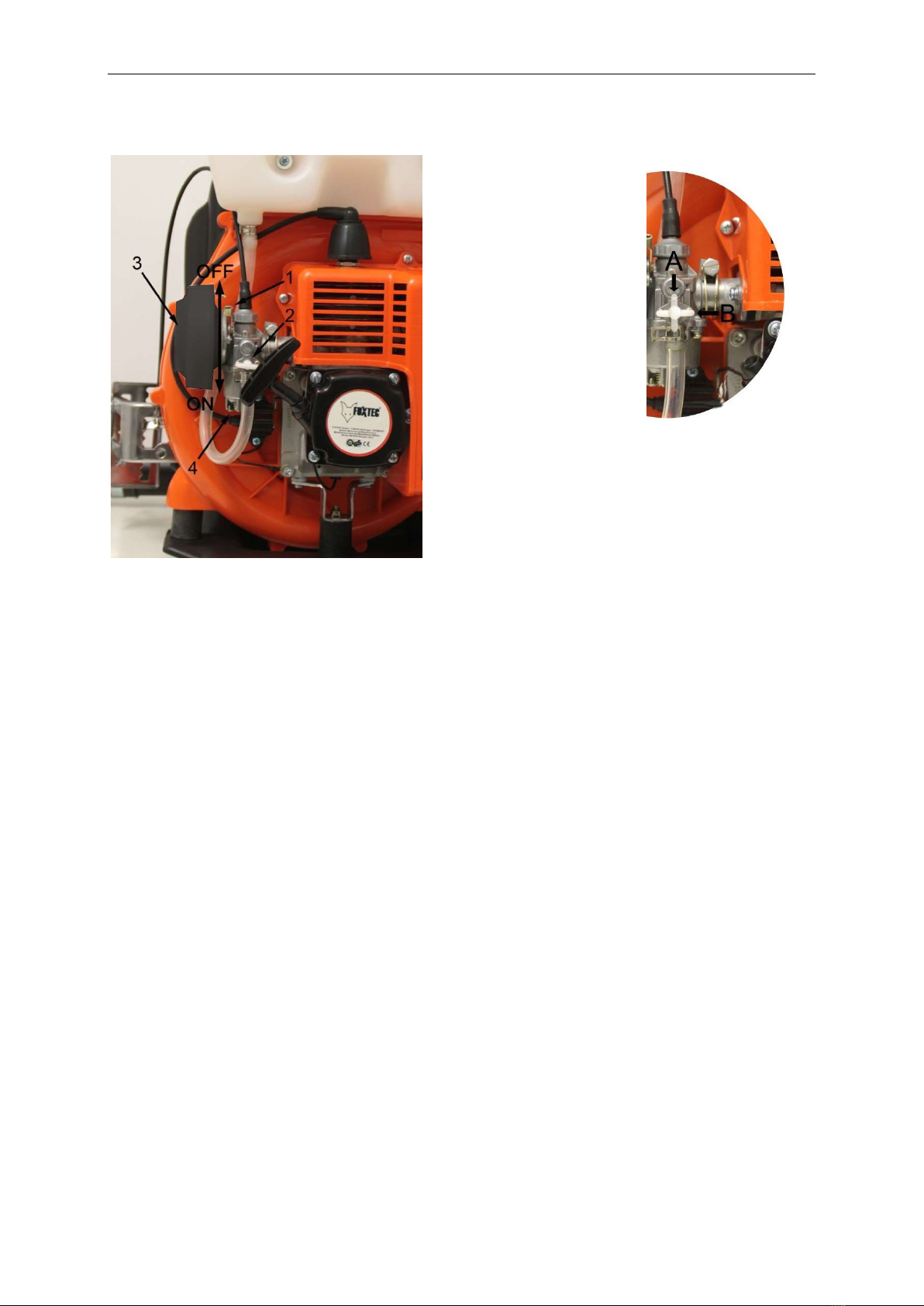

Fig. 9
1. Choke lever
2. Petrol tap Pos. A: OPEN
Pos. B: CLOSE
3. Air Filter
4. Primary pump
5. Warm start
1) Leave the choke in the OFF position.
2) Set the fuel lever to the ON position.
3) Pull the starter cord 2-3 and release it slowly.
Attention:
1) Do not pull the starter cable beyond the dead centre. Otherwise, it may tear or
damage the device.
2)The starter cable is not part of the warranty.
Petrol tap

Original User Manual FUXTEC FX-MSP2.2
13
Switching off the device
1) During operation, first switch off the chemical spray function and then stop the
device by moving the start/stop switch to the Stop position.
2) During the dusting function, push the fuel and dusting lever to the closed
position. That leads to emptying of the spraying device.
3) After finishing work, close the fuel switch.
Please note: When the device is running, your clothing must be tight and must not
come into contact with the device. Otherwise, the appliance cannot suck in cooling
air, thus reducing performance and damaging the device.

Original User Manual FUXTEC FX-MSP2.2
14
Nebulizing / Fogging
1) Spray: Open the spray cover and adjust the spray nozzle's length to obtain the
required quantity. Use the control to change the amount of atomization. Fig. 11
Fig. 11
2) Fogging: Adjust the removal dosage during the spraying process on the boom
(see Fig. 12) at one of the ten positioning holes on the adjustment arm.
Fig. 12
Opening Filling (L/min)
1 1
2 1.5
3 2
4 3

Original User Manual FUXTEC FX-MSP2.2
15
Malfunctions and troubleshooting
The device starts badly or cannot be started at all:
Check whether the spark plug generates a spark. Unscrew the spark plug. Insert
the spark plug back into the spark plug connector and ensure that the spark plug
is grounded. Check the voltage and see if the spark plug has an ignition spark. Be
careful with the starter motor; do not touch the metal on the spark plug for
protection to prevent electric shock.
Fig. 15
ENGINE
Please note that the following maintenance
intervals apply only under normal operating
conditions. Longer working hours or extreme
working conditions (too dusty working area,
etc.) shorten the recommended intervals
accordingly.
Before use After use or every day After each filling monthly annually When problems occur If damaged On-demand
Complete device Visual inspection
(condition, fuel,
and other
leaks)
x x
Cleaning x
Control handle Check operation x x
Incorrect

Original User Manual FUXTEC FX-MSP2.2
16
Air Filter Cleaning x x
Change by a service dealer
1)
x
Housing Check x
Replace 1) x x x
Fuel tank Cleaning x x
Carburettor Check idle speed setting -
tools must not move 2)
x x
Correct Idle Speed x
Spark plug Correct electrode gap x
Replace after approx. 100
operating hours
Cooling air inlet Inspection x
Cleaning x
Spark arrester in
exhaust silencer
Check x x
Have it cleaned or replaced
1)
x x
Accessible screws
and nuts (not set
screws)
Tightening x
Security stickers Replace x
1) Please contact the service department of FUXTEC GmbH
2) Screw-in the carburettor screw completely, then turn it back on 1.5 turns.

Original User Manual FUXTEC FX-MSP2.2
17
Technical maintenance and storage
1. Technical supervision of the spray components
1) After spraying, clean all residues of the mixture from the chemical tank. Wash
the tank and all other parts.
2) After spraying or granule distribution, clean the spray extension and chemical
tank inside and outside.
3) After use, loosen the chemical tank cap.
4) After cleaning, let the device run for 2-3 minutes.
2. Maintenance and care of the tank system
1) Do not leave the 2-stroke petrol mixture in the tank for a more extended time.
2) If a residual amount of the filling quantity remains in the fuel tank and
evaporator for a more extended period, the tank residues would stick/settle and
clog the lines, thus the device will not run properly. If the device has been in
operation for a week, all fillings must be removed.
3. Maintenance of air filter and spark plug
1) Immediately after use, wash down the chemicals with a sponge. Otherwise,
the device's performance could drop. Please pay special attention to this.
2) Please clean the air filter regularly.
3) Adequate distance of the spark plug is 06.-0.7mm; please check the space more
often; if it is too big or too small, determine the distance exactly as in Fig. 16.
Fig. 16
4. Storage for a longer time
1) External cleaning of the device. Treat the outer
metal surface with anti-rust oil.

Original User Manual FUXTEC FX-MSP2.2
18
2) Remove the spark plug. Pour 15-20g of engine oil into the cylinder; the engine
oil should be a 2-stroke oil for gasoline engines. Then screw the spark plug back
in.
3) Unscrew the two wing screws. Remove the tank from the device. Clean the
atomizer and the surface inside and outside the chemical tank. If chemical residues
remain in the atomizer, the atomizer may stick and become defective.
4) Afterwards, put the chemical tank back in place and loosen the tank cap.
5) Remove the syringe element and clean it.
6) The whole gasoline mixture should be taken from the gas tank and carburettor.
7) Cover the device with a plastic sheet and store the device dry and dust-free.

Original User Manual FUXTEC FX-MSP2.2
19
Technical execution
Model FX-MSP2.2
General dimensions (mm) 420×500×800
Net weight (kg) 11.5
Chemical tank capacity (L) 26
Delivery
Dimensions of
the chemicals
Spray mixture (L/min) ≥4
Fog mixture (kg/min) ≥6
Range (m) ≥11
Quantity of fuel mixture between
gasoline and motor oil
25:1
Fuel mixture tank capacity (L) 1.4
Blower speed (r/min) 7,500 – 8,000
Engine type
1E40FP-3Z
Start procedure / ignition
CDI

Original User Manual FUXTEC FX-MSP2.2
20
EC Declaration of Conformity
according to the directive 2006/42/EC and the addendum 2009/127/EC
FUXTEC GmbH
Kappstrasse 69, 71083 Herrenberg - Germany
declares in sole responsibility that the product
Model: Motor Sprayer FX-MSP2.2
to which this declaration refers, fully complies with the relevant essential health
and safety requirements of Directives 2006/42/EC with the supplementary
addendum 2009/127/EC and the needs of the other applicable directives.
EN ISO 28139:2009
Conformity assessment procedures: 2000/14/EC
EC type-examination certificate: ON 50439840 0001
Test report number: 17704723 005
Tested according to: DIN EN ISO 28139:2009
TÜV Rheinland LGA Products GmbH, Tillystraße 2, 90431 Nuremberg, Germany
Herrenberg, April 8, 2020
Tim Gumprecht
(Managing Partner)
