Fwe Uhst series User manual

TOP MOUNT HEAT SYSTEMS

OPERATING

INSTRUCTIONS

UHST SERIES

TST SERIES

PST SERIES

BT SERIES

ORIGINAL INSTRUCTIONS

INTERNATIONAL/DOMESTIC

Caution: Read the

instructions before

using the machine.

2FWE TOP MOUNT HEAT SYSTEM

WARNING SYMBOLS

FWE TOP MOUNT HEATED HOLDING CABINETS

WARNING SYMBOLS*

To indicate hazards arising from dangerous

voltages

To identify the terminals which, when connected

together, bring the various parts of an equipment or of a

system to the same potential.

To identify the terminal which is intended for

connection to an external conductor for protection against

electric shock in case of a fault, or the terminal of a protec-

tive earth (ground) electrode

To indicate that the marked item can be hot and should not

be touched without taking care

To indicate the “ON” condition for a part of

equipment

To indicate the “OFF” condition for a part of

equipment

To indicate the stand-by or preparatory state for a part of

equipment

To indicate maximum ll level

To indicate minimum water level

*SYMBOLS MAY VARY FROM UNIT TO UNIT

INSTALLATION

3

FWE TOP MOUNT HEATED HOLDING CABINETS

CASTER DESCRIPTION

2” GREY RUBBER CASTER,SWIVEL W/BRK

CASTER 2” RIGID

CASTER 3” RIGID

CASTER 3.5” RIGID HEAVY DUTY

CASTER 4X2” EZ ROLL RIGID POLYBLUE

CASTER 5” RIGID HEAVY DUTY

CASTER 5” RIGID SUPER DUTY

CASTER 5” SWIVEL BRAKE RB GRS FIT Poly

CASTER 5” RIGID EZ ROLL POLY

CASTER 5” SWIVEL BRAKE EZ ROLL POLY

CASTER 6” RIGID HEAVY DUTY

CASTER 6” RIGID SUPER DUTY

CASTER 6” SWIVEL BRAKE EZ ROLL POLY

CASTER 6” RIGID EZ ROLL POLY

CASTER 8” PNEUMATIC RIGID

CASTER 8” RIGID HEAVY DUTY

CASTER 8” RIGID SUPER DUTY

CASTER 8” SWIVEL BRAKE EZ ROLL POLY

CASTER 8” RIGID EZ ROLL POLY

MAX WEIGHT

34Kg

68Kg

113Kg

272Kg

124Kg

226Kg

340Kg

362Kg

158Kg

272Kg

453Kg

113Kg

226Kg

272Kg

544Kg

IN THE EVENT OF ACCIDENT OR

BREAKDOWN - UNPLUG UNIT.

FOR SERVICE INQUIRIES PLEASE CALL

FWE SERVICE - 800-222-4393

Improper use of this machine can result in injury and/or death.

A schedule should be put in place for inspections and

preventative maintenance.

New users should be properly trained in the use of this

equipment.

No special protective equipment is required to operate

this unit.

Unplug unit before servicing.

SEE SHIPPING LABEL FOR CASTER SIZE

CLEANING

WARNING AND CLEANING CARE

4FWE TOP MOUNT HEAT SYSTEM

FWE TOP MOUNT HEATED HOLDING CABINETS

Keep your cabinet clean by simply wiping the interior and

exterior, as needed, with a damp cloth or sponge and a mild

soapy solution.

NEVER USE ABRASIVES, ACIDS, OR STRONG

CLEANERS.

Do not flood or allow electrical parts to become wet. The

interior tray slide assemblies and humidifier pans are

removable for easy cleaning.

A stainless steel cleaner/polish is recommended for the

exterior to maintain a “like-new” appearance.

DO NOT USE WAX OR STRONG CLEANERS ON DOOR

GASKETS OR VINYL TRIM.

FWE TOP MOUNT HEATED HOLDING CABINETS

For U.S. and Canada Models:

The amperage of your cabinet is stamped on the name plate

serial tag attached to the unit. FWE models are equipped with

a grounded cord plug for your protection against possible shock

hazards. Be sure to plug only into a properly grounded wall

receptacle. If you have any questions with regard to adequate

wiring or grounding in your building, a qualified electrician should

be contacted before using your cabinet.

For International Models:

May be shipped with no cord or plug.

Contact qualified service personnel for cord and plug installation.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE

THE GROUNDING PRONG FROM THE

CORD PLUG.

WARNING: ONLY QUALIFIED SERVICE PERSONNEL

SHOULD REMOVE, REPAIR OR REPLACE ELECTRICAL

COMPONENTS OR WIRING.

BE SURE THAT MODEL IS UNPLUGGED FROM ELECTRICAL

SOURCE BEFORE REMOVING

CONTROL PANEL, MOVING, CLEANING, OR SERVICING

UNIT.

ELECTRICAL REQUIREMENTS AND GROUNDING

INTENDED USE AND REQUIREMENTS

This unit is to be used for warming only.

Unit must be installed level.

5

REQUIREMENTS

FWE TOP MOUNT HEATED HOLDING

CONGRATULATIONS...

...and thank you for purchasing an FWE Top Mount Heated Holding

Cabinet. Your unit has been designed and manufactured under rigid

controls to assure you the most efficient service. It is a full time unit,

and may be used continuously.

Please take a moment to read through this booklet of important

information pertaining to your cabinet. By following a routine of

proper use and care described on the following pages, your cabinet

will last for many years.

IMPORTANT: Your Manufacturer Registration Card must be

returned within 30 days after initial delivery to activate the warranty.

SERIAL AND MODEL NUMBER

UNPACKING

These numbers are found on the nameplate (serial tag) affixed

near the electrical cord portal. Please record them in this

booklet, in the space provided on page 12. When ordering

parts and/or service, you will need to provide this information.

The voltage and amperage of the unit are also stamped

on the serial tag.

After uncrating your cabinet, remove all tape and padding

which held all doors, shelves, racks, cord, etc., in place during

shipment.

6FWE TOP MOUNT HEAT SYSTEM

7

FWE TOP MOUNT HEATED HOLDING CABINETS

GENERAL OPERATING INSTRUCTIONS

1) PLUG CABINET INTO A PROPERLY GROUNDED POWER

RECEPTACLE. If your unit has an illuminated switch, it will illuminate

when turned on.

2) SELECT A TEMPERATURE SETTING. For most foods, a holding

temperature of 150°F - 160°F (65.6°C to 71°C) should be adequate.

The cycling light indicates the heating element is on.

3) PRE-HEAT CABINET FOR 20-30 MINUTES.

When the cycling light goes off, the unit has reached the temperature

which you selected. However, for best results, allow cabinet to fully

pre-heat for 20-30 minutes. Load with your HOT foods. Plates may be

heated in the cabinet before dish up, but this will require extra

pre-heating time.

Pre-heat times depend on the size of your cabinet. Adjust your pre-heat

time according to the size of your cabinet and the length of your

transport time.

AVOID PUTTING YOUR HOT FOODS INTO A COLD CABINET!

By pre-heating the unit 20-30 minutes before each use, you can be

assured of maintaining the temperature and obtaining the best results

from your cabinet.

PREPARING THE CABINET BEFORE LOADING FOOD

LOAD HOT FOOD INTO A PRE-HEATED CABINET

4) LOAD THE CABINET. During the loading procedure, keep the doors

closed as much as possible. After loading is completed, do not open

doors again until you are ready to serve.

5) TRANSPORTING HOT FOODS - Before moving the cabinet, keep it

plugged in and wait until the cycling light goes off. This recovery takes

only a short time and allows the internal temperature to again reach the

setting you have selected. As soon as the cycling light goes off, unplug

the cabinet and wheel to serving area. Plug the cabinet into an

electrical outlet at the serving location (if available) so the thermostat

will re-activate and automatically hold your pre-selected temperature.

CHANGING TEMPERATURE SCALE FROM ° F to °C

1. Turn knob to OFF and turn rocker switch " ".

2. Turn rocker switch " " while pressing the “TEMP RECALL”. Repeat to

toggle from °F to °C

8FWE TOP MOUNT HEAT SYSTEM

CONTROL PANEL

FWE TOP MOUNT HEATED HOLDING CABINETS

TEMPERATURE DIAL

OPTIONAL LOW

TEMP ALARM

POWER

SWITCH

ACTUAL TEMP

LIGHT

CYCLE

LIGHT

TEMP RECALL

TO SET °F / °C SCALE

• The factory default is °F

• To change, turn the knob to OFF (detent location) and turn Power " "

• Turn Power " " while holding the ‘TEMP RECALL’ button, the control will show ‘0C’ or

‘0F’ for 3 seconds to verify selection and then return to displaying OFF

• Repeat to toggle to the other units

Note: With a power fail, factory test, etc, the control will retain the 0C or 0F setting

selected by the user when the power is restored.

FWE TOP MOUNT HEATED HOLDING CABINETS

9

OPTIONAL LOW TEMP ALARM

LOW TEMP ALARM OPERATION*

Unit has an optional “Low Temp Alarm” operation, allowing the

operator to have an audible and a visual indicator that the heated

cabinet temperature falls below the "Low Temperature" set point for

more than two (2) minutes.

1) Adjust Set Point: Press and hold “Low Temp Alarm” for six (6)

seconds. Rotate dial to desired set point between “ " and from

90°F (32°C) and 190°F (88°C). Display will beep and show "LTA"

for two (2) seconds release button to accept adjustment. When the

internal cabinet temperature falls below the desired "Set Point" for

more than two (2) minutes, the audible and visual alarm will alert

you to this condition.

2) Recall Set Point: Press "LOW TEMP ALARM" key.

Display shows LTA set point for three seconds then reverts to

normal display.

3) Acknowledge: Press any key to cancel beeping

For Every ten (10) seconds, the display will show LTA for one (1)

second until temperature increases above LTA set point.

Note: The Low Temp alarm will auto-reset once Oven Setpoint is

reached again. The idea is if the user has perhaps left the door

open, the LTA alarm sounds to remind them to close it, with the user

pressing either key to stop the beeping. Once the door is closed and

the oven temperature rises again to oven setpoint, the control

re-enables the LTA alarm in case the user fails to close the door

again.

4) Disable: Follow the adjustment steps above.

A rotation of the dial "down" below 90°F (32°C) turns the alarm

feature off.

*LOW TEMP ALARM DOES NOT COME STANDARD WITH HLC UNIT SERIES

BUT IS AN OPTIONAL FEATURE

10 FWE TOP MOUNT HEAT SYSTEM

FWE TOP MOUNT HEATED HOLDING CABINETS

DIAL

POWER

CYCLING

INDICATOR

THERMOMETER

POWER ON AND SET TEMPERATURE

• Turn Power ""

Note: The green power cycling indicator light will turn on

• Rotate Dial to desired SET POINT.

• The unit will begin preheating to the temperature SET POINT

Note: When the element is on, the orange power cycling indicator light will turn on

PREHEAT

• When the cabinet is preheated, the orange power cycling indicator will turn off and will

remain off until cabinet begins its next cycle

NORTH AMERICAN ELECTRONIC CONTROL & MANUAL CONTROL INSTRUCTIONS

POWER

SWITCH

FWE TOP MOUNT HEATED HOLDING CABINETS

11

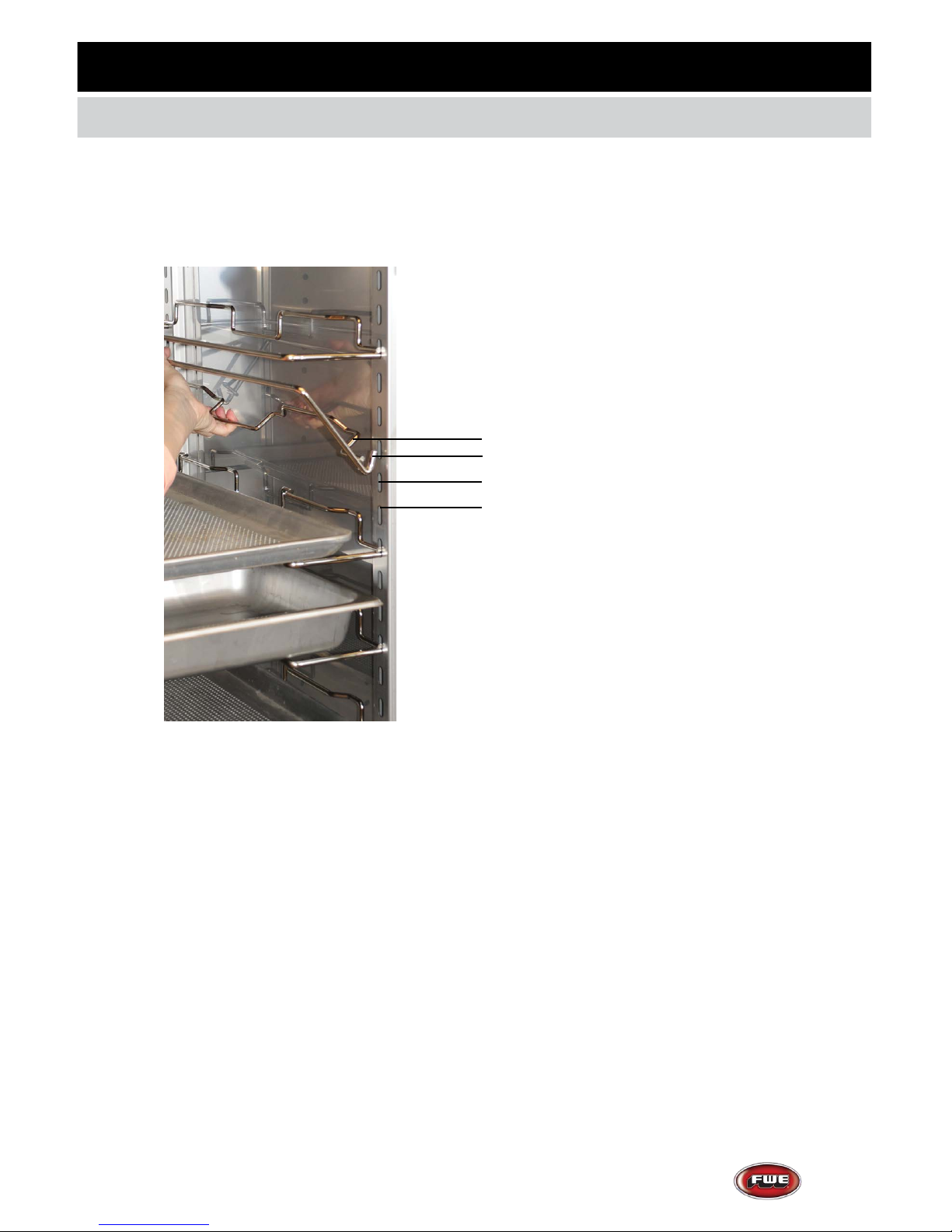

ADJUSTABLE TRAY SLIDES

EQUIPPED ON SOME MODELS.

Some cabinet models are equipped

with adjustable tray slides.

Adjust tray slide positions

by inserting “J” end of slide into

upright key hole.

Release tray slide from upright with

upward “J” motion.

Tray slides provide bottom

support of trays, pans, or shelves.

TRAY SLIDE

“J” END OF TRAY SLIDE

UPRIGHT

UPRIGHT KEY HOLE

TRAY SLIDES INSTRUCTIONS

Model Number ______________________

Serial Number ______________________

Date of Purchase ____________________

Notes:

___________________________________________________

CAUTION: HOLDING FOOD AT TEMPERATURES

OF LESS THAN 140°F MAY BE DANGEROUS.

TEMPERATURES UNDER 140°F PROMOTE THE GROWTH OF

HARMFUL BACTERIA AND TOXINS IN SOME FOODS.

FWE TOP MOUNT HEATED HOLDING CABINETS

12 FWE TOP MOUNT HEAT SYSTEM

SERVICE RECORD

NOTES

FWE TOP MOUNT HEATED HOLDING CABINETS

13

___________________________________________________

CAUTION: HOLDING FOOD AT TEMPERATURES

OF LESS THAN 140°F MAY BE DANGEROUS.

TEMPERATURES UNDER 140°F PROMOTE THE GROWTH OF

HARMFUL BACTERIA AND TOXINS IN SOME FOODS.

FWE TOP MOUNT HEATED HOLDING CABINETS

___________________________________________________

CAUTION: HOLDING FOOD AT TEMPERATURES

OF LESS THAN 140°F MAY BE DANGEROUS.

TEMPERATURES UNDER 140°F PROMOTE THE GROWTH OF

HARMFUL BACTERIA AND TOXINS IN SOME FOODS.

NOTES

14 FWE TOP MOUNT HEAT SYSTEM

FWE / Food Warming Equipment Company, Inc. (Seller) warrants to the original purchaser,

subject to the exceptions and conditions below, that FWE manufactured equipment shall be

free from defects in material or factory workmanship, under ordinary use for the purpose for

which it is designed. The effective warranty period is as follows:

PARTS: Seller will furnish without charge to the original purchaser, FOB Sellers’ factory,

replacement parts for repairs to all new standard catalog products and factory custom /

modified units, which in Seller’s sole judgment, prove defective in materials or workmanship

under normal and proper use with the reserved right to request the return of any part claimed

to be defective, prior to issuing replacement part or authorizing warranty service, for a period

of two (2) years from date of original shipment from Seller’s plant, except for equipment used

in a Correctional Environment / Facilities, which is warranted for a period of one (1) year

from date of original shipment from Seller’s plant.

LABOR: Seller’s labor warranty shall be performed by a Seller-approved Service Agency

who must contact Seller to obtain a Warranty Service Authorization (WSA) number prior to

performing any repairs. If service is required during overtime periods, the difference between

overtime and standard labor rates shall be paid by the purchaser. Seller does not assume any

responsibility for any charges not expressly authorized, incidental to the repair or replacement

of equipment covered by this warranty, nor charges exceeding, in Sellers sole judgment,

normal and customary amounts. Only approved travel charges will be allowed. Seller’s labor

warranty shall be from the date of original shipment date from Seller’s plant for a period of

one (1) year, except for equipment used in a Correctional Environment / Facilities which is

warranted for a period of six (6) months.

This warranty is for normal usage and does not apply to any product or parts thereof that

have been misused, altered, or where Seller’s operating instructions or specific voltage is not

observed; nor shall this warranty apply to defective products or parts resulting from accident

following date of original shipment, nor extend to or cover removal, installation, re-installation

or calibration, or service calls or cost of repairs undertaken by a customer. This warranty is

also subject to the following:

1.] Customer returning the warranty registration card, accompanying Sellers original

shipment, to Seller within thirty (30) days of receipt;

2.] Giving immediate notice of any allegedly defective part or product to Seller; and

3.] Customer, at Sellers request, returning said defective parts or product to Seller.

This is the sole warranty applicable to the merchandise. It is expressly understood that Seller’s

liability hereunder is limited to the repair or replacement, at Seller’s option, of products or parts,

defective materials or workmanship as provided above. Seller’s judgment as to the cause and

nature of any defect will be final. Seller shall in no case be responsible for special or

consequential damages or any other obligation or liability with respect to products sold by

Seller.

This warranty, as stated above, applies to equipment installed in the Continental United

States. FWE equipment installed outside the Continental United States shall carry parts

coverage only. All labor costs are approved on a discretionary basis, based on like repairs

in the Continental U.S. This warranty shall stand in whole or in part as allowed by law. Any

exclusion of a part of this warranty, as may be allowed by law, shall not void balance of

warranty.

This is a limited warranty pursuant to the Consumer Product Warranties Act, 15 U.S. Code. section 2303.

LIMITED TWO YEAR WARRANTY

FWE TOP MOUNT HEATED HOLDING CABINETS

15

Ops-Manual-TST R.16.02

FWE Parts Department:

www.FWEparts.com

Order Hotline: 800-222-4393

FOOD WARMING EQUIPMENT COMPANY, INC.

5599 HWY. 31 W. Portland, TN 37148

800.222.4393 |815.459.7500 |Fax: 815.459.7989

www.FWE.com |[email protected]

FWE UHST SERIES User manual

Popular Food Warmer manuals by other brands
