FXA FXAJ0G-ZP-185Li-JD User manual

FXAJ0G-ZP-185 i-JD
Instruction manual (Original instructions) GB pg 8-19
Käyttöohje (Alkuperäisten ohjeiden käännös) FI pg 20-30
Bruksanvisning (Översättning av originalinstruktionerna) SE pg 31-41
Bruksanvisning (Oversettelse av de opprinnelige instruksjonene) NO pg 42-53
Руководство пользователя (Перевод исходных инструкций) RU pg 54-66
Kasutusjuhend (Tõlgitud originaal juhendist) EE pg 67-77
Instrukcijas (Tulkojums no oriģinālvalodas) V pg 78-89
Instaliavimo instrukcijos (Vertimas originali instrukcija) T pg 90-101
Instrukcja obsługi (oryginalna instrukcja) P pg 102-114

2

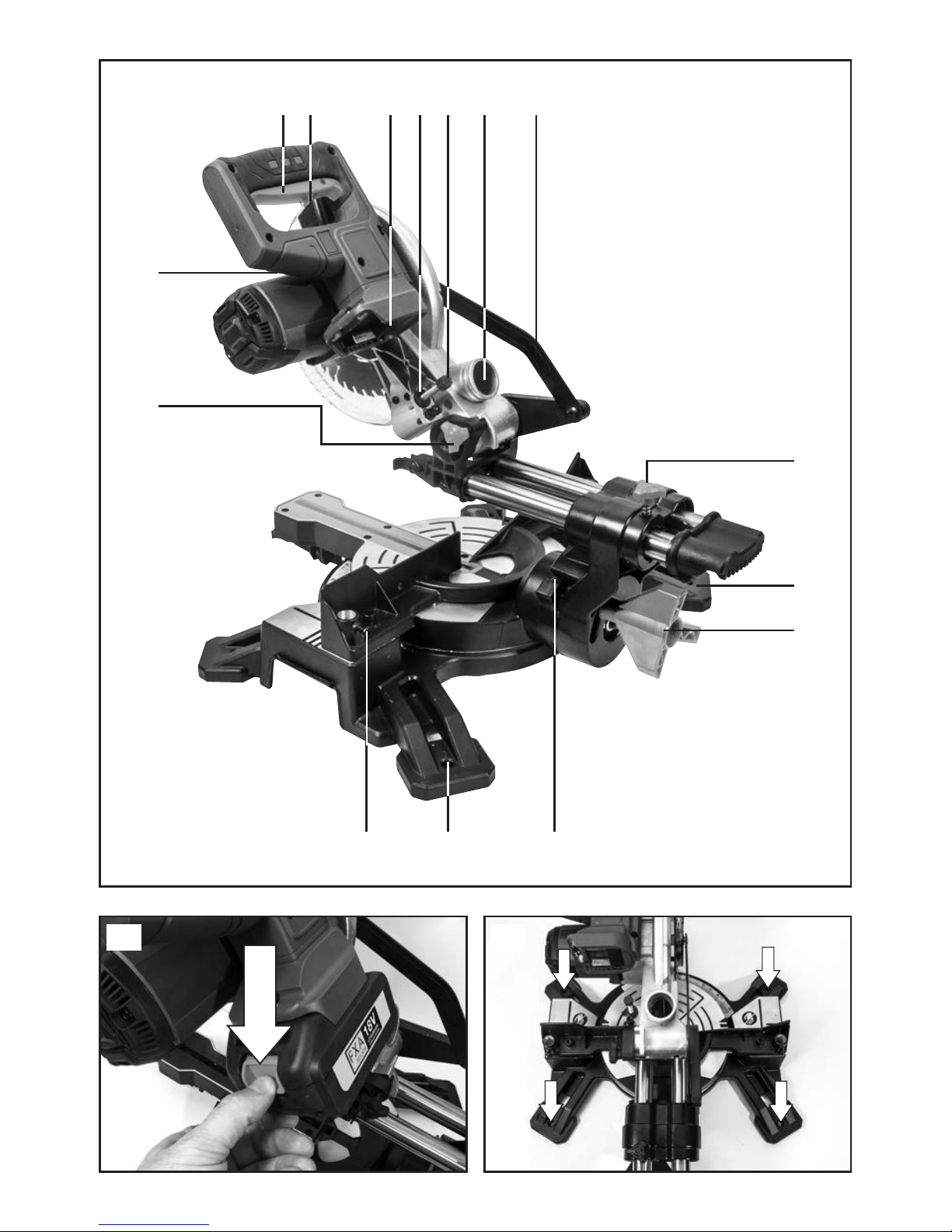

(1)
6
5
10
(3) (4)
1 2 3 4
7
8
9
13
12
1011
14

3
(2)
(5) (6)
2015 17
28
27 26
18 19
22
25
16 21
23
24
29

4
(7) (8)
(9) (10)
(11) (12)
(14)(13)

5
(15) (16)
(17) (18)
(19) (20)
(22)(21)

6
(23) (24)
(25) (26)
(27) (28)
(29) (30)

7
IMPORTANT! Read all safety warnings, instructions, illustrations and specifications provided with this
power tool.
TÄRKEÄÄ! Lue tarkkaavaisesti kaikki tämän työkalun kanssa toimitetut varoitukset, ohjeet ja
spesifikaatiot, ja katso lisäksi kuvat.
VIKTIGT! Läs uppmärksamt alla varningar, instruktioner och specifikationer som bifogas med
detta verktyg och studera bilderna.
VIKTIG! Les nøye gjennom alle advarslene, instruksene og spesifikasjonene som følger med
verktøyet, og se på tegningene.
ВАЖНО! Пpoчтитe вce yкaзaния, инcтpyкции, иллюcтpaции и cпeцификaции, поставляемые
c электроинструментом.
TÄHTIS! Lugege läbi kõik elektrilise tööriista kohta esitatud ohuhoiatused ning tutvuge
tööriista jooniste ja tehniliste andmetega.
SVARĪGI! Izlasiet visus drošības brīdinājumus, instrukcijas, specifikācijas un apskatiet attēlus šī
elektroinstrumenta dokumentācijā.
SVARBU! Perskaitykite visus saugos įspėjimus, visas instrukcijas, paveikslėlius ir techninius
reikalavimus, pateikiamus su šiuo elektriniu įrankiu.
WAŻNE! Prosimy przeczytać wszystkie dotyczące narzędzia ostrzeżenia i instrukcje oraz
przestudiować ilustracje i specyfikację.

8
INTRODUCTION
Thankyou for purchasing this product which has
passed through our extensive quality assurance
process. Every care has been taken to ensure that it
reaches you in perfect condition.
SAFETY FIRST
Before attempting to operate this power tool the
following basic safety precautions should always be
taken to reduce the risk of fire, electric shock and
personal injury. It is important to read the instruction
manual to understand the application, limitations and
potential hazards associated with this tool.
CERTIFICATE OF GUARANTEE
This product is guaranteed for a period of 2 Years,
with effect from the date of purchase and applies only
to the original purchaser. This guarantee only applies
to defects arising from, defective materials and or
faulty workmanship that become evident during the
guarantee period only and does not include
consumable items. The manufacturer will repair or
replace the product at their discretion subject to the
following. That the product has been used in
accordance with the guide lines as detailed in the
product manual and that it has not been
subjected to misuse, abuse or used for a purpose for
which it was not intended. That it has not been taken
apart or tampered with in any way whatsoever or has
been serviced by unauthorised persons or has been
used for hire purposes. Transit damage is excluded
from this guarantee, for such damage the transport
company is responsible. Claims made under this
guarantee must be made in the first instance, directly
to the retailer within the guarantee period. Only under
exceptional circumstances should the product be
returned to the manufacturer. In these case it shall be
the consumer’s responsibility to return the product at
their cost ensuring that the product is adequately
packed to prevent transit damage and must be
accompanied with a brief description of the fault and
a copy of the receipt or other proof of purchase. The
manufacturer shall not be liable for any special,
exemplary, direct, indirect, incidental, or consequential
loss or damage under this guarantee. This guarantee
is in addition to and does not affect any rights, which
the consumer may have by virtue of the Sale of Goods
Act 1973 as amended 1975 and 1999.
STATUTORY RIGHTS
This guarantee is in addition to and in no way affects
your statutory rights.
PRODUCT DISPOSA
When this product reaches the end of it’s life or is
disposed of for any other reason, it must not be
disposed of in household waste. In order to preserve
natural resources, and to minimise adverse
environmental impact, please recycle or dispose of
this product in an environmentally friendly way. It
should be taken to your local waste recycling centre
or other authorised collection and disposal facility.
If in doubt consult your local waste authority for
information regarding available recycling and / or
disposal options.
IMPORTANT INFORMATION ABOUT THIS
PRODUCT
This product is specifically designed to work with the
XA XCLICK range of batteries and charger.
SPECIFIC SAFETY INSTRUCTIONS
Read all these instructions before attempting to
operate this product and save these instructions.
B ADE SAFETY
WARNING: Rotating Saw Blades are extremely
dangerous and can cause serious injury and
amputation. Always keep fingers and hands at least
150mm (6”) away from the blade at all times. Never
attempt to retrieve sawn material until the cutting
head is in the raised position, the guard is fully closed
and the saw blade has stopped rotating. Only use saw
blades that are recommended by the manufacturer
and that comply with the requirements of EN 847-1
Do Not use saw blades that are damaged or
deformed as they could shatter and cause serious
injury to the operator or bystanders.
Do Not use saw blades that are manufactured from
high speed steel (HSS).
Do not stop the blade by forcing the machine or by
using sideways pressure.
Do not use blades that are deformed or have missing
teeth. This is highly dangerous and could result in a
serious accident to the operator and bystanders as
well as damaging the machine.
Do not use blades that are larger than specified, only
use blades that are rated for the machine. The
rotational speed (min-1) shown on the blade should
always be HIGHER than the rotational speed (min-1) of
the machine.
Ensure that the directional arrow marked on the blade
corresponds with the rotational direction of the motor.
The teeth of the blade should always point downward
as viewed from the front of the saw.
If the table insert becomes damaged or worn it must
be replaced with an identical one available from the
manufacturer as detailed in this manual.
PERSONA PROTECTIVE EQUIPMENT (PPE)
Hearing protection should be worn in order to reduce
the risk of induced hearing loss.
Eye protection should be worn in order to prevent the
possibility of the loss of sight from ejected chippings.
Charger Battery
(Not Included) (Not Included)
XADL1051 XAJDB180Li
XAJDB180Li-II

9
Respiratory protection is also advised as some wood
and wood type products especially MD (Medium
Density ibreboard) can produce dust that can be
hazardous to your health. We recommend the use of
an approved face mask with replaceable filters when
using this machine in addition to using the dust
extraction facility.
Gloves should be worn when handling blades or
rough material. It is recommended that saw blades
should be carried in a holder wherever practical.
It is not advisable to wear gloves when operating the
mitre saw.
SAFE OPERATION
Always ensure that you have selected the correct saw
blade for the material being cut. Do not use this mitre
saw to cut materials other than those specified below:
Wood
Wood derived products (MD , Chipboard, Plywood,
Blockboard, Hardboard etc)
Aluminium
Mild Steel (6mm / 1/4” Thickness)
When transporting a mitre saw ensure that the cutting
head is locked in the 90° down position (if a sliding
mitre saw ensure that the slide bars are locked). Lift
the machine by gripping the outer edges of the base
with both hands (if a sliding mitre saw, transport using
the handles provided).
Under no circumstances shall the machine be lifted or
transported using the retractable guard or any part of
its operating mechanism.
Keep guards in place and in good working order. With
the machine disconnected from the mains supply
check the operation of the guard to ensure that it
operates correctly.
Lower the saw head so that the blade is in its lowest
position, carefully rotate the blade by hand to ensure
that it is free from obstruction.
Repeat this procedure at all maximum mitre and bevel
positions before commencing operation of the Mitre
Saw.
Keep the work bench and floor area clear of all debris
including sawdust, chips and off-cuts.
Always keep the blade securing arbor and collars
clean.
Where it is necessary to use spacer or reducing rings
these must be suitable for the intended purpose and
only as recommended by the manufacturer.
If the mitre saw is fitted with a laser it shall not be
replaced with a different type. If the laser fails to
operate it shall be repaired or replaced by an
authorised service agent.
Whenever replacing blades ensure that the recessed
surface of the blade collar fits snugly against the
surface of the blade.
Ensure that the blade securing bolt is securely
tightened using the wrenches provided. Do not over
tighten.
Never attempt to retrieve off-cuts or any other part of
the work piece until the cutting head is in the raised
position, the guard is fully closed and the saw blade
has stopped rotating.
Wherever practicable always secure the work piece to
the saw table using the work clamp provided.
Always ensure that before each cut the mitre saw is
mounted in a stable position.
When cutting long work pieces use saw horses or
work benches to support the work piece, ensure that
all securing clamps are tight and check for excessive
play.
WARNING: the operation of any mitre saw can result
in foreign objects being thrown towards your eyes,
which could result in severe eye damage. Before
beginning power tool operation, always wear safety
goggles or safety glasses with side shield or a full face
shield when needed.
WARNING: If any parts are missing, do not operate
your mitre saw until the missing parts are replaced.
ailure to follow this rule could result in serious
personal injury.
ADDITIONA SAFETY INSTRUCTIONS
Some wood and wood type products, especially MD ,
(Medium Density ibreboard) can produce dust that
can be hazardous to your health. We recommend the
use of an approved face mask with replaceable filters
when using this machine in addition to using the dust
extraction facility. Ensure that power tools are
disconnected from the mains supply when not in use,
before servicing, lubricating or making adjustments
and when changing accessories such as blades.
Before commencing any cut allow the blade to reach
its full speed, let it run for a few seconds. If any
unusual noise or vibration is heard STOP the machine
immediately, and investigate the cause.
Never try to cut free hand. Always ensure that the
work piece is securely pressed against the back fence
and table support surface.
Ensure that the work piece that is being cut off has
sufficient room to move sideways. ailure to do so
may result in the off cut binding against the blade.
If the work piece cannot be held securely by hand
then use the jig or clamp to hold it in place whilst it is
being cut.
Ensure that irregular or round pieces are held securely
so that they are unable to move or twist and pinch the
blade.

10
Never cut more than one piece at a time.
Never cut pieces that are too small to be held
securely against the back fence with the thumb and
index finger.
Use only blades that are recommended by the
manufacturer.
Do not start the machine with the blade in contact
with the work piece.
Check the work piece for any protruding nails, screw
heads or anything that could damage the blade.
Do not attempt to modify the machine or its
accessories in any way.
Do not use excessive force when feeding the work
piece to the blade.
eeding the work piece gradually will reduce wear on
the machine and blade increasing its efficiency and
operating life.
Do not use the saw without guards in position.
Replace table insert when worn.
Do not use the saw to cut material other than
aluminum, wood or similar materials.
Connect mitre saws to a dust collecting device when
sawing.
Select saw blades in relation to the material to be cut.
Take care when slotting.
WARNING! DO NOT ATTEMPT TO CUT MATERIAL
LARGER THAN THE MAXIMUM CUTTING CAPACITY.
ADDITIONA SAFETY ADVICE CARRYING YOUR
MITRE SAW
Although compact, this mitre saw is heavy. To reduce
the risk of back injury, get competent help whenever
you have to lift the saw.
To reduce the risk of back injury, hold the tool close
to your body when lifting. Bending your knees so you
can lift with your legs, not your back. Lift by using the
handheld areas at each side of the machines base.
Before moving the mitre saw tighten the mitre and
bevel locking screws and the sliding carriage locking
screw to guard against sudden unexpected
movement.
Lock the cutting head in its lowest position. Ensure
that the cutting head locking pin is completely
engaged in its socket.
WARNING: Do not use the blade guard as a ‘lifting
point’. The battery must be removed before
attempting to move the machine.
ADDITIONA SAFETY RU ES CHARGERS
1. Before using the charger, read all the instructions
and cautionary markings on the charger and battery
pack as well as the instructions on using the battery
pack.
2. Only charge your batteries indoors as the charger is
designed for indoor use only.
3. DANGER! If the battery pack is cracked or
damaged in any other way, do not insert it in the
charger. There is a danger of electric shock or
electrocution.
4. WARNING! Do not allow any liquid to come into
contact with the charger. There is a danger of electric
shock.
5. The charger and battery packs supplied with it are
specifically designed to work together. Do not attempt
to charge the battery pack with any other charger than
the one supplied.
6. Do not pull on the power cord to disconnect it from
the mains supply socket.
7. Do not use the charger if it has been subjected to a
heavy knock, dropped or otherwise damaged in any
way. Take the charger to an authorised service centre
for a check or repair.
8. Do not disassemble the charger. Take it to an
authorised service centre when service or repair is
required. Incorrect re-assembly may result in the risk
of fire, electric shock or electrocution.
9. To reduce the risk of an electric shock, unplug the
charger from the power supply before attempting to
clean it. Removing the battery alone does not reduce
the risk.
ADDITIONA SAFETY RU ES FOR THE BATTERY
PACK
1. The battery pack for this tool has been shipped in a
low charge condition. You should charge the battery
pack fully before use.
2. Do not incinerate the battery pack even if it is
seriously damaged or can no longer hold a charge.
The battery pack can explode in a fire.
3. A small leakage of liquid from the battery pack may
occur under extreme usage or temperature conditions.
This does not necessarily indicate a failure of the
battery pack. However, if the outer seal is broken and
this leakage comes into contact with your skin wash
the affected area quickly with soap and water. If the
leakage gets in your eyes flush your eyes with clean
water for a minimum of 10 minutes and seek
immediate medical attention.
Inform the medical staff that the liquid is a 25-35%
solution of potassium hydroxide.
4. Never attempt to open the battery pack for any
reason. If the plastic housing of the battery pack
breaks open or cracks, immediately discontinue its
use and do not recharge it.

11
5. Do not store or carry a spare battery pack in a
pocket or toolbox or any other place where it may
come into contact with metal objects. The battery
pack may be short- circuited causing damage to the
battery pack, burns or a fire.
BATTERY CHARGING INFORMATION
Charging rates for NiCad and/or Li-Ion NiCad and/or
Li-Ion battery charging rates are determined by the
time taken to fully charge the battery and are
determined by the charge current. The three most
commonly used charging rates are typically:
BATTERY CHARGING INFORMATION
Charging rates for NiCad and/or Li-Ion NiCad and/or
Li-Ion battery charging rates are determined by the
time taken to fully charge the battery and are
determined by the charge current. The three most
commonly used charging rates are typically:
ast charge.
Slow charge.
Trickle charge.
FAST CHARGE BATTERIES
The charging rates for fast charge batteries can vary
between 30 minutes and 90 minutes. The charging
rate for the battery supplied with a cordless power
tool is stated in the product manual.
S OW CHARGE BATTERY
The charging rates for slow charge batteries are
between 3 hours and 5 hours.
TRICK E CHARGE BATTERIES
The charging rates for trickle charge batteries are
between 7 hours and 9 hours.
IMPORTANT!
NICAD AND/OR I-ION BATTERY CHARGING
INFORMATION.
A WAYS FU Y DISCHARGE A NiCad and/or i-
Ion BATTERY BEFORE CHARGING AND NEVER
EXCEED THE CHARGING RATE TIME, EXCEPT
WHEN “CONDITIONING” A NEW BATTERY.
CHARGING PROCEDURE
When charging a new NiCad and/or Li-Ion battery it
should be fully discharged followed by a full charge
for the charging rate for the battery as stated in the
product manual plus 30 minutes. This should then be
followed by a full discharge and a further full charge
for the charging rate for the battery as stated in the
product manual plus 30 minutes. This procedure will
condition the battery and equalise the cell voltages.
ollowing this procedure will ensure the optimum
operation of the battery.
When repeatedly using the charger to charge a
number of batteries always allow the charger to cool
down before charging another battery. It is
recommended that the cooling down period is not
less than 30 to 45 minutes.
When charging a battery that has been discharged
during heavy use allow the battery to cool down
before charging. It is recommended that the cooling
down period is not less than 30 to 45 minutes.
NICAD AND/OR I-ION CHARGING & CHARGERS
NiCad and/or Li-Ion batteries need to be recharged
with a reasonable amount of care, largely because
they can be damaged by overcharging.
Overcharging can result in the battery temperature
and internal pressure to rise rapidly. This can cause
the cells to distort and lose electrolyte, and in extreme
cases where the internal pressure is extremely high
they can even explode.
This situation can also arise when an overcharged
battery is fitted to the product and is being used. In
order to avoid this extreme situation it is of vital
importance that NiCad and/or Li-Ion batteries are fully
discharged before charging and that the charge time
is not exceeded except when “Conditioning” a new
battery. Repeated charging of partially discharged
batteries could cause failure of one or more of the
cells.
SE F DISCHARGE
A lithium battery can self discharge and lose its stored
charge. Typically it can lose approximately 5% of its
charge in the first month after fully charging (when
stored at room temperature), and then loses it by a
further 3% per month. When stored at higher
temperatures the self discharge rate will be
accelerated.
BATTERY CHARGING INDOORS
This charger is designed to be used indoors. We do
not recommend that it is used inside your home.
Ideally batteries should be charged on a bench in a
workshop, garage or shed. If the charging operation is
to be carried out in your home the area must be well
ventilated and the charger must be placed on a non
combustible surface ensuring that the ventilation slots
are not blocked. Never exceed the charging time
except when “Conditioning” a new battery, as this
could damage the battery and charger.
BATTERY DISPOSA
When the battery fails to charge or maintain its
charge, its usable life is exhausted. To preserve
natural resources, please recycle or dispose of the
battery pack properly. This battery pack contains
nickel-cadmium cells. Before disposal ensure that the
battery pack is fully discharged by operating your
cordless product then remove the battery pack from
the drill housing and cover the battery pack
connections with heavy duty tape, to prevent short
circuit and energy discharge which could result in a
fire. Do not attempt to open or remove any of the
components.
Consult your local waste authority for information
regarding available recycling and / or disposal
options.

12
SPECIFIC SAFETY INSTRUCTIONS
RE-CHARGEAB E BATTERIES.
Batteries may leak or explode if not charged or
handled correctly. Always observe the following
precautions when handling batteries. Ensure that the
machine is switched off before removing or fitting
batteries.
Do not use this battery with any other product.
Do not attempt to fit the battery the wrong way round.
Do not short out, or attempt to dismantle the battery.
Do not expose the battery to flames or excessive
heat.
Do not immerse in or expose the battery to water.
Do not store or transport the battery with loose metal
objects such drill and driver bits.
Batteries are prone to leakage when discharged. To
avoid damage to the product, remove or
re-charge the battery when no charge remains. Store
the battery in a cool place when not in use.
After prolonged use the battery may become hot.
Before removing the battery, switch the machine off
and allow the battery to cool down. Do not use the
battery if you notice any discoloration or distortion of
the battery casing.
GENERA SAFETY RU ES
WARNING! Read all instructions ailure to follow all
instructions listed below may result in electric shock,
fire and/or serious injury. The term "power tool" in all
of the warnings listed below refers to your mains
operated (corded) power tool or battery operated
(cordless) power tool.
SAVE THESE INSTRUCTIONS
1) WORK AREA
a) Keep work area clean and well lit. Cluttered and
dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause you
to lose control.
2) E ECTRICA SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators.
There is an increased risk of electric shock if your
body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
3) PERSONA SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication.
A moment of inattention while operating power
tools may result in serious personal injury.
b) Use safety equipment. Always wear eye
protection. Safety equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will
reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in
the off position before plugging in. Carrying power
tools with your finger on the switch or plugging in
power tools that have the switch on invites
accidents.
d) Remove any adjusting key or wrench before
turning the power tool on.
A wrench or a key left attached to a rotating part
of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of these
devices can reduce dust related hazards.
4) POWER TOO USE AND CARE
a) Do not force the power tool. Use the correct
power tool for your application. The correct power
tool will do the job better and safer at the rate for
which it was designed.

13
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source before
making any adjustments, changing accessories, or
storing power tools. Such preventive safety
measures reduce the risk of starting the power
tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the
hands of untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tools operation. If damaged, have the power tool
repaired before use. Many accidents are caused
by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.,
in accordance with these instructions and in the
manner intended for the particular type of power
tool, taking into account the working conditions
and the work to be performed. Use of the power
tool for operations different from intended could
result in a hazardous situation.
5) BATTERY TOO USE AND CARE
a) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire when
used with another battery pack.
b) Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
c) When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a fire.
d) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
6) SERVICE
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is
maintained.
COMPONENTS & CONTRO S (FIG 1 & 2)
UNPACKING
Caution! This packaging contains sharp objects. Take
care when unpacking. Remove the machine, together
with the accessories supplied, from the packaging.
Check carefully to ensure that the machine is in good
condition and account for all the accessories listed in
this manual.
Also make sure that all the accessories are complete.
If any parts are found to be missing, the machine and
its accessories should be returned together in their
original packaging to the retailer.
1. Dust bag
2. Upper fixed blade guard
3. Release latch
4. Operating handle
5. Rotating blade guard
6. Table fence
7. Table insert (kerf plate)
8. Mitre lock handle
9. Mitre lock release latch
10. Mitre scale
11. Mitre table
12. G clamp assembly
13. Slide bars
14. Bevel scale
15. On/Off switch trigger
16. Switch lock
17. Battery compartment
18. Trenching depth lock nut
19. Trenching depth adjustment screw
20. Dust extraction port
21. Guard retraction arm
22. Sliding arm locking knob
23. 6mm hex key
24. Bevel locking knob
25. 0°Bevel adjustment screw
26. Mounting holes
27. Clamp assembly lock screw (x 2)
28. Release knob
29. Spindle lock

14
Do not throw the packaging away, keep it safe
throughout the guarantee period, then recycle if
possible, otherwise dispose of it by the proper means.
Do not let children play with empty plastic bags due
to the risk of suffocation.
CHARGING THE BATTERY PACK
Warning! Only charge in compatible 18V chargers.
Use of other chargers may result in fire, damage or
serious personal injury.
The battery pack for this tool has been shipped in a
low charge condition to prevent possible problems.
Therefore, you should charge it until the green LED on
the front right hand side of the charger comes on.
Note: Batteries will not reach full charge the first time
they are charged. Allow several cycles (operation
followed by recharging) for them to become fully
charged.
irst read the safety instructions then follow the
charging instructions.
Plug the charger into a standard 230V~50Hz mains
socket outlet, the green LED on the front left hand
side of the charger will illuminate.
Do not allow the cable to become knotted or kinked.
Place the battery pack into the charger base.
(Note the battery has raised ribs which allows it to fit
into the charger only one way). Time the charge for
60/130 minutes only.
2,0 Ah -battery, charge for 60 minutes
4,0 Ah -battery, charge for 130 minutes
The red LED on the front right hand side of the
charger will illuminate to indicate charging is in
progress. A green LED will illuminate when the battery
is fully charged.
Unplug the charger when not in use and store it in a
suitable storage cabinet.
Avoid charging your battery in freezing conditions as
charging power will not be sufficient.
When charging more than one battery pack in
succession allow at least 30 minutes for the charger
to cool down before charging an additional battery.
Always remove the battery pack and store it safely
when the tool is not in use.
Caution: If at any point during the charging process
none of the LEDs are lit, remove the battery pack from
the charger to avoid damaging the product. DO NOT
insert another battery.
CHARGE STATUS
To display the amount of charge left in the battery,
press the charge level indicator button, ig.3.
INSTA ING THE BATTERY PACK
Warning! Battery tools are always in operating
condition. Always remo e battery pack from your tool
when you are assembling parts, making adjustments,
cleaning, or when not in use. Remo ing battery pack
will pre ent accidental starting that could cause
serious personal injury.
Slide the battery pack into the tool base, ig.4. (Note
the battery has raised ribs which allows it to fit into
the pole saw only one way). Make sure the battery
pack snaps into place and that battery pack is
secured in the tool before beginning operation.
Improper installation of the battery pack can cause
damage to internal components.
REMOVING THE BATTERY PACK
Locate the battery release catch on the top of the
battery and press downwards, ig.5. Whilst holding
down the battery release catch slide the battery pack
away from the tool.
ACCESSORIES
Only fit genuine replacement parts which comply with
the speed and fit of the power tool.
The XAJ0G-ZP-185Li-JD comes with the following
accessories:
• 40 Teeth blade (fitted)
• Dust bag
• G Work clamp
• 6mm saw blade allen key
Charge level indicator Amount of charge
remaining
0-10%
10-25%
25-50%
50-75%
75-100%

15
TRANSPORTATION
Lift the mitre saw only when the saw arm is locked in
the down position, the saw is switched off and the
battery is removed from the machine. You must only
lift the saw by the castings. Do not lift the saw using
the guards.
BENCH MOUNTING (FIG.6)
The saw base has 4 mounting holes to facilitate bench
mounting. Attach the saw to a level, horizontal bench
or work table using bolts (not supplied) though the
fixing holes in the saw base.
NOTE. If desired, you can mount the saw to a piece of
8 mm or thicker plywood which can then be clamped
to your work support or moved to other job sites and
reclamped.
CAUTION. Make sure that the mounting surface is not
warped as an uneven surface can cause binding and
inaccurate sawing.
DUST BAG (FIG.7)
The dust bag fits onto the dust extractor port.
Squeeze the two metal tabs on the end of the dust
extraction bag to allow it to slide over the dust
extractor port.
or efficient operation, empty the dust bag when it is
no more than half full.
This allows better airflow through the bag. A dust
extraction system may also be connected to the dust
extraction port for a cleaner and safer work area.
FITTING THE C AMP ASSEMB Y (FIG.8)
Two sockets (one either side) are incorporated into the
rear of the machines fence. These sockets are for
positioning the Clamp Assembly.
it the clamp to the retaining socket that best suits
the cutting application, ensuring that it is fully pushed
down.
Using a screwdriver, tighten the clamp assembly lock
screw to lock the pillar of the clamp into the fence
socket, ig.8.
Place the workpiece to be cut onto the saw table,
against the fence and in the desired position.
Adjust the clamp using the thumbscrews and hand-
wheel so that it securely holds the workpiece to the
saw table.
Conduct a ‘dry run’ with the battery disconnected.
Ensure that the Clamp does not interfere with the path
of the blade, or with the path of any other part of the
cutting head as it is lowered.
SETTING THE TAB E SQUARE WITH THE B ADE
Make sure that the battery is removed from the saw.
Push the saw arm down to its lowest position by
pressing the release latch, ig.9, and engage the
release knob to hold the saw arm in the transport
position, ig.10.
it the mitre lock handle ( ig.11).
Rotate the table until the pointer is positioned at 0º.
Tighten the mitre lock handle. ( ig.12)
Loosen the bevel lock and set the saw arm at 0º bevel
(the blade at 90º to the mitre table). ( ig.13)
Tighten the bevel lock, ig.14.
Place a set square against the table and the flat part
of the blade ( ig.15).
NOTE. Make sure that the square contacts the flat
part of the saw blade, not the teeth. Rotate the blade
by hand and check the blade-to-table alignment at
several points. The edge of the set square and the
saw blade should be parallel.
If the saw blade angles away from the set square,
adjust as follows:
Loosen the bevel lock. ( ig.16)
Use 10mm spanner or adjustable spanner to adjust
the lock nut ( ig.17), make sure the edge of set
square and saw blade should be parallel.
Tighten the bevel lock.
Loosen the screw holding the pointer of the bevel
scale and adjust the position of the pointer so that it
accurately indicates zero on the scale. Retighten the
screw, ig.18.
Retighten the bevel lock and the lock nut securing the
0° bevel adjustment screw.
NOTE. The above procedure can also be used to
check the angle of the saw blade to the table at 45º
bevel angle. The 45° bevel adjustment screw is on the
opposite side of the saw arm.
TRENCH DEPTH ADJUSTMENT
In its normal position, the trenching stop permits the
saw blade to cut right through a workpiece.
To adjust the trench stop pull out the release knob out
and fully raise the saw arm ( ig.19)
When the saw arm is lifted, the trenching stop can be
adjusted so that the trenching depth adjustment
screw contacts the stop as the saw arm is lowered.
Deploy the stop by moving it outwards, ig.20. If the
trenching stop wont move, slightly loosen the screw
using a crosshead screwdriver.
This restricts the cut to a “trench” in the workpiece.
The depth of the trench can be adjusted with the
trenching depth adjustment screw and locked in
position with the trenching depth lock nut ( ig.21).

16
OPERATION
To turn the saw on press the switch lock to the left.
Hold the operating handle firmly and squeeze the
switch trigger, ( ig.22).
Press the release latch ( ig.23).
When the blade is at its maximum speed
(approximately 2 seconds), lower the blade through
the workpiece ( ig.24). After completing the cut,
release the switch trigger and allow the saw blade to
stop rotating before raising the blade out of the
workpiece. Wait until the blade stops before removing
the workpiece.
CROSS-CUTTING (WITHOUT S IDING FUNCTION)
To saw narrow pieces of wood, the slide function is
not necessary. In these cases, ensure that the slide
lock is screwed down to prevent the saw arm from
sliding, ig.25.
A crosscut is made by cutting across the grain of the
workpiece. A 90º crosscut is made with the mitre
table set at 0º. Mitre crosscuts are made with the
table set at some angle other than zero.
Pull on the release knob and lift the saw arm to its full
height.
Loosen the mitre lock. Rotate the mitre table until the
pointer aligns with the desired angle. Retighten the
mitre lock.
WARNING. Be sure to tighten the mitre lock before
making a cut. ailure to do so could result in the table
moving during the cut and cause serious personal
injury.
Place the workpiece flat on the table with one edge
securely against the fence. If the board is warped,
place the convex side against the fence. If the
concave side is placed against the fence, the board
could break and jam the blade.
When cutting long pieces of timber, support the
overhanging ends of the timber with the side
extension arms, a roller stand or a work surface that is
level with the saw table.
Use the clamp assembly to secure the workpiece
wherever possible.
It is possible to remove the clamp assembly by
loosening the clamp assembly lock and moving it to
the other side of the table. Make sure the clamp
assembly lock is tight before using the clamp.Before
turning on the saw, perform a dry run of the cutting
operation to check that there are no problems.
Press the switch lock to the left. Hold the operating
handle firmly and squeeze the switch trigger. Allow
the blade to reach maximum speed.
Press the release latch and slowly lower the blade into
and through the workpiece.
Release the switch trigger and allow the saw blade to
stop rotating before raising the blade out of the
workpiece. Wait until the blade stops before removing
the workpiece.
CROSS-CUTTING (WITH S IDE ACTION)
When cutting wide workpieces, first unscrew the slide
lock, ig.25.
Pull on the release knob, raise the saw arm to its
highest position and slide it towards you.
Press the switch lock to the left. Hold the handle
firmly and squeeze the switch trigger. Allow the blade
to reach maximum speed. Press the release latch and
slowly lower the blade into the workpiece and slide it
away from you at the same time until the workpiece is
cut.
Release the switch trigger and allow the saw blade to
stop rotating before raising the blade out of the
workpiece.
Wait until the blade stops before removing the
workpiece.
BEVE CUT
A bevel cut is made by cutting across the grain of the
workpiece with the blade angled to the fence and
mitre table. The mitre table is set at the zero degree
position and the blade set at an angle between 0º and
45º to the left, ig.26.
Repeat the steps for cross-cutting (with or without
slide function).
Loosen the bevel lock and move the saw arm to the
left to the desired bevel angle (between 0º and 45º).
Tighten the bevel lock.
WARNING: Always ensure that the bevel lock is fully
tightened before making a cut.
COMPOUND MITRE CUT
A compound mitre cut involves using a mitre angle
and a bevel angle at the same time.
It is used in making picture frames, to cut mouldings,
making boxes with sloping sides and for roof framing.
Always make a test cut on a piece of scrap wood
before cutting into the good material.
Use the slide action when cutting wide workpieces.
MAINTENANCE & CARE
CHANGING A B ADE
DANGER: The blade is extremely sharp and care must
be observed when handling. Never try to use a blade
larger than the stated capacity of the saw. It might
come into contact with the blade guards. Never use a
blade that is too thick to allow the outer blade washer
to engage with the flats on the spindle.
It will prevent the blade bolt from properly securing
the blade on the spindle.
Do not use the saw to cut metal or masonry.

17
Ensure that any spacers and spindle rings that may be
required suit the spindle and the blade fitted.
Make sure that the battery is removed from the
machine.
Push down on the operating handle and pull the
release knob to disengage the saw arm.
The release knob can be turned so that it is held in the
retracted position.
Raise the saw arm to its highest position.
Rotate the lower blade guard ( ig.27) up and into the
upper blade guard and press the spindle lock button
( ig.28). Rotate the blade until the spindle locks.
Use the 6mm Allen key wrench to remove the blade
bolt ( ig.29). (Loosen in a clockwise direction as the
blade screw has a left hand thread).
Remove the washer, outer blade flange and the blade.
Wipe a drop of oil onto the inner blade washer and
the outer blade washer where they contact the blade.
it the new blade onto the spindle taking care that the
inner blade washer sits behind the blade.
CAUTION. To ensure correct blade rotation, always
install the blade with the blade teeth and the arrow
printed on the side of the blade pointing down
( ig.29).
The direction of blade rotation is also stamped with an
arrow on the upper blade guard.
Replace the outer blade washer.
Depress the spindle lock button and replace the blade
bolt.
Use the 6mm Allen key wrench to tighten the blade
screw securely (anti-clockwise).
Check that the blade guard operates correctly and
covers the blade as the saw arm is lowered.
Connect the battery to the machine and run the saw
to make certain that it is operating correctly.
Note: Check the tightness of the blade securing bolt
before, during and after each use.
ATTACHING A B ADE WITH A Ø 20MM ARBOUR
(FIG.30)
Follow the instructions for changing a blade. Replace
the outer blade washer with the Ø20 mm washer and
tighten with the blade bolt.
MAINTENANCE
Always remo e battery pack from your tool when you
are assembling parts, making adjustments, cleaning,
or when not in use.
Keep the tool's air vents unclogged and clean at all
times.
Regularly check to see if any dust or foreign matter
has entered the grills near the motor and around the
trigger switch. Use a soft brush to remove any
accumulated dust. Wear safety glasses to protect
your eyes whilst cleaning.
Re-lubricate all moving parts at regular intervals.
If the body of the saw needs cleaning, wipe it with a
soft damp cloth. A mild detergent can be used but
nothing like alcohol, petrol or other cleaning agent.
Never use caustic agents to clean plastic parts.
CAUTION. Water must never come into contact with
the saw.
GENERA INSPECTION
Check regularly that all fixation screws are sufficiently
tightened. Check especially the outer flange. If there is
vibration, screws can loosen with time.
Store the tool, instruction manual and accessories in a
secure place. In this way you will always have all the
information and parts on hand.
TECHNICA SPECIFICATION
Voltage 18V DC
No load speed 3600 min-1
Saw Blade diameter Ø185mm
Teeth 40 HW
Saw Blade arbour Ø 16mm/Ø 20mm
Angle of mitre table -45°/0°/+45°
Bevel angles 45° to the left
Straight cut at 0° x 0° 200 x 51 mm
Mitre cut at 45° x 0° 152 x 51 mm
Bevel cut at 0° x 45° 200 x 35 mm
Combined Mitre cut at 152 x 35 mm
45° x 45°
Sound Pressure Level LpA 83.14 dB(A)
K=3dB(A)
Sound Power Level LWA 96.14 dB(A)
K=3dB(A)
Vibration Level <2.5 m/s2, K=1.5m/s2

18

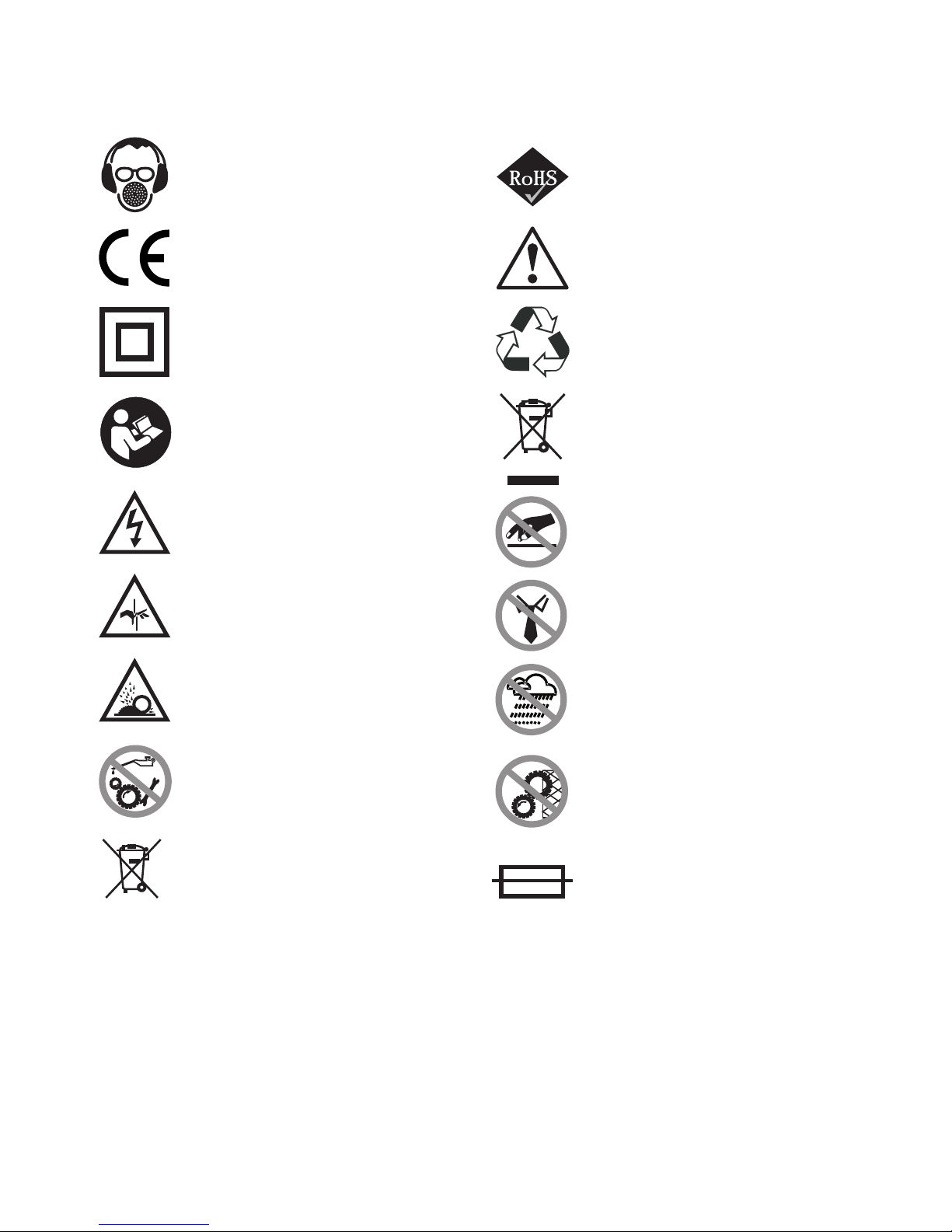

SYMBO S
The rating plate on your tool may show symbols. These represent important information about the product or
instructions on its use.
Conforms to relevant safety
standards.
Read the instruction manual.
Product conforms to RoHs
requirements
Waste electrical products should
not be disposed of with
household waste. Please recycle
where facilities exist. Check with
your Local Authority or retailer for
recycling advice.
General warning
Double insulated for additional
protection.
Wear hearing protection.
Wear eye protection.
Wear respiratory protection.
Cutting danger.
Do NOT clean, lubricate or repair
while the machine is running
Danger! Splinter casing
Dangerous voltage.
Do NOT approach the machine
with loose clothing
Do NOT remove safety guards
and devices with the machine
operating
Protect the machine from foul
weather
Do NOT touch the moving blade
130°
Li-ion
Thermal link with operating
temperature
Contains Lithium Ion

19
ENVIRONMENTA PROTECTION
Information for (private householders) for the environmentally responsible disposal of Waste Electrical and
Electronic Equipment (WEEE)
This symbol on products and or accompanying documents indicates that used and end of life
electrical and electronic equipment should not be disposed of in household waste. or the
proper disposal, treatment, recovery and recycling, please take these products to designated
collection points, where they will be accepted on a free of charge basis. Alternatively, in some
countries you may be able to return your products to your retailer upon the purchase of an
equivalent new product. Disposing of this product correctly will help to save valuable resources
and prevent any potential adverse effects on human health and the environment which could
otherwise arise from inappropriate waste disposal and handling. Please contact your local
authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect
disposal of this waste in accordance with national legislation.
FOR BUSINESS USERS IN THE EUROPEAN UNION.
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further
information.
Information on Disposal in other Countries outside the European Union.
This Symbol is only valid in the European Union.
If you wish to dispose of this product, please contact your local authorities or dealer and ask for the correct
method of disposal.

20
ESITTE Y
Kiitos, että ostit tämän tuotteen, joka on läpäissyt
kattavan laatutarkastusprosessimme. Kaikki on tehty
sen varmistamiseksi, että saat sen täydellisessä
toimintakunnossa.
TURVA ISUUS ENSIN
Seuraavat perusvarotoimet on tehtävä ennen
sähkötyökalun käyttämistä tulipalojen, sähköiskujen ja
henkilövahinkojen estämiseksi. On tärkeää lukea nämä
käyttöohjeet, jotta ymmärrät tämän työkalun käytön,
siihen liittyvät rajoitukset ja potentiaaliset vaarat.
TAKUUTODISTUS
Tällä tuotteella on 2 vuoden takuu, joka alkaa
ostopäivästä ja koskee vain ensimmäistä ostajaa.
Tämä takuu kattaa vain virheet, jotka aiheutuvat
raaka-aine- ja valmistusvioista, ja jotka tulevat esille
takuuaikana. Takuu ei korvaa kuluvia osia. Valmistaja
korjaa tai vaihtaa tuotteen harkintansa mukaan
edellyttäen seuraavassa mainittuja asioita. Tuotetta on
käytetty käsikirjan ohjeiden mukaisesti, ja sitä ei ole
käytetty väärin tai huolimattomasti tai tarkoitukseen,
johon sitä ei ole tarkoitettu käytettäväksi. Laitetta ei
ole purettu osiin tai peukaloitu millään tavalla, sitä ei
ole huollatettu valtuuttamattomilla henkilöillä tai
käytetty vuokrauksen kohteena. Kuljetusvauriot eivät
kuulu tämän takuun piiriin. Niistä on vastuussa
kuljetusliike. Takuuvaateet on esitettävä ensisijaisesti
suoraan jälleenmyyjälle takuukauden aikana. Tuote
tulee palauttaa valmistajalle vain poikkeuksellisissa
tapauksissa. Näissä tapauksissa ostajan vastuulla on
tuotteen palauttaminen omalla kustannuksellaan ja
varmistaen, että se on asianmukaisesti pakattu
kuljetusvaurioiden estämiseksi. Mukaan tulee liittää
lyhyt kuvaus viasta ja kopio kuitista tai muusta
ostotodistuksesta. Valmistaja ei ole vastuussa mistään
erityisistä, esimerkillisistä, suorista, välillisistä,
satunnaisista tai epäsuorista menetyksistä tai
vahingoista takuun aikana. Tämä takuu tulee lisänä,
eikä vaikuta oikeuksiin, joita kuluttajalla saattaa olla
vuoden 1973 Tavaranmyyntilain ja siihen vuonna 1975
ja 1999 tehtyjen muutosten mukaisesti.
AKISÄÄTEISET OIKEUDET
Tämä takuu on lisänä, eikä vaikuta lakisääteisiin
oikeuksiisi.
TUOTTEEN HÄVITTÄMINEN
Kun tuotteen käyttöikä loppuu tai se hävitetään
jostakin muusta syystä, sitä ei saa hävittää
kotitalousjätteen mukana. Luonnonvarojen
säilyttämiseksi ja haitallisten ympäristövaikutusten
minimoimiseksi, kierrätä tuote tai hävitä muulla
ympäristöystävällisellä tavalla. Tuote tulee viedä
paikalliseen kierrätyskeskukseen tai muuhun
viralliseen keräily- ja hävityspisteeseen.
Jos olet epävarma, kysy kierrätys- ja/tai
hävittämisvaihtoehdoista paikalliselta jäteliikkeeltä.
TÄRKEITÄ TIETOJA TUOTTEESTA
Tuote on suunniteltu toimimaan XA XCLICK -sarjan
akkujen ja latureiden kanssa.
ERITYISET TURVAOHJEET
Lue kaikki ohjeet ennen kuin yrität käyttää laitetta.
Säilytä nämä ohjeet.
TERÄN TURVA ISUUS
VAROITUS: Pyörivät sahanterät ovat erittäin vaarallisia
ja voivat aiheuttaa vakavia henkilövahinkoja ja raajojen
leikkautumisia. Pidä sormet ja kädet aina vähintään
150 mm:n etäisyydellä terästä. Älä yritä poistaa
sahattua materiaalia ennen kuin leikkuupää on
nostettu yläasentoon, suojus on täysin suljettu ja
sahanterä on lopettanut pyörimisen. Käytä vain
valmistajan suosittelemia ja standardin EN 847-1
mukaisia sahanteriä.
Älä käytä sahanteriä, jotka ovat vaurioituneita tai
vääntyneitä, koska ne voivat haljeta ja aiheuttaa
vakavan henkilövahingon käyttäjälle tai sivullisille.
Älä käytä pikateräksestä (HSS) valmistettuja
sahanteriä.
Älä pysäytä terää pakottamalla tai käyttäen sivuttaista
painamista.
Älä käytä vääntyneitä teriä tai teriä, joista puuttuu
hampaita. Tämä on erittäin vaarallista ja saattaa
aiheuttaa vakavan vahingon käyttäjälle ja vieressä
oleville sekä vaurioittaa konetta.
Älä käytä teriä, jotka ovat määriteltyä isompia. Käytä
vain koneelle mitoitettuja teriä. Terässä näkyvän
pyörimisnopeuden (min-1) tulee aina olla SUUREMPI
kuin koneen pyörimisnopeus (min-1).
Varmista, että terään merkitty suuntanuoli vastaa
moottorin pyörimissuuntaa. Terän hampaiden tulee
aina osoittaa alaspäin sahan edestä katsottuna.
Jos pöydän kitakappale vaurioituu tai kuluu, se täytyy
vaihtaa samanlaiseen. Niitä saa valmistajalta tämän
käyttöoppaan ohjeiden mukaisesti.
HENKI ÖNSUOJAIMET (PPE)
Käytä kuulosuojaimia kuulovaurioriskin
pienentämiseksi.
Suojalaseja tulee käyttää, jotta estetään sinkoutuvien
lastujen aiheuttama mahdollinen näkökyvyn menetys.
Hengityssuojain on myös suositeltava. Jotkin puut tai
puuntyyppiset tuotteet, etenkin MD (puolikova
kuitulevy), voivat tuottaa pölyä, joka saattaa olla
vaarallista terveydellesi. Laitetta käytettäessä
suosittelemme käyttämään pölynpoistolaitteen lisäksi
hyväksyttyä kasvonaamiota, jossa on vaihdettavat
suodattimet.
aturi Akku
(ei ole mukana) (ei ole mukana)
XADL1051 XAJDB180Li
XAJDB180Li-II
Table of contents
Languages:
Other FXA Saw manuals

FXA
FXA FXA92502 User manual

FXA
FXA FXAM1H-ZP2-1-250F User manual

FXA
FXA FXAJD5385 User manual

FXA
FXA FXA502024131 User manual

FXA
FXA 501739306 User manual

FXA
FXA FXAJ1XL-DU11-210 User manual

FXA
FXA FXAJD3507 User manual

FXA
FXA FXAJ1G-ZP8-210C User manual

FXA
FXA FXAM1H-ZP5-250-1 User manual

FXA
FXA FXAM1H-ZP5-250-1 User manual
