Galanz WMUK004W Operator's manual

WMUK004W
WASHING MACHINE

16
Contents
Parts and features
Installation
The functions of the control panel
How to use washer
Cleaning and maintenance
Troubleshooting guide
Technical parameters

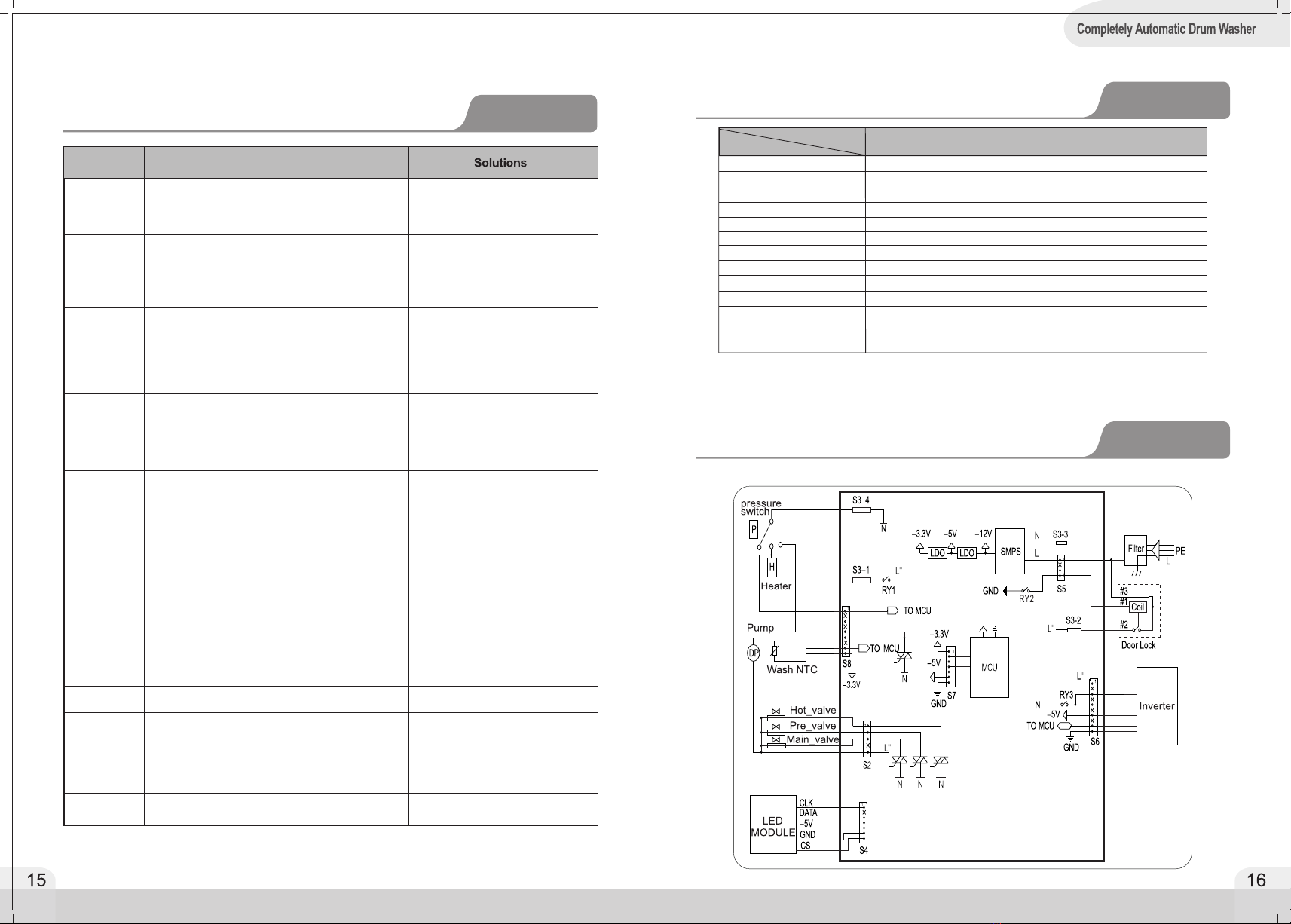

Electric Diagram
PREFACE
This washing machine conforms to current safety
requirements. Inappropriate use can, however, lead to
personal injury and damage to property. To avoid the risk
of accidents and damage to the washing machine,
please read this manual carefully before using it for the
first time. It contains important information on the
installation, safety, use and maintenance of the
appliance. Keep this manual in a safe place for future
reference.
Safety notices
13
10
16

Correct use
THIS WASHING MACHINE MUST BE EARTHED.
Before installing the washing machine, check it for any externally visible damage.
Do not install or use a damaged washing machine .
Before connecting the washing machine, ensure that the connection
data on the plate (voltage and current) match the electricity supply.
If in any doubt, consult a qualified electrician.
The electrical safety of this washing machine can only be guaranteed
when continuity is complete between the appliance and an effective
earthing system which complies with current local and national safety
regulations. It is important that this basic safety requirement is present
and regularly tested, and where there is any doubt the household wiring
system should be inspected by a qualified electrician. The manufacturer
cannot be held liable for the consequences of an inadequate earthing system.
Do not connect the washing machine to the mains electricity supply
by an extension lead. Extension leads do not guarantee the required safety of the appliance.
Unauthorised repairs could result in unforeseen dangers for the user,
for which the manufacturer cannot accept liability. Repairs should only be undertaken by an
approved service technician. Ensure an electrical current is not supplied to the machine until after
maintenance or repair work has been carried out.
If the connection cable is damaged or broken, it must only be replaced by an approved service
technician to protect the user from danger.
Faulty components must only be replaced by genuine manufacturer original spare parts.
Only when these parts are fitted can the safety standards of the machine be guaranteed.
Safety Notices
Please ensure you read and understand these safety instructions
thoroughly before use. The information contains important safety
precautions, which must be followed. We cannot be held liable for
damage caused by non-compliance with the warning and safety
instructions or resulting from incorrect use or operation.
WARNING
Cleaning and user maintenance shall not be carried out by children without
supervision. Children less than 3 years old should be kept away unless
continuously supervised. Only use the new hose-sets supplied with the appliance.
Old hose-sets should not be reused.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
This appliance is intended for household use only. Any commercial use of this
appliance will void the manufacturers warranty.
For washing machines having ventilation openings on the base, the washing
machines cannot be washing on the carpet.
To avoid the risk of personal injury or damage to the washing machine,
do not install it in a place that it is damp or at risk from rainfall.
Do not install the washing machine in direct sunlight, to avoid plastic
or components becoming damaged and shortening the life of your
washing machine.
Do not install the washing machine in places where temperatures
may drop below freezing. Frozen hoses may burst or split and the
reliability of the electronic control unit may be impaired.
Keep the washing machine away from fire or heat sources.
Before using the washing machine for the first time, check that the transit bolts at the rear of the
machine have been removed. During the spin cycle, transit bolts which are still in place may
damage both the machine and adjacent furniture or appliances.
Turn off the water supply if the machine is to be left for any length of time (e.g. holiday),
especially if there is no floor drain in the immediate vicinity.
Take care to ensure that foreign objects (e.g. nails, pins, coins, paper clips) do not find their way
into the machine with the laundry. These may damage components of the machine (e.g. drum),
which in turn can result in damage to the laundry.
Do not wash water-repellent clothing such as raincoats in the washing machine.
Child Safety
Keep children away from the washing machine at all times.
To avoid the risk of injury do not allow children to play on or
near the appliance or to play with its controls.
Older children may only use the washing machine if its operation
has been clearly explained to them and they are able to use it
safely, recognising the dangers of misuse.
Remember that the door glass will be hot when washing at very
high temperatures Please take care when touching the door.
Safety Notices

Unscrew the drain pump filter to let water run out when the
machine is not used for a long time.
The drawing of machine in the manual is only used for instruction.
It may be vary from the mode you buy.

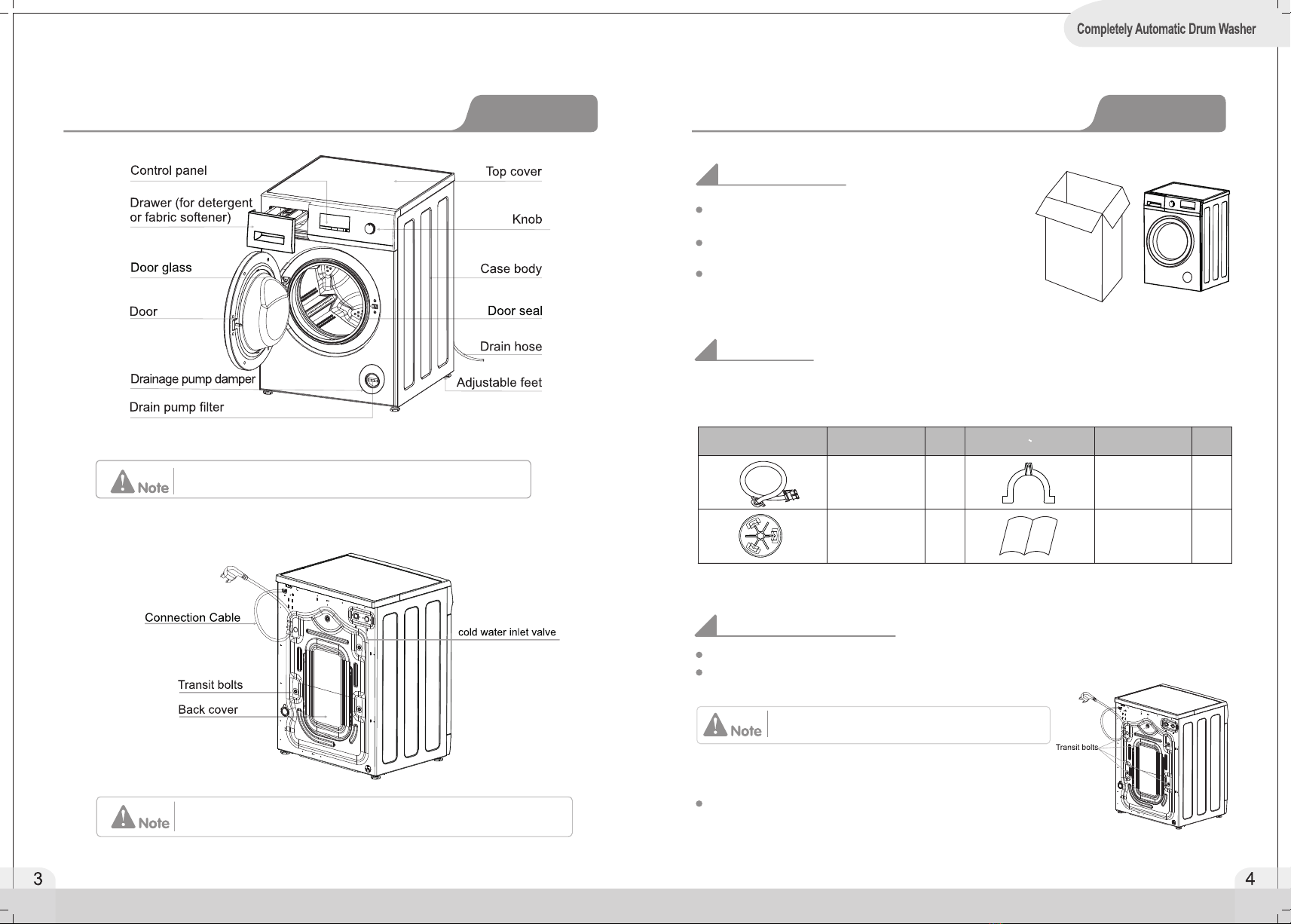

Parts and Features Installation
Before Use Before Use
Backout packing
Accessories
Ensure that you have received all of the items shown below.
Accessories Name Qty. Accessories Name Qty.
Inlet hose
transit bolts
caps
1
4
“U” piece 1
Manual 1
Removing transit bolts
Remove all the transit bolts located at the back of the machine using an appropriate tool.
Plug the holes with the transit bolts caps supplied.
Strong vibration, noise or failures may occur if
the transit bolts are not removed.
Retain the transit bolts for future use. Whenever the appliance is
transported, the transit bolts must be refitted.
Remove all the packing (including the foam base)
otherwise vibration and noise may occur.
Dispose off all the packaging material safely and keep them out
of the reach of children. Danger of suffocation!
It is normal that water drops may appear on the packing
plastic bag and the door glass.

Installation Use process
Installation
Siting
Level adjustment
The machine must stand perfectly level on all
four feet to ensure safe and proper operation.
Incorrect installation may increase electricity
and water consumption and may cause the
machine to move about.
To level the machine:
Locknuts
Adjustable feet
Vibration and noise may occur if the locknuts do not sit
firmly up against the housing.
Drain hose connection
1.
Water inlet connection
inlet valve for cold water
inlet hose for cold water with a white nut
Use process
A concrete floor is the most suitable installation surface
for a washing machine, as it is far less prone to vibration
during the spin cycle than wooden floorboards or carpeted
surfaces.
The machine must be level and securely positioned. The
distance between the machine and wall must be more than
10 cm .
To avoid vibrations during spinning. the machine should not
be installed on soft floor coverings.
Use a spanner to turn the locknut in a clockwise
direction. Then turn locknuts together with adjust feet to unscrew.
Use a spirit level to check the machine is standing level.
Hold adjust feet securely with a pipe wrench. Turn locknut again using the spanner until it sits
firmly up against the housing.
Direct to sink
If the outlet spigot has not been used before, remove any blanking plug that may be in place.
Push the drain hose onto the spigot and secure with a clip if required, ensure a loop is formed in
the drain hose to prevent waste from the sink entering the washing machine.
If required, the drain hose can be extended to a length of 4 m.
2.
Connected securely to a standpipe
Firstly form a hook in the end of the drain hose using the “U” piece supplied.
Place the drain hose into your standpipe, which should have an internal diameter of approximately
30mm thus ensuring there is an air break between the drain hose and standpipe.
When discharging into a standpipe ensure that the top fo the standpipe is no more than 90cm and
no less than 60cm above floor level.
Connect the inlet hose supplied with the machine to a tap with a 3/4" thread.
Do not use existing hoses.
Installation should comply with local water authority and building regulations ' requirements.
When there is an inlet valve at the back of the machine, it must be connected to a cold water
supply. If there are two inlet valves, one should be connected to a cold water supply and the other
connected to a hot water supply. Follow the picture below to complete the connection.

For your safety, please do not turn the knob to the position “ ” to remove clothes
while the machine is running as the temperature of water may be high and it may
scald you. The door lock will open automatically at the end of a wash cycle while
the temperature of the drum is cooling down.
This function is to add an extra time on the programme you selected.
5.Wash+
3.Fumction
Press this button to start or pause a wash cycle. The door cannot be opened when the machine
has started. You can press this button to pause the running cycle and turn the knob to select
another program, then press this button again to start the selected wash cycle.
4.Rinse
This function is to add an extra rinse on the programme you selected.

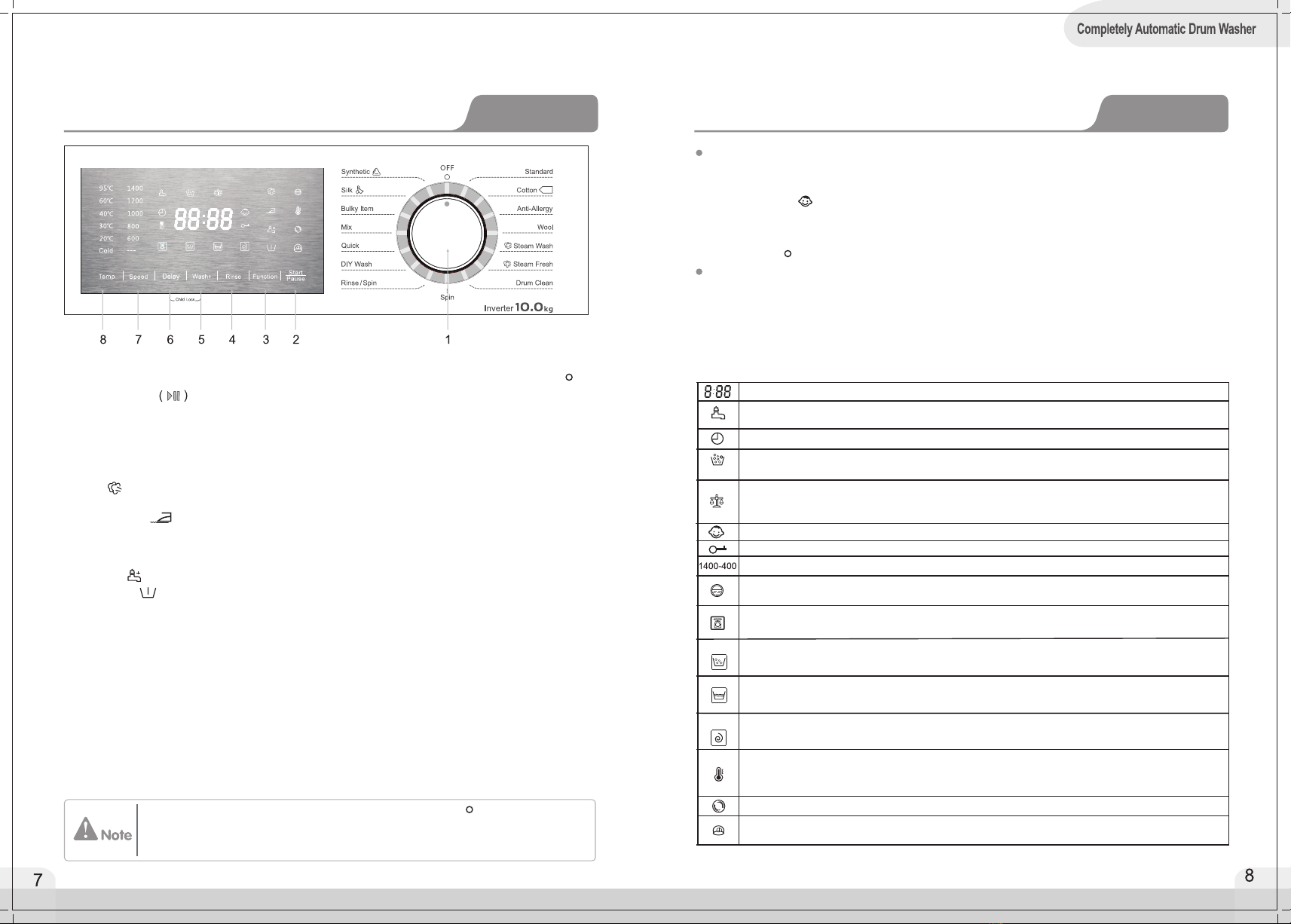

The functions of the control panel The functions of the control panel
Use process Use process
2.Start/pause
1.Knob
8.Temp
Press this button repeatedly to change the spin speed. Full details can be found on page 9
7.Speed
Press this button repeatedly to set the delay time of the start of a wash cycle from 1 hour to 24
hours.
6.Delay
Turn this knob clockwise or anticlockwise to select the required wash program. The detail is in

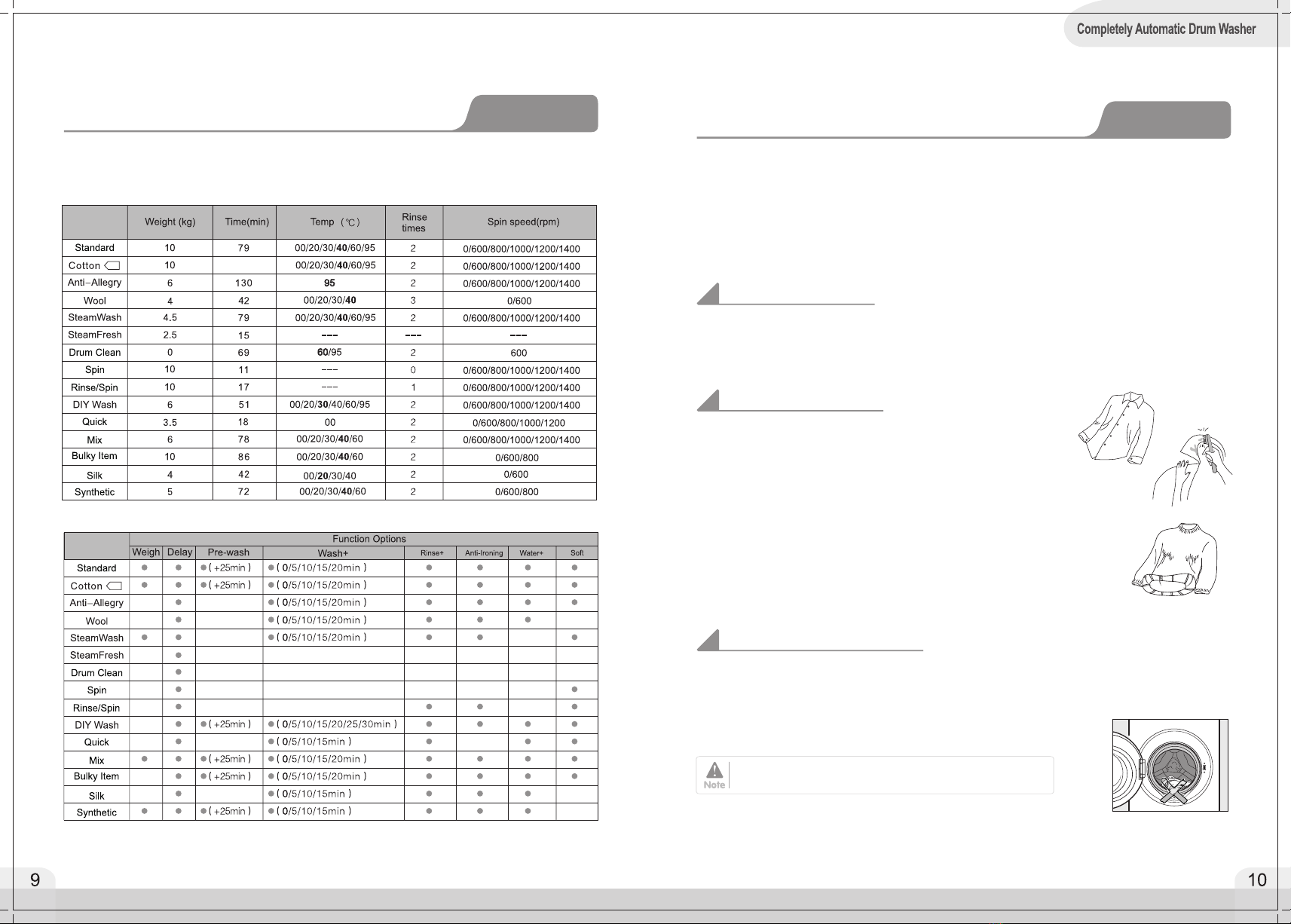

Form on page 8. (Note: At the end of a wash cycle, the knob must be turned to the position“ ”)
Press this button repeatedly to change the wash temperature. The detail is in Form on page 9
There are four basic functions: “Soft”, “Anti-Ironing”, “Water+”, “Pre-Wash”.
Soft This function can reduce the clothing folds by running the “SteamFresh” programme after
the rinse and spin.
Anti-Ironing This function is to reduce the creasing of clohes during a washing cycle. Once
this function is selected, the machine will not execute the last drain unless the “Start/Pause”
button is pressed. (Note: The max running time of this function is 12 hours. If it exceeds 12 hours,
the machine will drain and spin automatically.
Water+ This function is to add extra water on the programme you selected.
Pre-Wash this function is to increase a washing for very dirty clothes, the washing duration will
be extended.
Child lock (“Rinse+ ” + “Speed”)
The function of “Child lock” is to lock the control panel to prevent the misuse by children .
1.Press the “Rinse+” and “Speed” buttons simultaneously for 3 seconds.
When the icon “ is lit up on the screen, the function is activated. This function can be selected
during a washing cycle.
When this function is activated, all keys and knobs are unavailable, except for the knob turn to
the position “ ”
”
2.
Mute ( )“ ”Temp
The function of “Mute” is to close all the prompt tones and alert sounds.
To activate this function: Press the “Temp” button for 3 seconds.
How to cancel this function: Press the “Temp” button for 3 seconds again.
Display icon explanation
Delay time: This icon indicates that the delay time function is active.
Child lock: This icon indicates that the child lock function is selected
Door lock: This icon indicates that the door is locked.
Main wash: This icon will be bright in standby mode. When selected with the main wash function the
icon will flicker when the machine is in operation. The icon will be bright in pause mode and extinguish
when the machine finishes its cycle
Rinse:
flicker when the machine is in operation. The icon will be bright in pause mode and extinguish when the
machine finishes its cycle
This icon will be bright in standby mode. When selected with the rinse function the icon will
Final spin:This icon will be bright in standby mode. When selected with the final spin function the icon
will flicker when the machine is in operation. The icon will be bright in pause mode and extinguish when
the machine finishes its cycle
Digital display: This icon shows the time, speed, rinse times, Error code.
Inlet timeout: this icon indicates that the water inlet is overtime, please check the water tap and
make sure it is open
Foam reducing: This icon indicates that there is too much foam during the wash. The machine will
automatically run a programme to reduce.
Balance control: This icon indicates that there is an imbalance in the clothing and that they are not
evenly distributed in the drum. The machine will automatically check 3 times before the icon is
displayed.
Spin speed: Shows the spinning speed
High water level: If the machine is paused during a washing cycle, but the door cannot be opened
due to high water level, this icon will be displayed.
Weighing: Some programmes require the clothes to be weighed before setting. For this operation this
icon will be displayed
Water hot: the machine is pause during a washing cycle, but the door cannot be opened due to the high
water temperature(≥60°C), this icon will display until the button“Start/Pause” is pressed to start the
machine again.
Drum clean: If this icon , please run the “Drum clean” programme to clean the drum.displayed
Pump clean: If this icon , Please check the drain pump operation and ensure it is functioning
correctly and not blocked
displayed

The functions of the control panel
Use process
Options and functions for programmes
How to use the washer Use process
Sort the laundry by colour and by care label. Most garments have a
textile care label in the collar or side seam.
Ensure all pockets are empty. Foreign objects (e.g. nails, coins,
paper clips, etc.) can cause damage to garments and components in
the machine.
Close any zips and fasten hooks and eyes etc before washing.
Dark textiles often contain excess dye and should be washed separately
several times before being included in a mixed load. Always wash whites
and coloureds separately.
Badly soiled areas, stains etc. should be pre-treated with liquid detergent,
stain removers etc.
Wash clothes which pill easily inside out.
Unfold the laundry and load loosely into the drum. Mixing both large and small items gives better
wash results and helps distribute the load evenly during spinning. The most efficient use of energy
and water is achieved when a full load is washed. However, do not overload as this causes creases
and reduces cleaning efficiency.
Make sure that no garments are caught between the
door and the seal.
Before washing clothes for the first time, you must run a complete cycle without clothes.
To do this:
1.Connect the power and turn on the tap.
2.Turn the knob to position “Standard”.
3.Press “Start/Pause”.
This will remove any water remaining in the tub from the manufacturers testing process.
Washing preparation
1. Connect the inlet hoses well and turn on the tap.
2. Ensure the power socket is grounded correctly, insert the power plug into the power socket.
3. Position the drain hose appropriately.
Preparation of clothes
Diagram 1
Diagram 2
Diagram 3
Put clothes into the washer
1.
2.
3.
4.
5.
6.
Programme
Programme
289

How to use the washer Use process
Washing programme chart
Washing symbol
Fabric
Programme
Cottons, linens or cotton mix fabrics, e.g. table linen, towelling, underwear,
T-shirts etc.
Cottons, linens or cotton mix fabrics, e.g. table linen, towelling, underwear,
T-shirts etc.
Machine-washable or hand-washable wool or wool blend fabrics. If the care
label does not specify a temperature, wash using the cold setting. Also
suitable for hand-washable silks.Reduce the spin speed.
Small loads of items which require freshening up and which can be washed
on a Cotton programme.
Standard
Quick
Separate spin for cotton and linen items
Rinse+Spin
Spin
Synthetic
Wool
Synthetic or mixed fabrics, underwear, coloured garments, non-shrink shirts
This programme can be used for rinsing items which can be washed on a
Cotton programme. Do not add any detergent.
The door lock is activated once the “Start/Pause” button is pressed. Turn the knob to position “ ”
and the door lock is deactivated after two minutes.
When the temperature inside the drum is above 60℃, the door lock is locked.
When the water is above a certain level, the door lock is locked.
When the washing cycle is finished, the door lock is unlocked after two minutes.
The machine is fitted with a balance control device, which ensures the machine is stable
during the spin. To protect the machine, it will cut in if the laundry is not evenly distributed
in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen
several times before the unbalance disappears and normal spinning can resume. If, after 15
minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In
this case, redistributed the load manually and reselect the spin programme.
Door lock
Important:
Do not try to open the door when the washing cycle has not finished or the power supply is
cut off during the washing cycle, as the temperature may be high and you may be scalded.
1. Open the drawer and add adequate detergent into the main wash compartment marked “ ”or “ ”.
2. Add fabric softener into the compartment marked “ ” or “ ” .
Do not exceed the maximum level mark.
3. Add the detergent into the pre-wash compartment marked “ ” or “ ” according to the programme
you select.
4. Close the drawer.
How to use the washer Use process
Using the detergent drawer
The right amount to dispenser will depend on the following:
The quantity of laundry
The soiling level of the laundry
- Lightly soiled
No visible dirt or stains. Possibly slight body odour.
- Normally soiled
Visibly dirty and/or just a few slight stains.
- Heavily soiled
Visible dirt and stains and/or dried on soiling.
The water hardness level.
Main wash compartment
Fabric softener compartment
Pre-wash compartment
It is recommended to use low foaming powder for all washing temperature programmes.
Washing steps
1.Turn on the water tap, and connect the power.
2.Open the door, and load the clothes into the drum one by one.
3.Close the door, and put suitable amount of detergent and fabric softener into the dispenser.
Close the drawer.
4.Choose the desired programme by turning the knob .
5.Press the “Temp” button and select a washing temperature.
6.Press “ Start/Pause” button to start the washing machine.
7.When the cycle is finished, the warning tone sounds (If activated)
When the washing cycle is finished, the machine will change into standby mode.
If there is no further use for 10 minutes, the machine will automatically go into
sleep mode
Cotton
Washing clothes at 95℃, which would help for sterilization and disinfention.
Anti-Allergy
SteamWash
SteamFresh
Cottons, underwear, sheet, pillows, children's clothes.
This program can be used to remove the peculiar smell and folds of clothes.
Drum Clean This program is used to clean the drum. Don't put any clothes into the drum
while running this program.
DIY Wash All the temperature, time, rinse times and other functions can be selected as
you wish. This program will save the last settings automatically.
Dirty clothes made of cotton, synthetic fabric, or a combination.
Silk
Clothes with large volume.
Mix
Silk
Bulky Item

Cleaning and Maintenance
Use pointed nose pliers to withdraw the plastic filter.
Clean, put back and secure. These filters should be
checked every 6 months or so, or more often if there
are frequent interruptions to the water supply.
The filter should be cleaned every 2 months or when the
fault “E03” is displayed on the screen.
Cleaning the drawer housing
Use a bottle brush to remove detergent residues
inside the drawer housing.
The filter must be put back in place after cleaning.
Important:
If the machine is exposed to temperatures below 0°C, certain precautions should be taken.
1. Turn off the water tap.
2. Unscrew the inlet hose.
3. Unhook the drain hose from the rear support and place the end of this hose and the
inlet hose in a bowl. Run the spin programme.
4. Disconnect the appliance.
5. Screw the inlet hose and reposition the drain hose.
6. When you intend to start the machine up again, make sure that the room temperature is
above 0°C.
1. Disconnect the machine from
the mains electricity supply and
open the lower cover with a
screwdriver.
2. Place a container under the pump.
Unscrew and remove the filter.
3. Clean the filter carefully.
Cleaning the water inlet filter
Cleaning the drain pump filter
After use
Use process
Cleaning and Maintenance
Disconnect the machine from the mains electricity supply and withdraw the plug from
the socket before cleaning the machine.
The washing machine must not be hosed down.
Cleaning the exterior
Clean the exterior with a mild non-abrasive cleaning agent or soap and water using a damp cloth.
Wipe dry with a soft cloth.
Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaning agents.
These might damage plastic surfaces and other components because of the chemicals
they contain.
The washing drum
Clean the drum every 3 months by using the “Drum clean” programme.
Cleaning the drawer
Remove detergent residues regularly. Clean the drawer as follows:
Pull out the drawer until a resistance is felt. Press down the release catch and pull the drawer
out of the machine.
Remove the siphon from compartment and clean it.
Clean the dispenser using a brush and warm water.

69kg/74kg
Net weight / gross weight
Average Water consumption 54.5L
Average Energy consumption 1.05kWh
Remaining moisture content Class B
Program time(min) 304
0.38W
Power of left-on mode
0.38W
Power of off-mode
0.02-0.8MPa
Water pressure
2000W
Rated power
10.0kg
Washing / spin capacity
220V-240V~,50HZ
Power
WMUK004W
595X665X845mm
Technical Parameters
Model
Parameter
Outer dimension
(W x D x H)mm
Note:
Data can vary from the nominal values given depending on water pressure, water
hardness, water inlet temperature ,room temperature, type and volume of load,
fluctuations in the electricity supply and any extra options selected.
Appendix
Electric Diagram Appendix
Troubleshooting guide
Possible Cause
The machine
fills overtime.
Door lock
alarm sounds
1. Water tap is not open.
2. Drain hose is too low.
3. Water inlet valve is damaged.
1. Open the water tap.
2. Hook up the hose.
3. Change the water inlet valve.
“E01”
Problem Error Code
The machine
drains overtime.
Water overflow.
Water sensor
works
abnormally.
The motor does
not work.
Heating tube
fault.
Temperature
sensor fault.
1. Ensure the door is fully closed.
2. Put the garment into the drum.
3. Change the door lock.
1.The door is not locked properly.
2. Garment is caught between the
door and seal.
3. Door lock is damaged
“E02”
“E04”.
“E03”
“E05”
“E06”
“E07”
Difficult explanation
1. Check the drain hose.
2. Clean the filter.
3. Check the drainage system and
clean it.
1. The drain hose is squashed or
kinked.
2. The drain pump filter is blocked.
3. The drainage system pipes are
blocked.
1. The water inlet valve is damaged.
2. The connection between the water
sensor and wire is not secure.
3. The water sensor is damaged.
1. The connection between the motor
and wire is not secure.
2. The motor has over-heated.
3. The motor is damaged.
1. Check the connection is secure.
2. Check if the machine is overloaded.
Switch off the machine, and retry
when the motor has cooled down.
3. Change the motor.
1. The connection between the
heating tube and wire is not secure.
2. The heating tube is damaged.
1. Check the connection is secure.
2. Change the heating tube.
1. The connection between the
temperature sensor and wire is not
secure.
2. The temperature sensor is
damaged.
1. Check the connection and ensure
it is secure.
2. Change the temperature sensor.
1. Change the water inlet.
2. Check the connection is secure.
3. Change the water sensor.
There is a
signal faut “E09” 1.The signal transmission failed. 1.Restart the machine
Inverter fails
to start “E10”
1. The connection between the
inverter and wire is not secure.
2. The inverter is damaged.
1. Check the connection and ensure
it is secure.
High AC
voltage “H:AC” 1. The voltage of AC is too high. 1. It will be ok one the voltage return
to normal.
Low AC
voltage “L:AC” 1. The voltage of AC is too low. 1. It will be ok one the voltage return
to normal.
