Gale Pacific Coolaroo SOLAR MOTORISED 490904 Quick reference guide

ASSEMBLY & OPERATING
INSTRUCTIONS
EXTERIOR BLIND
SOLAR MOTORISED

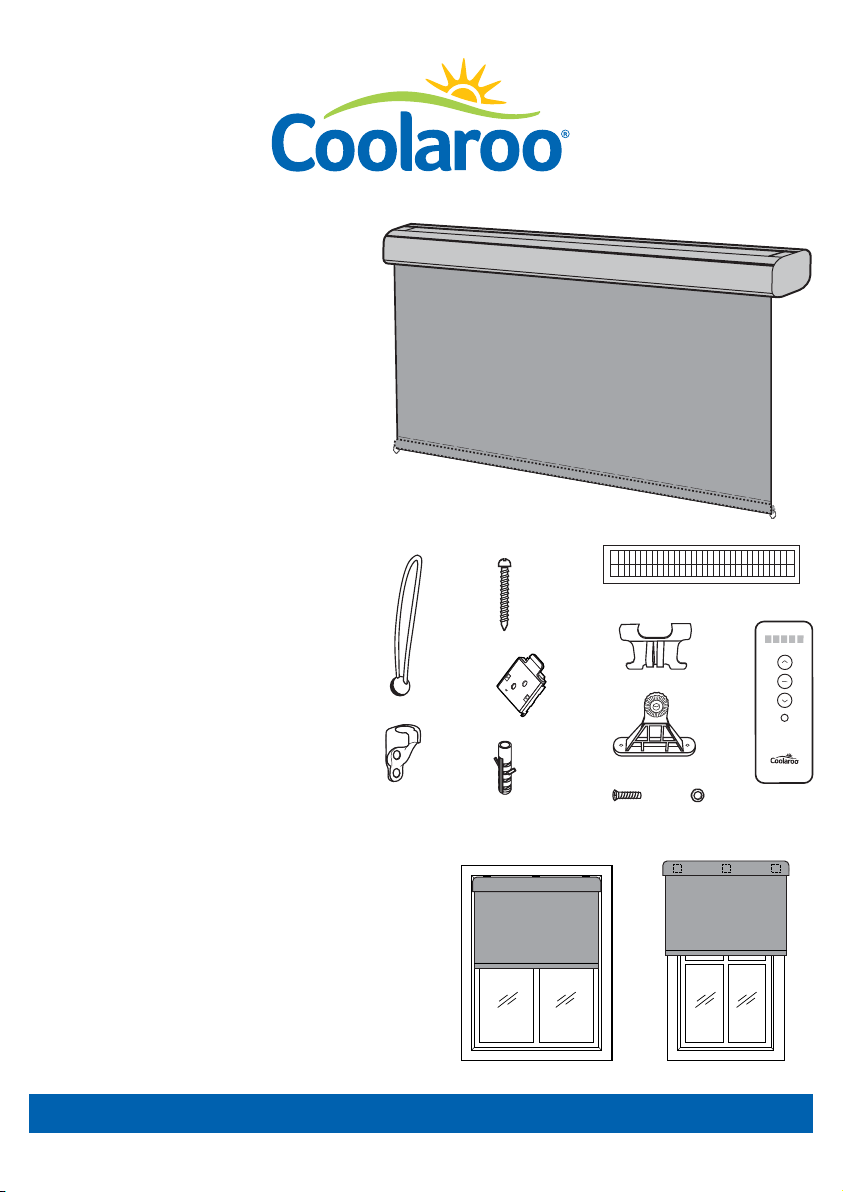

PARTS LIST
Take all parts out of the box and ensure
they are all present.
a) Aluminium pelmet
b) Blind
c) Bottom rail caps
d) Bottom rail
e) Bungees (2)
f) Receivers (2)
g) Timber screws (12)
h) Quick mount brackets (3)
i) Wall plugs (12)
j) Solar panel
k) Mounting bracket
l) Solar panel clip
m) Screw
n) Nut
o) 5 channel remote
WHAT ELSE YOU’LL NEED
• Drill bit
• Level
• Tape measure
• Pencil
• Phillips-head screwdriver
a
d
b
c
c
i
m
gj
n
e
h
k o
f
l
INSIDE OR OUTSIDE MOUNT
This blind can be tted to the top (inside) or face
(outside) of your wall, depending on your installation
environment.
TOP (INSIDE) MOUNT FACE (OUTSIDE) MOUNT
For latest information about this product visit www.coolaroo.com

STEP 1
Space the three quick mount brackets evenly
along the length of your blind. Mark the le, right
and centre bracket positions on your installation
surface.
NOTE: For top mount installation the bracket tabs
should face forwards. For face mount installations
the bracket tab should face downwards. Allow at
least 5cm (2”) of clearance between the bracket
and the wall or ceiling to allow enough clearance for
tting and removing the pelmet.
In the marked positions attach the three quick
mount brackets using the timber screws. Ensure
the screws are penetrating into timber. If mounting
to masonry, use the 5mm wall plugs.
IMPORTANT: If the brackets are installed upside
down or backwards, the pelmet will not lock into the
brackets.
STEP 2
Fit the pelmet by rst inserting the bracket hooks
into the channel on the pelmet. Then push the
pelmet rmly onto the brackets until all three
latches snap securely into the channel.
NOTE: Use the channels on top of the pelmet for
top (inside) mount installations and the channels
on the side of the pelmet for face (outside) mount
installations.
STEP 3
Bungee tie downs have been provided to secure
your exterior blind down in mild to moderate wind
conditions.
Thread the bungee cord through the end cap ring
and back through itself, making a lark’s head knot.
Use the timber screws to install the receiver
approximately 13cm (5”) below where the blind will
stop. Fit a receiver on each side of the blind. Use the
5mm wall plugs if screwing into masonry.
Attach the bungee to the receiver to secure the
blind when in the down position.
TOP (INSIDE) MOUNT FACE (OUTSIDE) MOUNT
Use wall plugs if xing
to masonry
Space quick mount brackets evenly
13cm (5”)
5cm (2”)
clearance
5cm (2”)
clearance
TOP (INSIDE) MOUNT FACE (OUTSIDE) MOUNT
TOP (INSIDE) MOUNT FACE (OUTSIDE) MOUNT

STEP 4
Position the solar panel clip onto the mounting
bracket and secure into position using the screw
and nut. Do not yet tighten.
Use the timber screws to mount the solar bracket
into a position near the pelmet that attracts the
most amount of sunlight. If mounting to masonry,
use the 5mm wall plugs.
Fit the solar panel into the clip, making sure the
power cord is on the right hand side.
NOTE: Ensure the solar panel mounting location
is close enough to allow the 2m cable to reach the
connection point on the motor.
Run the power cord along the top of the pelmet and
connect it to the motor.
Tilt the solar panel to an angle that will receive the
most sunlight, then fully tighten the screw.
STEP 5
To power up your solar motorised blind for the rst
time press the motor program button once on the
right hand side of the blind. The blind will move to
the bottom position. Once it has stopped, it is ready
for use.
To program the remote control you will need to
access the program button which is located on
the inside of the remote control.
Using a Phillips-head screwdriver undo the screw
on the back of the remote control and remove
the casing. Take note of the program button.
NOTE: The remote control is tted with a battery
isolation tag that will need to be removed and
disposed of prior to operating the remote control.
PROGRAMMING THE REMOTE
CONTROL
Press motor
program
button once
+
+
Remote control
program button

Pairing the remote control for up to 5 blinds
The blind has been pre-programmed to Channel 1 on the remote control (as illuminated on the channel
indicator). Up to 4 additional blinds can be programmed to the same remote control by following these
steps.
NOTE: You have 10 seconds to pair each blind before the remote control resets and you will need to start
the sequence again.
Setting an additional stop position
The blind has been pre-programmed with top and bottom limit positions.
To set an additional stop position, follow these steps.
1. Hold motor program
button for 3 seconds.
2. Press channel
selector button to
choose the desired
channel for pairing.
3. Press the remote
control program button
once. Motor will beep
once and rotate (back and
forth). When the motor
stops press it again.
4. Press the up
button once.
Motor will beep once and
rotate (back and forth). Motor will reverse
and beep six times to
complete the pairing.
Repeat the above steps to pair additional blinds to the remote control.
Once all blinds have been programmed to the remote they can be operated independently or all at the
same time. Press the channel selector button to choose a single blind (1 to 5), or, when all 5 channels are
illuminated all blinds will operate together.
+
Channel
selector
button
Channel
indicator
+
Program
button
+
Up
button
1. Select the desired
additional blind position
using the up, down and
stop buttons on the
remote control.
2. When the blind is in
the desired position,
press the program
button on the back of
the remote.
3. Press the stop
button once.
4. Press the stop
button one last time.
Motor will beep
once and rotate
(back and forth).
Motor will beep 3 times,
signaling that the
additional position is set.
+
Program
button
+
Up
button
+
Down
button
Stop
button
Up
button
Motor will beep
once and rotate
(back and forth).
+
Stop
button

WARNING : KEEP BATTERIES AWAY FROM CHILDREN
Resetting the remote control
To restore the remote control back to the factory
setting, press and hold the program button on the
motor for 10 seconds.
Press for 10
seconds
Canceling the additional stop position
Follow these steps to cancel the additional stop position.
1. Press the program button on
the back of the remote.
2. Press the stop button once. 3. Press the stop button one
last time.
Motor will beep 3 times,
signaling that the middle
position has been cleared.
+
Program
button
Motor will beep once and rotate
(back and forth).
Motor will beep once and
rotate (back and forth).
+
Stop
button
The battery should be replaced when the
responsiveness of the remote reduces. The remote
uses a CR2032 button battery.
Remove the back of the remote using a Phillips-
head screwdriver.
Carefully slide the battery from its compartment.
With the positive (+) side facing up, slide the new
battery into the compartment and re-assemble the
remote control.
NOTE: Batteries are not covered by the warranty.
REPLACING THE BATTERY IN THE REMOTE CONTROL
+
Swallowing batteries may lead to serious injury in as little as
two hours or death, due to the chemical burns and potential
perforation of the oesophagus.
If you suspect your child has swallowed or inserted a button
battery immediately call the 24 hour Poisons Information Centre
on 13 11 26 for fast, expert advice.
Examine devices and make sure the battery compartment is
correctly secured, e.g. that the screw or other mechanical fastener
is tightened.
Do not use if compartment is not secure.
Dispose of used button batteries immediately and safely. Flat
batteries can still be dangerous.
All consumers are required by law to dispose of batteries properly
at the designated collection points.
Tell others about the risk associated with button batteries and how
to keep their children safe.
Do not short circuit batteries or take them apart.
Never expose batteries to excessive heat such as sunshine or re.
+
Stop
button

Coolaroo products are manufactured by Gale Pacic Limited
ACN 082 263 778 (Gale). Gale provides the following warranty in
relation to Coolaroo products (“Product”).
The benets of this warranty are in addition to any rights and
remedies imposed by Australian Consumer Law, NZ Consumer
Guarantees Act 1993, and state and federal legislation that cannot
be excluded. Nothing in this warranty is to be interpreted as
excluding, restricting or modifying any applicable legislation to the
supply of goods and services which cannot be excluded, restricted
or modied.
WARRANTY
Gale warrants that, subject to the exclusions and limitations below,
all parts of the manufacture and assembly of the Product will be
free from defects in materials and workmanship for a period of two
(2) years from date of purchase.
If a defect appears in the Product before the end of the warranty
period and Gale nds the Product to be defective in materials or
workmanship, Gale will, in its sole discretion, either:
a) replace or repair the Product or the defective part of the
Product free of charge; or
b) refund the purchase price of the Product.
Gale reserves the right to replace defective parts of the Product
with parts and components of similar quality, grade and
composition where an identical part or component is not available.
The warranty will not apply where:
a) the Product has been altered or modied by someone other
than Gale or its authorised agent;
b) the alleged defect in the Product is within acceptable industry
variances;
c) Gale cannot establish any fault in the Product;
d) the defect in the Product has arisen due to the customer’s
failure to install and use the Product in accordance with the
instructions provided;
e) the defect in the Product has arisen due to the customer’s
request to customise the Product;
f) the Product has been subject to abnormal conditions,
including environment, temperature, water, re, humidity
pressure,stress or similar.
The warranty does not extend to:
a) damage or defects caused by normal wear and tear,
b) water or sun damage; or
c) any other damage caused by the customer placing other
equipment, furniture or material in close proximity to the
Product. Gale makes no express warranties or representations
other than set out in this warranty.
The repair or replacement of the Product or part of the Product is
the absolute limit of Gale’s liability under this express warranty.
WARRANTY CLAIMS
1) Upon purchasing the Product, the customer must register
their warranty by completing the Coolaroo online warranty
registration at www.coolaroo.com. Alternatively, the
customer can contact Coolaroo Customer Service on 1800 331
521 (AU) or 0800 555 171 (NZ) for assistance.
2) If a fault covered by warranty occurs, the customer must
contact Gale using the contact details provided.
3) Any warranty claim must be accompanied by proof of
purchase and details of the alleged defect.
4) The customer must bear the cost of the transport of the
Product to and from Gale or the authorised agent to make the
warranty claim, and all insurance of the Product.
AUSTRALIAN CONSUMER LAW
Nothing in this agreement is intended to have the eect of
contracting out of any applicable provisions of the Competition
and Consumer Act 2010 or the Fair Trading Acts in each of the
States and Territories of Australia, except to the extent permitted
by those Acts where applicable.
This warranty is not transferable, and applies only to the initial
purchaser of the installed Product.
In addition to the above warranty, Australian Consumer law and
other state and territory legislation may imply warranties or
conditions or impose liability on Gale in relation to the Product
or its supply which cannot, or can only to a limited extent, be
excluded, restricted or modied. Except for those implied
warranties or conditions and such liability, and for the warranty
described above:
a) all warranties and conditions (whether express or implied,
statutory or otherwise) relating to the Product or its supply
are expressly excluded; and
b) Gale will not be liable for any loss or damage suered by any
person (including the purchaser of the Product) in any way
relating to or arising from the Product or its use (including loss
or damage arising from the negligence of, or contributed to
by, Gale).
If liability for breach by Gale of a warranty or condition or any other
liability imposed on Gale by legislation which cannot be excluded
may be limited, Gale’s liability is limited to the extent permitted by
law, and if liability may be limited in any one of a number of ways,
Gale’s liability is limited in any one of the permitted ways chosen by
Gale in its absolute discretion.
The Purchaser acknowledges that the Purchaser does not rely on
the skill or judgment of Gale as to whether or not the Products are
t for any particular purpose.
The Purchaser indemnies Gale from every liability, loss, damage,
cost or expense directly or indirectly incurred or suered by Gale
caused by or contributed to by the
Purchaser’s failure to:
1) adequately provide or display safety markings or safety
information on or with the Products;
2) comply with any law about the Products or their use;
3) take any reasonable precaution to bring to the attention of
any potential users of the Products any dangers associated
with Products;
4) any negligence or breach of duty by the Purchaser or any
breach by the Purchaser of these terms.
PRODUCT 2 YEAR WARRANTY AND LIMITATION OF LIABILITY
To register your product for warranty go to coolaroo.com.au

For help with product assembly
or for any other questions
you may have, contact our
Customer Service Department.
Australia Toll Free: 1800 331 521
New Zealand Toll Free: 0800 555 171
United States Ph: [phone]
Middle East Ph: [phone]
China Ph: [phone] Gale Pacic Limited
145 Woodlands Drive,
Braeside, Victoria, 3195 Australia
Coolaroo is a registered trademark
of Gale Pacic Limited
430559 / 1505
MOTOR Battery 2000mAh Lithium battery
Using Environment -0° C+50°C
Voltage 8.4V
Normal Torque 0.7Nm
Noise Level <60dB
SOLAR PANEL Solar Panel -10°C+55°C
REMOTE Operating Frequency 433.925MHz
Channels 5
Remote Battery CR2032
Your exterior blind has been made of the nest materials and, when properly cared for, will provide years of
shade, privacy and protection from the elements. To clean your shade, simply rinse with water, scrub with
mild soap or any non abrasive cleaner, rinse and allow to dry.
Do not store shade wet. In damp environments roll blind down frequently to air dry.
Retract your exterior blind when not in use, or before strong storms, to prevent damage.
Use of solvents or abrasive cleaners may damage the fabric and will void your warranty.
Do not use bleach or chlorine.
CARE & MAINTENANCE
SPECIFICATIONS
