Gama Sonic 119BM50022 User manual

US patent # 9458970 / Version 1.1
PLAZA SOLAR LIGHT
Model: 119BM50022
With 3in Fitter and Wall Mount
Instruction Manual

Thank you for your purchase! GAMA SONIC® solar charged lights are brighter and last
all night with a typical solar charge. Unique design, superior light output and numerous
installation options confirm the outstanding value of our product. GAMA SONIC® has been
recognized as a worldwide leader in the lighting industry for over 20 years.
Please read the instruction manual carefully to obtain the best results from your purchase.
Visit our website or download the latest version of your instruction manual:
www.gamasonic.com or www.gamasonic.com/user-guides
Technical Assistance / Warranty Claims / Replacement Parts
Toll-Free number: [phone] (only within the US) or www.gamasonic.com
For optimum light duration throughout
the night, it is very important to mount
your solar lamp in a spot where it will
receive the maximum amount
of direct sunlight throughout
the day. The solar light must
be charged in full sun for two
days for the best
results.
NOTE: For best
results, the solar
light must be
charged in the
“ON” position
for at least
2 days of full
direct sunlight.
Gama Sonic’s NEW Morph Solar Panel
Technology is a groundbreaking process
in the way we capture more power from
the sun. Our Morph technology still uses
monocrystalline solar panels. However,
instead of the standard limited sized
solar panels, our new technology allows
the solar panels to MORPH into the light
fixture.
New Morph Technology What’s In The Box
Solar Lamp Location
page 2
A
C D
B
E F

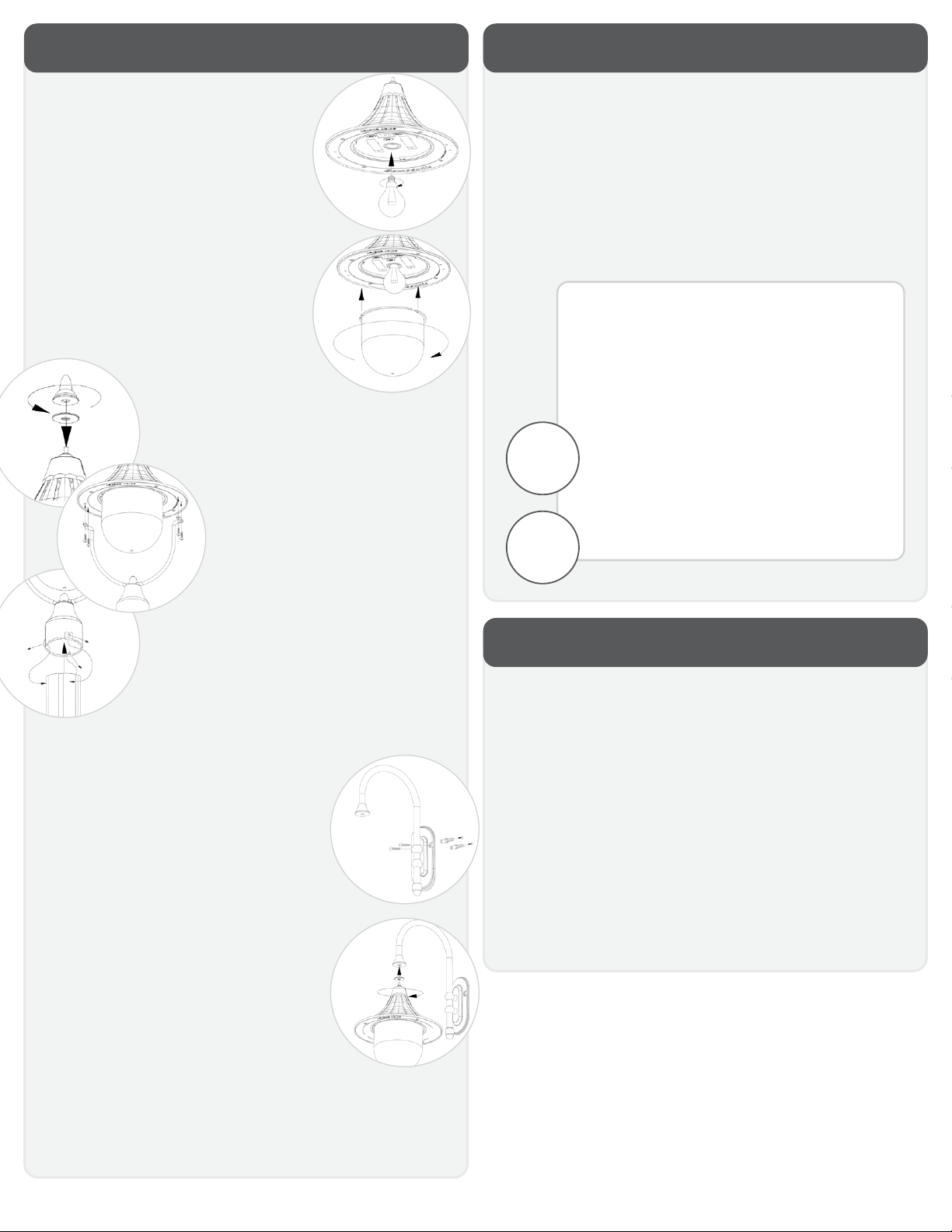

1. Insert the GS Solar LED Bulb into the
Fixture (Part A) by twisting Clockwise.
NOTE: Make sure to grip the light bulb by the
base only and NOT the glass lens.
2. Turn the operation switch to the Low
or High position according to your
preferences.
3. Attach the Dome (Part B) by lining up the
tabs on the Fixture (Part A) and twisting
the dome clockwise until it is firmly
secured.
1. Insert the GS Solar LED Bulb into the Fixture (Part A) by twisting
Clockwise.
2. Turn the operation switch to the Low or High position according to
your preferences:
Low = Softer light and longer duration
High = Brighter light output
3. The solar Lamp will automatically operate at dusk.
Assembly Instructions Operation Instructions
Replacement Batteries and Bulbs are available at
www.gamasonic.com or via our Toll Free number: [phone]
Your Lamp can use the following bulbs:
A60WW20W – included bulb with Warm White LEDs (2700K)
A60BW20W – bulb with Bright White LEDs (6000K)
F30WW05W – Flame bulb with simulated flame LEDs
Your Lamp uses two of the following battery:
GS32V30
Replacement Parts
page 3
3” Fitter/Pole Mount
1. Place the Washer (Part F) on the threaded rod
at the top of the Fixture (Part A) and then
tighten the Finial (Part E) by twisting
clockwise until it is secure.
2. Attach the 3” Fitter Bracket (Part C)
to the Fixture (Part A) using the
four small screws.
3. Place the completed lamp assembly
on your existing 3” pole. Secure it
to the pole by tightening the three
setscrews at the base of the 3” Fitter Bracket
(Part C)
Wall Mount
1. Place the Wall Bracket (Part D) in your
desired mounting location. Using the
bracket as a template, mark the two holes
that will need to be made.
2. Using an electric drill, drill two holes no
larger than the size of the Anchors. Insert the
anchors fully into the holes.
3. Line the Wall Bracket (Part A) up with the
Anchors and secure using the screws.
4. Place the Washer (Part F) on the threaded
rod at the top of the Fixture (Part A) and
secure the Fixture (Part A) to the Wall
Bracket (Part D) by twisting clockwise. Make
sure the lamp is securely tightened to the
bracket.

Replacing the battery
page 4
Maintenance
Batteries are available for purchase at www.gamasonic.com
Troubleshooting
Clean the solar panels regularly with a damp towel to guarantee optimum performance. Do not use any type of
solvent for cleaning and be careful not to put too much pressure on the solar panels while cleaning.
WARNING: Do not dispose of Li-Ion batteries in the regular trash, municipal waste stream or by re as batteries may
leak or explode. Do not open, short circuit, or mutilate batteries as injury may occur. Preserve our environment by
recycling Li-Ion batteries or disposing of them in accordance with local, State, and federal regulations. Do not mix old
and new batteries.
If your solar light does not come on as expected despite observance of all the instructions, please try the
following steps:
1. Make sure that the solar lamp is not being aected by any other light source.
2. Ensure the solar lamp is not positioned in the shade during the day.
3. Check that the batteries are installed correctly.
NOTE: The performance of the solar lamp will vary with the time of year. It will last longer when it has had a full
day in the sun rather than a day in overcast weather.
WARNING: Please keep out of reach of children. Do not dispose of the Li-Ion battery in the regular trash,
municipal waste stream or by fire as batteries may leak or explode. Do not open, short circuit, or mutilate
batteries as injury may occur. Preserve our environment by recycling Li-Ion batteries or disposing of them in
accordance with local, State and federal regulations. Do not mix old and new batteries.
WINTERTIME TIPS: For optimal performance, be sure to remove any snow or debris accumulation from solar
panel(s). A solar panel free of debris will charge the batteries much more eciently.
After several years of use, the battery may need replacing.
1. Remove Lamp from pole/wall bracket.
2. Remove the Dome (Part B) by twisting counterclockwise.
3. Make sure the ON/OFF switch is in the OFF (O) position.
4. Unscrew the battery compartment located on the silver reflector and
remove the compartment door.
5. Unclip the connector and remove the old battery.
6. Make sure the new battery is a Gama Sonic – 3.2V/3,000mAh, Li-ion
Rechargeable Battery with a connector.
7. Clip on the new battery and install it into the battery compartment. Re-
Install the battery compartment cover.
8. Repeat steps 4 to 6 for the second battery.
9. Reassemble the lamp by reversing steps 1-3.
