GANN Hydromette BL UNI 11 User manual

1
Hydromette BL UNI 11
HYDROMETTE BL
Uni 10
Operating Instructions
Version 1.0
EN
HYDROMETTE BL
UNI 11

2
Hydromette BL UNI 11
Table of Contents
0.1 Publication Statement ....................................................4
0.2 General Notes................................................................5
0.3 WEEE Directive 2002/96/EC Law on Electrical and
Electronic Equipment .....................................................6
1Introduction......................................................................7
1.1 Description.....................................................................7
1.2 Device Layout and Button Assignment...........................8
1.3 Display Symbols.............................................................9
2Basic Functions.............................................................10
2.1 Switch on Device..........................................................10
2.2 Display in Measuring Mode..........................................11
2.3 Setting Menus..............................................................12
2.3.1 Measurement Menu (Main Menu)......................12
2.3.2 Material Setting..................................................13
2.3.3 Maximum Value Display....................................14
2.3.4 Minimum Value Display.....................................15
2.3.5 Memory Menu ...................................................16
2.4 Other Functions............................................................17
2.4.1 Automatic Switch-off..........................................17
2.4.2 Battery Monitoring .............................................17
3Specifications................................................................18
3.1 Technical Data.............................................................18
3.2 Prohibited Environmental Conditions............................18

3
Hydromette BL UNI 11
4Application Notes..........................................................19
4.1 Legend.........................................................................19
4.2 General Notes and Equipment.....................................19
4.2.1 Active electrode B 55 BL ...................................19
4.2.2 Active electrode RF-T 28 BL..............................20
4.2.3 Active electrode RH-T 37 BL 20
4.2.4 TF sticks............................................................21
4.2.5 Active electrode TF-IR BL..................................21
4.2.6 Active electrode ET 100 BL...............................21
4.2.7 Active electrode OT 100 BL...............................22
4.2.8 Active electrode TT 40 BL 22
4.2.9 Connecting cable MK 16 & MK 18 22

Introduction
4
Hydromette BL UNI 11
0.1 Publication Statement
This publication replaces all previous versions. It may not be reproduced in
any form or processed, duplicated or disseminated using electronic systems
without the written permission of Gann Mess- u. Regeltechnik GmbH. Subject
to technical and documentary changes. All rights reserved. This document was
prepared with the required care. Gann Mess- u. Regeltechnik GmbH accepts
no liability for errors or omissions.
GANN Mess- u. Regeltechnik GmbH, Gerlingen, Germany. 09/10/2017

Introduction
5
Hydromette BL UNI 11
0.2 General Notes
This measuring device fulfils the requirements of the applicable European and
national directives (2004/108/EC) and standards (EN61010). Appropriate
declarations and documentation are held by the manufacturer. To ensure
trouble-free operation of the measuring device and operational reliability, the
user must carefully read the operating instructions. The measuring device may
only be operated under the climatic conditions specified. These conditions can
be found in Chapter 3.1 "Technical data". This measuring device may likewise
only be used under the conditions and for the purposes it was designed for.
Operational reliability and functionality are no longer ensured if the device is
modified or adapted. Gann Mess- u. Regeltechnik GmbH is not liable for any
damage arising from such modifications or adaptations. The risk is borne by
the user alone.
Using appropriate means, make always sure that there are no
electrical cables, water pipes, or other utility lines at the location, at
which the measurement is to be carried out.
The device must not be stored or operated in aggressive air or air
containing solvents!
Material that is frozen or has wet surfaces cannot be measured.
The notes and tables in these instructions on permitted or normal
humidity conditions in practice and the general definitions of terms
have been taken from the specialist literature. No responsibility can
therefore be taken by the manufacturer for the correctness of this
information. The conclusions to be drawn from the measurement
results are related to the individual conditions and the knowledge
drawn from professional experience for each user.
The measuring device may be operated in residential and commercial
areas, as the stricter class B for emitted interference (EMC) has been
adhered to.
The device may not be operated in the immediate area of medical
equipment (heart pacemakers, etc.).
The measuring device may only be properly used as described in
these instructions. Keep the device and accessories out of the reach
of children!

Introduction
6
Hydromette BL UNI 11
Measurements must not be carried out on metallic surfaces.
Gann Mess- u. Regeltechnik GmbH accepts no liability for damage resulting
from non-adherence to the operating instructions or by not taking proper care
during transport, storage or operation of the device, even if this requirement for
care is not specifically addressed in the operating instructions.
0.3 WEEE Directive 2002/96/EC Law on Electrical and
Electronic Equipment
Disposal of packaging, battery, and device must be undertaken in
accordance with the legal requirements at a recycling centre.
The device was manufactured after 1 October, 2009

Introduction
7
Hydromette BL UNI 11
1 Introduction
1.1 Description
The Hydromette BL UNI 11 is a universal triple meter with a 3-line LCD
display. By connecting a wide range of active electrodes and TF sticks with
high-quality sensor technology, the measurement ranges of building moisture,
humidity and temperature can be covered.
The Auto Sensor Technology used enables the BL UNI 11 to automatically
detect the electrode or TF stick connected and to adapt the measured value
readout to the respective sensor type. If a TF stick (either directly or using the
MK 18 cable) and another electrode (e.g. B 55 BL) are connected at the same
time, the meter will always show the measuring values obtained with the TF
stick.
The following BL active electrodes can be connected to the BL UNI 11:
Active electrode B 55 BL
Probe for non-destructive location of moisture concentration in
construction materials of all kinds and moisture distribution in walls,
ceilings and floors
Active electrode RF-T 28 BL
Probe for measuring the climate within seconds
Active electrode RF-T 37 BL
Probe for rapid measurement of air humidity and temperature
TF stick 16 K-21, TF stick 16 K-25, TF stick 16 K-25 M,
TF stick 16 K-25 P
TF sticks for rapid measurement of air humidity and temperature
Active electrode TF-IR BL
Probe for the measurement of climate as well as infrared surface
temperature
Active electrode ET 10 BL
Surface temperature sensor
Active electrode OT 100 BL
Push-in electrode for measurements in solids, bulk materials and
fluids

Introduction
8
Hydromette BL UNI 11
Active electrode TT 40 BL
Immersion and flue gas temperature sensor
All mentioned active electrodes are listed and described in detail in chapter 4.

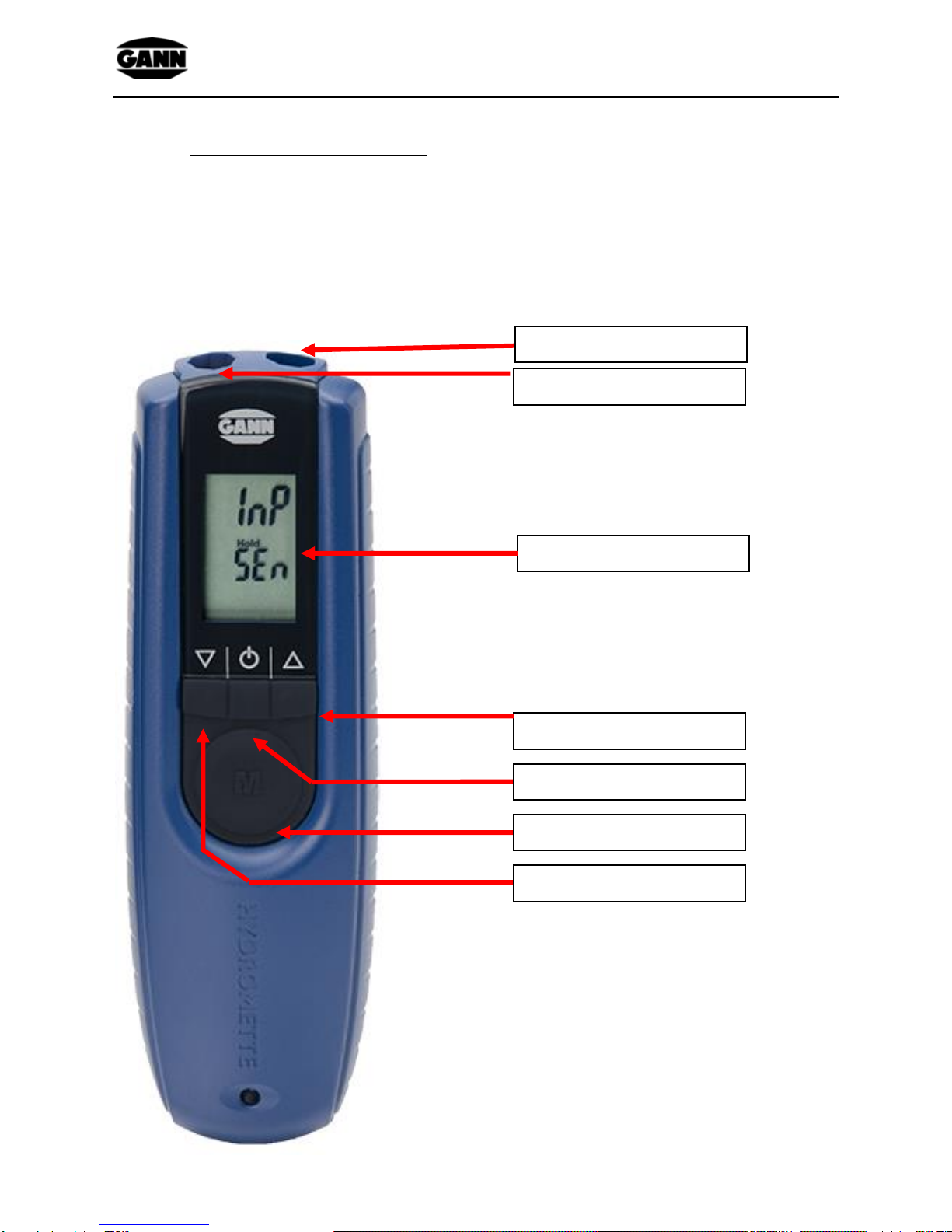

1.2 Device Layout and Button Assignment
Electrode connector
Display
Up button
On/off button
Measurement button
Down button
TF stick connector

Introduction
9
Hydromette BL UNI 11
1.3 Display Symbols
Main menu symbols
Material / Air humidity
Measured value is held.
Ready for measurement
Temperature in °C
Construction material
symbol
index
Other symbols
Max indicator
Digit value
Battery symbol
„0“ = Scanning mode
(digit)
Temperature in °C

Basic Functions
10
Hydromette BL UNI 11
2 Basic Functions

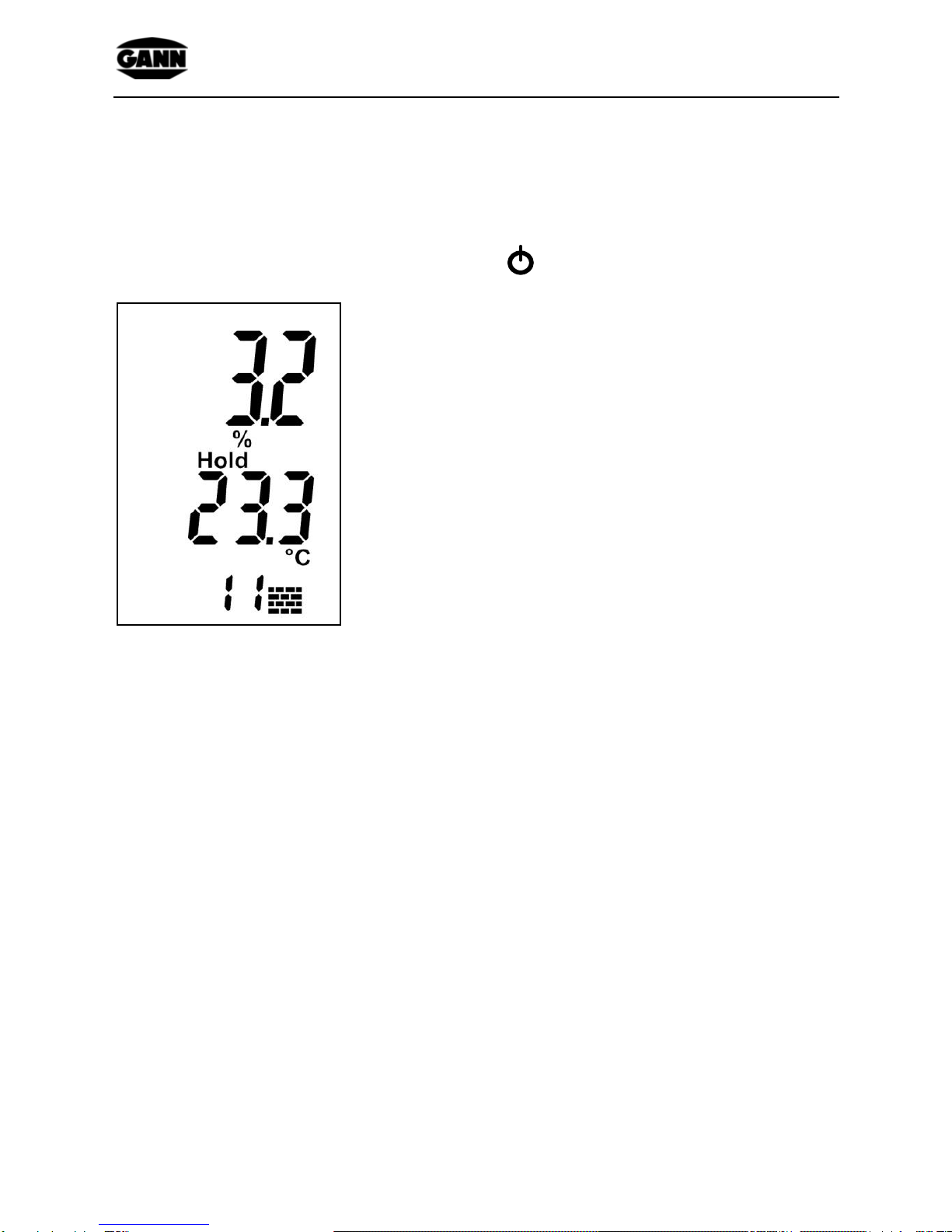

2.1 Switch on Device
The unit is powered by pressing the ON button .
Most recently measured material humidity in %
Most recently measured temperature
in °C
Material type set
After pressing ON, the display changes to the measurement menu (the main
menu). This menu is used to show the most recently measured values. This
information is shown by displaying "Hold" on the display.
Figure 2-1 Measurement menu

Basic Functions
11
Hydromette BL UNI 11
2.2 Display in Measuring Mode
Displayed measured value in %
"Hold" symbol signals readiness to carry out a
measurement
Measured temperature in °C
Index and material symbol
A measurement process is started by pressing the Mbutton.
The 0 type index for a measurement is shown in Digits. The scale is in the
range of 0 to 100. %-sign and material indexl will disappear. This value allows
individual measurements or complete humidity profiles to be created,
irrespective of the properties of the material to be measured.
Digit values are non-dimensional measured values and no real humidity
values in %!
A measurement is initiated by pressing the Mbutton for more than 1 second.
Figure 2-2 Measuring mode

Basic Functions
12
Hydromette BL UNI 11
2.3 Setting Menus
From the measuring menu, repeatedly press the Up or Down button to select
the following menu items one after another (use Down to select the menus in
their order, use Up to select them in opposite order).
1. Measurement menu (main menu): Use to carry out the measuring
process.
2. Material setting: Use to select the material type.
3. Maximum value display: The highest value measured is shown here.
4. Minimum value display: The lowest value measured is shown here.
5. Memory menu: The last 5 values measured can be called here.
2.3.1 Measurement Menu (Main Menu)
The last measurement with the note "Hold" is shown here. The current type is
shown in the last line of the display. When an external temperature sensor is
connected, the sensor temperature is shown in the middle line of the display.
In this menu, a new measurement can be started by pressing the "M" button.
During the measuring process, the "Hold" symbol disappears from the
display. After releasing the "M" button, the measured value is saved. The
"Hold" symbol is displayed again.
If the new measured value is larger than the previous maximum value, "Max"
flashes on the display. If the value is not to be saved, the "M" button must be
pressed briefly. If the value is to be saved, a new measurement is started with
a long press on the "M" button without changing the previous maximum
values.

Basic Functions
13
Hydromette BL UNI 11
2.3.2 Material Setting
The material index set is displayed together with the
symbol for the material moisture.
Index and material symbol
If the preset material is to be changed, the Up button must be pressed once.
After that, the "M" button (measurement button) must be pressed
momentarily.
The Material index flashes and can be set using the Up or Down buttons. The
change is saved by pressing the "M" button again briefly.
The material table is found in the appendix of each probe.
Figure 2-3 Material selection

Basic Functions
14
Hydromette BL UNI 11
2.3.3 Maximum Value Display
The highest measured value of a measurement
series is displayed together with the "Max" display
symbol
Index and material symbol
If a maximum value is to be deleted, the displayed value must be selected by
momentarily pressing the "M" button (measurement button).
The value flashes and can now be deleted using a long press on the "M"
button.
Afterwards, only the "Max" symbol is still flashing. Using another momentary
press on "M" button, the entry is confirmed and the device returns to the
Ready mode.
Using the "M" button, a new measurement can then be carried out
immediately.
Figure 2-4 Maximum value menu

Basic Functions
15
Hydromette BL UNI 11
2.3.4 Minimum Value Display
The lowest moisture measurement in a measurement
series is displayed together with the "Min" display
symbol
Type index
If a minimum value is to be deleted, the displayed value is selected by
momentarily pressing the "M" button.
The value and the % symbol now flash and the value can be deleted by a long
press on the "M" button. After deleting the value, only the % symbol still
flashes. By momentarily pressing the "M" button again, the deletion of the
value is confirmed and the % symbol disappears. The device now returns to
Ready mode.
Using the "M" button, a new measurement can then be carried out.

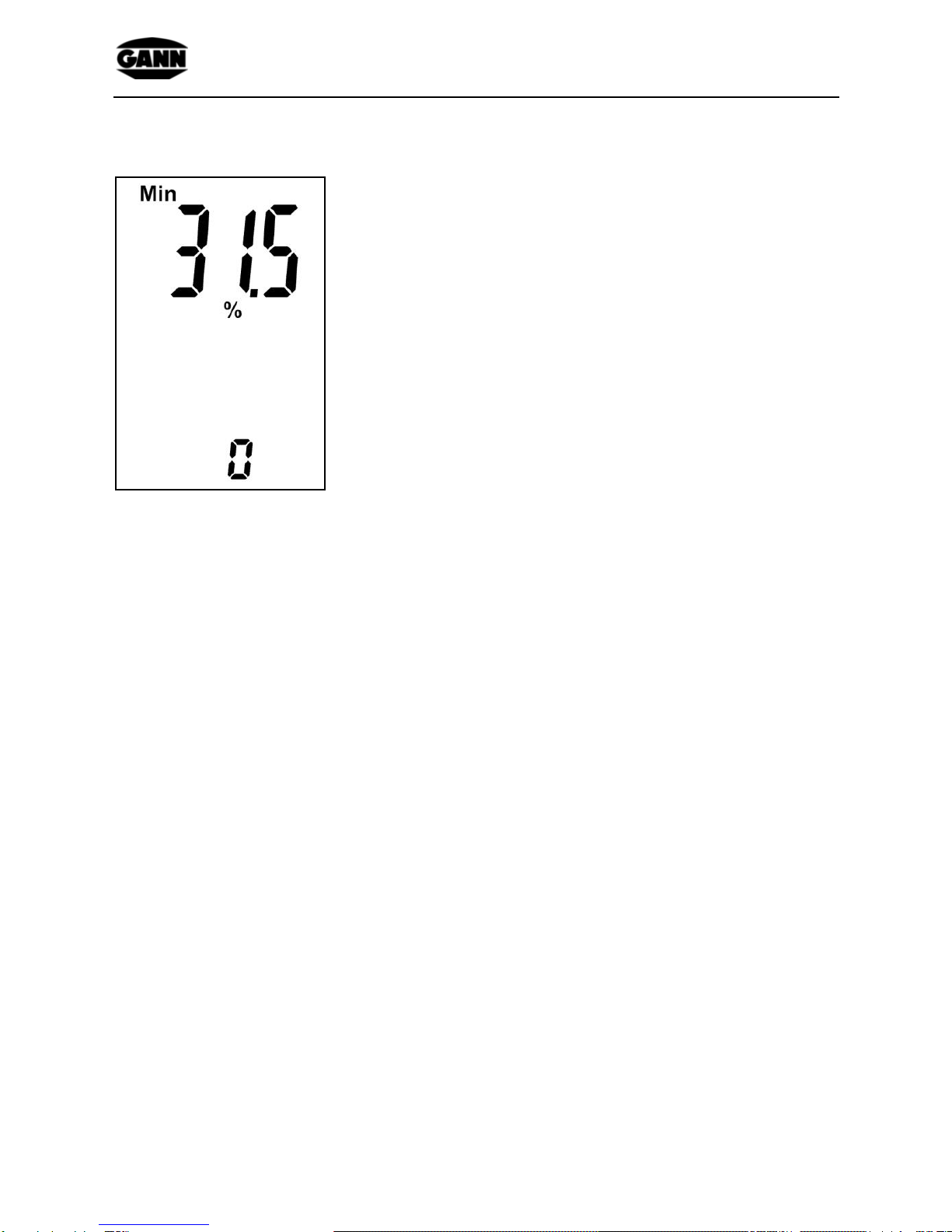

Figure 2-5 Minimum value

Basic Functions
16
Hydromette BL UNI 11
2.3.5 Memory Menu
Symbol: memory "r1"
As soon as you select the memory menu, the memory location number "r1" is
displayed for approx. 1 second, and then the last measured saved value
contained there is displayed.
The last 5 measured values are automatically saved and stored in memory
locations "r1" to "r5". The last measured value is in memory location "r1". This
is a ring buffer: Once the sixth measured value is recorded, the first measured
value is automatically removed from the memory.
By momentarily pressing the "M" button, the next memory location "r2" is
selected and the value contained there is displayed. After reaching the 5th
memory location, the first one is shown again.
The saved values displayed can be identified by the fact that no "Hold"
symbol is shown in the display.
Figure 2-6 Memory location "r1"

Basic Functions
17
Hydromette BL UNI 11
2.4 Other Functions
2.4.1 Automatic Switch-off
If no button is pressed within approx. 30 seconds, the device switches off
automatically. The current values are retained and are displayed again after
the unit is switched back on.
2.4.2 Battery Monitoring
If the battery symbol appears in the display, the battery is dead and must
be renewed.
A list of battery types that can be used can be found in the "Technical data"
chapter.

Specifications
18
Hydromette BL UNI 11
3 Specifications
3.1 Technical Data
Display: 3-line display
Display resolution: 0.1 %
Response time: < 2 s
Storage conditions: + 5 to + 40 °C
- 10 to + 60 °C (short-term)
Operating conditions: 0 to + 50 °C
- 10 to + 60 °C (short-term)
Power supply: 9V block battery
Approved types: 6LR61 type or 6F22 type
Dimensions: (L x W x H) 190 x 50 x 30mm
Weight: approx. 150g
3.2 Prohibited Environmental Conditions
Condensation, air humidity continuously too high (> 85 %) and wetness
Permanent presence of dust and combustible gases, fumes or solutions
Ambient temperatures continuously too high (> +50 °C)
Ambient temperatures continuously too low (< 0 °C)

Application Notes and Equipment
19
Hydromette BL UNI 11
4 Application Notes and Equipment
4.1 Legend
Structural moisture Temperature Air humidity
4.2 General Notes
The BL UNI 11 is an electronic multi-purpose meter for three measured
values, to which a number of GANN BL electrodes and TF sticks can be
connected. The Auto Sensor Technology used enables the BL UNI 11 to
automatically detect the electrode or TF stick connected and to adapt the
measured value readout to the respective sensor type. A 3-line LCD display
for the detection of moisture, humidity and temperature is used.
If no active electrode is connected, “InP Sen” appears on the device. The
various active electrodes and TF sticks are adapted to the different areas of
application and can be changed arbitrarily and easily. If a TF stick (either
directly or using the MK 18 cable) and another electrode (e.g. B 55 BL) are
connected at the same time, the meter will always show the measuring values
obtained with the TF stick.
4.2.1 Active electrode B 55 BL
The active electrode B 55 BL is an
electronic moisture meter of the dielectric
constant / high frequency measuring
principle. It has an integrated measuring
circuit, designed for non-destructive
location of moisture concentration in
construction materials of all kinds and
moisture distribution in walls, ceilings and
floors.
An ideal pretester for use with all "CM"
devices.

Application Notes and Equipment
20
Hydromette BL UNI 11
4.2.2 Active electrode RF-T 28 BL
The active electrode RF-T 28 BL is a
precise thermo-hygrometer for many
application areas, for example living
space surveillance, air-conditioning
technology, printeries and warehouses.
Additional features include: the
immediate display and calculation of
relative humidity, air and dew point
temperatures on the 3-line LCD display
of the main unit.
4.2.3 Active electrode RH-T 37 BL
The active electrode RH-T 37 BL is a
precise thermo-hygrometer for rapid
measurement of relative humidity and
air temperature. Using hardcoded
sorption isotherm, weight and
percentages by mass can be
determined for various building and
insulation materials as well as hard and
soft wood.
The model “flex” has a flexible sensor
tube and is therefore suitable for
measurements in places that are hard
to reach.
The RH-T 37 BL is particularly suitable for moisture analysis, damage
assessments, construction-dehydration and to test the readiness for the
installation of floor and wall coverings.
