GANN Hydromette BL Compact B 2 User manual

1
Hydromette BL Compact B 2
6 b.,.
HYDROMETTE BL
COMPACT B 2
Operating Instructions
Version 1.1

2
Hydromette BL Compact B 2
Contents
0.1 Publication Declaration......................................................4
0.2 General Information...........................................................5
0.3 WEEE Directive 2002/96/EC Electrical and Electronic
Equipment Act...................................................................6
1Introduction.......................................................................... 7
1.1 Description.........................................................................7
1.2 Instrument Design and Key Assignments..........................8
1.3 Display Icons.....................................................................9
2Basic Functions................................................................. 10
2.1 Display in Measuring Mode ............................................. 10
2.2 Settings Menus................................................................ 11
2.2.1 Measuring Menu (main menu)............................ 11
2.2.2 Material Settings................................................. 12
2.2.3 Alarm Value Setting............................................ 13
2.2.4 Maximum Value.................................................. 16
2.3 Additional Functions........................................................ 17
2.3.1 Automatic Shut-down ......................................... 17
2.3.2 Battery Monitoring .............................................. 17

3
Hydromette BL Compact B 2
3Specifications..................................................................... 18
3.1 Technical Specifications.................................................. 18
3.2 Intolerable Ambient Conditions........................................ 18
3.3 Measuring Range............................................................ 19
4Notes on Use...................................................................... 19
4.1 General Notes ................................................................. 19
4.2 Orientation Values........................................................... 20
4.3 Handling the Hydromette BL Compact B 2...................... 21
4.4 Display Values (Digits) in Relation to the Bulk Density.... 23
5Annex.................................................................................. 25
5.1 Materials Table................................................................ 25
5.2 Comparison Graph of Humidity - Material Moisture Content
........................................................................................ 26
Illustrated quick-start guide in the middle section..... 

Introduction
4
Hydromette BL Compact B 2
0.1 Publication Declaration
This publication replaces all previous versions. It may not be
reproduced or electronically processed, duplicated or distributed in
any way without the written permission of Gann Mess- u.
Regeltechnik GmbH. Subject to technical and documentary
change. All rights reserved. This document was compiled with the
necessary care. Gann Mess- u. Regeltechnik GmbH accepts no
liability whatsoever for errors or omissions.
GANN Mess- u. Regeltechnik GmbH, Gerlingen, 01 Jul. 2016

Introduction
5
Hydromette BL Compact B 2
0.2 General Information
This measuring instrument conforms to the (2014/30/EU) standard
and fulfils the requirements of applicable European and national
directives. Appropriate declarations and documentation are located
with the manufacturer. The user must read these operating
instructions in order to guarantee problem-free instrument
operation and operational safety. The measuring instrument may
only be operated under the specified climatic conditions. These
conditions can be found in Section 3.1 "Specifications". In addition,
this measuring instrument may only be operated under the
conditions and for the purpose it was designed for. The operational
safety and functionality are no longer guaranteed if the instrument
is modified or converted. Gann Mess- u. Regeltechnik GmbH
assumes no liability for any ensuing damage. All risks are assumed
solely by the user.
Use appropriate means to make absolutely sure that the
area to be measured contains no electrical wires,
plumbing or other supply lines.
The instrument may not be stored or operated in
aggressive atmospheres or atmospheres containing
solvents!
It is not possible to measure material that is frozen or has
a wet surface.
The notes and tables on allowable or common moisture
conditions in practice and general definitions given in
these instructions were taken from the technical literature.
The manufacturer therefore cannot accept any liability for
correctness. The conclusions drawn from the

Introduction
6
Hydromette BL Compact B 2
measurement results depend on each user's individual
requirements and practical, professional empiricism.
Because the measuring instrument adheres to the stricter
emitted interference (EMC) Class B it may be operated in
residential and commercial environments.
The instrument must not be operated in the immediate
vicinity of medical devices (heart pacemakers, etc.).
The measuring instrument may be used only for the
purpose intended, as described in these instructions. The
instrument and accessories should be kept away from
children!
Do not measure on metal surfaces.
Gann Mess- u. Regeltechnik GmbH accepts no liability for damage
caused by non-compliance with the operating instructions or by
violation of a duty to care during transport, storage or operation of
the instrument, even if this duty to care is not specifically discussed
in the operating instructions.
0.3 WEEE Directive 2002/96/EC Electrical and
Electronic Equipment Act
The packaging, battery and instrument must be disposed of at a
recycling centre in accordance with legal regulations.
The instrument was manufactured after 01.10.2009

Introduction
7
Hydromette BL Compact B 2
1 Introduction
1.1 Description
The Hydromette BL Compact B 2 is an electronic building moisture
meter based on the dielectric-constant / high-frequency
measurement principle, with a 3-line LCD display and a flexibly
applicable ball probe for non-destructive detection of moisture in all
types of building materials, as well as the moisture distribution in
walls, ceilings and floors.
An ideal pretesting instrument for all CM devices.

Introduction
8
Hydromette BL Compact B 2
1.2 Instrument Design and Key Assignments
Ball probe
Display
Up key
On/Off key
Measure key
Down key

Introduction
9
Hydromette BL Compact B 2

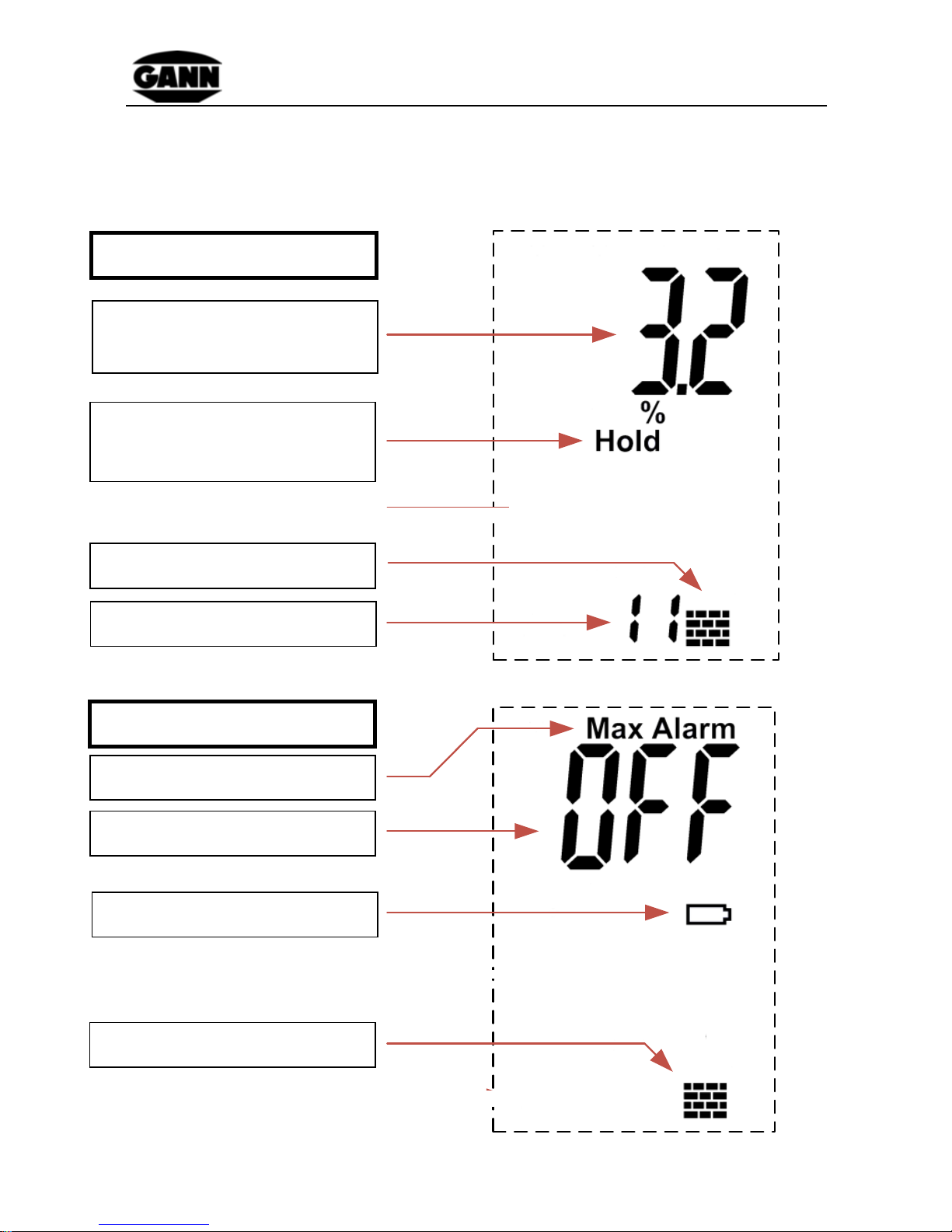

1.3 Display Icons
Main menu icons
Additional icons
Temperature in °C
Type ID
Measured value on hold;
ready to measure
Material moisture content
Alarm „Off“
Max./alarm display
Battery icon
Temperature in °C
Wood type icon
Building materials icon
Type icon
Building material icon
Type ID
Building material icon
icon
Measured value on
hold; ready to measure
Material moisture
content
Main menu icons
Additional icons
Battery icon
Alarm „Off“
Max. / alarm display

Basic Functions
10
Hydromette BL Compact B 2
2 Basic Functions
2.1 Display in Measuring Mode
Displayed measured value in %
“Hold” icon signals measurement
readiness
Material icon and ID
A measuring process is started by pressing the "M" key.
The type ID 0 stands for measurement in “digits”. The scale then
ranges from 0 to 199.9, and the percent sign and material icon
disappear. This value indication allows quick scanning of large
areas for maximum moisture of the extent of moisture damage.
Digital values are dimensionless measurement values and not
real moisture values as a percentage!
Measure by pressing the “M” key and placing the ball electrode on
the material to be measured.
Figure 2-1Measuring mode

Basic Functions
11
Hydromette BL Compact B 2
2.2 Settings Menus
By repeatedly pressing the "Up" and "Down" keys the following
menus can be selected in sequence (sequence using the "Down"
key; the menus are accessed in the opposite direction using the
"Up" key):
1. Measuring menu (main menu): The measuring process
can be performed from here.
2. Type selection: The material type can be selected here.
3. Alarm value setting: This allows the user to set a
measurement value threshold that will trigger an acoustic
signal when exceeded; the set limit will be displayed in the
second line.
4. Maximum value: The largest measured value is
displayed.
2.2.1 Measuring Menu (main menu)
The last measured value is shown together with the comment
"Hold". The instrument temperature and the current type are also
shown on the display.
A new measurement can be started in this menu by pressing the
"M" key.
The "Hold" icon disappears from the display during the
measurement. After the “M” key is released, the measured value is
stored. The "Hold" icon is displayed again.
If the new measured value is greater than the previous maximum,
"Max" flashes on the display. The "M" key is pressed briefly to store
the new value. A new measurement can be started without altering
the previous maximum by pressing "M" longer if the value is not to
be stored.

Basic Functions
12
Hydromette BL Compact B 2
If the alarm function is turned on, a warning signal sounds when the
adjustable alarm value has been exceeded, and the measurement
value flashes. At the same time, the selected alarm value is shown
in the second line of the display.
2.2.2 Material Settings
The specified material ID is
displayed with the icon for material
moisture.
Material icon and ID
To change the preset for the material, the device must be switched
on and be in the main measurement mode (default after switching
on the device). After pressing the “Down” key the view as shown
in Figure 2-3 appears on the display. Press the "M" key (measure
key) briefly to change the preset for the material.
The material ID flashes and can be set using the "Up" and "Down"
keys. Press the "M" key again briefly to save the change.
The material table can be found in the Annex.
Figure 2-2Material selection

Basic Functions
13
Hydromette BL Compact B 2
2.2.3 Alarm Value Setting
The alarm can be activated or
deactivated from this menu. The
alarm value can also be set.
Material icon and ID
If no maximum value is stored, or if it is deleted, the “OFF” icon
appears.
To enter a new maximum value or to activate the function, briefly
press the “M” key. The display begins to flash. Pressing longer on
the “M” key activates the alarm value. The alarm value for each
material ID set in measuring mode can be entered separately by
using the “Up” and “Down” keys. After the desired value has been
set, or a previously available one (re)activated, press briefly on the
“M” key to confirm the entry. The instrument will return to standby
mode.
If 0 is chosen as the material ID, the display will show in digits,
without percentage data.
Figure 2-3Alarm menu

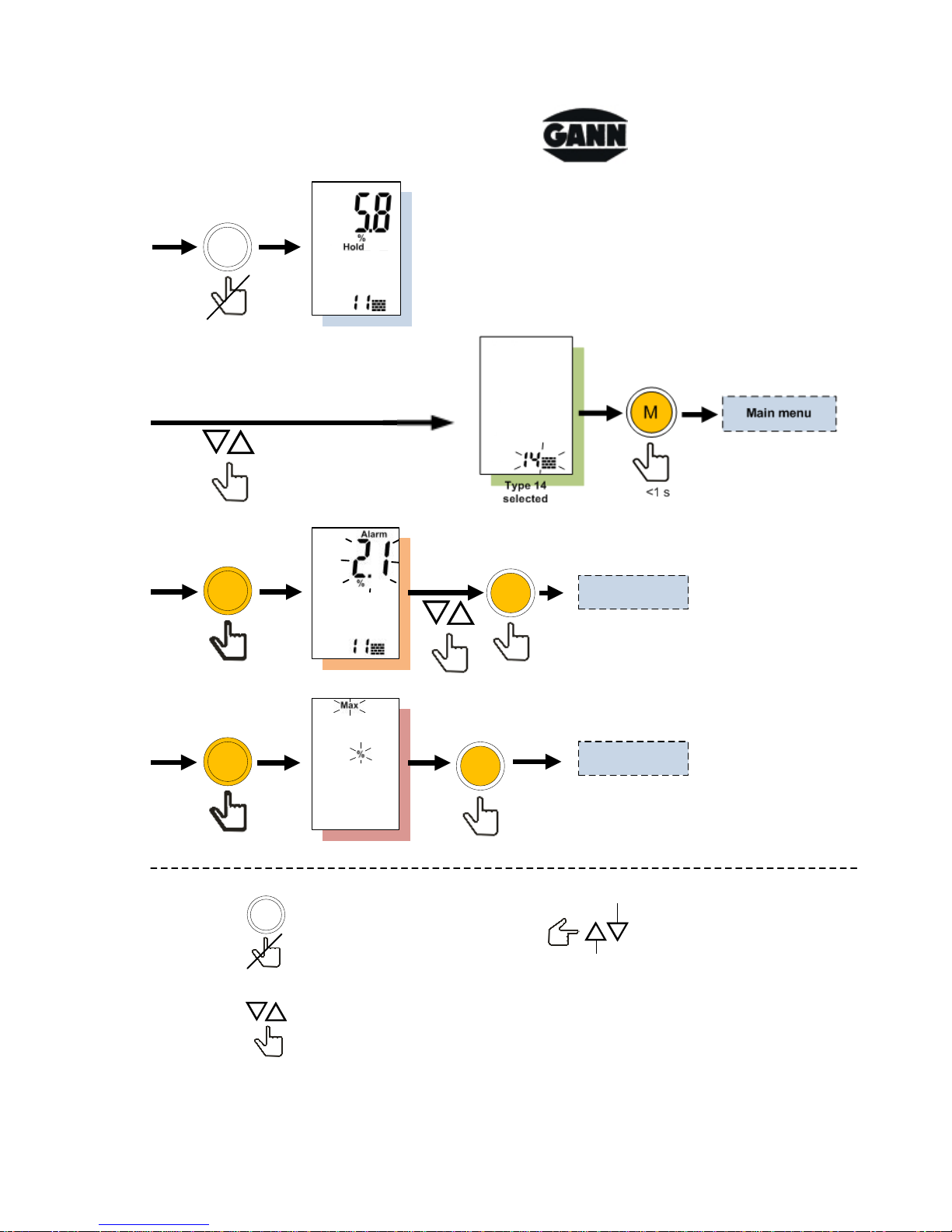

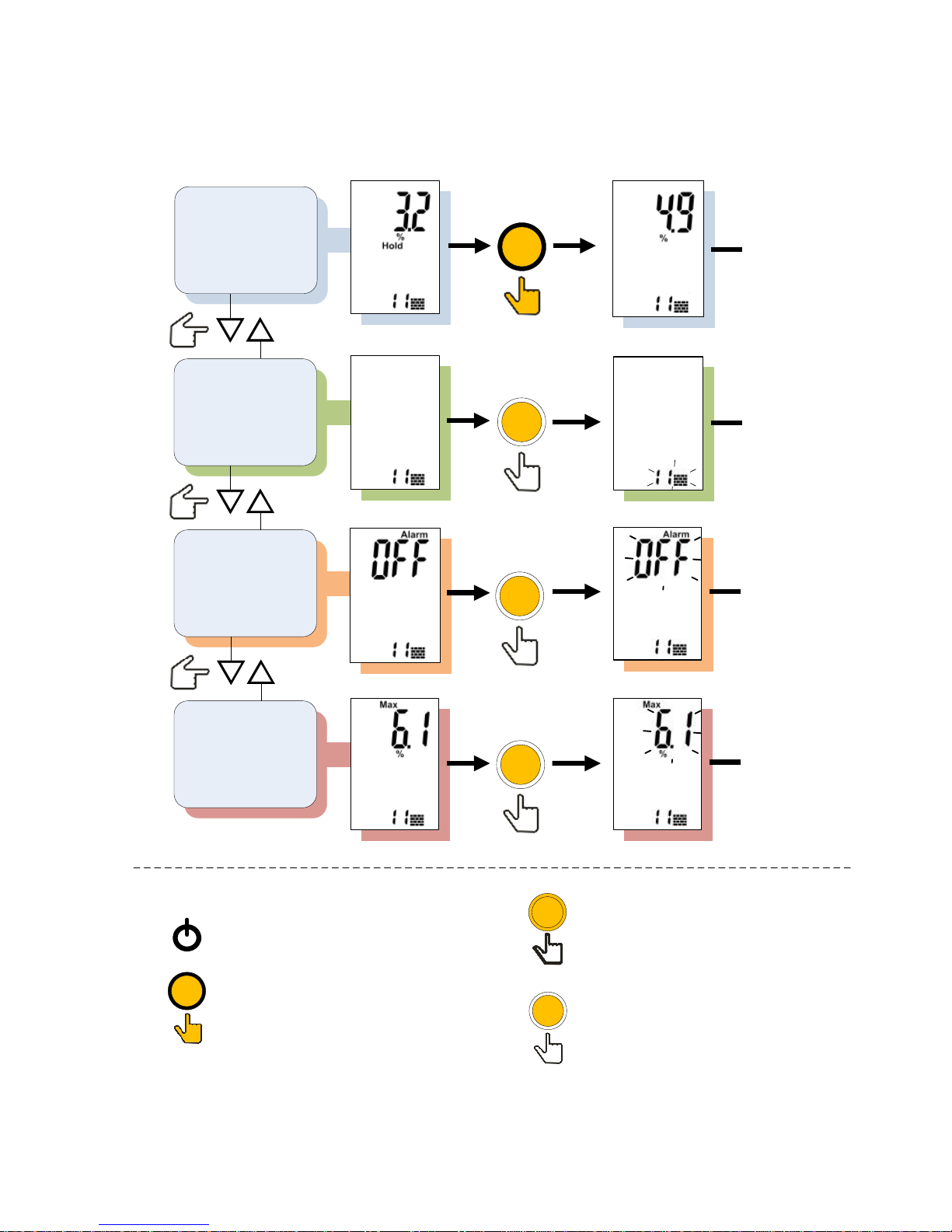

14
Hydromette BL Compact B 2
Max. value
flashes
Alarm OFF
flashes
Type 11
flashes
Measurement
Main menu
Type selection
menu
Alarm menu
Max. value reset
menu
M
M
<1 s
M
<1 s
M
<1 s
MPress the measuring key for any
length of time
On/Off key: Instrument deactivates
after 30 sec. of inactivity
M
<1 s
M
>2 s
Hold the measuring key down
for more than 2 seconds
Press the measuring key
briefly
Key
Illustrated quick-start guide

15
Hydromette BL Compact B 2
Set value
Type 14
selected
Type 32
selected
M
M
>2 s
M
<1 s
M
<1 s
Main menu
Measurement
value
For wood types:
Main menu with
tendency display
M
<1 s
Main menu
M
>2 s Value deleted
Main menu
M
<1 s
Key
MRelease the measuring key
Press the up or down key
Up or down for menu selection
<1 s
Software Version:
Mess- u. Regeltechnik
GmbH
Illustrated quick-start guide

Basic Functions
16
Hydromette BL Compact B 2
2.2.4 Maximum Value
The largest measured value of a
series is displayed with the display
icon "Max”.
Material icon and ID
To delete a maximum value, the displayed value must be selected
by briefly pressing the "M" key (measure key).
The value flashes and can now be deleted by pressing the "M" key
longer.
After that, only the “Max” symbol flashes. Another brief press on the
“M” key confirms the input and returns the instrument to standby
mode.
A new measurement can then be carried out using the "M" key.
Figure 2-4Maximum value menu

Basic Functions
17
Hydromette BL Compact B 2
2.3 Additional Functions
2.3.1 Automatic Shut-down
If no key is pressed for approx. 30 seconds, the instrument
switches off automatically.
2.3.2 Battery Monitoring
If the battery icon appears in the display, the battery is empty
and must be replaced.
A list of suitable battery types can be found in the "Specifications"
section.

Specifications
18
Hydromette BL Compact B 2
3 Specifications
3.1 Technical Specifications
Display: 3-line display
Display resolution: 0.1%
Reaction time: < 2 s
Storage conditions: + 5° to + 40° C
- 10° to + 60° C (short-term)
Operating conditions: 0° to + 50° C
- 10° to + 60° C (short-term)
Power supply: 9 V battery
Usable types: Type 6LR61 or Type 6F22
Dimensions: 190 x 50 x 30 (L x W x H) mm
Weight: approx. 180 g
3.2 Intolerable Ambient Conditions
Condensation, continuously high air humidity (> 85%) and
wet
Continuous dust exposure and flammable gases, vapours or
solvents
Continuously high ambient temperatures (> + 50° C)
Continuously low ambient temperatures (< + 0° C)

Notes on Use
19
Hydromette BL Compact B 2
3.3 Measuring Range
0 to 199.9 digits (see table for conversion values)
Building moisture: 0.3% to 6.0% wt. (depending on material)
Building materials: Cement screed, anhydrite screed, concrete,
cement mortar, lime mortar, mixed plaster, gypsum plaster
4 Notes on Use
4.1 General Notes
The Hydromette BL Compact B 2 is a dielectric moisture meter for
determining the moisture and moisture distribution in building
materials, such as masonry, concrete, screed, etc.
Measurement is based on the measurement principle of the
capacitive electrical field. The measurement field forms between
the active ball at the upper part of the instrument and the substrate
mass to be measured. The change in the electrical field by the
material and moisture is registered and digitally displayed (as digits
or weight percentage).
The measurement is a relative one, which means that the
difference between the dry and moist building material is shown.
An inference as to the absolute moisture by percentage of weight
or by moisture per CM percentage is possible only during the
normal course of drying.
One influencing factor to be considered is the raw density of the
building material to be tested. In general, for dry and moist building
materials, as the raw density increases, the displayed value rises
correspondingly (see also Chapter 4.4, page 23).

Notes on Use
20
Hydromette BL Compact B 2
4.2 Orientation Values
The following data serve as a an orientation guide for anticipated
display values:
Residential spaces
dry 20 - 40 digits
moist 80 - 140 digits
Cellars (old buildings)
dry 40 - 60 digits
moist 100 - 150 digits
Depending on raw density, readings over 130 digits indicate that
condensation is beginning.
Depending on the height of the covering, metal in the subsurface
(iron reinforcements, wires, pipes, stucco bars, etc.) can raise the
measurement value. This should be considered when evaluating
the displayed values in relation to the covering.
