GANN HYDROMETTE UNI 1 User manual

GANN HYDROMETTE UNI 1 + UNI 2
Operating instructions

1

2
All copyrights reserved
Reproduction of this manual, also in part, by print, copying or any other procedure
is not permitted unless approved in writing by GANN Mess- u. Regeltechnik GmbH.
This manual has been most carefully composed. The manufacturer and/or supplier
assumes no liability, however, for possible misprints or errors.
Copyright by GANN Mess- u. Regeltechnik GmbH.
Stuttgart, Federal Republic of Germany

3

4

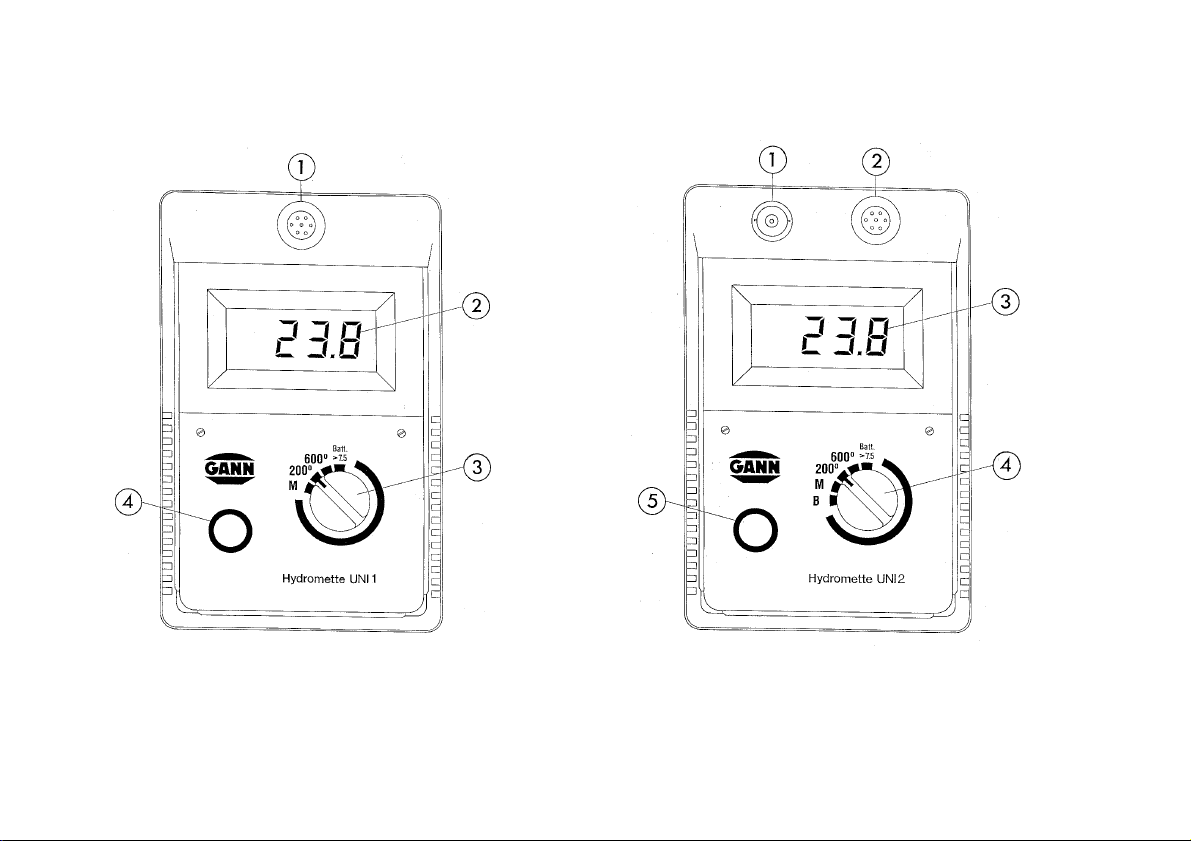

Technical Specifications - Hydromette UNI 1
(1) MS Connection Socket for connection of temperature probes PT 100,
all active electrodes and infrared sensor IR 40
(2) LCD Readout for all measurements
(3) Selector Switch »position M«
for measurements using the following active electrodes:
MH 34 for moisture measurements on coniferous
wood in the range between 40 and 200 % m.c.
MB 35 for non-destructive moisture measurements of
concrete surfaces
B 50 for non-destructive moisture measurements of set
inorganic construction materials (concrete, cement floor-
ing, etc.)
RF-T 28 for air humidity measurements,
RF-T 31 for air humidity measurements,
RF-T 32 for air humidity measurements,
IR 40 for surface temperature measurements with infrared
sensor,
»position 200°«
for temperature measurements up to 200 °C with elec -
trodes RF-T 28, RF-T 31, RF-T 32 and temperature pro-
bes PT 100,

5
»position 600°«
for temperature measurements up to 600 °C using
temperature probes PT 100,
»position Batt«
for battery check.
(4) Measuring Key ON/OFF
Battery Check
Set selector switch (3) to position »Batt« and press measuring key (4). The reading displayed
should be higher than 7.5 digits. If it is 7.5 digits or lower, the battery is exhausted and should be
replaced or recharged if a rechargeable battery is being used. The cover of the battery
compartment can be lifted by means of a coin inserted into the slot. It is recommendable to replace
or recharge the battery once the reading of the battery check is below 8 digits.
Power Source
The meter is fitted, as standard, with a 9 V dry battery IEC 6 F 22 or IEC 6 LF 22.
It is recommended to use alkali-mangan batteries.
A rechargeable nickel-cadmium battery can be fitted (optional accessory). It can be recharged from
any A.C. lighting supply socket by means of the charging unit supplied with this special battery.
Calibration
The meter is fitted with an electronic setting device, making manual calibration or adjustment
unnecessary.

6
Measuring ranges
Wood Moisture, position »M«: 40 - 200 % m.c. on coniferous wood using active
electrode MH 34
Structural Moisture, position »M«: 0 - 199 digits non-destructive measurement
with active electrode B 50/B60
0,3 - 8,5 % of dry weight with active electrode
B 50 and conversion table
1 - 8 % of dry weight with active electrode
MB 35 on non-destructive surface
measurement of concrete
Air Humidity, position »M«: 7 - 98 % R.H. with live electrodes RF-T 28,
RF-T 31, RF-T 32 and RF-T 36
Temperature 1, position »200°«:
-200 - +200 °C with temperature probes PT 100
Temperature 2, position »600°«: -200 - +600 °C with temperature probes PT 100
Temperature 3, position »M«: -20,0 - +200 °Cwith infrared sensor IR 40.
If the measured value exceeds the measuring capacity, the figure »1« appears on the left side of
the display screen (2).
Dimensions
Plastic casing: Length 140 mm x Width 90 mm x Height 42/50 mm.
Weight: about 220 g without accessory.

7

8

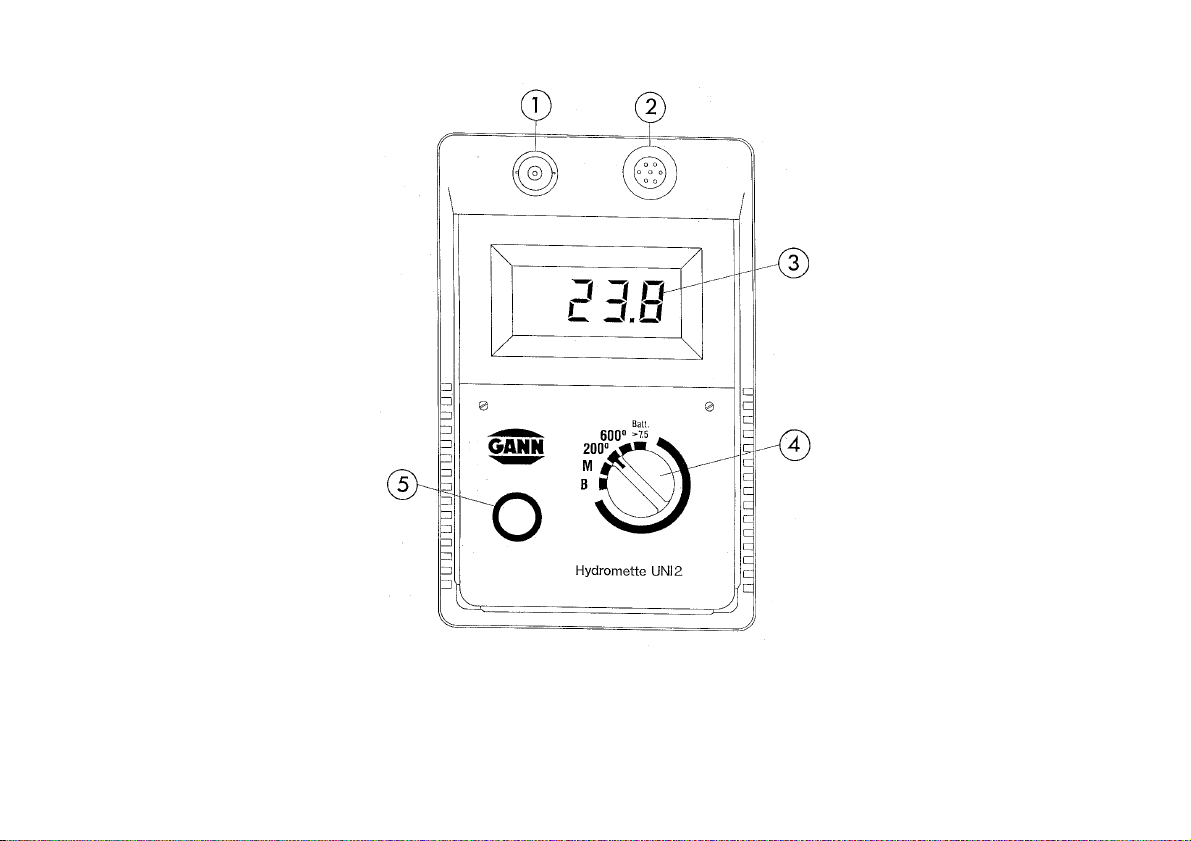

Technical Specifications - Hydromette UNI 2
(1) BNC Connection Socket for connection of electrodes designed for testing set build-
ing materials according to the resistance method
(2) MS Connection Socket for connection of temperature probes PT 100, all active
electrodes and infrared sensor IR 40
(3) LCD Readout for all measurements
(4) Selector Switch »position B«
for measurement of set building materials according to the
resistance measuring method
»position M«
for measurements using the following active electrodes:
MH 34 for moisture measurements on coniferous wood in
the range between 40 and 200 % m.c.
MB 35 for non-destructive moisture measurements of
concrete surfaces
B 50/B 60 for non-destructive moisture measurements of
set inorganic construction materials (concrete, cement
flooring, etc.)
»position M«
RF-T 28 for air humidity measurements,
RF-T 31 for air humidity measurements,

9
»position M«
RF-T 32 for air humidity measurements,
RF-T 36 for air humidity measurements,
IR 40 for surface temperature measurements with infrared
sensor,
»position 200°«
for temperature measurements up to 200 °C with elec -
trodes RF-T 28, RF-T 31, RF-T 32, RF-T 36 and
temperature probes PT 100,
»position 600°«
for temperature measurements up to 600 °C using pro bes
PT 100,
»position Batt«
for battery check.
(5) Measuring Key ON/OFF
Battery Check
Set selector switch (4) to position »Batt« and press measuring key (5). The reading displayed
should be higher than 7.5 digits. If it is 7.5 digits or lower, the battery is exhausted and should be
replaced or recharged if a rechargeable battery is being used. The cover of the battery
compartment can be lifted by means of a coin inserted into the slot.
It is recommendable to replace or recharge the battery once the reading of the battery check is
below 8 digits.

10
Power Source
The meter is fitted, as standard, with a 9 V dry battery IEC 6 F 22 or IEC 6 LF 22. It is
recommended to use alkali-mangan batteries. A rechargeable nickel-cadmium battery can be fitted
(optional accessory). It can be recharged from any A.C. lighting supply socket by means of the
charging unit supplied with this special battery.
Calibration
The meter is fitted with an electronic setting device, making manual calibration or adjustment
unnecessary.
Measuring ranges
Structural Moisture, position »B«: 0 - 80 digits with graphs for converting read
ings into percent of moisture for
various building materials
Structural Moisture, position »M«: 0 - 199 digits non-destructive measurement
with active electrode B 50/B60
0,3 - 8,5 % of dry weight with live electrode
B 50 and conversion table
1 - 8 % of dry weight with live electrode
MB 35 on non-destructive surface
measurement of concrete
Wood Moisture, position »M«: 40 - 200 % for measurement on coniferous
wood using the active electrode
MH 34
Air Humidity, position »M«: 7 - 98 % R.H. with active electrodes RF-T 28,
RF-T 31, RF-T 32 and RF-T 36

11
Temperature 1, position »200°«: -200 - +200 °C with temperature probes PT 100
Temperature 2, position »600°«: -200 - +600 °C with temperature probes PT 100
Temperature 3, position »M«: -20,0 - +200 °Cwith infrared sensor IR 40.
If the measured value exceeds the measuring capacity, the figure »1« appears on the left side of
the display screen (3).
Dimensions
Plastic casing: Length 140 mm x Width 90 mm x Height 42/50 mm.
Weight: about 220 g without accessory.
General instructions for UNI 1 and UNI 2
Admissible ambient temperatures
Storage: 5 to 40 °C; temporarily -10 to 60 °C
Operation: 0 to 50 °C, short term -10 to 60 °C not c ondensing
The meter including accessory must not be stored or used in aggressive air or air contaminated by
solvents.
General Remark
The instructions for use of the meter and of the electrodes should be carefully observed to avoid
measuring errors which may occur when trying to simplify the measuring procedure.
Warning
Make sure in any case prior to drilling holes for measuring probes or before driving electrode pins
into walls, ceilings or floors that this happens away from power lines, water pipings or other supply
pipes.

12
Measuring Electrodes and Other Accessory

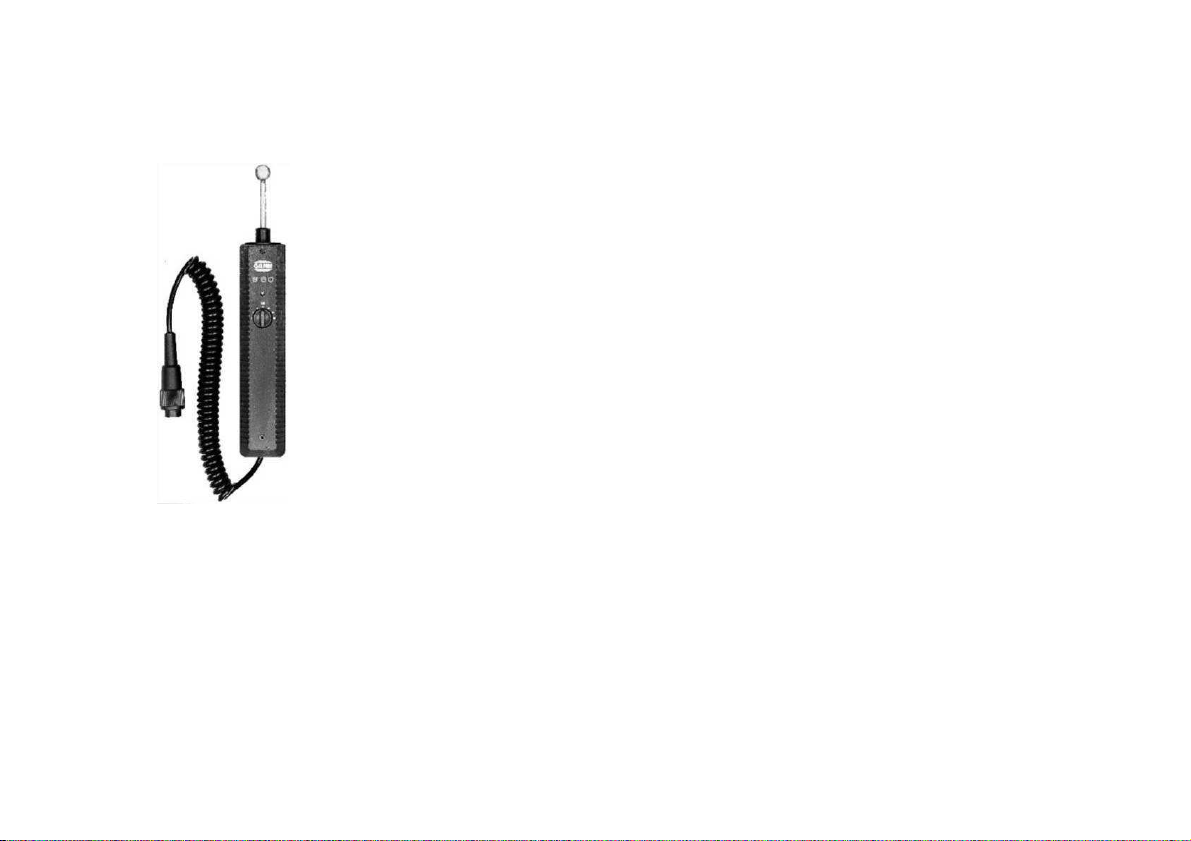

Active electrode MH 34 (Ref.No. 3350)
with integrated measuring circuit, for measurement of high moisture
contents in coniferous wood, specially in case of water-borne storage
and pre-sorting of freshly cut timber for kiln drying.
Measuring range: 40 to 200 % m.c.

13
Active electrode B 50
(Ref. No. 3750)
with integrated measuring circuit, designed for non-destructive
location of moisture concentration in construction materials and
moisture distribution in walls, ceilings and floors.
It works according to a special measuring procedure and generates a
concentrated high frequency field with substantial penetration depth.
Measuring range: 0 to 199 digits, classification by table,
0.3 to 8.5 % of dry weight, conversion into % of
moisture by table.
0.3 to 6.5 % CM, conversion by table according
to material tested.

14
Active electrode B 60 (Ref. No. 3760)
with integrated measuring circuit, designed for non-destructive
location of moisture concentration in construction materials and
moisture distribution in walls, ceilings and floors.
It works according to a special measuring procedure and
generates a concentrated high frequency field with substantial
penetration depth.
With built-in limit value selector and acoustic signal generator.
Setting range: 20 to 140 digits.
Measuring ranges: 0 to 199 digits by table.
0.3 to 8.5 % of dry weight conversion by
table according to material tested.
0.3 to 6.5 % CM, conversion by table
according to material tested.

15

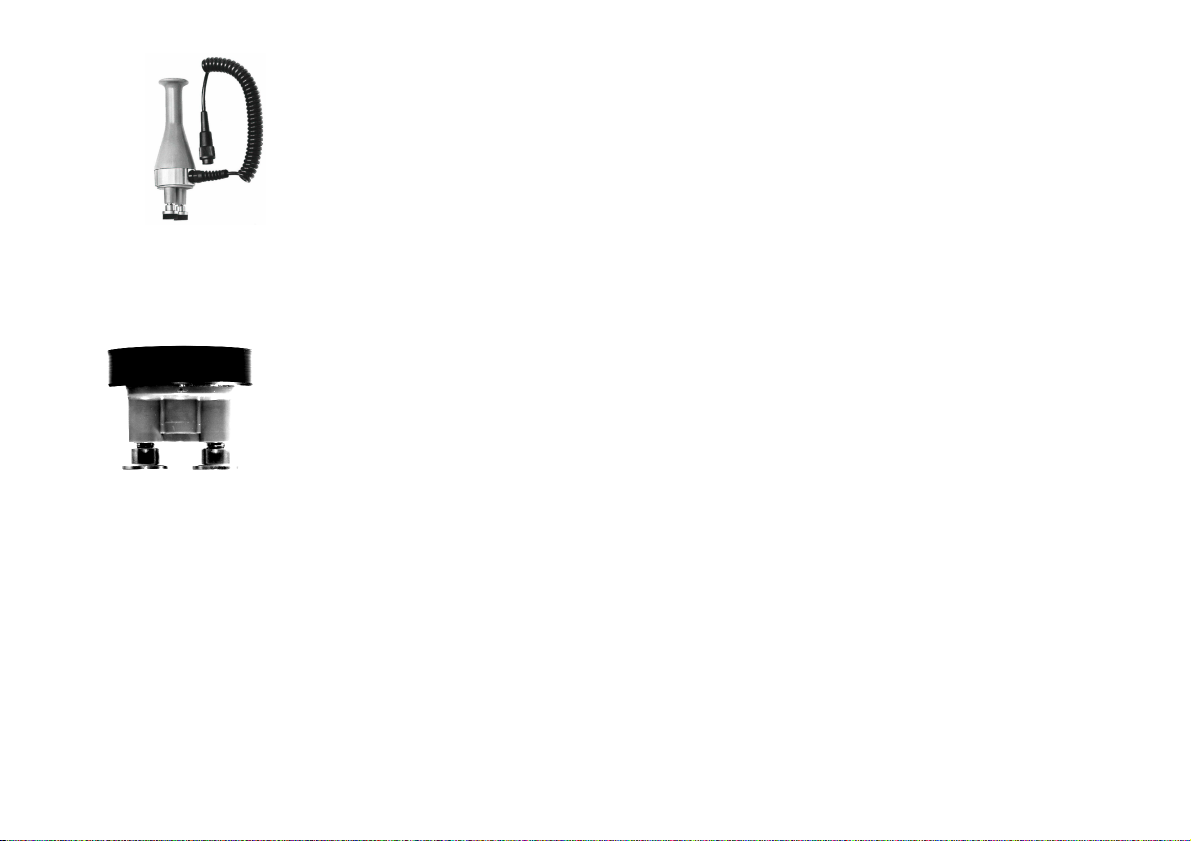

Active electrode MB 35 (Ref. No.3770)
with integrated measuring circuit, designed for surface measure-
ment of concrete, in particular prior to coating or gluing.
Measuring range: 1 to 8 % m.c. of dry weight according to oven
test, direct display, no conversion table required.
Test Standard (Ref. No. 6073)
for checking the active electrode MB 35.

16

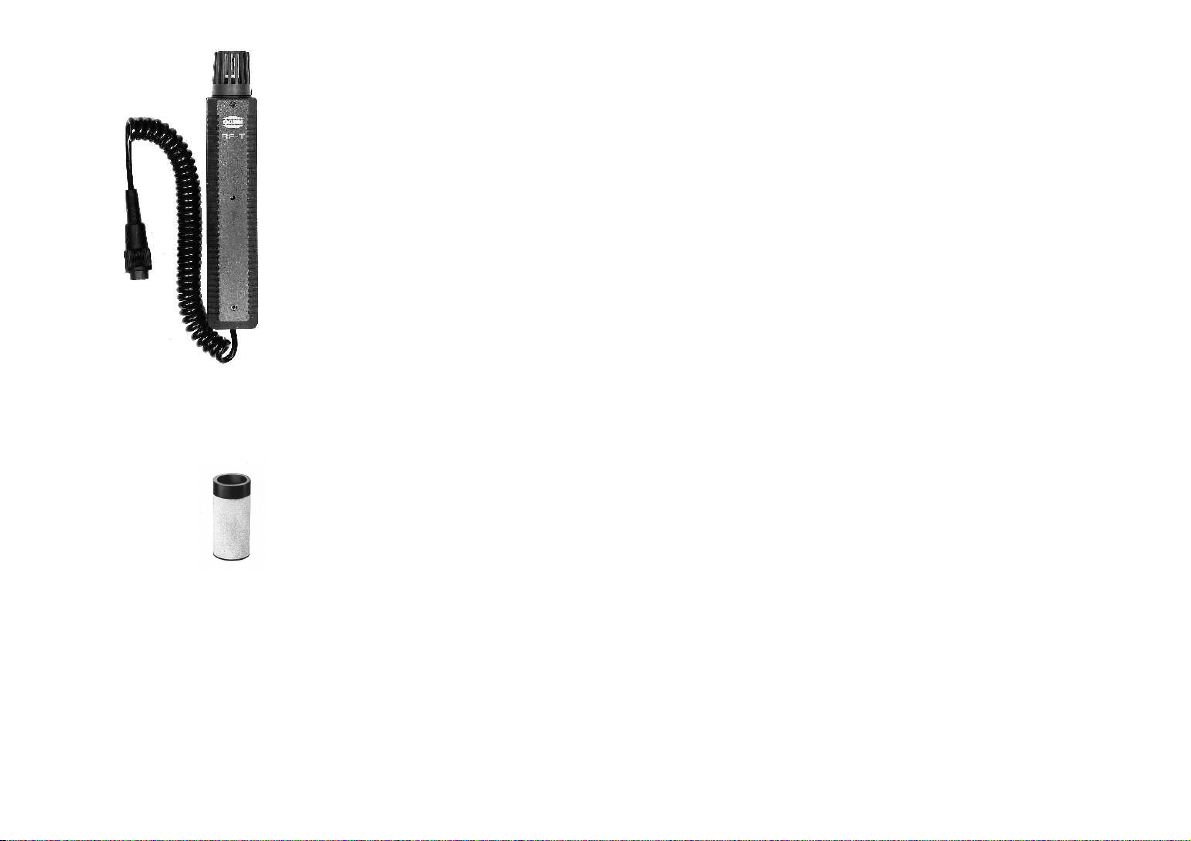

Special electrode RF-T 28 (Ref.No. 3155)
with integrated measuring circuit, for measurement of air humidity
and air temperature, complete with connection cable.
Measuring range: 7 to 98 % R.H. and -10 to +80 °C
Response time: about 20 seconds for 90 % of the humidity
difference at an ambient temperature of 20 °C,
or about 120 seconds for 90 % of temperature
variation.
Filter Cap (Ref. No. 3156)
of sintered bronze for use with electrode RF-T 28 in dust laden
air or at high air speed.

17
Special electrode RF-T 31
for measurement of atmospheric moisture, water activity value or
equilibrium moisture in bulk materials and solid substances, e.g.
brickwork and other building materials.
Measuring range: 7 to 98 % R.H.
-10 to +80 °C.
Sensor tube: dia. 10 mm
Sintered filter tip 32 mm long.
Insertion length 250 mm (Ref. No. 3131)
Insertion length 500 mm (Ref. No. 3132)
Bore hole adapter
with closing plug, for use with plug-in sensor RF-T 31 for equilibrium
moisture measurement in brick-work or building materials.
For bore holes up to 150 mm in depth (Ref. No. 5615)
For bore holes up to 250 mm in depth (Ref. No. 5625)
For bore holes up to 500 mm in depth (Ref. No. 5650)

18
Blade Sensor RF-T 32
for measurement of atmospheric humidity, water activity value and
equilibrium moisture in paper, leather, textile and tobacco stores, etc.
Measuring range: 7 to 98 % R.H.
-10 to +80 °C.
Flat elliptical probe abt. 10 x 4 mm.
Insertion length 250 mm (Ref. No. 3133)
Insertion length 500 mm (Ref. No. 3134)
Sensor Check
Test and calibrating box for
Probe RF-T 28 (Ref. No. 5728)
Probe RF-T 31 (Ref. No. 5731)
Probe RF-T 32 (Ref. No. 5732)
Test and Calibrating Fluid
for checking and recalibrating all electrodes type RF-T.
Package of 5 ampoules of test fluid for sensor check, including
absorbing fleece, sufficient for 5 tests or recalibrations.
SCF 30 for the range of 10 to 50 % R.H. (Ref. No. 5753)
SCF 70 for the range of 50 to 90 % R.H. (Ref. No. 5757)
SCF 90 for the range of 80 to 98 % R.H. (Ref. No. 5759)

19
Special electrode RF-T 36 (Ref. No. 3136)
for measurement of air humidity and air temperature, water activity
value or equilibrium moisture in rooms, warehouses or solid
substances (e.g. concrete, subflooring, masonry, etc.)
Measuring Range: 5 to 98 % R.H.
-5 to +60 °C
Dimensions: 82 x 80 x 55 mm
Sensor tube: length 55 mm, dia. 12 mm
