GANN HYDROMETTE BL COMPACT User manual

1
Hydromette BL Compact
assignementsreservedmulti
HYDROMETTE BL
COMPACT
Operating Instructions
Version 2.1
EN

2
Hydromette BL Compact
Contents
0.1 Publication Declaration......................................................4
0.2 WEEE Directive 2002/96/EC Electrical and Electronic
Equipment Act...................................................................4
0.3 Safety Instructions.............................................................5
1Introduction.......................................................................... 8
1.1 Description.........................................................................8
1.2 Instrument Design and Key Assignments.......................... 9
1.3 Display Icons................................................................... 10
2Basic Functions................................................................. 11
2.1 Switching the Instrument On............................................ 11
2.2 Display in Measuring Mode ............................................. 12
2.3 Settings Menus................................................................ 12
2.3.1 Measuring Menu (main menu)............................ 13
2.3.2 Material Settings................................................. 14
2.3.3 Maximum Value.................................................. 15
2.3.4 Minimum Value................................................... 18
2.4 Additional Functions........................................................ 19
2.4.1 Automatic Shut-down ......................................... 19
2.4.2 Battery Monitoring .............................................. 19
2.4.3 Electrode Replacement...................................... 19

3
Hydromette BL Compact
3Specifications..................................................................... 20
3.1 Technical Specifications.................................................. 20
3.2 Intolerable Ambient Conditions........................................ 20
3.3 Measuring Range............................................................ 21
4Notes on Use...................................................................... 22
4.1 General Notes ................................................................. 22
4.2 Notes on Measuring Wood Moisture ............................... 22
4.2.1 Introduction......................................................... 22
4.2.2 Static Electricity.................................................. 24
4.2.3 Wood Moisture Equilibrium................................. 24
4.2.4 Fungal Growth Ranges....................................... 25
4.2.5 Moisture Ranges for Coatings............................ 25
4.2.6 Swelling and Shrinking of Wood......................... 25
4.3 Notes on Building Moisture Measurements..................... 26
4.3.1 Introduction......................................................... 26
4.3.2 Equilibrium Moisture/Balance Moisture .............. 27
4.3.3 Material not Covered by the Type Tables........... 27
5Annex.................................................................................. 28
5.1 Type Table....................................................................... 28
5.2 Wood Types Table .......................................................... 29
5.3 Comparison Graph of Humidity - Material Moisture Content
........................................................................................ 30

Introduction
4
Hydromette BL Compact
0.1 Publication Declaration
This publication replaces all previous versions. It may not be
reproduced or electronically processed, duplicated or distributed in
any way without the written permission of Gann Mess- u.
Regeltechnik GmbH. Subject to technical and documentary
change. All rights reserved. This document was compiled with the
necessary care. Gann Mess- u. Regeltechnik GmbH accepts no
liability whatsoever for errors or omissions.
GANN Mess- u. Regeltechnik GmbH, Gerlingen, 07 Nov. 2014
0.2 WEEE Directive 2002/96/EC Electrical and
Electronic Equipment Act
The packaging, battery and instrument must be disposed of in a
recycling centre in accordance with legal regulations.
The instrument was manufactured after 01.10.2009

Introduction
5
Hydromette BL Compact
0.3 Safety Instructions
This measuring instrument conforms to the 2004/108/EG)
(EN61010) standard and fulfils the requirements of applicable
European and national directives. Appropriate declarations and
documentation are located with the manufacturer. The user must
read these operating instructions in order to guarantee problem-
free instrument operation and operational safety. The measuring
instrument may only be operated under the specified climatic
conditions. These conditions can be found in Section 3.1
"Specifications". In addition, this measuring instrument may only be
operated under the conditions and for the purpose it was designed
for. The operational safety and functionality are no longer
guaranteed if the instrument is modified or converted. Gann Mess-
u. Regeltechnik GmbH assumes no liability for any ensuing
damage. All risks are assumed solely by the user.
The instrument may not be stored or operated in
aggressive atmospheres or atmospheres containing
solvents!
Static electricity - At low humidities static electricity
charges with high voltages may build up, favoured by
external influences (friction during material transport, high
environmental isolation value), which may not only lead to
strong fluctuations in the measured data or negative
values, but also to the destruction of electrical
components in the instrument. Even the instrument
operator may - inadvertently - contribute to the build up of
a static charge by the clothing worn. A considerable
improvement can be achieved by the operator and the
measuring instrument being absolutely still during
measuring, as well as by earthing (contact with conducting
metal, water or heating pipes, etc.).

Introduction
6
Hydromette BL Compact
Frozen wood cannot be measured.
The notes and tables on allowable or common moisture
conditions in practice and general definitions given in
these instructions were taken from the technical literature.
The manufacturer therefore cannot accept any liability for
correctness. The conclusions drawn from the
measurement results depend on each user's individual
requirements and practical, professional empiricism.
Because the measuring instrument adheres to the stricter
emitted interference (EMC) Class B it may be operated in
residential and commercial environments.
The measuring instrument and any accessories used may
only be used for the purpose intended, as described in
these instructions. The instrument and accessories should
be kept away from children!
Do not measure wood or other materials on conductive
surfaces.
Gann Mess- u. Regeltechnik GmbH accepts no liability for damage
caused by non-compliance with the operating instructions or by
violation of a duty to care during transport, storage and handling of
the instrument when operating, even if this duty to care is not
specifically discussed in the operating instructions.

Introduction
7
Hydromette BL Compact
CAUTION: There is a danger of injury from the measuring
pins if the measuring instrument is carried without the protective
cover or other protective packaging. There is also a danger of injury
due to careless handling of the measuring pins during the
measuring procedure. Before pressing the electrode pins into walls
or ceilings, ensure that no electrical cables, water pipes or other
utilities are present using suitable means.

Introduction
8
Hydromette BL Compact
1 Introduction
1.1 Description
The Hydromette BL Compact is an electronic moisture meter for
various types of wood and soft building and insulating materials
with a 3-line LCD display. The measuring pins are pressed into the
respective medium and allow recording of the moisture content of
sawn timber, chipboard, veneers and wood fibre materials up to a
maximum of 25 mm thick, as well as insulating materials or normal
gypsum and mixed plasters.

Introduction
9
Hydromette BL Compact
1.2 Instrument Design and Key Assignments
Measuring pins
Display
Up key
Measue key
On/Off key
Down key

Introduction
10
Hydromette BL Compact
1.3 Display Icons
Main menu icons
Additional icons
Temperature in °C
Type Icon
Measured value on hold;
Ready to measure
Material moisture content
Material moisture content
Min./Max. display
Battery icon
Temperature in °C
Wood types icon
Building materials icon
Type ID
Wood type icon
Building material icon
Temperature in °C
Type ID
Type icon
Temperature in °C
Measured value on
hold; ready to measure
Material moisture
content
Main menu icons
Additional icons
Battery icon
Alarm „Off“
Max. / alarm display

Basic Functions
11
Hydromette BL Compact
2 Basic Functions

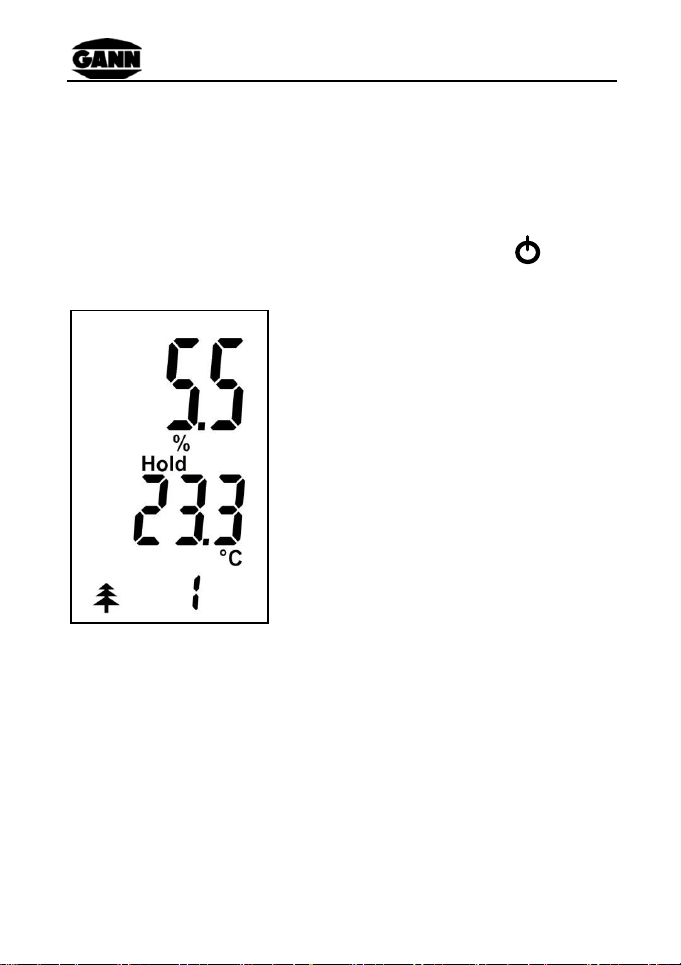

2.1 Switching the Instrument On
The instrument is switched on by pressing the "On" key .
Last measured value in %
"Hold" icon
Last measured instrument
temperature in° C
Type icon and ID
A new measurement can be started in this menu by pressing
measuring key "M". Also see Section 2.2 "Measuring mode".
Figure 2-1 Main menu

Basic Functions
12
Hydromette BL Compact
2.2 Display in Measuring Mode
Displayed measured value in %
"Hold" icon signals measurement
readiness
Instrument temperature in° C
Type icon and ID
A measuring process is started by pressing the "M" key.

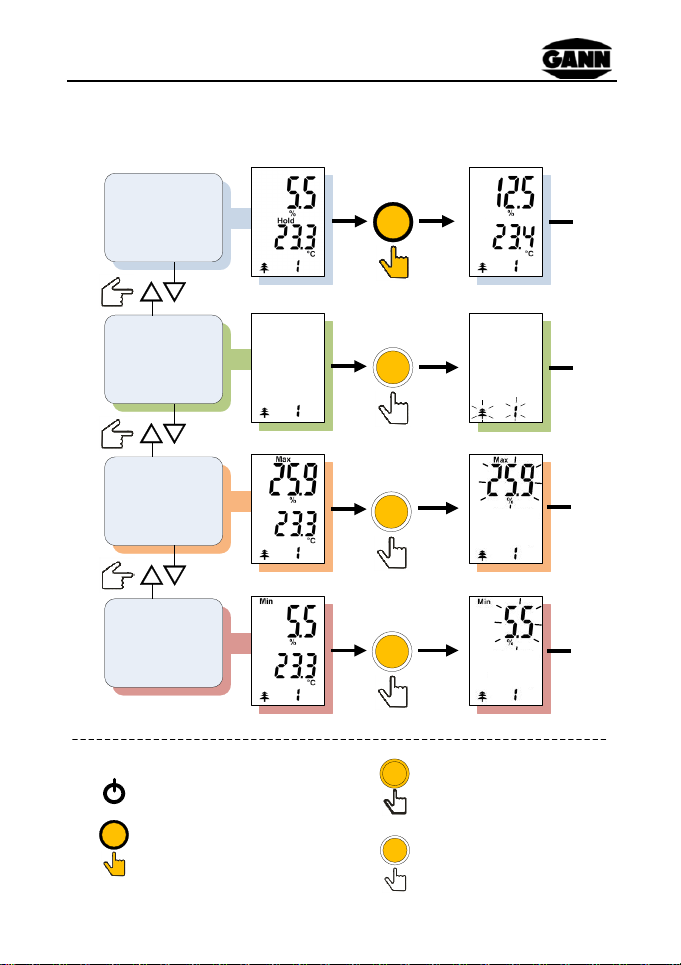

2.3 Settings Menus
By repeatedly pressing the "Up" and "Down" keys the following
menus can be selected in sequence (sequence using the "Down"
key; the menus are accessed in the opposite direction using the
"Up" key):
Figure 2-2 Measuring mode

Basic Functions
13
Hydromette BL Compact
1. Measuring menu (main menu):The measuring process
can be performed from here.
2. Type selection: The material type can be selected here.

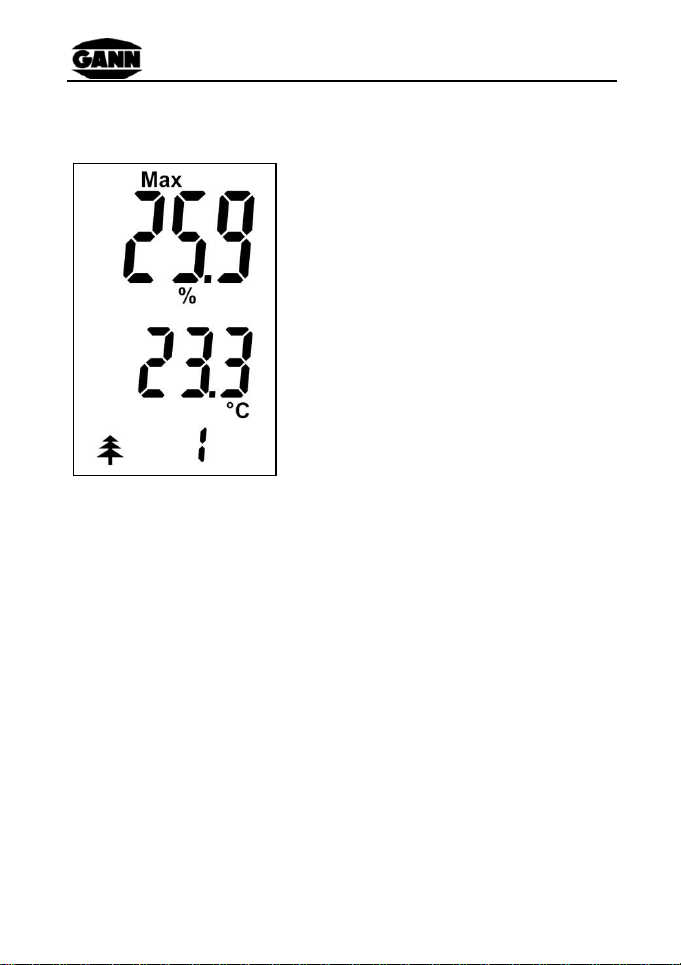

3. Maximum value: The largest measured value is
displayed

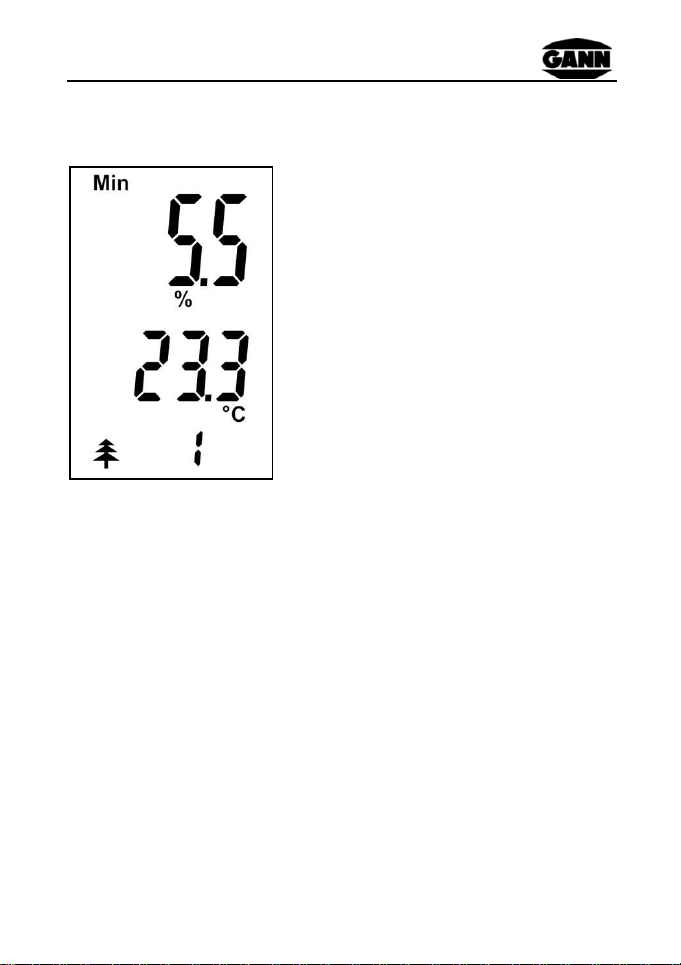

4. Minimum value: The smallest measured value is
displayed.
2.3.1 Measuring Menu (main menu)
The last measured value is shown together with the comment
"Hold". The instrument temperature and the current type are also
shown on the display.
A new measurement can be started in this menu by pressing the
"M" key.
The "Hold" icon disappears from the display during the
measurement and the % sign flashes. If the measured value
remains stable the % sign stays on and the measured value is
stored after releasing the "M" key. The "Hold" icon is displayed
again.
If the new measured value is greater or smaller than the previous
maximum or minimum, "Max" or "Min" flash on the display. The "M"
key is pressed briefly to store the new value as the new minimum
or maximum. A new measurement can be started without altering
the previous minimum or maximum by pressing "M" longer if the
value is not to be stored.
If a measurement is outside of the measuring range (< 6%, > 25%)
a flashing value, which is additionally marked by "LO" or "HI",
warns of this.

Basic Functions
14
Hydromette BL Compact
2.3.2 Material Settings
The specified material ID is
displayed with the icon for wood
moisture or material moisture.
Material icon and ID
To change the preset for the type, the device must be switched on
and be in the main measurement mode (default after switching on
the device). After pressing the “Down” key the view as shown in
Figure 2-3 appears on the device. Press the “M” key (measure
keY9 briefly to change the preset for the material.
The type ID flashes and can be set using the "Up" and "Down"
keys. Press the "M" key again briefly to save the change.
The type table can be found in the Annex.
Figure 2-3 Material selection

Basic Functions
15
Hydromette BL Compact
Maximum Value
The largest measured moisture
value of a series is displayed
together with the display icon
"Max."
Type icon and ID
To delete a maximum value the displayed value must be selected
by briefly pressing the "M" key (measure key):
The value and the % sign are now flashing and the value can be
deleted by pressing the "M" key longer. Once the value has been
deleted only the % sign flashes. By briefly pressing the "M" key
once again the deletion is confirmed and the % sign disappears.
The instrument returns to the ready mode.
A new measurement can then be carried out using the "M" key.
Figure 2-4 Maximum value

Basic Functions
16
Hydromette BL Compact
Graphic Quick Guide
Main Menu
Material Settings
Deletion of
Maximum Value
Deletion of
Minimum Value
M
M
<1 s
M
<1 s
M
<1 s
ID flashes
Measuring
Max value
flashes
Min value
flashes
MPress measure key
On / Off key –Device shuts down
after 30 seconds if no key is pressed
during that time
M
<1 s
M
>2 s
Press measure key longer than
2 seconds
Press measure key briefly
legend

Basic Functions
17
Hydromette BL Compact
legend
Type 15
M
M
>2 s
M
>2 s
M
<1 s
Main Menu
Measured value
Value deleted
Value deleted
Main Menu
Main Menu
M
<1 s
M
<1 s
Software Version:
Mess- u. Regeltechnik
GmbH
MRelease measure key
Press „up“ or „down“ key
„up“ or „down“ for menu
selection
Graphic Quick Guide
<1 s

Basic Functions
18
Hydromette BL Compact
2.3.3 Minimum Value
The smallest measured moisture
value of a series is displayed
together with the display icon "Min"
Type icon and ID
To delete a minimum value the displayed value must be selected
by briefly pressing the "M" key (measure key):
The value and the % sign are now flashing and the value can be
deleted by pressing the "M" key longer. Once the value has been
deleted only the % sign flashes. By briefly pressing the "M" key
once again the deletion is confirmed and the % sign disappears.
The instrument returns to the ready mode.
A new measurement can then be carried out using the "M" key.
Figure 2-5 Minimum value

Basic Functions
19
Hydromette BL Compact
2.4 Additional Functions
2.4.1 Automatic Shut-down
If no key is pressed for approx. 30 seconds the instrument switches
off automatically. The current data are retained and are displayed
again after switching on.
2.4.2 Battery Monitoring
If the battery icon appears in the display the battery is empty
and must be replaced.
A list of suitable battery types can be found in the "Specifications"
section.
2.4.3 Electrode Replacement
The knurled screws must be loosened to replace the electrodes.
The pins can then be easily replaced.
Care must be taken that the knurled screws are always sufficiently
tightened to prevent measuring errors and the area between the
pins is kept clean.

Specifications
20
Hydromette BL Compact
3 Specifications
3.1 Technical Specifications
Display: 3-line display
Display resolution: 0.1%
Reaction time: < 2 s
Storage conditions: + 5 to + 40° C
- 10 to + 60° C (short-term)
Operating conditions: 0 to + 50° C
- 10 to + 60° C (short-term)
Power supply: 9 V battery
Usable types: Type 6LR61 or Type 6F22
Dimensions: 200 x 50 x 30 (L x B x H) mm
Weight: approx. 170 g
3.2 Intolerable Ambient Conditions
Condensation, continuously high humidity (> 85%) and wet
Continuous dust exposure and flammable gases, vapours or
solvents
Continuously high ambient temperatures (> + 40° C)
Continuously low ambient temperatures (< + 5° C)
