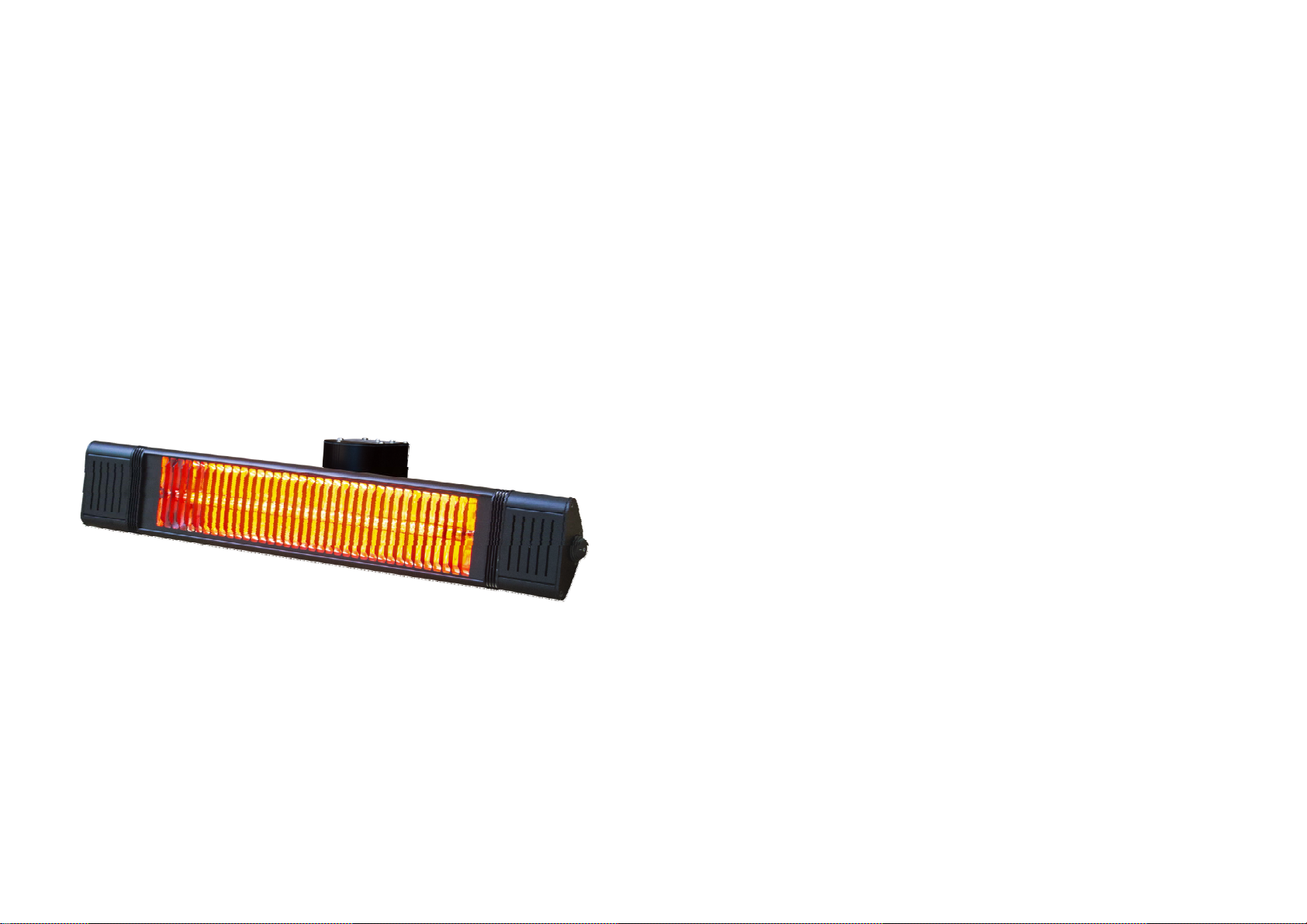

INFRARED PATIO HEATER
Safety Instructions
and Operation Manual
Model:LDHR018‐200EKY‐M
(Note:This product is strictly prohibited to cover )
Thank you for purchasing our products.Please read carefully this instruction before using and
operate strictly accordance with the instructions，and especially pay attention to "Important
Safety Instructions".Please be careful collection after reading so as to for future reference
2
Introduction
Your infrared heater is heating in the way of radiation (no need for medium) so your infrared
heater is effective.at the same time, the heater has very good physiotherapy effect Because it
doesn’t need to heat the ambient air (medium), it is good to be used in the open‐air as well. Your
waterproof infrared patio heater offers innovative and optimal benefit with lest need of space,
perfect for heating both indoor and outdoor areas, which provides a complete new way of modern
heating technique – on the balcony, terrace, in the winter garden or generally speaking for
gastronomy and also perfectly fits as integration in big umbrella & tent systems.
Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the
risk of fire, electric shock, or injury to persons, etc.
Read through the operation and assembly instructions conscientiously before operating the
appliance.
Be sure to keep the manual in a safe place for future reference. If you pass the appliance on, pass
on the instructions too.
The heater must not be located immediately below the socket‐outlet.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
Children of less than 3 years should be kept away unless continuously supervised. Children aged
from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been
placed or installed in its intended normal operating position and they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance
or perform user maintenance.
The heater must be installed at least 1,8 m above the floor.
WARNING: This heater is not equipped with a device to control the room temperature. Do not use
this heater in small rooms when they are occupied by persons not capable of leaving the room on
their own, unless constant supervision is provided.
CAUTION – Some parts of this product can become very hot and cause burns. Particular attention
has to be given where children and vulnerable people are present.
The Installation of the heater should not be close to curtains and other combustible materials.
Do not use this heater in the immediate surroundings of a bath, a shower or swimming pool.
Only connect the fan heater to a single‐phase socket with a main voltage as specified on the rating
plate.
Extreme caution is necessary when any heater is used by or near children and whenever the heater
is left unattended.
When using a plugged mains connection always unplug your heater when not in use.
Do not operate any heater with a damaged cord or plug or after if the heater has been dropped or
damaged in any manner.

3
Do not run cord under carpeting. Do not cover cord with throw rugs, runners or the like. Do not
route cord under furniture or appliances. Arrange away from areas where it may be a trip hazard.
DO not try to repair the appliance by your‐self.
DO not insert or allow foreign objects to enter anypartofthisheaterasthismaycauseelectric
shockorfireordamagetheheater.
To prevent fire risk, do not block air intakes or exhaust in any manner.
A minimum distance of 1M between the appliance and flammable materials must always be
maintained.
Do not use it in the areas where gasoline paint or flammable liquids are used or stored.
Use this heater only as described in this manual. Any other use not recommended by the
manufacturer and may cause fire electric shock or injury.
Always plug heaters directly into a wall outlet /receptacle. Never use with an extension lead.
Never coil or tie any spare electrical cable when heater is in use.
Do not try to repair the appliance by yourself. Please contact the service agent or a suitably
qualified electrician for maintenance.
Remove the plug from the power outlet and wait until the appliance is sufficiently cooled before
cleaning.
This heater is not intended for use in bathrooms laundry areas and similar indoor locations. Never
locate heater where it may fall water.
Save These Instructions
Specifications
Specification LDHR018‐200EKY‐M
Voltage (V) 220‐240V～
Power consumption (W) 2000W
Infrared receiving Angle 60°±5°
The control distance(M) 6
Battery type AAA size1.5V ,2 pieces
Rotation angle 60°±5°
4

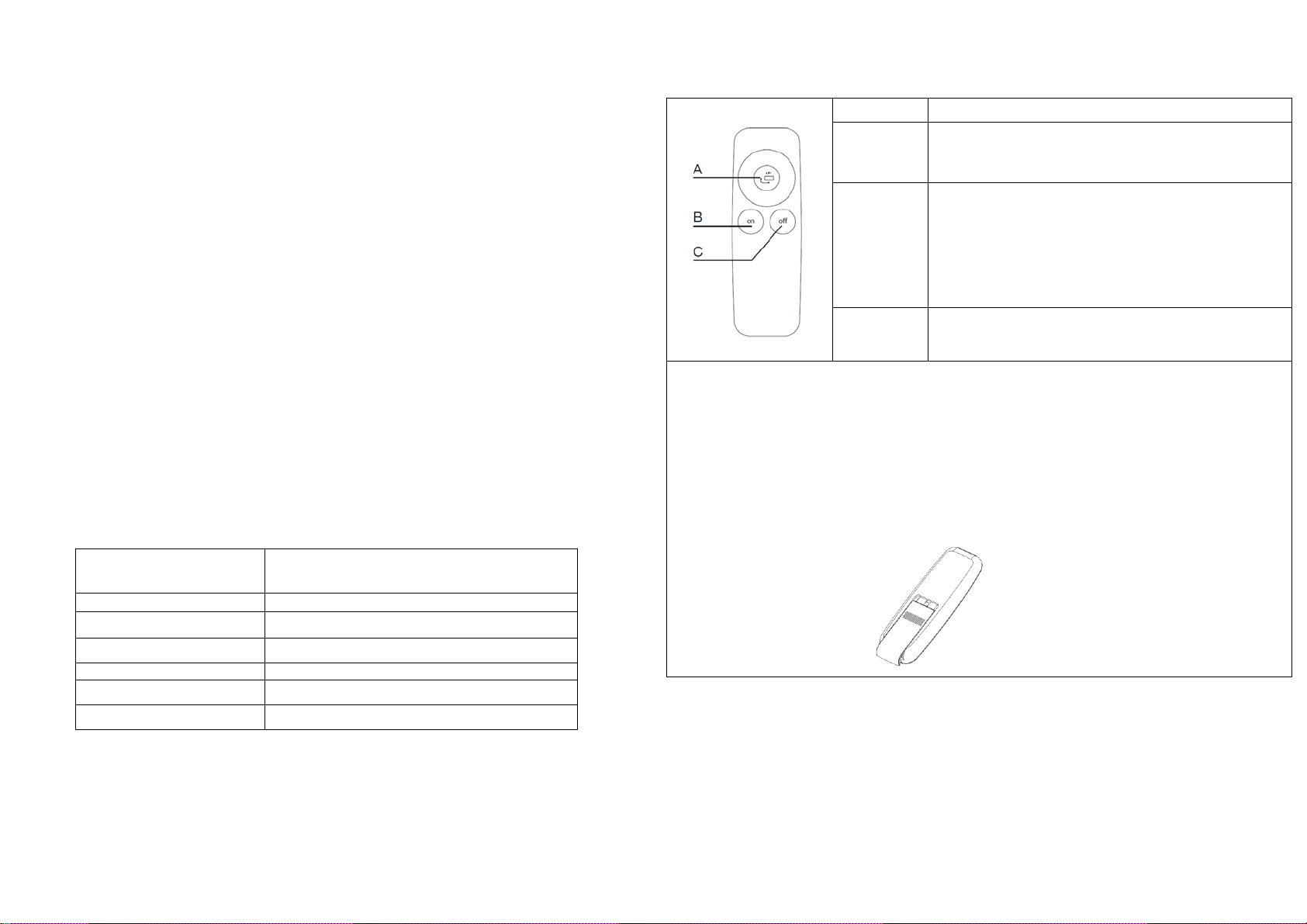

Remote Control Instructions
Button Feature
ATo turn oscillation on, use the remote control, press
ON (A).
BTo turn oscillation off, use the remote control, press
ON (A).
CThe oscillation can be turned off at any time and the
heater head will stay in the selected position.
Notice：
Use 2 pieces AAA size1.5V batteries in the remote control.Remove the battery when not use for long
time,thus the lifespan of remote control can be extended.
Choose the same specification battery when replacing the battery inside,otherwise it may cause
remote control not work ,thereby affect the normal use of the heater.
Please contact service agent for further help if you need the function.
The remote control function may be out of work if there is a barrier between the remote control and
heater .
Replacing the batteries duly so as not to affect the normal use of heater and remote control.
Operation Instruction
Remove all package material (including anti‐vibration object of the lamp) and check the
appliance, supply cord and the plug for signs of damage.
Pay attention to the mounting place and all mounting material(dowels, screws). Ensure they
are suitable and stable enough for mounting and lastingly holding of the appliance.
Before mounting, the minimum safe mounting distances and tilt angles shown in the figures
must be strictly followed.

5
The distance between the bottom edge of the appliance and the floor must be at least 1.8 M.
See figure 2.
There must be a distance of at least 0.2 M between the appliance and the ceilings, roofs or
other covers. See figure 2.
There must be a distance of at least 0.5 M at each side between the appliance and walls or
the like. See figure 2.
Recommended degree to mounting surface is 45°. See figure 3.
the rotation angle is 60° . See figure 5.
Pay attention that, the installation of the appliance must not add excessive wind load.
Fix the mounting bracket on the wall first. Ensure that the place to be installed is secure and
firm. Or connect the appliance to the stand.
Adjust the desired angle of radiation and fest screw all screws. Check regularly the screw's
connection. Mechanical bearing pressure and oscillation due to wind or rain could lead to
loose.
Plug in the power source and operate the remote control. Then observe, whether during the
first 10‐15 minutes the appliance works trouble‐free.
If you do not use,please remove battery socket
screws’ connection. Mechanical bearing pressure and oscillation due to wind or rain could
lead to loose.
Plug in the power source and operate the remote control. Then observe, whether during the
first 10‐15 minutes the appliance works trouble‐free.
If you do not use,please remove battery socket
6
Figure1: Mounting bracket (wall bracket) and
anchor dowels provided. Connection from the wall
to the infrared heater.
Figure2: Min. distance to floor, ceiling and wall.
Figure3: Tilt angle. Figure 4: Max.remote distance
Figure5: Rotation angle

7
Cleaning and Maintenance
This appliance is consist of a robust and maintenance‐free aluminum casing with a protection
cover. No user serviceable parts inside.
Before cleaning, remove the plug from the power outlet and wait until the appliance is
sufficiently cooled off.
Wipe the appliance only with clean and lint‐free cloth or a soft brush.
Never use abrasive cleaners, scrubbing brushes and chemical cleaners for cleaning!
The alcohol can be used to clean the appliance. When cleaning the reflector, please contact
with the service agent or a suitably qualified electrician if the reflector needs to be removed
To protect against electrical shock and danger of life, do not immerse cord, plug, or any part
of the appliance in water or other liquid.
For heating element replacement, please contact the manufacturer or its service agent or a
similarly qualified person.
Storage
Do not route cord when heater storage, or heater is not in use.
Disposal
Correct Disposal of this product
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or contact the
retailer where the product was purchased. They can take this product for
environmental safe recycling.
Customer Service
Repairs must be carried out by authorized specialists, thus ensuring electrical safety. Please contact
with the service agent or a suitably qualified electrician.
Improper repairs could lead to danger to the user.
This warranty does not cover damage of failure which results from alteration, accident, misuse,
abuse, neglect, commercial use or improper maintenance.
In line with our policy of continuous product development we reserve the right to change the
product and documentation specifications without notice.
