Garden Sun HPS-C-SH User manual

ANSI Z83.26-2007/CSA 2.37-2007 Gas-Fired Outdoor Infrared Patio Heaters
Model : HPS-C-SH
RONA SKU NUMBER:70005000
Owner’s
Manual
IMPORTANT
Read this manual carefully before
assembling, using or servicing this
heater. Keep this manual for future
reference.
TABLETOP PATIO HEATER
RR

1
Contents
General Safety Information....................................... 1
Contents Breakdown .............................................
Package Contents ..................................................
4
4
Assembly..................................................................
Portable Heater Location.........................................
5
7
7
7
7
8
Testing for Leakage ...............................................
7
Procedure for Leakage Test .................................
8
Turning ON the Heater ..........................................
Turning the Heater and Pilot Light OFF..................
.
9
Troubleshooting......................................................
Maintenance...........................................................
9
Storage...................................................................
Service....................................................................
9
Limited Warranty ....................................................
General Safety Information
This manual contains important information about the
assembly, operation and maintenance of this patio heater.
General safety information is presented in these first few
pages and is also located throughout the manual.
Keep this manual for future reference and to educate
new users of this product. This manual should be read in
conjunction with the labeling on the product.
Safety precautions are essential when any mechanical
or propane fueled equipment is involved. These
precautions are necessary when using, storing, and
servicing. Using this equipment with the respect and
caution demanded will reduce the possibilities of personal
injury or property damage.
The following symbols shown below are used extensively
throughout this manual. Always heed these precautions,
as they are essential when using any mechanical or
fueled equipment.
DANGER
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING
WARNING indicates an imminently hazardous situation
which, if not avoided, could result in death or serious injury.
DANGER
WARNING
CAUTION
CAUTION indicates an imminently hazardous situation which,
if not avoided, may result in minor or moderate personal injury,
or property damage.
WARNING: For Outdoor Use Only
WARNING
DANGER
Failure to comply with the precautions and instructions
provided with this heater can result in death, serious bodily injury
and property loss or damage from hazards of fire,explosion,
burn, asphyxiation, and/or carbon monoxide poisoning.
Only persons who can understand and follow the instructions
should use or service this heater.
Improper installation, adjustment, alteration, service or maintenance
can cause property damage, injury or death. Read the installation,
operation and maintenance instructions thoroughly before installing
or servicing this equipment.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent or home.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
([WLQJXLVKDQ\RSHQÀDPH
3. If odor continues, keep away from the appliance and
immediately call you gas supplier or fire department.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.

DANGER
• EXPLOSION - FIRE HAZARD
• Keep solid combustibles, such as building materials,
paper or cardboard, a safe distance away from the heater
as recommended by the instructions.
• Provide adequate clearances around air openings into
the combustion chamber.
• Never use the heater in spaces which do or may contain
volatile or airborne combustibles, or products such as
gasoline, solvents, paint thinner, dust particles or unknown
chemicals.
• During operation, this product can be a source of
ignition. Keep heater area clear and free from combustible
materials, gasoline, paint thinner, cleaning solvents and
other flammable vapors and liquids. Do not use heater in
areas with high dust content. Minimum heater clearances
from combustible materials: three (3) feet from the sides &
two (2) feet from the top.
WARNING
We cannot foresee every use which may be made of our
heaters.
Check with your local fire safety authority if you have
questions about heater use.
Other standards govern the use of fuel gases and heat
producing products for specific uses. Your local authorities
can advise you about these.
If no local codes exist, follow National Fuel Gas Code,
ANSI Z223.1. In Canada, installation must conform to local
codes. If no local codes exist, follow the current National
standards of CANADA CAN/CGA-B 149.2.
DANGER
• CARBON MONOXIDE HAZARD
• This heater is a combustion appliance. All combustion
appliances produce carbon monoxide (CO) during the
combustion process. This product is designed to produce
extremely minute, non-hazardous amounts of CO if used
and maintained in accordance with all warnings and
instructions. Do not block air flow into or out of the heater.
• Carbon Monoxide (CO) poisoning produces flu-like
symptoms, watery eyes, headaches, dizziness, fatigue and
possibly death. You can't see it and you can't smell it. It's
an invisible killer. If these symptoms are present during
operation of this product get fresh air immediately!
• For outdoor use only .
• Never use inside house, or other unventilated or
enclosed areas.
• This heater consumes air (oxygen). Do not use in
unventilated or enclosed areas to avoid endangering
your life.
CAUTION
• SERVICE SAFETY
• Keep all connections and fittings clean. Make sure
propane cylinder valve outlet is clean.
• During set up, check all connections and fittings for leaks
using soapy water. Never use a flame.
• Use as a heating appliance only. Never alter in any way or
use with any device.
WARNING
• BURN HAZARD
• Never leave heater unattended when hot or in use.
•Keepoutofreachofchildren.
WARNING
Certain materials or items, when stored under the heater,
will be subjected to radiant heat and could be seriously
damaged.
2

3
WARNING
• This product is fueled by propane gas. Propane gas is
invisible, odorless, and flammable. An odorant is normally
added to help detect leaks and can be described as a
“rotten egg” smell. The odorant can fade over time so
leaking gas is not always detectable by smell alone.
• Propane gas is heavier than air and leaking propane will
sink to the lowest level possible. It can ignite by ignition
sources including matches, lighters, sparks or open flames
ofanykindmanyfeetawayfromtheoriginalleak.Useonly
propane gas set up for vapor withdrawal.
• Propane gas should be stored or used in compliance with
local ordinances and codes or with ANSI/NFPA 58. Turn off
propane when not in use. WARNING
DANGER
• EXPLOSION - FIRE HAZARD
• Never store propane near high heat, open flames, pilot
lights, direct sunlight, other ignition sources or where
temperatures exceed 120 degrees F (49°C).
• Propane vapors are heavier than air and canaccumulate
in low places. If you smell gas, leave the area immediately.
• Never install or remove propane cylinder while heater is
lighted, near flame, pilot lights, other ignition sources or
while heater is hot to touch.
• This heater is red hot during use and can ignite
flammables too close to the burner. Keep flammables at
least 3 feet from sides & 2 feet from top. Keep gasoline and
other flammable liquids and vapors well away from heater.
• The propane cylinder must always be stored outdoors in a
well ventilated space out of reach of children.Never store
propane cylinder in an enclosed area (house, garage, etc.).
If heater is to be stored indoors, disconnect the propane
cylinder for outdoor storage.
•Children and adults should be alerted to the
hazards of high surface temperatures. Stay away
from these surfaces to avoid burning skin or igniting
clothing.
•Young children should be carefully supervised
when in the vicinity of the heater.
•Clothing or any other flammable materials
should not be hung from the heater, or placed on
or near the heater.
•Any guard or protective device removed for
servicing the appliance must be replaced prior
to placing back in service.
•Installation and repair should be done by a qualified
service person. The heater should be inspected
before use and annually by a qualified service person.
More frequent cleaning may be required as necessary.
It is imperative that the control compartment, burners,
and circulating air passageway of the appliance be
kept clean.
WARNING
California Proposition 65
Combustion by products produced when using
this product contain chemicals known to the state
of California to cause cancer, birth defects, and
other reproductive harm.

This outdoor/tabletop heater requires some assembly.Check over the contents to make sure all the
parts are available for assembly.
Contents:
1. Castle nuts (qty. 3)
2. Reflector
3. Emitter
4. Wire guard
5. Access panel
6. Base
7. Cast iron ring weight
8. M6X20 bolts (qty. 4)
9. 3/16" Stainless bolts (qty. 4) and washers (qty. 4)
10. Post with burner assembly
11. 3/16" Stainless bolts (qty. 4)
12. M5X10 bolt and washer (qty. 1)
13. Heater housing
14. Washers (qty. 3)
15. Regulator
16. Pins and Nuts(qty.3)
Tools required for assembly:
1. Phillips screwdriver
2. Adjustable wrench
3. Spray bottle with soap solution for leak test
Contents Breakdown
Package Contents
4
15
16
Regulator
Pins and Nuts(qty.3)

5
Assembly

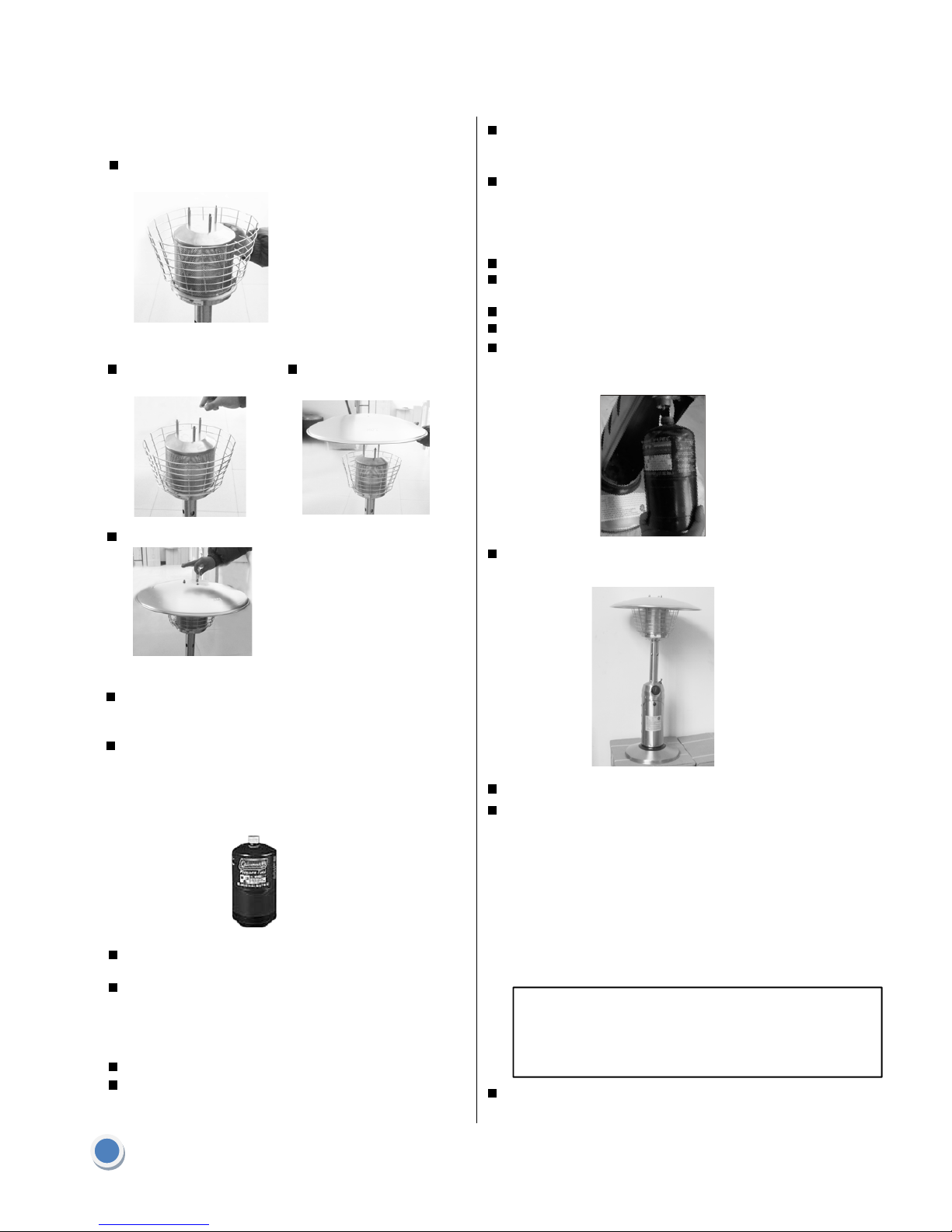

Step 1 – Attach Cast iron Assembly to Base
Step 2 – Attach Burner Assembly to Tank Housing
Step 3 – Emitter screen Assembly
Take out all the parts of the Tabletop Heater.
Aim the Cast iron at the Base holes.
Use 4pcs M6X15mm bolts and fix the Tank housing
to the Base & Cast iron.
Tighten the bolts as above show.
Put the Burner on the Tank Housing then fix them with
4pcs 3/16” bolts.
Fix the Regulator to the Tank Housing with each one of
the M5X10mm bolt & M5 nut.
Fix 3pcs pins of 60mm length to the Emitter screen with 3pcs
M5 nuts then tighten them.
Put the Emitter screen on the Burner. Use 4pcs 3/16” bolts to
connect the Emitter screen to the Burner.Tighten the bolts.

Step 4 – The Guard Assembly
Step 5 – The Reflector Assembly
Step 6 – Gas Tank Assembly
Put the Guard on the Burner through the Emitter screen.
Put the ends of the Guard into the holes of the Burner.
Put 3pcs washers on each
pins of the 60mm length.
Put the reflector through
the pins and on the washers.
Fasten the reflector with 3pcs castle nuts.
Provided with a listed overfilling prevention device.
The cylinder used must include a collar to protect the cylinder valve.
Never connect an unregulated propane cylinder to the heater.
Turn off the control knob of the burner.Fix the 1.02 lb.
propane cylinder to the regulator(rotate the propane cylinder
clockwise on the regulator untill tightened).
Provided with a cylinder connection device compatible with the
connection for the appliance.
A dented, rusted or damaged propane cylinder may be hazardous
and should be checked by your cylinder supplier. Never use a
propane cylinder with a damaged valve connection.
The propane cylinder must be constructed and marked in
accordance with the specifications for LP gas cylinders of the
U.S. Department of Transportation (DOT). or the Standard for
Cylinders, Spheres and Tubes for Transportation of Dangerous
Goods and Commission, CAN/CSA-B339.
You must provide propane gas and propane cylinder .
Use a standard 1.02 lb. propane cylinder only.
Storage of an appliance indoors is permissible only if the
cylinder is disconnected and removed from the appliance.
A cylinder must be stored outdoors in a well-ventilated area
out of the reach of children. A disconnected cylinder must
have dust caps tightly installed and must not be stored in a
building, garage or any other enclosed area.
Standard 1.02 lb. tank
6
Close the door plate and lock it with the handle.
The cylinder must be disconnected when the appliance is not used.
Replacement pressure regulator must be that specified by the
appliance manufacturer.
Storage of an appliance indoors is permissible only if the cylinder
is disconnected and removed from the appliance.
An appliance may be installed with shelter no more inclusive than:
(a) With walls on all sides,but with no overhead cover.
(b) Within a partial enclosure which includes an overhead cover
and no more than two side walls. These side walls may be
parallet, as in a breezeway, or at right angles to each other.
(c) Within a partial enclosure which includes an overhead cover
and three side walls, as long as 30 percent or more of the
horizontal periphery of the enclosure is permanently open.
The pressure regulator supplied with the appliance must
be used.
Only a cylinder marked “propane” can be used.
Certain materials or items, when stored under the heater,
will be subjected to radiant heat and could be seriously
damaged.
The installation must conform with local codes, or in the
absence of local codes,with National Fuel Gas Code,
ANSI Z223.1/NFPA54, Natural Gas and Propane Installation
Code, CSA B149.1, or Propane Storage and Handling
Code, B149.2.
(a) Do not store a spare LP-gas cylinder under or near this appliance;
(b) Never fill the cylinder beyond 80 percent full;
(c) “Place the dust cap on the cylinder valve outlet whenever the
cylinder is not in use. Only install the type of dust cape on the
cylinder valve that provided with the cylinder valve. Other type of
caps or plugs may result in leakage of propane.”

7
1. This portable heater is intended for outdoor use only.
Always ensure that adequate fresh air ventilation is
provided.
1. Perodically check the whole gas system for leaks.
2. Immediately check for leaks if an odor of gas is detected.
3. Extinguish all open flames during testing or when an odor
of gas is detected.
4. Never smoke while performing the leak test.
5. If you cannot stop a leak, unscrew and remove the cylinder
from the heater.
6. The heater must be checked with a full propane cylinder.
DO NOT use the heater until you have performed a leak
test on all the connections and verified that your unit does
not leak.
7. Use only manufacturer recommended replacement parts.
Substitution may void the warranty.
1. Turn on the valve on the gas supply cylinder completely.
2. Firmly press down and turn the variable control knob
approximately 45°(counter clockwise).
3. Press down the variable control knob and hold for 20
seconds. while holding down the variable control knob,
press the igniter button several times until the pilot flame
comes on. Release the variable control knob after the
pilot flame lights.
4. If the pilot does not light, repeat step 2 to 3.
Note: If a new tank has just been connected, please allow at
least one minute for the air in the gas pipeline to purge out
through the pilot hole.
5. After the flame comes on, leave the variable control knob at
minimum position for about 5 minutes, then switch to a desire
temperature position.
1. Turn control knob to “PILOT” position.
2. Press down lightly and turn to “OFF” position.
3.Turn the gas tank off completely.
Variable Control Knob
2. Always maintain proper clearance to combustible.
materials, i.e. top 24 inches and sides 36 inches
minimum.
3. The heater must be put on a strong and stable table.
4. Never operate the heater in an explosive atmosphere
like in areas where gasoline or other flammable liquids
or vapors are stored.
Gas connections on this heater are leak tested at the
factory prior to shipment. Possible mishandling of this
appliance during shipping may impair product integrity.
A complete leakage test must be performed again at the
installation site. Please follow the procedure below.
1. Make a soap solution of one part liquid detergent and
one part water. The soap solution can be applied to
hoses and connections with a spray bottle, brush or rag.
2. Make sure that the safety control valve is in the "OFF"
position.
3. Turn the cylinder valve ON and check for soap bubbles
forming on and around connections and hoses. If bubbles
appear, there is a leak present.
4. If a leak is present, remove the gas cylinder immediately,
tighten any leaking fittings, replace the gas cylinder, and
recheck.
Portable Heater Location
Turning ON the Heater
Turning the Heater and Pilot Light OFF
Procedure for Leakage Test
Testing for Leakage
O
L
t
o
l
iP
IH
O
L
t
o
l
i
P
I
H
O
L
t
oli
P
IH
36”
24”

Troubleshooting
If the problem is: And this condition exists: Then do this
Pilot won’t light
Cylinder valve is closed Open valve
Blockage in orifice or pilot tube Clean or replace orifice or pilot tube
Air in gas line
Open gas line and bleed it (pressing control
knob in) for not more than 1 - 2 minutes or until
you smell gas
Low gas pressure with cylinder valve
fully open Turn cylinder valve OFF and replace cylinder
Note: Heater operates at
reduced efficiency below 40ºF
(5ºC)
Igniter fails Use match to light pilot; obtain new igniter and
replace
Pilot won’t stay lit
Dirt built up around pilot Clean dirt from around pilot
Connection between gas valve and
pilot assembly is loose Tighten connection and perform leak check
Thermocouple is not operating correctly Replace thermocouple
Burner won’t light
rednilycecalperdnaFFOevlavrednilycnruTwolsierusserpsaG
egakcolbraelCecifironiegakcolB
Control knob is not in ON position Turn control knob to ON
Burner flame is low
rednilycecalperdnaFFOevlavrednilycnruTwolsierusserpsaG
Outdoor temperature is less than 40ºF
and tank is less than 1/4 full Use a full cylinder
egakcolbrofsecifirodnarenrubkcehCon HIbonklortnoC
Carbon build-up Dirt or film on reflector and burner screen Clean reflector and burner screen
Thick black smoke Blockage in burner Remove blockage and clean burner inside and
outside
8
Maintenance
WARNING
FOR YOUR SAFETY:
• Do NOT touch or move heater for at least 45 minutes
after use.
• Reflector is hot to the touch.
• Allow reflector to cool before touching.
To enjoy years of outstanding performance from your
heater, make sure you perform the following maintenance
activities on a regular basis:
Air flow must be unobstructed. Keep controls, burner,
and circulating air passageways clean. Signs of possible
blockage include:
a. Keeping the appliance area clear and free from combustible
materials , gasoline and other flammable vapors and liquids.
b. Not obstructing the flow of combustion and ventilation air.
Keep exterior surfaces clean.
Use warm soapy water for cleaning. Never use
flammable or corrosive cleaning agents.
While cleaning your unit, be sure to keep the area around the
burner and pilot assembly dry at all times. Do not submerge the
control valve assembly. If the gas control is submerged in water,
do NOT use it. It must be replaced.
c.Keeping the ventilation opening(s) of the cylinder enclosure
free and clear from debris.
Normal Abnormal

9
.Gas odor with extreme yellow tipping of flame.
.Heater does NOT reach the desired temperature.
.Heater glow is excessively uneven.
.Heater makes popping noises.
Ґ
.Spiders and insects can nest in burner or orifices.
This dangerous condition can damage heater and
render it unsafe for use. Clean burner holes by using
a heavy-duty pipe cleaner. Compressed air may help
clear away smaller particles.
.Carbon deposits may create a fire hazard. Clean
dome and burner screen with warm soapy water if
any carbon deposits develop.
Note: In a salt-air environment (such as near an ocean),
corrosion occurs more quickly than normal. Frequently
check for corroded areas and repair them promptly.
TIP:
Use high-quality automobile wax to help maintain the
appearance of your heater. Apply to exterior surfaces from
the pole down. Do not apply to emitter screen or domes.
Storage
Between uses:
.Turn Control Knob OFF.
.Disconnect LP source.
.Store heater upright in an area sheltered from direct
contact with inclement weather (such as rain, sleet,
hail, snow, dust and debris).
.If desired, cover heater to protect exterior surfaces
and to help prevent build up in air passages.
Note: Wait until heater is cool before covering.
During periods of extended inactivity or when
transporting:
.Turn Control Knob OFF.
.Disconnect LP source and move to a secure,
well-ventilated location outdoors.
.Store heater upright in an area sheltered from direct
contact with inclement weather (such as rain, sleet,
hail, snow, dust and debris).
.If desired, cover heater to protect exterior surfaces
and to help prevent build up in air passages.
.Never leave LP cylinder exposed to direct sunlight or
excessive heat.
Note: Wait until heater is cool before covering.
Service
Repair to gas passages and associated components
should be done only by a qualified service person.
Caution: Always allow heater to cool before
attempting service.
Limited Warranty
(Model # HPS-C-SH)
The manufacturer warrants to the original consumer-purchaser
only that this product (Model #HPS-C-SH) shall be free from
defects in workmanship and materials after correct assembly
and under normal and reasonable home use for the periods
indicated below beginning on the date of purchase. The
manufacturer reserves the right to require photographic
evidence of damage, or that defective parts be returned,
postage and/or freight pre-paid by the consumer, for review
and examination.
• TUBE BURNERS: 1 year LIMITED warranty against
perforation.
• COOKING GRIDS and FLAME TAMERS: 1 year LIMITED
warranty; does not cover dropping, chipping, scratching, or
surface damage.
• STAINLESS STEEL PARTS: 1 year LIMITED warranty
against perforation; does not cover cosmetic issues like
surface corrosion, scratches and rust.
• ALL OTHER PARTS: 1 year LIMITED warranty (Includes,
but not limited to, valves, frame, housing, cart, control panel,
igniter,regulator, hoses) *Does not cover chipping, scratching,
cracking surface corrosion, scratches or rust.
Upon consumer supplying proof of purchase as provided
herein, Manufacturer will repair or replace the parts which
are proven defective during the applicable warranty period.
Parts required to complete such repair or replacement shall
be free of charge to you except for shipping costs, as long as
the purchaser is within the warranty period from the original
date of purchase. The original consumer-purchaser will be
responsible for all shipping charges of parts replaced under
the terms of this limited warranty. This limited warranty is
applicable in the United States and Canada only, is only
available to the original owner of the product and is not
transferable. Manufacturer requires reasonable proof of your
date of purchase. Therefore, you should retain your sales

10
receipt and/or invoice. If the unit was received as a gift,
please ask the gift-giver to send in the receipt on your
behalf, to the below address. Defective or missing
parts subject to this limited warranty will not be
replaced without registration or proof of purchase.
This limited warranty applies to the functionality of the
product ONLY and does not cover cosmetic issues
such as scratches, dents, corrosions or discoloring by
heat, abrasive and chemical cleaners or any tools
used in the assembly or installation of the appliance,
surface rust, or the discoloration of stainless steel
surfaces. Surface rust, corrosion, or powder paint
chipping on metal parts that does not affect the
structural integrity of the product is not considered a
defect in workmanship or material and is not covered
by this warranty. This limited warranty will not
reimburse you for the cost of any inconvenience,food,
personal injury or property damage. If an original
replacement part is not available, a comparable
replacement part will be sent. You will be responsible
for all shipping charges of parts replaced under the
terms of this limited warranty.
MANUFACTURER WILL NOT PAY FOR:
• Service calls to your home.
• Repairs when your product is used for other than normal,
single-family household or residential use.
• Damage resulting from accident, alteration, misuse, lack
of maintenance/cleaning, abuse, fire, flood, acts of God,
improper installation, and installation not in accordance
with electrical or plumbing codes or misuse of product.
• Any food loss due to product failures.
• Replacement parts or repair labor costs for units
operated outside the United States or Canada.
• Pickup and delivery of your product.
• Postage fees or photo processing fees for photos sent
in as documentation.
• Repairs to parts or systems resulting from unauthorized
modifications made to the product.
• The removal and/or reinstallation of your product.
• Shipping cost, standard or expedited, for warranty/non
warranty and replacement parts.
DISCLAIMER OF IMPLIED WARRANTIES;
LIMITATION OF REMEDIES
Repair or replacement of defective parts is your exclusive
remedy under the terms of this limited warranty.
Manufacturer will not be responsible for any consequential
or incidental damages arising from the breach of either this
limited warranty or any applicable implied warranty, or for
failure or damage resulting from acts of God, improper care
and maintenance, grease fire, accident, alteration,
replacement of parts by anyone other than manufacturer,
misuse, transportation, commercial use, abuse, hostile
environments (inclement weather, acts of nature, animal
tampering), improper installation or installation not in
accordance with local codes or printed manufacturer
instructions.
THIS LIMITED WARRANTY IS THE SOLE EXPRESS
WARRANTY GIVEN BY THE MANUFACTURER. NO
PRODUCT PERFORMANCE SPECIFICATION OR
DESCRIPTION WHEREVER APPEARING IS
WARRANTED BY MANUFACTURER EXCEPT TO THE
EXTENT SET FORTH IN THIS LIMITED WARRANTY.
ANY IMPLIED WARRANTY PROTECTION ARISING
UNDER THE LAWS OF ANY STATE, INCLUDING
IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE OR USE, IS
HEREBY LIMITED IN DURATION TO THE DURATION
OF THIS LIMITED WARRANTY.
Neither dealers nor the retail establishment selling this
product has any authority to make any additional
warranties or to promise remedies in addition to or
inconsistent with those stated above. Manufacturer's
maximum liability, in any event, shall not exceed the
documented purchase price of the product paid by the
original consumer. This warranty only applies to units
purchased from an authorized retailer and or re-seller.
NOTE: Some states do not allow an exclusion or limitation
of incidental or consequential damages, so some of the
above limitations or exclusions may not apply to you; this
limited warranty gives you specific legal rights as set for
herein. You may also have other rights which vary from
state to state.
If you wish to obtain performance of any obligation under
this limited warranty, you should write to:
Boucherville(Québec)
J4B 8H7.Rona.ca
All consumer returns, parts orders, general questions,
and troubleshooting
assistance can be acquired by calling 1(800)913-8999
