Garden Treasures SC-K-315DF/2-O User manual

ITEM #0493667
CUSHIONED LOVESEAT
AND COFFEE TABLE
MODEL #SC-K-315DF/2-O
Français p. 8
Español p. 16
1
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
Serial Number _________________________ Purchase Date _______________________
EB13575 Lowes.com/gardentreasures

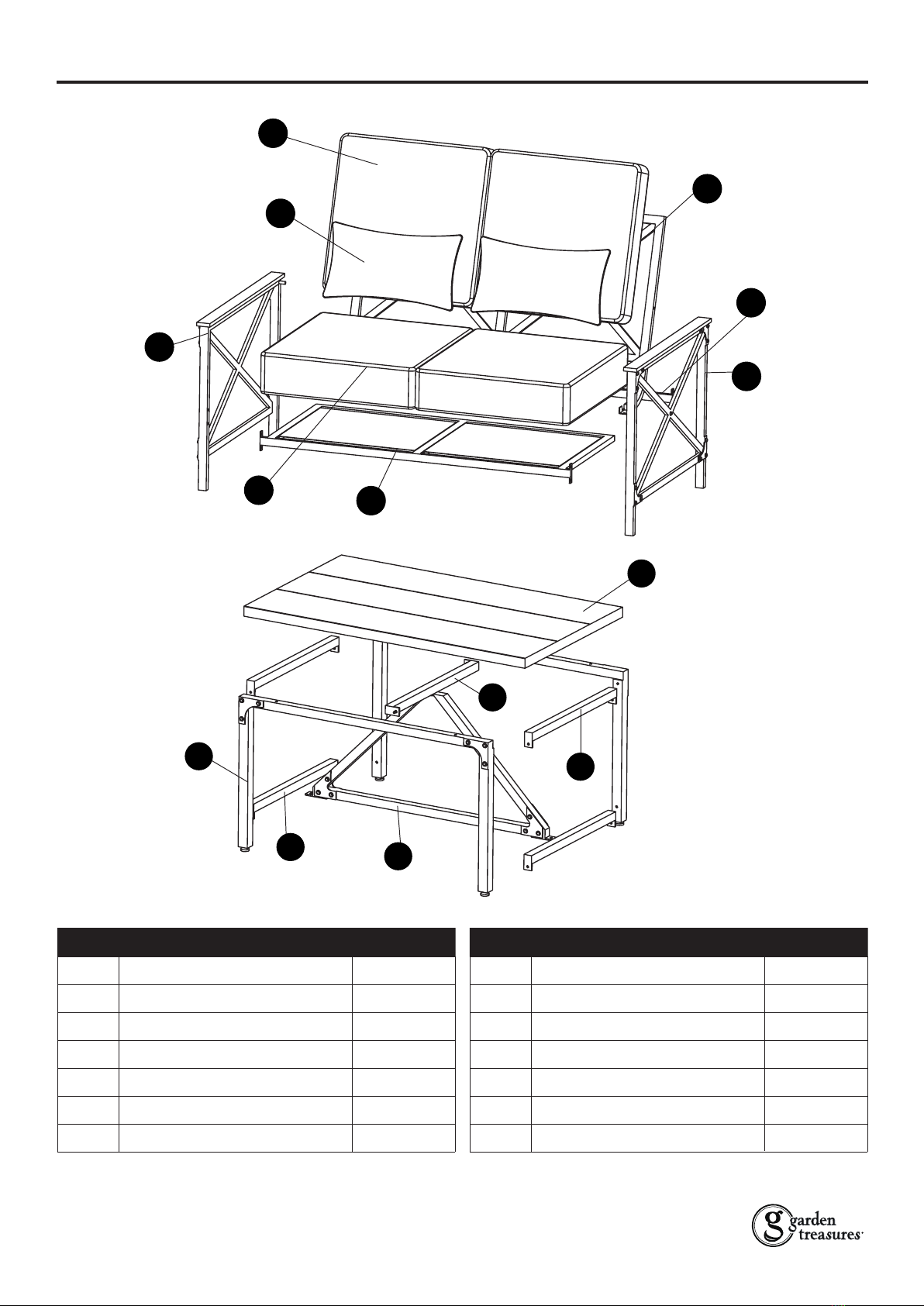

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A
B
C
1
1
1
2
Seat
Right Arm
DBack 1
Lowes.com/gardentreasures
E
F
G
PART DESCRIPTION QUANTITY
I
J
K
1
2
1
Support
Leg
LLower Bar 2
M
N
H
Left Arm
Rear Bar
Seat Cushion
Back Cushion
Pillow
1
2
2
2
Medium Bar
Upper Bar
Top
1
2
N
M
K
J
L
I
A
H
B
C
D
E
G
F

Assemble the item on a soft, non-abrasive surface, such as carpeting, to avoid damage.
Item is heavy. Handle with care.
Two adults may be needed to assemble.
SAFETY INFORMATION
WARNING
Please read and understand this entire manual before attempting to assemble or install
the product.
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time:
Tools Required for Assembly (included): Hex wrench, Allen wrench.
PREPARATION
60 minutes
LOVESEAT ASSEMBLY INSTRUCTIONS
3
Attach back (D) to seat (C) using
M6 x 15 mm bolts (AA) through
washers (EE) and back (D), then into
seat (C). Hand tighten only.
1
HARDWARE CONTENTS (shown to size)
Hardware Used
JJ
M6 x 15 mm Bolt x 6
Washer x 6
AA
EE
1.
Lowes.com/gardentreasures
AA EE
AA
EE
C
D
CAUTION
Recommended maximum sitting weight for the chair is 400 lbs.
AA
AA AA
BB AA
CC AA
DD AA
FF
M6 x 15 mm
Bolt
Qty. 14
+ 1 spare
Hex Wrench
Qty. 1
(not to
scale)
Washer
Qty. 33
(preassembled)
AA
EE
Nut
Qty. 4
(preassembled)
AA
GG
Allen
Wrench
Qty. 1
(not to scale)
AA
HH
M6 x 20 mm
Bolt
Qty. 13
+ 1 spare
M6 x 36 mm
Bolt
Qty. 4 M6 x 45 mm
Bolt
Qty. 2

2
4
LOVESEAT ASSEMBLY INSTRUCTIONS
Lowes.com/gardentreasures
Attach right arm (B) to seat (C) using
M6 x 15 mm bolts (AA) through
washers (EE) and seat (C), then into
right arm (B). Hand tighten only. Repeat
for the left arm (A).
Hardware Used
M6 x 15 mm Bolt x 4
AA
2.
4
Attach rear bar (E) to assembly using
M6 x 15 mm bolts (AA) through
washers (EE) and rear bar (E), then into
right arm (B). Hand tighten only. Repeat
for the left arm (A).
Hardware Used
JJ
x 4
Washer x 4
AA
EE
4.
JJ
Washer x 4
EE
3. 3
Attach right arm (B) to back (D) using
M6 x 45 mm bolts (DD) through
washers (EE) and back (D), then into
right arm (B). Hand tighten only. Repeat
for the left arm (A).
Hardware Used
JJ
M6 x 45 mm Bolt x 2
DD
JJ
Washer x 2
EE
E
AA
EE
AA EE
A
C
B
B
B
B
EE
B
A
B
DD D
A
M6 x 15 mm Bolt

5
5
Check alignment and make any
necessary corrections. Then, tighten all
bolts with Allen wrench (HH). Place
seat cushions (F), back cushions (G)
and pillows (H) onto item as desired,
attaching with hook-and-loop fasteners.
5.
JJ
F
JJ
H
JJ
G
Lowes.com/gardentreasures
LOVESEAT ASSEMBLY INSTRUCTIONS
Attach upper bar (N) to legs (J) using
M6 x 20 mm bolts (BB) through
washers (EE) and upper bar (N), then
into leg (J). Hand tighten only.
1
Hardware Used
JJ
M6 x 20 mm Bolt x 4
Washer x 4
BB
EE
1.
Attach medium bar (M) to legs (J) using
M6 x 20 mm bolts (BB) through
washers (EE) and medium bar (M), then
into leg (J). Hand tighten only.
2
Hardware Used
JJ
M6 x 20 mm Bolt x 2
Washer x 2
BB
EE
2.
BB EE
N
J
J
M
BB
EE
M
Hardware Used
JJ
Allen Wrench x 1
HH
COFFEE TABLE ASSEMBLY INSTRUCTIONS

Attach support (K) to medium bar (M)
using M6 x 20 mm bolt (BB) through
washer (EE) and support (K), then into
medium bar (M). Hand tighten only.
3
Hardware Used
JJ
M6 x 20 mm Bolt x 1
Washer x 1
BB
EE
3.
6
Lowes.com/gardentreasures
COFFEE TABLE ASSEMBLY INSTRUCTIONS
Attach lower bars (L) to support (K)
using M6 x 20 mm bolts (BB) through
washers (EE) and support (K), then into
lower bar (L). Hand tighten only.
4
Hardware Used
JJ
M6 x 20 mm Bolt x 2
Washer x 2
BB
EE
4.
Secure lower bar (L) to legs (J) using
M6 x 20 mm bolts (BB) through
washers (EE) and lower bars (L), then
into legs (J). Hand tighten only.
5
Hardware Used
JJ
M6 x 20 mm Bolt x 4
Washer x 4
BB
EE
5.
BB
EE
L
K
J
M
M
K
K
EE
BB
BB
EE
L
J

Attach top (I) to assembly using
M6 x 36 mm bolts (CC) through
washers (EE) and leg (J), then into top (I).
Secure with nut (FF), but hand tighten
only.
Once all connections have been made,
check alignment and make any necessary
adjustments. Then, tighten all bolts and
nuts with hex wrench (GG) and Allen
wrench (HH). Turn table upright and
level as needed using preassembled feet.
6
Hardware Used
JJ
M6 x 36 mm Bolt x 4
Washer x 4
CC
EE
6.
Printed in China
Garden Treasures®is a registered trademark
of LF, LLC. All rights reserved.
Lowes.com/gardentreasures
ONE-YEAR LIMITED WARRANTY
Wash with mild soap. Rinse with water and let air dry.
CARE AND MAINTENANCE
This warranty is extended to the original purchaser and applies to defects in materials and
workmanship of your patio furniture provided your furniture is maintained with care and used only
for personal, residential purposes.
Frames are warranted to be free from defects in material or workmanship for a period of one (1)
year.
Exclusions: Items used for commercial, contract or other non-residential purposes; display
models; items purchased “as is;” or items damaged due to acts of nature, vandalism, misuse or
improper assembly are not covered. Discoloration or fading of the finish or fabrics as a result of
exposure to the elements, chemicals or spills is not covered. Tabletop breakage, corrosion or
rusting of hardware and damage to frames or welds caused by improper assembly, misuse or
natural causes are not covered.
If within the stated warranty period a product is found to be defective in material or workmanship,
the purchaser must contact the manufacturer’s customer service department at 1-800-643-0067.
The manufacturer, at its option, will repair or replace the defective parts.
Warranty is to the original purchaser and is non-transferable. Any replacement of warranted items
will be in the original style and color or a similar style and color if the original is unavailable or has
been discontinued. As some states do not allow exclusions or limitations on an implied warranty,
the above exclusions and limitations may not apply. This warranty gives you specific rights, and
you may also have other rights which vary from state to state.
Cushions, Straps and/or Wicker Weaves are covered for a period of one (1) year against
defects in material or workmanship. Sling fabric is covered for a period of one (1) year against
defects in material or workmanship.
COFFEE TABLE ASSEMBLY INSTRUCTIONS
7
JJ
Nut x 4
FF
CC
EE
J
J
FF
I
JJ
Allen Wrench x 1
HH
JJ
Hex Wrench x 1
GG

ARTICLE #0493667
