Gardena SelectControl 1885 User manual

DF
I
E
P
GB
NL
GARDENA
®
D Betriebsanleitung
Bewässerungscomputer
F Mode d’emploi
Programmateur d’arrosage
I Istruzioni per l’uso
Computer per irrigazione
E Manual de instrucciones
Programador de riego
P Instruções de manejo
Computador de rega
GB Operating Instructions
Water Computer
NL Instructies voor gebruik
Besproeiingscomputer
SelectControl
Art. 1885

114
GB
GARDENA Water Computer SelectControl
Translation of the original instructions from German.
Please read these operating instructions carefully and observe the notes given. Use these
instructions to familiarise yourself with the Water Computer and its proper use as well as
the notes on safety.
AFor safety reasons, children and young people under 16 as well as anyone who is not
familiar with these operating instructions should not use the Water Computer. Persons
with reduced physical or mental abilities may use the product only if they are supervised
or instructed by a responsible person. Children must be supervised to ensure that they
do not play with the product.
vPlease keep these operating instructions in a safe place.
1. Where to Use Your GARDENA Water Computer . . . . . . . . . . . 115
2. Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
3. Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
4. Putting Your Water Computer into Operation . . . . . . . . . . . . . . . 119
5. Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
6. Putting Your Water Computer out of Operation . . . . . . . . . . . . . 129
7. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
8. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
9. Available Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Contents

115
GB
10. Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
11. Service / Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
1. Where to Use Your GARDENA Water Computer
The GARDENA Water Computer is intended for private use in
domestic and hobby gardens, exclusively for outdoor use, to
control sprinklers and watering systems.
The Water Computer can be used for automatic watering during
holidays.
The GARDENA Water Computer must not be used for
industrial purposes or in conjunction with chemicals,
foodstuffs, easily flammable and explosive materials.
Intended use:
Please note:
2. Safety Instructions
Battery:
To ensure the Water Computer runs safely,
only a 9V alkaline manganese battery
(alkaline) type IEC 6LR61 must be used.
In order to stop the Water Computer from
failing because of a weak battery if you are
away for a long time, the battery must be
replaced when the battery symbol flashes.

116
GB
Setting up
The Water Computer may only be set up
vertically with the sleeve nut to the top to
prevent water penetrating into the battery
compartment.
The minimum water output to ensure that
the Water Computer functions correctly is
20
- 30 l/h.
For example, at least 10 x 2-litre Drip
Heads are required to control the Micro-
Drip-System.
At high temperatures (over 60 °C at the
display) the LCD display may extinguish.
This does not affect the program in any
way. When the computer cools down the
LCD display illuminates again.
The max. temperature for the water flow is
40 °C.
vOnly use clear fresh water.
The minimum operating pressure is 0.5 bar,
the maximum operating pressure is 12 bar.
Avoid tensile strain.
vDo not pull the hose connected to the
Water Computer.
If the controller is removed when the valve
is open, the valve remains open until the
controller is fitted again.
3. Function
With the Water Computer, the garden can be watered fully auto-
matically up to 3 times a day at any time of day (every 8 hours).
Sprinklers, a sprinkler system or a drip head watering system
can be used for watering.

117
GB
The Water Computer carries out watering fully automatically
according to the set program and can therefore also be used
during holidays. Early in the morning or late in the evening,
evaporation and therefore water consumption is lowest.
The watering program is easily selected via the rotary knob.
A watering program comprises the watering start time, duration
and cycle.
Buttons Function
1OK button Applies the values set with the
+button.
2+button Changes the input data.
3Rotary knob Selects the watering programs.
Controls:
OK
+
3 1 2

118
GB

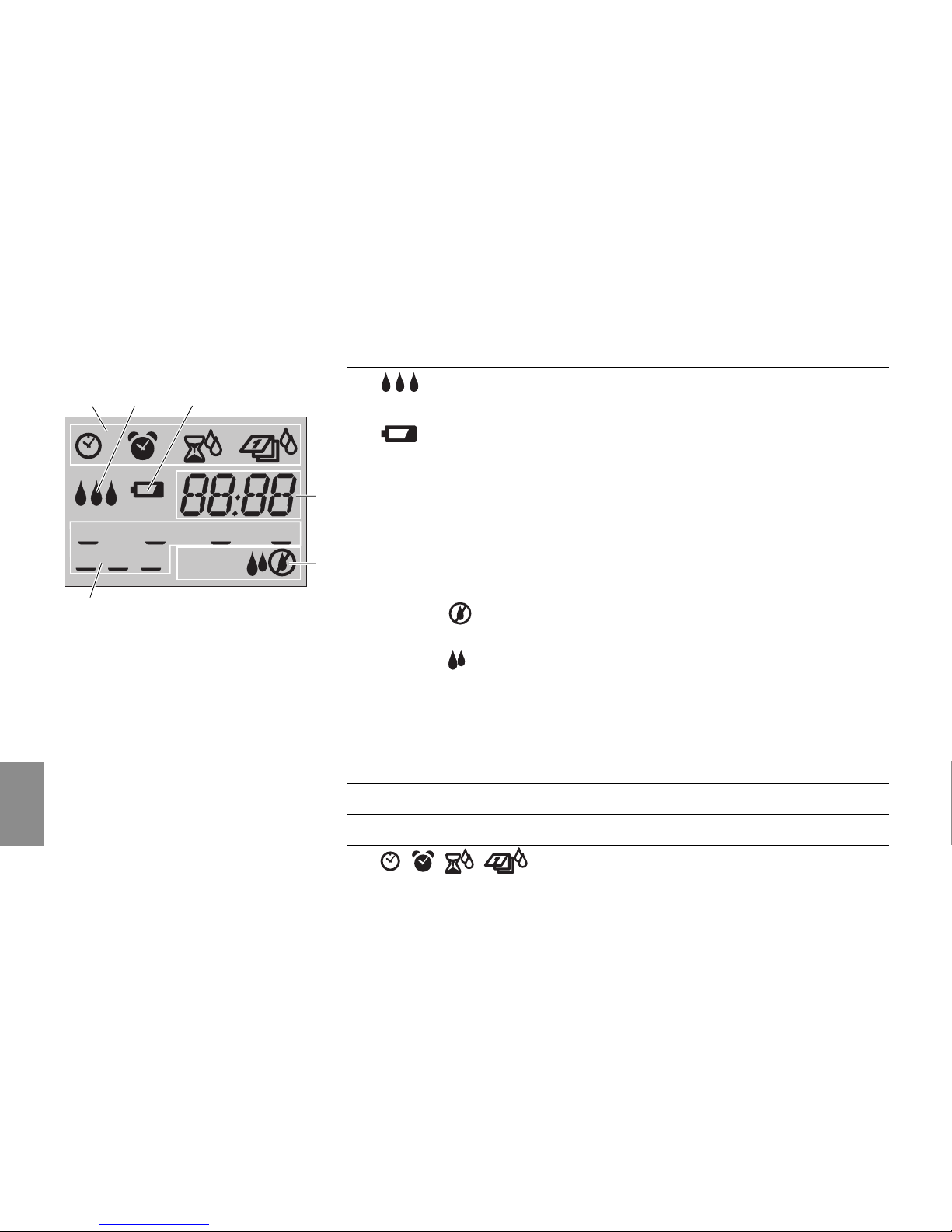

Display Description
5Flash consecutively whilst watering is
carried out.
6Flashes when the battery needs to be
replaced. The valve is still opened for
4 weeks.
Is continuously displayed when the
battery is empty. The valve is not opened
any more.
Replace battery (see 4. Putting Your Water
Computer into Operation “Insert battery” ).
7Sensor / Indicates that the sensor registers dry and
the programmed watering is carried out.
Sensor Indicates that the sensor registers wet
and the programmed watering is not
carried out
(see 4. Putting Your Water Computer into
Operation
“Connect soil moisture or rain
sensor” ).
8Program times
9Watering cycle
0Time, watering start time, watering
duration, watering cycle.
Display
1x 2x 3x Sensor
24h 2nd 3rd 7th
0
9
5 6
8
7

119
GB
Insert battery:
4. Putting Your Water Computer into Operation
The Water Computer must only be operated with a 9 V alkali-
manganese (alkaline) battery type IEC 6LR61.
1. Remove controller Afrom the
housing of the Water Computer.
2. Insert battery in the battery
compartment B. Observe
correct polarity z
P.
The display shows all LCD
symbols for 2 seconds and
the time in hours then flash
(see 5. Programming).
3. Install controller Aon the
housing again.
If the OK button is pressed whilst the battery is inserted, the soil
can be selected after all LCD symbols have been displayed. (see
5. Programming). Medium to heavy soils is selected as standard
if the OK button is not pressed when inserting the battery.
1 = Medium to heavy soils.
2 = Light to sandy soils.
A
z
P
B
(Optional)
Select between light
to sandy or medium
to heavy soils:

120
GB
vSelect the soil with the +button and confirm with the
OK button.
and the time in hours then flash.
(see 5. Programming).
Connect Water Computer:
The Water Computer is fitted with a sleeve nut Efor taps with
(G 1 " ) (33.3 mm) thread. The adaptor supplied Callows the
Water Computer to be connected to taps with a (G ³⁄₄ " ) thread
(26.5 mm).
vInsert the filter Dinto the sleeve nut Eand connect the water
computer to the tap.
C
D
E

121
GB
Apart from scheduled watering there is also the option of including
how damp the soil is or rainfall into the watering programme.
Note:
If the soil is damp enough, the programme will be stopped, or
a programme will be prevented from starting. Manual operation
is possible at all times.
1. Remove controller Afrom the housing of the Water Computer
(see 4. Putting Your Water Computer into Operation “Insert
battery”).
2. Place soil moisture sensor in the watered area – or – place
rain sensor (with extension cable if necessary) outside the
watered area.
3. Run the sensor cable Fthrough the opening of the housing.
4. Disconnect the cover Gand insert the sensor cable plug F
into the sensor connection Hof the water computer.
It can take up to 1 min. until the status of the sensor is shown
on the display.
An adapter cable may be required to connect older sensors,
which can be purchased from GARDENA Service,
GARDENA Adapter cable Art. No. 1189-00.600.45.
Connect soil moisture
or rain sensor (optional):
GH
F

122
GB

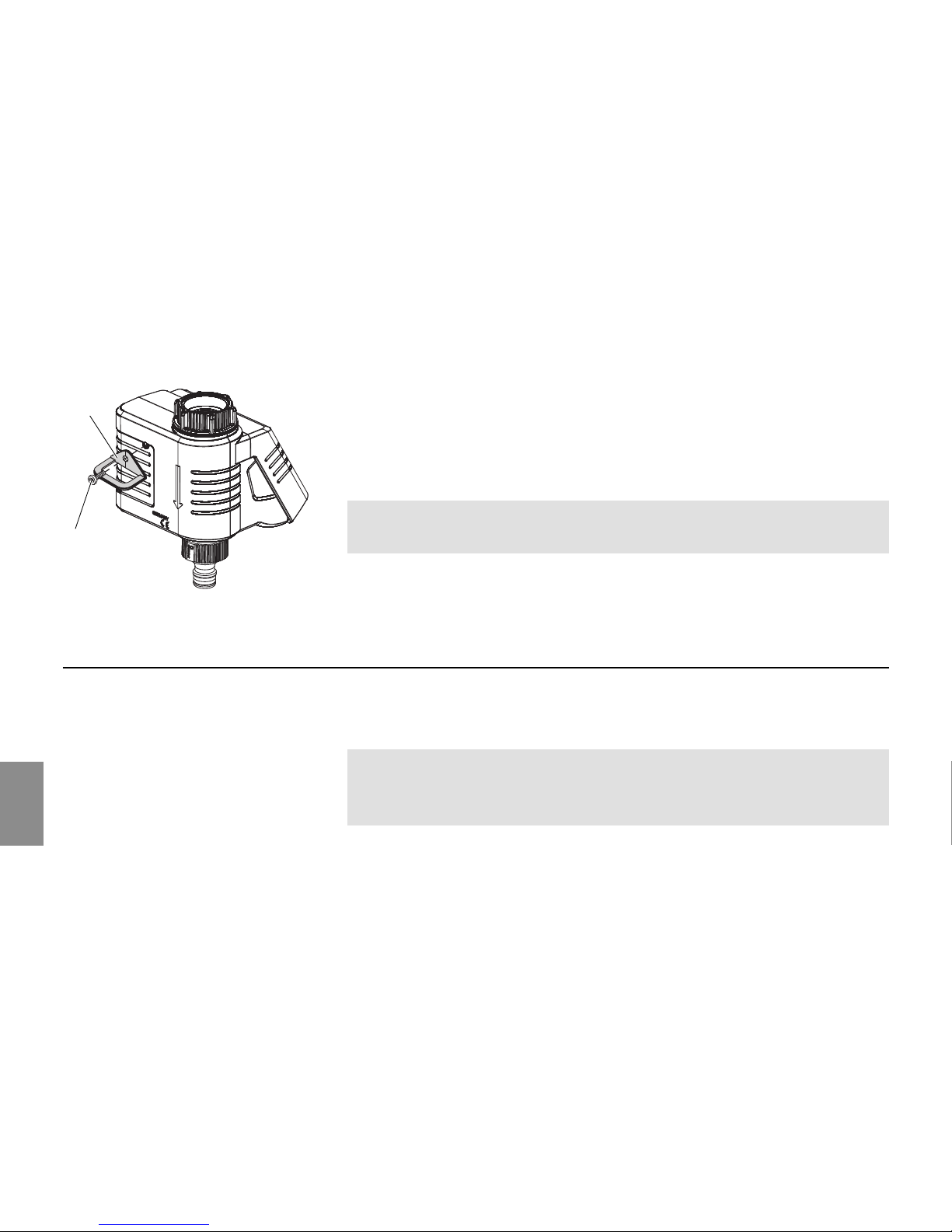

Tip:
To secure your Water Computer against theft, you can obtain the
GARDENA Anti-theft device Art. No. 1815-00.791.00 from
GARDENA Service.
1. Screw clamp Iwith screw Jfirmly to the back of the Water
Computer.
2. Use clamp Ie.g. for fixing a chain.
It is no longer possible to remove the screw after it has been
screwed in.
5. Programming
VProgram the Water Computer with the tap turned off.
In this way you can avoid getting wet.
To set the programme, the controller can be removed and
mobile programming can be carried out (see 4. Putting Your
Water Computer into Operation “Insert battery” ).
Fit anti-theft device
(optional):
I
J

123
GB
1. Insert the battery – or – turn the rotary knob to a watering
program and press the OK button.
and the time in hours flash.
2. Select the time in hours (e.g. 10 hours) with the +button and
confirm with the OK button.
The time in minutes flashes.
3. Select the time in minutes (e.g. 20 minutes) with the +button
and confirm with the OK button.
The time is set.
The basic setting of the watering programs can be adjusted to
between light and sandy soils or between medium and heavy
soils (factory settings) (See 4. Putting your Water Computer into
Operation).
It is possible to select from 5 watering programs (data in paren-
theses are for light to sandy soils).
Set time:
Select watering program:
Garden area Watering suggestion, individually adjustable
Program (rotary knob) Start time Duration Days Frequency
Lawn 5:00 (5:00) 1:00 (0:45) 3rd (2nd) 1x (1x)
Vegetables 5:00 (7:00) 0:45 (0:30) 2nd (2nd) 1x (2x)
Pot plants 7:00 (7:00) 0:30 (0:15) 2nd (24h) 2x (2x)

124
GB
Program (rotary knob) Start time Duration Days Frequency
Pot plants 5:00 (7:00) 0:10 (0:05) 24h (24h) 1x (2x)
Boundary planting 7:00 (8:00) 0:10 (0:05) 3rd (2nd) 2x (3x)
vTurn the rotary knob to the desired program.
The program is activated.
All program data can be displayed consecutively by pressing
the +button repeatedly.
The preset times, durations and frequencies are non-binding
suggestions and, where necessary, must be adapted to various
environmental factors such as soil type, climate and various
watering products (1 mm/h = 1 l/m²h).
For medium to heavy soils:
•Lawn: Watering, e.g. using Polo sprinkler, approx. rainfall
amount of 10 mm per week.
•Vegetables: Watering with Micro-Drip-System Oscillating Sprinkler,
approx. rainfall amount of 5 mm/h = approx. 12 mm/week.
•Hedges: Watering with Micro-Drip-System 13 mm Drip Irrigation
Line, approx. rainfall amount of 4 litres/ hour per plant = approx.
12 litres / week/ plant.
Modify
watering program:
Display
watering program:

125
GB
•Pot plants: Watering of 1m flower boxes with Micro-Drip-System.
5 Inline Drip Heads watering at 2 l/h = approx. 2 litres / day per
flower box.
•Boundary planting: Watering with Micro-Drip-System 4.6 mm
Drip Irrigation Line, approx. water distribution quantity of
18 litres/ hour/ m² = approx. 12 litres/week/ m².
The 5 preset watering programs can be customised.
1. Select watering program with the rotary knob.
and the current time of day are displayed.
Set watering start time :
2. Press the +button.
and the current time of day are displayed.
3. Press OK button.
and the start time hours flash.
4. Set the start time hours (example: 18 hours) with the
+button and confirm with the OK button.
5. Set the start time minutes (example: 30 minutes) with
the +button and confirm with the OK button.
Modify
watering program:

126
GB

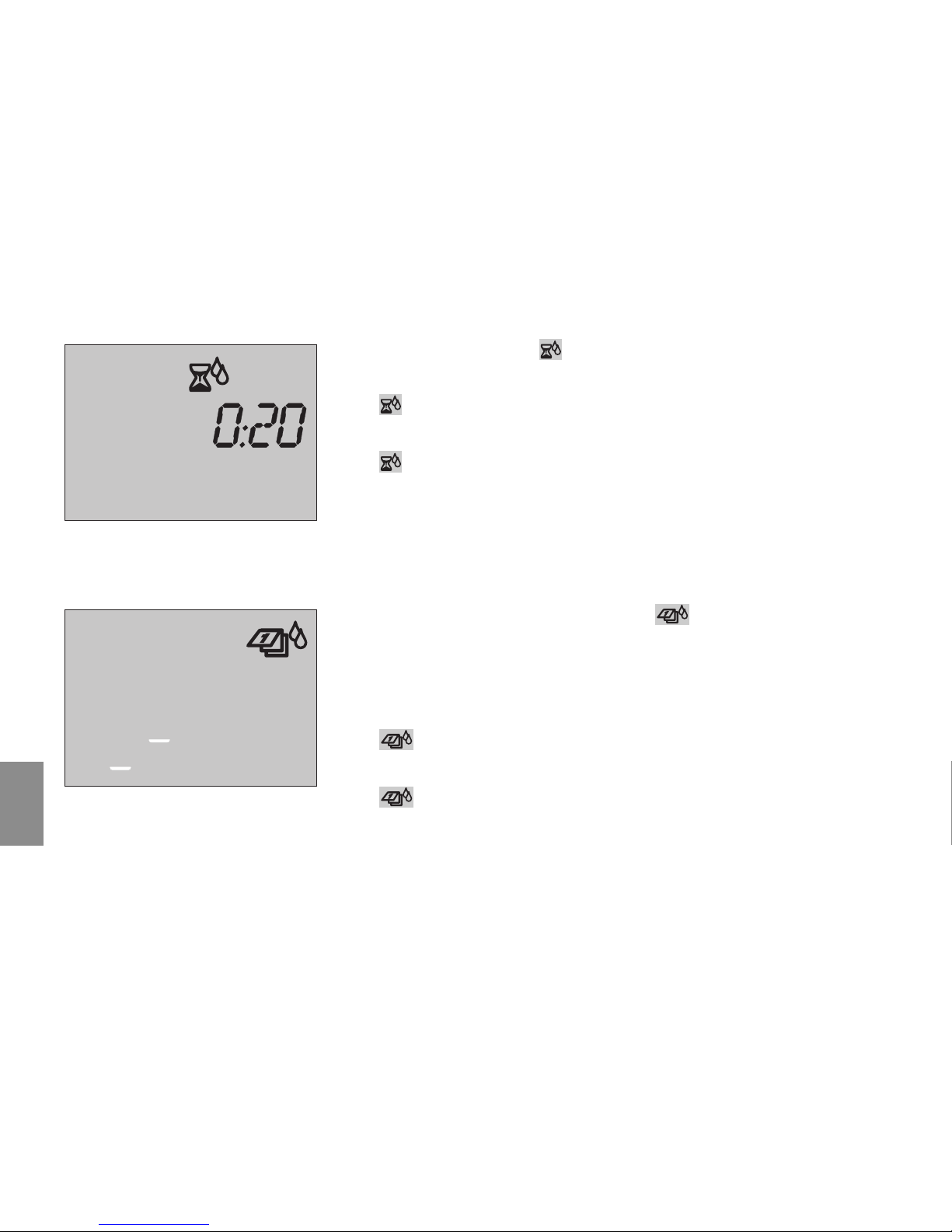

Set watering duration :
6. Press the +button.
and the current duration are displayed.
7. Press OK button.
and the duration hours flash.
8. Set the duration hours (example: 0 hours) with the
+button and confirm with the OK button.
9. Set the duration minutes (example: 20 minutes) with
the +button and confirm with the OK button
Set watering cycle (day, frequency) :
The watering cycle can be carried out every day (24h) to
every 7 days (7th), 1x (every 24 hours), 2x (every 12 hours)
or 3x (every 8 hours) respectively.
10. Press the +button.
and the current cycle are displayed.
11. Press OK button.
and the current watering days flash.
12. Keep pressing the +button until the desired watering days
are set (example: 2nd = every 2nd day).
1x 2x 3x
24h 2nd 3rd 7th

127
GB
13. Press OK button.
and the current watering frequency flash.
14. Keep pressing the +button until the required watering
frequency is set (example: 2x = twice in 24 hours).
15. Press OK button.
The watering cycle is stored.
If the subsequent day is not a watering day, the watering will
stop at 12:00 a.m.
During sensor control, watering takes place only between
8.00 p.m. and 6.00 a.m. if the sensor registers dry (sensor ).
There is a minimum break of 2 hours after watering.
No watering is performed or an ongoing watering process is
cancelled if the sensor indicates moist (sensor ).
1. Turn the rotary knob to Sensor.
and the current watering duration flash (preset to
30 minutes at the factory) for 10 seconds in the display.
2. Whilst the watering duration is flashing, it can be adjusted with
the +button (between 1and 59 minutes) (e.g.: 15 minutes) and
confirmed with the OK button.
1x 2x 3x
24h 2nd 3rd 7th
Sensor
Sensor control:
Important information:

128
GB
Emergency program (sensor flashes): If no sensor is inserted
or the sensor cable is faulty, watering is performed once per day
using the set watering duration (max. 30 mins.).
The valve can be opened or closed manually at any time.
The controller must be fitted.
1. Turn the rotary knob to On.
The valve is opened, the drips flash one after the other and
the watering duration flashes (preset to 30 minutes at the
factory) for 10 seconds in the display.
2. Whilst the watering duration is flashing, it can be modified
with the +button (between 1and 59 minutes) (example:
15 minutes) and confirmed with the OK button.
3. Turn the rotary knob to Off to close the valve early.
The valve is closed.
The adjusted manual/sensor watering duration is saved and is
independent from the watering duration in the program, i.e. the
adjusted watering duration is preset for each future manual /
sensor valve opening.
Manual watering:

129
GB

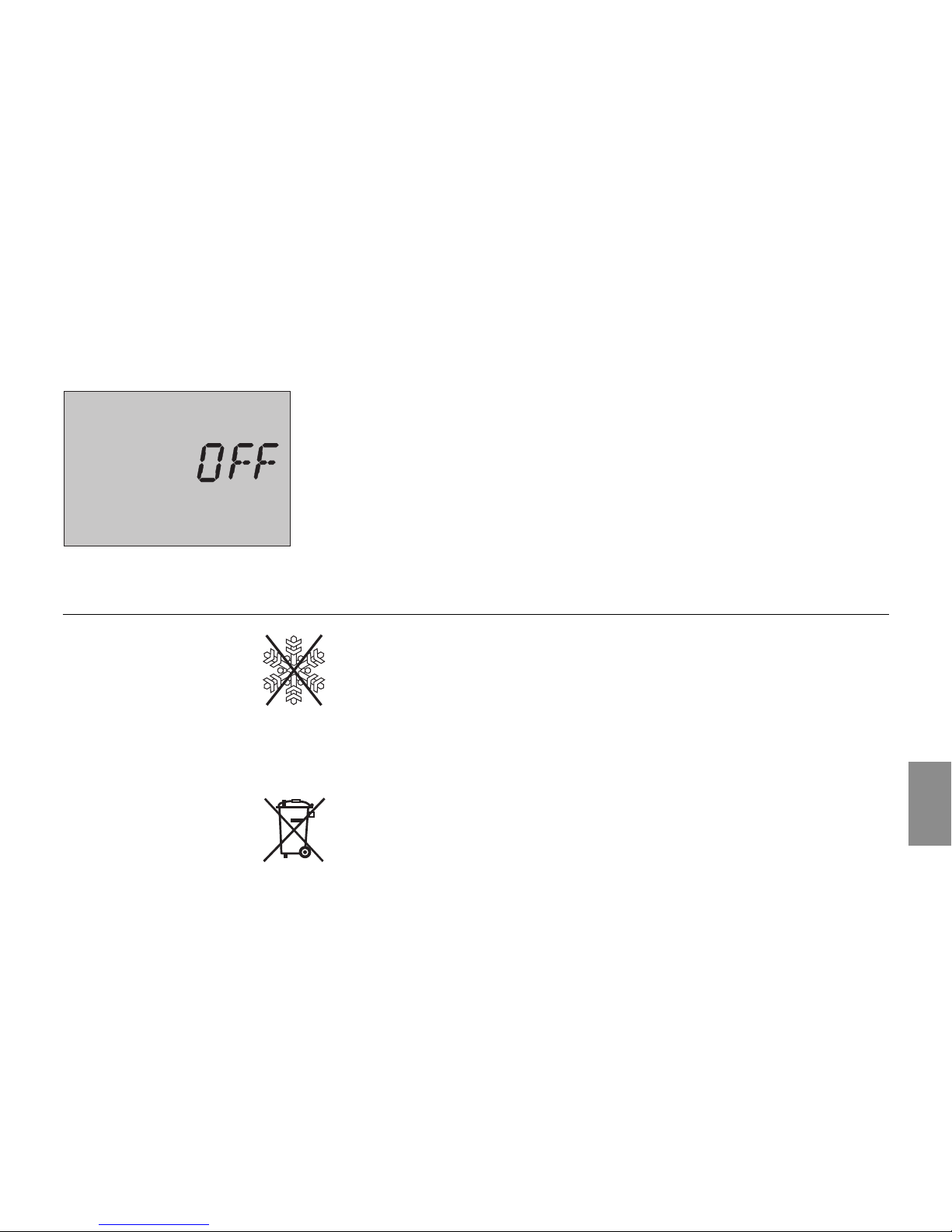

The watering program is not executed when the knob is set to
Off. The programs remain stored. A program-controlled open
valve can also be closed early without changing the program
data (watering start time, watering duration, watering cycle).
vTurn the rotary knob to Off.
The watering program is deactivated.
To reactivate a watering program turn the rotary knob to a
Program.
6. Putting your Water Computer out of Operation
1. To preserve the battery, it should be removed
(see 4. Putting Your Water Computer into Operation).
When the battery is inserted again in spring, the modified
programs remain stored and do not have to be re-entered.
2. Store controller and valve unit in a dry place where they are
protected from frost.
The product must not be added to normal household waste. It
must be disposed of in line with local environmental regulations.
vImportant: Make sure that the unit is disposed of via your
municipal recycling collection centre.
Storage /
Overwintering:
Deactivate
watering program:
Disposal:
(in accordance with
RL2002/96/EC)

130
GB
vPlease return flat batteries to a GARDENA dealer or dispose
of them properly at your nearest recycling centre.
Only dispose of batteries when they are flat.
7. Maintenance
The filter Dshould be checked regularly and cleaned when
necessary.
1. Unscrew sleeve nut Eof the Water Computer by hand
from the tap thread (do not use pliers).
2. If necessary unscrew the adaptor C.
3. Remove filter Dfrom sleeve nut Eand clean.
4. Fit the Water Computer again (see 4. Putting Your Water
Computer into Operation “Connecting Water Computer” ).
Clean filter :
Disposing of flat batteries:
C
D
E

131
GB
8. Troubleshooting
Fault Possible Cause Remedy
No display appears Battery inserted incorrectly. vCheck polarity markings
match (+/–).
Flat battery. vInsert new (alkaline) battery.
Temperature on the display Display appears after
is higher than 60 °C. temperature has dropped.
Manual watering is not Battery flat ( is continuously vInsert new (alkaline) battery.
possible using the displayed).
rotary knob set to On Tap turned off. vTurn tap on.
Controller is not connected. vMount controller on housing.
Watering program is not Program entry/modification vMake program entry/
being undertaken during or just before the modification outside the
(no watering) start pulse. programmed start times.
Tap turned off. vTurn tap on.
Soil moisture or rain sensor vIf dry, check setting/
registers damp. location of soil moisture/
rain sensor.

132
GB
Fault Possible Cause Remedy
Watering program is not Controller is not connected. vMount controller on housing.
being undertaken Battery flat ( is continuously vInsert new (alkaline) battery.
(no watering) displayed).
Rotary knob set to “Sensor” No sensor connected or the vConnect a sensor or replace
and the sensor display flashes sensor cable is faulty. the sensor cable.
Water Computer does Minimum quantity of water vConnect more drip heads.
not close drawn is less than 20 l/ h.
AIn the event of other faults please contact GARDENA Service.
Repairs should only be carried out by GARDENA service centres or dealers
authorised by GARDENA.
9. Available accessories
GARDENA Art. No. 1188
Soil Moisture Sensor
GARDENA Art. No. 1189
Rain Sensor electronic
GARDENA Art. No. 1815-00.791.00
Anti-theft device From GARDENA Service
