Garland MO DU 7000-360 User manual

Part Number: 4532415 12/14

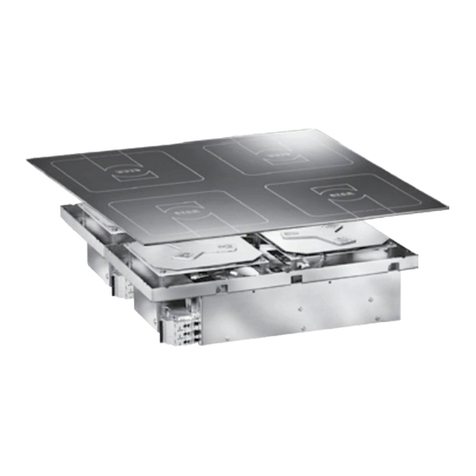

Induction Built-In Module-Line
RTCSmp® Dual/Quad Cooktops
Installation, Operation and Maintenance Manual
This manual is updated as new information and models are released. Visit our website for the latest manual.

Installation and Operation Manual RTCSmp Built-In Module-Line Dual/Quad Cooktops
2 Part Number 4532415 12/14
WARRANTY
Our warranty statements for induction products are
available on-line. Please visit our website at
www.garland-group.com/minisite/service to download
the latest revision. If you might have any questions,
please contact Garland.
UNPACKING and PACKING SLIP
The packing slip attached to the shipment contains
detailed information on all components. Please retain
this packing slip for future reference.
USING THIS MANUAL
PLEASE READ ALL SECTIONS OF THIS MANUAL AND
RETAIN FOR FUTURE REFERENCE.
This manual contains important information regarding
safety, installation, operation, maintenance, and
troubleshooting. They must be read entirely and
carefully by the installers and operators before the
equipment is installed and taken into operation. This
manual must always be available for reference at the
place of operation.
Throughout this manual, the induction unit type
“RTCSmp Built-In Module Line Dual/Quad Cooktops” is
referred to as “induction unit”.
THIS PRODUCT HAS BEEN CERTIFIED AS COMMERCIAL
COOKING EQUIPMENT AND MUST BE INSTALLED BY
PROFESSIONAL PERSONNEL AS SPECIFIED
INSTALLATION AND ELECTRICAL CONNECTION MUST
COMPLY WITH CURRENT CODES:
IN CANADA – THE CANADIAN ELECTRICAL CODE PART 1
AND / OR LOCAL CODES.
IN USA – THE NATIONAL ELECTRICAL CODE ANSI / NFPA –
CURRENT EDITION.
WARNING
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE
OR MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY, OR
DEATH. READ THE INSTALLATION, OPERATING AND
MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE
INSTALLING OR SERVICING THIS EQUIPMENT
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE
VAPORS OR LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER
APPLIANCE
Users are cautioned that maintenance and repairs must be performed by a Garland authorized service agent using only
genuine Garland replacement parts. Garland will have no obligation with respect to any product that has been improperly
installed, adjusted, operated or not maintained in accordance with national and local codes and/or installation instructions
provided with the product or any product that has its serial number defaced, obliterated or removed, and/or which has
been modified or repaired using unauthorized parts or by unauthorized service agents. For a list of authorized service
agents and/or genuine replacement parts, please visit our website at www.garland-group.com for USA and Canada. For
international customers, please visit www.manitowocfoodservice.com. The information contained herein, including design
and part specifications, may be superseded and is subject to change without notice.
DESCRIPTION OF WARNING SYMBOLS
This symbol alerts you to a hazardous situation
that WILL or COULD cause serious bodily harm or
death. Be alert and implement relevant safety
precautions.
CAUTION
T
his symbol alerts a hazardous situation,
which if not avoided, COULD cause minor to
moderate personal injury or property
damage. The relevant safety precautions
MUST be implemented at all times.
T
his dangerous voltage warning symbol indicates
a risk of electric shock and hazards from
dangerous voltage. Electromagnetic field.
Warning
Risk of fire or electric shock
Do not open
T
o reduce the risk of fire or electric shock, do not remove or
open cover. No user serviceable parts inside. Refer servicing
to qualified personnel.

Table of Contents RTCSmp Built-In Module-Line Dual/Quad Cooktops
Part Number 4532415 12/14 3
1Safety Requirements .................................................................................................................................................5
1.1Important Electrical & Installation Requirements.........................................................................................................................5
1.2Risk Involved By Disregarding Safety Information.......................................................................................................................5
1.3Safety Instructions for Operator..........................................................................................................................................................5
1.4Improper Use of the Equipment .........................................................................................................................................................6
1.5Unauthorized Modification and Use of Spare Parts.....................................................................................................................6
1.6Pan Detection ............................................................................................................................................................................................7
1.7Cooking Zone Monitoring.....................................................................................................................................................................7
2Components and Features........................................................................................................................................8
2.1Application..................................................................................................................................................................................................8
2.2Components and Features....................................................................................................................................................................8
3Dimensions and Technical Specifications..............................................................................................................10
3.1Rating Plate...............................................................................................................................................................................................10
3.2Nomenclature and Models..................................................................................................................................................................10
3.3Dimensions ...............................................................................................................................................................................................10
3.4Models and Components Charts ......................................................................................................................................................10
3.5Electrical Specifications........................................................................................................................................................................11
3.6Operating Conditions ...........................................................................................................................................................................12
3.7Compliances.............................................................................................................................................................................................12
4Installation ...............................................................................................................................................................13
4.1Important Safety & Electrical Requirements.................................................................................................................................13
4.2Installation Overview and Installation Clearance .......................................................................................................................13
4.2.1Installation Overview.......................................................................................................................................................13
4.2.2Installation Clearance ......................................................................................................................................................15
4.3Induction Generator..............................................................................................................................................................................15
4.3.1Location................................................................................................................................................................................16
4.3.2Ventilation ...........................................................................................................................................................................16
4.3.3Dimensions..........................................................................................................................................................................16
4.4Control Unit and Operation Unit (Power Switches)...................................................................................................................17
4.4.1Location................................................................................................................................................................................17
4.4.2Ventilation ...........................................................................................................................................................................17
4.4.3Mounting Methods...........................................................................................................................................................18
4.4.4Dimensions – Control Unit ............................................................................................................................................18
4.4.5Dimensions Guide (Holes/Studs).................................................................................................................................19
4.5Coil Carrier Sheet, Ceran Glass and Mounting Frame ...............................................................................................................20
4.5.1Location & Ventilation Requirements for Coil Carrier Sheet Installation......................................................20
4.5.2Countertop Cut-outs Dimensions...............................................................................................................................20
4.5.3Correct Orientation – Coil Carrier, Glass and Frame.............................................................................................20
4.5.4Mounting Frames..............................................................................................................................................................21
4.5.4.1Dimensions – Mounting Frame [for glasstop size 360x360mm] ......................................................................22
4.5.4.2Dimensions – Mounting Frame [for glasstop size 375x650mm] ......................................................................22
4.5.4.3Dimensions – Mounting Frame [for glasstop size 650x650mm] ......................................................................23
4.5.4.4Dimensions – Mounting Frame [for glasstop size 360x720mm] ......................................................................23
4.5.4.5Dimensions – Mounting Frame [for glasstop size 720x720mm] ......................................................................24
4.5.5Installation Steps...............................................................................................................................................................25
4.5.6Custom-Built Mounting Frame ....................................................................................................................................28
4.6Models, Components and Cable Connections ............................................................................................................................30
4.6.1CHART 1 – Module-Line Round Coil Dual Models.................................................................................................30
4.6.2CHART 2 – Module-Line Round Coil Quad Models...............................................................................................31
4.6.3CHART 3 – Module-Line Full Coil Dual Models.......................................................................................................32
4.6.4CHART 4 – Module-Line Full Coil Quad Models.....................................................................................................33
4.6.5CHART 5 – Module-Line Full and Round Coil Quad Models..............................................................................34
4.7Electrical Installation .............................................................................................................................................................................35
5Function Test............................................................................................................................................................37
6Operating Instructions ............................................................................................................................................38
6.1Proper Induction Cookware................................................................................................................................................................38
6.2Proper Placement of Cookware.........................................................................................................................................................39
6.3Power Control..........................................................................................................................................................................................40
6.4No Pan No Heat.......................................................................................................................................................................................41
6.5When Unit is Not In Use........................................................................................................................................................................41
7Cleaning....................................................................................................................................................................42
8Maintenance.............................................................................................................................................................43
9Important Rules .......................................................................................................................................................43

Table of Contents RTCSmp Built-In Module-Line Dual/Quad Cooktops
4 Part Number 4532415 12/14
10Troubleshooting ......................................................................................................................................................44
10.1Common causes for induction unit failure................................................................................................................................... 44
10.2Problems and Possible Causes.......................................................................................................................................................... 45
10.3Troubleshooting with Error Codes (for Service Technicians) ................................................................................................ 46

Safety Requirements RTCSmp Built-In Module-Line Dual/Quad Cooktops
Part Number 4532415 12/14 Page 5
1Safety Requirements
WARNING This product contains chemicals known to the State of California to cause cancer.
Installation and servicing of this product could expose you to airborne particles of glass
wool / ceramic fibers. Inhalation of airborne particles of glass wool / ceramic fibers is
known to the State of California to cause cancer.
IMPORTANT Warning labels mounted directly on the induction unit must be observed at all times and
kept in a fully legible condition.
IMPORTANT To ensure your working environment is safe, you must follow all safety instructions
contained in this manual, the existing national regulations for accident prevention with
electrical systems, as well as any relevant company-specific safety instructions.
The induction unit should only be used if and only if the installation
of the electrical system is fitted by an approved installation
contractor in accordance with specific national and local regulations.
1.1 Important Electrical & Installation Requirements
This appliance component requires additional features and components to comply with appliance and electrical
standards. It is the responsibility of the customer and installer to interpret and comply with all applicable safety
and electrical standards. Refer to details in section 4 Installation.
1.2 Risk Involved By Disregarding Safety Information
Disregarding the safety instructions may cause harm to people, the surroundings, and the induction unit. Garland
is not responsible for any damages or personal injury caused by failure to observe the safety requirements. Risks
involved when disregarding safety precautions may include:
Death or injury caused by electric shock.
Injury due to burns from contacting overheated cooking surface, cookware, or oil and grease.
Damage to the induction unit caused by using unsuitable cookware.
1.3 Safety Instructions for Operator
Please follow the following rules to avoid personal injuries and property damages:
When the unit is in use, heat transfers from the cookware to the glass-top; the glass-top can become hot. To
avoid burn injuries, do not touch the heating area when the unit is in use.
The induction unit heats up cookware and cooks food quickly. Do not leave an empty pan on the unit and do
not leave the unit unattended during operation.

Safety Requirements RTCSmp Built-In Module-Line Dual/Quad Cooktops
6 Part Number 4532415 12/14
If the glass-top is cracked or broken, switch off the induction unit immediately and if possible and safe,
disconnect it from the power supply. Do not touch any parts inside the induction unit.
Persons with cardiac pacemakers should consult their doctors whether they are safe near an induction unit.
Ensure no liquid can enter into the induction unit. Do not let water or food overflow the cooking area. Do not
use hoses to clean or power wash the induction unit or its vicinity.
Do not put any other items on the glass-top except non-empty induction cookware.
oDo not leave any object such as paper, cardboard, or cloth between the cookware and the cooking
surface, as this might start a fire.
oDo not place any metallic objects other than cookware on the induction unit. Metallic objects (such
as closed cans, aluminum foil, cutlery, jewelry, or watches) are heated up very quickly when placed
on the induction unit while the unit is in use.
oDo not place credit cards, phone cards, tapes, or any objects sensitive to magnetism on the cooking
surface.
oDo not place plastic vessels and aluminum objects such as aluminum foil on the glass-top.
The induction unit has an internal air-cooling system. Do not block the air inlet and outlet slots with objects
such as containers. Any air obstruction could cause the unit to be overheated and to switch off.
Use only induction suitable cookware with proper sizes and made of proper material. The induction suitable
cookware should also be in good condition without any uneven, arched or partially detached bottoms.
Switch the unit OFF if you take the cookware away for a while. This will prevent the heating process to start
automatically and unintentionally when a pan is placed back on the heating area. If any person needs to use
the induction unit, he/she will have to turn the unit ON intentionally.
1.4 Improper Use of the Equipment
The reliability of the induction unit can only be guaranteed when it is used properly. The induction unit must
always be operated within the limits provided in the technical specifications. Please refer to section 9 Important
Rules of using induction equipment.
1.5 Unauthorized Modification and Use of Spare Parts
Please contact Garland if you intend to make any changes on the induction unit. For safety reasons, always use
genuine parts and accessories approved by Garland. Any unauthorized modification as well as any installation of
unapproved components will void all warranty.

Safety Requirements RTCSmp Built-In Module-Line Dual/Quad Cooktops
Part Number 4532415 12/14 Page 7
1.6 Pan Detection
When a temperature is chosen, the induction unit only transmits energy when a pan is placed in the heating zone.
If you remove the pan from the heating zone, power transfer to the pan stops immediately. If the pan is put back
in the heating zone, power is transferred to the pan again.
After switching off the unit, there is no heat retained inside the unit.
NOTE: Pan with a bottom diameter smaller than 5”(12 cm) is not detected by the system.
1.7 Cooking Zone Monitoring
Each cooking zone is monitored by multiple temperature sensors beneath the glass-top. The sensors can detect
overheated empty pans or overheated oil and grease. When this occurs, the system stops the energy supply to
the pan. You must turn the unit off and let it cool down before restarting it.
CAUTION
T
o avoid burn injuries, do not touch the unit when a pan is
overheated and take all the necessary precautions when
removing the overheated pan.

Components and Features RTCSmp Built-In Module-Line Dual/Quad Cooktops
8 Part Number 4532415 12/14
2Components and Features
2.1 Application
The unique RTCSmp Module-Line Cooktops are specially engineered for building the most flexible kitchen
operation. The Module-Line Family offers a wide selection of cooking surfaces: single, dual, quad cooktops with
round, full or a combination of round and full induction coils. In addition, griddle, braising pan, and wok cooking
options are also available.
These RTCSmp units provide numerous great features including fast heat up time, precise temperature
monitoring and control, temperature consistency, ease of use and maintenance. To guarantee the induction
units’ reliability and performance, please observe all safety, installation, and operation requirements mentioned in
this manual.
2.2 Components and Features
Built with a robust construction, the RTCSmp Induction Module-Line Cooktop is
modular and powerful with the revolutionary RTCSmp-Technology (Realtime
Temperature Control System with Multi-Point sensing). The RTCSmp Technology
monitors the energy supply, the state of the induction coil, power board, CPU,
and the cooking zone in realtime. RTCSmp also limits the energy supply during
peak load and its special control eliminates interference noises.
The module-line models include a number of components which allow for
optimal flexibility in designing an efficient kitchen. The unique features of each
component are outlined below. See also chapter 3 Dimensions and Technical
Specifications.
Each built-in Module-Line concept consists of: induction generator(s), control unit(s), coil carrier sheet(s) with coils
and sensors, operation unit(s) with rotary switch(es), 6mm thick Ceran glass-top(s), mounting frame(s) with
silicone gaskets, and cables.
Induction Generator:
OR
Can be installed up to 10 feet away from other components. | All electrical
connections can be accessed externally through plug connections. | Closed
aluminum housing with an integrated cooling fan to keep electronics cool. |
Integrated air guiding system to direct exhaust air out of the housing.
Versions:
IN/MO 7000FL, IN/MO 14000FL, IN/MO 7000, IN/MO 10000
Control Unit:
Information and diagnostic hub for the whole induction unit. | IR interface with
diagnostic system for service. | Connections to other unit components via plug
connections. | Compact design and easy to install using special installation
tabs/brackets.
Versions:
IN/MO7000/10000, IN/MO7000/14000

Components and Features RTCSmp Built-In Module-Line Dual/Quad Cooktops
Part Number 4532415 12/14 Page 9
Coil Carrier Sheet:
Multiple options available: round or full coil in single, dual, quad, or combination of round/full coil
configurations. | Compact and low profile design.
Full Coil (FL):Rectangular in shape. Several large or small pans can be placed on one surface at the same
time.
Round Coil: One pan is used for each heat-zone. Round coils have higher power density and energy
efficiency.
Visual differences between full and round coil carrier sheets and the corresponding glass-tops:
Glass-Top:
6mm thick Ceran glass-top. | Easy to clean and maintain. | Glass-top patterns
match the corresponding coil versions underneath: Full-Coil or Round-Coil.
Versions:
Dual: 360x360x6mm; 650x375x6mm; 720x360x6mm
Quad: 650x650x6mm; 720x720x6mm
Installation Frame:
Installation/mounting frame is supplied for flush mounting the coil carrier
sheet(s) and glass-top. | Silicone gaskets (not shown) included.
Five Sizes of Frames:
- for -360 or -360FL dual models with 360x360x6mm glasstop
- for -650 or -650FL dual models with 650x375x6mm glasstop
- for -720 or -720FL dual models with 720x360x6mm glasstop
- for -650 or -650FL quad models with 650x650x6mm glasstop
- for -720 or -720FL quad models with 720x720x6mm glasstop
Operation Unit:
The power switch (Operation Unit) regulates the temperature in power levels 1
to 12. | Simple to operate; adjust the temperature setting simply by turning the
knob. | LED light indicator (not shown) signals the ON/OFF state, pan detection
process and error codes. | Pre-assembled with plastic knob, LED light and cable
(1-meter).
Cable Kit:
2.5-meter cable kit(s) for 208V or 400V is included. Each kit includes cables for
induction coils, sensors, and CAN/BUS connections. Fan cables are included
where applicable. Induction coil cable std. length, 2.5m/98”; sensor cable,
1m/39”; CAN/BUS cable, std. 3m/118”.
Optional:
4-meter Cable Kit (208V); 4-meter Cable Kit (400V); 6-meter Cable Kit (208V); 6-
meter Cable Kit (400V)
Full Coil Round Coil
Coil Carrier Sheet
(Coils + Sensors)
Glass Top

Dimensions and Technical Specifications RTCSmp Built-In Module-Line Dual/Quad Cooktops
10 Part Number 4532415 12/14
3Dimensions and Technical Specifications
3.1 Rating Plate
T
he rating plate specifies important information such as model number,
serial number, and electrical specifications. The rating plate is affixed to
the side of the induction generator, next to the mains connection.
3.2 Nomenclature and Models
Series Style/
Function
Power
(Watt)
Glass Size
(mm)
Models
MO =
module-line
DU = Dual 7000
10000
360 x 360
650 x 375
720 x 360
MO DU 7000-360, MO DU 10000-360
MO DU 7000-650, MO DU 10000-650
MO DU 7000-720, MO DU 10000-720
DU = Dual
with FL=Full
coil(at end)
7000
14000
360 x 360
650 x 375
720 x 360
MO DU 7000-360FL, MO DU 14000-360FL
MO DU 14000-650FL
MO DU 14000-720FL
QU = Quad 14000
20000
21000
24000
650 x 650
720 x 720
MO QU 14000-650, MO QU 20000-650
MO QU 14000-720, MO QU 20000-720
MO QU 21000-720
MO QU 24000-720
QU = Quad
with FL=Full
coil(at end)
28000 650 x 650
720 x 720
MO QU 28000-650FL
MO QU 28000-720FL
3.3 Dimensions
For the dimensions of the components, please refer to the technical drawings in section 4 Installation.
3.4 Models and Components Charts
Models and Components Charts are provided in section 4 Installation. For each model, a list of components and
their electrical connections are shown. Quantities are specified on the charts.

Dimensions and Technical Specifications RTCSmp Built-In Module-Line Dual/Quad Cooktops
Part Number 4532415 12/14 Page 11
3.5 Electrical Specifications
Model - DUAL Voltage Power #
Circuits
Conductor
Size # Coils #Coo
k
-
Zones
MO DU 7000 360 FL
208 V AC/ 3Ph/ 60Hz 7000W(2x3500 W)/ 22A 1 AWG 10 2
rectangular
coils
1400 V AC/ 3Ph/ 50Hz 7000W(2x3500 W)/ 11A 1 1.5mm2
440 V AC/ 3Ph/ 50Hz 7000W(2x3500 W)/ 10A 1 1.5mm2
MO DU 7000 360
MO DU 7000 650
MO DU 7000 720
208 V AC/ 3Ph/ 60Hz 7000W(2x3500 W)/ 22A 1 AWG 10 2 round
coils 2
400 V AC/ 3Ph/ 50Hz 7000W(2x3500 W)/ 11A 1 1.5mm2
440 V AC/ 3Ph/ 50Hz 7000W(2x3500 W)/ 10A 1 1.5mm2
MO DU 10000 360
MO DU 10000 650
MO DU 10000 720
208 V AC/ 3Ph/ 60Hz 10000W(2x5000 W)/ 30A 1 AWG 8 2 round
coils 2
400 V AC/ 3Ph/ 50Hz 10000W(2x5000 W)/ 16A 1 2.5mm2
440 V AC/ 3Ph/ 50Hz 10000W(2x5000 W)/ 15A 1 2.5mm2
MO DU 14000 360 FL
MO DU 14000 650 FL
MO DU 14000 720 FL
208 V AC/ 3Ph/ 60Hz 14000W(4x3500 W)/ 22A 2 AWG 10 4
rectangular
coils
2
400 V AC/ 3Ph/ 50Hz 14000W(4x3500 W)/ 11A 2 1.5mm2
440 V AC/ 3Ph/ 50Hz 14000W(4x3500 W)/ 10A 2 1.5mm2
Model - QUAD Voltage Power #
Circuits
Conductor
Size # Coils #Coo
k
-
Zones
MO QU 14000 650
MO QU 14000 720
208 V AC/ 3Ph/ 60Hz 14000W(4x3500 W)/ 22A 2 AWG 10 4
round coils 4
400 V AC/ 3Ph/ 50Hz 14000W(4x3500 W)/ 11A 2 1.5mm2
440 V AC/ 3Ph/ 50Hz 14000W(4x3500 W)/ 10A 2 1.5mm2
MO QU 20000 650
MO QU 20000 720
208 V AC/ 3Ph/ 60Hz 20000W(4x5000 W)/ 30A 2 AWG 8 4
round coils 4
400 V AC/ 3Ph/ 50Hz 20000W(4x5000 W)/ 16A 2 2.5mm2
440 V AC/ 3Ph/ 50Hz 20000W(4x5000 W)/ 15A 2 2.5mm2
MO QU 2100 720
208 V AC/ 3Ph/ 60Hz
21000W(Round Coil
2x3500W + Full Coil
4x3500 W)/ 22A
3 AWG 10
2 round + 4
rectangular
coils
4400 V AC/ 3Ph/ 50Hz
21000W(Round Coil
2x3500W + Full Coil
4x3500 W)/ 11A
3 1.5mm2
440 V AC/ 3Ph/ 50Hz
21000W(Round Coil
2x3500W + Full Coil
4x3500 W)/ 10A
3 1.5mm2
MO QU 2400 720
208 V AC/ 3Ph/ 60Hz
24000W(Round Coil
2x5000W + Full Coil
4x3500 W)/ 30A
3 (1x) AWG 8
(2x) AWG 10
2 round + 4
rectangular
coils
4
400 V AC/ 3Ph/ 50Hz
24000W(Round Coil
2x5000W + Full Coil
4x3500 W)/ 16A
3 (1x) 2.5mm2
(2x) 1.5mm2
440 V AC/ 3Ph/ 50Hz
24000W(Round Coil
2x5000W + Full Coil
4x3500 W)/ 15A
3 (1x) 2.5mm2
(2x) 1.5mm2
MO QU 28000 650 FL
MO QU 28000 720 FL
208 V AC/ 3Ph/ 60Hz 28000W(8x3500 W)/ 22A 4 AWG 10 8
rectangular
coils
4
400 V AC/ 3Ph/ 50Hz 28000W(8x3500 W)/ 11A 41.5mm2
440 V AC/ 3Ph/ 50Hz 28000W(8x3500 W)/ 10A 41.5mm2

Dimensions and Technical Specifications RTCSmp Built-In Module-Line Dual/Quad Cooktops
12 Part Number 4532415 12/14
3.6 Operating Conditions
Max. Tolerance of Nominal Supply Voltage +6 /-10 %
Network Impedance (Zmax.) 0.25Ω
Supply frequency 50/60 Hz
Amperage Nominal Value — 400V, 3Ph
10A for the 7kW generator (4 x 1.5mm2)
15A for the 10kW generator (4 x 2.5mm2)
2 x 10A for the 14kW generator (2 x (4 x 1.5mm2))
Amperage Nominal Value — 208V, 3Ph
20A for the 7kW generator (4x AWG 10)
29A for the 10kW generator (4x AWG 8)
2 x 20A for the 14kW generator (2 x (4 x AWG 10))
Ingress Protection class IP X0 (Protection by customer is required.)
Maximum Ambient Temperature In Storage -4°F to +158°F (-20°C to +70°C)
In Operation +41°F to +104°F (+5°C to +40°C)
Maximum Relative Air Humidity In Storage 10% to 90%
In Operation 30% to 90%
Temperature/Power Regulator Potentiometer 10 kOhm
LED Indicator Lamp 24VDC / max. 40mA (Green)
Clearance from materials for generator Min. 1.57”(40mm) for air intake and exhaust openings
Min. 0.39”(10mm) for side clearance
Min. Induction Cooking Pan Diameter 5” (12cm)
Max. Air Flow of Fan is 70.63 cfm (120 m3/h), Fresh Air Inlet Opening of 10.08 sq. in. (6500 mm2) is required.
3.7 Compliances
North American models:
ETL recognized* in compliance with UL 197, CSA C22.2 No.109, NSF-4. Complies with FCC part 18, ICES-001
CE models comply with the latest European Norms:
EN 60335-1, EN 60335-2-36, EN 62233 (EMC/EMV)
*see section 4.1.

Installation RTCSmp Built-In Module-Line Dual/Quad Cooktops
Part Number 4532415 12/14 Page 13
4Installation
4.1 Important Safety & Electrical Requirements
This appliance component requires additional features and components to comply with appliance and
electrical standards. It is the responsibility of the customer and installer to interpret and comply with all
applicable safety and electrical standards.
oThis product requires the addition of:
A suitable non-flammable electrical enclosure; a means to conceal and protect
components and wiring.
Grounding and bonding to the enclosure.
Markings to show appliance ratings and end manufacturer information.
Investigation by local electrical authority. Warning and caution labels and other
markings required by electrical and safety standards could be provided by local
authority.
oDepending on the application and configuration of this product, consider the addition of:
Field supply connection terminals (terminal block).
Branch circuit protection (breakers).
Fans, ventilation or cooling systems and controls.
The installation, including electrical installation, must be carried out by registered installation contractors
only. The contractors are responsible for interpreting all instructions correctly and performing the
installation in compliance with national and local regulations. The warning signs and rating plates on the
cooking equipment must strictly be followed.
Read ALL SECTIONS carefully, comply with all requirements listed and ensure all inspection is done by
qualified personnel.
Refer to the technical data given in chapter 3 Dimensions and Technical Specifications.
Induction equipment that is not installed correctly will have warranty voided. See Warranty, p.2.
4.2 Installation Overview and Installation Clearance
4.2.1 Installation Overview
To protect the induction unit and wiring, we recommend isolating the generator, the coil carrier sheets, and the
wires in separate electrical compartments inside the cabinet (Figure B). The illustration also shows a simplified
representation of an installation.
IMPORTANT To ensure reliability of the induction unit, the cabinet/compartments must have sufficient
ventilation for the exhaust. Buildup of hot exhaust air will cause the unit to reduce power or to
switch-off. See 3.5 Operating Conditions.

Installation RTCSmp Built-In Module-Line Dual/Quad Cooktops
14 Part Number 4532415 12/14
Figure (A) All components are installed inside one single compartment and the wires are exposed.
Figure (B) The interior space of the cabinet is divided. The coil carrier sheet, the control unit and their wiring
are protected inside the upper compartment; the generator and its wiring are protected inside
the lower compartment. Extra storage space can also be created.
(C) IMPORTANT Fresh air intake. It is recommended to isolate the fresh air intake
from the exhaust air via an air intake duct, an air outlet duct or both. Filter the
intake air with a removable air filter (right, an example).
(D) Hot air exhaust from the induction generator.
(E) IMPORTANT Air exhaust opening installed on the cabinet. It is highly
recommended to install a fan or fans on the cabinet to pull hot exhaust air away
from the electronic equipment. Buildup of hot exhaust air will cause the induction
unit to reduce power or to switch-off.
(F) CLEARANCE Minimum clearance, see section 4.2.2.
(G) A Coil Carrier Sheet and Mounting Frame.
(H) CLEARANCE Minimum clearance, see section 4.2.2.
(I) Maximum distance between the control unit and the coil carrier sheet is 80 cm/31.5”. See (M).
(J) Control Unit.
(K) RJ45 CAN/BUS cable, standard length= 3m / 118” , to connect the control unit to the generator.
(L) Power switch cable, length= 0.9m / 36” , to connect the operation unit (power switch) to control unit.
Maximum distance between the control unit and the operation unit: 80 cm/31.5”.
(M) Sensor cable, length= 1m / 39” , to connect the sensors on the coil carrier sheet to the control unit.
(N) Induction coil cable, standard length= 2.5m / 98” , to connect the induction coils on the coil carrier
sheet to the generator.
IMPORTANT Always route sensor and communication cables separately and away from the coil
cables.
(O) Main power cable (not provided).
H
F
G
F
N
H
M
G
L
F
N
OO
M
L
D
E
Figure BFigure A
C
K
J
D
E
C
K
J
I I
Air Intake Filter
Filter Holder
Filter H
o
l
d
er

Installation RTCSmp Built-In Module-Line Dual/Quad Cooktops
Part Number 4532415 12/14 Page 15
4.2.2 Installation Clearance
a
Cable Bend /
Connection Clearance
(minimum)
b
Air Exhaust/
Intake Clearance
(minimum)
c
Clearance
(minimum)
Induction
Generator 127mm / 5” 40mm / 1.57”
10mm / 0.39”
(sides, top,
and bottom)
Control
Unit 70mm / 2.75” --
38mm / 1.5”
(for service
interface)
Coil Carrier
Sheet 127mm / 5” --
100mm /
3.94”
(below coil
carrier sheet)
Operation
Unit 12.7mm / 0.5“ -- --
4.3 Induction Generator
IMPORTANT
The maximum operating temperature for the induction unit must not exceed 104F (40C).
Buildup of hot exhaust air around the induction unit will cause the unit to reduce power or to switch-off.
Recommended: At an appropriate location on the cabinet, install an exhaust fan to force hot air out the
cabinet and away from the induction unit. Consult an electrical or installation expert for the most
appropriate location to install a cabinet exhaust fan.
Recommended: Filter the intake air with an air intake filter. Kitchen air often contains grease laden
vapors. Grease deposits inside the generator may cause overheating. Failure to provide clean fresh
cooling air may void warranty.
NOTE: Additional fans and cooling controls are the responsibility of the customer and installer.
Refer to the data in section 3.5 Operating Conditions.
a
c
bb
c
c
c
c
a
a
a

Installation RTCSmp Built-In Module-Line Dual/Quad Cooktops
16 Part Number 4532415 12/14
4.3.1 Location
It is possible to install the induction unit near heat-producing or steam-producing equipment such as an
oven or a fryer. However, use an external fan to pull hot air, greasy fume, and moisture away from the
induction unit.
If the generator is installed directly under the induction coil or in the same chamber of as the coil, ensure
the ventilation system will keep the ambient temperature below 104F (40C).
Keep all combustible materials, vapors or liquids away from the generator.
Ensure the installed location of the generator is safe from any ingress of liquid into the immediate
vicinity.
The generator can be mounted in any orientation as long as:
othe equipment and cable connections are accessible for maintenance and service.
othe fresh air intake and exhaust air outlet are not blocked.
4.3.2 Ventilation
Maximum air flow of the fan is 70.63 cfm (120 m3per hour) and therefore a minimum opening of 10.08
sq. in. (6500 mm2) is required around the fresh air intake.
An optimal air circulation and air flow must not be restricted by installation.
The in-take air and exhaust air must not mix. Recommended: To avoid build-up of hot exhaust air inside
the cabinet, use a fan to draw the exhaust air out, or provide a separate exhaust air plenum. Note that
additional fans and cooling controls are the responsibility of the customer and installer.
4.3.3 Dimensions
Models: MO DU 7000/ 10000 MO QU14000/ 20000/ 21000/ 24000
23.62” (600 mm)min 1.57” (40 mm) min 5” (127mm)
23.62” (600 mm)
14.17”
(360 mm)
6.02” (153 mm) 2.58”
(65.5 mm)
6.81” (173 mm)
6.22”
(158 mm)
3.98”
(101 mm)
3.98”
(101 mm)
1.02”
(26 mm)
mains connection
CAN/BUS
air exhaust
clearance
air supply
coil
connection
eld 1+2
air supply
air exhaust
1.57”
(40 mm)
fan
cable bend
clearance

Installation RTCSmp Built-In Module-Line Dual/Quad Cooktops
Part Number 4532415 12/14 Page 17
Models: MO DU 14000/ 20000 MO QU 21000/ 24000/ 28000
4.4 Control Unit and Operation Unit (Power Switches)
4.4.1 Location
Distance of the control unit from the coil carrier sheet: MAX 800mm / 31.5”.
Distance of the control unit from the operation units (power switches): MAX 800mm / 31.5”.
Keep the Service Interface window on the control unit accessible for service.
Ensure the equipment and cable connections are accessible for maintenance and service.
4.4.2 Ventilation
It is possible to install the induction unit near heat-producing or steam-producing equipment such as an
oven or a fryer. However, use an external fan to pull hot air, greasy fume, and moisture away from the
induction unit.
The maximum operating temperature for the induction unit must not exceed 104F (40C).
3.98”
(101 mm)
3.98”
(101 mm)
6.22”
(158 mm)
14.17”
(360 mm)
23.62” (600 mm)
23.62” (600 mm)
air
supply
mains connection
eld 1
coil connection
eld 2
mains connection
eld 2
coil connection
eld 1
CAN/BUS
6.02” (153 mm)
6.81” (173 mm)
1.57” (40 mm)
0.91” (23 mm)
1.57” (40 mm)
2.09”
(53 mm)
5.16” (131 mm)
min 1.57” (40 mm)
min 5” (127mm)
air exhaust
clearance
cable bend
clearance

Installation RTCSmp Built-In Module-Line Dual/Quad Cooktops
18 Part Number 4532415 12/14
4.4.3 Mounting Methods
Control Unit:
oInstallation brackets are provided to mount the control unit. See “Mounting Version” in section
4.4.4 Dimensions– Control Unit.
oMount the control unit directly onto the cabinet compartment wall/shelf, or
oStud-mount the control unit onto the back of the cabinet front panel. Use the dimensions
provided in section 4.4.5 Dimensions Guide as a template to install the control unit, the
operation units (power switches) and the LED Indicator lights.
oKeep the Service Interface window on the control unit accessible for service.
IMPORTANT: To prevent the operation units (power switches) from rotating during operation,
secure these units onto the panel with two (2) M4 screws. See section 4.4.5 Dimensions Guide.
4.4.4 Dimensions – Control Unit
7.87” (200 mm)
3.35” (85 mm) 1.18” (30 mm)
0.51” (13 mm)
0.51” (13 mm)
2.60” (66 mm)
0.31” (8 mm)
0.79” (20 mm)
0.91”
(23 mm)
2.95” (75 mm)
1.77” (45 mm)
0.59”
(15 mm)
0.39” (10 mm)
0.51”
(13 mm)
0.98” (25 mm)
0.59”
(15 mm)
0.59”
(15 mm)
1.85” (47 mm)
Cable Bend Radius/
Service Clearance
min 70mm / 2.75”
Service Interface
Clearance
min 38mm / 1.5”

Installation RTCSmp Built-In Module-Line Dual/Quad Cooktops
Part Number 4532415 12/14 Page 19
4.4.5 Dimensions Guide (Holes/Studs)
Dimensions in mm [inch]
min.
min.
with EMI
min. without EMI min. with EMI
backside stove cover
DETAIL
A
A
opening LED
eld 1/2
opening LED
eld 1/2
holes for
rotary knob
xation
eld 1/2
holes for
rotary knob
xation
eld 1/2
control unit
with or without EMI
welding bolts
M4 / M5
X
X
Y
Y
Y
X
welding bolts, for mounting version 1, 2, 3
welding bolts, for mounting version 4
30 [1.18]
226 [8.96]
27 [1.06]
57 [2.24]
125 [4.92] 155 [6.1]
30 [1.18]
101 [3.98]
14 [0.55]
28 [1.10]
14 [0.55]
10.2 [0.4]
5 [1.2]
8.2 [0.32]
38 [1.50]
5 [1.2]

Installation RTCSmp Built-In Module-Line Dual/Quad Cooktops
20 Part Number 4532415 12/14
4.5 Coil Carrier Sheet, Ceran Glass and Mounting Frame
4.5.1 Location & Ventilation Requirements for Coil Carrier Sheet Installation
A Coil Carrier Sheet houses the induction coil and sensor assemblies, which are installed directly under
the glass-top.
Distance from the control unit to the coil carrier sheet: MAX. 31.50” / 800mm.
Clearance below the coil carrier sheet: MIN. 3.94” / 10 cm. This clearance must be maintained for
installation and service. Ensure this area can be easily accessible for maintenance and service.
MUST NOT install or store any metallic objects or components below the induction coils.
When placed in the vicinity of other coils, objects/components that are made of steel must be non-
magnetic.
Prevent moisture, hot ambient air or greasy fume being drawn into the installation compartment,
especially when the appliances are near a fryer or oven.
oMaintain ambient temperature below 104F (40C) for proper functioning of the unit.
oInstall extra fan in the compartment to remove any hot air away from the induction unit.
Keep all the combustible materials, vapors or liquids away from the coil carrier sheets.
4.5.2 Countertop Cut-outs Dimensions
NOTE: The cut-out dimensions are specified in the drawings of the mounting frames. These dimensions include
widths for silicone sealant, 4mm on each side.
A line of silicone sealant of 4mm wide must be applied around the glass perimeter to prevent any ingress of liquid
into the unit.
4.5.3 Correct Orientation – Coil Carrier, Glass and Frame
When designing a kitchen layout with quad models, ensure to orient the mounting frame correctly to allow for
ease of installation and service. See section 4.5.5 Installation Steps.
The orientation of the frame needs to match the orientations of the glass and the coil carrier sheets. Follow the
chart below to ensure the correct placement is incorporated into the kitchen design and installation.
49mm/
1.93”
Clearance Minimum
10 cm / 3.94”
Below Coil Carrier Sheet
Optimal contact pressure
of the coil carrier on
Ceran glass 5mm.
Ceran Glass
Silicone Gasket
Coil Carrier Sheet
To Induction
Generator
Distance Maximum
800 mm / 31.5”
Distance Maximum
800 mm / 31.5”
Coil Connection to
Generator
55 mm / 2.17” (without compression)
50 mm +/- 2mm (with correct compression
when installed)
